![[Pre-Owned] 2025 Specialized Stumpjumper 15 Ohlins - Size S5](http://www.incycle.com/cdn/shop/files/WSBC014320425U-8.jpg?v=1760071331&width=1445)
Inspection Notes
- Excellent condition

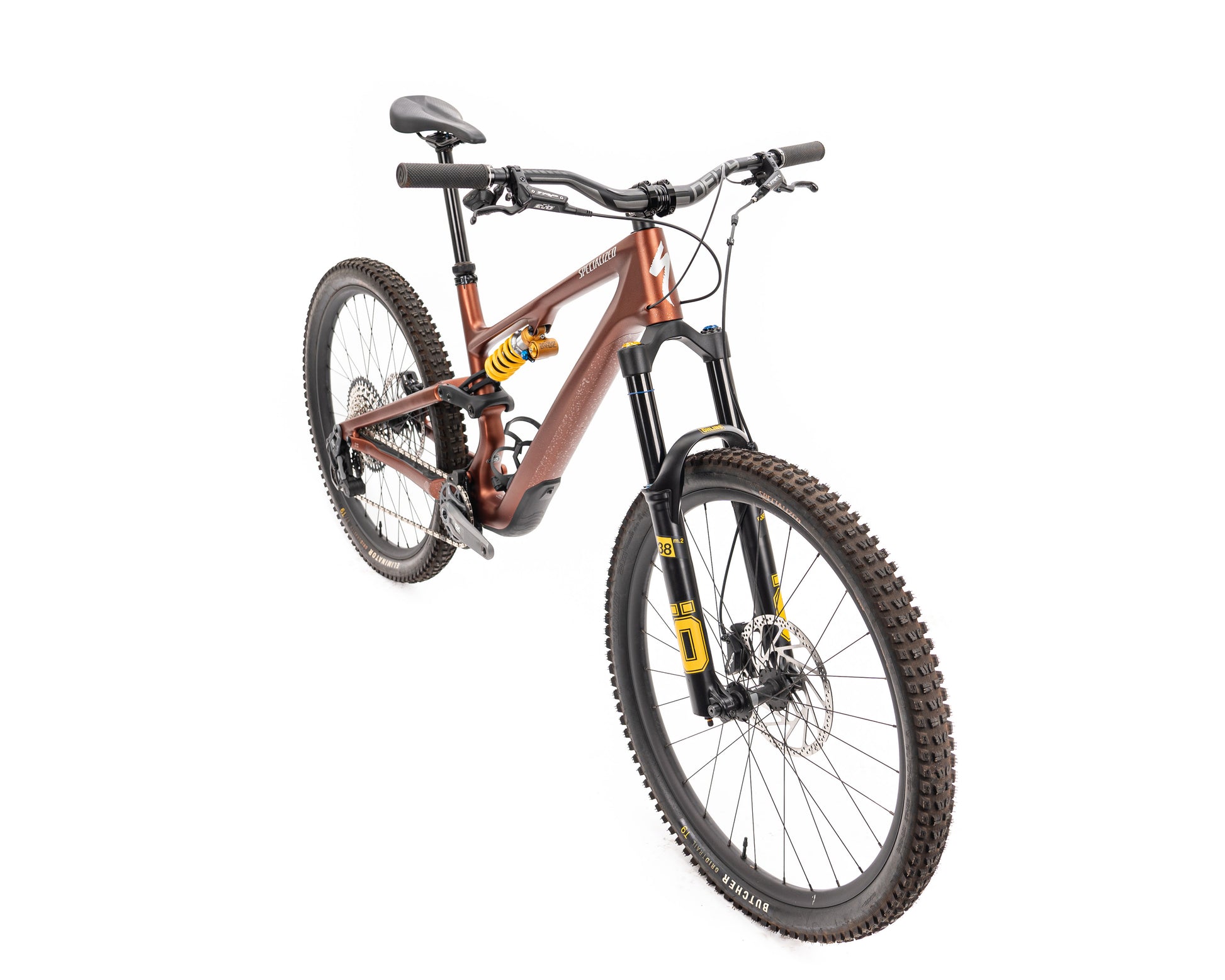

- Fork scuff

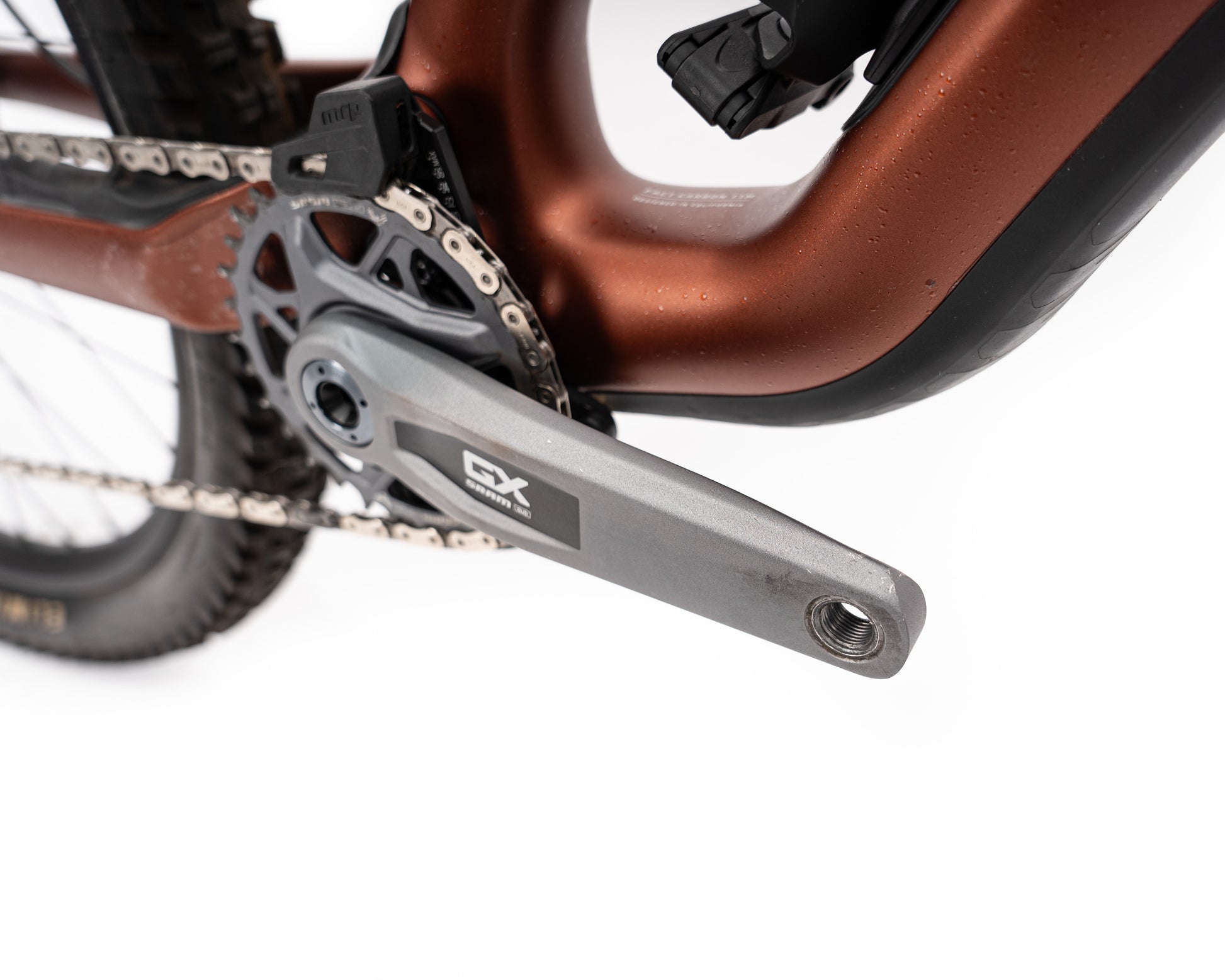

- Crank arm scuffs

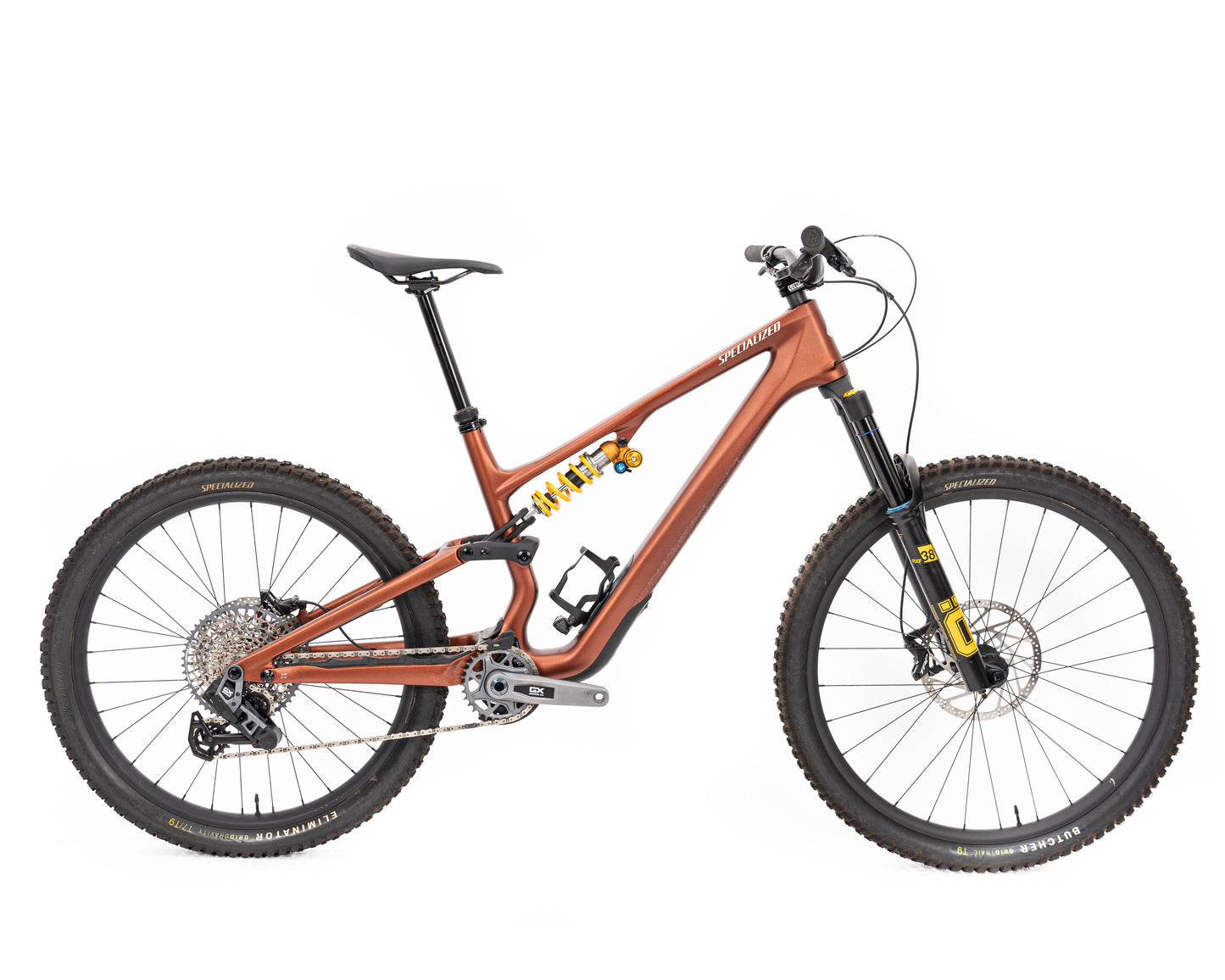

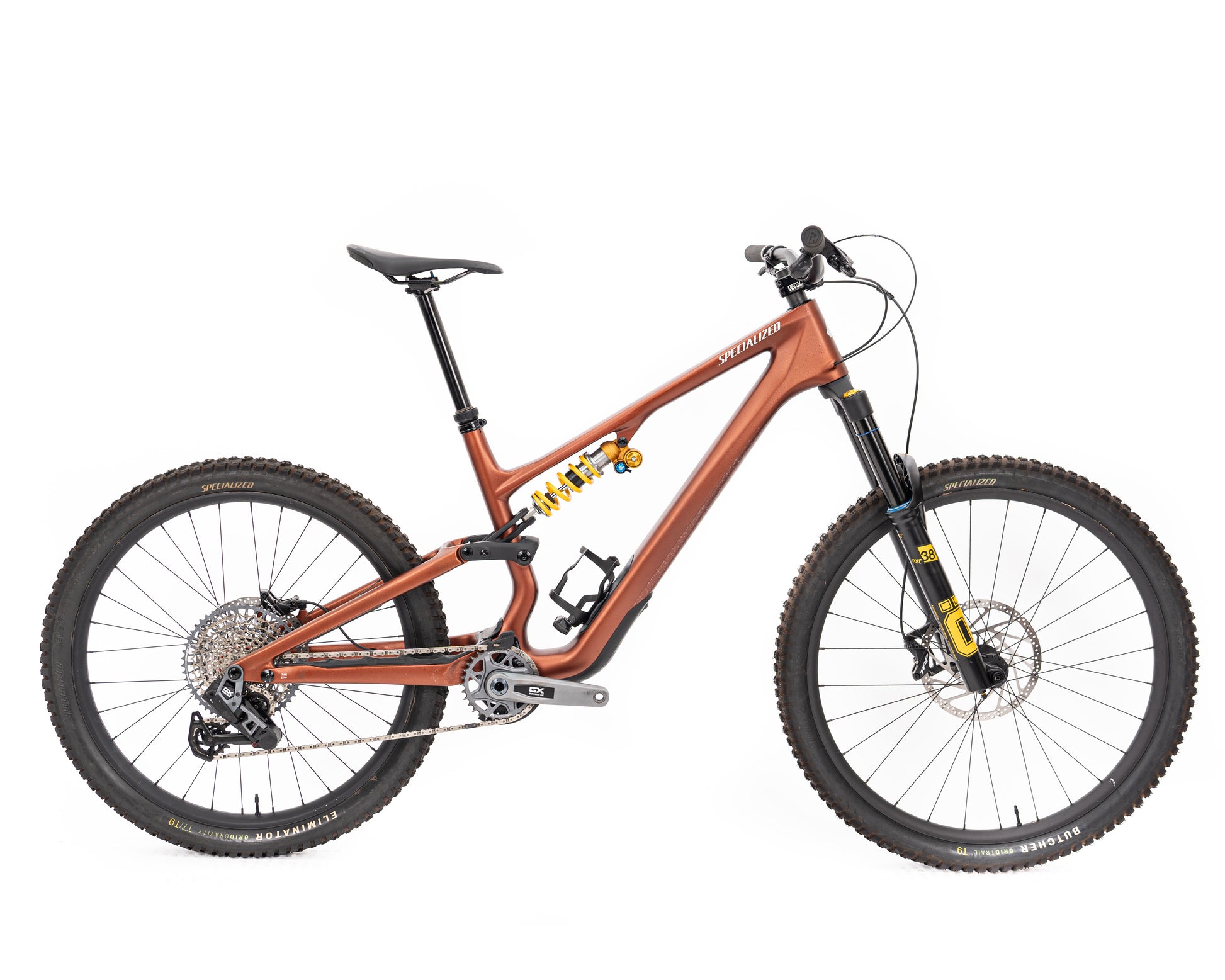

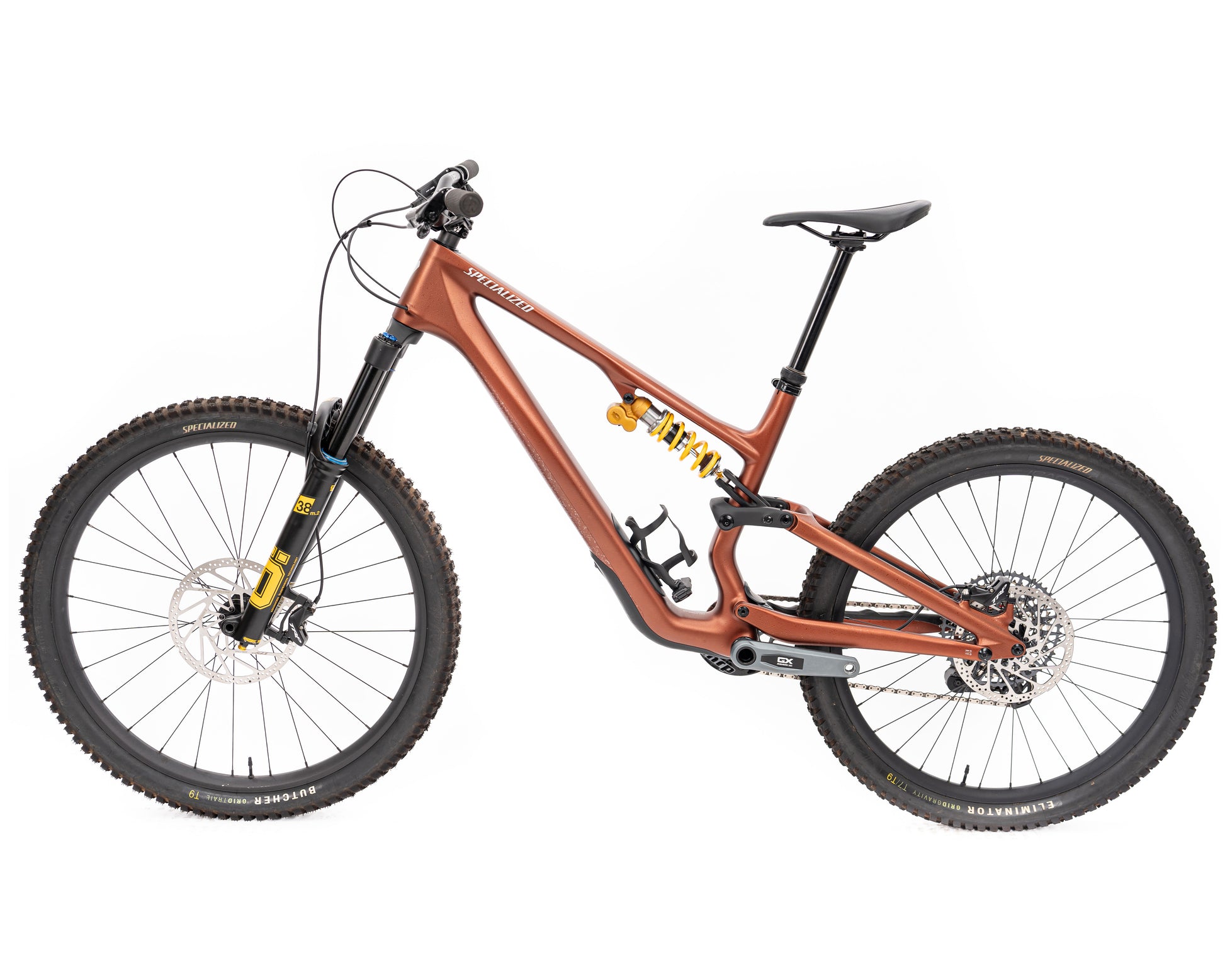

[Pre-Owned] 2025 Specialized Stumpjumper 15 Ohlins - Size S5 Features

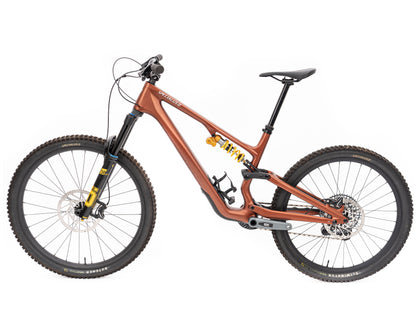

This is a pre-owned 2025 Specialized Stumpjumper 15 Ohlins - Size S5. Please reference photos and description for condition.Bike is sold as-is, subject to manufacturers’ warranties (to the extent applicable and available). Disclaimer: This bike was apart of our Demo/Rental Program and may have had multiple riders.
Stumpjumper 15 is here to obliterate every trade-off in the trail game. Devour bumps like a big bike? Check. Short-travel control, playfulness, and efficiency? Double check. How about a heaping helping of personalization to make it perfect for the only rider who really matters—you? Check, check, check.
KINEMATICS PERFECTED: As the quintessential trail bike, Stumpjumper 15 balances efficiency and optimal bump force management. For the anti-squat on Stumpjumper 15, we struck a balance between the previous Stumpjumper and Stumpjumper EVO, as both had excellent pedaling characteristics.
HONED GEOMETRY: This bike’s geometry delivers big bike capability when you need it, a nimble feel in tight sections, and lively, efficient climbing manners. The generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack head tube angle, and optimized fork offset keep things stable in the rough.
RIDE YOUR WAY: The Stumpjumper 15 seamlessly integrates benchmark geo adjustability, making it the most personalizable trail bike ever. Six distinct geometry settings allow you to hone performance for any style, any terrain. Head angle and bottom bracket can be fine-tuned for stability or clearance.
FORM FOLLOWS FUN: We can make a frame as stiff as we want, but there’s such a thing as too stiff. To be one with the bike requires engineered compliance in the frame. We engineered the FACT 11M carbon—front end, rear end, and the link between them—as a single unit that hits the stiffness target we established for trail riding.
WHEEL SIZE: All coil-sprung models come with mixed wheels.
WHEEL CHOICE: With our aftermarket link shock links, you can choose between big wheels front and rear or mix things up with a 27.5” rear for a more responsive and playful ride. No matter what you choose, geometry is unaffected.
CARRY IT ALL: SWAT 4.0 on Stumpjumper 15 elevates downtube storage, an innovation we pioneered. It’s the smoothest operating, most weather-resistant, flush-mounted system ever.
MORE RELENTLESS THAN YOU: Our full suspension bikes are built to be relentless, designed to endure years of hard riding and backed by the best support and policies to keep you on the trail. Our unbeatable lifetime, no-questions-asked replacement of suspension pivot bearings to the original owner is just one way we've got you covered.
- Lightweight FACT 11m carbon chassis and rear-end
- Incredibly tough Roval Traverse wheels with DT Swiss 370 hub
- Premium suspension support from an Öhlins TTX 22 M Coil, Ride Dynamics tuned
- Plow through anything with a 160mm Öhlins RXF38 M.2 29 fork

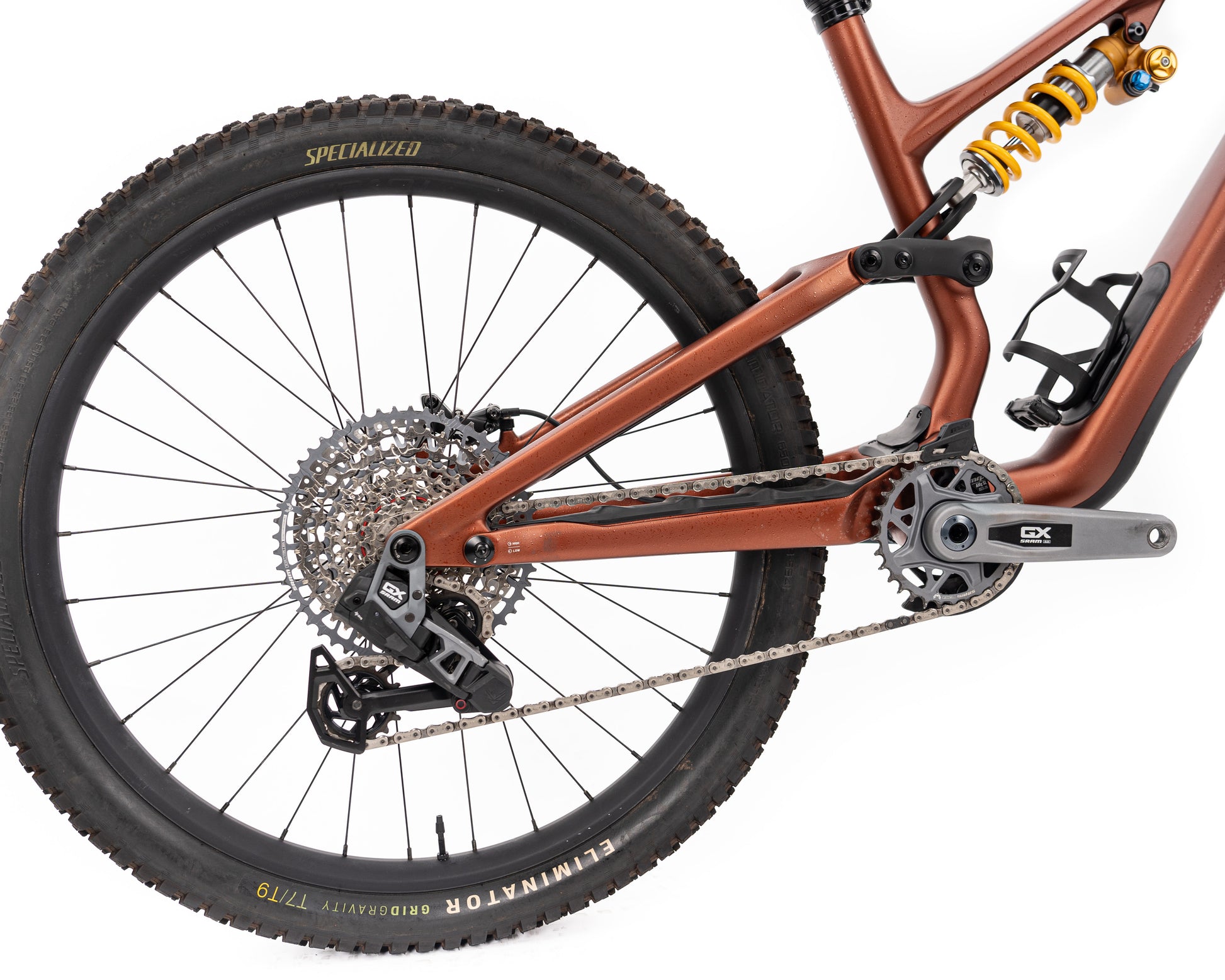

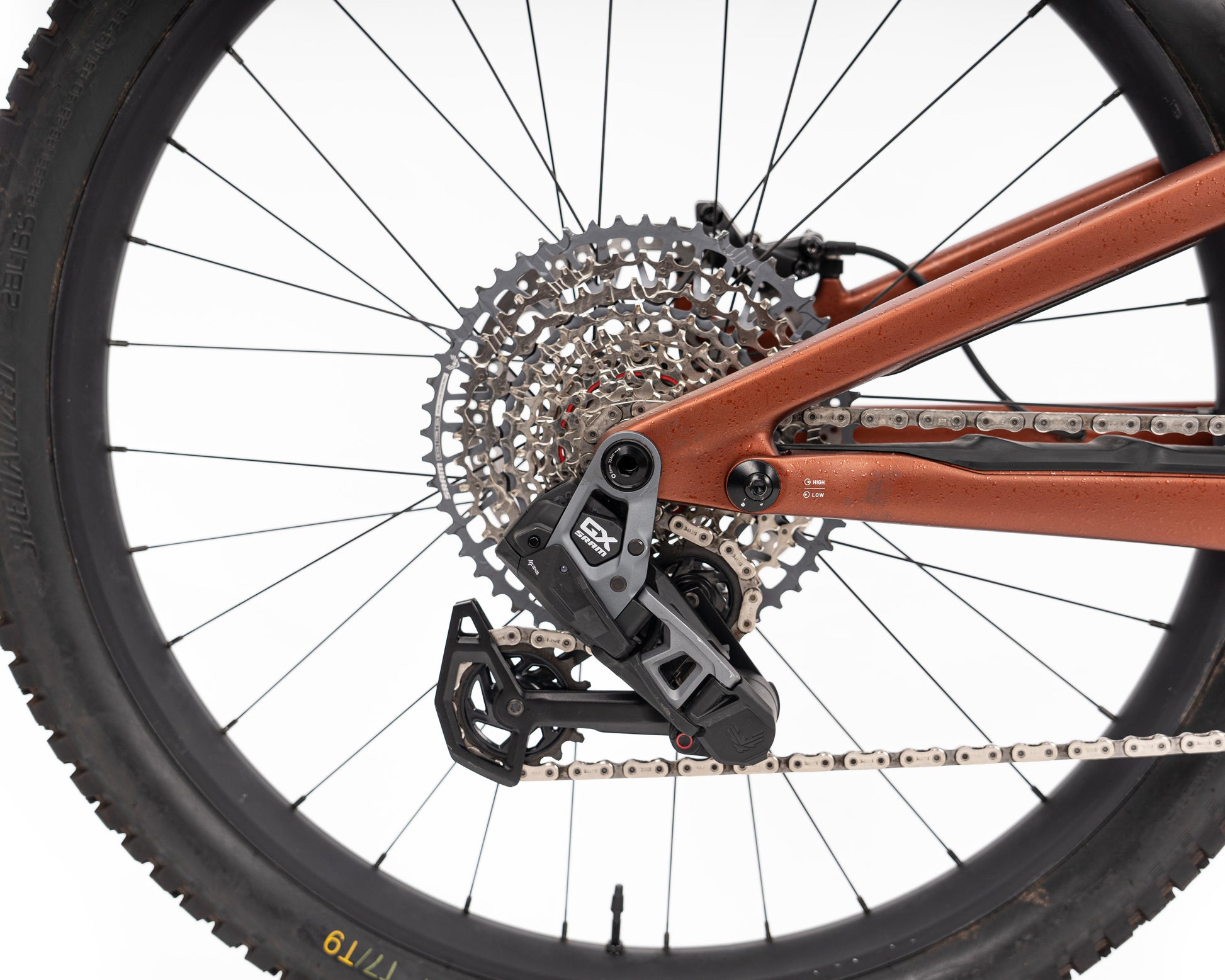

- Reliable and smooth shifting from SRAM GX Eagle AXS T-Type drivetrain
- Powerful brakes with great hand feel thanks to TRP DH-R EVO 4-piston brakes
- Adjustable travel PNW LOAM dropper post
- Lifetime replacement of suspension pivot bearings to the original owner
- Compatible with electronic drivetrains only
Component Specifications
| Frame | FACT 11m carbon chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal brake and dropper cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel |
| Fork | Öhlins RXF38 M.2 29, TTX Twin Tube Damping, external low speed rebound adjust, external high and low speed compression adjustment, 15x110mm, 44mm offset, 160mm of travel |
| Rear Shock | Öhlins TTX 22 M Coil, Ride Dynamics trail tune, external rebound adjust, external high and low speed compression adjustment, 210x55, S2: 434lbs, S3: 480lbs, S4: 525lbs, S5: 571lbs, S6: 605lbs |
| Cassette | SRAM GX Eagle Transmission Cassette, 12spd, 10-52t |
| Chain | SRAM GX Eagle Transmission Flattop Chain |

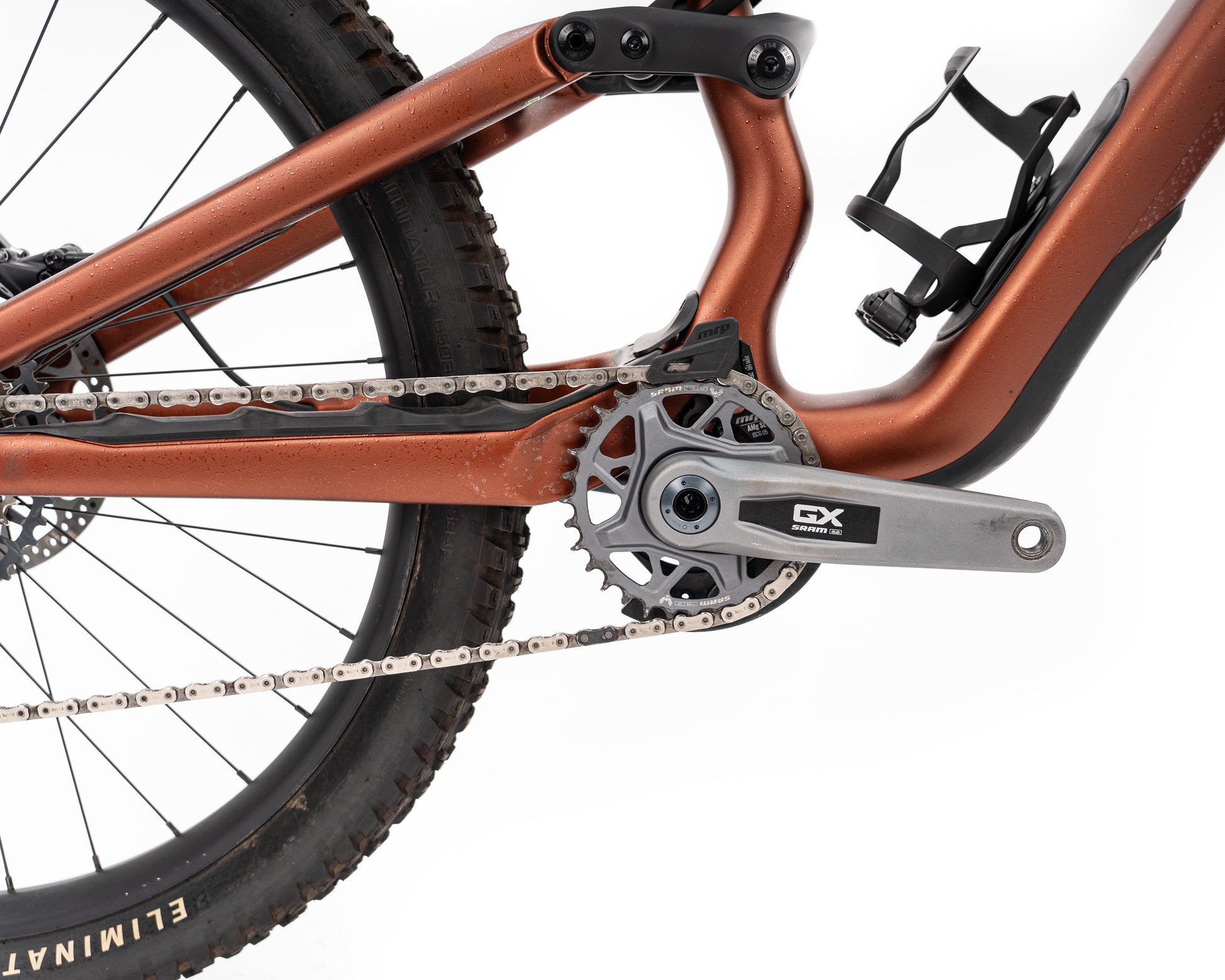

| Crankset | SRAM GX Eagle Crankset, 32T ring, 55mm Chainline, S2-S3:165mm, S4-S6: 170mm |
| Bottom Bracket | SRAM DUB, BSA 73mm Wide, Threaded |
| Rims | Roval Traverse, hookless alloy, 30mm inner width, tubeless ready, Front: 29, Rear: 27.5 |
| Spokes | Sapim Force |

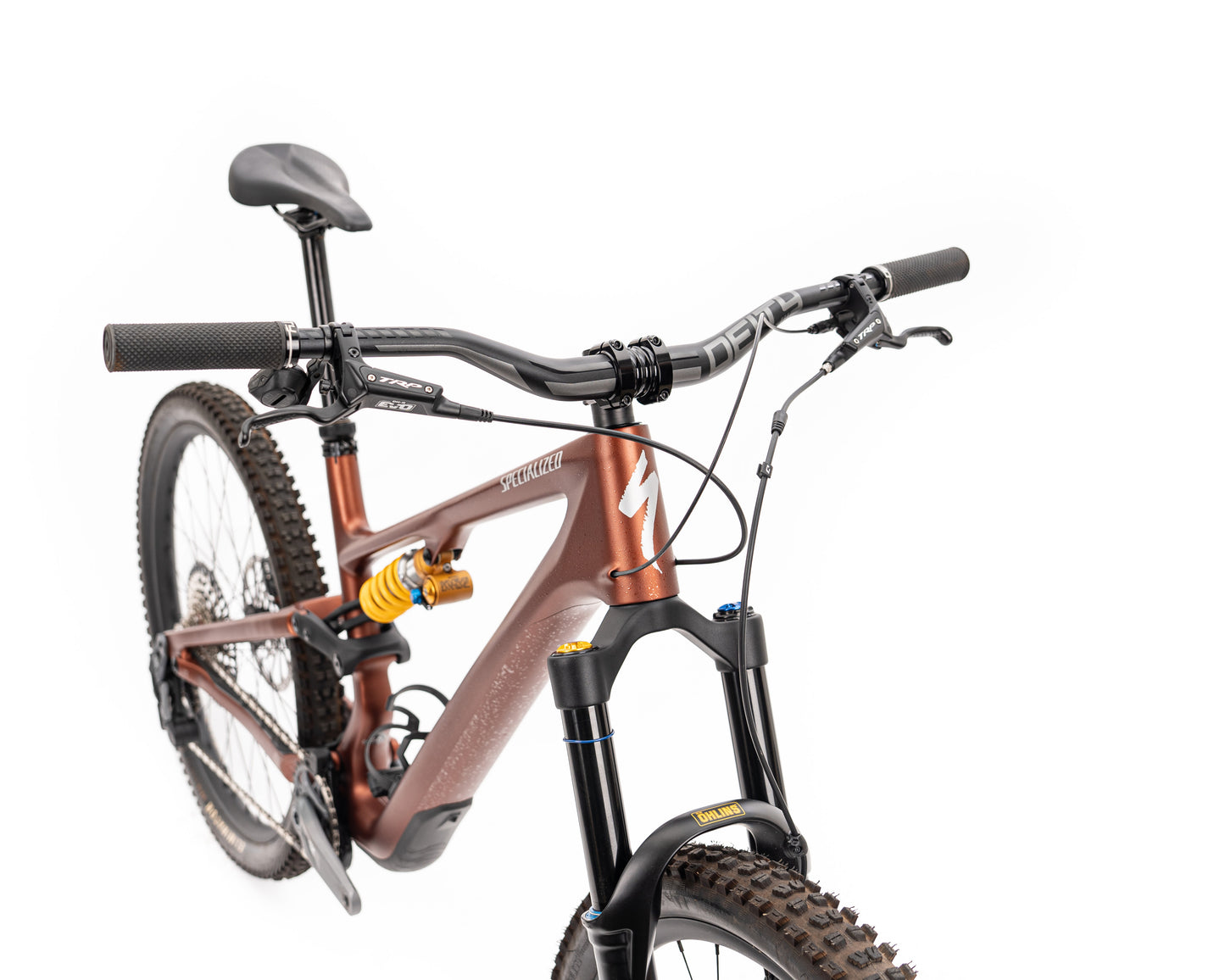

| Stem | Deity, 35mm clamp, 35mm length |
| Grips | Diety, Supracush, Black |
| Saddle | Bridge Comp, Hollow Cr-mo rails, S1-S2: 155mm, S3-S6: 143mm |
| Seatpost | PNW Loam Dropper, tool-less travel adjust, Range lever, 34.9, S2: 150mm, S3: 170mm, S4-S6: 200mm |
[Pre-Owned] 2025 Specialized Stumpjumper 15 Ohlins - Size S5
| Bike/Frame Size | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|
| Stack | 621 mm | 630 mm | 644 mm | 657 mm | 671 mm |
| Reach | 420 mm | 445 mm | 470 mm | 495 mm | 525 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 442 mm | 442 mm |
| Wheelbase | 1186 mm | 1216 mm | 1247 mm | 1288 mm | 1325 mm |
| Top-tube Length (horizontal) | 574 mm | 596 mm | 625 mm | 649 mm | 678 mm |
| Bike Standover Height | 751 mm | 745 mm | 745 mm | 745 mm | 751 mm |
| Seat Tube Length | 385 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Seat Tube Angle | 76.5° | 76.5° | 76° | 76° | 76° |
| Saddle Height for Effective ST Angle | 690 mm | 735 mm | 780 mm | 825 mm | 870 mm |
| Max Seatpost Insertion | 245 mm | 255 mm | 255 mm | 285 mm | 285 mm |
| Min Seatpost Insertion | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Headtube Length | 100 mm | 110 mm | 125 mm | 140 mm | 155 mm |
| Headtube Angle | 64° | 64° | 64° | 64° | 64° |
| BB Height | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| BB Drop | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Trail | 134 mm | 134 mm | 134 mm | 134 mm | 134 mm |
| Fork Length (full) | 573 mm | 573 mm | 573 mm | 573 mm | 573 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 755 mm | 785 mm | 816 mm | 848 mm | 884 mm |
