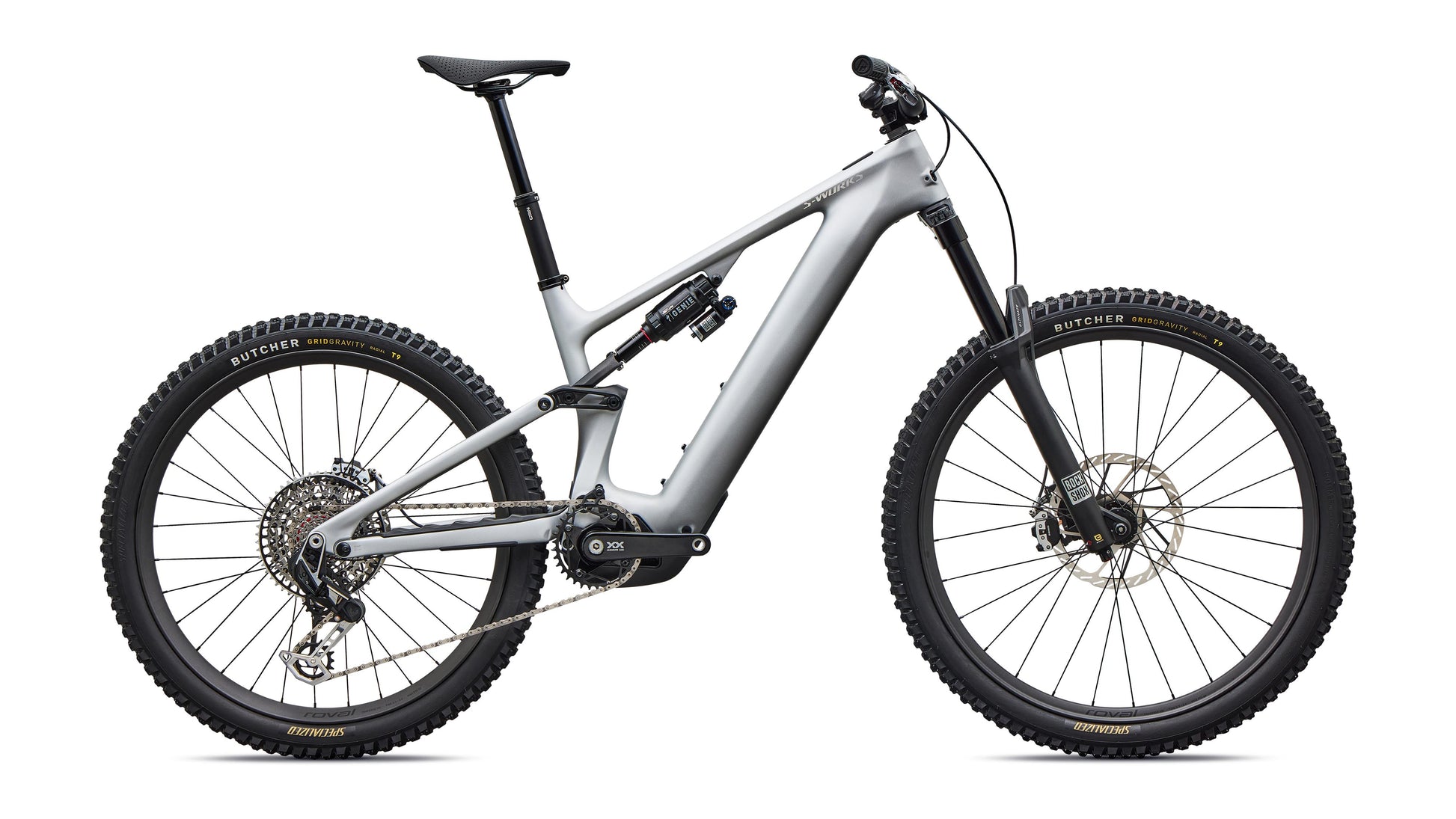

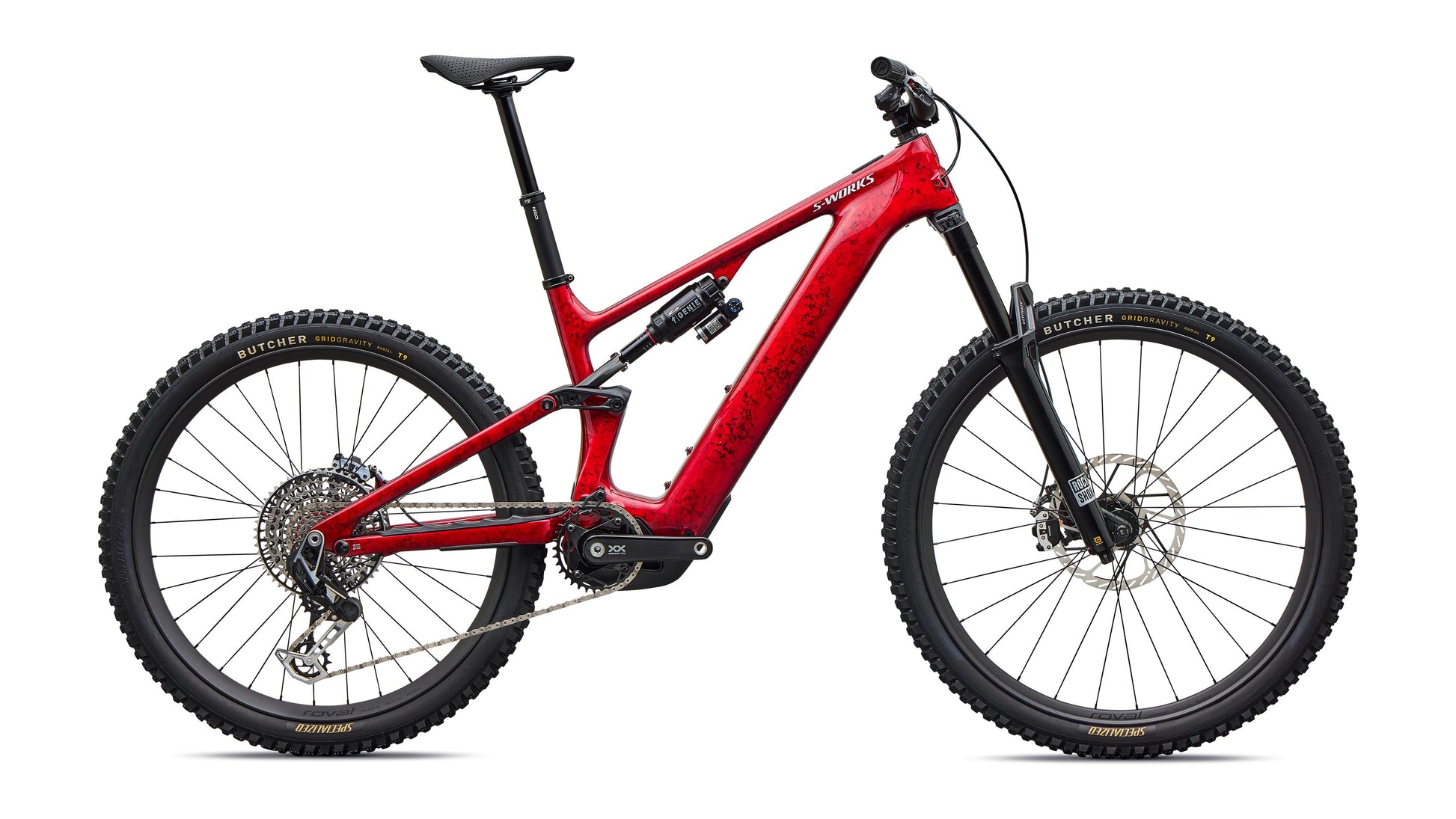

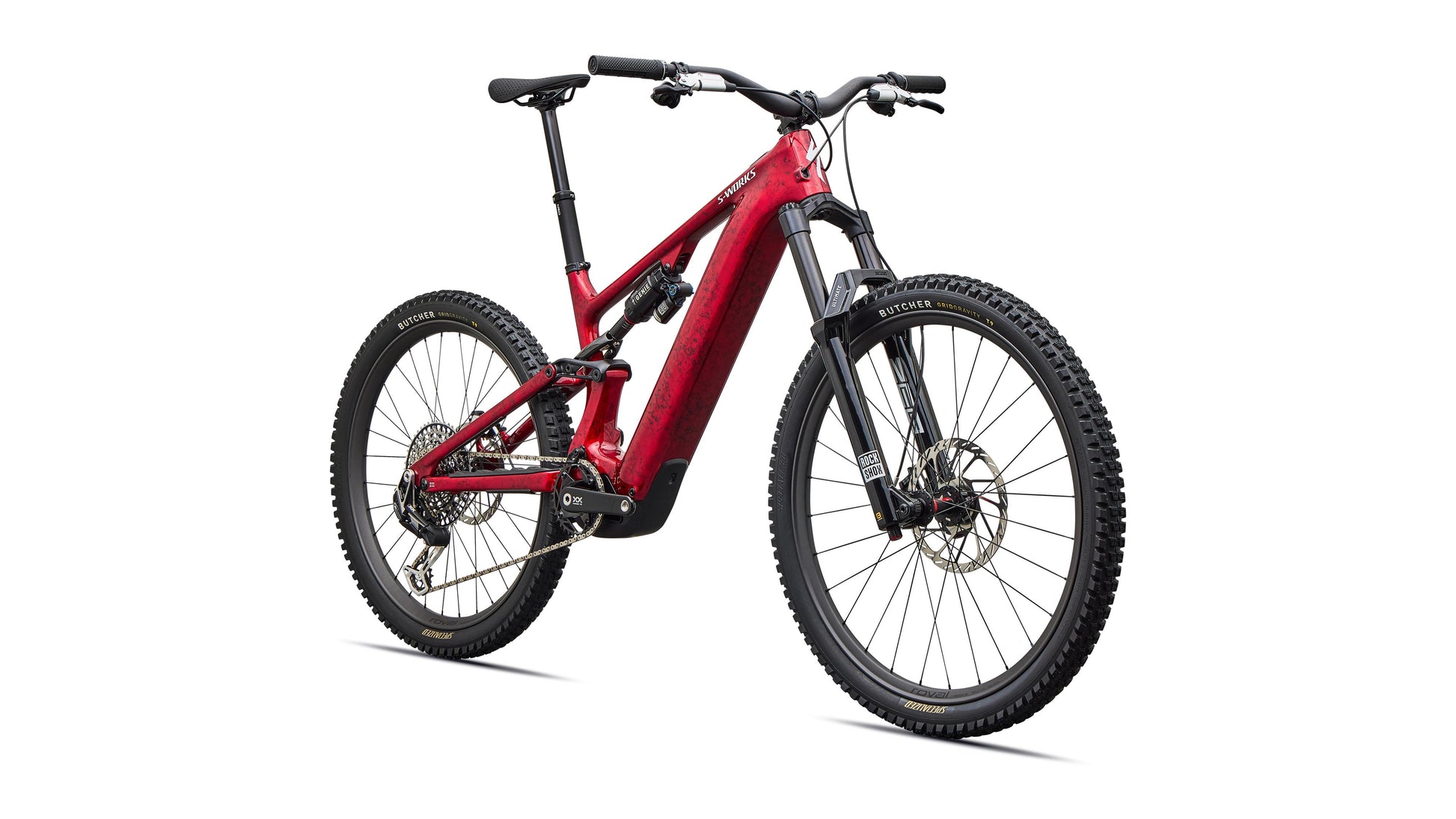

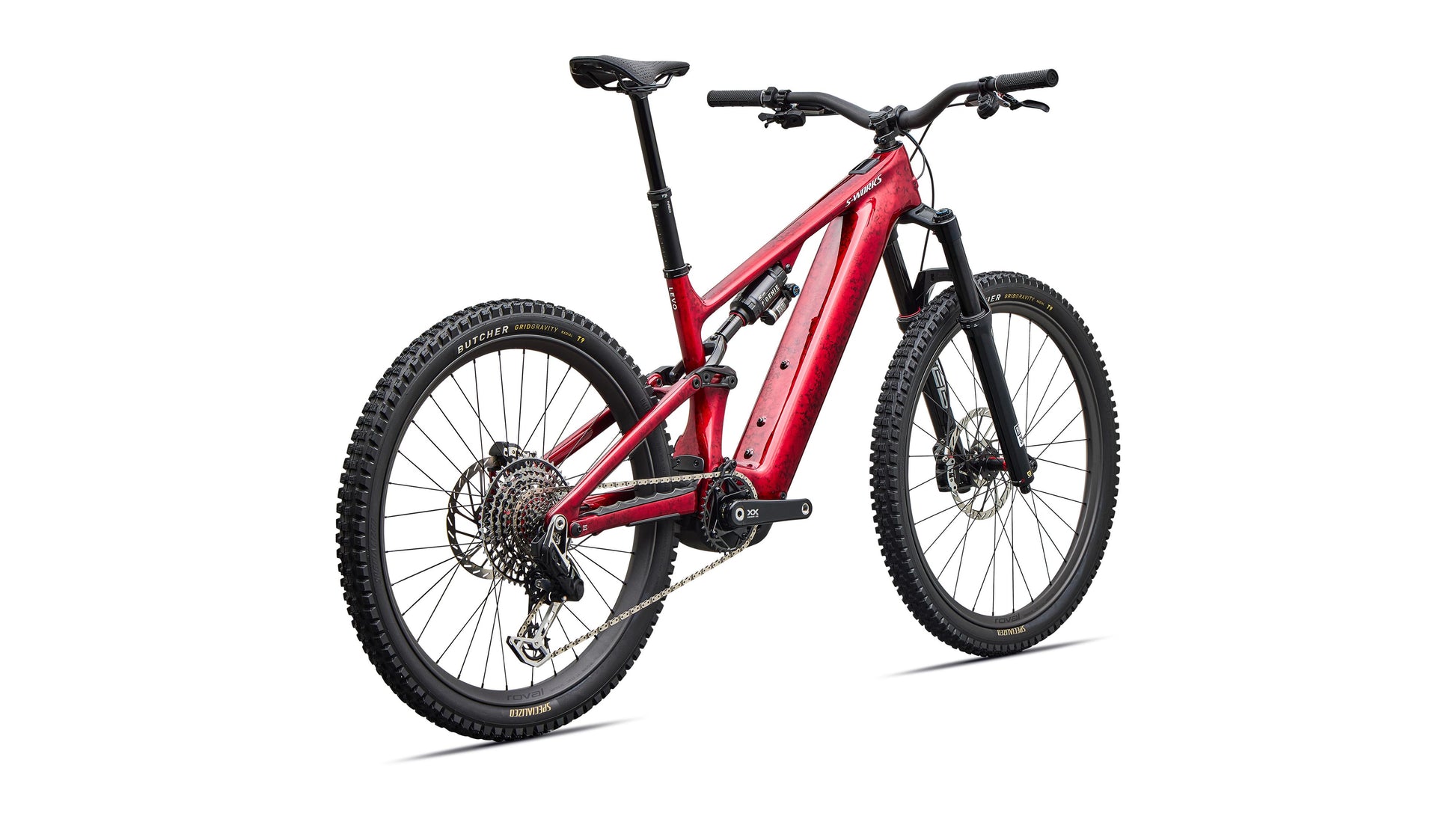

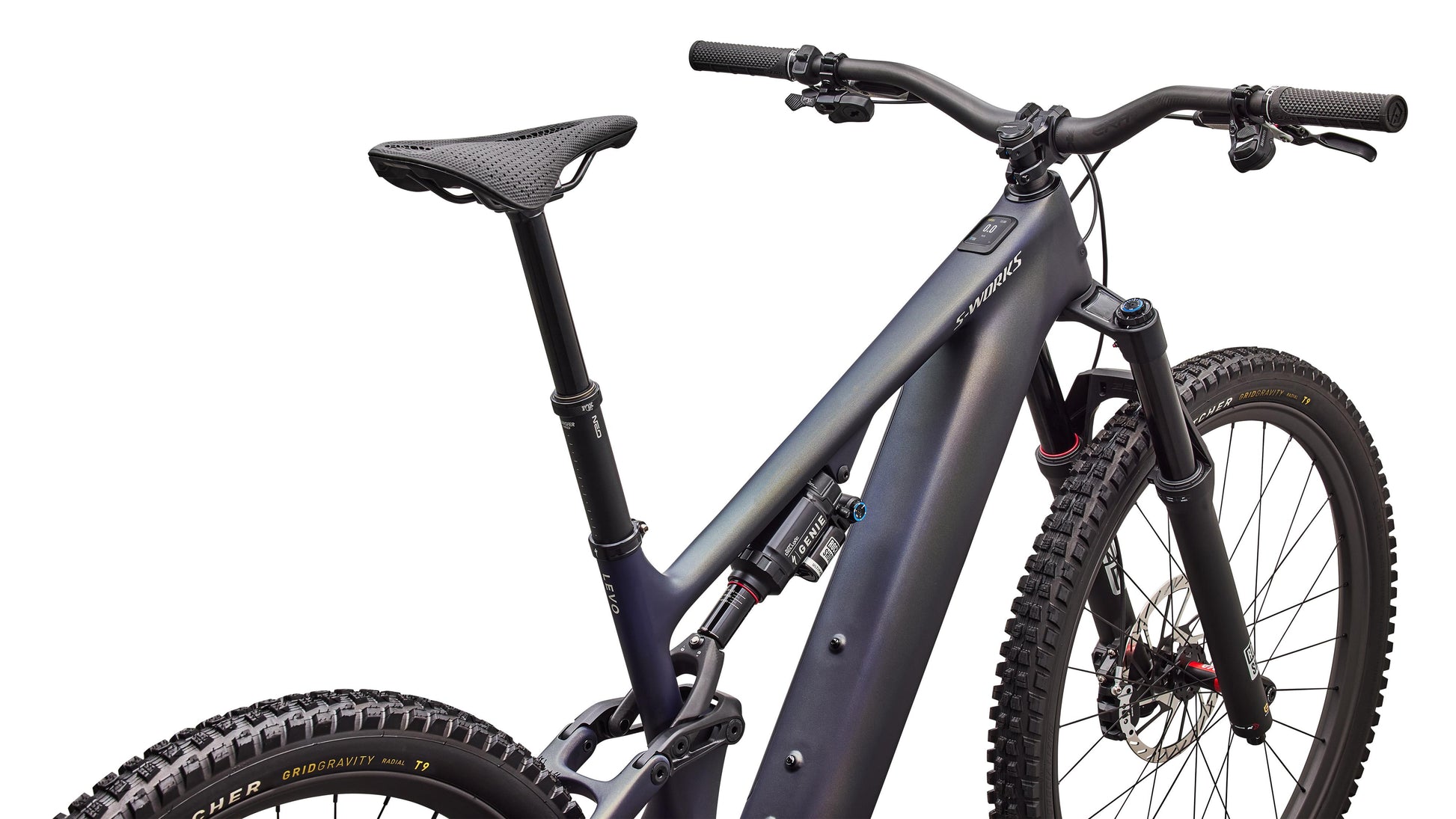

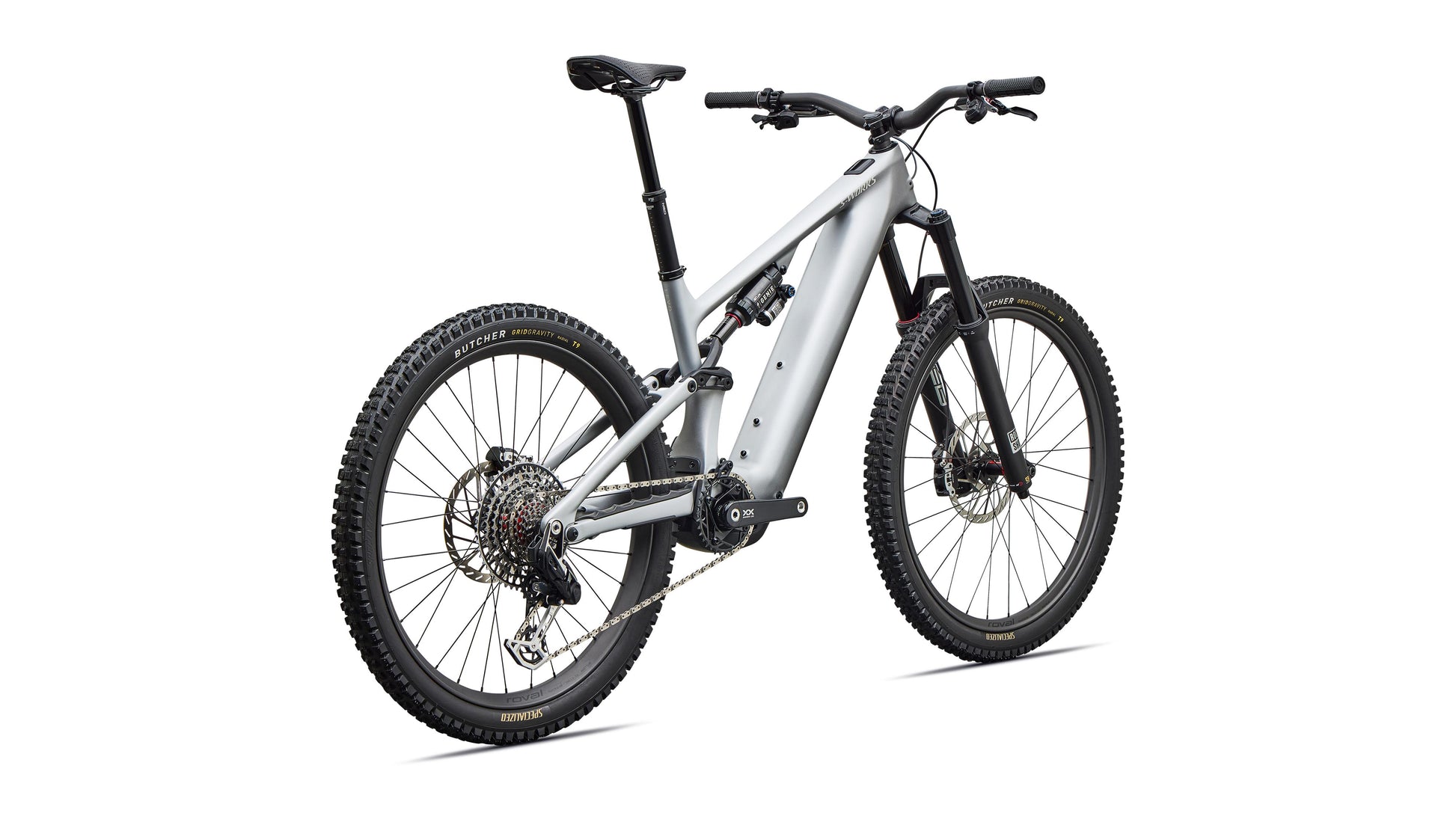

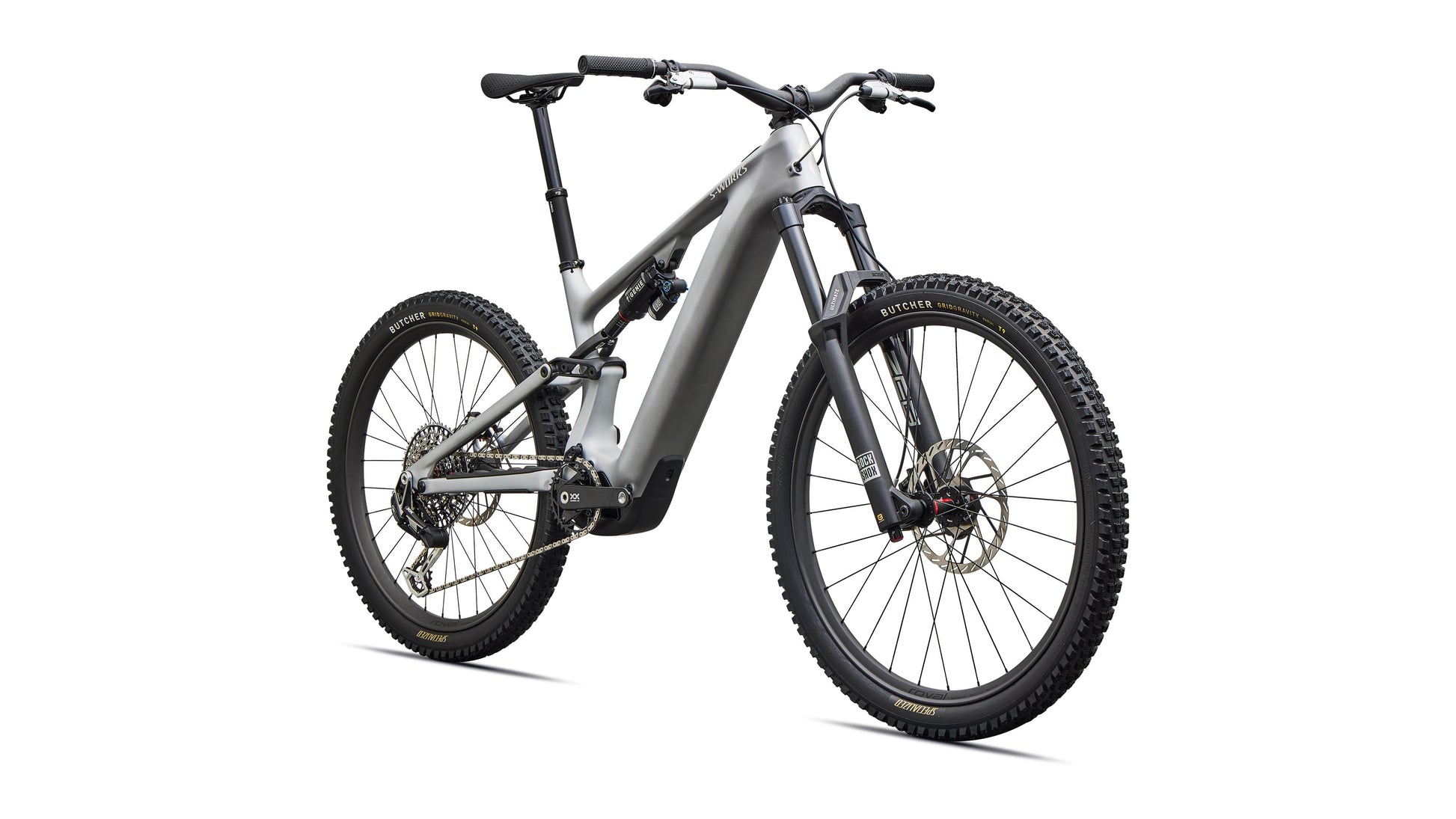

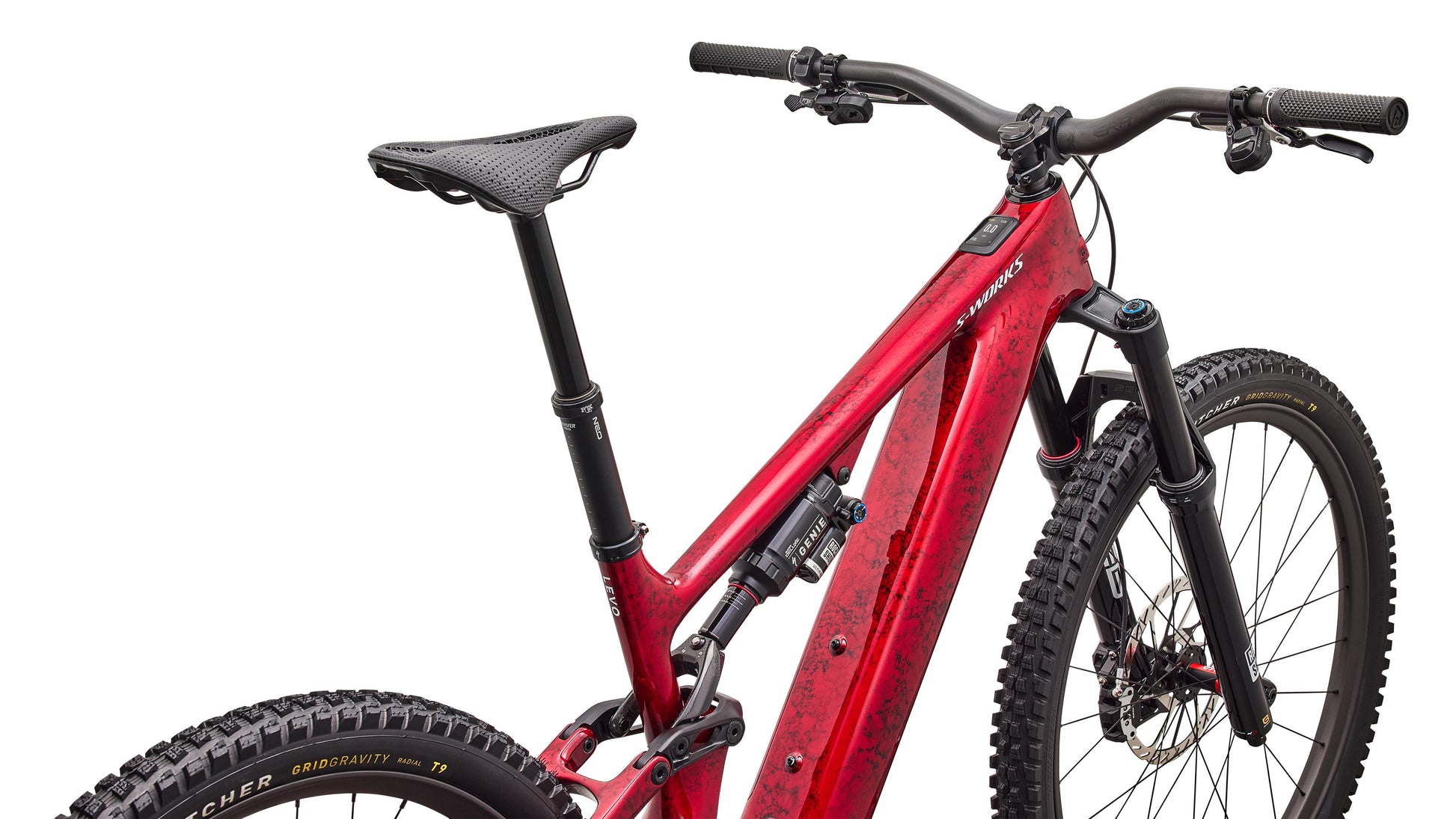

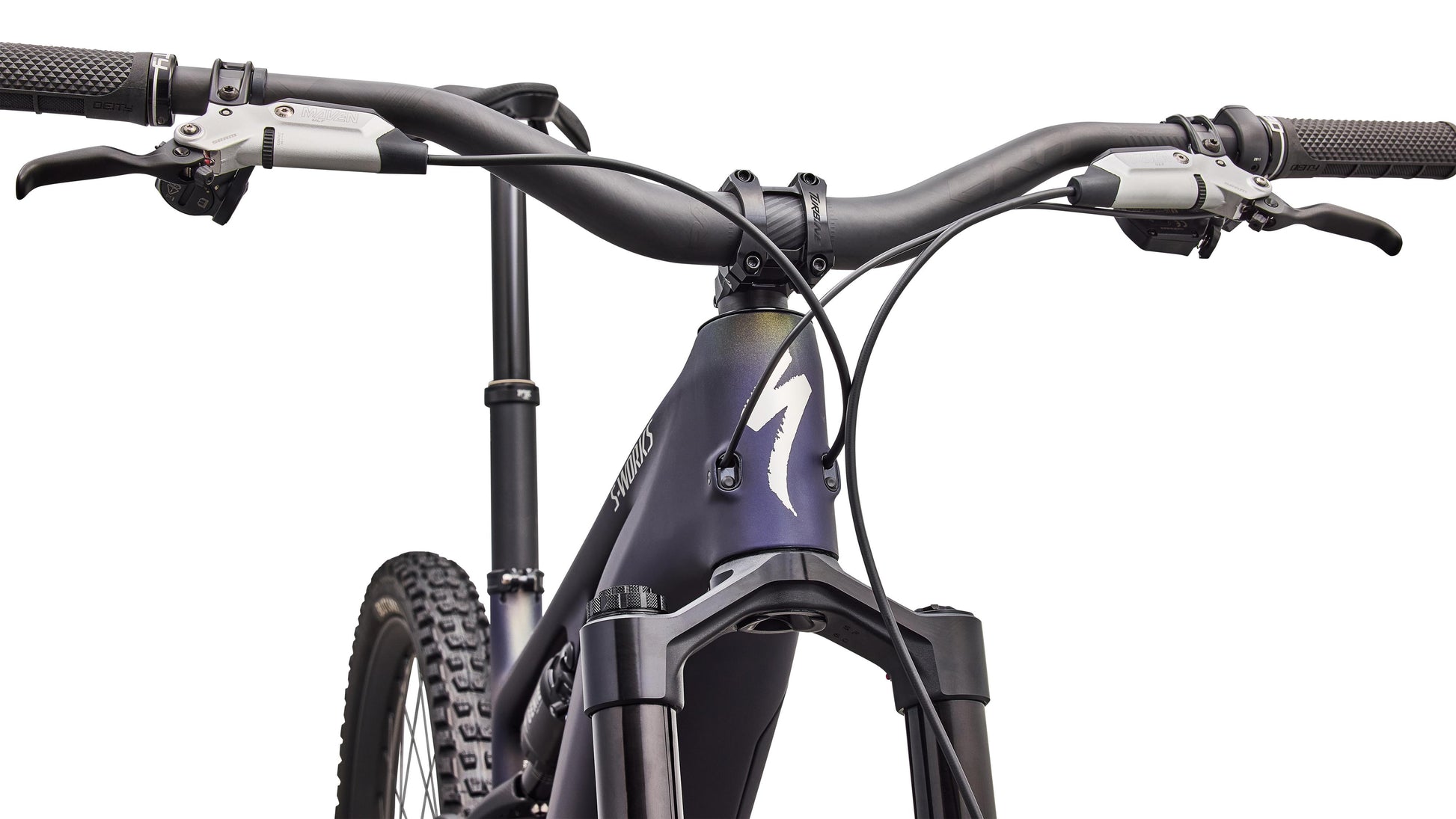

2027 Specialized S-Works Turbo Levo 4

SKU:95227-0104

$12,499.99

~~$12,499.99~~ $12,499.99

New

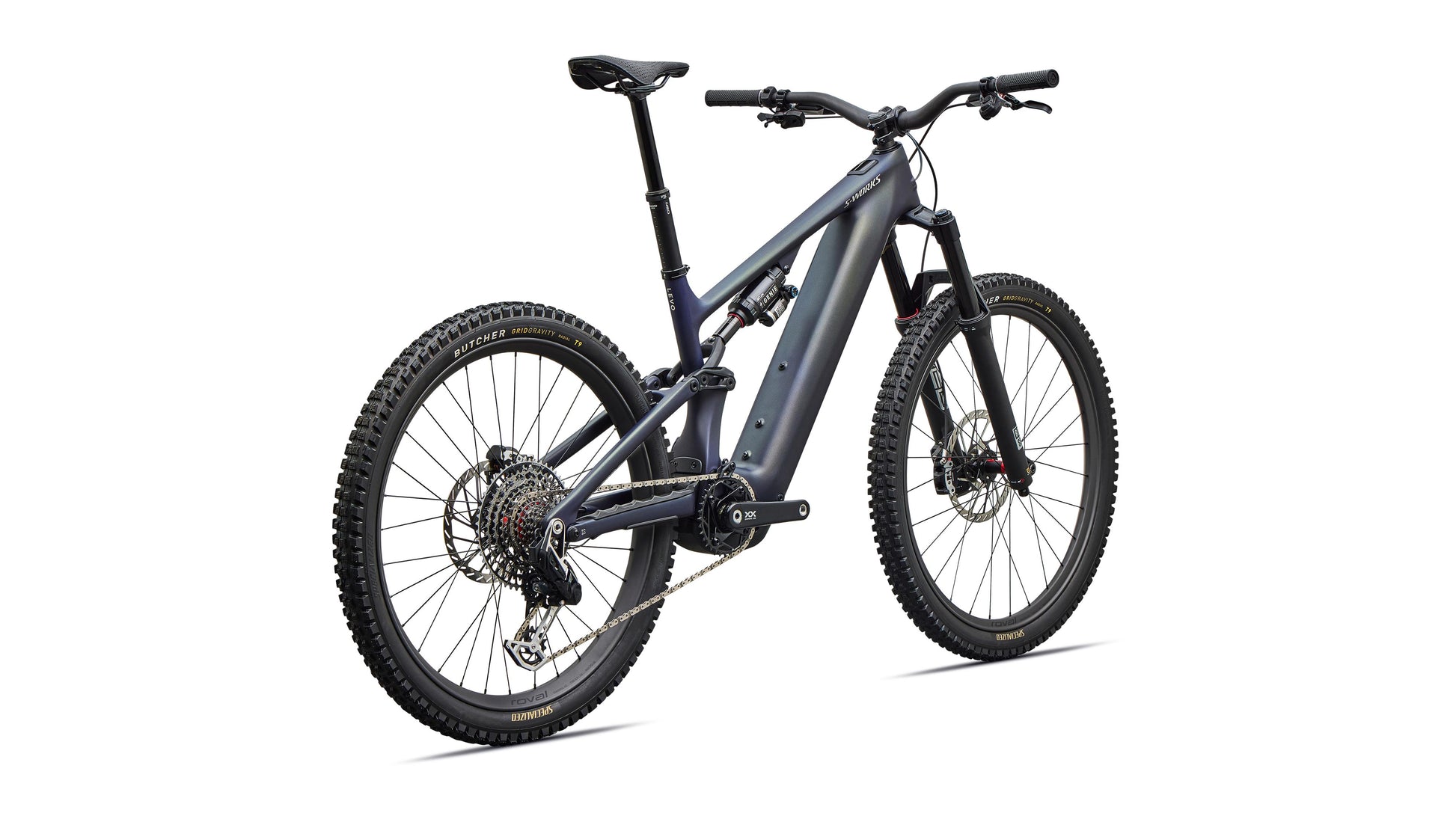

Color Satin Blue Tint / Chrome

Size S2 S3 S4 S5 S6

Low Stock - Only 1 left!

Quantity

View full details

2027 Specialized S-Works Turbo Levo 4 Features

The Specialized Science Club Introduces the S-Works Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

At a Glance

Use - Full Power E-MTB Trail

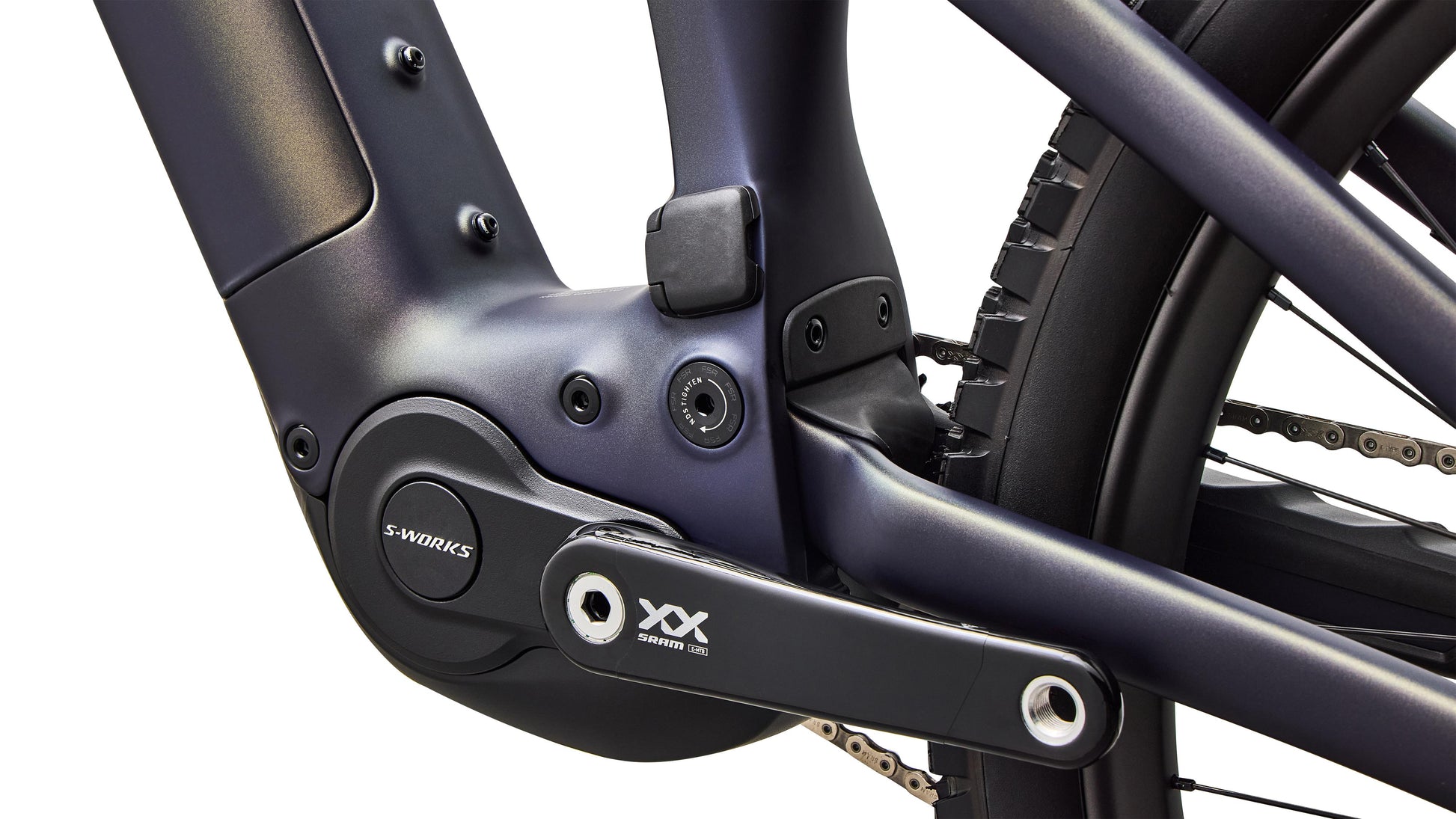

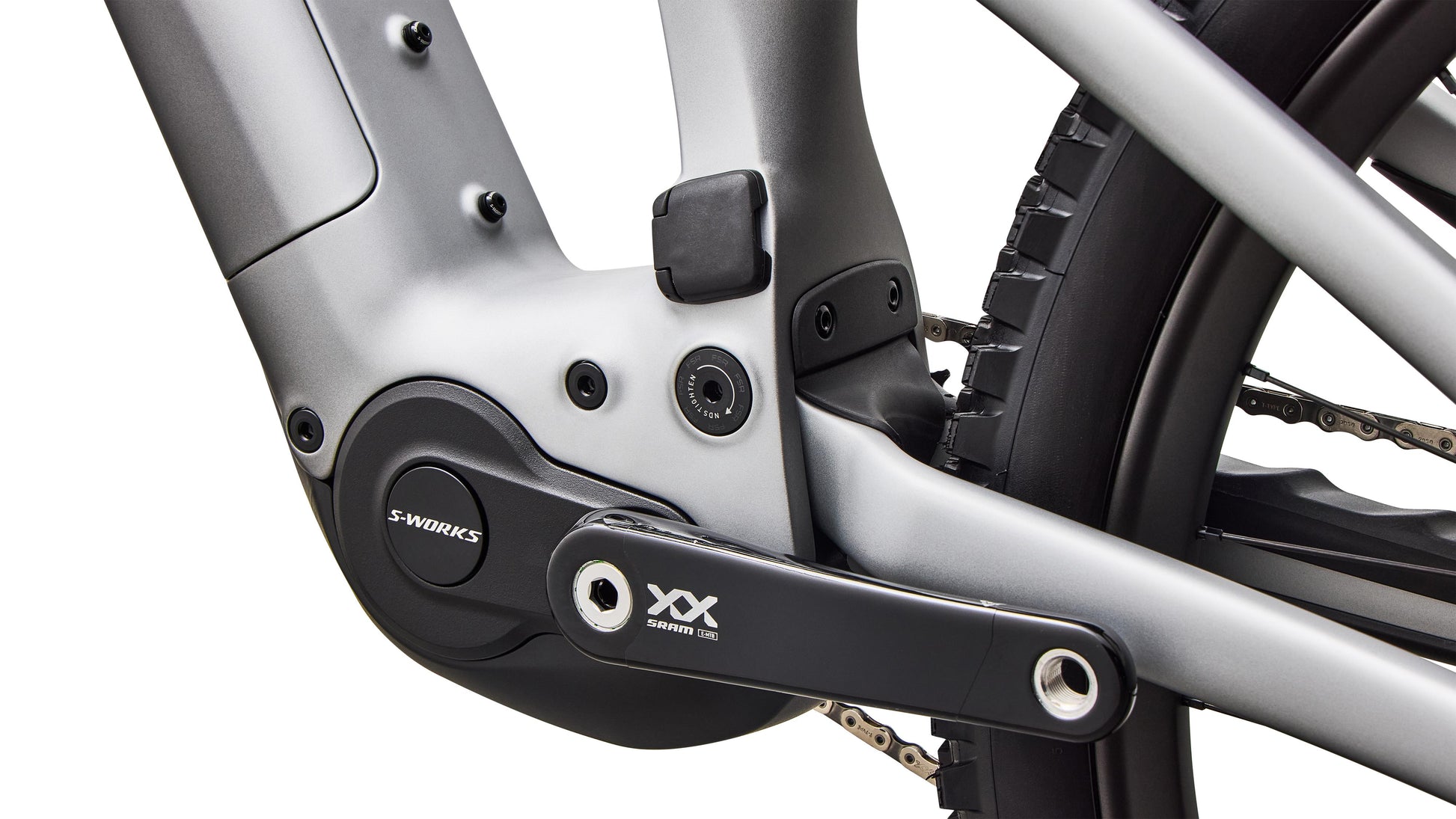

E-System - S-Works 3.1 Motor w/ 850 watts peak power & 111 Nm torque, 900 Wh battery, up to 4.63 hour range w/ optional Range Extender

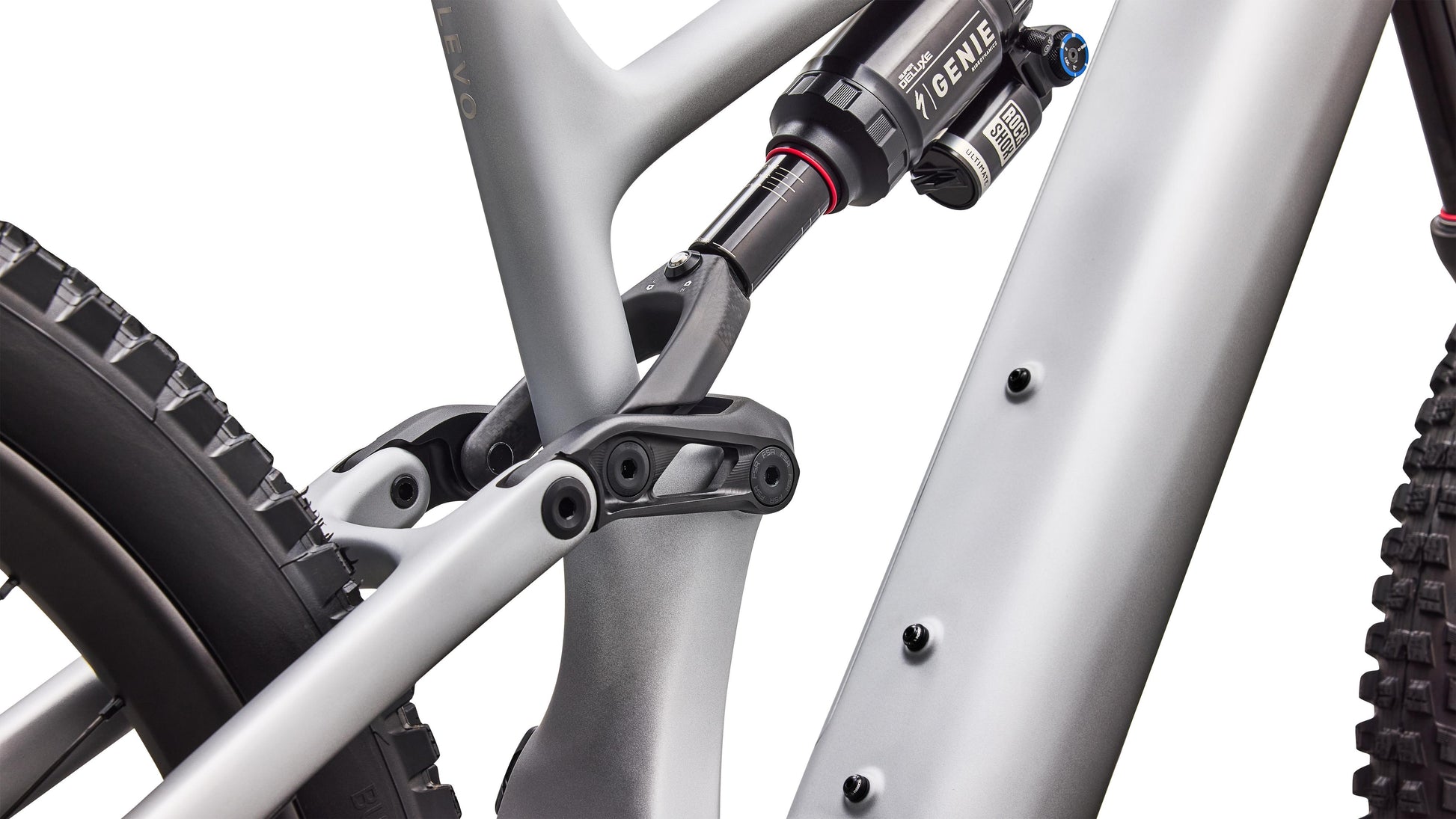

Frame - FACT 11m Carbon w/ Carbon Link, Geo Adj & SWAT Storage
Suspension - Front: 160mm RockShox ZEB Ultimate fork

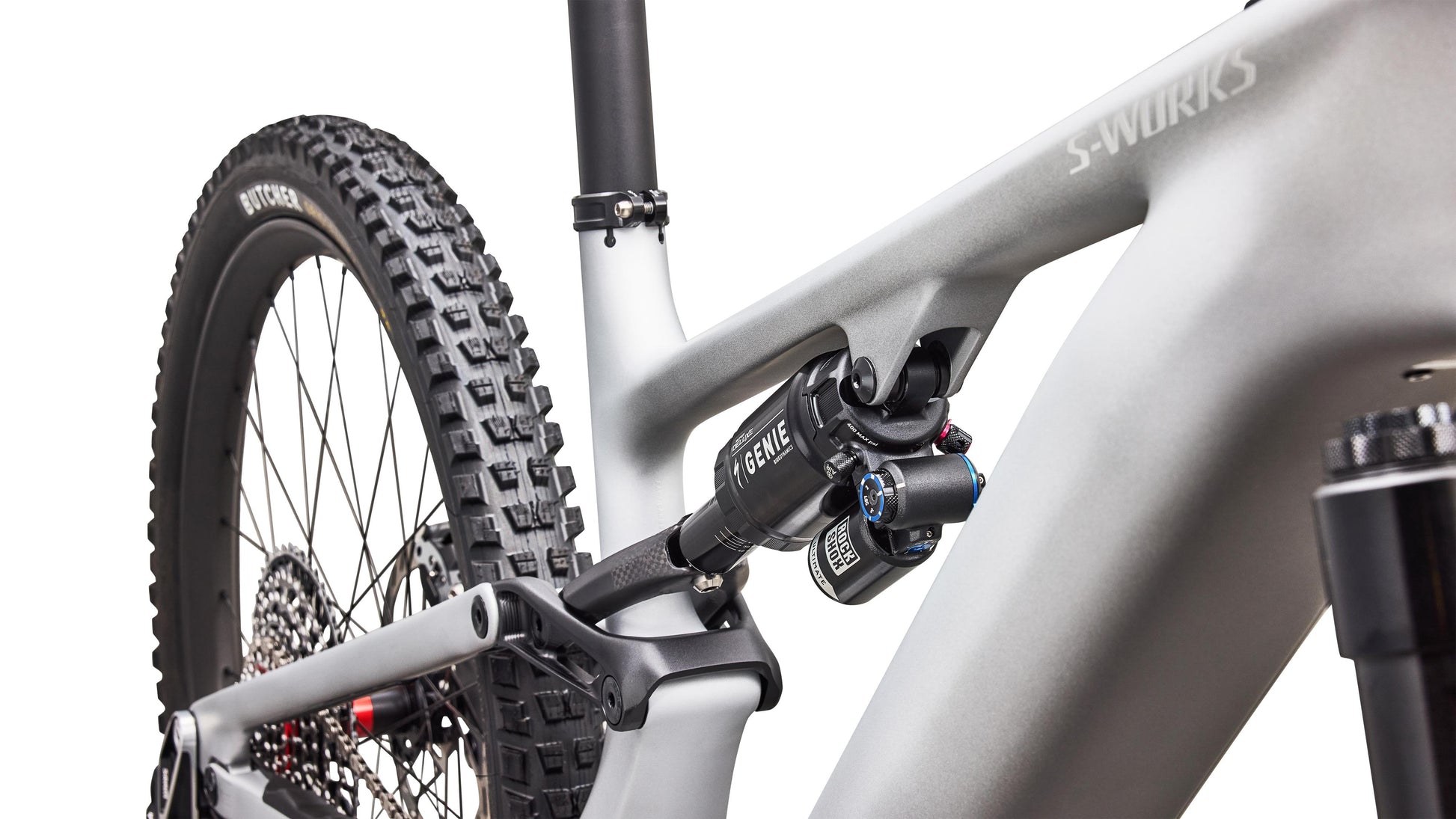

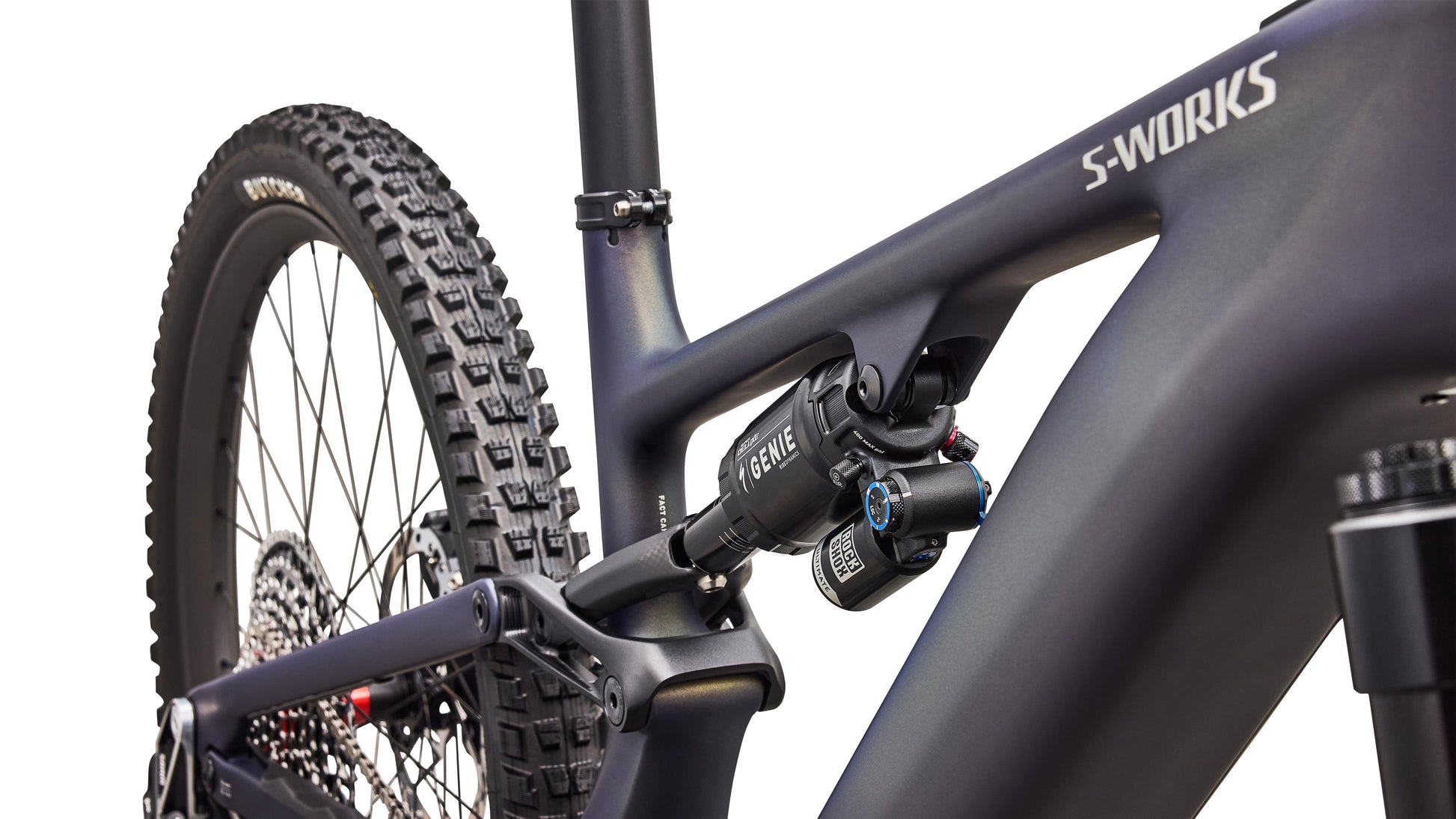

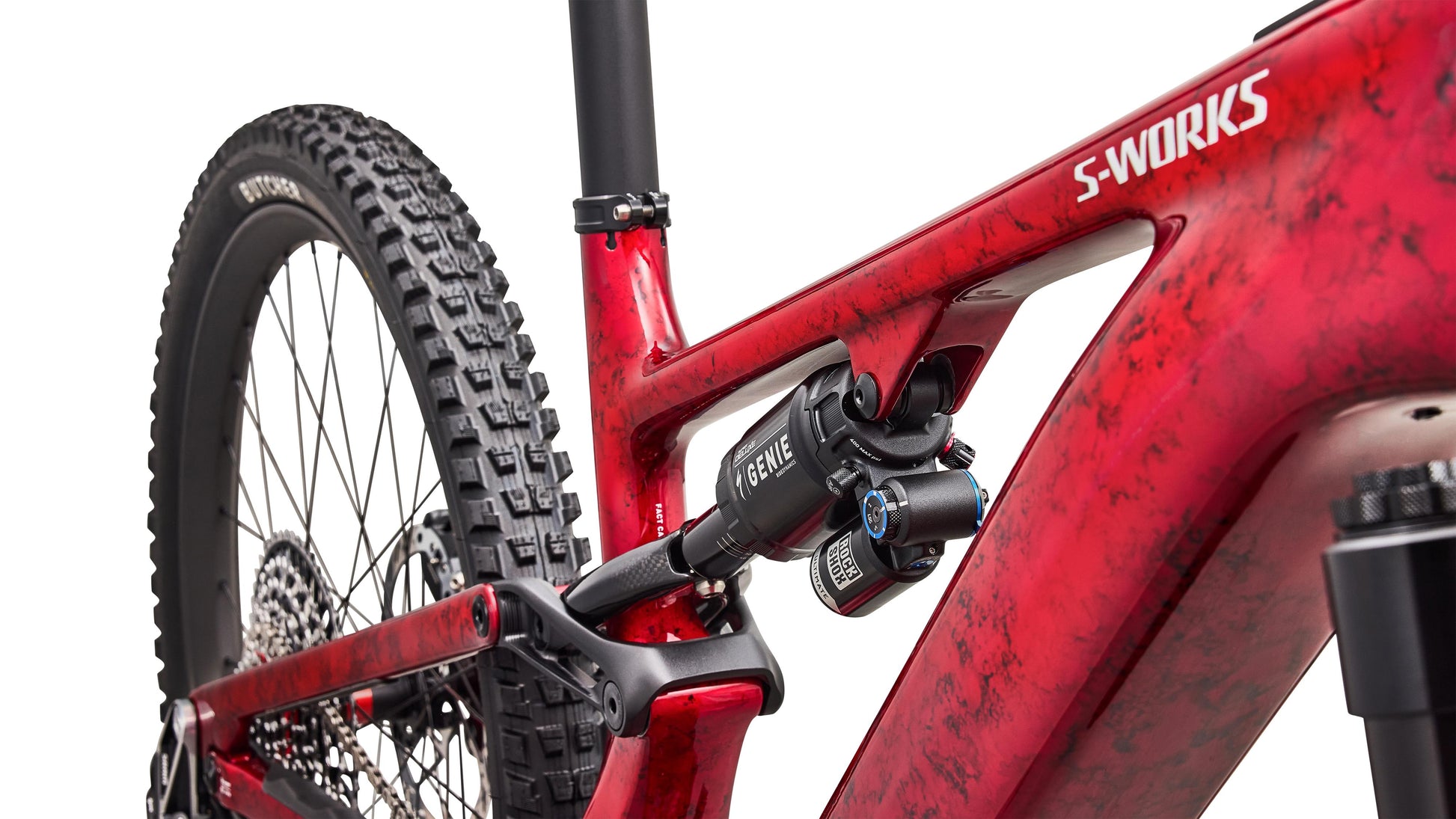

Rear: 150mm RockShox Super Deluxe Ultimate shock w/ GENIE
Drivetrain - SRAM XX Eagle T-Type AXS
Wheels - Roval Traverse HD carbon wheels w/ Butcher Grid Gravity Radial 2.4" tires

Component Specifications

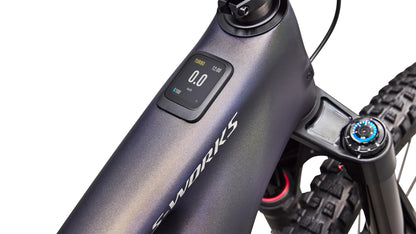

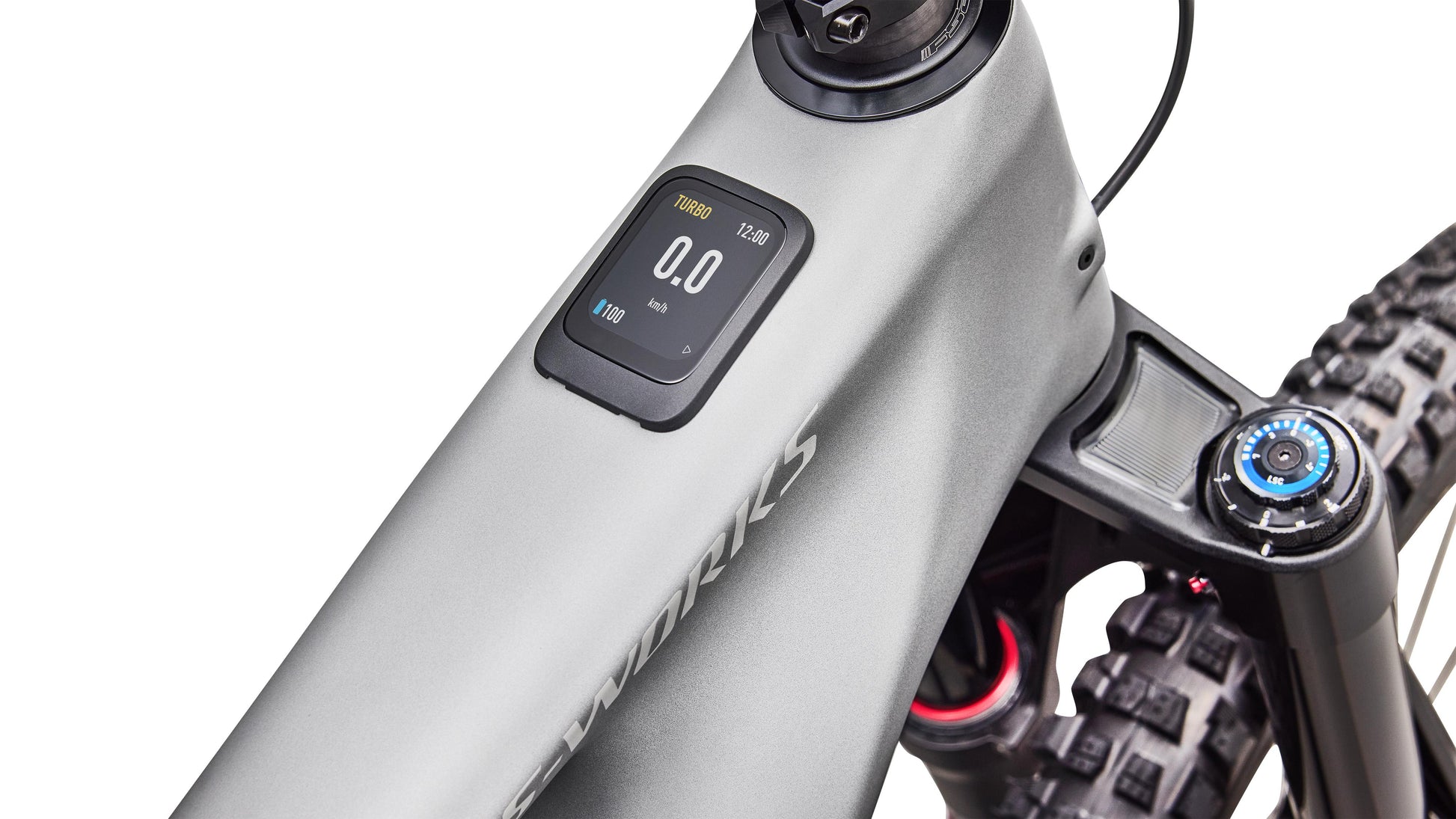

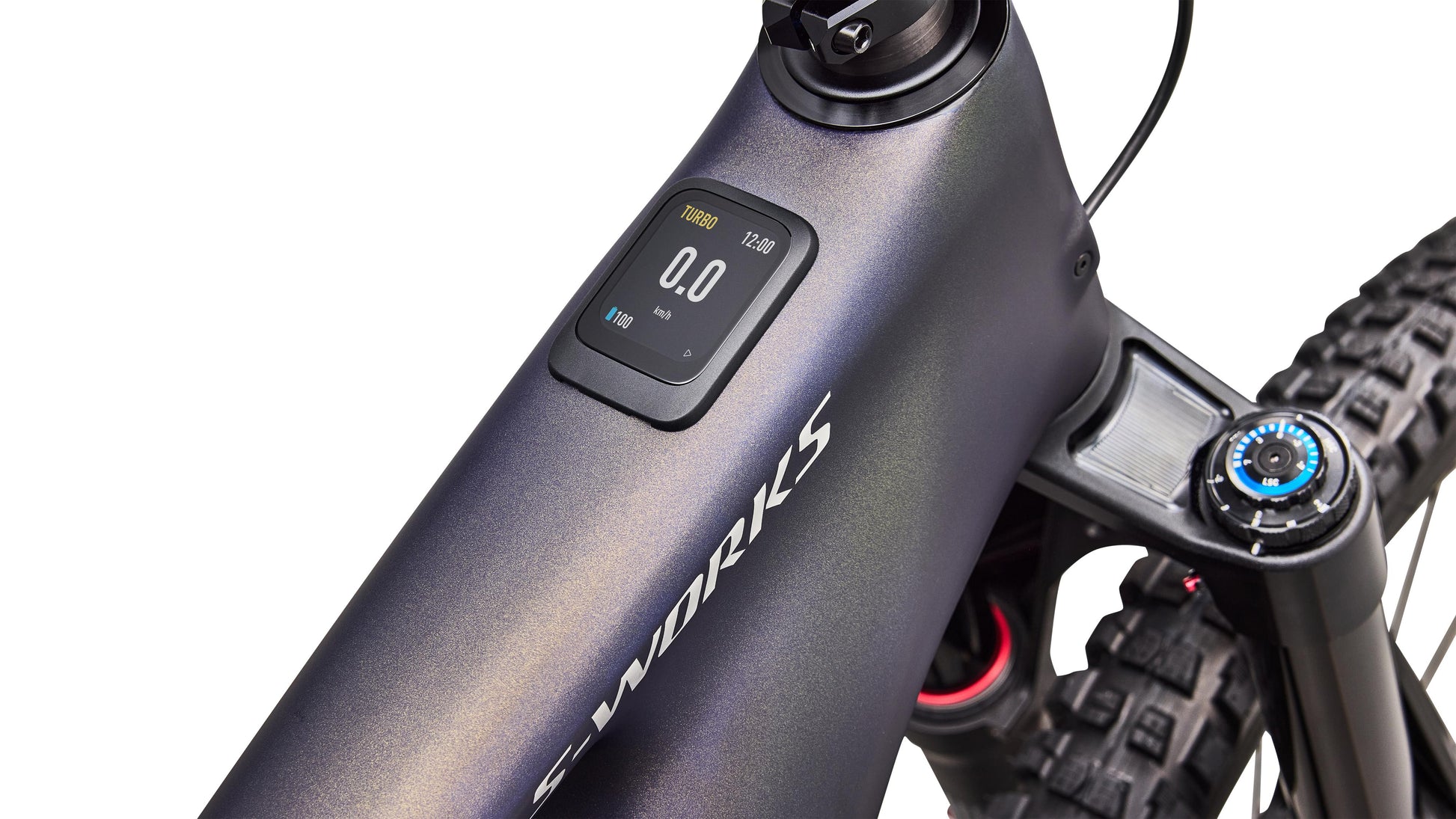

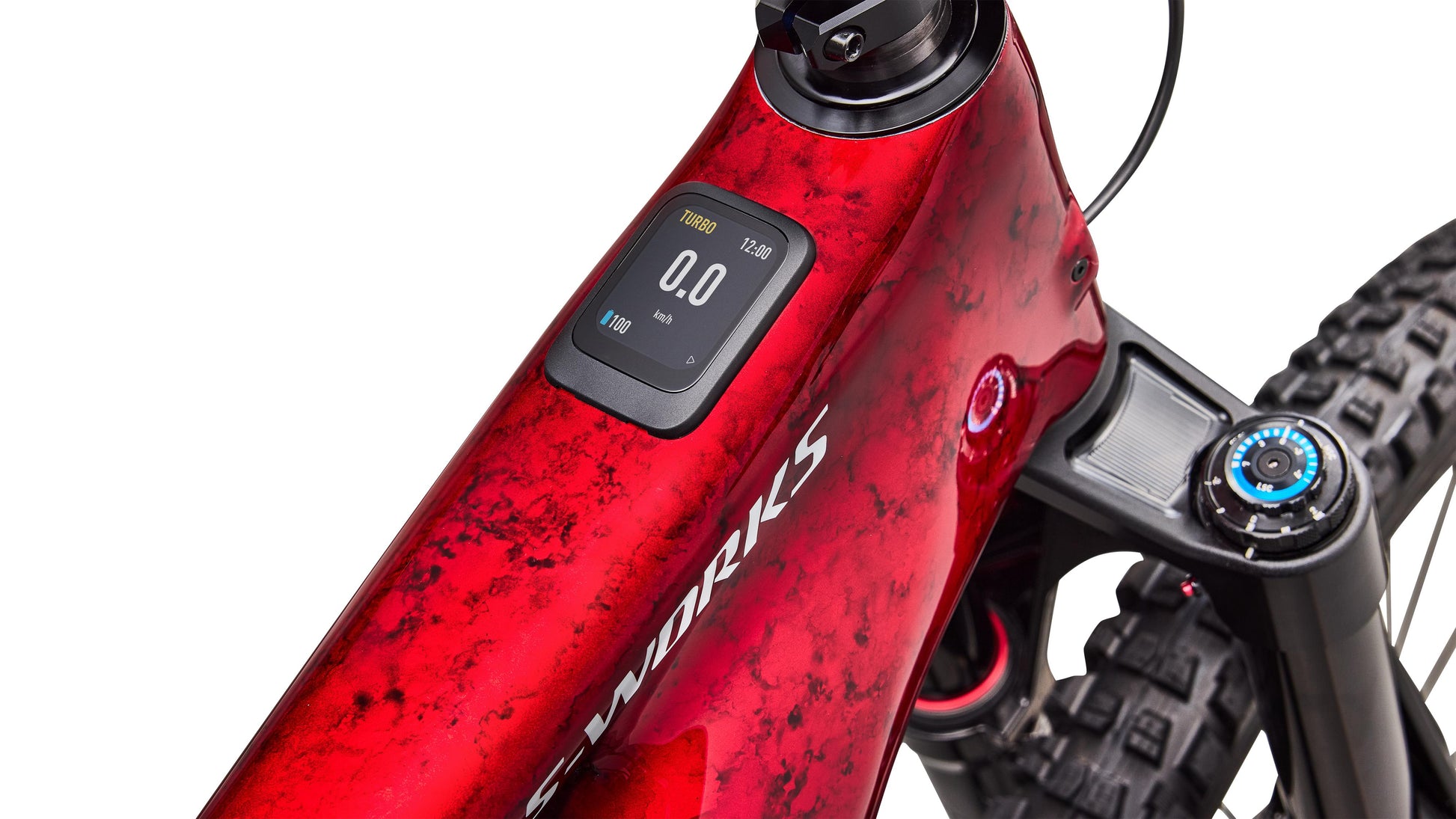

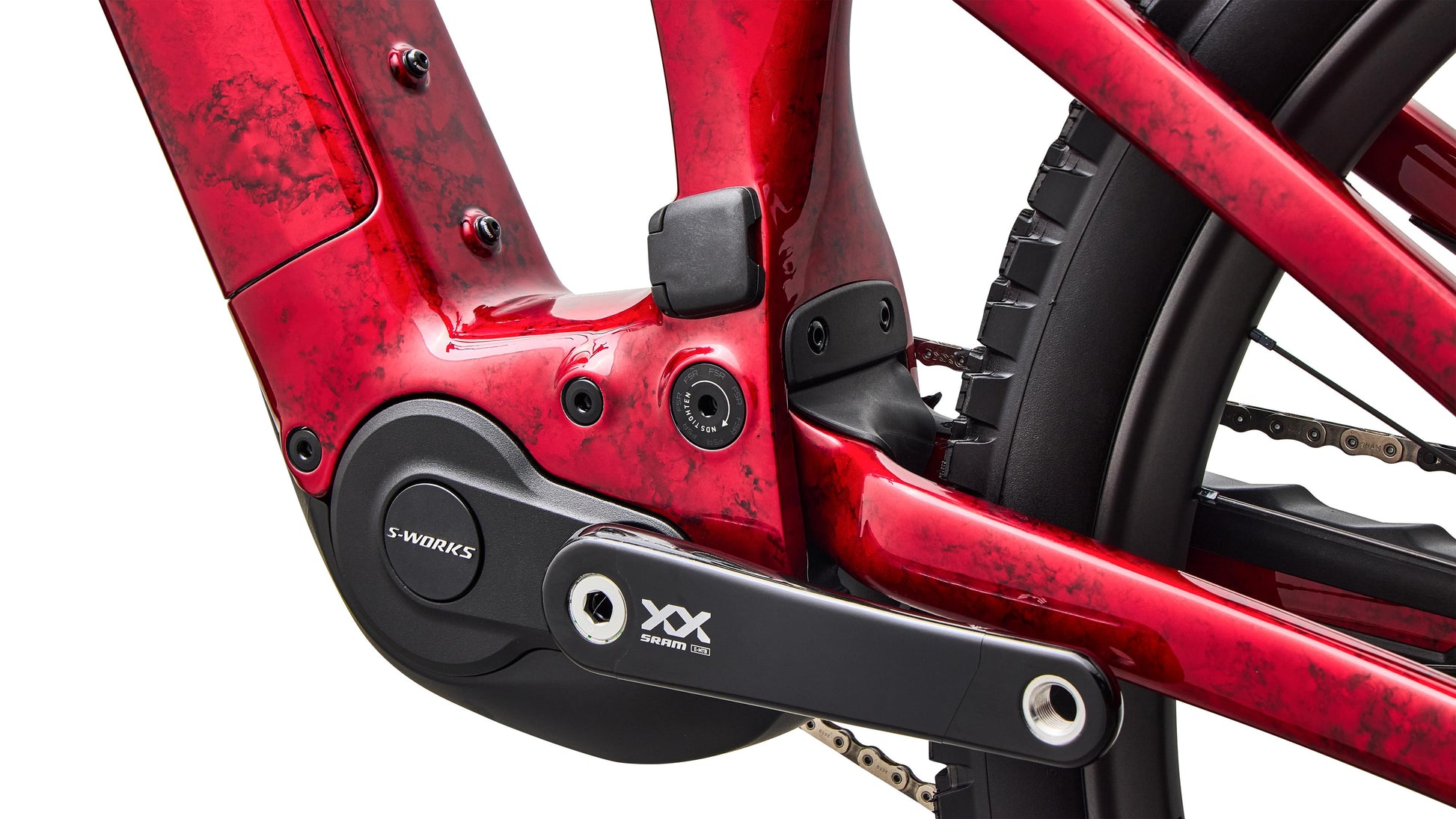

E-Bike	motor Specialized 3.1 S-Works motor, 111Nm power, 850W power battery 900Wh Battery ui remote Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My charger Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%
Frameset	frame Levo 4 carbon frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm, adjustable head angle, BB height, chainstay length seat binder Alloy, 38.6mm

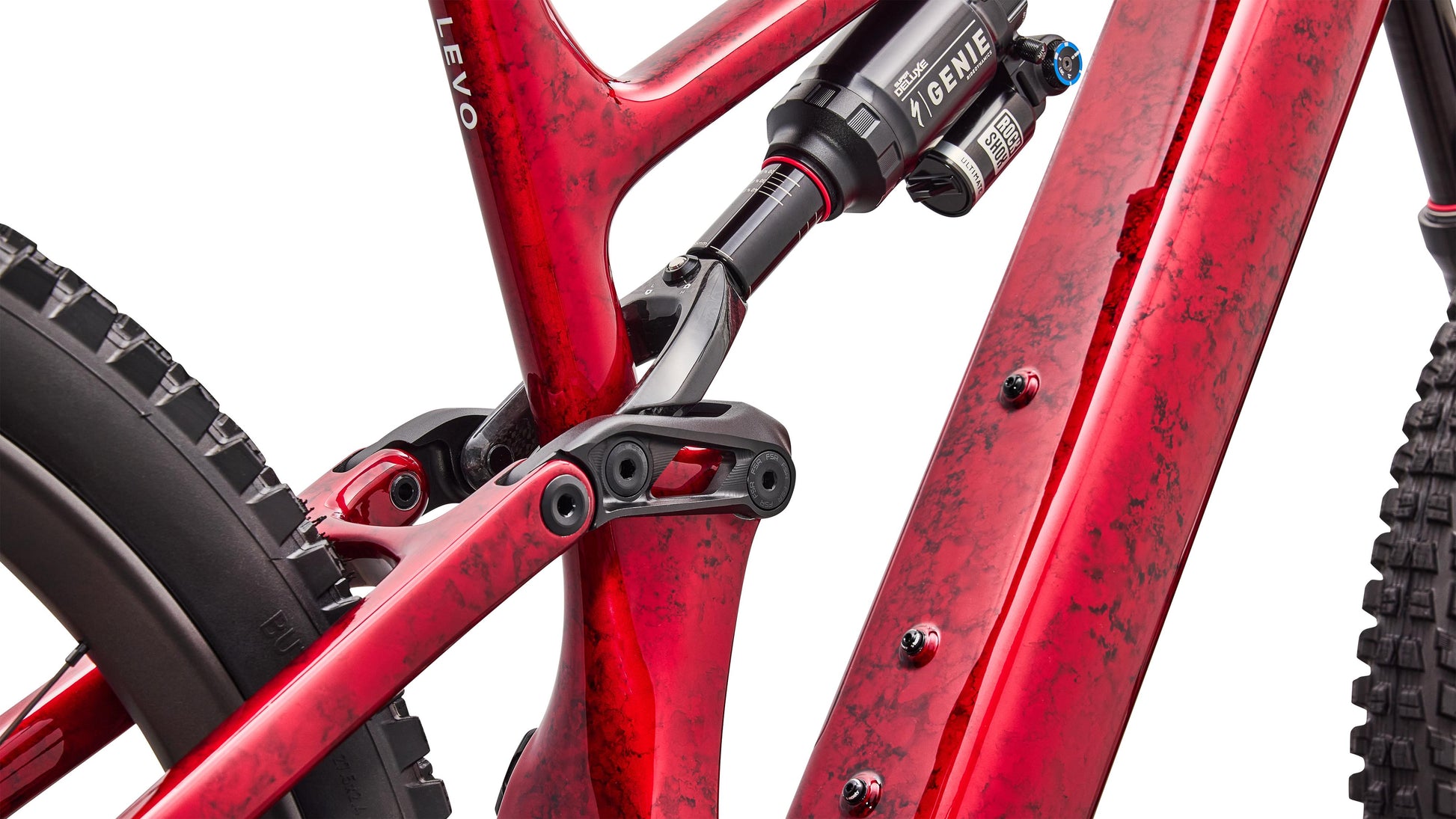

Suspension	rear shock All New Rockshox Super Deluxe Ultimate GENIE, RC2T damper with (LSC) Low Speed Compression and (HSC) High Speed Compression, GENIE adjustable airspring, rebound adjust, 210x55mm fork All New SRAM FS ZEB Ultimate, 29" 160mm, Linear XL spring with ButterCups and adjustable bottom out, new Charger 3.2 damper with HSC and LSC, rebound adjust
Brakes	front brake SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor rear brake SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor
Drivetrain	shift levers SRAM AXS Pod Ultimate with Discrete Clamp rear derailleur SRAM XX Eagle Transmission Derailleur cassette SRAM XX Transmission, XS 1297, 10-52t chain SRAM XX, T-Type crankset SRAM XX Carbon crank, 160mm, ISIS interface chain rings SRAM 34t T-Type chainring, 104 BCD, steel
Wheels & Tires	front tire Butcher GRID Gravity Radial T9 TLR Enduro Tire 29x2.4 rear tire Butcher GRID Gravity Radial T9 TLR Enduro Tire 27.5x2.4 inner tubes Standard, Presta Valve front wheel Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 Hub, 12x148mm, 28h rear wheel Roval Traverse HD carbon 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG Hub, 12x148mm, 32h

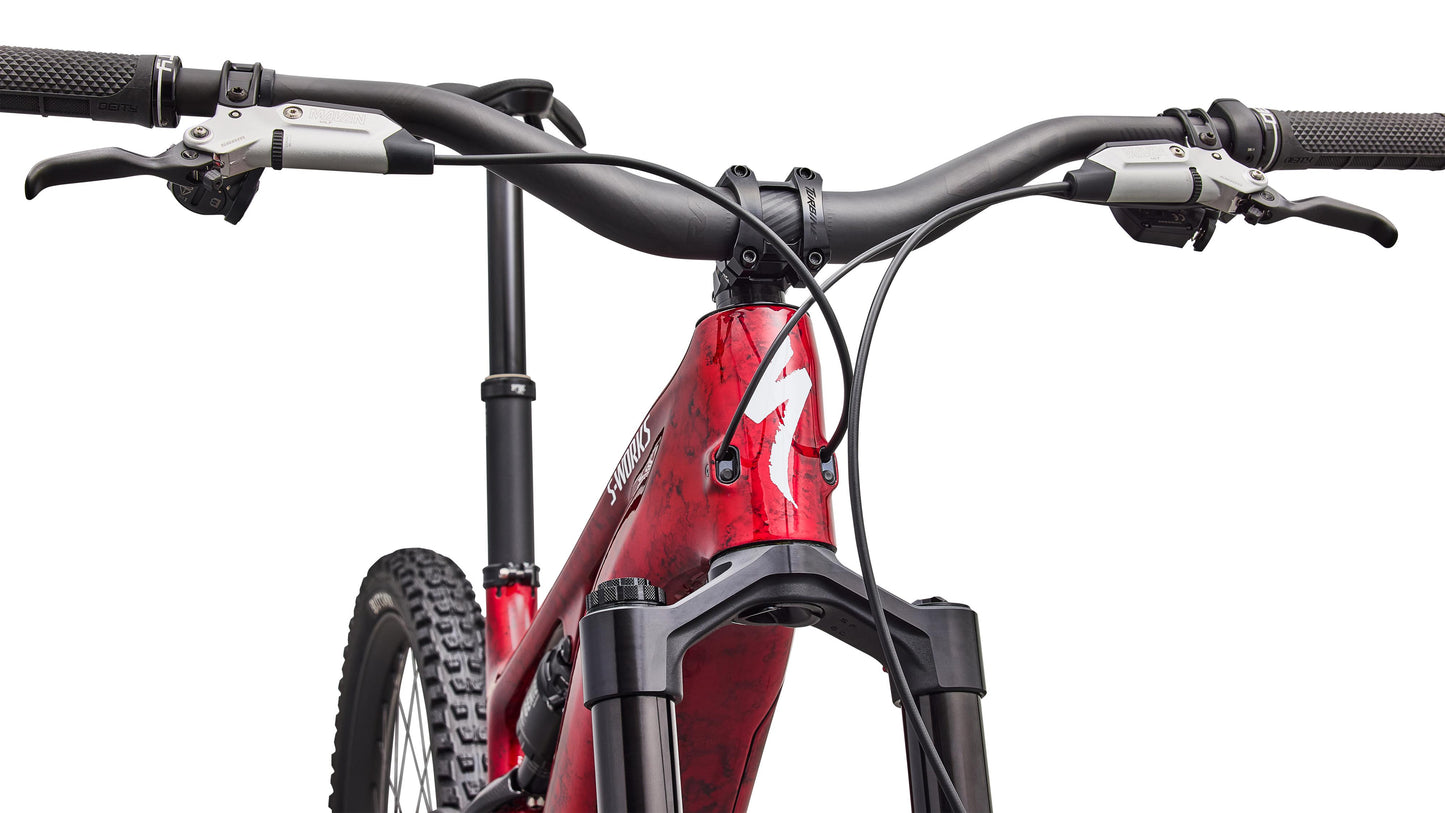

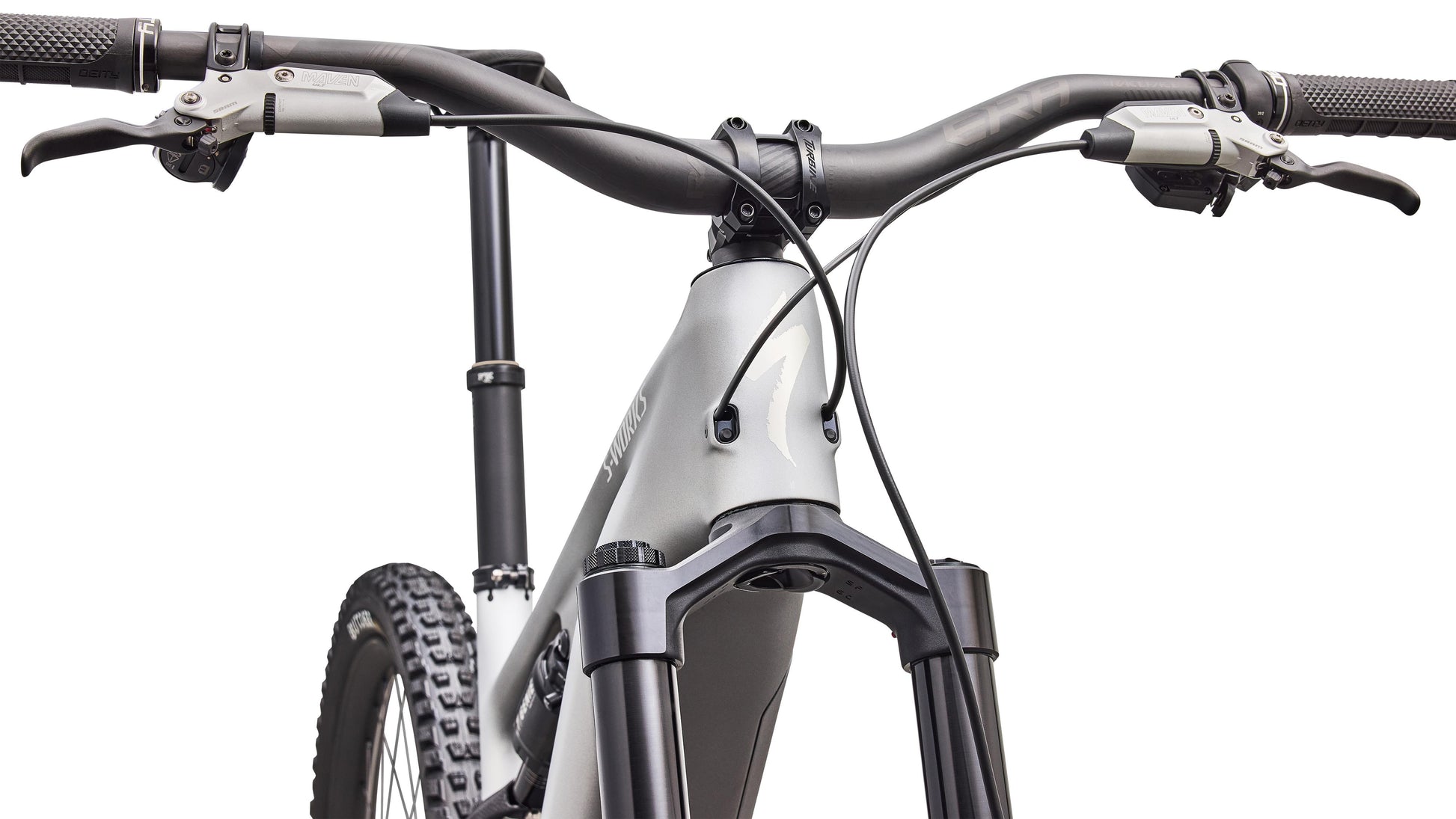

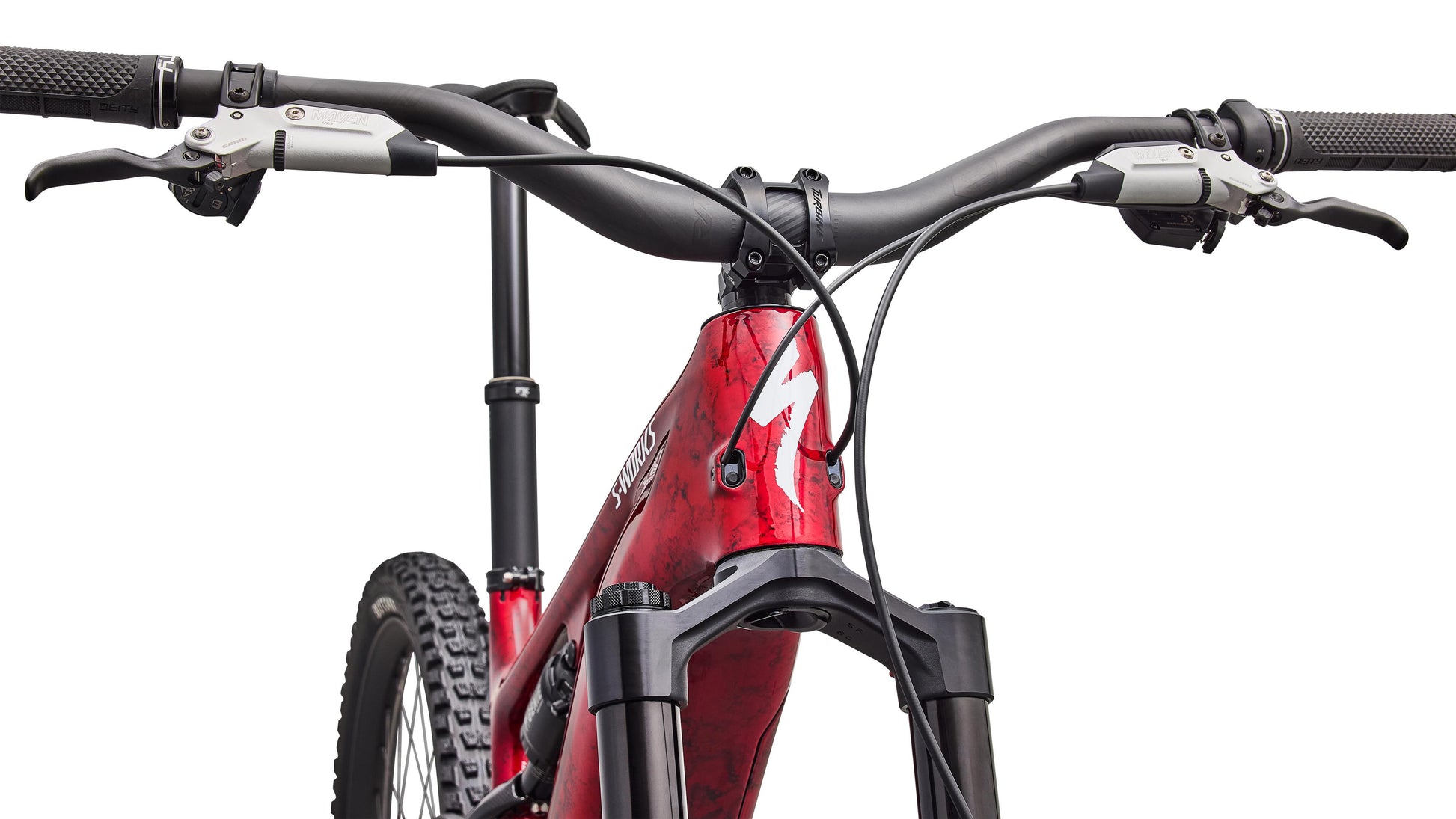

Cockpit	stem RaceFace, 35mm clamp, 40mm length handlebars RaceFace Era Carbon Handlebars, 35mm clamp, back-sweep 8-degrees, up-sweep 5 degrees, 800mm width, S1/S2: 40mm rise, S3-S6: 55mm rise grips Deity Lockjaw, Lock On, 32mm OD, 133mm Length, Black saddle Specialized S-Works Power Mirror, Ti Rails, 143mm/155mm seatpost FOX Transfer NEO, 34.9, S2: 150mm, S3: 175mm, S4: 200mm, S5: 225mm, S6: 240mm, E-Optimize w/ 1320mm cable powered by e-system battery
Accessories	swat SWAT Internal downtube storage

2027 Specialized S-Works Turbo Levo 4

Bike/Frame Size	S2	S3	S4	S5	S6
Stack	618 mm	626 mm	638 mm	652 mm	667 mm
Reach	435 mm	455 mm	480 mm	505 mm	535 mm
Chainstay Length	435 mm	435 mm	435 mm	435 mm	435 mm
Wheelbase	1200 mm	1223 mm	1254 mm	1286 mm	1323 mm
Top-tube Length (horizontal)	578 mm	599 mm	627 mm	655 mm	689 mm
Bike Standover Height	753 mm	754 mm	753 mm	758 mm	761 mm
Seat Tube Length	390 mm	405 mm	425 mm	445 mm	465 mm
Seat Tube Angle	77°	77°	77°	77°	77°
Saddle Height for Effective ST Angle	690 mm	735 mm	780 mm	825 mm	870 mm
Max Seatpost Insertion	274 mm	289 mm	313 mm	337 mm	357 mm
Min Seatpost Insertion	80 mm	80 mm	80 mm	80 mm	80 mm
Headtube Length	95 mm	103 mm	117 mm	132 mm	149 mm
Headtube Angle	64.5°	64.5°	64.5°	64.5°	64.5°
BB Height	350 mm	350 mm	350 mm	350 mm	350 mm
BB Drop	29.5 mm	29.5 mm	29.5 mm	29.5 mm	29.5 mm
Trail	132 mm	132 mm	132 mm	132 mm	132 mm
Fork Length (full)	577 mm	577 mm	577 mm	577 mm	577 mm
Fork Rake/Offset	44 mm	44 mm	44 mm	44 mm	44 mm
Front Center	765 mm	789 mm	820 mm	851 mm	888 mm

Component Geometry

Component	S2	S3	S4	S5	S6
Crank Length	160 mm	160 mm	160 mm	160 mm	160 mm
Handlebar Width	800 mm	800 mm	800 mm	800 mm	800 mm
Stem Length	40 mm	40 mm	40 mm	40 mm	40 mm
Saddle Width	155 mm	143 mm	143 mm	143 mm	143 mm
Seatpost Length	150 mm	175 mm	200 mm	225 mm	240 mm
