SPECIALIZED

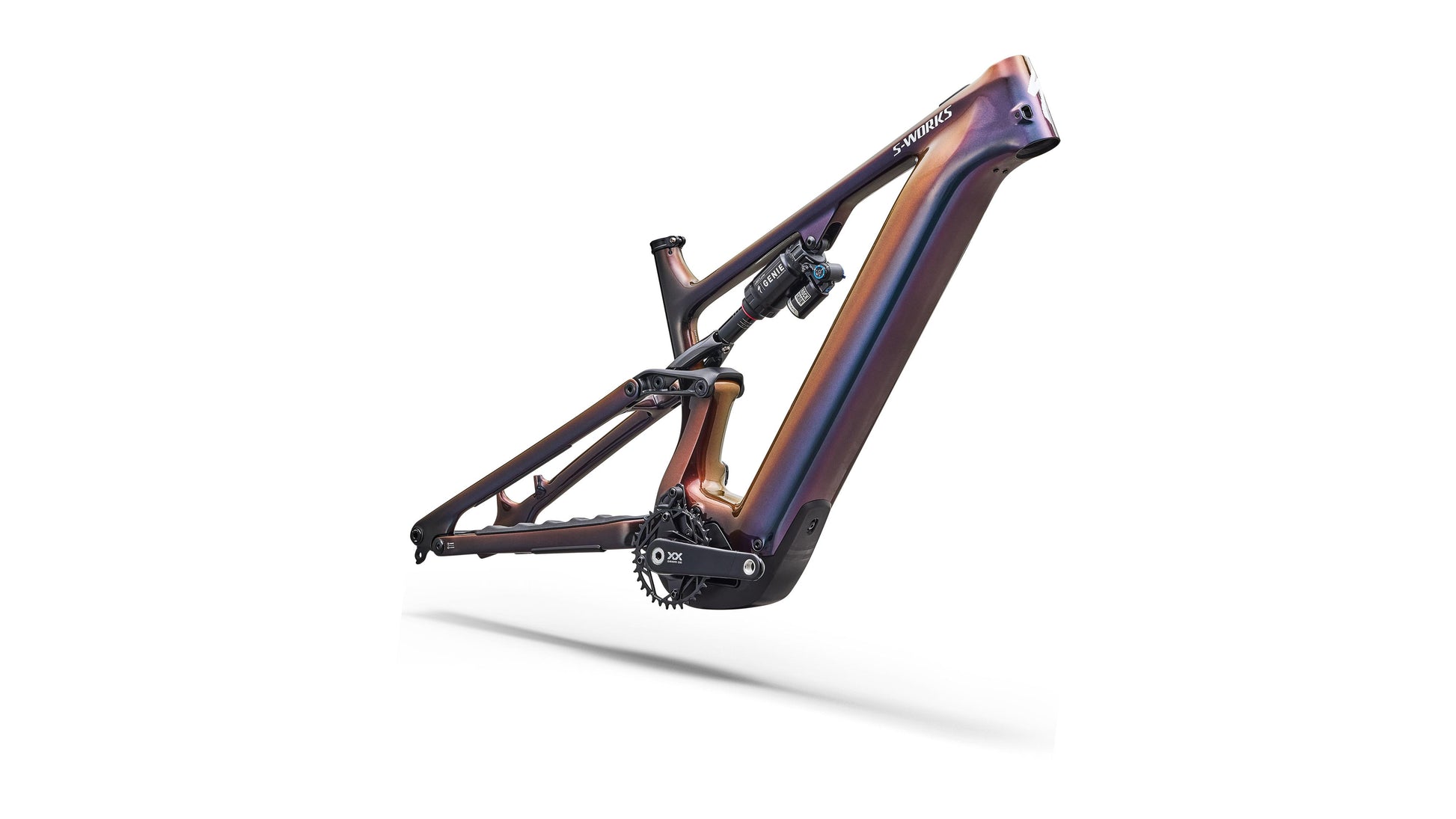

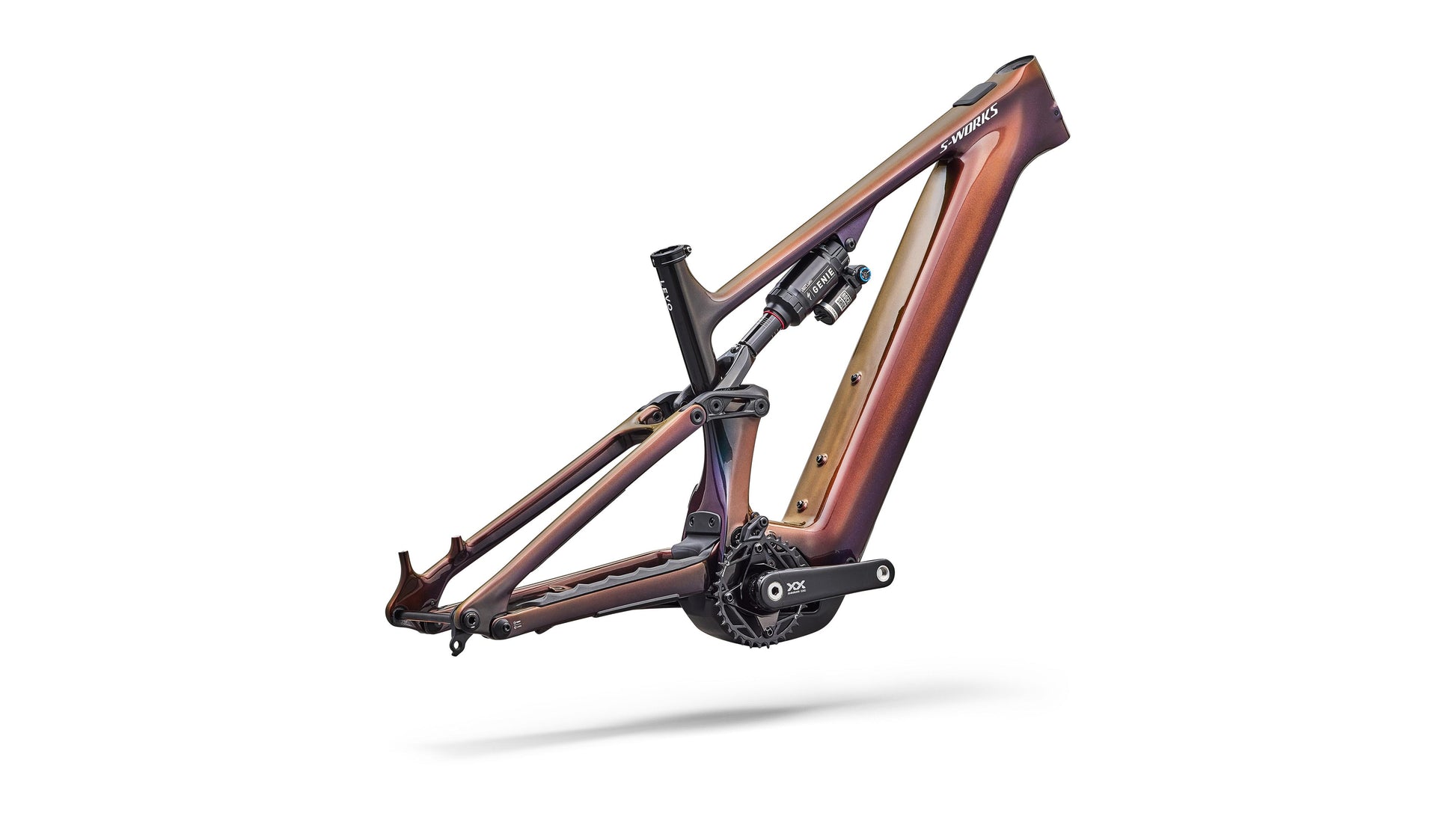

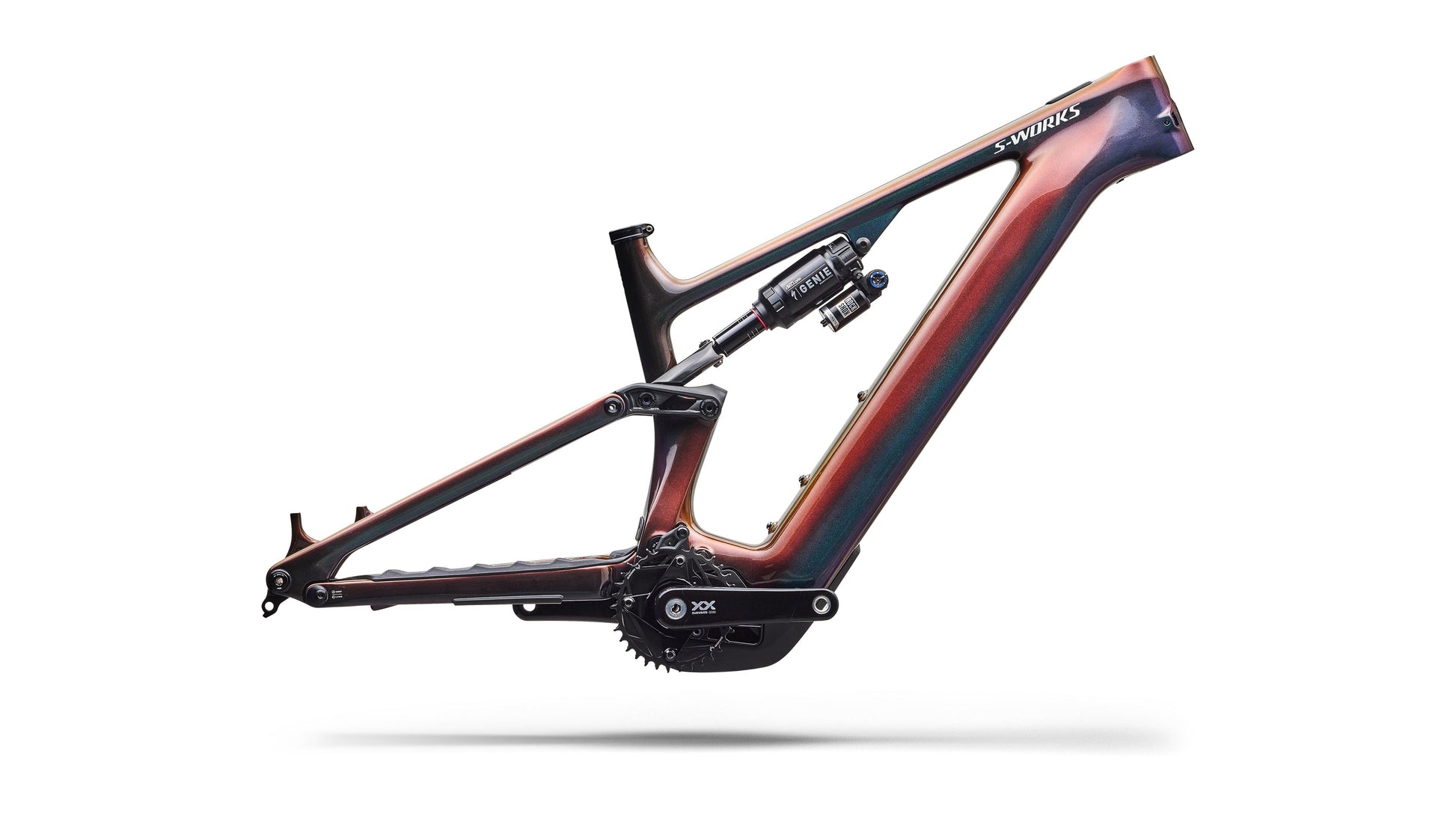

2027 Specialized S-Works Turbo Levo 4 Frameset

2027 Specialized S-Works Turbo Levo 4 Frameset

75227-0002

$5,999.99
$5,999.99 $5,999.99
New Sold out

Color
Size
View full details

    2027 Specialized S-Works Turbo Levo 4 Frameset Features

    The Specialized Science Club Introduces the S-Works Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

    At a Glance

    • Use - Full Power E-MTB Trail
    • E-System - S-Works 3.1 Motor w/ 850 watts peak power & 111 Nm torque, 900 Wh battery, up to 4.63 hour range w/ optional Range Extender
    • Frame - FACT 11m Carbon w/ Carbon Link, Geo Adj & SWAT E-MTB Storage
    • Suspension - 150mm RockShox Super Deluxe Ultimate shock w/ GENIE

    Product Specifications

    battery

    900Wh Battery

    chain rings

    SRAM 34t T-Type chainring, 104 BCD, steel

    charger

    Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%

    crankset

    SRAM XX Carbon crank, 160mm, ISIS interface

    frame

    Levo 4 carbon frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm, adjustable head angle, BB height, chainstay length

    motor

    Specialized 3.1 S-Works motor, 111Nm power, 850W power

    rear shock

    All New Rockshox Super Deluxe Ultimate GENIE, RC2T damper with (LSC) Low Speed Compression and (HSC) High Speed Compression, GENIE adjustable airspring, rebound adjust, 210x55mm

    seat binder

    Alloy, 38.6mm

    swat

    SWAT Internal downtube storage

    ui remote

    Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My

    category

    Mountain

    component geometry

    [{"COMPONENT_GEO_CODE":"12912731","COMPONENT_MEASUREMENT_DESC":"Crank Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"101","SIZE_DESC":"S2","GEO_SIZE_VALUE":"160","GEO_SIZE_DISPLAY_ORDER":"1"},{"COMPONENT_GEO_CODE":"12912731","COMPONENT_MEASUREMENT_DESC":"Crank Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"101","SIZE_DESC":"S3","GEO_SIZE_VALUE":"160","GEO_SIZE_DISPLAY_ORDER":"2"},{"COMPONENT_GEO_CODE":"12912731","COMPONENT_MEASUREMENT_DESC":"Crank Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"101","SIZE_DESC":"S4","GEO_SIZE_VALUE":"160","GEO_SIZE_DISPLAY_ORDER":"3"},{"COMPONENT_GEO_CODE":"12912731","COMPONENT_MEASUREMENT_DESC":"Crank Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"101","SIZE_DESC":"S5","GEO_SIZE_VALUE":"160","GEO_SIZE_DISPLAY_ORDER":"4"},{"COMPONENT_GEO_CODE":"12912731","COMPONENT_MEASUREMENT_DESC":"Crank Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"101","SIZE_DESC":"S6","GEO_SIZE_VALUE":"160","GEO_SIZE_DISPLAY_ORDER":"5"},{"COMPONENT_GEO_CODE":"12912771","COMPONENT_MEASUREMENT_DESC":"Handlebar Width","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"102","SIZE_DESC":"S2","GEO_SIZE_VALUE":"-","GEO_SIZE_DISPLAY_ORDER":"1"},{"COMPONENT_GEO_CODE":"12912771","COMPONENT_MEASUREMENT_DESC":"Handlebar Width","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"102","SIZE_DESC":"S3","GEO_SIZE_VALUE":"-","GEO_SIZE_DISPLAY_ORDER":"2"},{"COMPONENT_GEO_CODE":"12912771","COMPONENT_MEASUREMENT_DESC":"Handlebar Width","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"102","SIZE_DESC":"S4","GEO_SIZE_VALUE":"-","GEO_SIZE_DISPLAY_ORDER":"3"},{"COMPONENT_GEO_CODE":"12912771","COMPONENT_MEASUREMENT_DESC":"Handlebar Width","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"102","SIZE_DESC":"S5","GEO_SIZE_VALUE":"-","GEO_SIZE_DISPLAY_ORDER":"4"},{"COMPONENT_GEO_CODE":"12912771","COMPONENT_MEASUREMENT_DESC":"Handlebar Width","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"102","SIZE_DESC":"S6","GEO_SIZE_VALUE":"-","GEO_SIZE_DISPLAY_ORDER":"5"},{"COMPONENT_GEO_CODE":"12912775","COMPONENT_MEASUREMENT_DESC":"Stem Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"103","SIZE_DESC":"S2","GEO_SIZE_VALUE":"-","GEO_SIZE_DISPLAY_ORDER":"1"},{"COMPONENT_GEO_CODE":"12912775","COMPONENT_MEASUREMENT_DESC":"Stem Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"103","SIZE_DESC":"S3","GEO_SIZE_VALUE":"-","GEO_SIZE_DISPLAY_ORDER":"2"},{"COMPONENT_GEO_CODE":"12912775","COMPONENT_MEASUREMENT_DESC":"Stem Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"103","SIZE_DESC":"S4","GEO_SIZE_VALUE":"-","GEO_SIZE_DISPLAY_ORDER":"3"},{"COMPONENT_GEO_CODE":"12912775","COMPONENT_MEASUREMENT_DESC":"Stem Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"103","SIZE_DESC":"S5","GEO_SIZE_VALUE":"-","GEO_SIZE_DISPLAY_ORDER":"4"},{"COMPONENT_GEO_CODE":"12912775","COMPONENT_MEASUREMENT_DESC":"Stem Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"103","SIZE_DESC":"S6","GEO_SIZE_VALUE":"-","GEO_SIZE_DISPLAY_ORDER":"5"},{"COMPONENT_GEO_CODE":"12912785","COMPONENT_MEASUREMENT_DESC":"Saddle Width","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"104","SIZE_DESC":"S2","GEO_SIZE_VALUE":"-","GEO_SIZE_DISPLAY_ORDER":"1"},{"COMPONENT_GEO_CODE":"12912785","COMPONENT_MEASUREMENT_DESC":"Saddle Width","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"104","SIZE_DESC":"S3","GEO_SIZE_VALUE":"-","GEO_SIZE_DISPLAY_ORDER":"2"},{"COMPONENT_GEO_CODE":"12912785","COMPONENT_MEASUREMENT_DESC":"Saddle Width","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"104","SIZE_DESC":"S4","GEO_SIZE_VALUE":"-","GEO_SIZE_DISPLAY_ORDER":"3"},{"COMPONENT_GEO_CODE":"12912785","COMPONENT_MEASUREMENT_DESC":"Saddle Width","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"104","SIZE_DESC":"S5","GEO_SIZE_VALUE":"-","GEO_SIZE_DISPLAY_ORDER":"4"},{"COMPONENT_GEO_CODE":"12912785","COMPONENT_MEASUREMENT_DESC":"Saddle Width","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"104","SIZE_DESC":"S6","GEO_SIZE_VALUE":"-","GEO_SIZE_DISPLAY_ORDER":"5"},{"COMPONENT_GEO_CODE":"12912786","COMPONENT_MEASUREMENT_DESC":"Seatpost Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"105","SIZE_DESC":"S2","GEO_SIZE_VALUE":"-","GEO_SIZE_DISPLAY_ORDER":"1"},{"COMPONENT_GEO_CODE":"12912786","COMPONENT_MEASUREMENT_DESC":"Seatpost Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"105","SIZE_DESC":"S3","GEO_SIZE_VALUE":"-","GEO_SIZE_DISPLAY_ORDER":"2"},{"COMPONENT_GEO_CODE":"12912786","COMPONENT_MEASUREMENT_DESC":"Seatpost Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"105","SIZE_DESC":"S4","GEO_SIZE_VALUE":"-","GEO_SIZE_DISPLAY_ORDER":"3"},{"COMPONENT_GEO_CODE":"12912786","COMPONENT_MEASUREMENT_DESC":"Seatpost Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"105","SIZE_DESC":"S5","GEO_SIZE_VALUE":"-","GEO_SIZE_DISPLAY_ORDER":"4"},{"COMPONENT_GEO_CODE":"12912786","COMPONENT_MEASUREMENT_DESC":"Seatpost Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"105","SIZE_DESC":"S6","GEO_SIZE_VALUE":"-","GEO_SIZE_DISPLAY_ORDER":"5"}]

    experience

    Trail

    frame geometry

    [{"GEO_SET_NAME":"LEVO 4","GEO_SET_ID":"15792","MODEL_YEAR":"2026","Children":[{"GEO_MEASUREMENT_DESCRIPTION":"Stack","MEASUREMENT_GEO_CODE":"185154","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"0","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"618","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"626","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"638","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"652","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"S6","GEO_VALUE":"667","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Reach","MEASUREMENT_GEO_CODE":"185155","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"1","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"435","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"455","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"480","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"505","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"S6","GEO_VALUE":"535","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Headtube Length","MEASUREMENT_GEO_CODE":"201385","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"2","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"95","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"103","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"117","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"132","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"S6","GEO_VALUE":"149","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Headtube Angle","MEASUREMENT_GEO_CODE":"201382","UOM":"degrees","GEO_MEASUREMENT_DISPLAY_ORDER":"3","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"64.5","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"64.5","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"64.5","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"64.5","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"S6","GEO_VALUE":"64.5","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"BB Height","MEASUREMENT_GEO_CODE":"185158","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"4","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"350","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"350","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"350","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"350","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"S6","GEO_VALUE":"350","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"BB Drop","MEASUREMENT_GEO_CODE":"185159","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"5","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"29.5","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"29.5","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"29.5","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"29.5","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"S6","GEO_VALUE":"29.5","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Trail","MEASUREMENT_GEO_CODE":"185160","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"6","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"132","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"132","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"132","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"132","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"S6","GEO_VALUE":"132","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Fork Length (full)","MEASUREMENT_GEO_CODE":"178217","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"7","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"577","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"577","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"577","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"577","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"S6","GEO_VALUE":"577","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Fork Rake/Offset","MEASUREMENT_GEO_CODE":"185162","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"8","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"44","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"44","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"44","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"44","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"S6","GEO_VALUE":"44","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Front Center","MEASUREMENT_GEO_CODE":"185163","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"9","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"765","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"789","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"820","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"851","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"S6","GEO_VALUE":"888","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Chainstay Length","MEASUREMENT_GEO_CODE":"185164","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"10","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"435","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"435","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"435","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"435","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"S6","GEO_VALUE":"435","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Wheelbase","MEASUREMENT_GEO_CODE":"185165","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"11","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"1200","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"1223","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"1254","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"1286","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"S6","GEO_VALUE":"1323","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Top-tube Length (horizontal)","MEASUREMENT_GEO_CODE":"201400","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"12","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"578","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"599","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"627","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"655","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"S6","GEO_VALUE":"689","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Bike Standover Height","MEASUREMENT_GEO_CODE":"185167","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"13","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"753","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"754","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"753","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"758","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"S6","GEO_VALUE":"761","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Seat Tube Length","MEASUREMENT_GEO_CODE":"185168","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"14","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"390","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"405","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"425","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"445","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"S6","GEO_VALUE":"465","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Seat Tube Angle","MEASUREMENT_GEO_CODE":"185169","UOM":"degrees","GEO_MEASUREMENT_DISPLAY_ORDER":"15","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"77","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"77","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"77","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"77","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"S6","GEO_VALUE":"77","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Saddle Height for Effective ST Angle","MEASUREMENT_GEO_CODE":"113714","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"16","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"690","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"735","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"780","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"825","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"S6","GEO_VALUE":"870","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Max Seatpost Insertion","MEASUREMENT_GEO_CODE":"201386","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"17","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"274","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"289","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"313","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"337","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"S6","GEO_VALUE":"357","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Min Seatpost Insertion","MEASUREMENT_GEO_CODE":"201387","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"18","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"80","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"80","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"80","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"80","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"S6","GEO_VALUE":"80","GEO_DISPLAY_ORDER":"4"}]}]}]

    group

    Framesets

    line

    BIKES

    material

    Carbon

    model level

    S-Works

    model year

    2027

    product family

    Turbo Levo

    shifting

    Mechanical

    suspension

    Front & Rear

    base color

    Red

    color

    Gloss Red Gold / Metallic White Silver

    size

    S2

    2027 Specialized S-Works Turbo Levo 4 Frameset

    Bike/Frame Size S2 S3 S4 S5 S6
    Stack 618 mm 626 mm 638 mm 652 mm 667 mm
    Reach 435 mm 455 mm 480 mm 505 mm 535 mm
    Chainstay Length 435 mm 435 mm 435 mm 435 mm 435 mm
    Wheelbase 1200 mm 1223 mm 1254 mm 1286 mm 1323 mm
    Top-tube Length (horizontal) 578 mm 599 mm 627 mm 655 mm 689 mm
    Bike Standover Height 753 mm 754 mm 753 mm 758 mm 761 mm
    Seat Tube Length 390 mm 405 mm 425 mm 445 mm 465 mm
    Seat Tube Angle 77° 77° 77° 77° 77°
    Saddle Height for Effective ST Angle 690 mm 735 mm 780 mm 825 mm 870 mm
    Max Seatpost Insertion 274 mm 289 mm 313 mm 337 mm 357 mm
    Min Seatpost Insertion 80 mm 80 mm 80 mm 80 mm 80 mm
    Headtube Length 95 mm 103 mm 117 mm 132 mm 149 mm
    Headtube Angle 64.5° 64.5° 64.5° 64.5° 64.5°
    BB Height 350 mm 350 mm 350 mm 350 mm 350 mm
    BB Drop 29.5 mm 29.5 mm 29.5 mm 29.5 mm 29.5 mm
    Trail 132 mm 132 mm 132 mm 132 mm 132 mm
    Fork Length (full) 577 mm 577 mm 577 mm 577 mm 577 mm
    Fork Rake/Offset 44 mm 44 mm 44 mm 44 mm 44 mm
    Front Center 765 mm 789 mm 820 mm 851 mm 888 mm

    Component Geometry

    Component S2 S3 S4 S5 S6
    Crank Length 160 mm 160 mm 160 mm 160 mm 160 mm
    Handlebar Width - mm - mm - mm - mm - mm
    Stem Length - mm - mm - mm - mm - mm
    Saddle Width - mm - mm - mm - mm - mm
    Seatpost Length - mm - mm - mm - mm - mm
