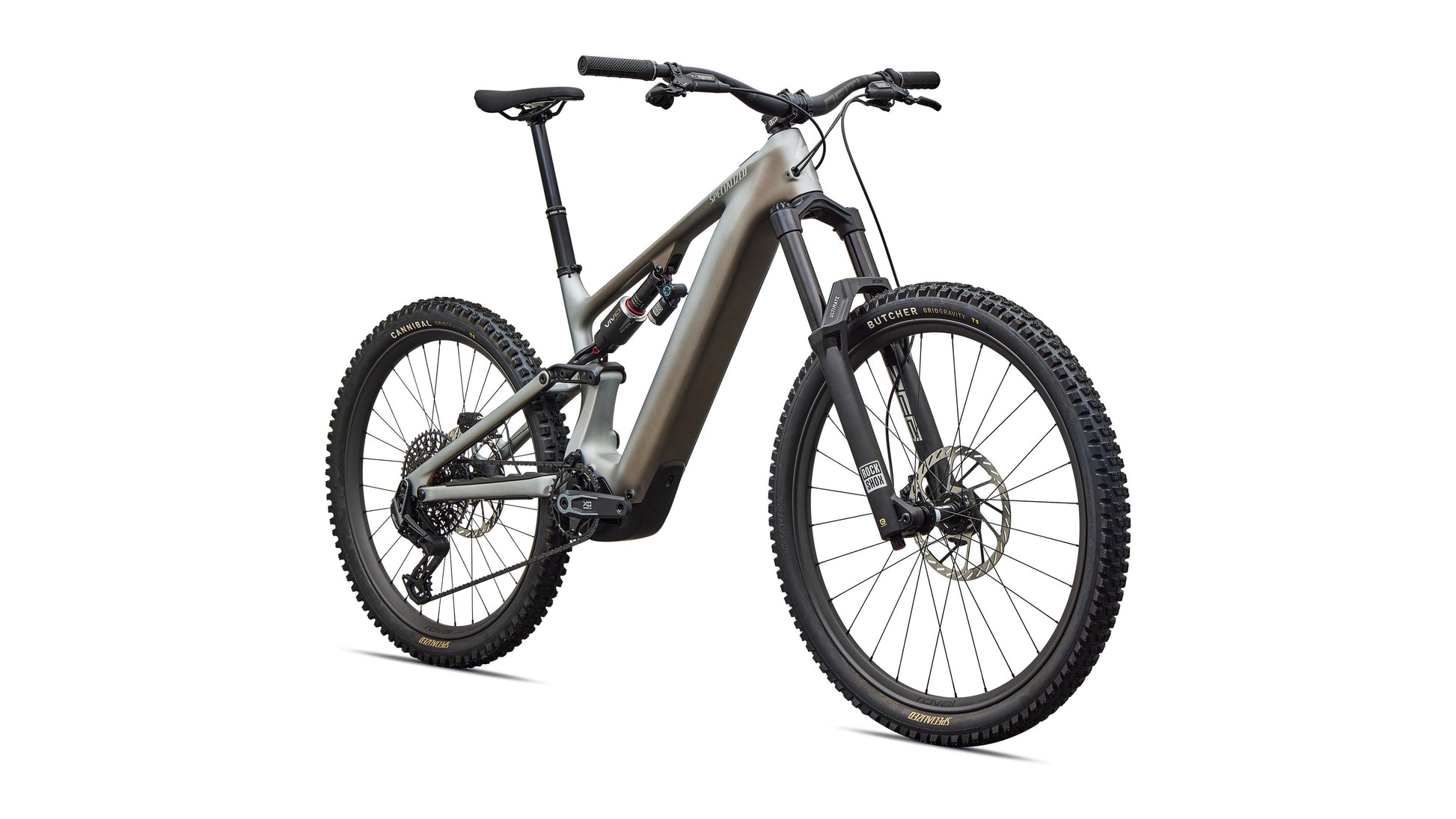

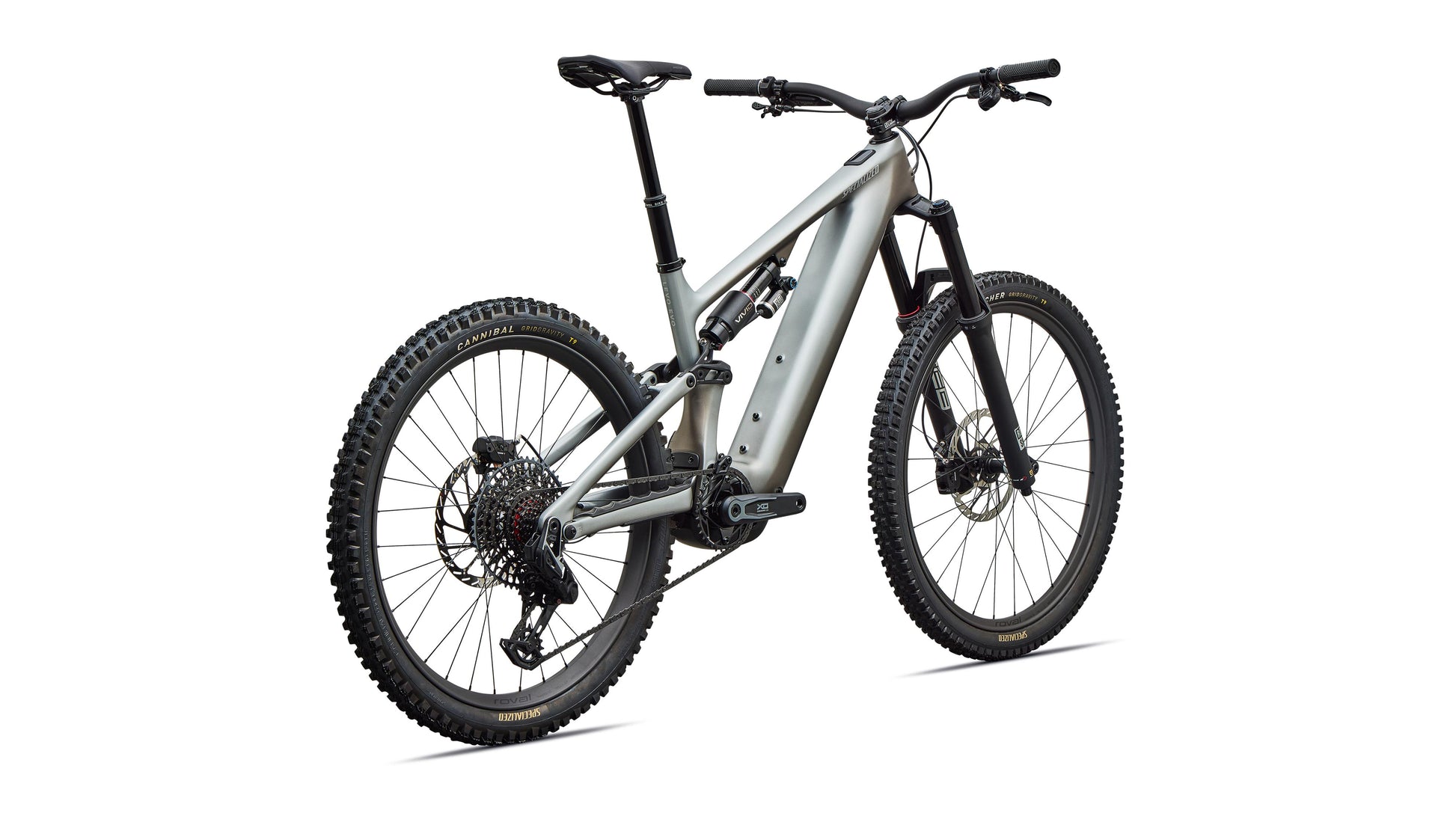

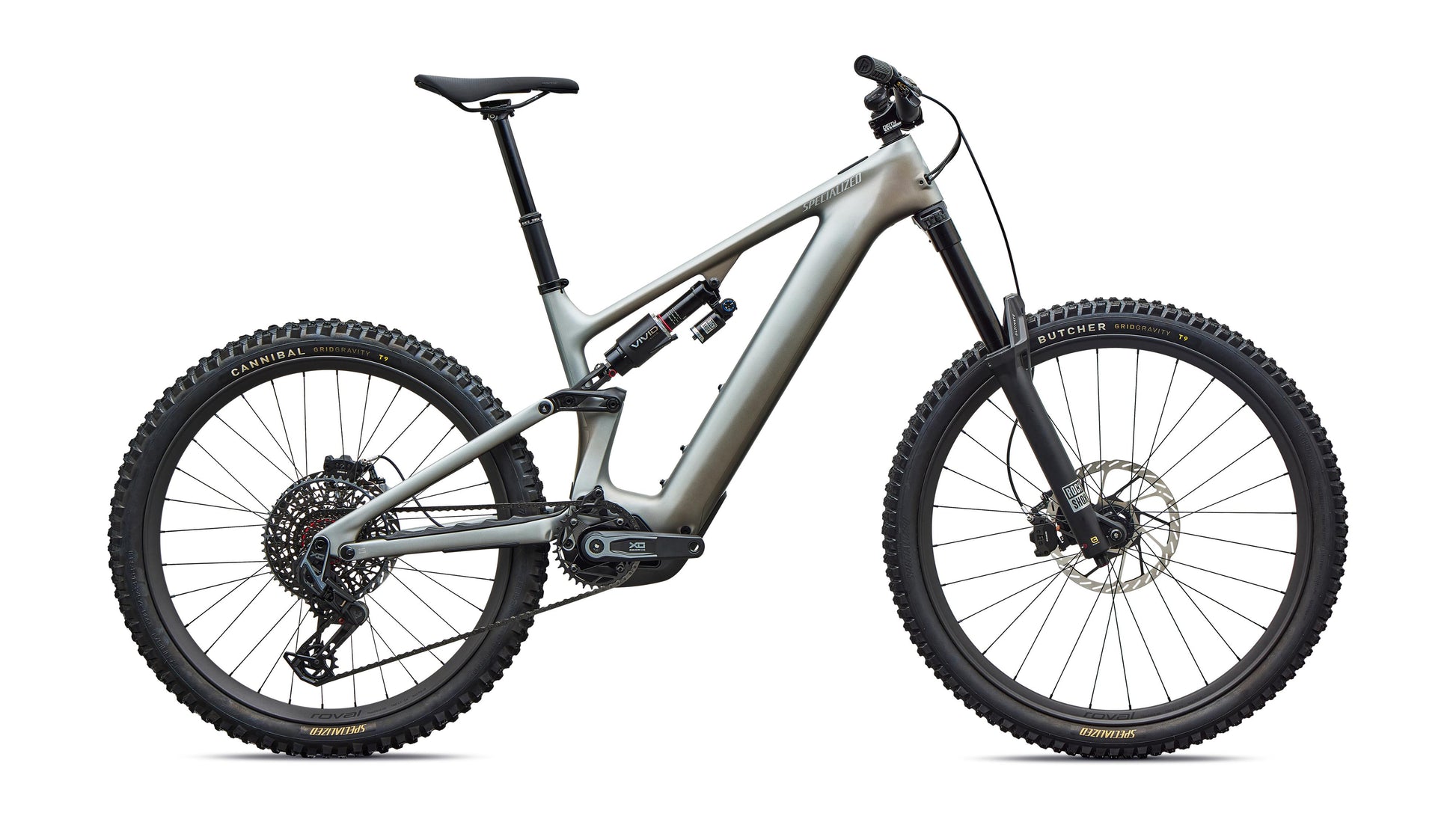

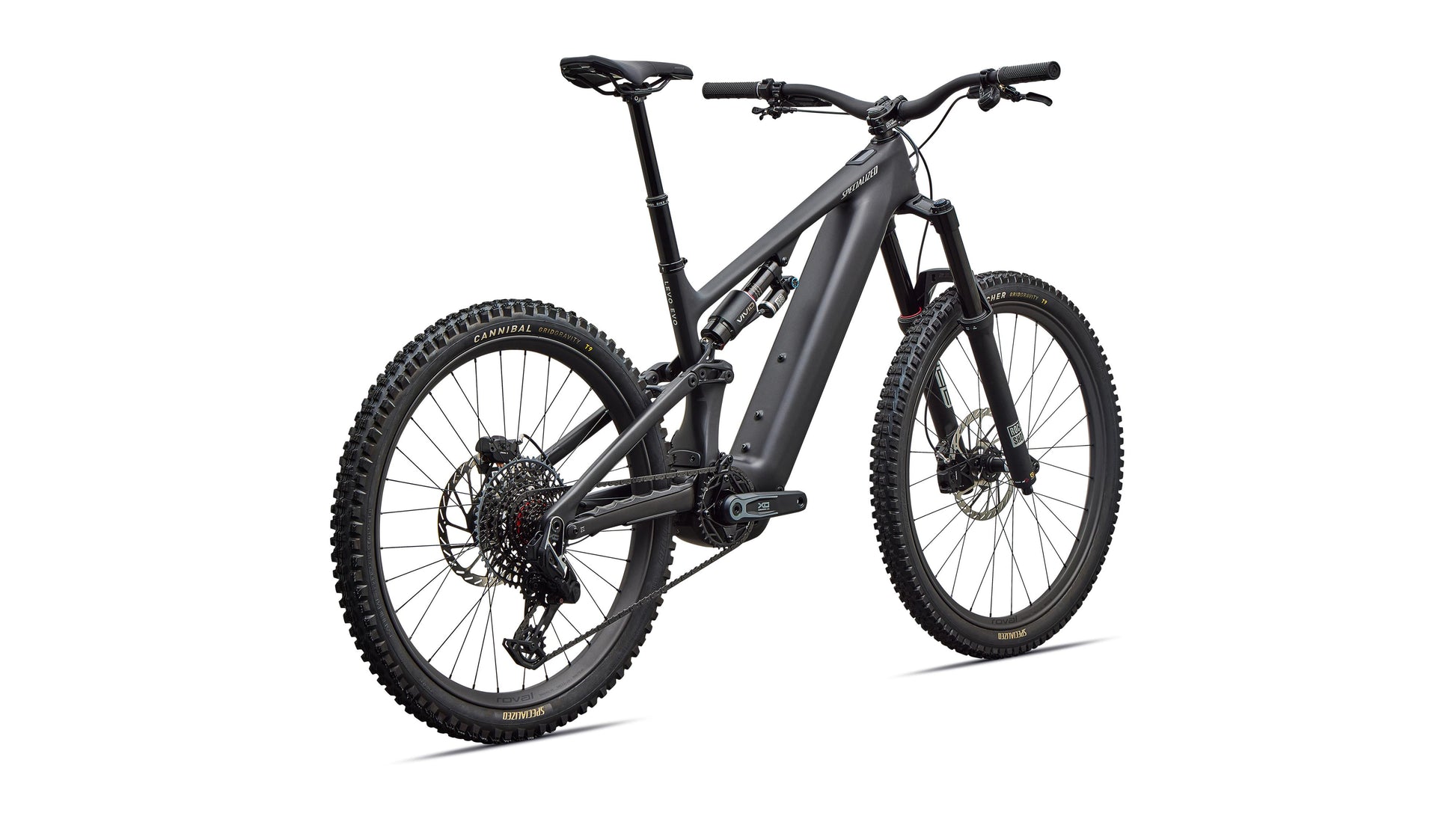

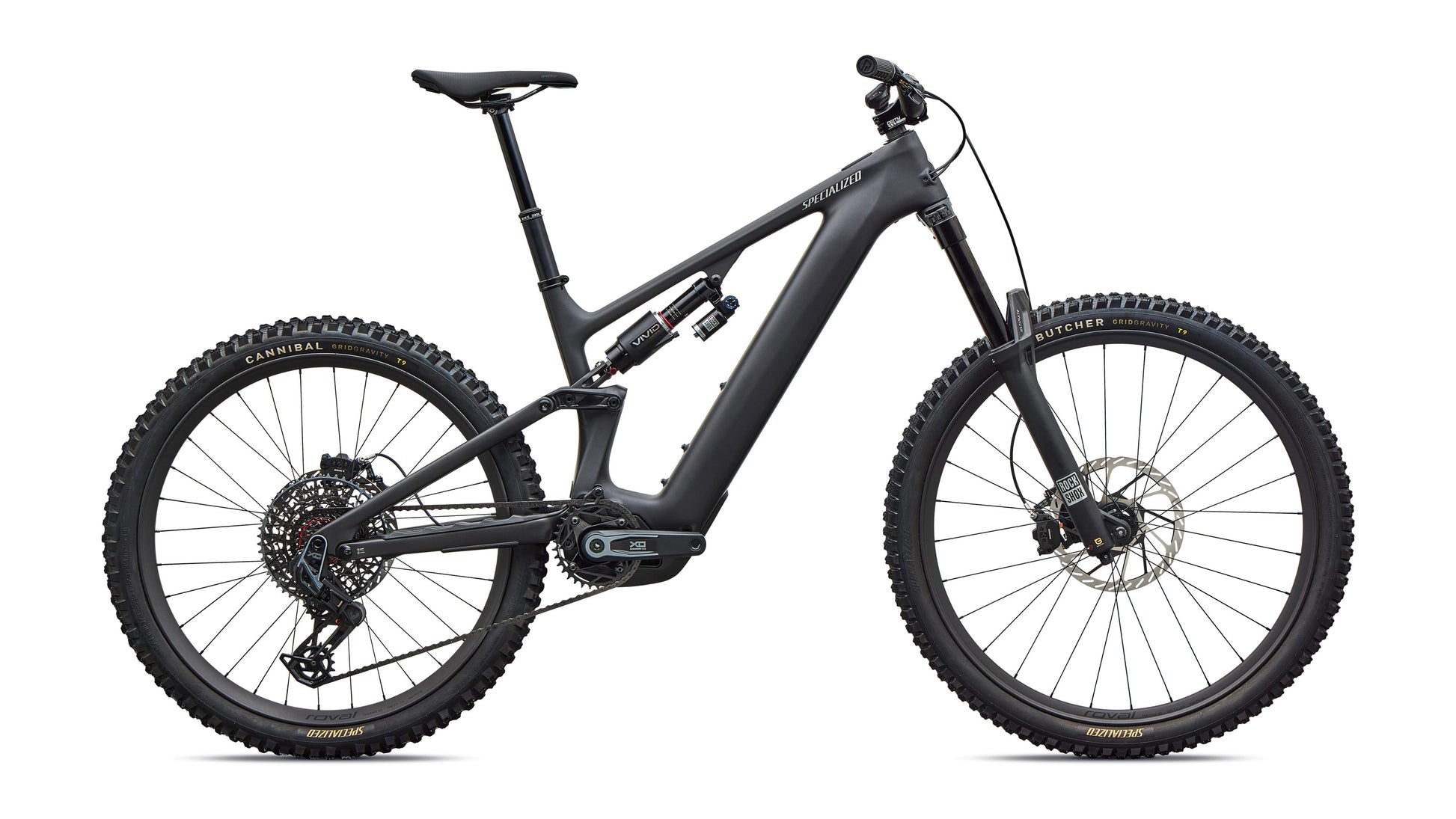

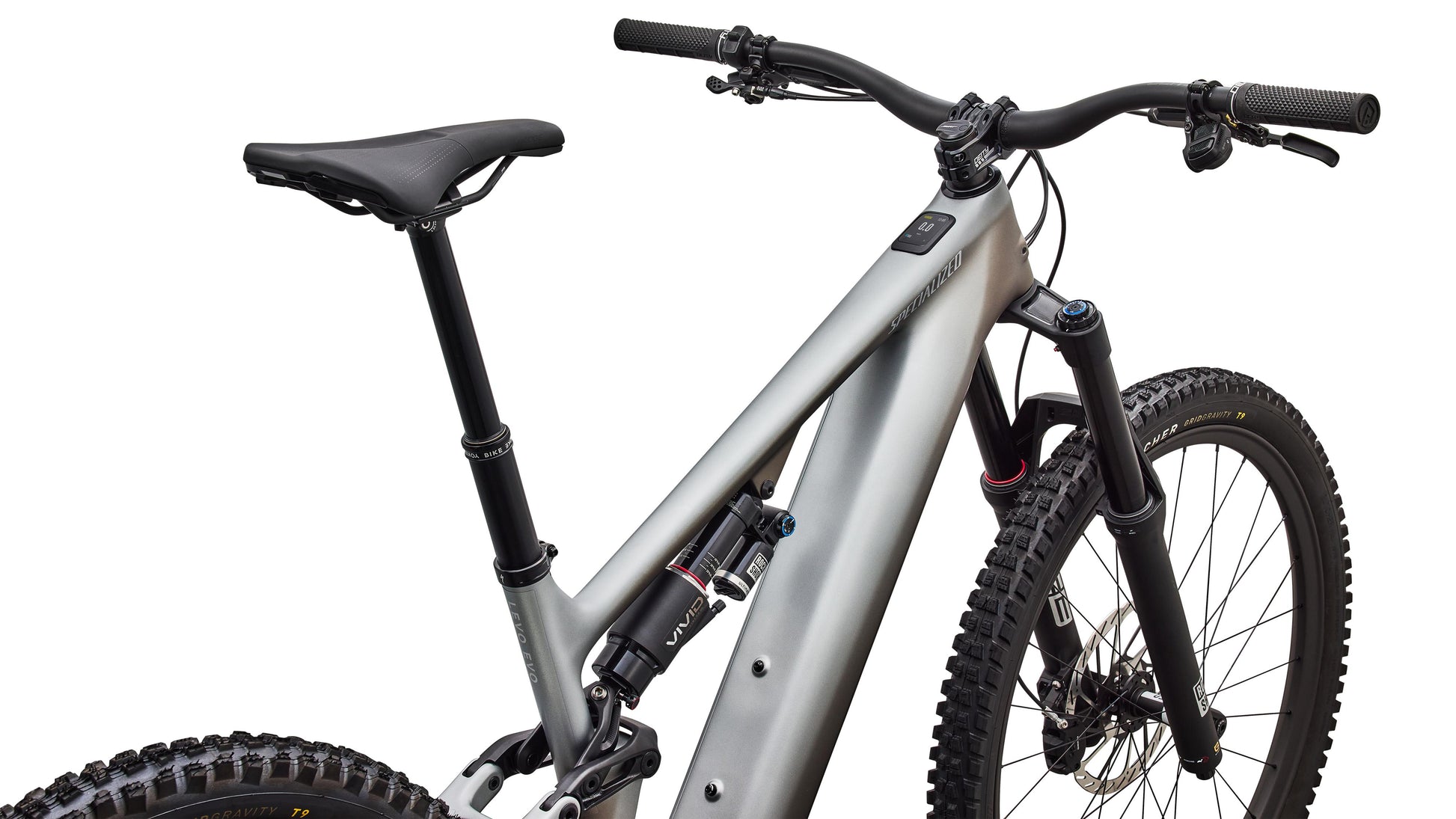

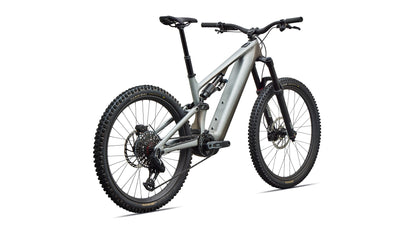

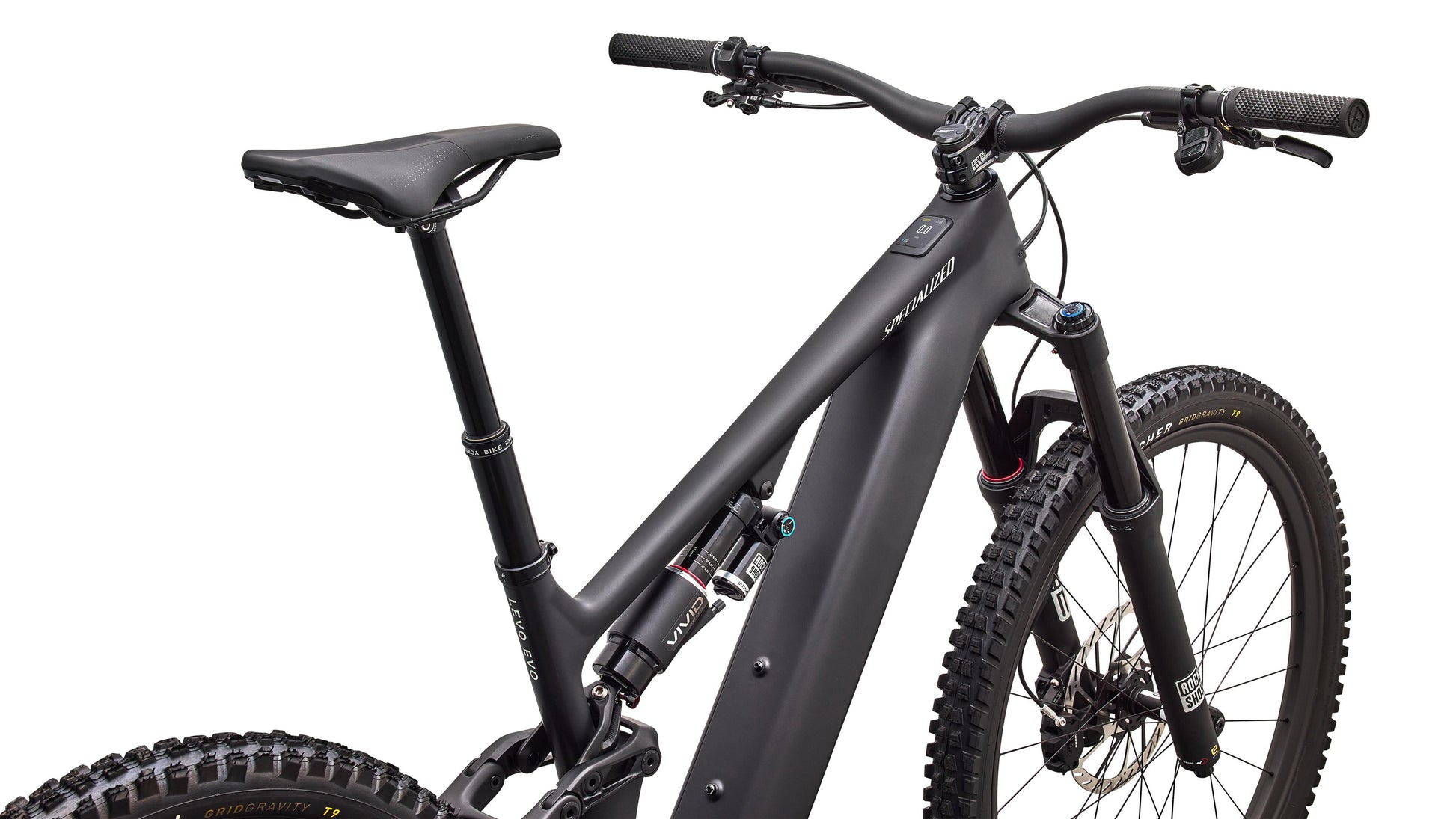

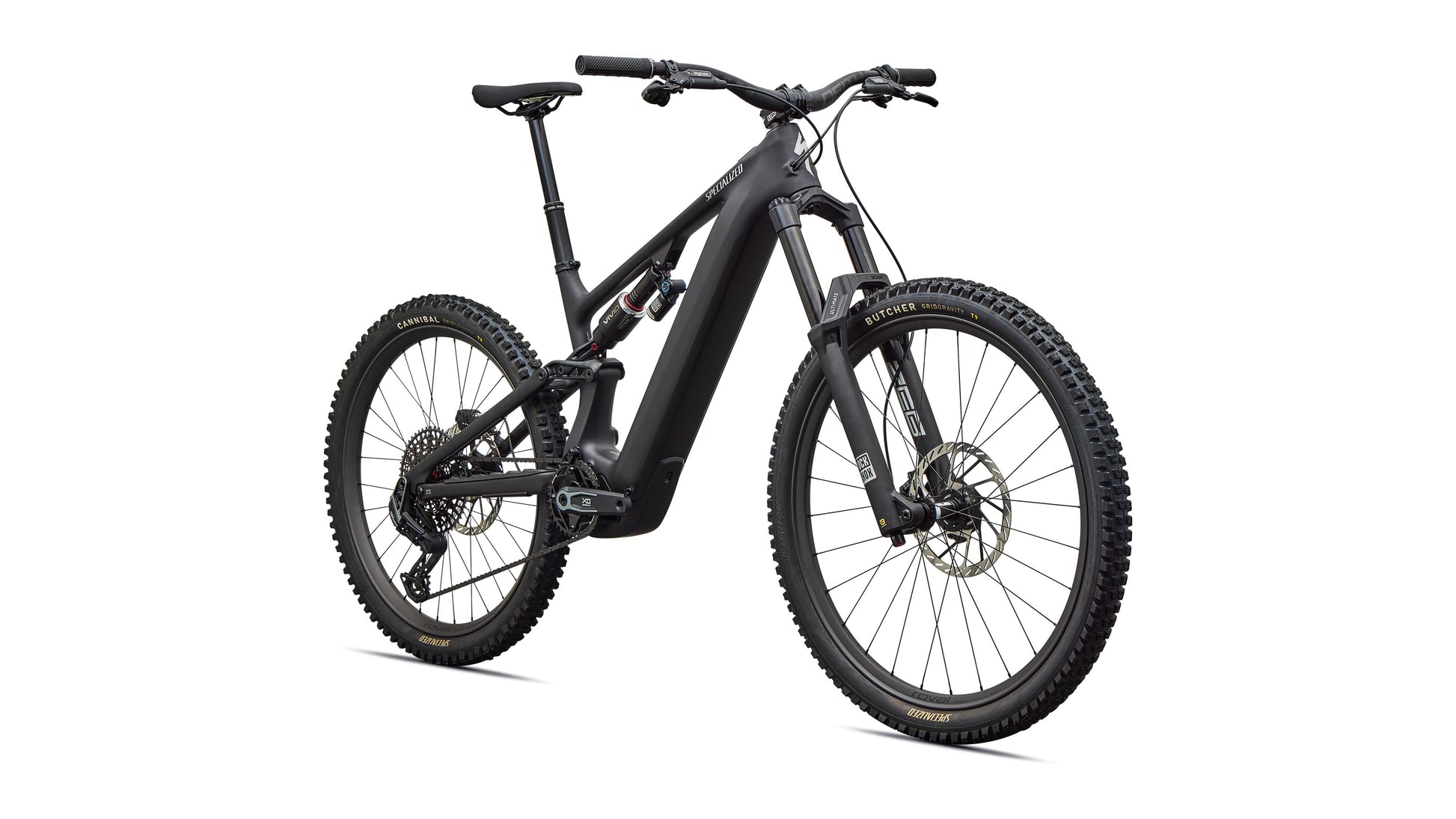

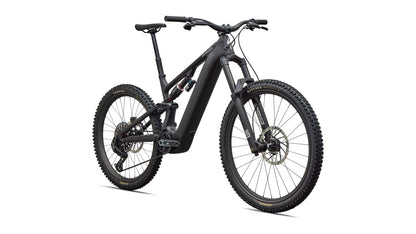

2027 Specialized Levo 4 EVO Pro

2027 Specialized Levo 4 EVO Pro

95227-1102

$10,499.99
$10,499.99 $10,499.99
New
Color
Size
View full details

    2027 Specialized Levo 4 EVO Pro Features

    Levo 4 EVO is built for riders who don’t tiptoe around terrain. The riders who point into the steep stuff, ride bike parks without a chairlift, and want a bike that stays calm when things get fast, rough, and consequential. This is Electric Enduro.

    At a Glance

    • Use - Electric Enduro
    • E-System - Specialized 3.1 Motor w/ 810 Watts & 105 Nm, 840 Wh Battery, up to 5 hour range w/ optional Range Extender
    • Frame - Levo EVO FACT 11m carbon frame, Geo Adj & SWAT Storage
    • Suspension - Fork: 180mm RockShox Zeb Ultimate
      Shock: Vivid Ultimate Air Linear
    • Drivetrain - SRAM X0 Eagle Transmission
    • Wheels - Traverse HD with DT Swiss 350 hubs

    Component Specifications

    E-Bike
    motor

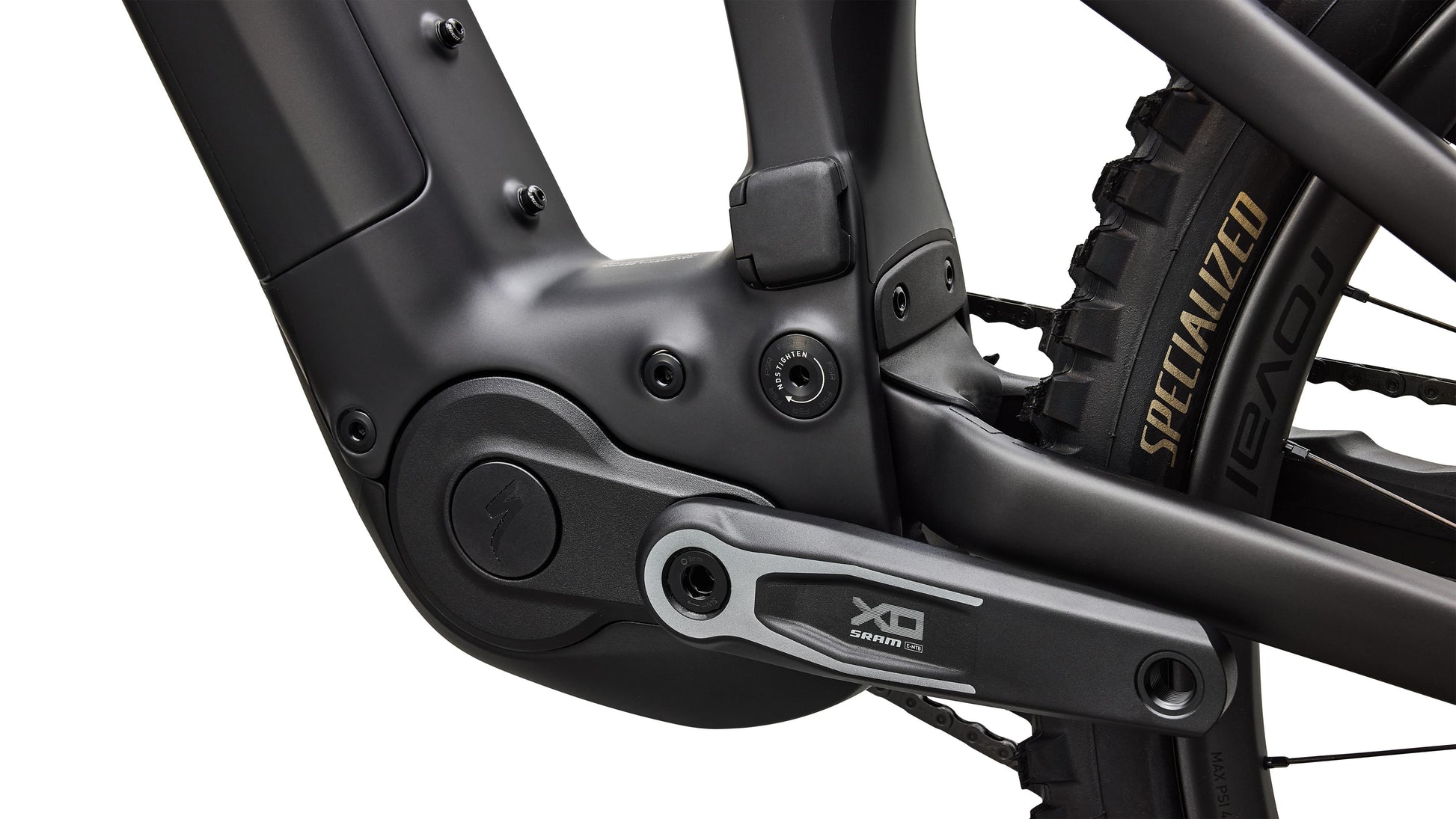

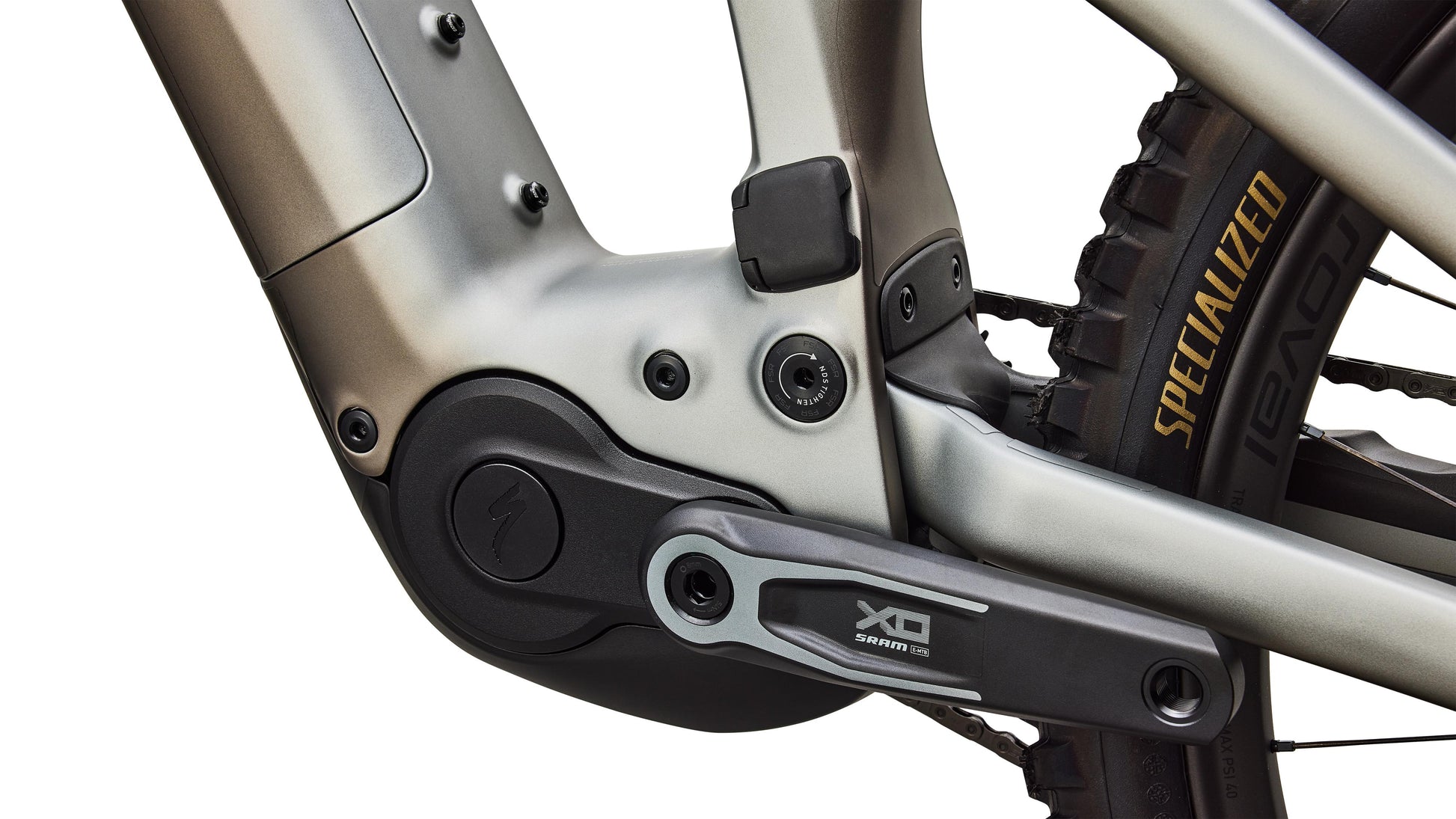

    Specialized 3.1 Motor, 105Nm torque, 810W power
    battery
    840Wh battery
    ui remote

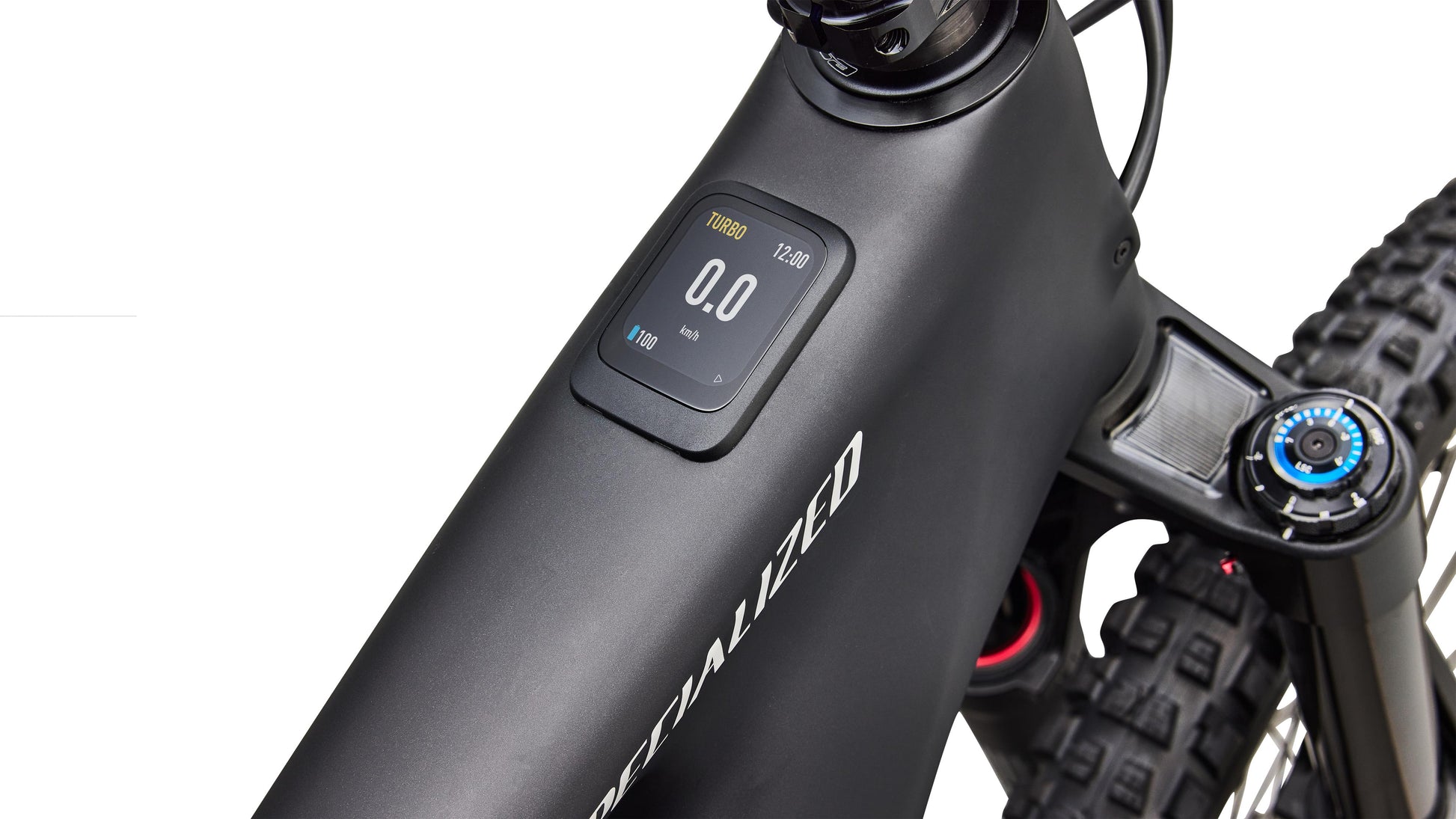

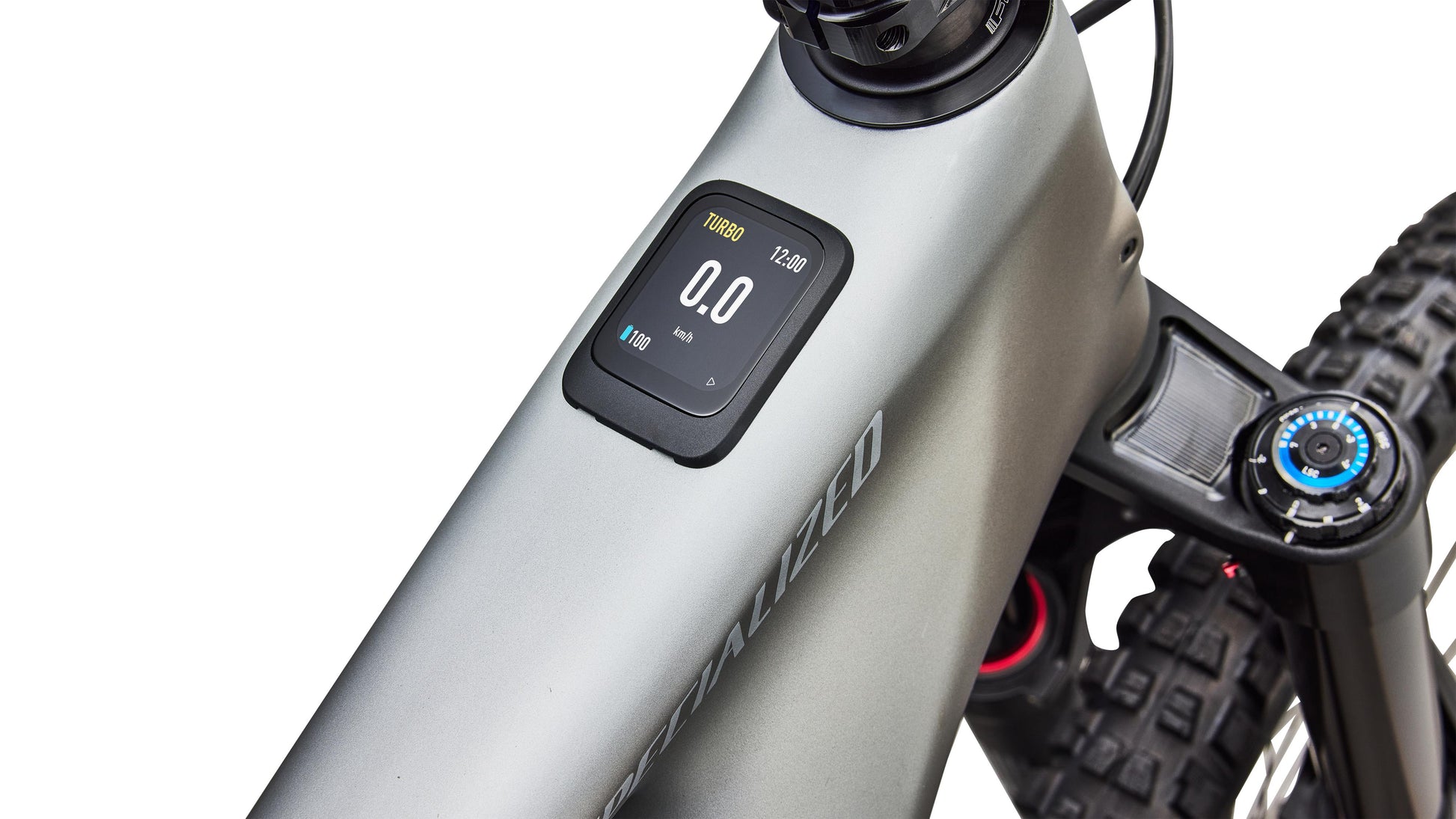

    Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
    charger
    Specialized 4amp charger
    Frameset
    frame

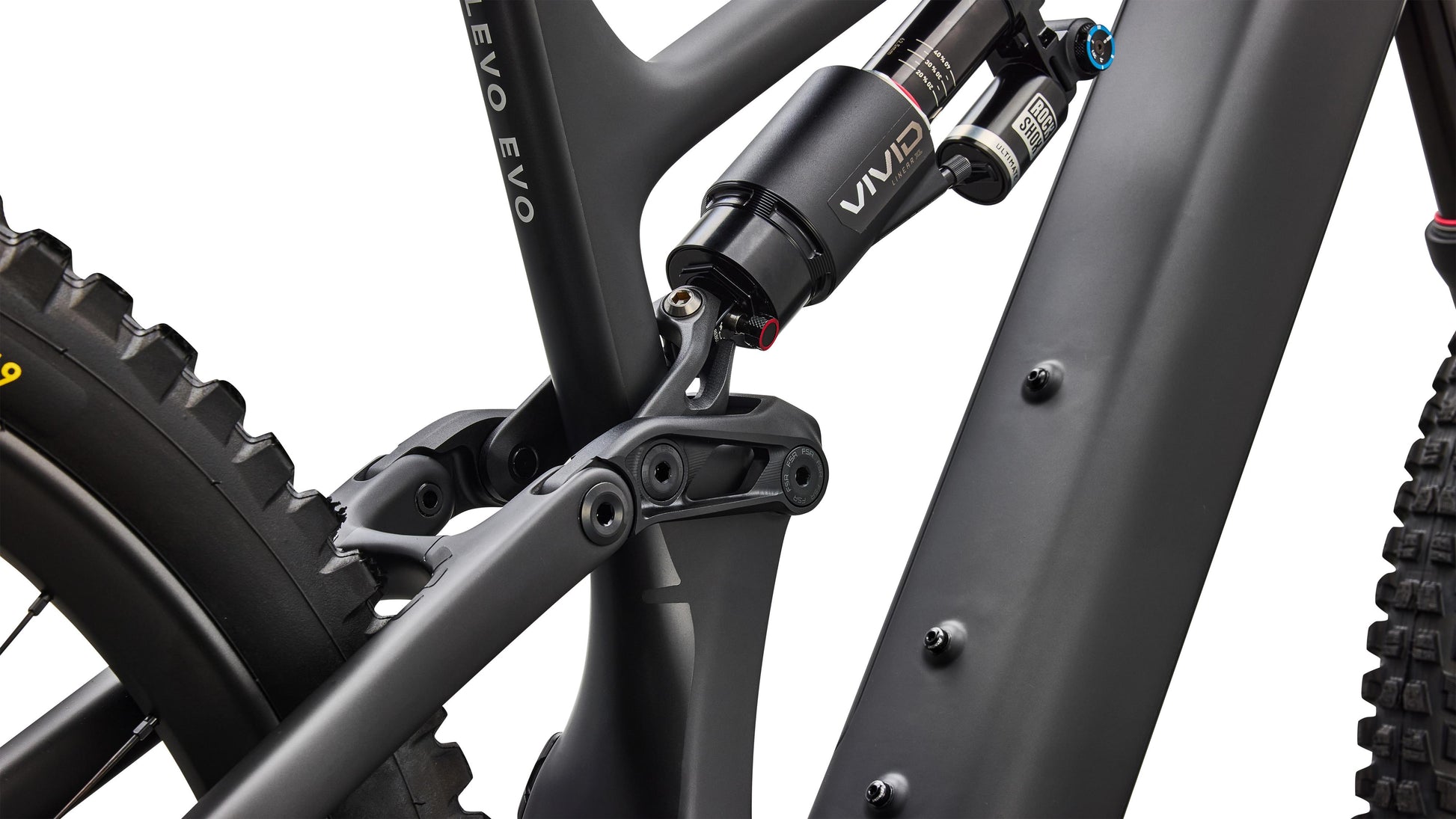

    Levo Evo FACT 11m carbon frame, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm rear travel, 29" front wheel/27.5" rear wheel, adjustable head tube angle, chainstay length, integrated SWAT storage
    seat binder
    Alloy, 38.6mm
    Suspension
    rear shock

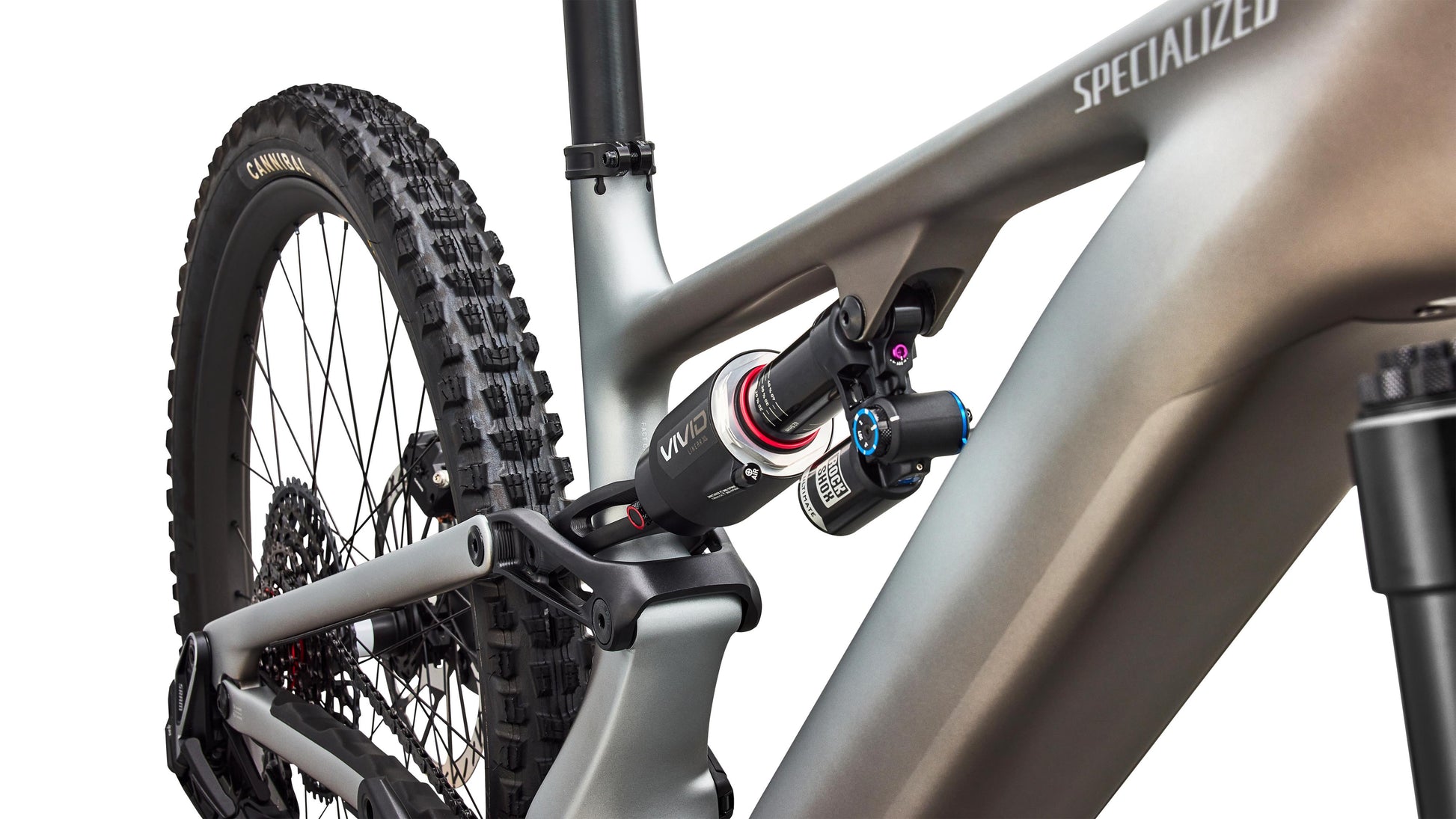

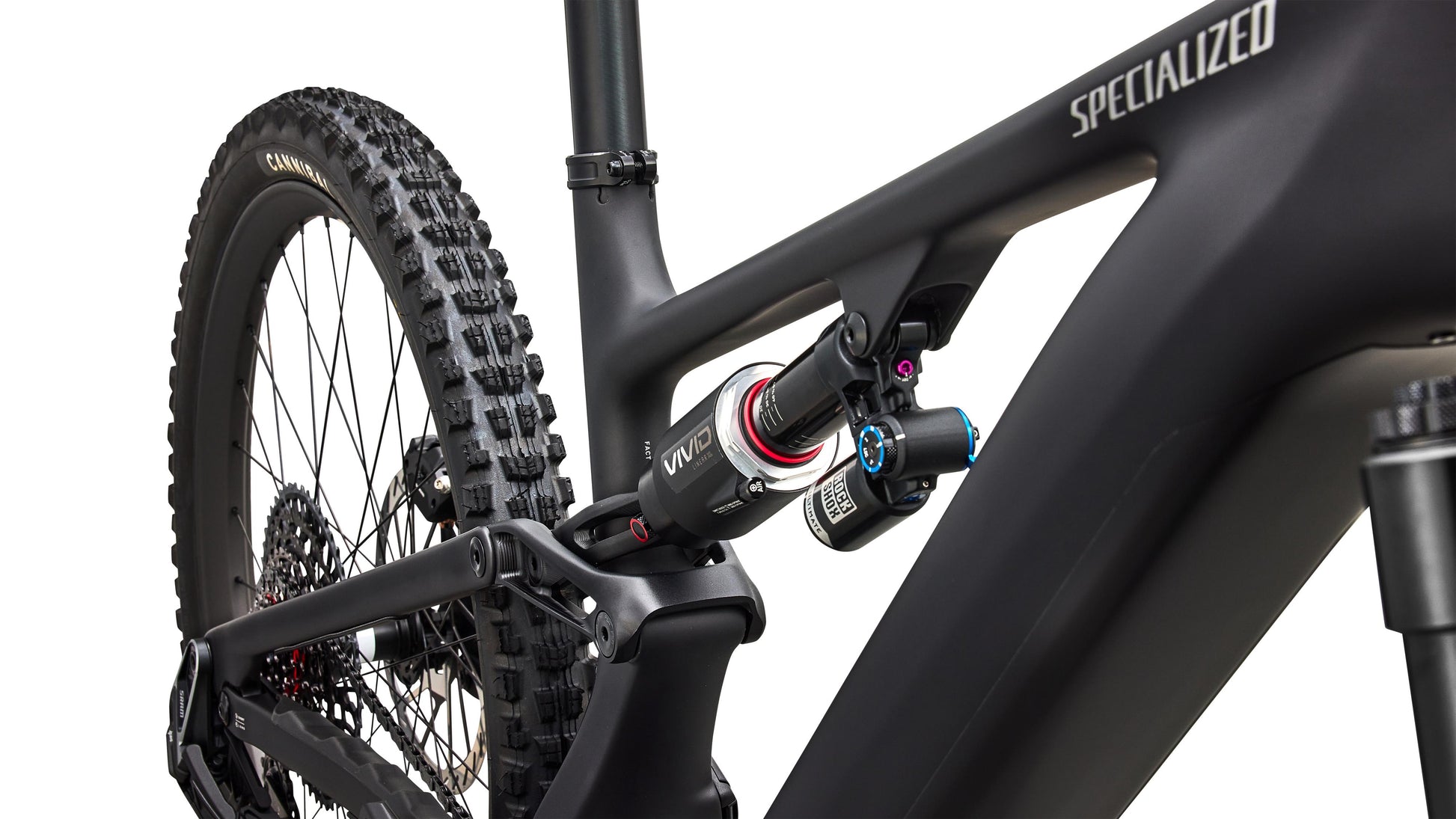

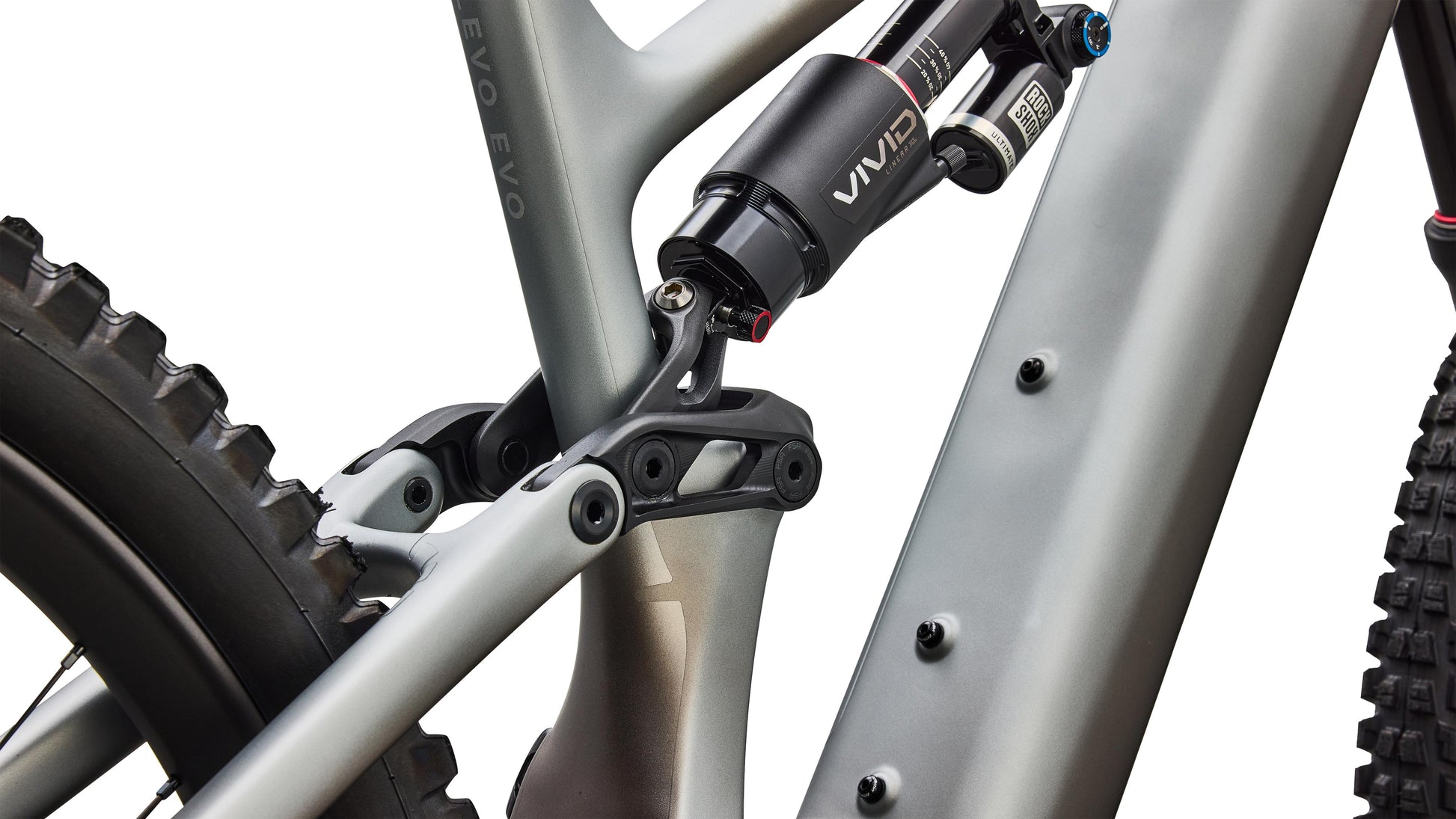

    All New Vivid Ultimate air, 230x62.5mm, Linear XL spring, RCT2 damper w/HSC and LCS adjust, and HBO adjust, rebound adjust
    fork
    All New SRAM FS ZEB Ultimate, 29" 180mm, Linear XL spring with ButterCups and adjustable bottom out, new Charger 3.2 damper with HSC and LSC, rebound adjust
    Brakes
    front brake
    SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm rotor
    rear brake
    SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm rotor
    Drivetrain
    shift levers
    SRAM AXS Pod Controller w/discrete clamp
    rear derailleur
    SRAM X0 Eagle Transmission
    cassette
    SRAM XS 1295, 12 speed, 10-52
    chain
    SRAM X0 Eagle Transmission 12-Speed Flattop Chain
    crankset
    SRAM XO Alloy crank, 155mm, ISIS interface
    chain rings
    SRAM 34t T-Type chainring, 104 BCD, steel
    Wheels & Tires
    front tire
    Butcher, GRID Gravity, T9 compound, TLR, 29x2.4"
    rear tire
    Cannibal GRID Gravity T9 TLR Downhill Tire 27.5x2.4"
    inner tubes
    Standard, Presta Valve
    front wheel
    Traverse HD Carbon 29" rim, DT Swiss 350, 29, 28H, carbon rim, 30mm inner width
    rear wheel
    Traverse HD 350, 27.5", 32H, carbon rim, 30mm inner width, DT Swiss 350 hub, 12x148
    Cockpit
    stem
    Deity, 35mm clamp, 42mm length
    handlebars

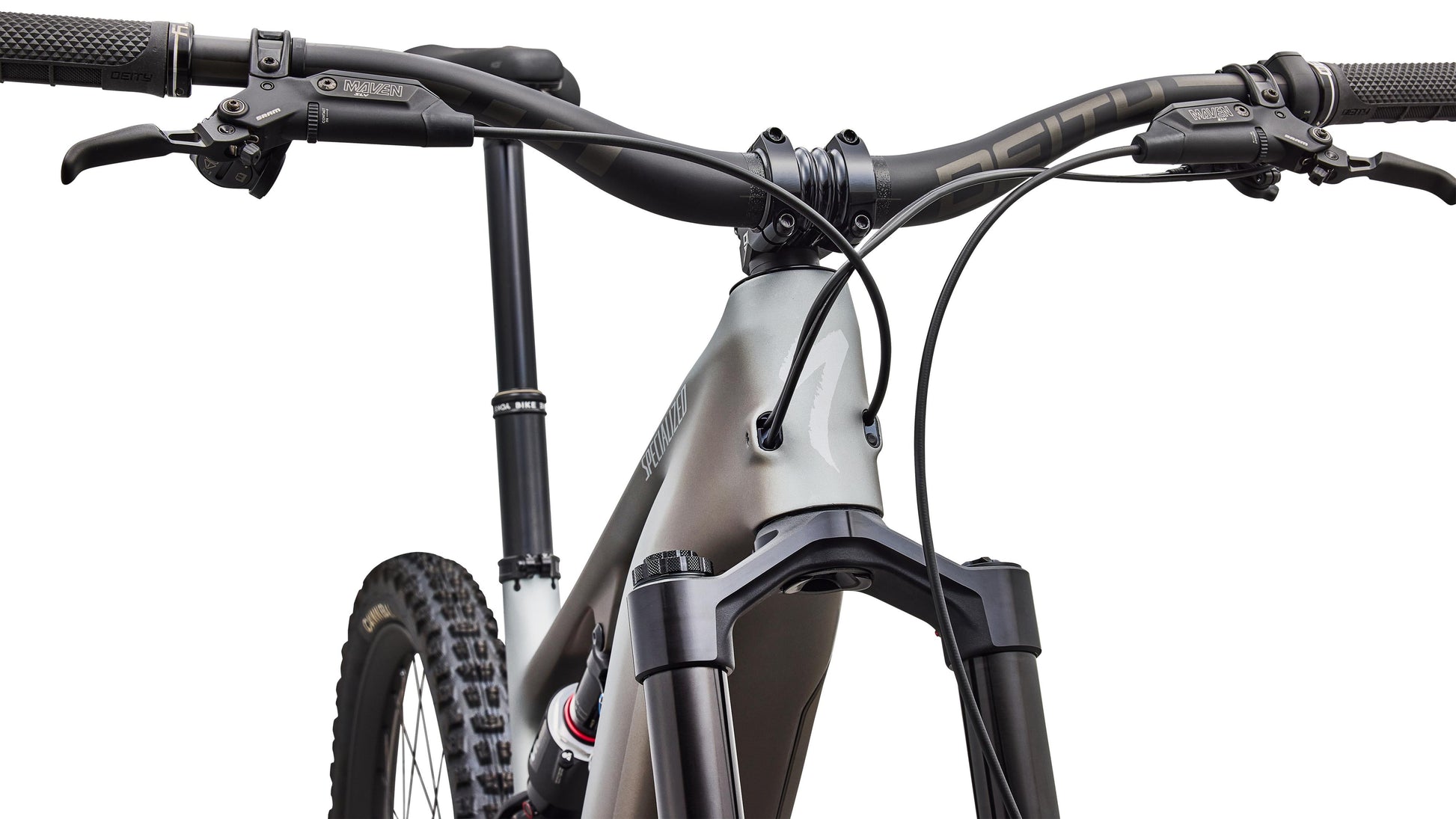

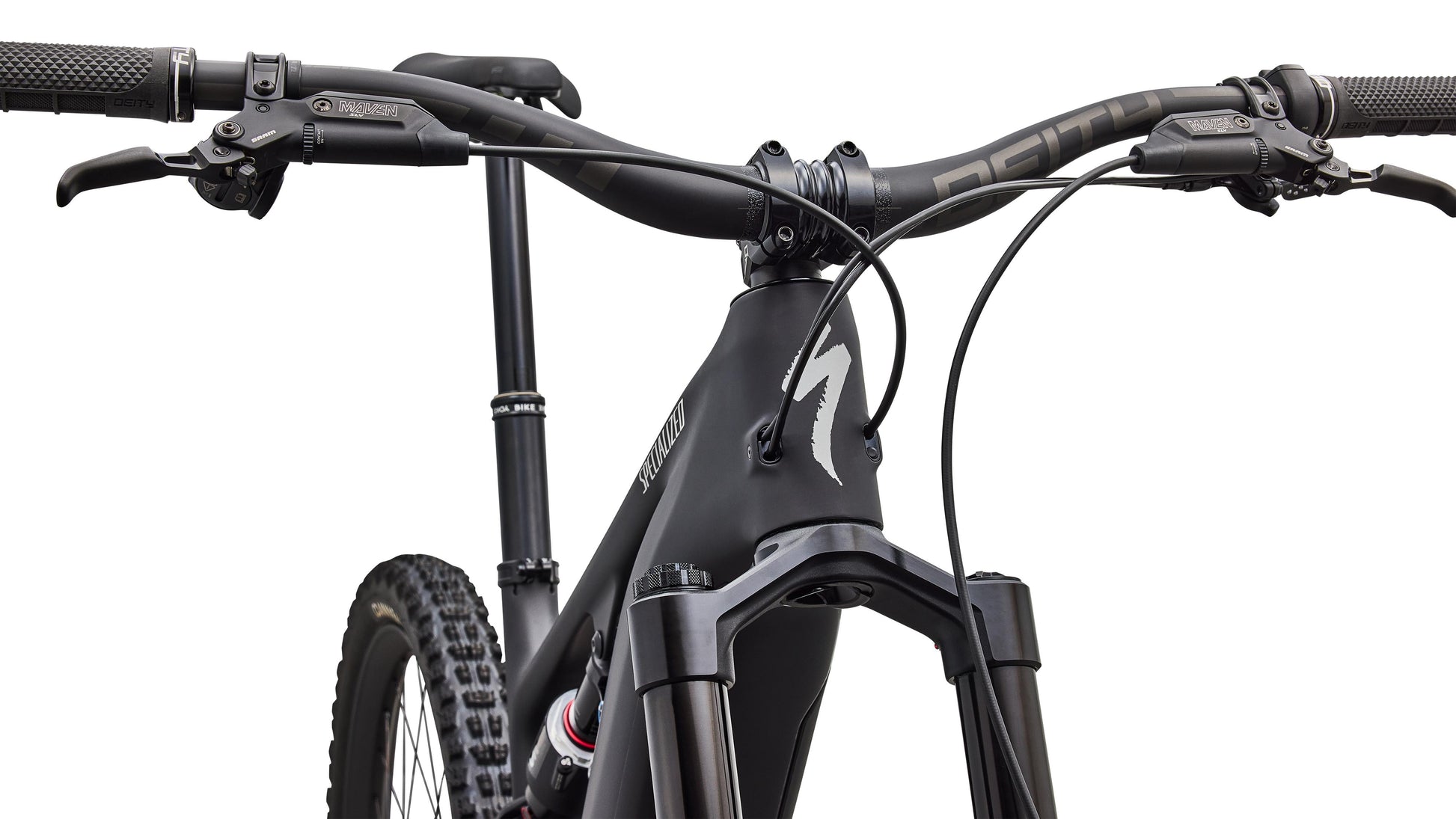

    Deity Speedway Carbon, 5-degree upsweep, 9-degree backsweep. S1-S2: 810 width, 30mm rise: S3-S6: 810 width, 50mm rise
    grips
    Deity Lockjaw, Lock On, 32mm OD, 133mm Length, Black
    saddle
    Bridge Expert with MIMIC, Hollow Ti rails
    seatpost
    Bike Yoke Revive Max 3.0, 34.9, S2:125mm, S3:160mm, S4: 185mm, S5/S6:213mm
    Accessories
    swat
    SWAT Internal downtube storage

    2027 Specialized Levo 4 EVO Pro

    Bike/Frame Size S2 S3 S4 S5 S6
    Stack 625 mm 633 mm 646 mm 659 mm 675 mm
    Reach 425 mm 445 mm 470 mm 495 mm 525 mm
    Chainstay Length 435 mm 435 mm 435 mm 435 mm 435 mm
    Wheelbase 1208 mm 1232 mm 1263 mm 1294 mm 1331 mm
    Top-tube Length (horizontal) 580 mm 602 mm 630 mm 658 mm 691 mm
    Bike Standover Height 764 mm 765 mm 763 mm 768 mm 771 mm
    Seat Tube Length 390 mm 405 mm 425 mm 445 mm 465 mm
    Seat Tube Angle 76° 76° 76° 76° 76°
    Saddle Height for Effective ST Angle 690 mm 735 mm 780 mm 825 mm 870 mm
    Max Seatpost Insertion 274 mm 289 mm 313 mm 337 mm 357 mm
    Min Seatpost Insertion 80 mm 80 mm 80 mm 80 mm 80 mm
    Headtube Length 95 mm 103 mm 117 mm 132 mm 149 mm
    Headtube Angle 63.6° 63.6° 63.6° 63.6° 63.6°
    BB Height 356 mm 356 mm 356 mm 356 mm 356 mm
    BB Drop 24 mm 24 mm 24 mm 24 mm 24 mm
    Trail 139 mm 139 mm 139 mm 139 mm 139 mm
    Fork Length (full) 597 mm 597 mm 597 mm 597 mm 597 mm
    Fork Rake/Offset 44 mm 44 mm 44 mm 44 mm 44 mm
    Front Center 773 mm 797 mm 828 mm 859 mm 897 mm

    Component Geometry

    Component S2 S3 S4 S5 S6
    Crank Length 155 mm 155 mm 155 mm 155 mm 155 mm
    Handlebar Width 810 mm 810 mm 810 mm 810 mm 810 mm
    Stem Length 42 mm 42 mm 42 mm 42 mm 42 mm
    Saddle Width 155 mm 143 mm 143 mm 143 mm 143 mm
    Seatpost Length 125 mm 160 mm 185 mm 213 mm 213 mm

    Size Guide: 2027 Specialized Levo 4 EVO Pro

    Size guide for 2027 Specialized Levo 4 EVO Pro
