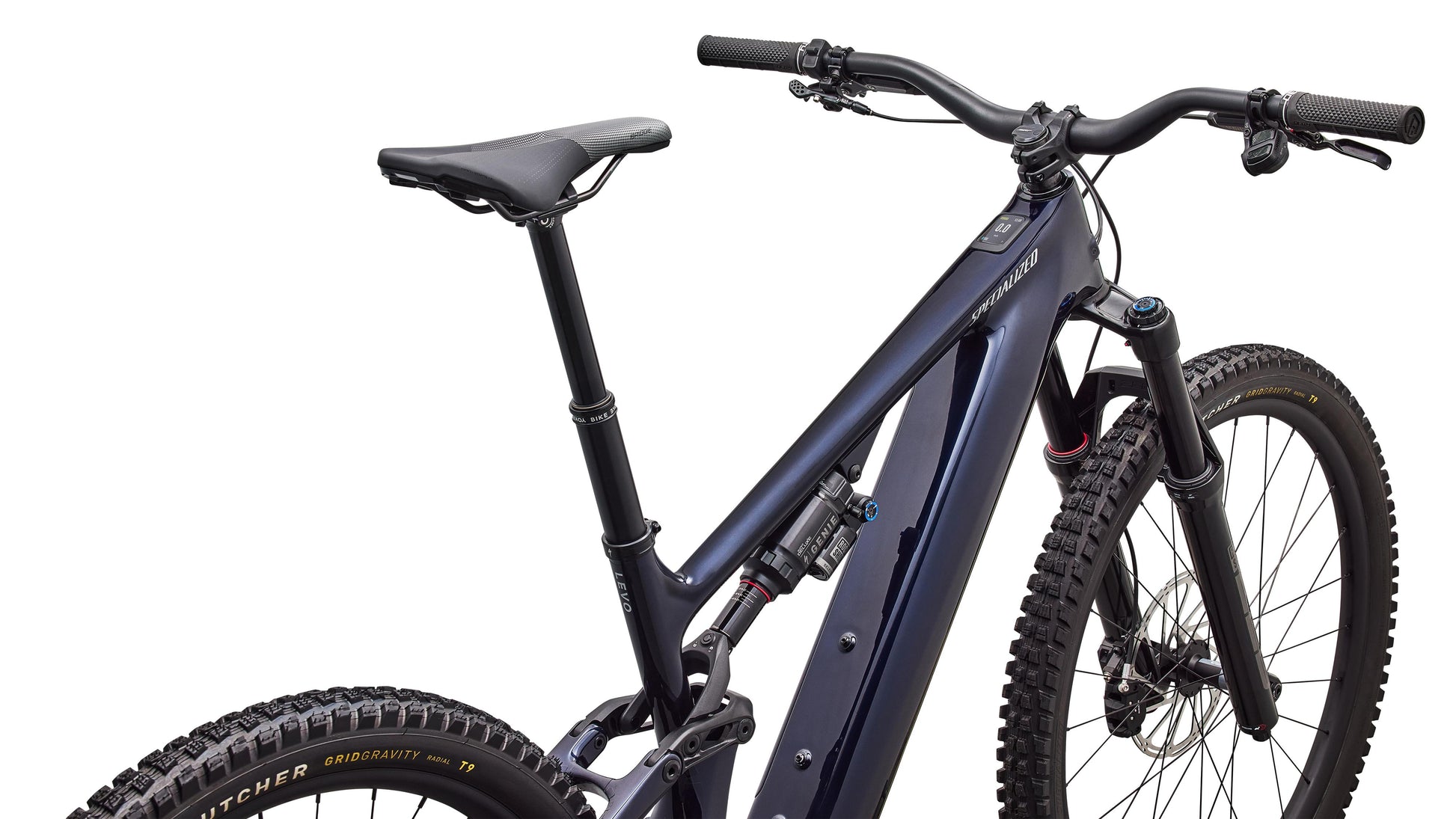

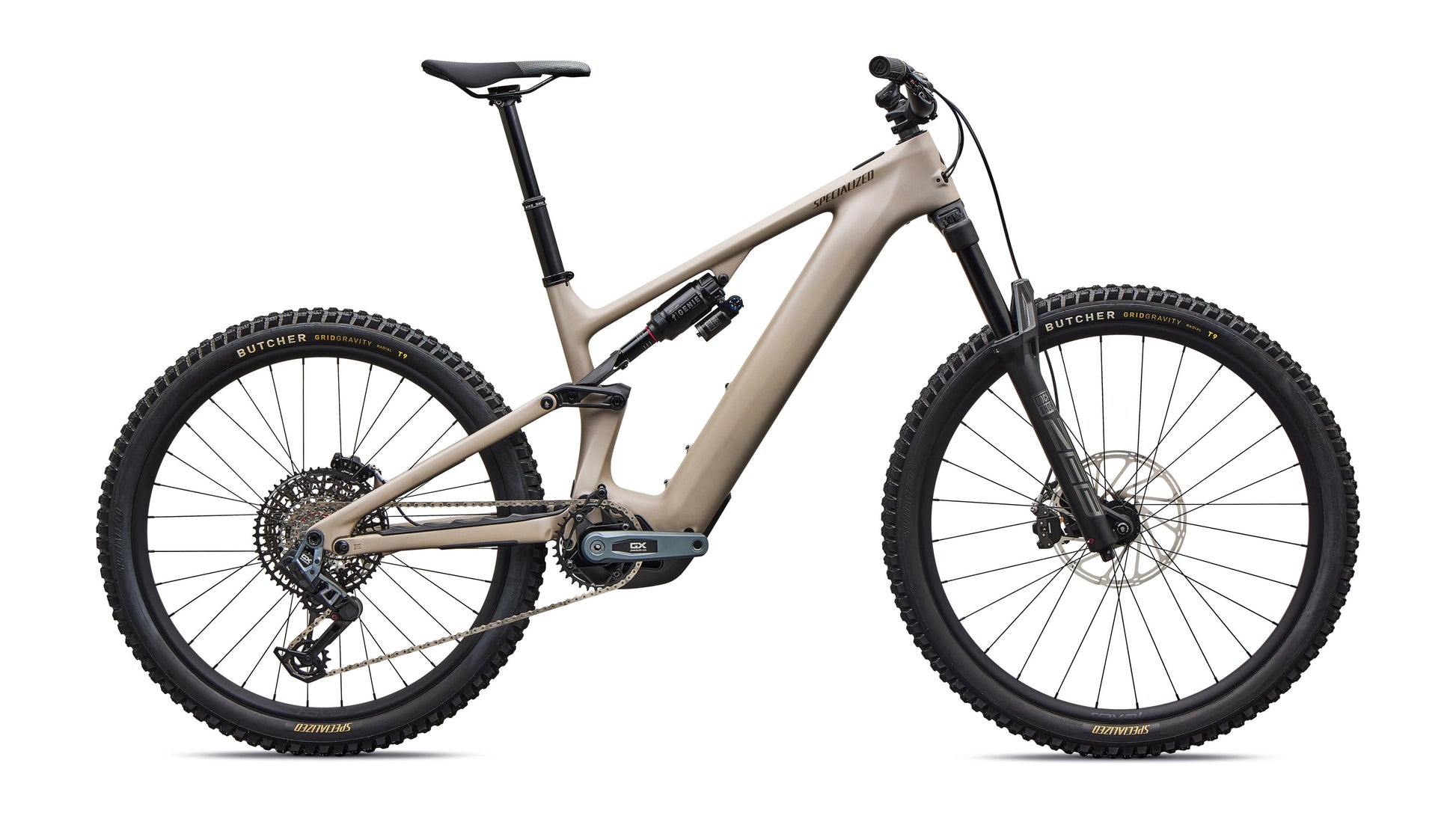

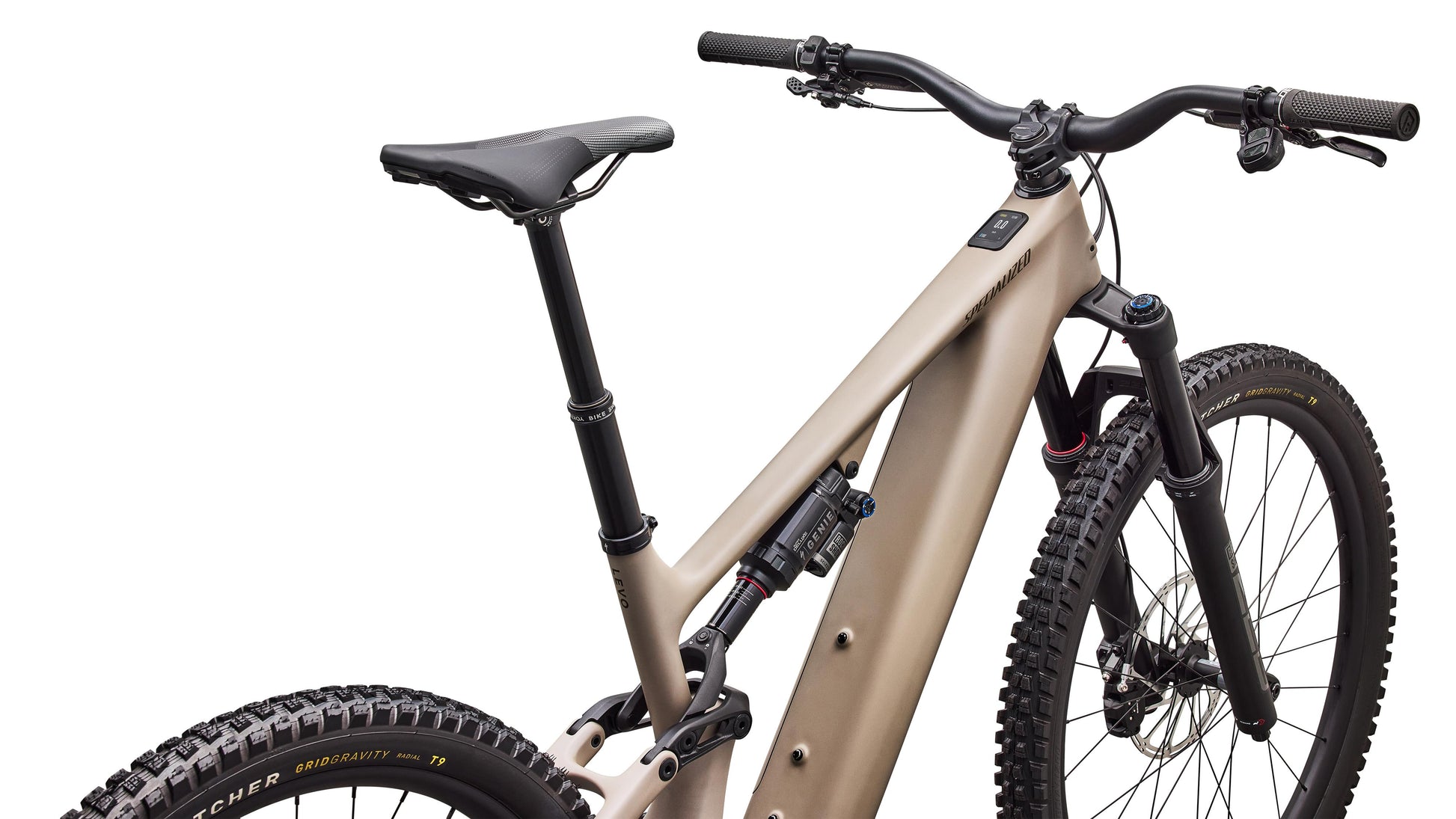

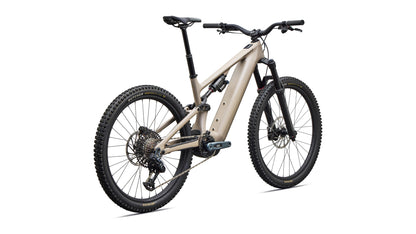

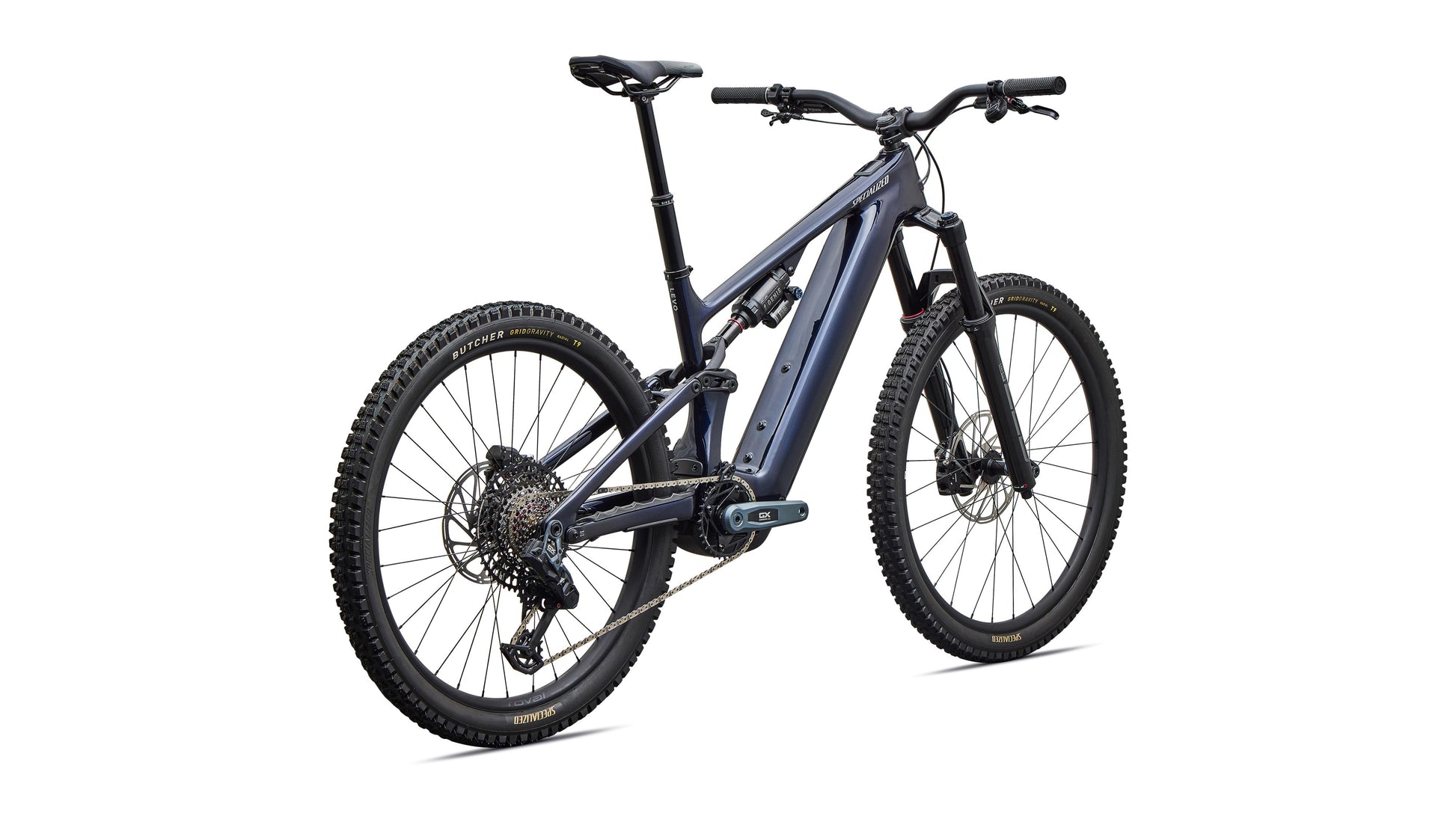

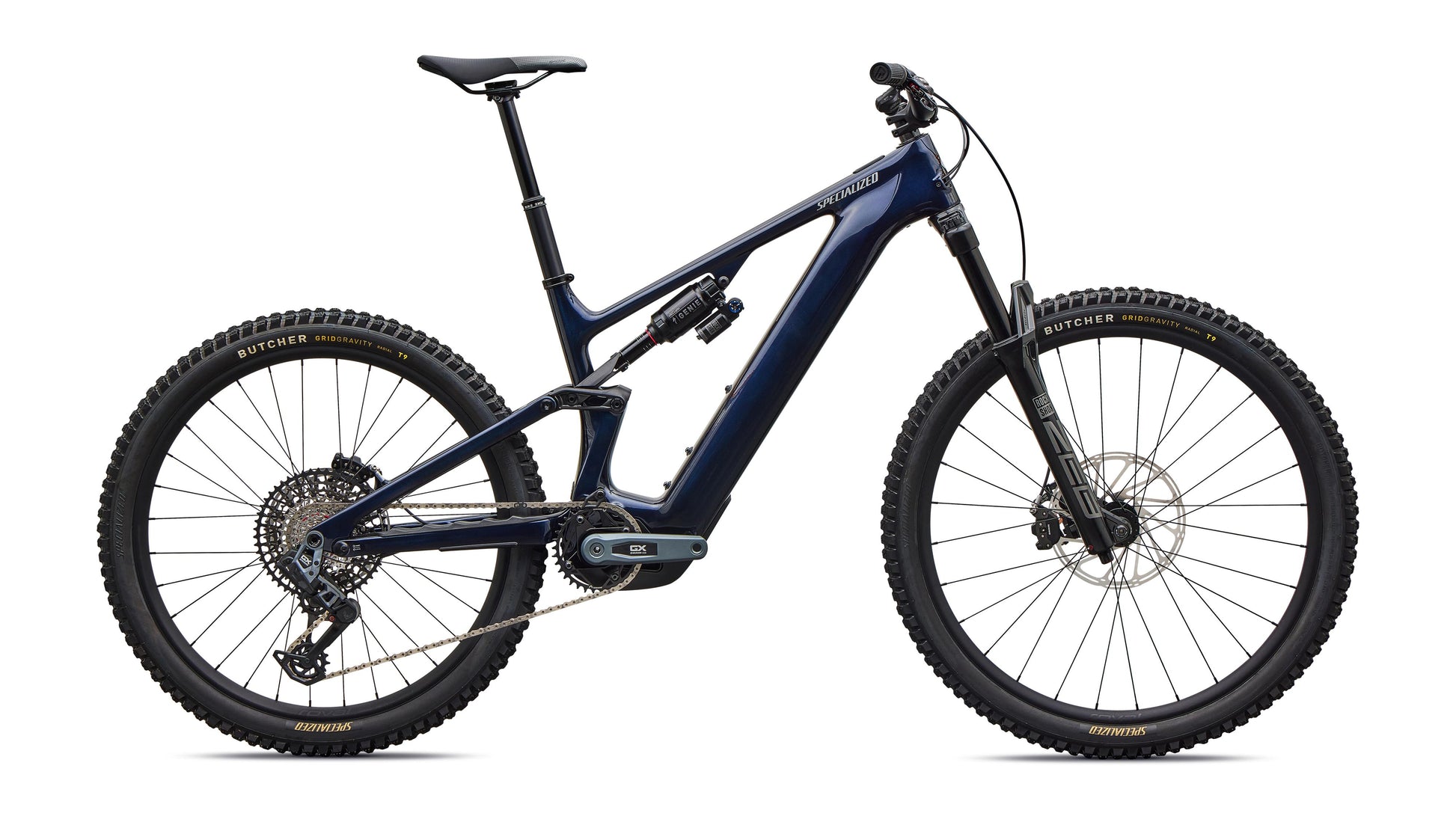

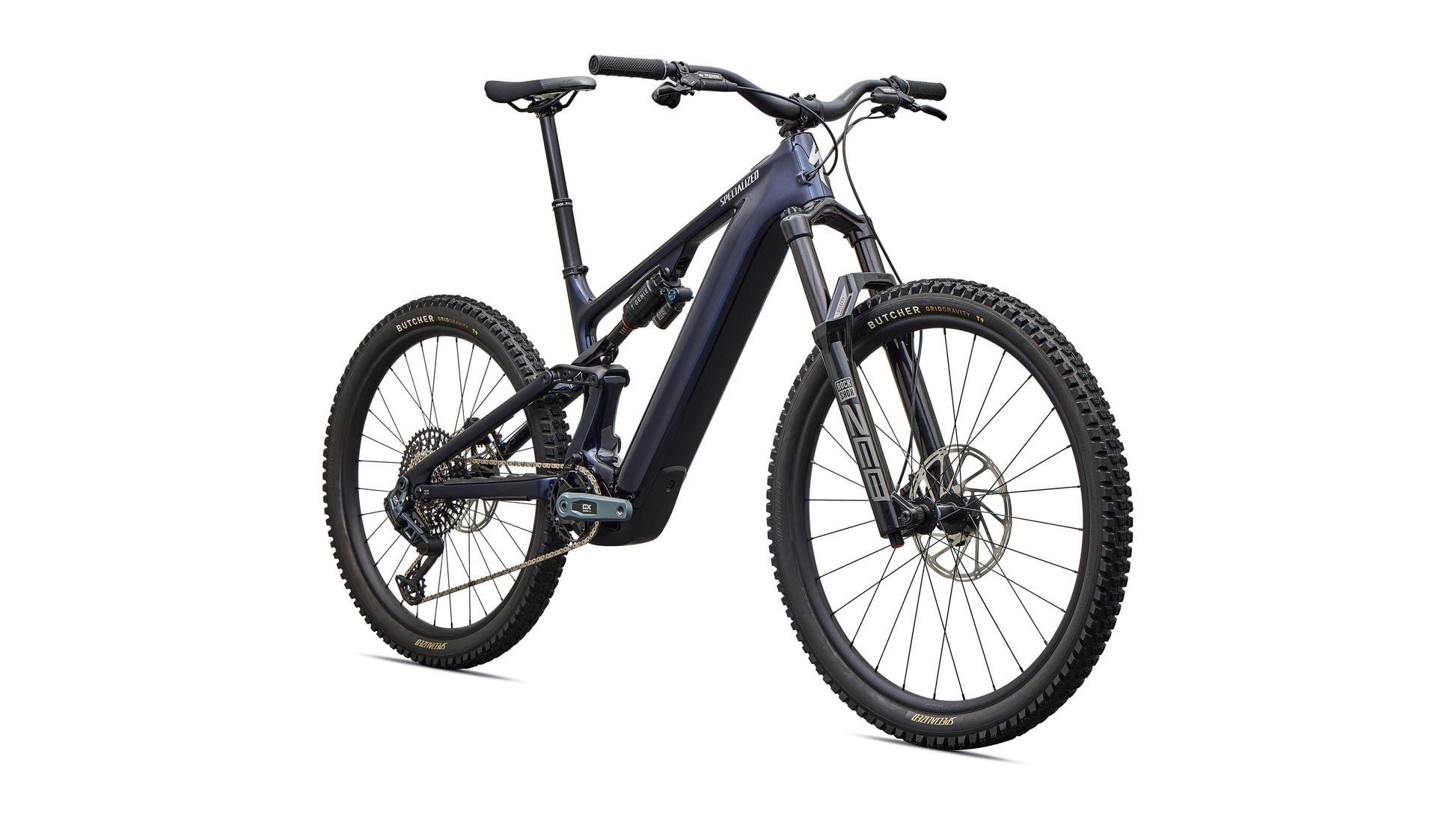

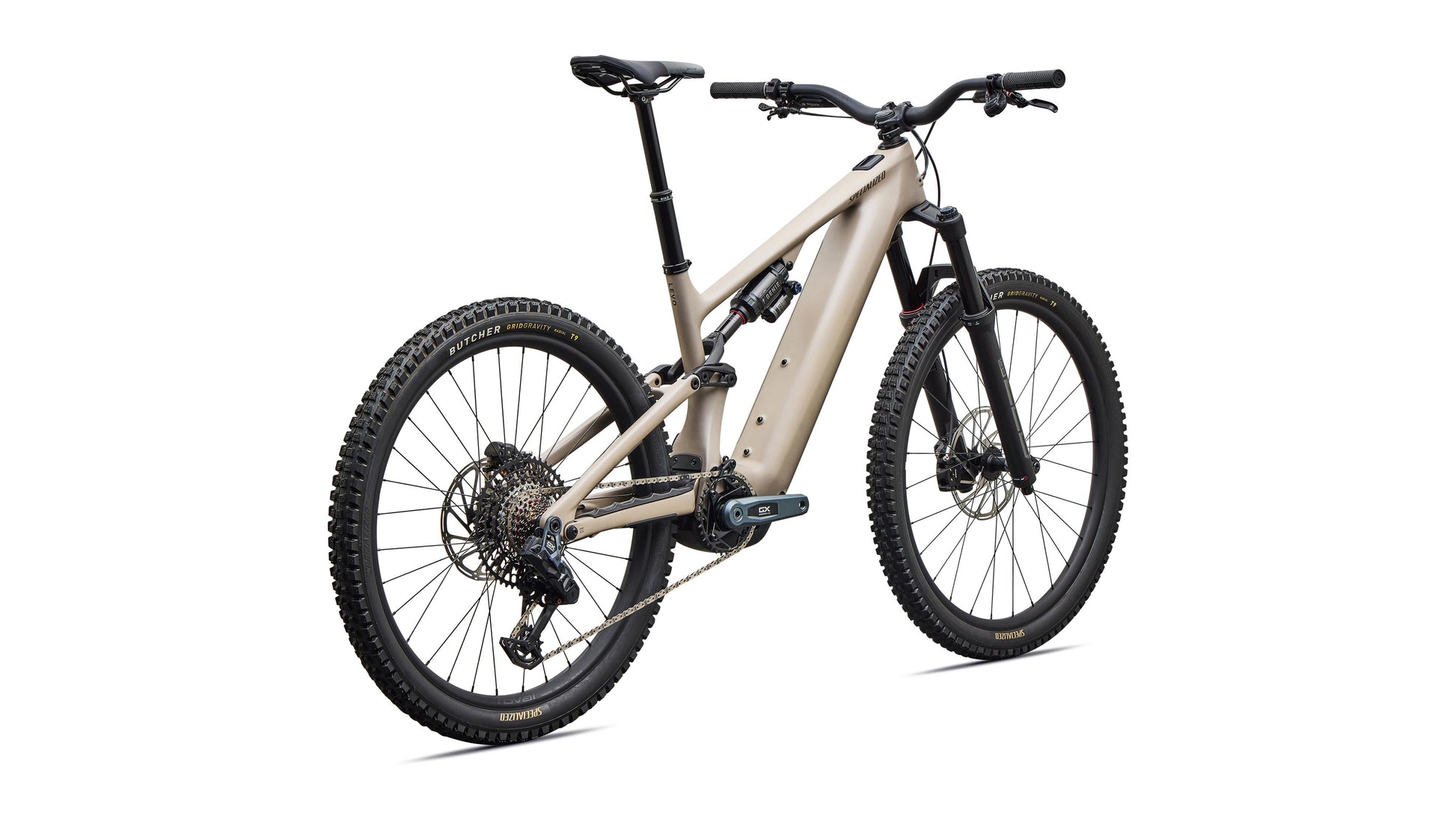

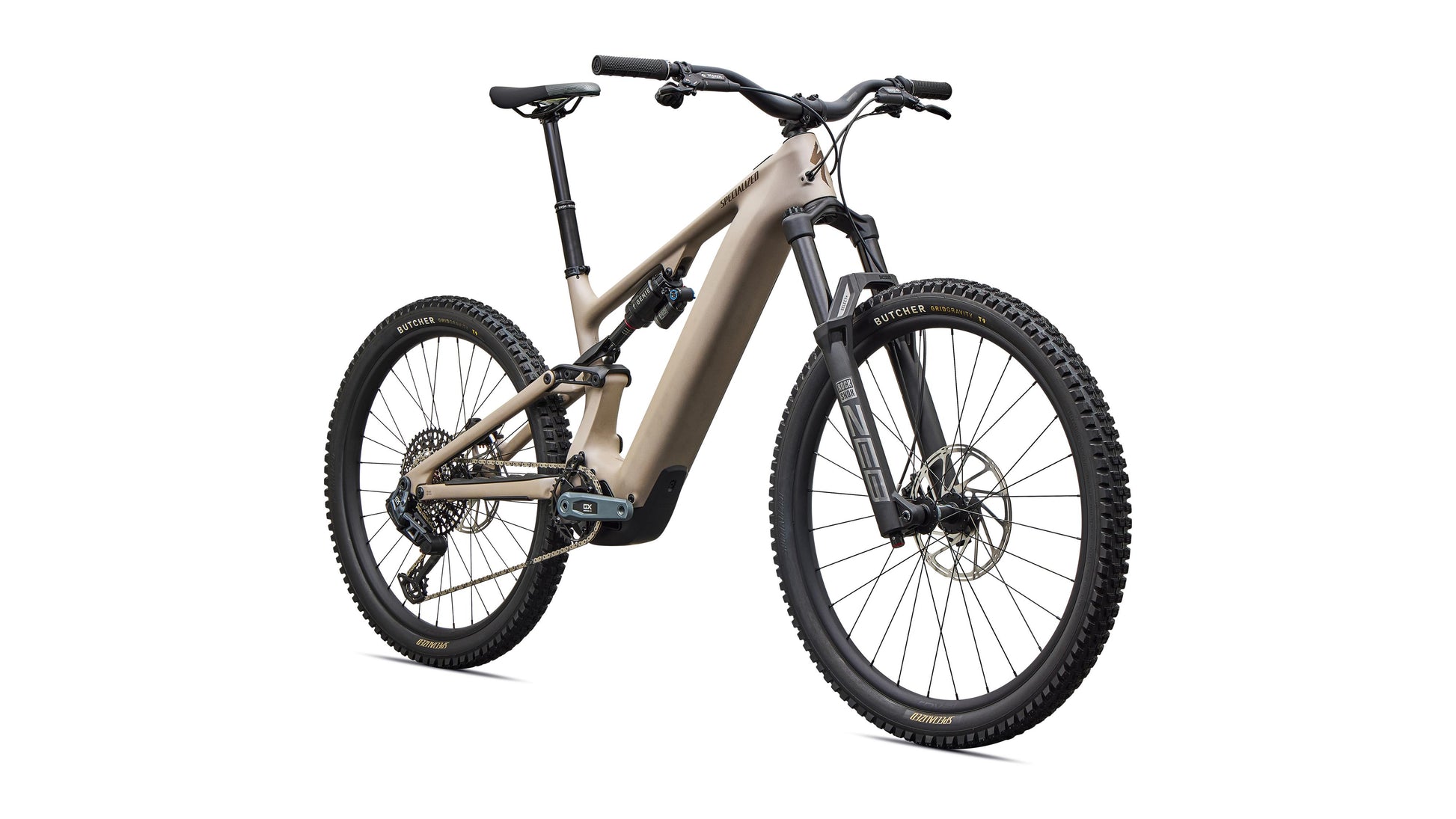

2027 Specialized Turbo Levo 4 Expert

2027 Specialized Turbo Levo 4 Expert

95227-3003

$9,499.99
$9,499.99 $9,499.99
New

Color
Size
Low Stock - Only 1 left!
View full details

    2027 Specialized Turbo Levo 4 Expert Features

    The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

    At a Glance

    • Use - Full Power E-MTB Trail
    • E-System - Specialized 3.1 Motor w/ 810 Watts & 105 Nm, 840 Wh Battery, up to 5 hour range w/ optional Range Extender
    • Frame - FACT 11m Carbon, Geo Adj & SWAT Storage
    • Suspension - Front: 160mm RockShox ZEB Select+ fork
      Rear: 150mm RockShox Super Deluxe Select+ shock w/ GENIE
    • Drivetrain - SRAM GX Eagle T-Type AXS
    • Wheels - Roval Traverse Alloy wheels w/ Butcher Grid Gravity Radial 2.4" tires

    Component Specifications

    E-Bike
    motor

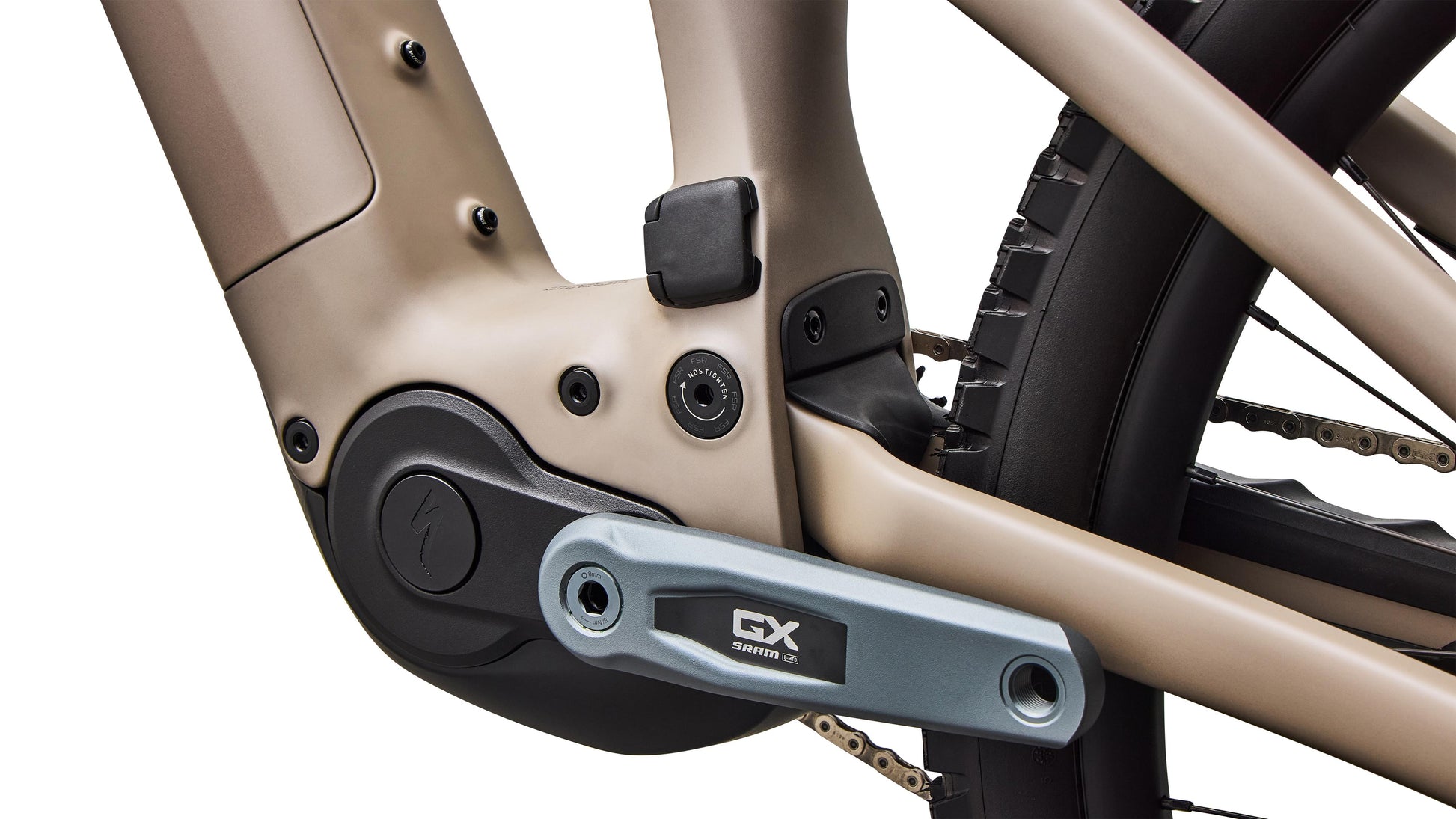

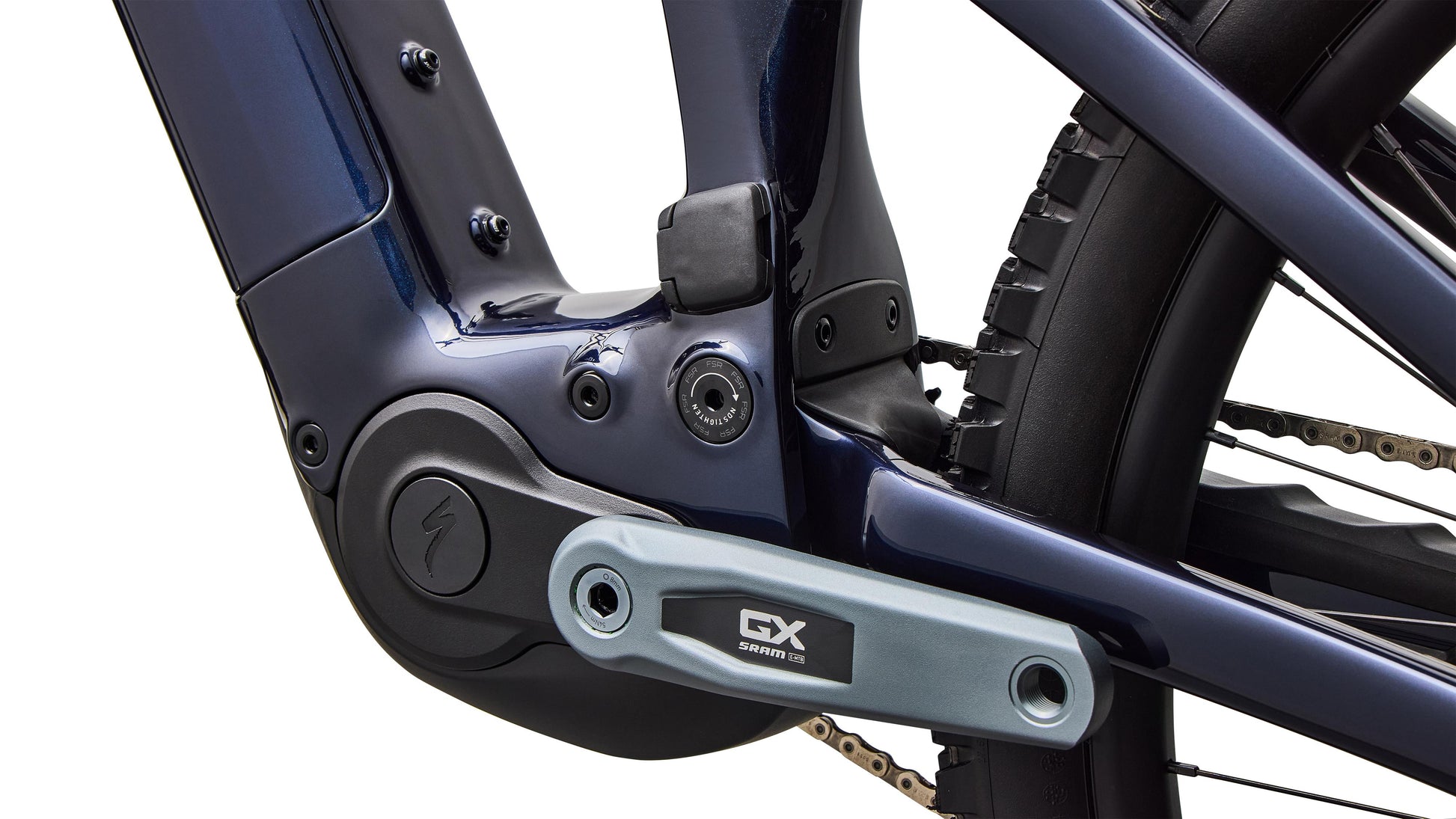

    Specialized 3.1 Motor, 105Nm torque, 810W power
    battery
    840Wh battery
    ui remote

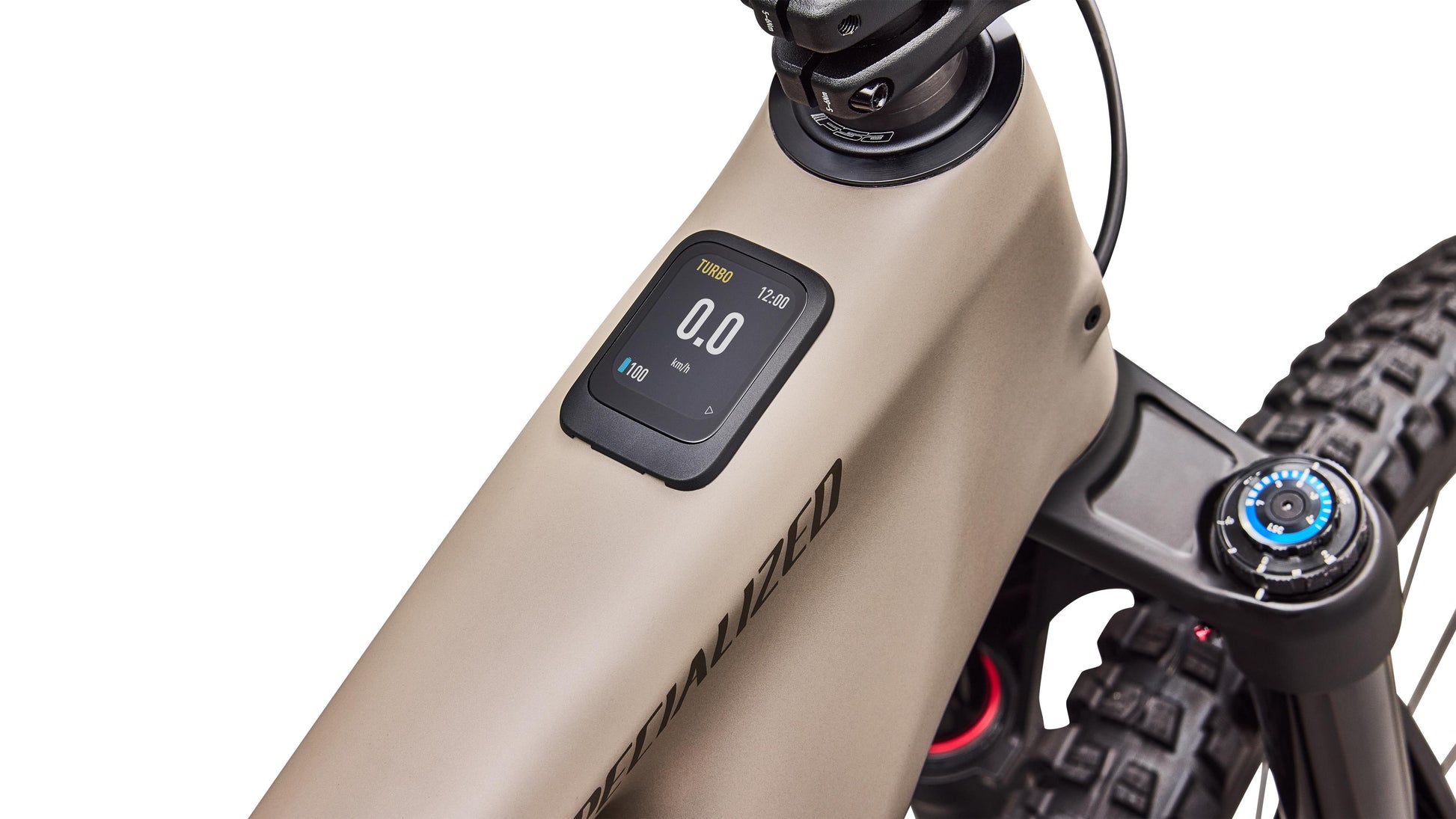

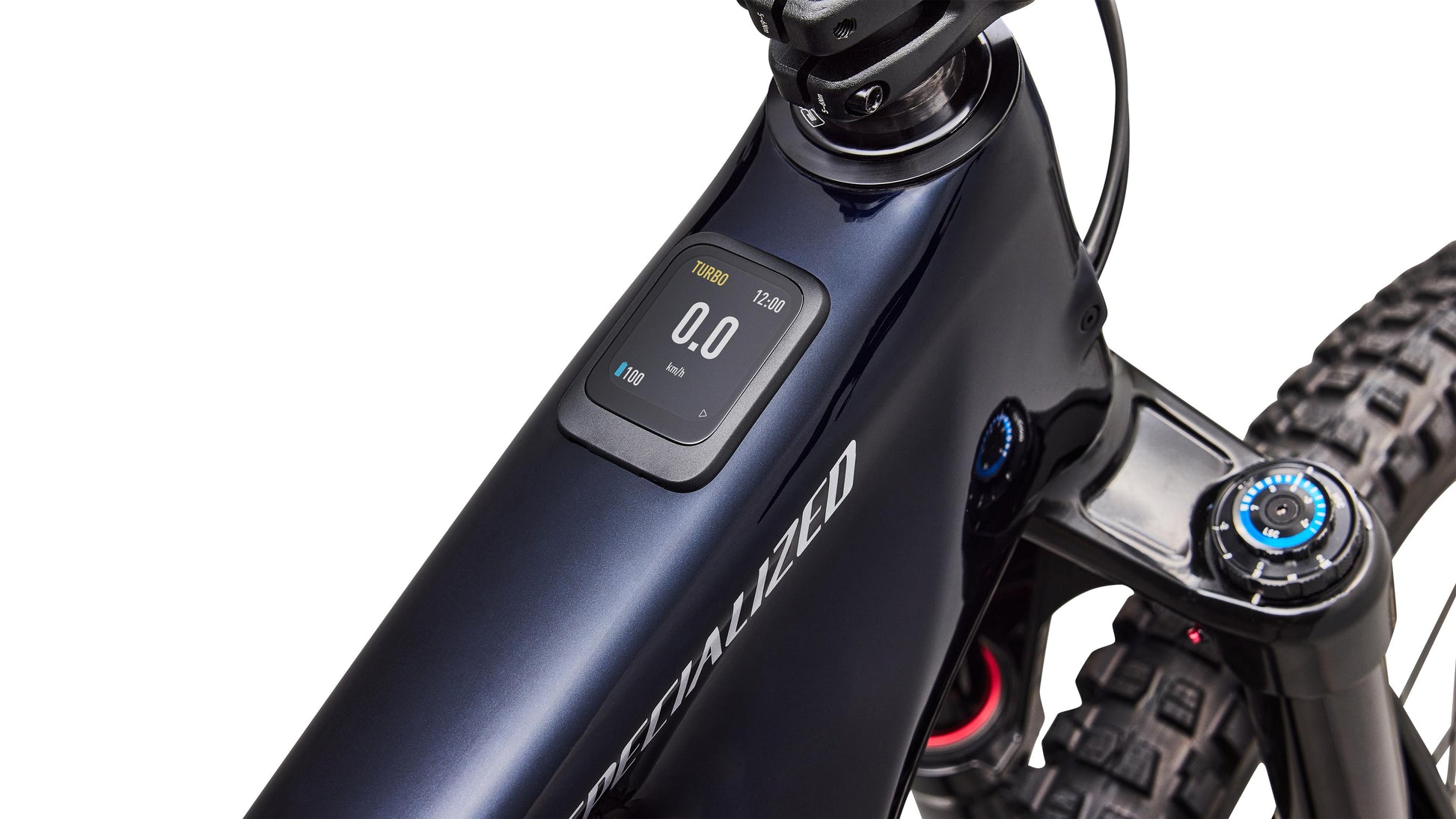

    Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
    charger
    Specialized 4amp charger
    Frameset
    frame
    Levo 4 carbon frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm, adjustable head angle, BB height, chainstay length
    seat binder
    Alloy, 38.6mm
    Suspension
    rear shock

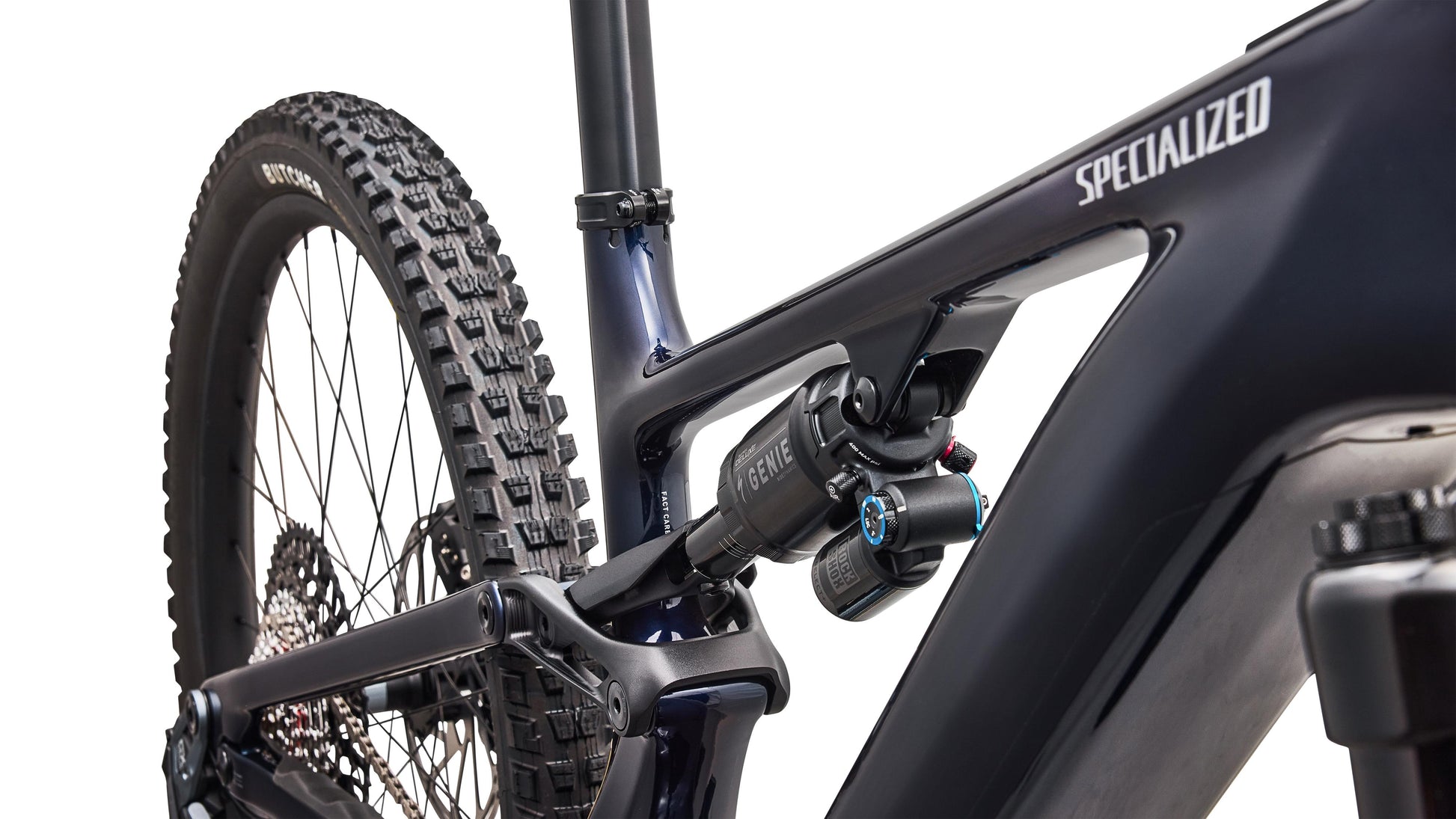

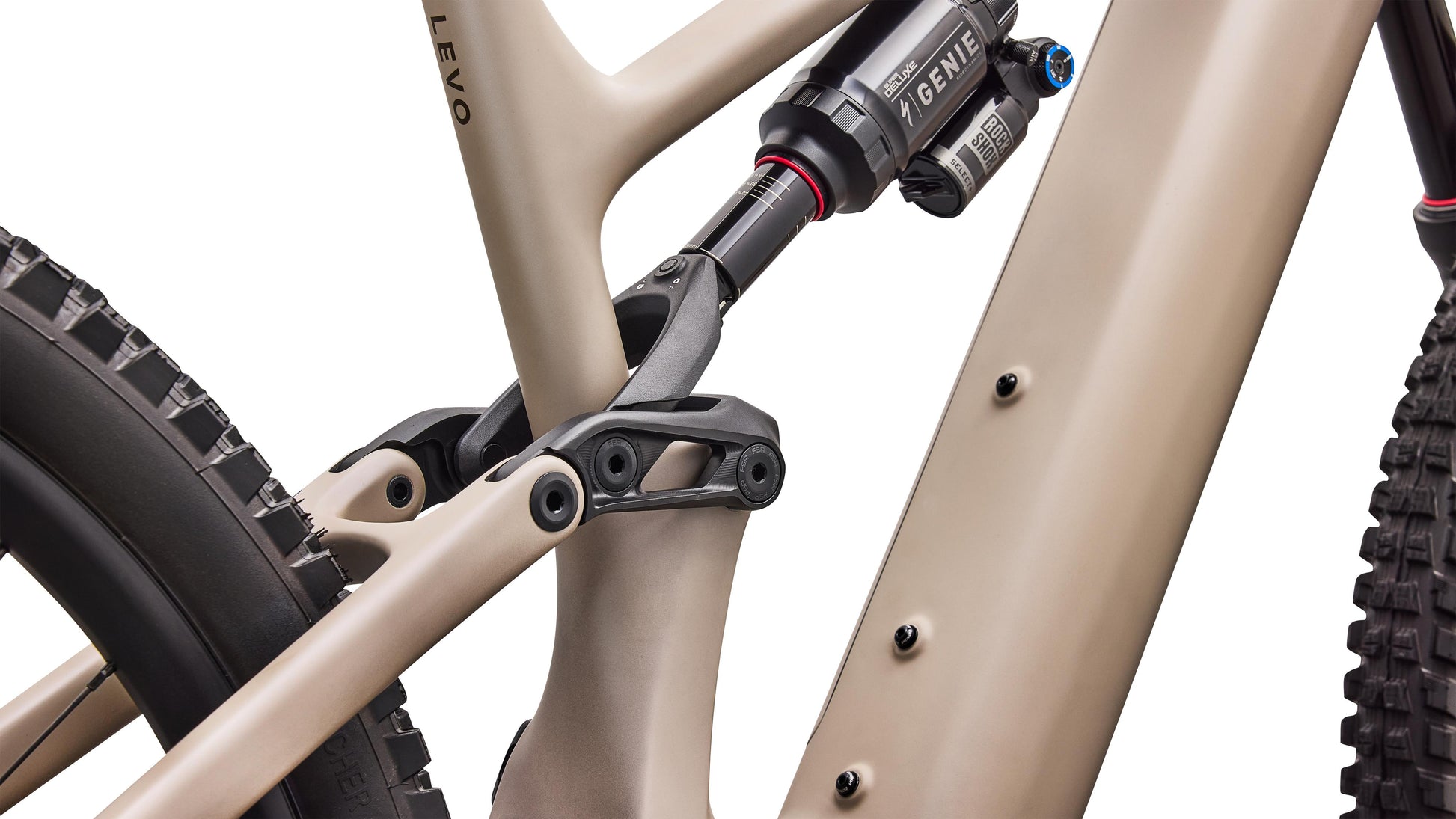

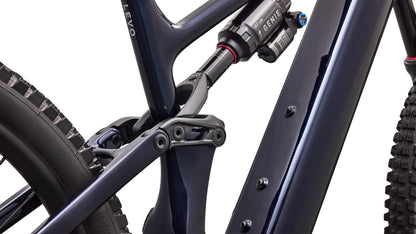

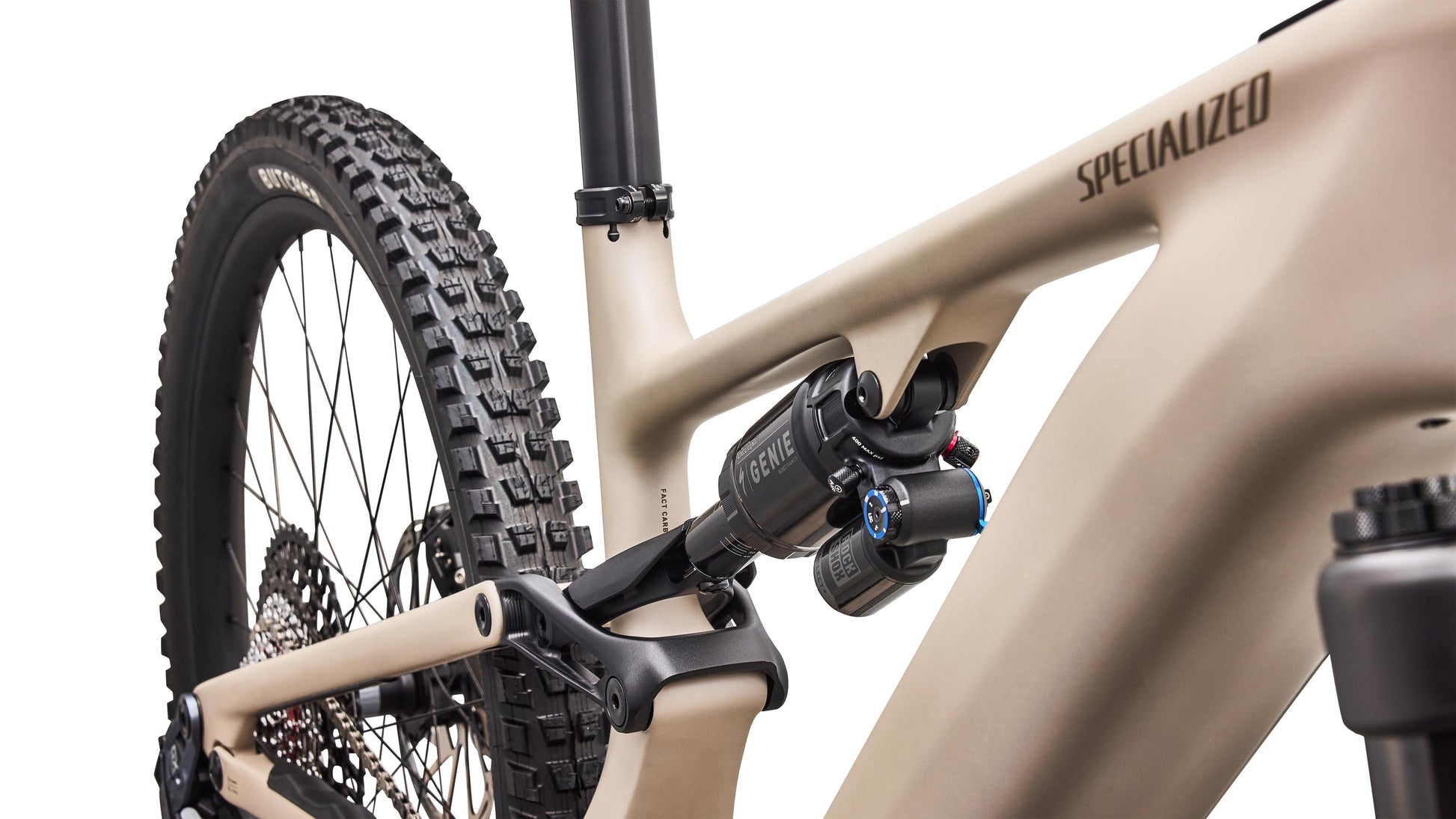

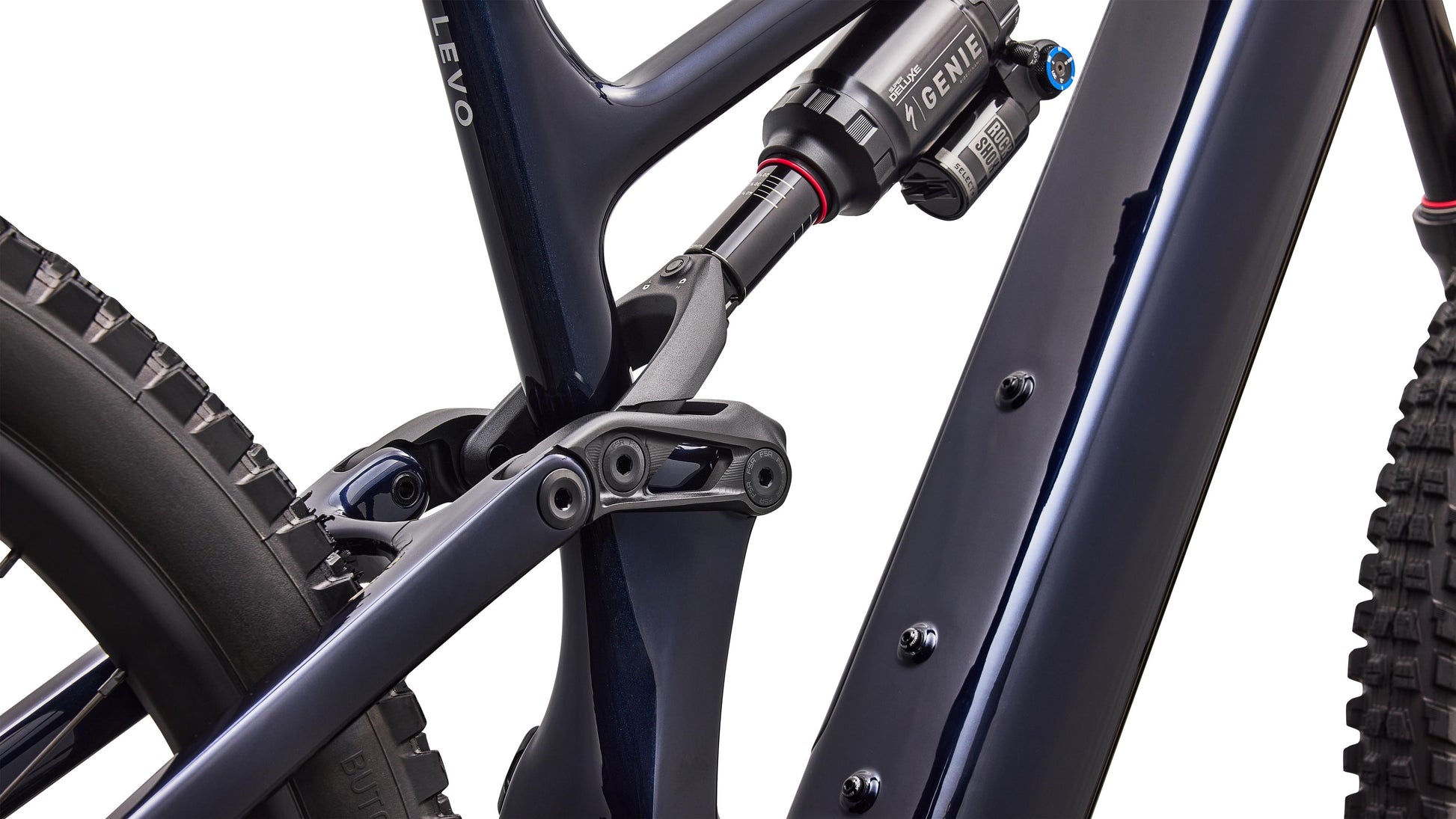

    All New Rockshox Super Deluxe Select + GENIE, RCT damper with (LSC) Low Speed Compression, GENIE adjustable airspring, rebound adjust, 210x55mm
    fork
    Rockshox Zeb Select+, high/low speed compression adjust, rebound adjust, 15x110mm axle, 44mm offset
    Brakes
    front brake
    SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm rotor
    rear brake
    SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm rotor
    Drivetrain
    shift levers
    SRAM AXS Pod Controller w/discrete clamp
    rear derailleur
    SRAM GX Eagle AXS Transmission
    cassette
    SRAM XG-1275 Transmission 12-Speed 10-52t
    chain
    SRAM GX Eagle Transmission 12-Speed Flattop Chain
    crankset
    SRAM GX Alloy crank, ISIS interface, 155mm length
    chain rings
    SRAM 34t T-Type chainring, 104 BCD, steel
    Wheels & Tires
    front tire
    Butcher GRID Gravity Radial T9 TLR Enduro Tire 29x2.4
    rear tire
    Butcher GRID Gravity Radial T9 TLR Enduro Tire 27.5x2.4
    inner tubes
    Standard, Presta Valve
    front wheel
    Roval Traverse Alloy 29", DT Swiss 370, 15x110mm, 28h
    rear wheel
    Roval Traverse Alloy 27.5", DT Swiss 370 XD freehub body, 12x148mm, 32h
    Cockpit
    stem

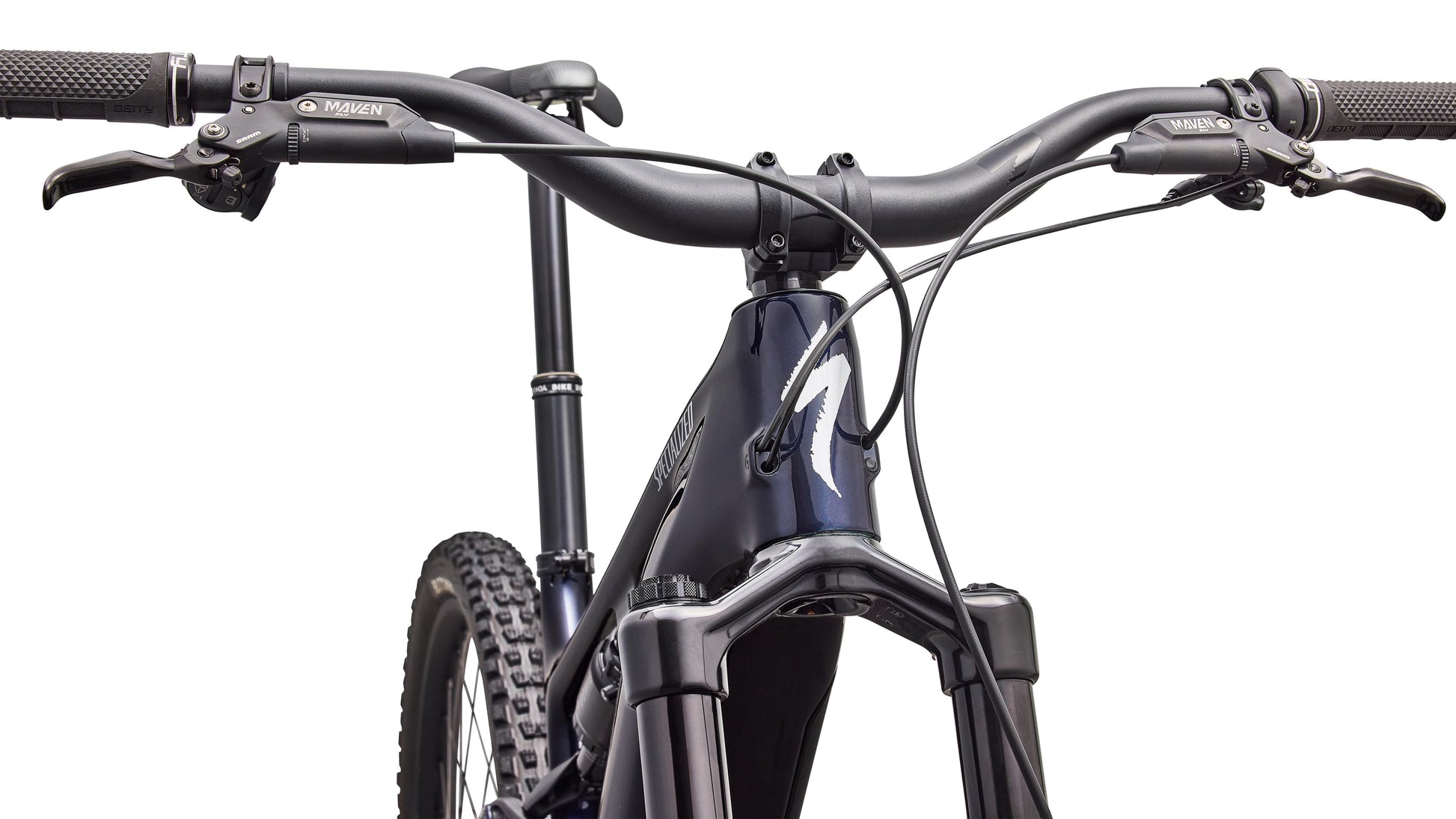

    Barkeeper, 35mm bar bore
    handlebars

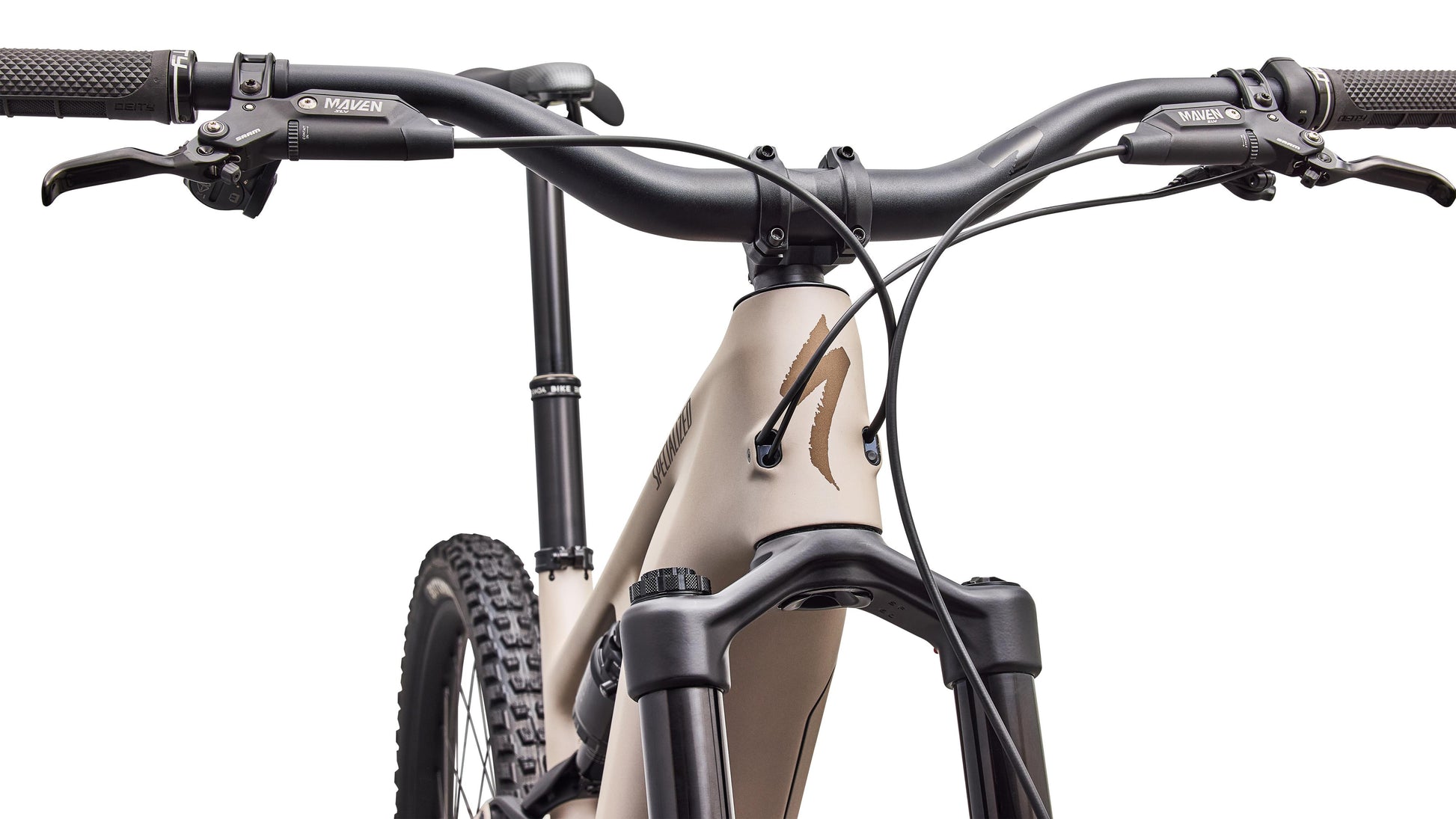

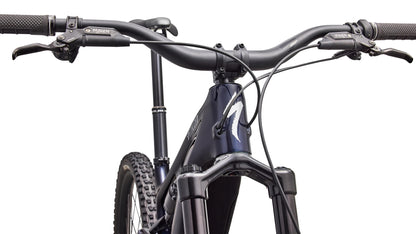

    Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise
    grips
    Deity Lockjaw, Lock On, 32mm OD, 133mm Length, Black
    saddle
    Specialized Bridge Comp with Mimic
    seatpost
    Bike Yoke, Revive Max 3.0, 34.9, S2: 125mm, S3: 160mm, S4: 185mm, S5-S6: 213mm
    Accessories
    swat
    SWAT Internal downtube storage

    2027 Specialized Turbo Levo 4 Expert

    Bike/Frame Size S2 S3 S4 S5 S6
    Stack 618 mm 626 mm 638 mm 652 mm 667 mm
    Reach 435 mm 455 mm 480 mm 505 mm 535 mm
    Chainstay Length 435 mm 435 mm 435 mm 435 mm 435 mm
    Wheelbase 1200 mm 1223 mm 1254 mm 1286 mm 1323 mm
    Top-tube Length (horizontal) 578 mm 599 mm 627 mm 655 mm 689 mm
    Bike Standover Height 753 mm 754 mm 753 mm 758 mm 761 mm
    Seat Tube Length 390 mm 405 mm 425 mm 445 mm 465 mm
    Seat Tube Angle 77° 77° 77° 77° 77°
    Saddle Height for Effective ST Angle 690 mm 735 mm 780 mm 825 mm 870 mm
    Max Seatpost Insertion 274 mm 289 mm 313 mm 337 mm 357 mm
    Min Seatpost Insertion 80 mm 80 mm 80 mm 80 mm 80 mm
    Headtube Length 95 mm 103 mm 117 mm 132 mm 149 mm
    Headtube Angle 64.5° 64.5° 64.5° 64.5° 64.5°
    BB Height 350 mm 350 mm 350 mm 350 mm 350 mm
    BB Drop 29.5 mm 29.5 mm 29.5 mm 29.5 mm 29.5 mm
    Trail 132 mm 132 mm 132 mm 132 mm 132 mm
    Fork Length (full) 577 mm 577 mm 577 mm 577 mm 577 mm
    Fork Rake/Offset 44 mm 44 mm 44 mm 44 mm 44 mm
    Front Center 765 mm 789 mm 820 mm 851 mm 888 mm

    Component Geometry

    Component S2 S3 S4 S5 S6
    Crank Length 155 mm 155 mm 155 mm 155 mm 155 mm
    Handlebar Width 780 mm 800 mm 800 mm 800 mm 800 mm
    Stem Length 35 mm 35 mm 35 mm 35 mm 35 mm
    Saddle Width 155 mm 143 mm 143 mm 143 mm 143 mm
    Seatpost Length 125 mm 160 mm 185 mm 213 mm 213 mm
