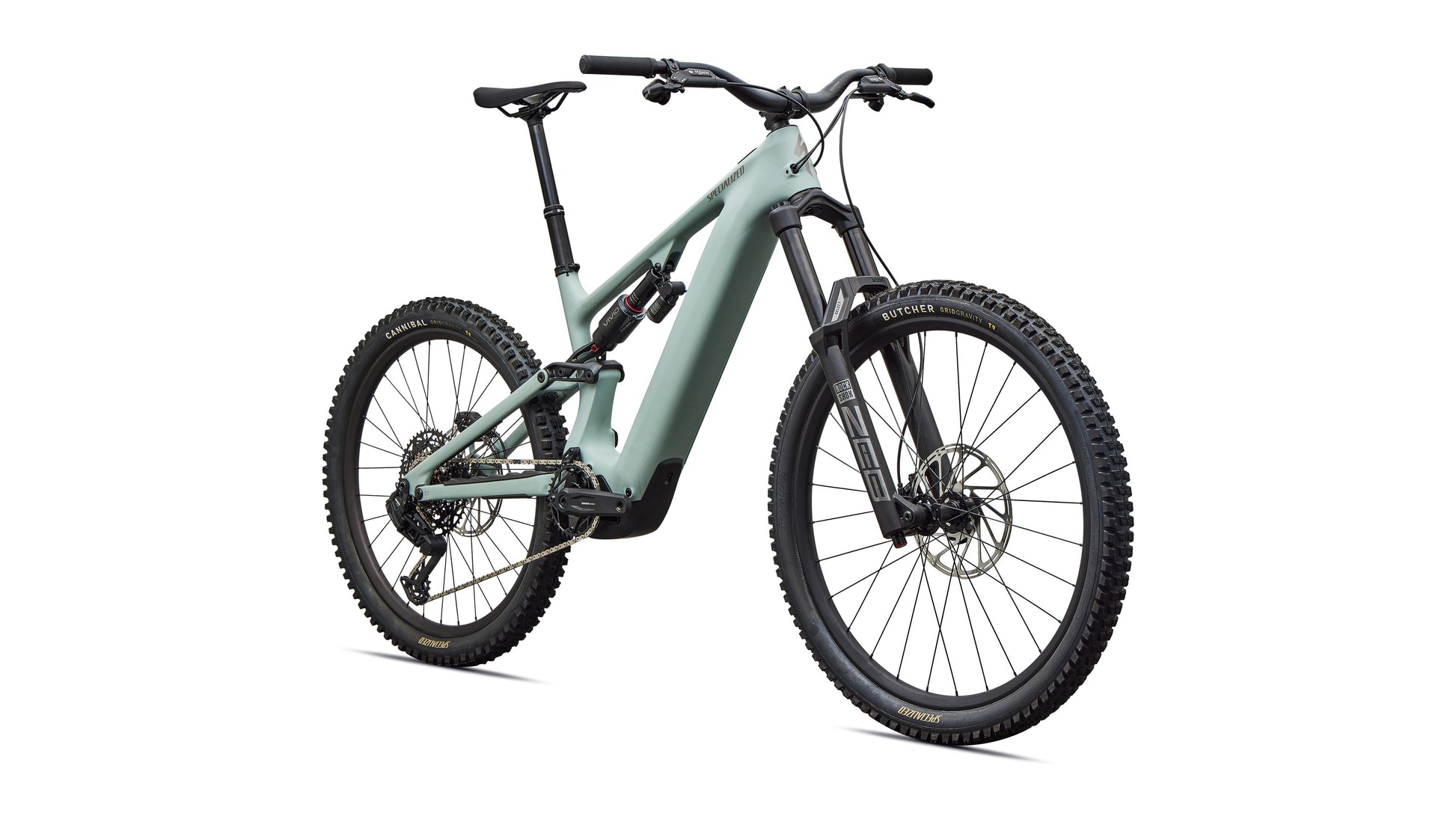

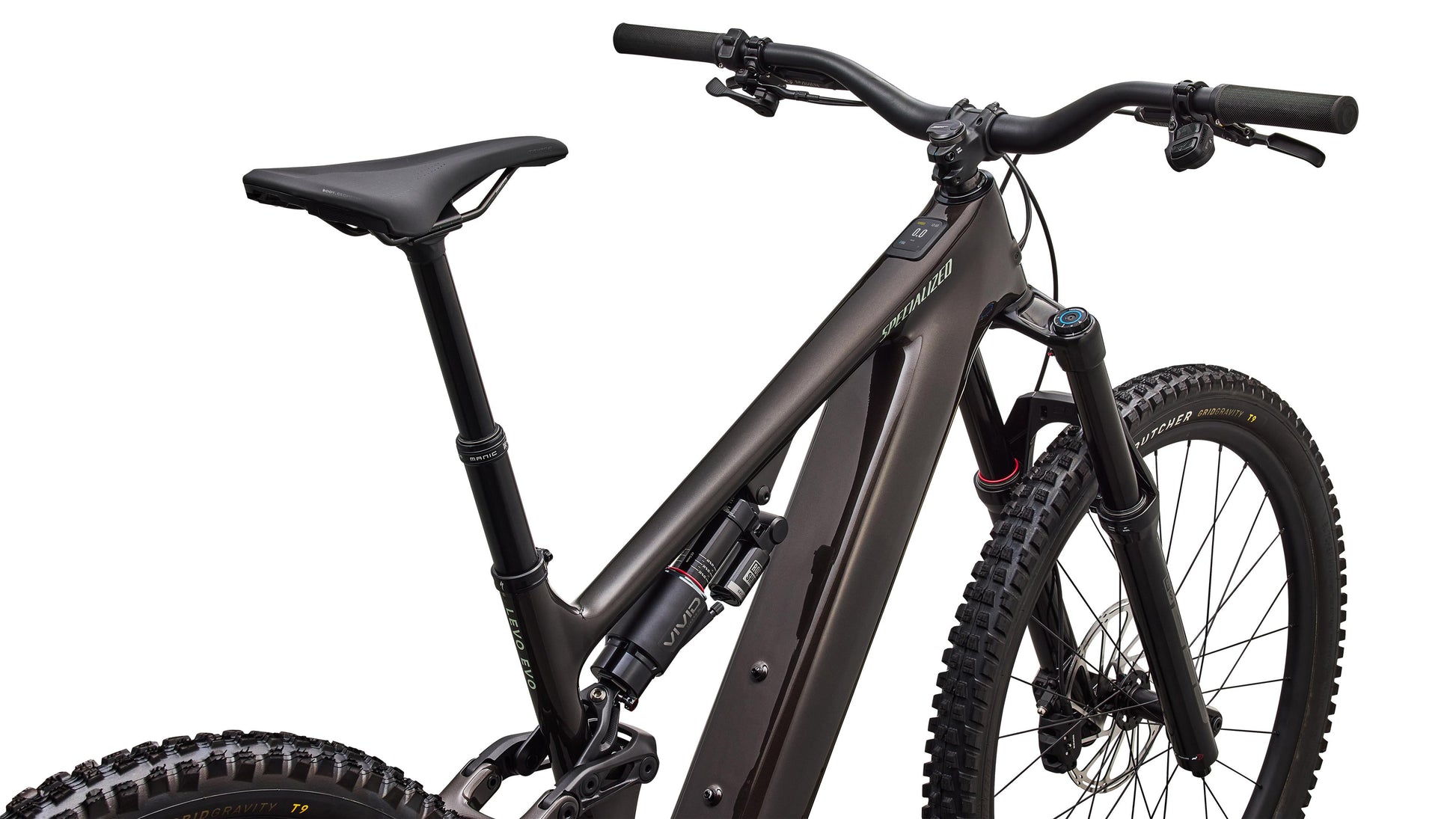

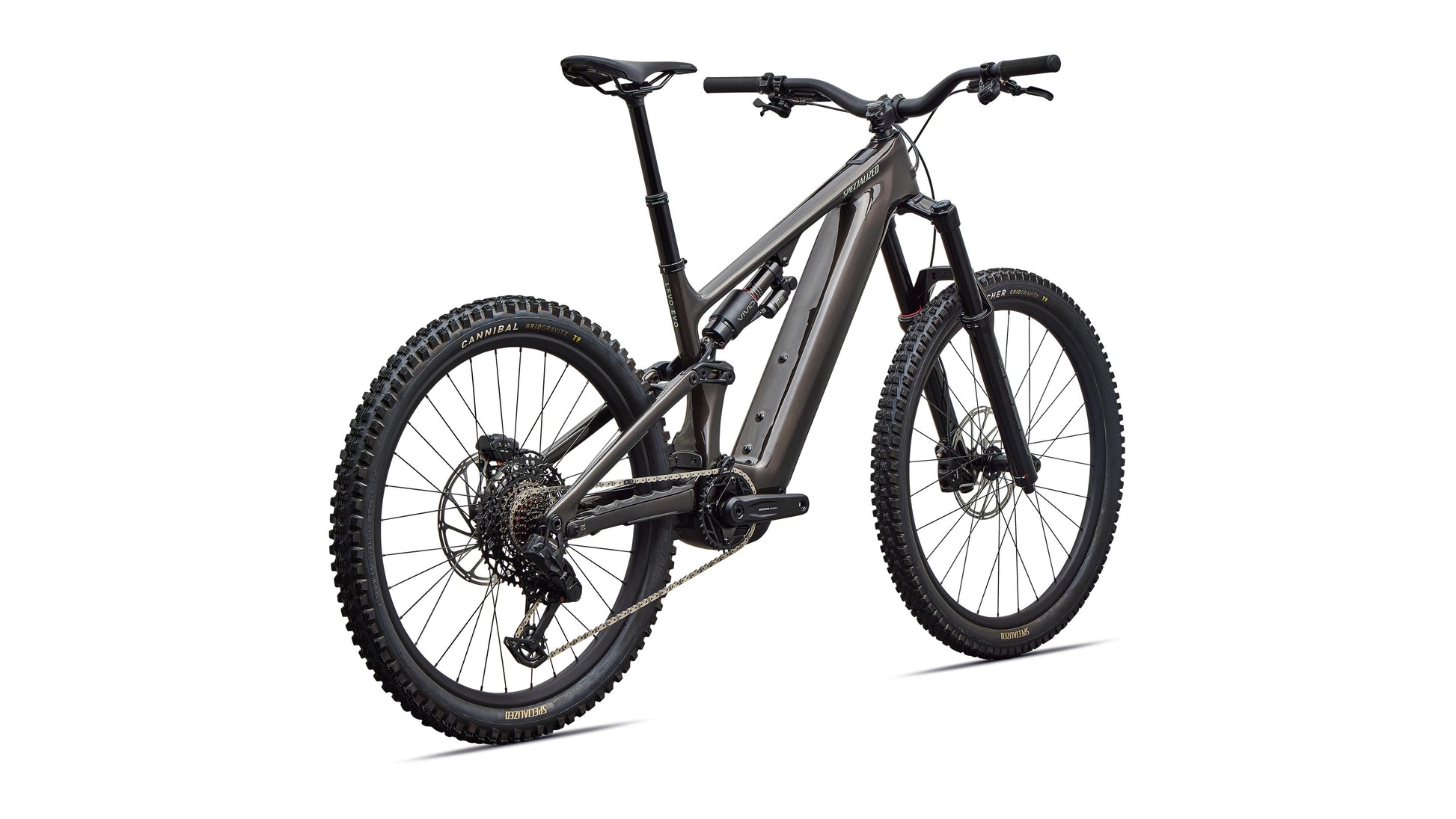

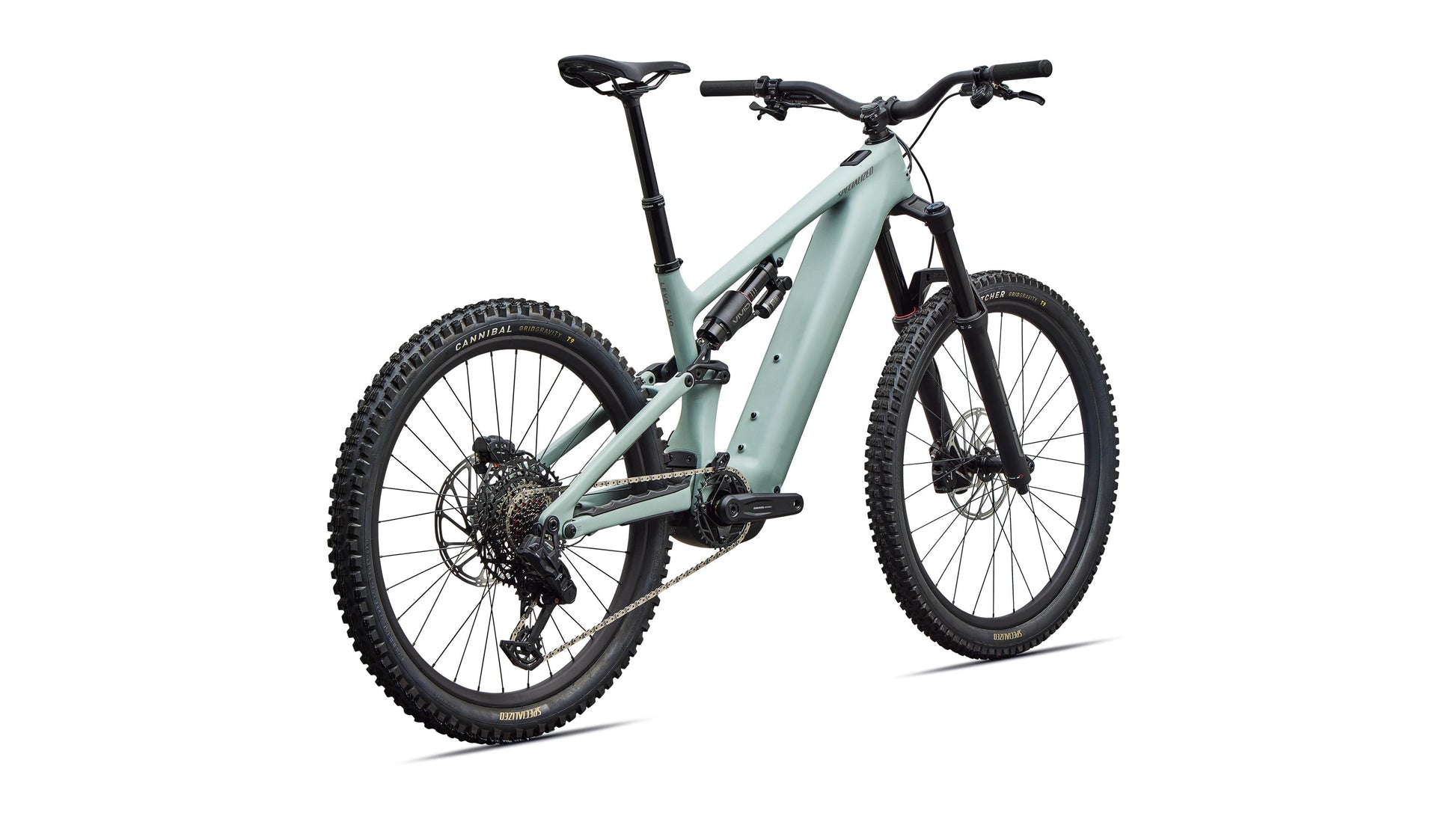

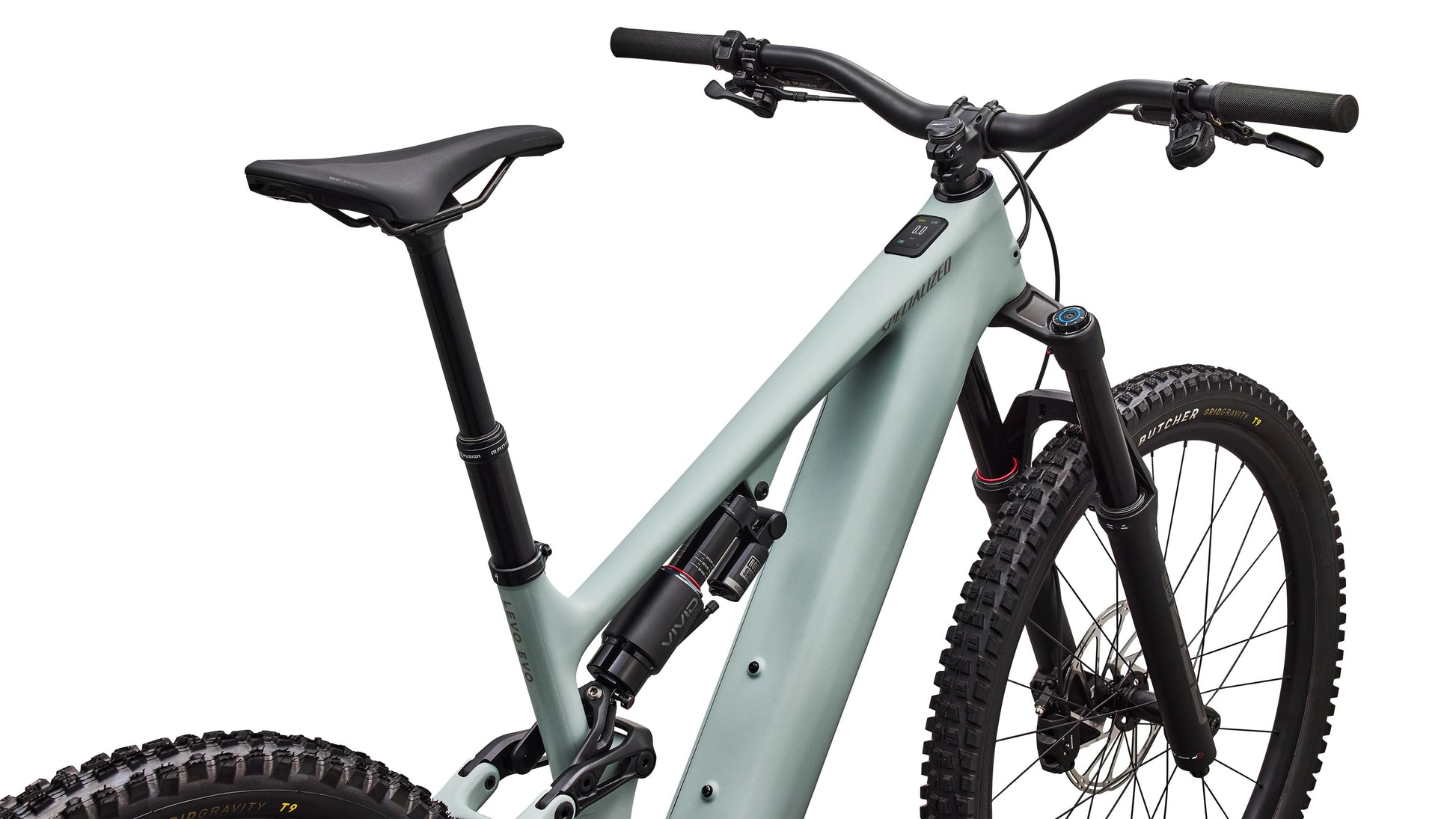

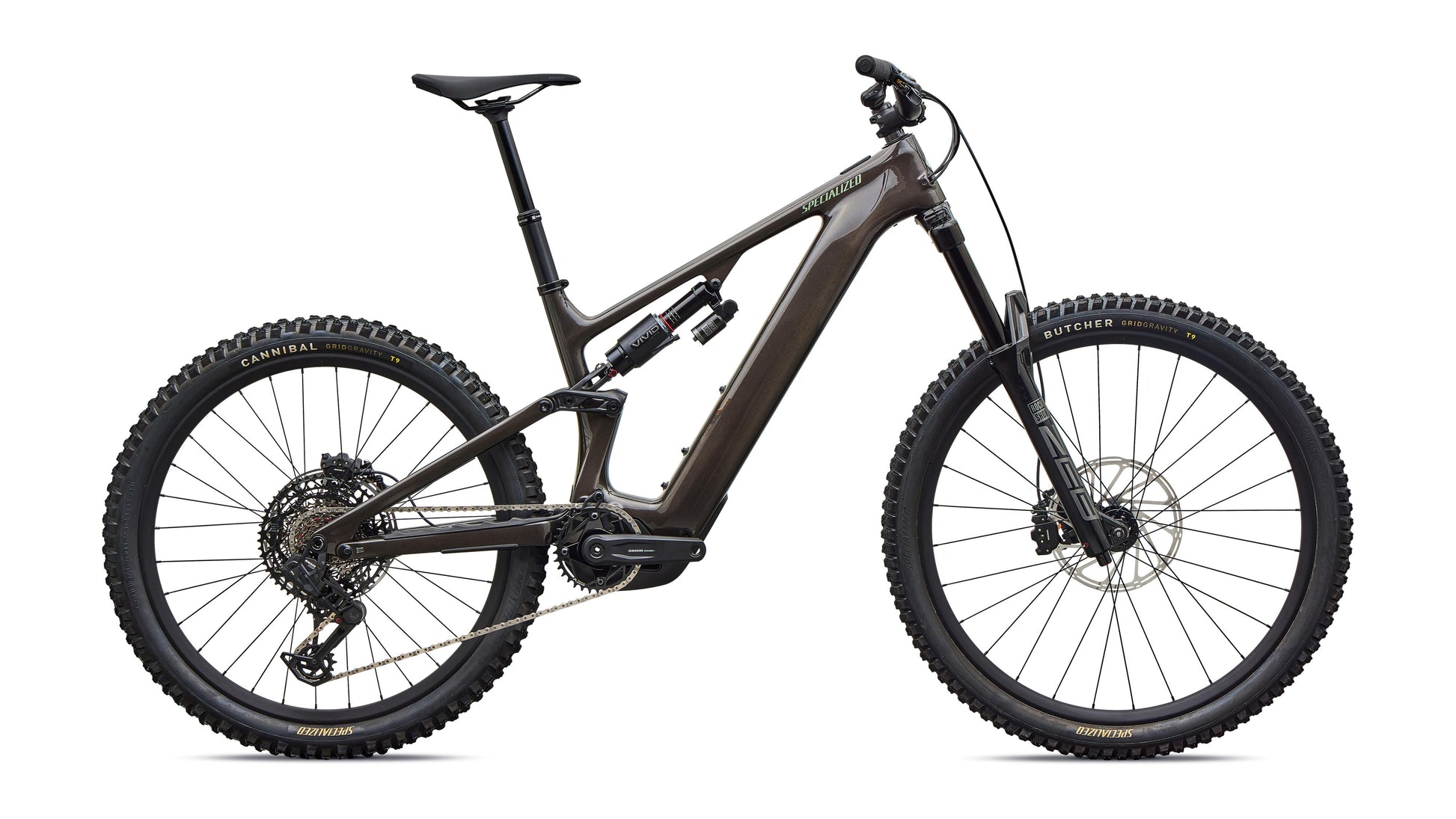

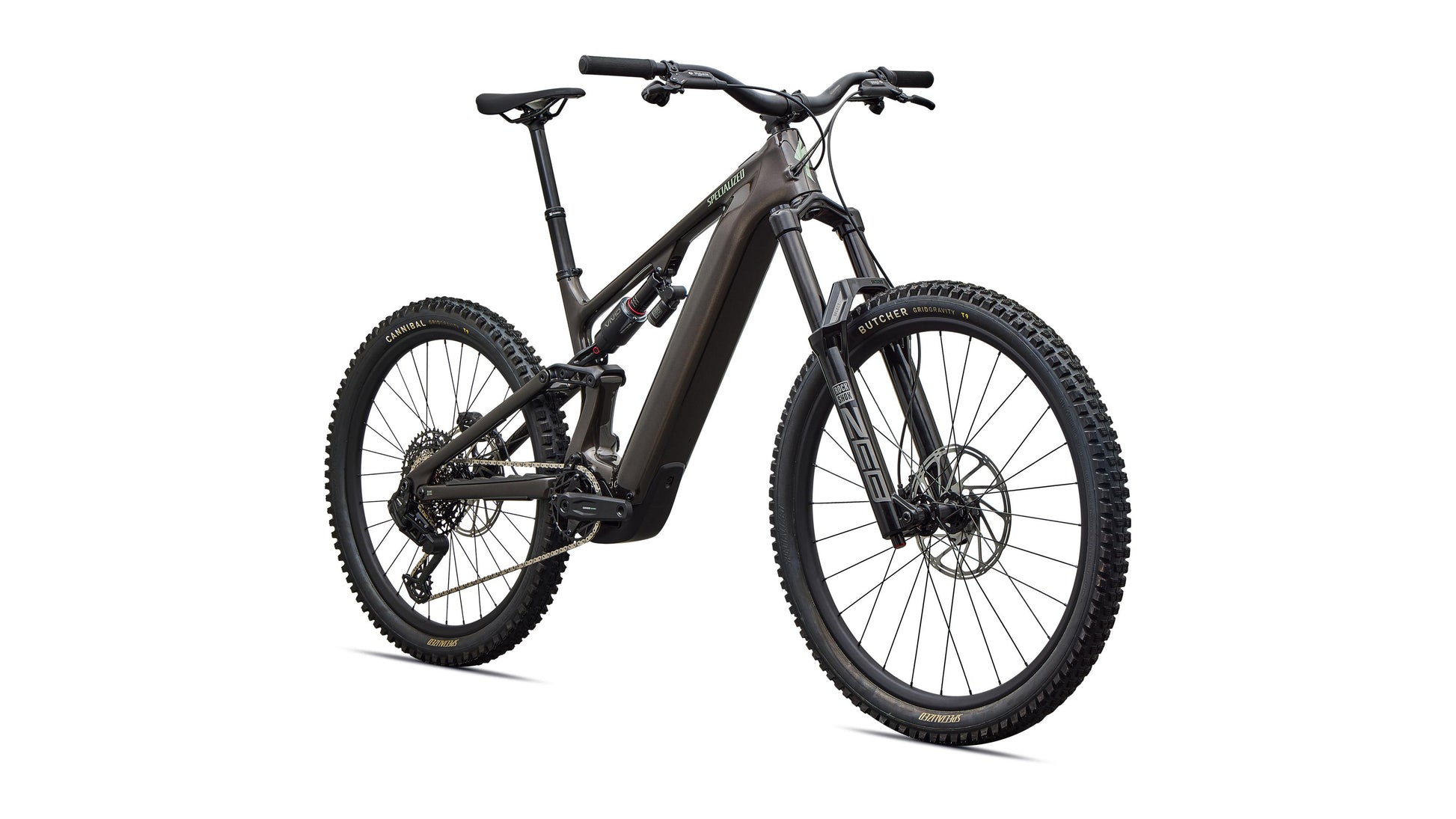

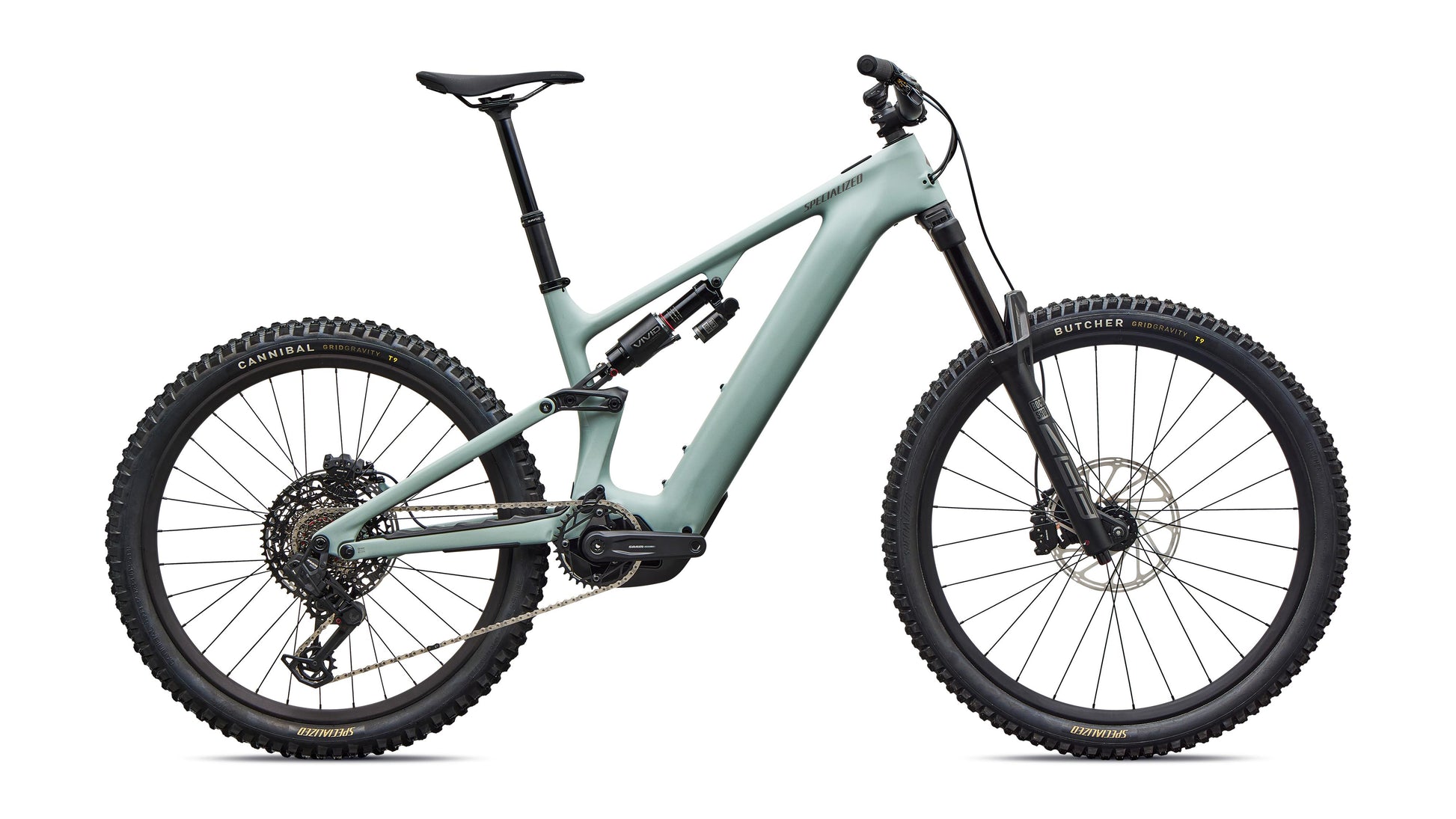

2027 Specialized Levo 4 EVO Comp

2027 Specialized Levo 4 EVO Comp

95227-5002

$9,199.99
$9,199.99 $9,199.99
New
Color
Size
View full details

    2027 Specialized Levo 4 EVO Comp Features

    Levo 4 EVO is built for riders who don’t tiptoe around terrain. The riders who point into the steep stuff, ride bike parks without a chairlift, and want a bike that stays calm when things get fast, rough, and consequential. This is Electric Enduro.

    At a Glance

    • Use - Electric Enduro
    • E-System - Specialized 3.1 Motor w/ 810 Watts & 105 Nm, 840 Wh Battery, up to 5 hour range w/ optional Range Extender
    • Frame - Levo EVO FACT 11m carbon frame, Geo Adj & SWAT Storage
    • Suspension - Fork: 180mm RockShox Zeb Select
      Shock: Vivid Select Air Linear
    • Drivetrain - SRAM S1000 Eagle AXS
    • Wheels - Sp[ecialized Alloy Wheels

    Component Specifications

    E-Bike

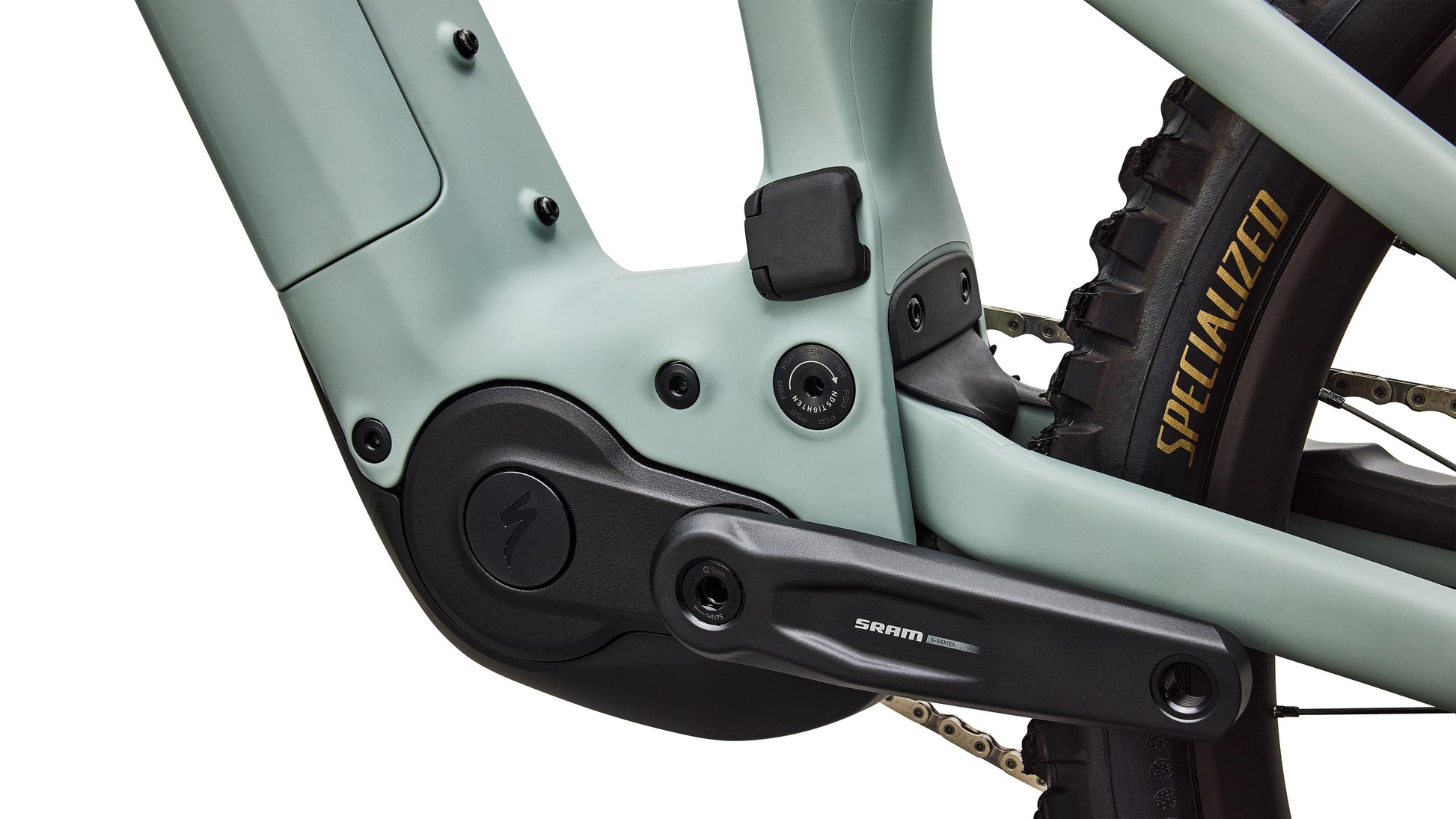

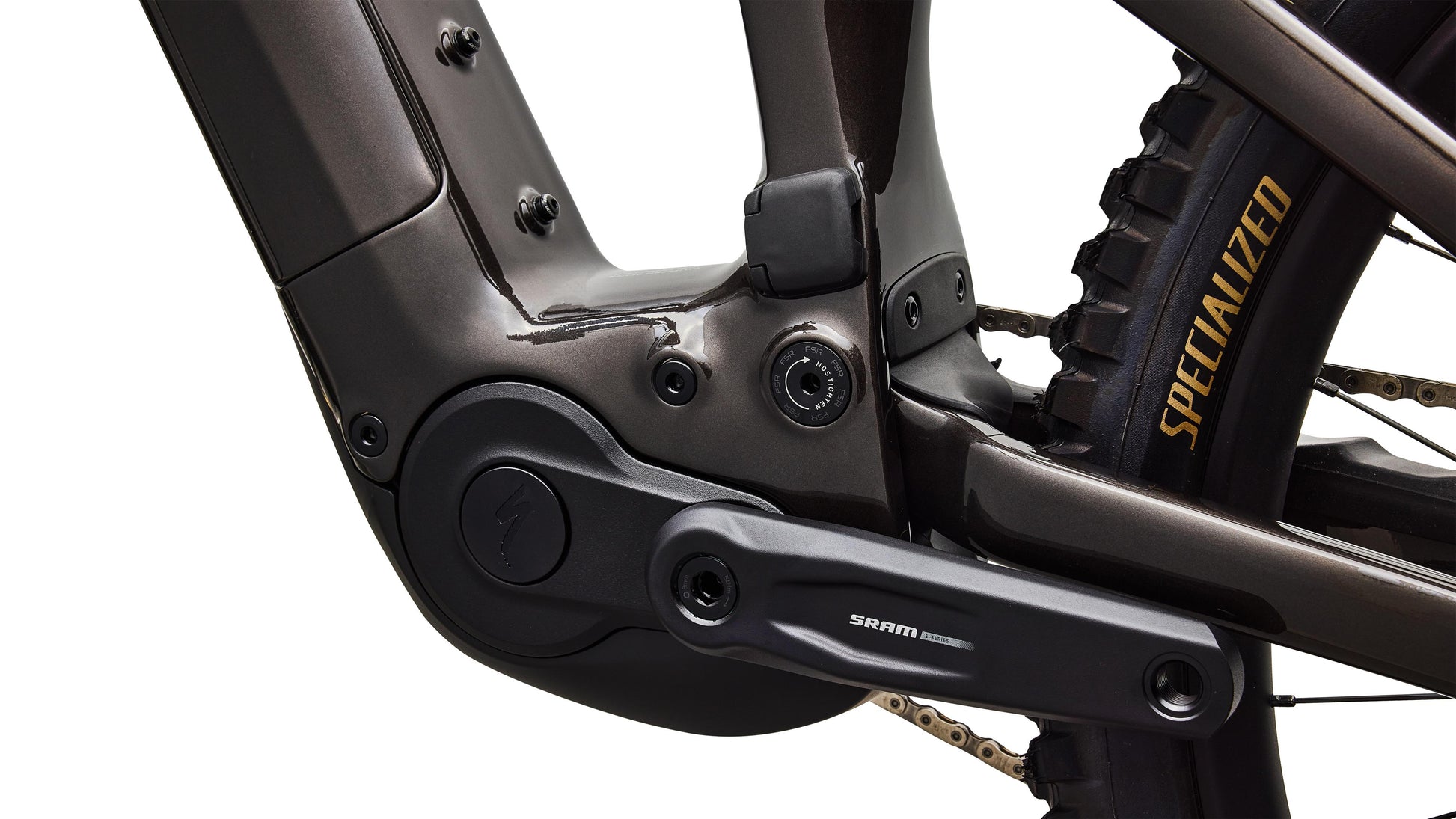

    motor
    Specialized 3.1 Motor, 105Nm torque, 810W power
    battery
    840Wh battery

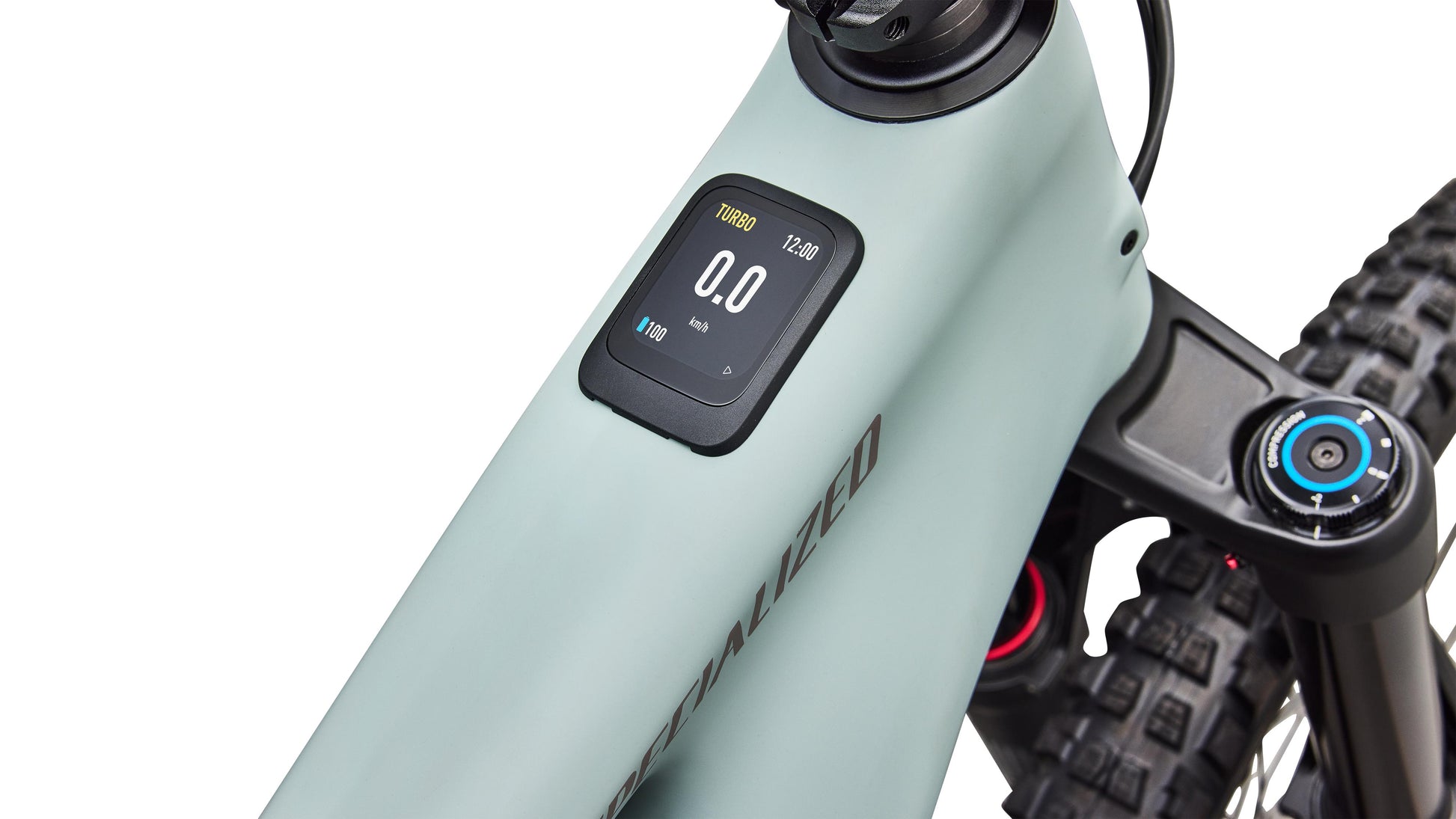

    ui remote

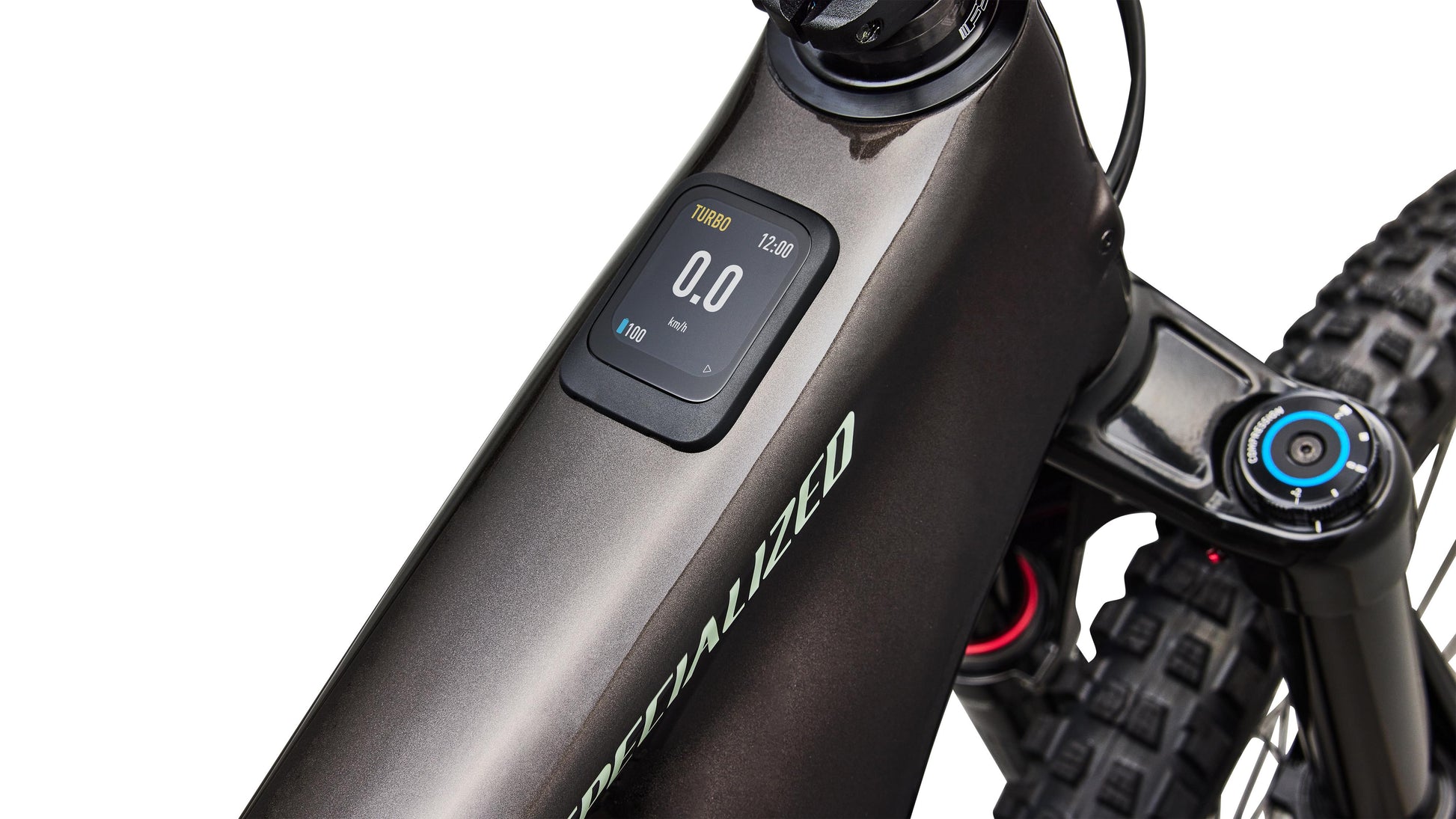

    Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
    charger
    Specialized 4amp charger
    Frameset
    frame
    Levo Evo FACT 11m carbon frame, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm rear travel, 29" front wheel/27.5" rear wheel, adjustable head tube angle, chainstay length, integrated SWAT storage
    seat binder
    Alloy, 38.6mm
    Suspension

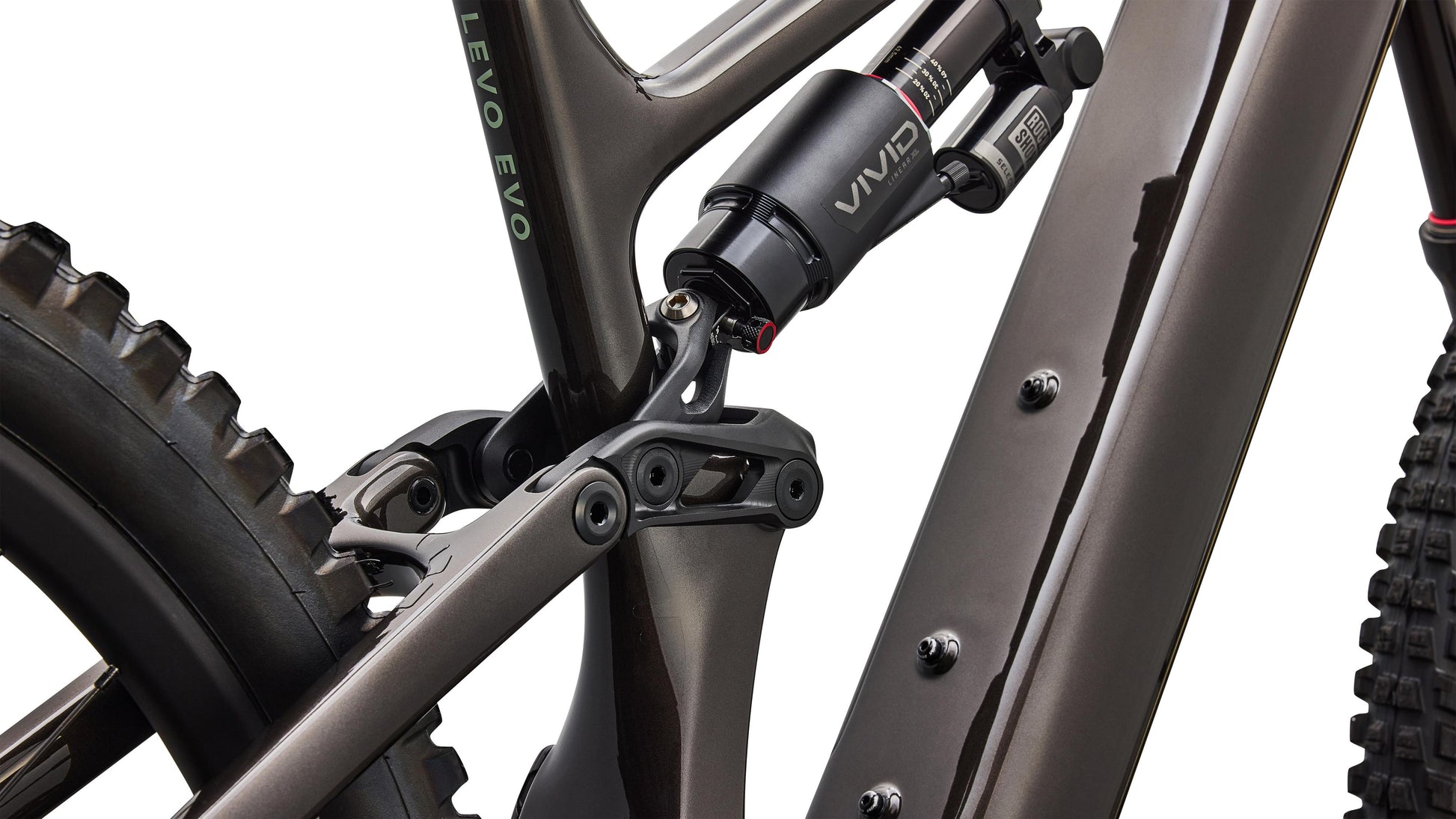

    rear shock

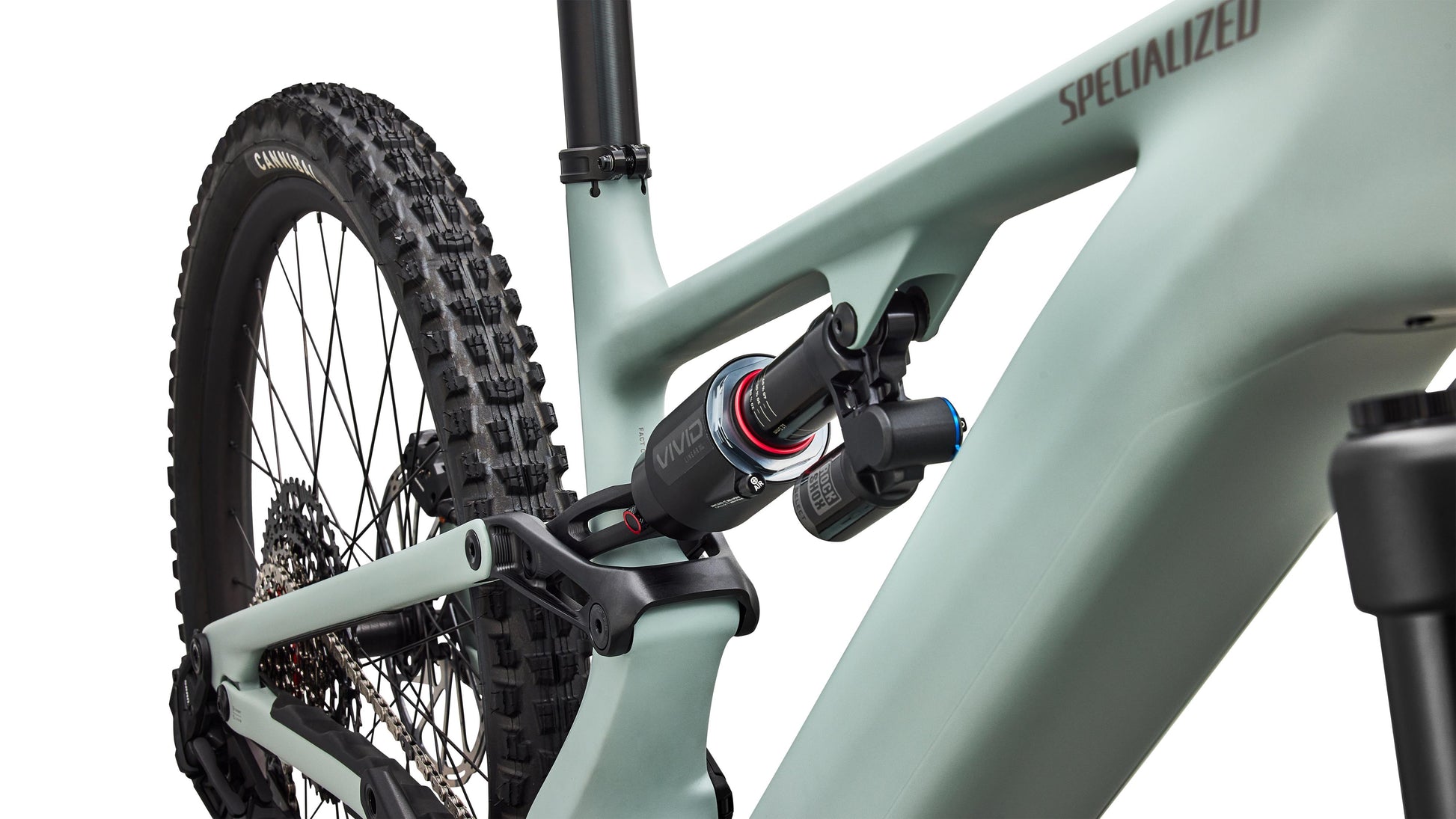

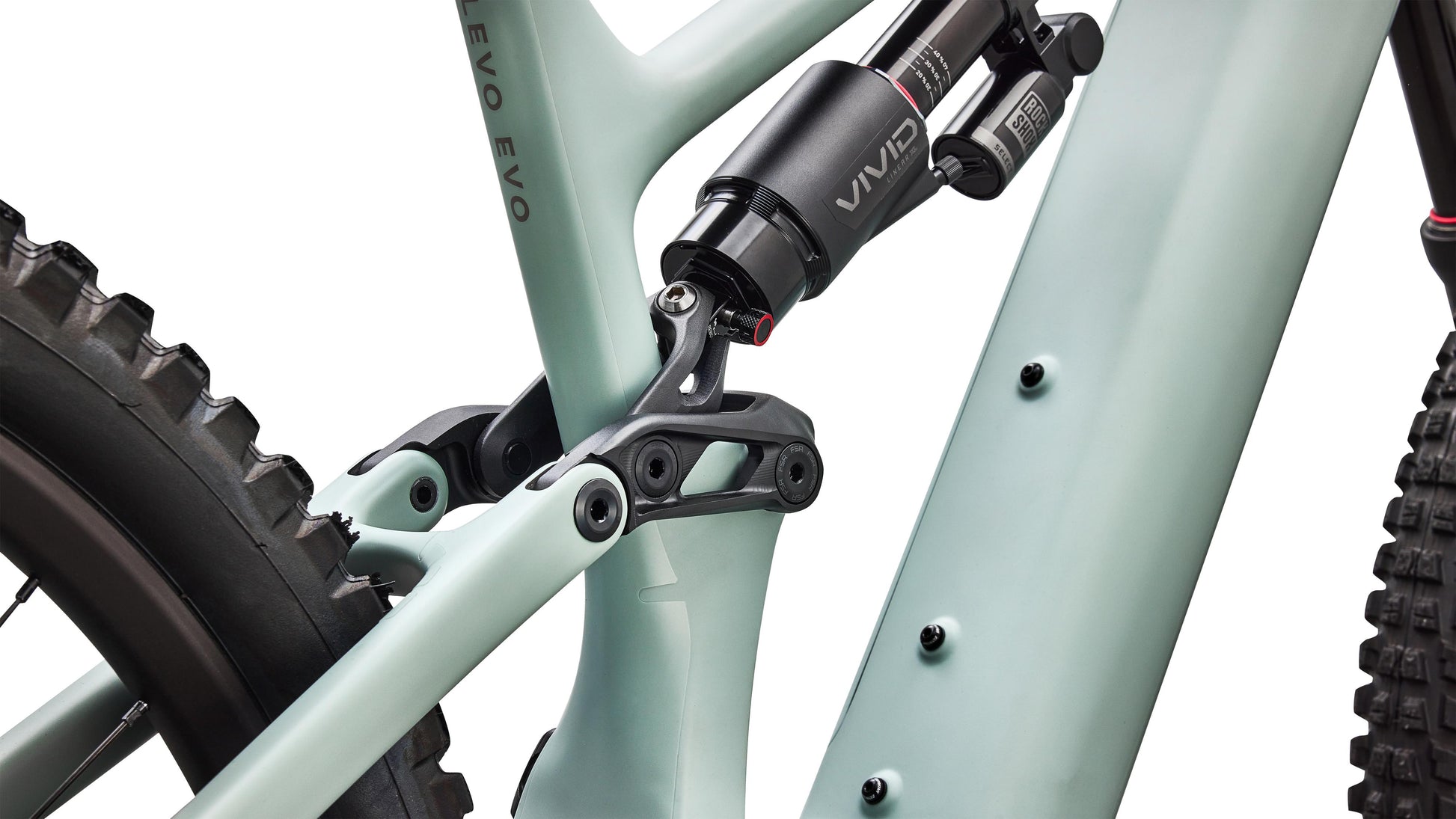

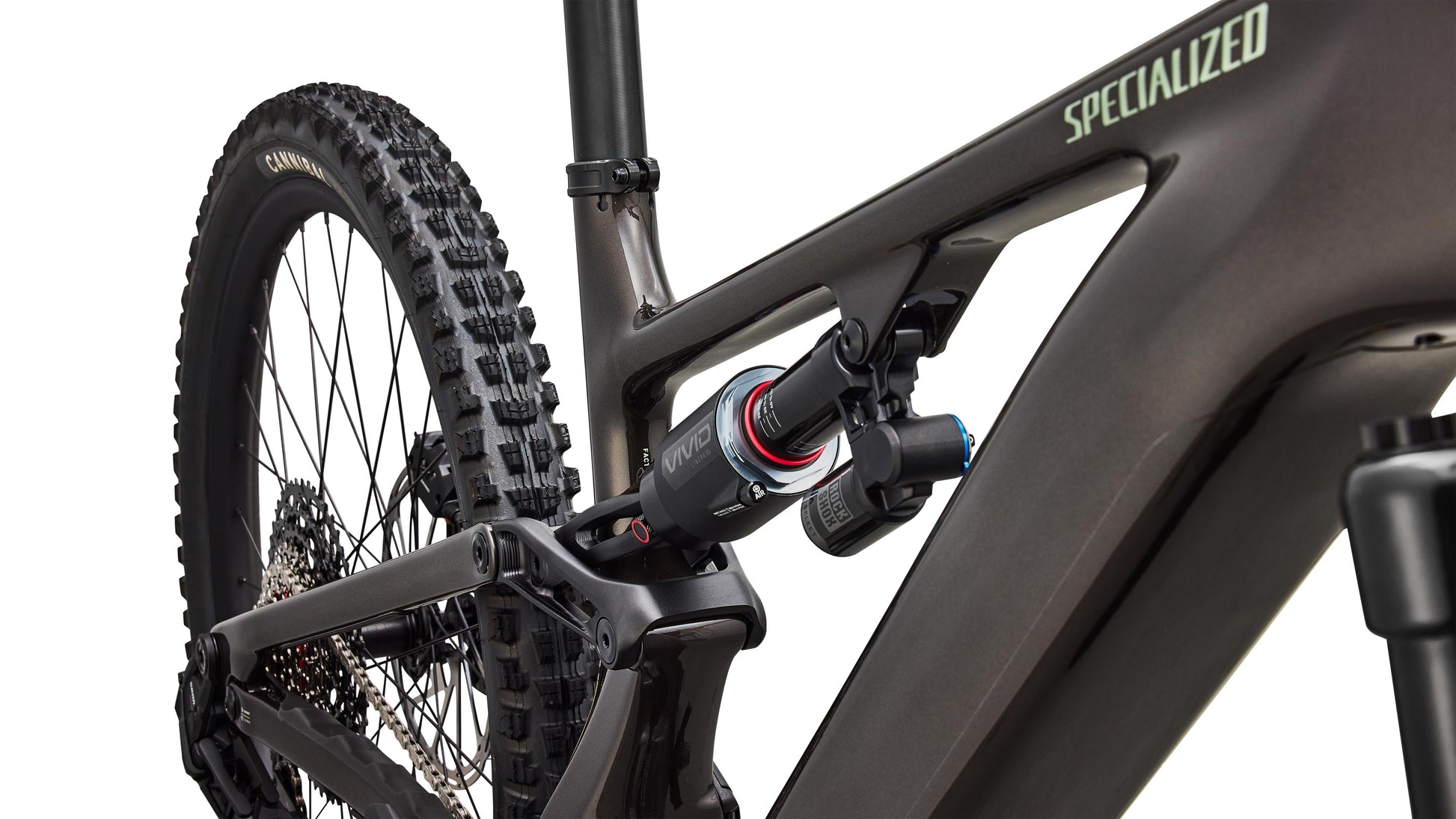

    All New Vivid Select air, 230x62.5mm, Linear XL spring, RT damper w/climb switch, rebound adjust
    fork
    All New SRAM FS ZEB Select, 29" 180mm, Linear XL spring, Delta RC damper, rebound adjust
    Brakes
    front brake
    SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor
    rear brake
    SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm rotor
    Drivetrain
    shift levers
    SRAM AXS Pod Controller w/discrete clamp
    rear derailleur
    SRAM S1000 Eagle AXS
    cassette
    SRAM 12-speed,10-52t
    chain
    SRAM GX Eagle Transmission 12-Speed Flattop Chain
    crankset
    SRAM S1000 Alloy crank, ISIS interface, 155mm length
    chain rings
    SRAM 34t T-Type chainring, 104 BCD, steel
    Wheels & Tires
    rims
    Specialized Alloy Rims
    front hub
    Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h
    rear hub
    Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 28h, HG Steel Fhb
    spokes
    DT Swiss Elemental
    front tire
    Butcher, GRID Gravity, T9 compound, TLR, 29x2.4"
    rear tire
    Cannibal GRID Gravity T9 TLR Downhill Tire 27.5x2.4"
    inner tubes
    Standard, Presta Valve
    Cockpit

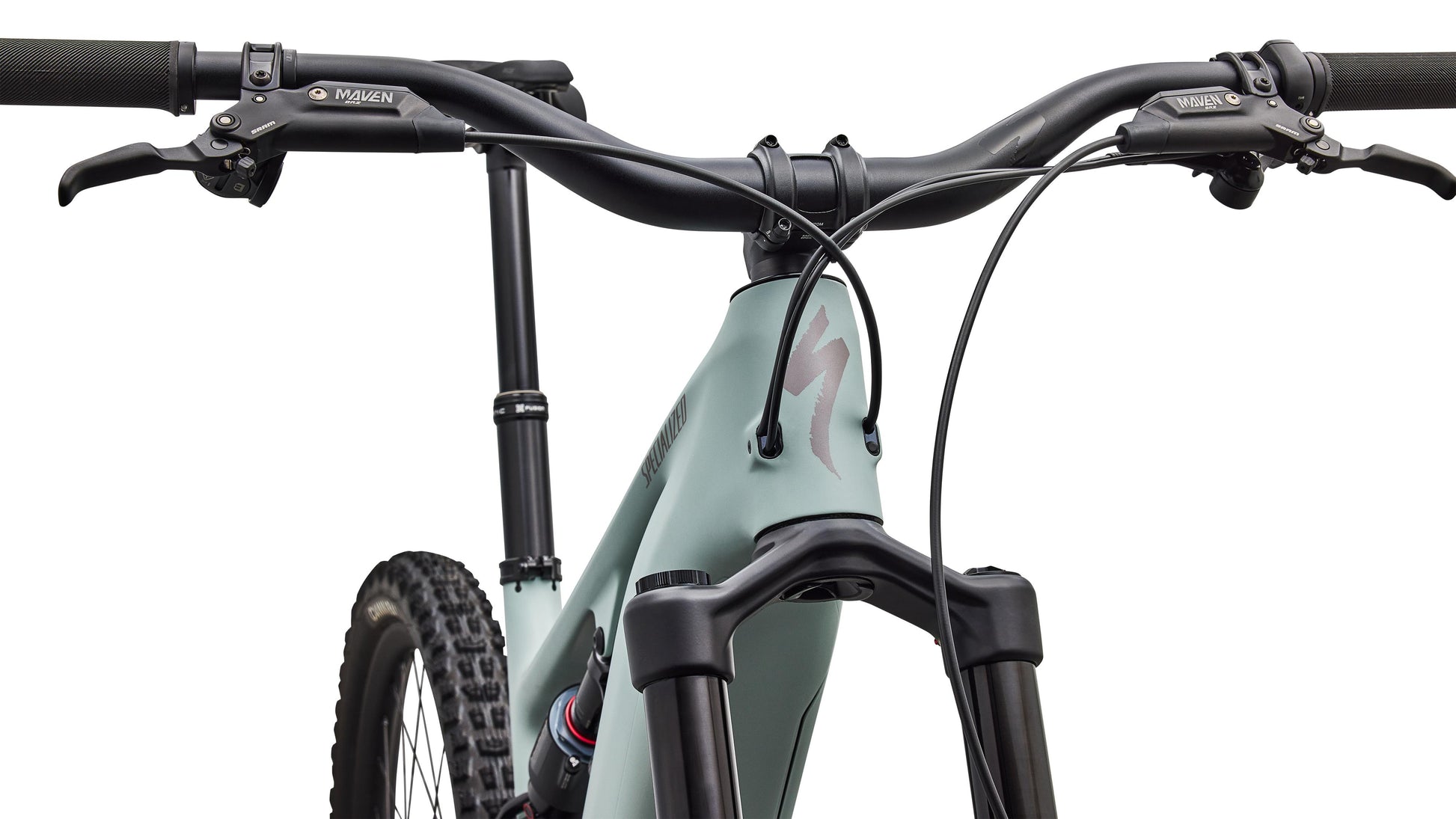

    stem
    Alloy Trail Stem, 35mm bar bore
    handlebars

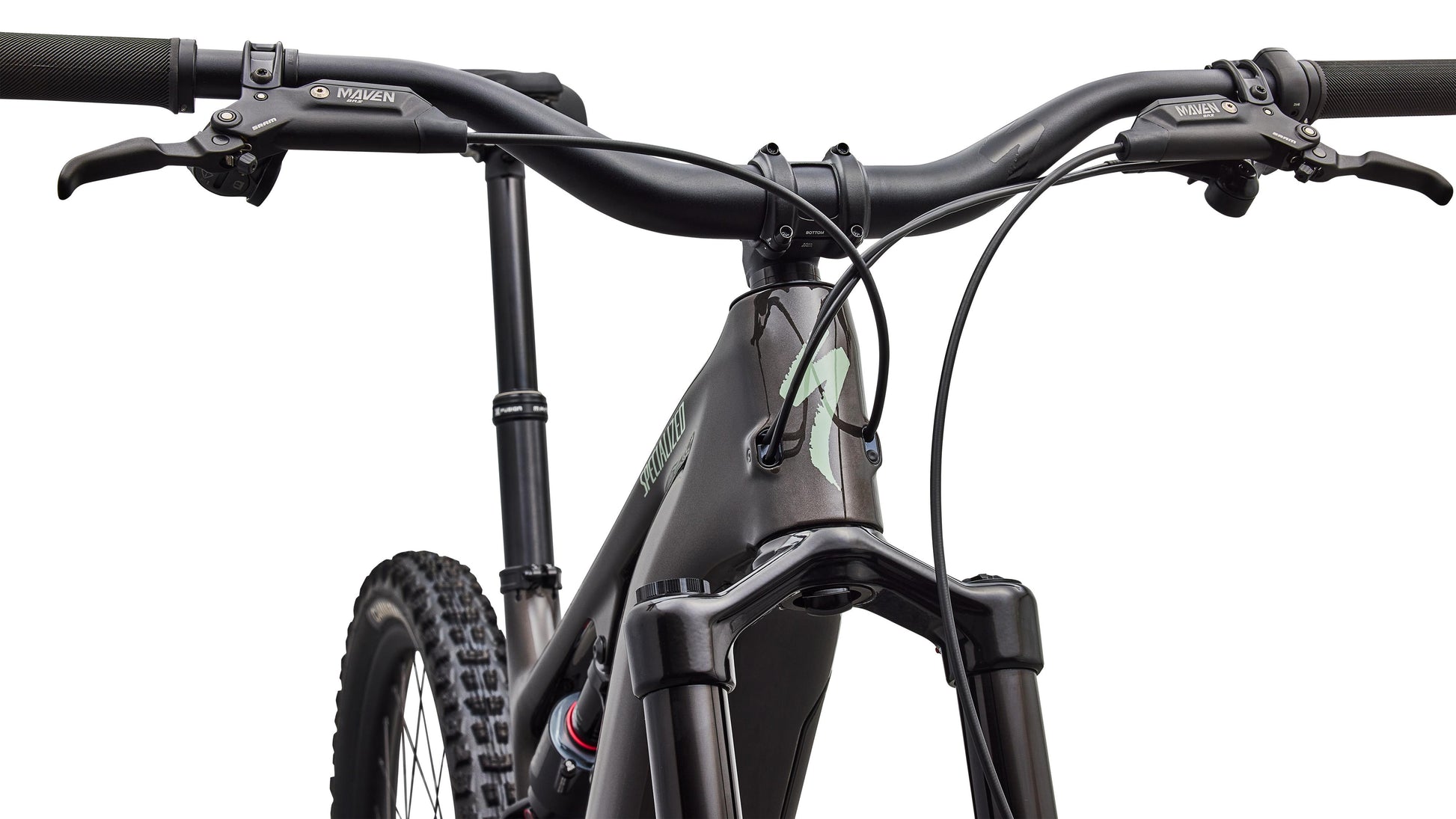

    Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise
    grips
    Specialized Trail Grips
    saddle
    Bridge Comp, Hollow Cr-mo rails 155/143
    seatpost
    Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm
    Accessories
    swat
    SWAT Internal downtube storage

    2027 Specialized Levo 4 EVO Comp

    Bike/Frame Size S2 S3 S4 S5 S6
    Stack 625 mm 633 mm 646 mm 659 mm 675 mm
    Reach 425 mm 445 mm 470 mm 495 mm 525 mm
    Chainstay Length 435 mm 435 mm 435 mm 435 mm 435 mm
    Wheelbase 1208 mm 1232 mm 1263 mm 1294 mm 1331 mm
    Top-tube Length (horizontal) 580 mm 602 mm 630 mm 658 mm 691 mm
    Bike Standover Height 764 mm 765 mm 763 mm 768 mm 771 mm
    Seat Tube Length 390 mm 405 mm 425 mm 445 mm 465 mm
    Seat Tube Angle 76° 76° 76° 76° 76°
    Saddle Height for Effective ST Angle 690 mm 735 mm 780 mm 825 mm 870 mm
    Max Seatpost Insertion 274 mm 289 mm 313 mm 337 mm 357 mm
    Min Seatpost Insertion 80 mm 80 mm 80 mm 80 mm 80 mm
    Headtube Length 95 mm 103 mm 117 mm 132 mm 149 mm
    Headtube Angle 63.6° 63.6° 63.6° 63.6° 63.6°
    BB Height 356 mm 356 mm 356 mm 356 mm 356 mm
    BB Drop 24 mm 24 mm 24 mm 24 mm 24 mm
    Trail 139 mm 139 mm 139 mm 139 mm 139 mm
    Fork Length (full) 597 mm 597 mm 597 mm 597 mm 597 mm
    Fork Rake/Offset 44 mm 44 mm 44 mm 44 mm 44 mm
    Front Center 773 mm 797 mm 828 mm 859 mm 897 mm

    Component Geometry

    Component S2 S3 S4 S5 S6
    Crank Length 155 mm 155 mm 155 mm 155 mm 155 mm
    Handlebar Width 780 mm 800 mm 800 mm 800 mm 800 mm
    Stem Length 40 mm 40 mm 40 mm 40 mm 40 mm
    Saddle Width 155 mm 143 mm 143 mm 143 mm 143 mm
    Seatpost Length 125 mm 170 mm 200 mm 200 mm 200 mm
