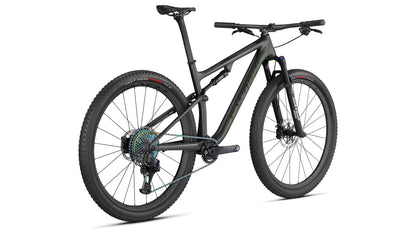

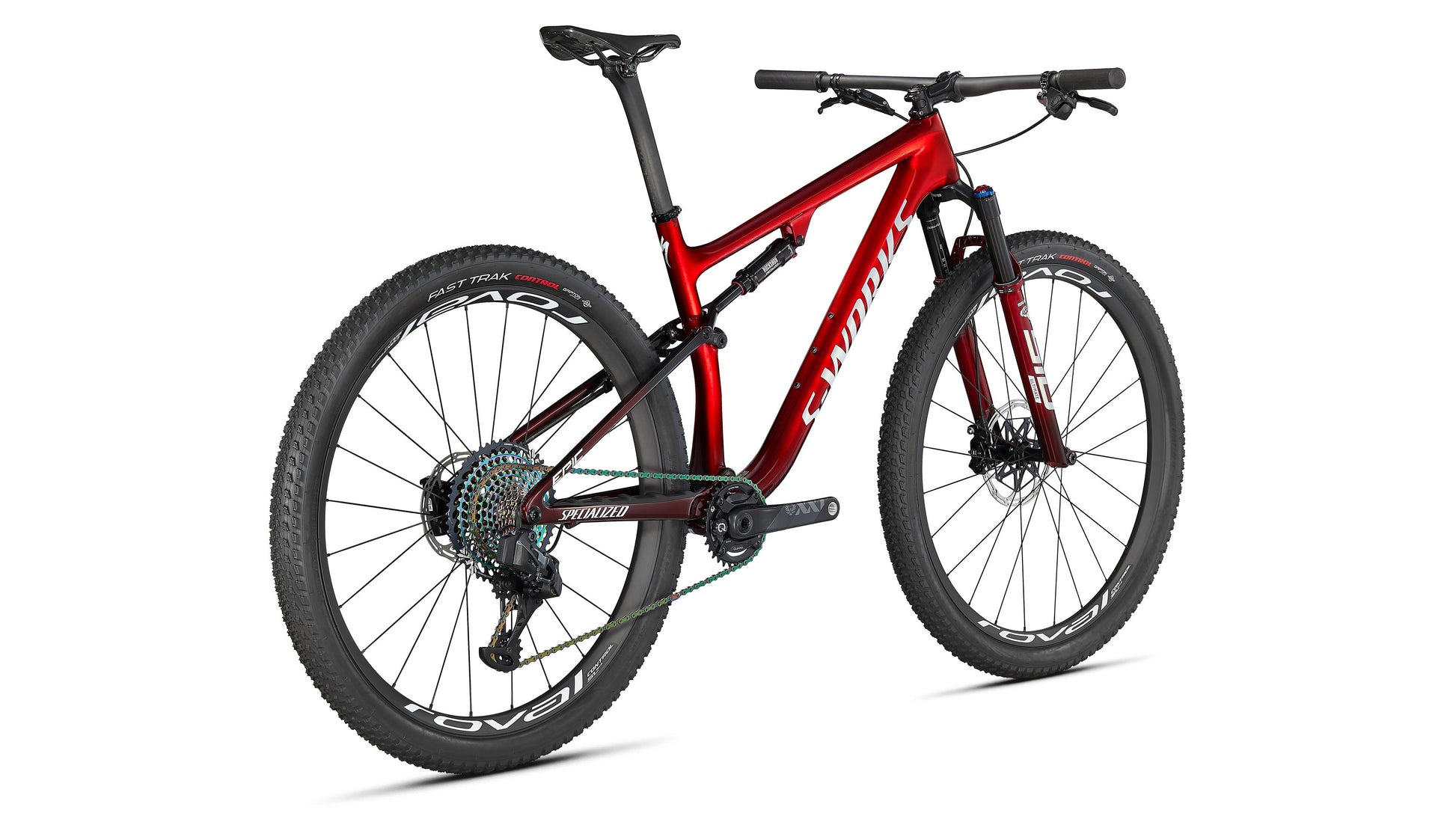

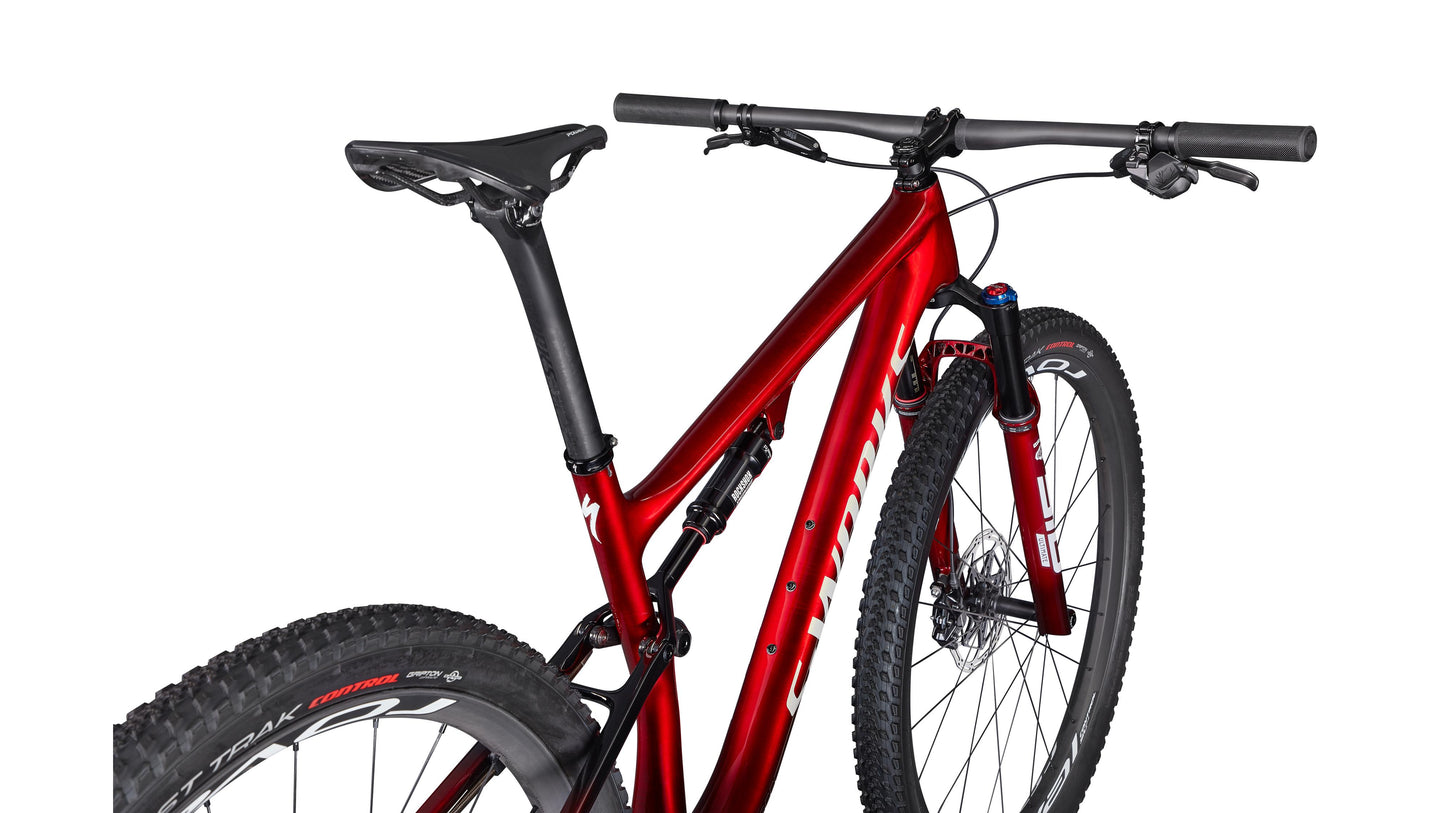

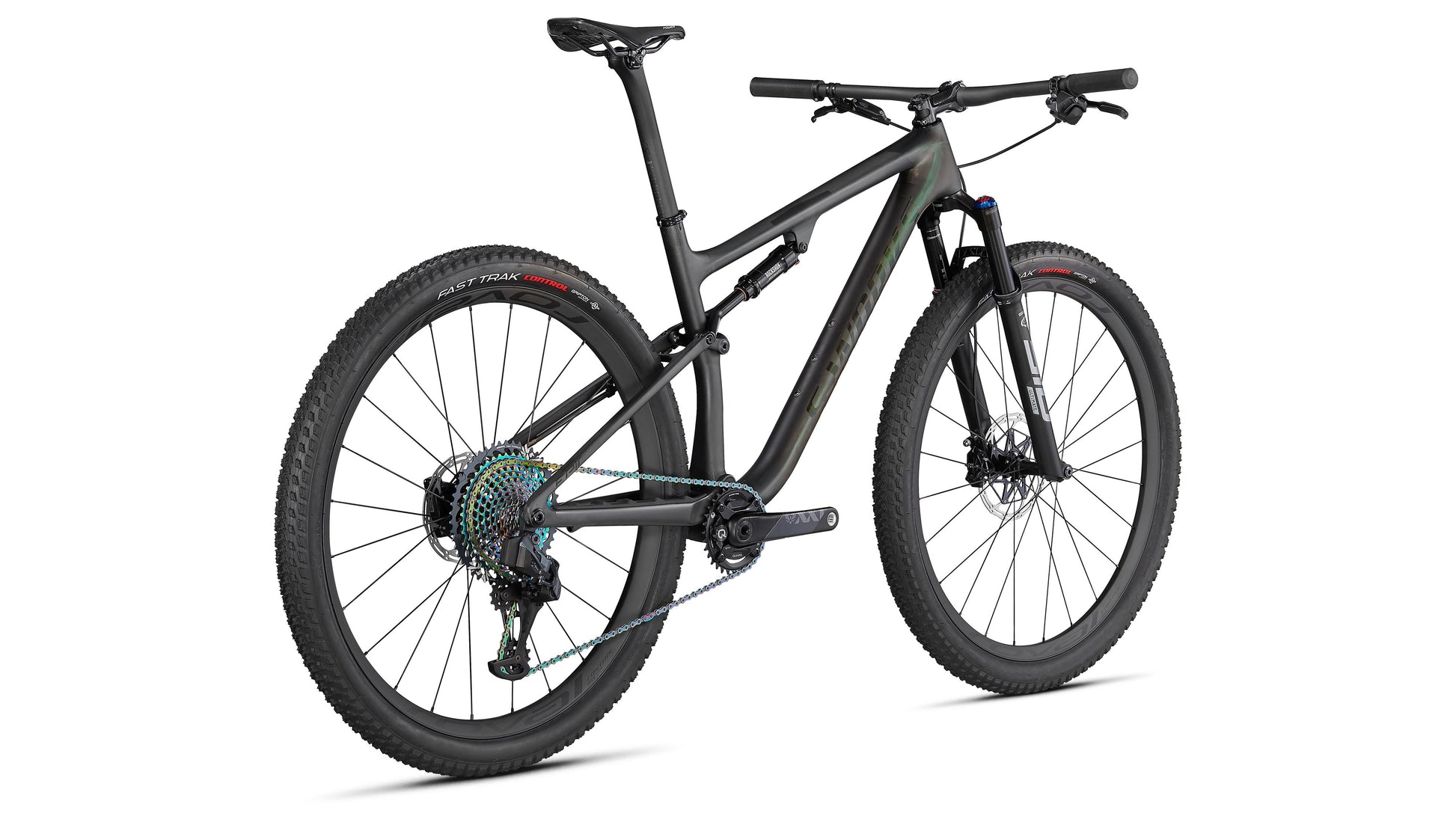

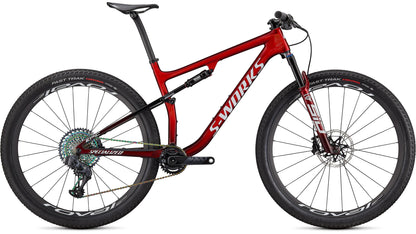

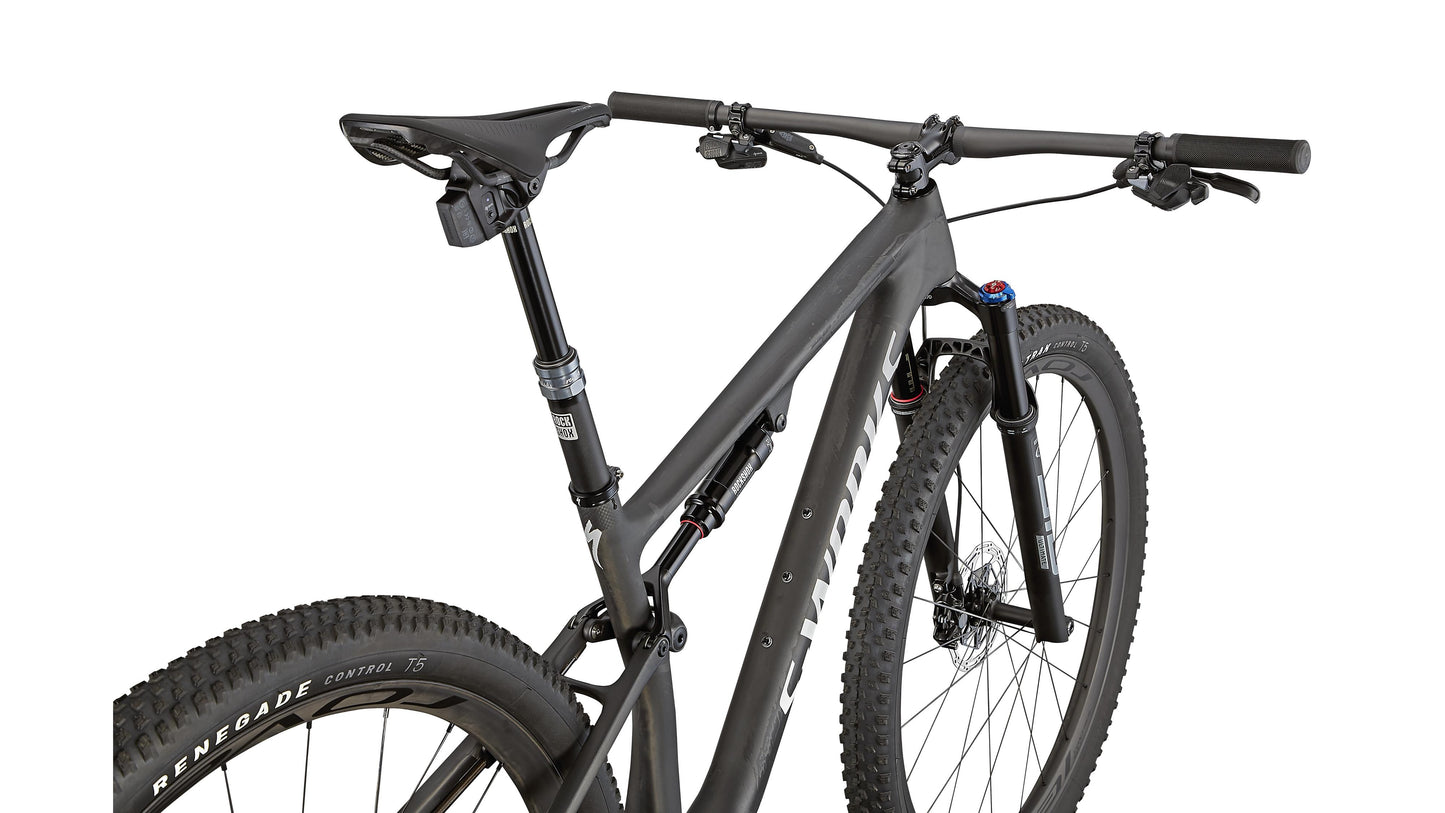

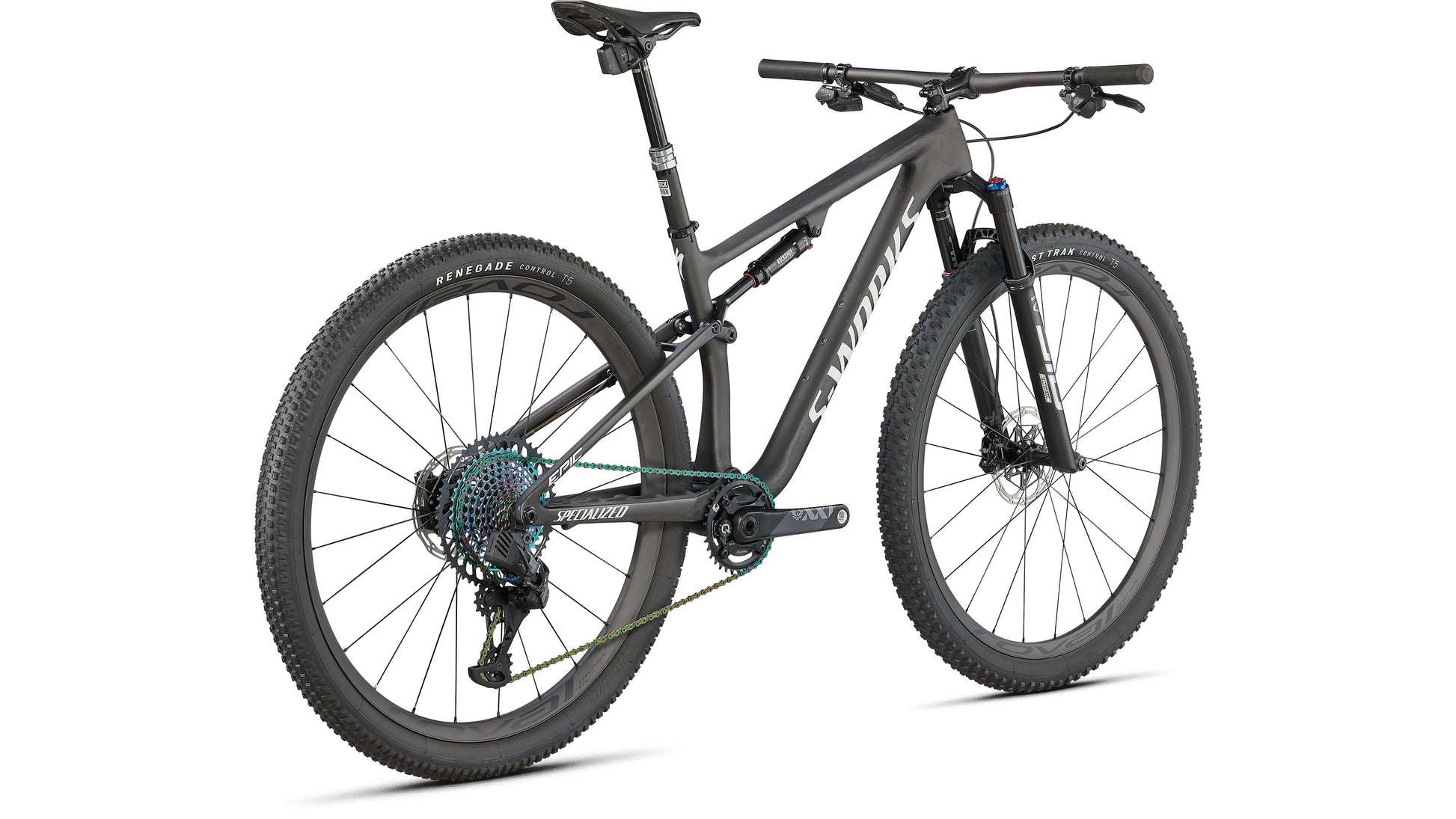

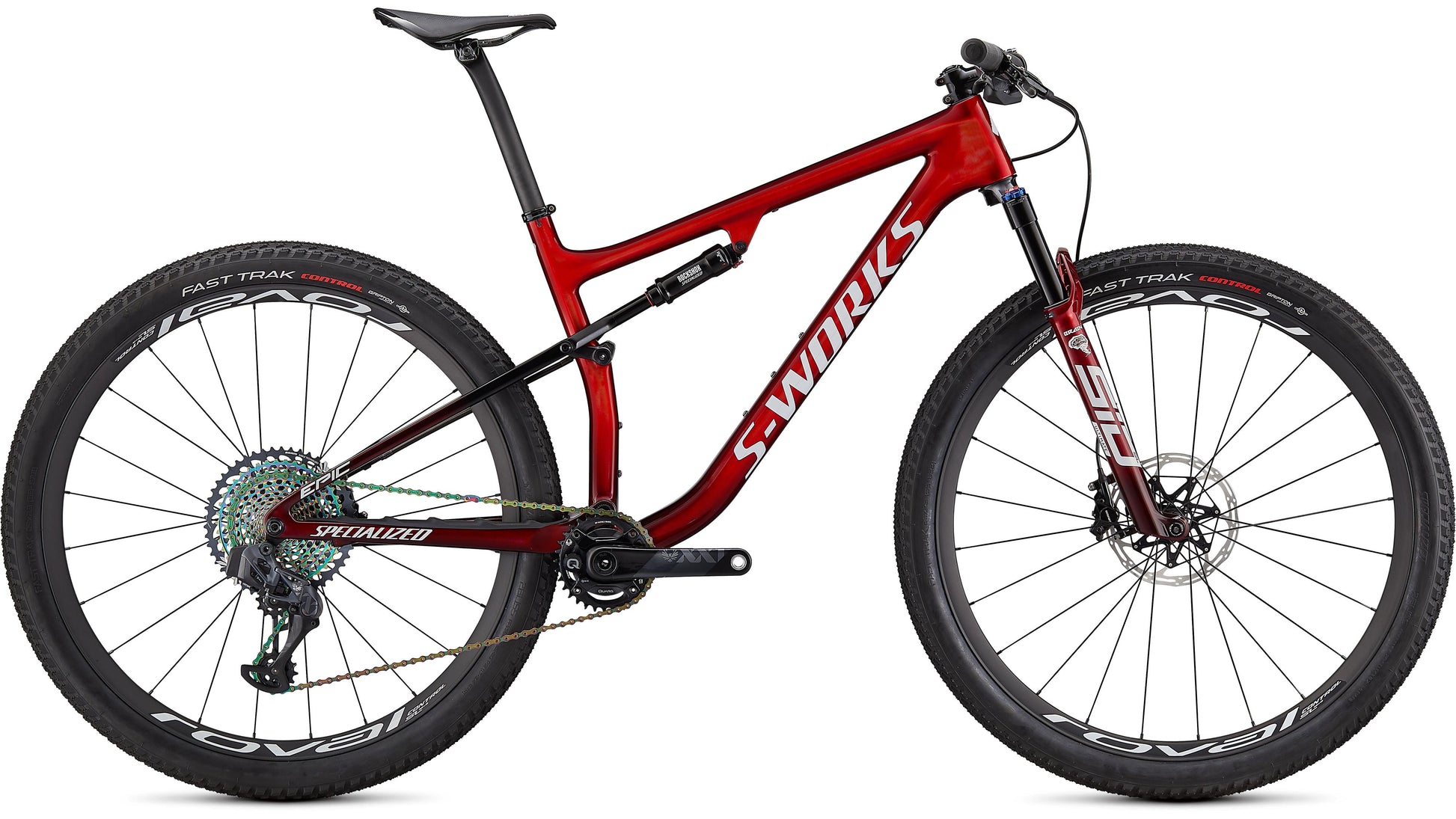

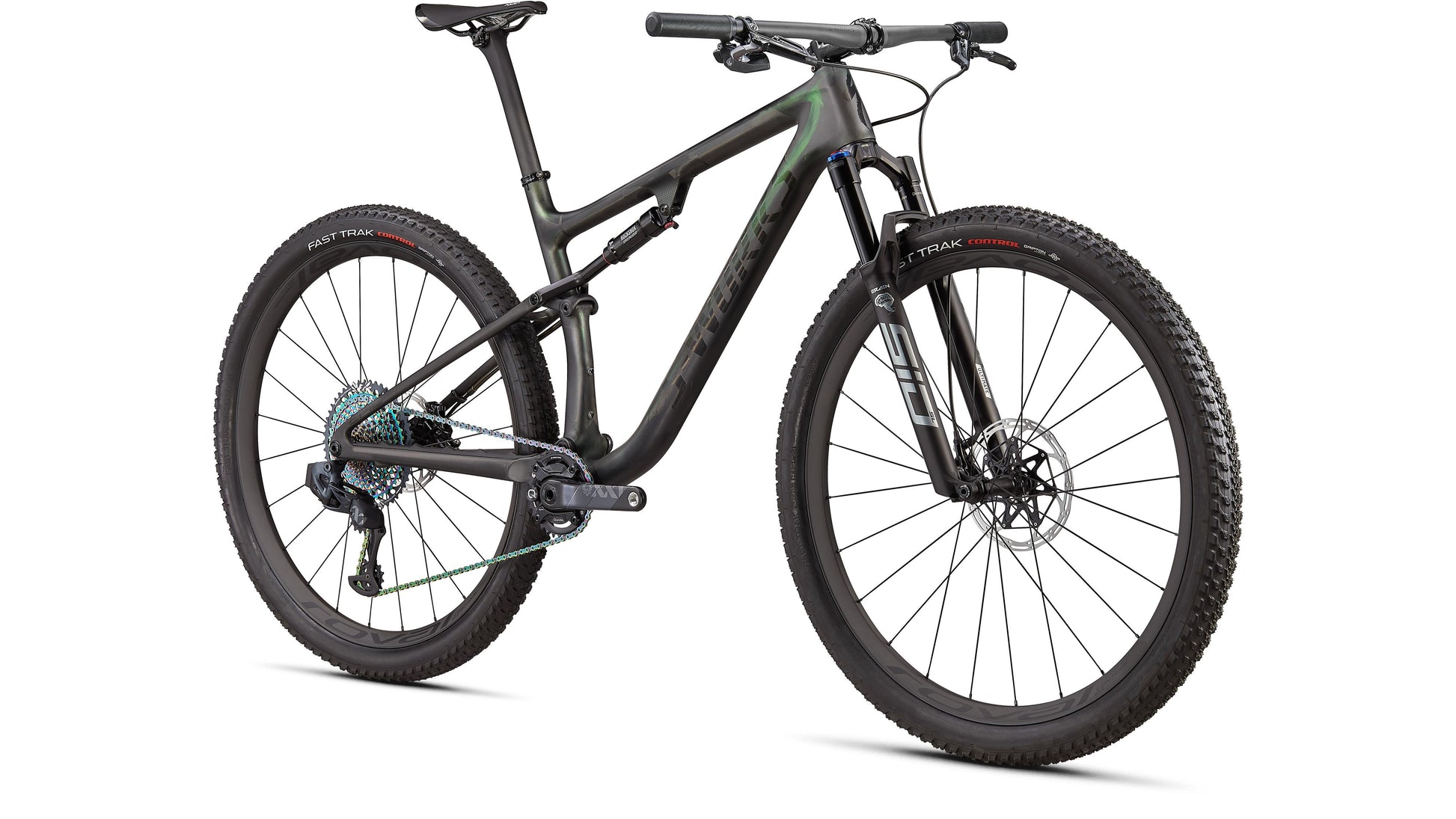

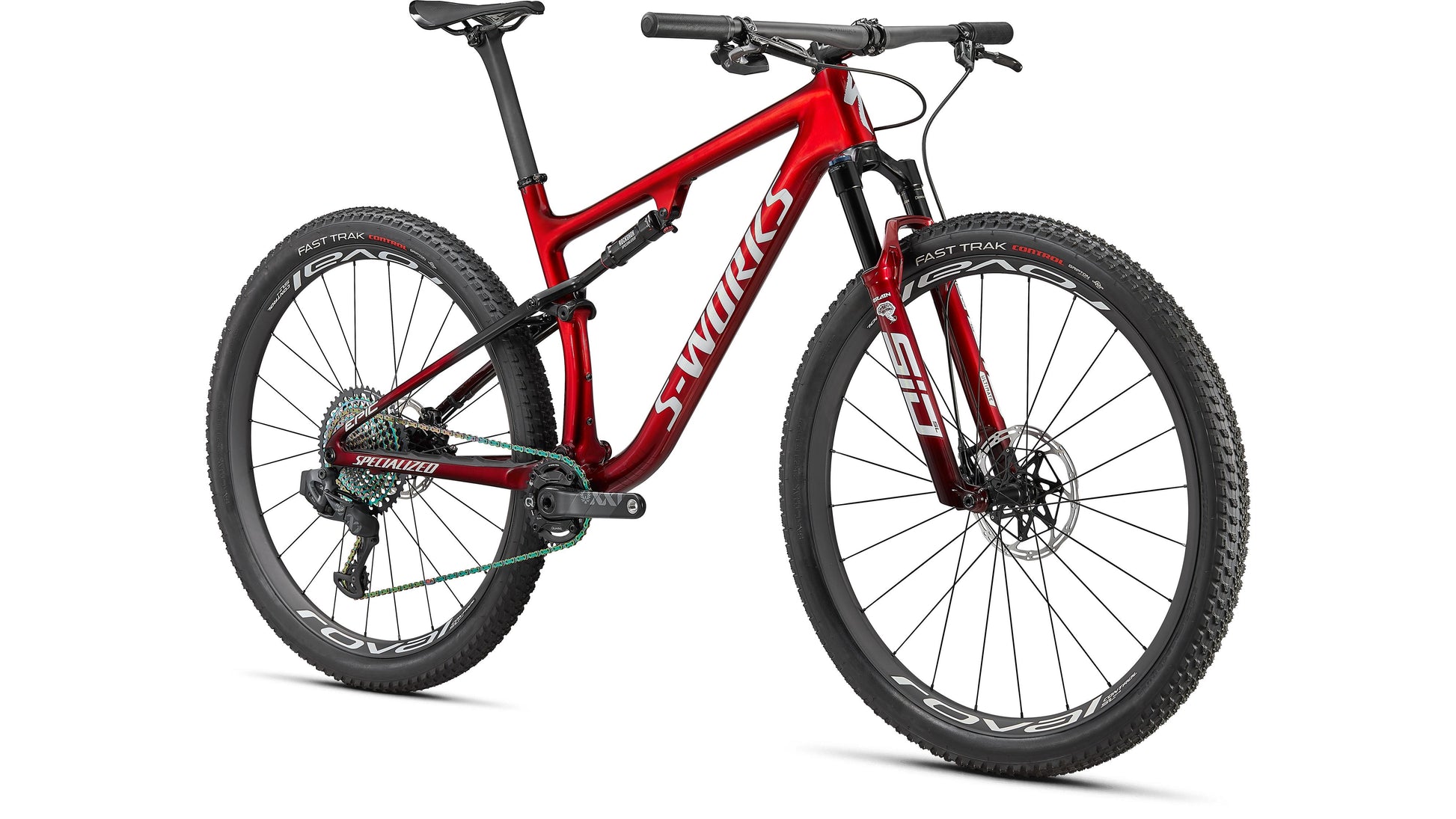

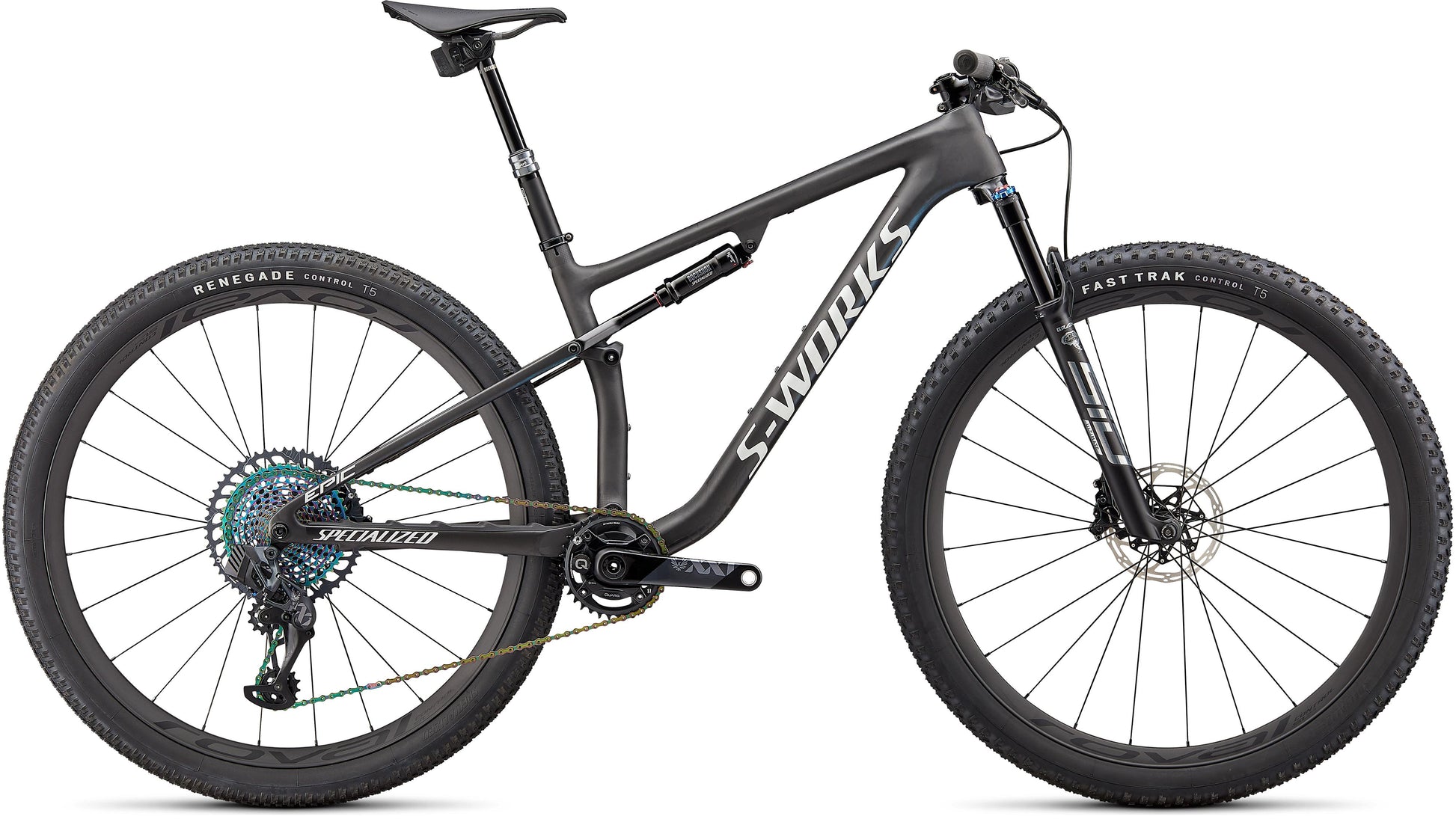

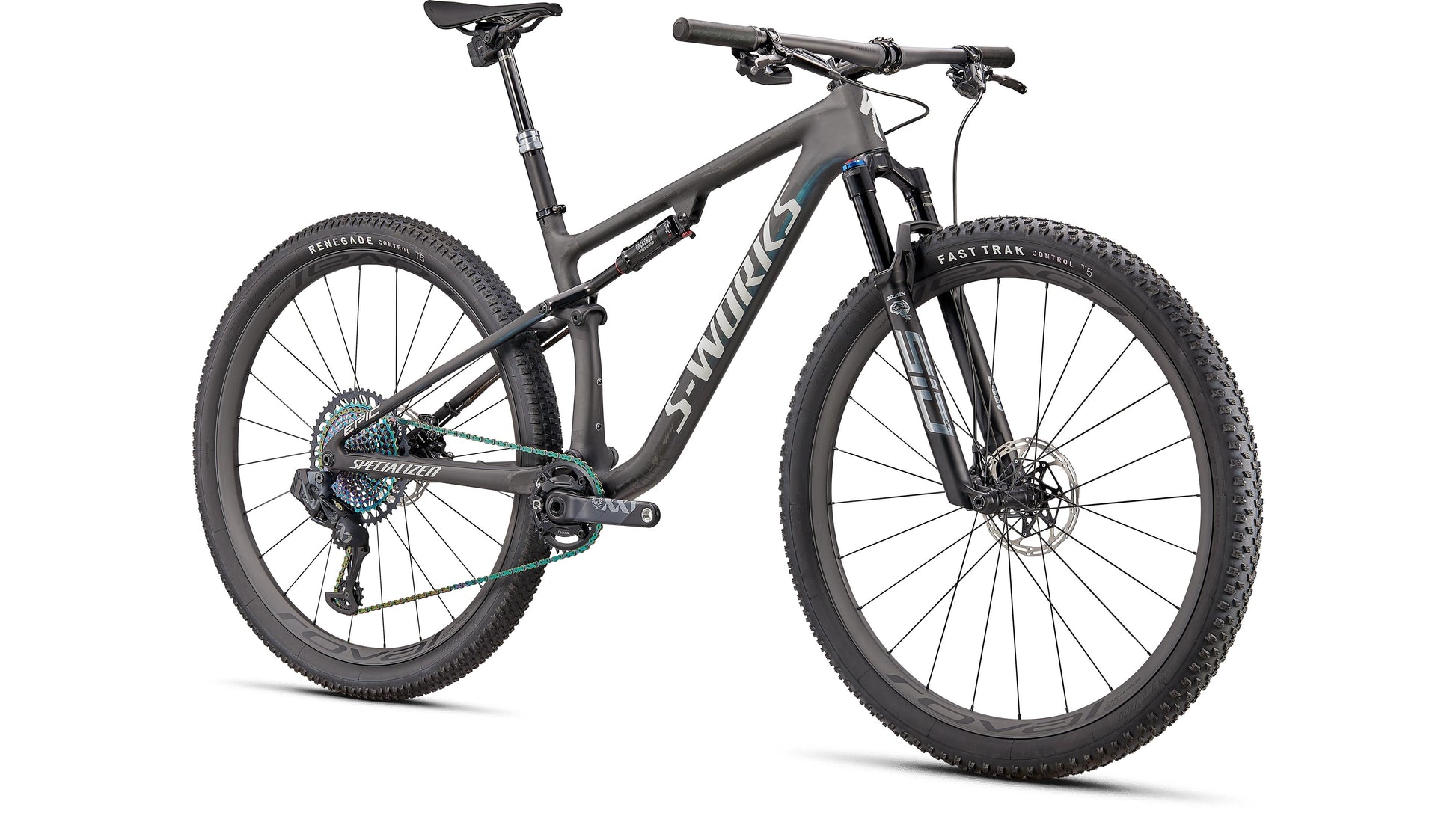

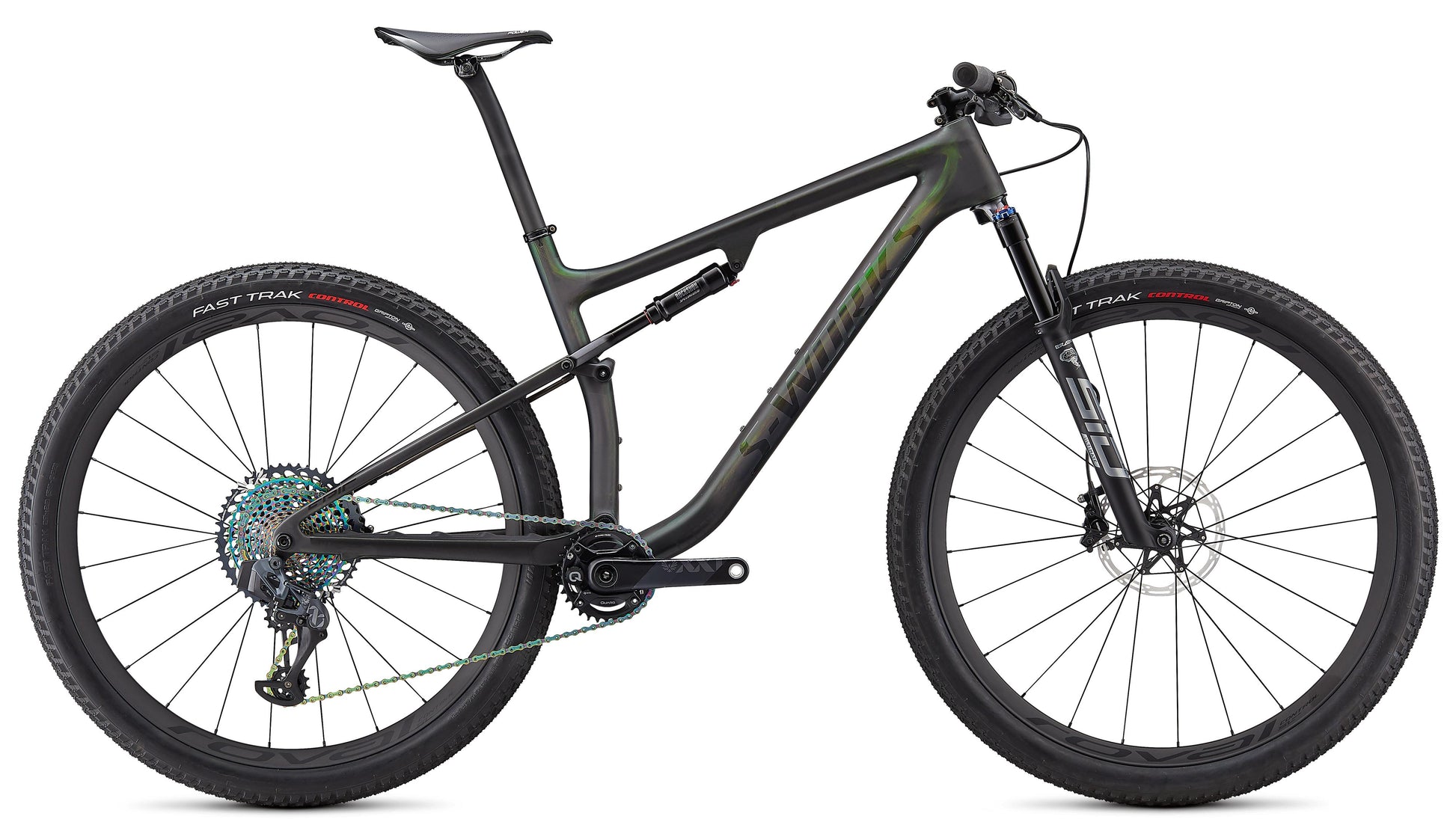

Specialized Epic Sw

Specialized Epic Sw

SKU:97620-0102

Regular price $12,000.00
Regular price $12,000.00 USD Sale price $12,000.00
Sold out
Color
Size
View full details

    Specialized Epic Sw Features

    Hey you, yeah, you...the one with the scale out seeing which of the six identical tires on the shelf is the lightest. Sure, some might call you a bit obsessive, but no worries, here, the S-Works Epic is speaking exactly the same language. Countless design hours, endless test laps, terabytes of telemetry data—all of it to make sure not a single ounce of speed was left on the table.

    Mixing hardtail efficiency and full-suspension capability to impressively quick results, the S-Works Epic has always been defined by obsessive commitment to speed. Well, that and over 100 World Cup wins and podiums too.

    A Smarter BRAIN

    True to form, the latest Epic continues the tradition, taking advantage of the most efficient BRAIN suspension we’ve ever created to ensure it’s always on a first-name-basis with fast.

    Re-engineered hand-in-hand with the new Epic, the latest BRAIN design resets the expectation for efficiency, employing a new race-tuned pedaling platform to ensure every watt possible is translated into forward motion, while handily soaking up momentum-killing chatter and big hits alike—all more smoothly than ever.

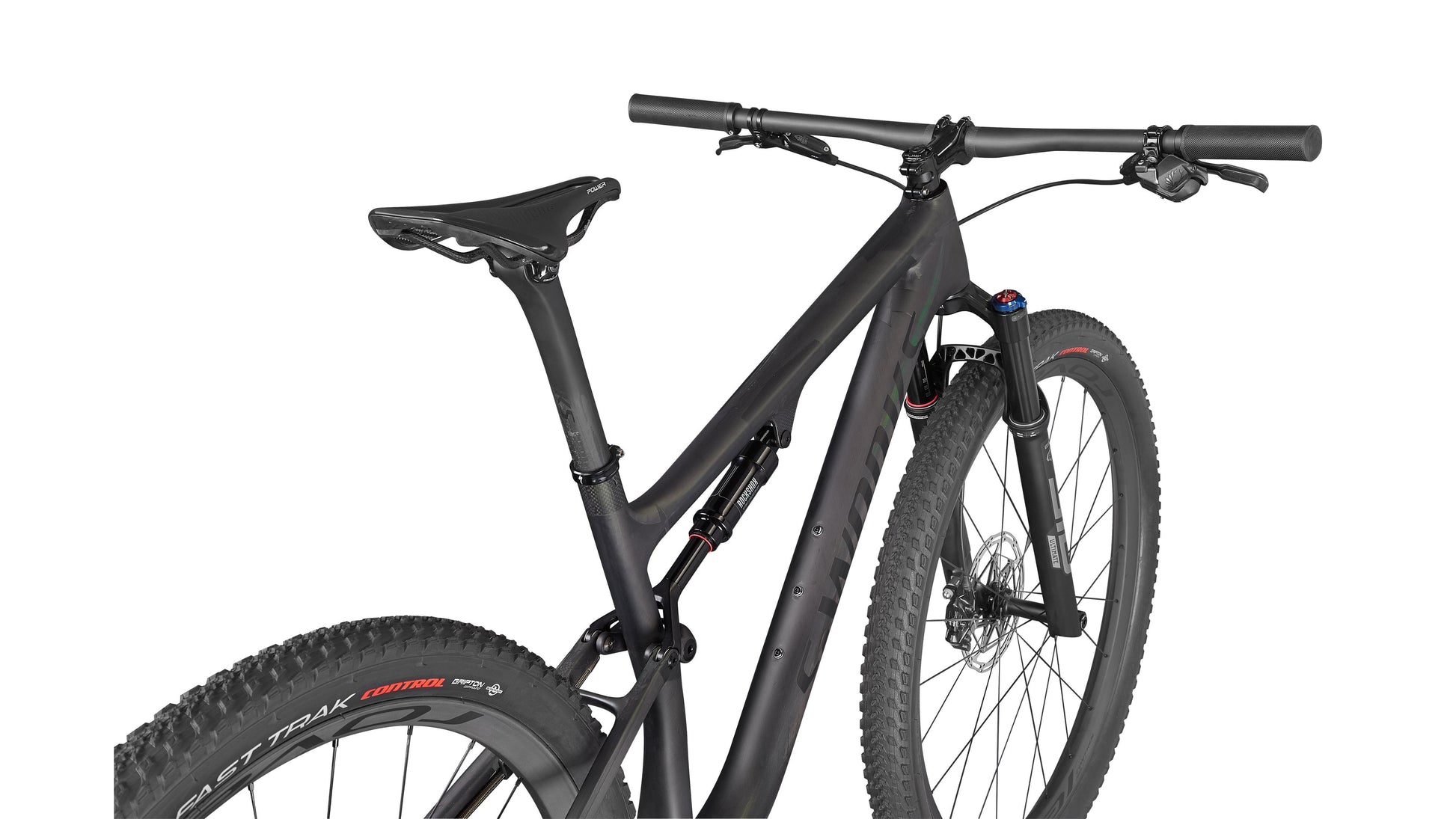

    Frame-Changer

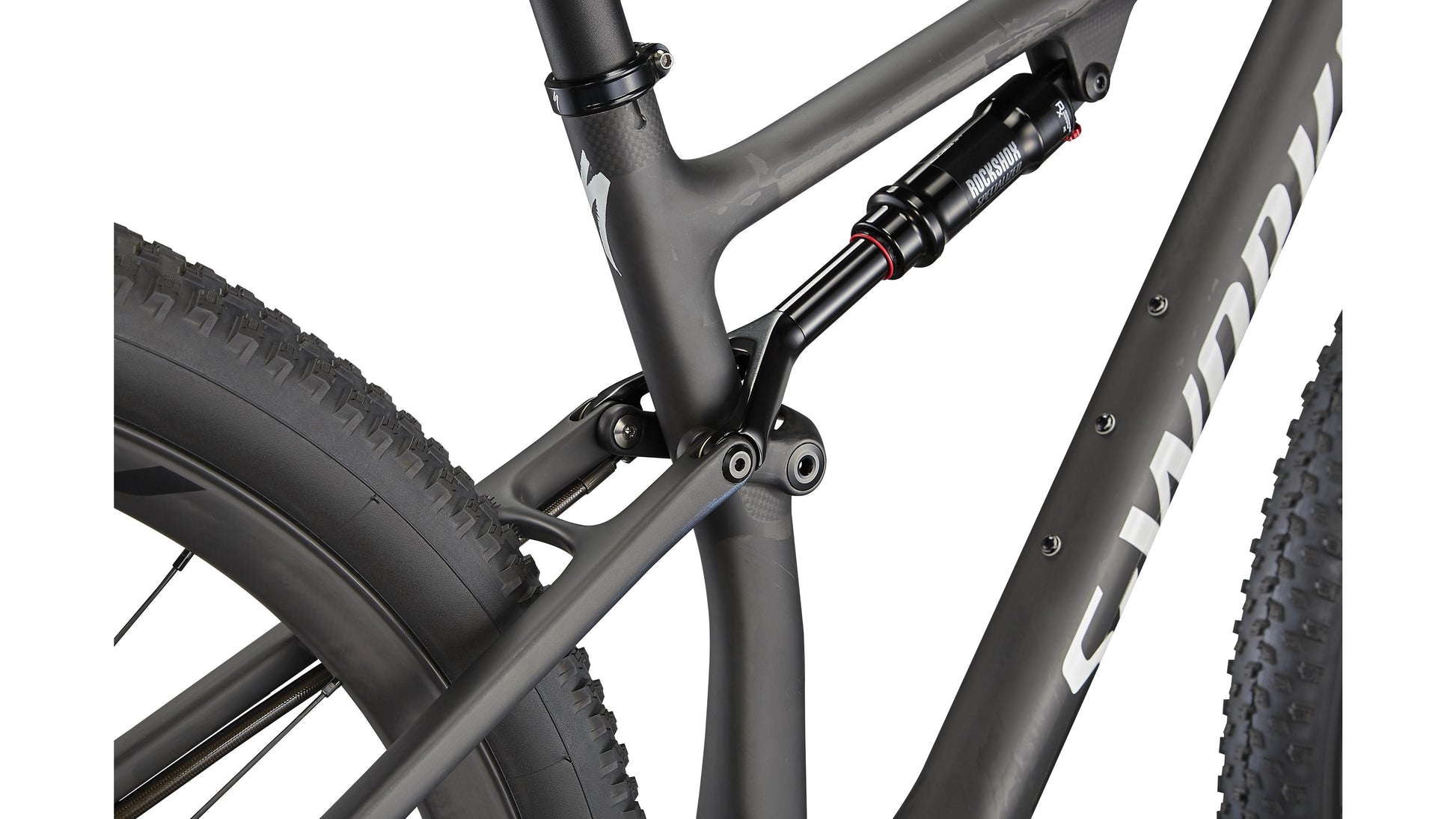

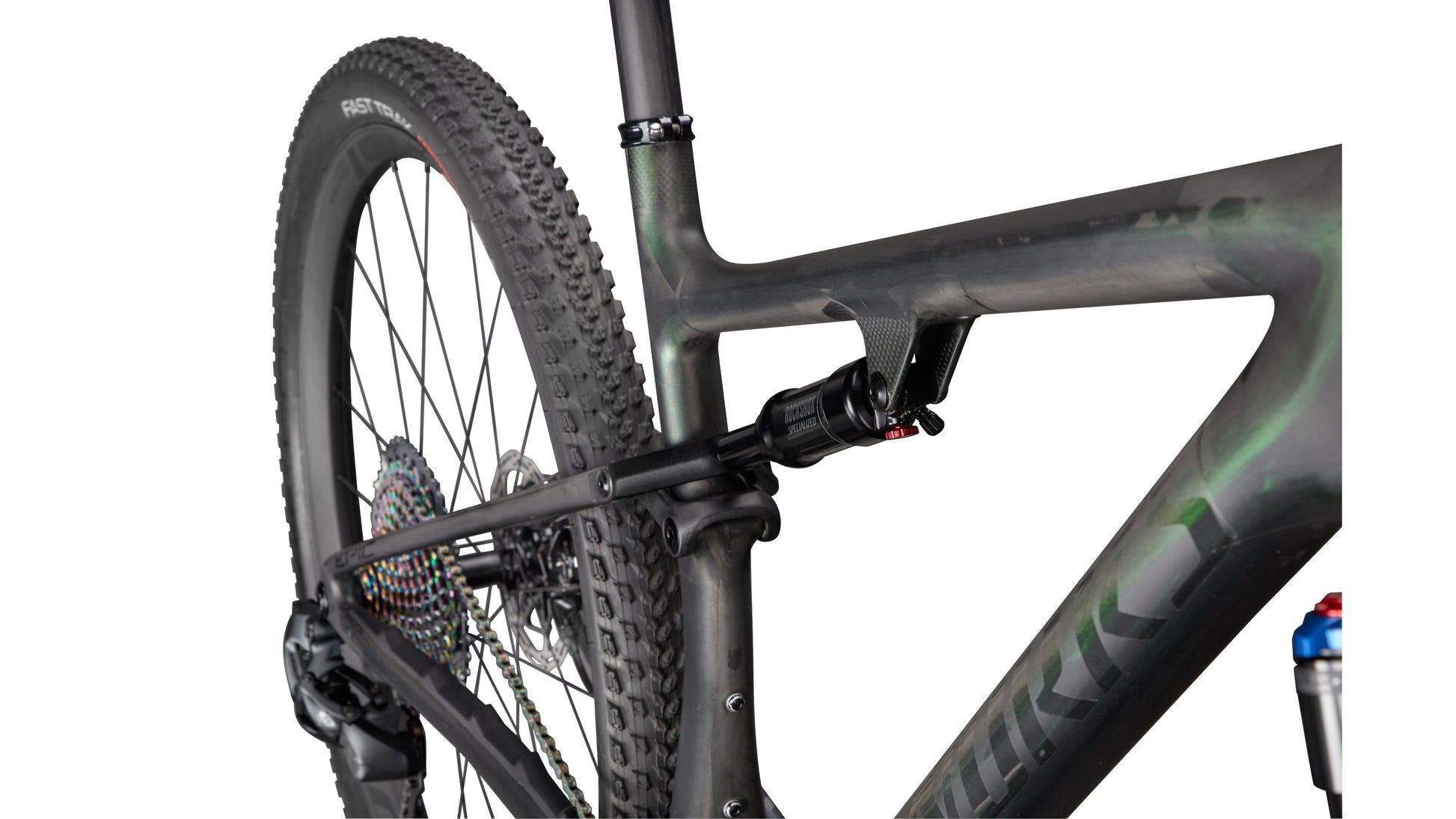

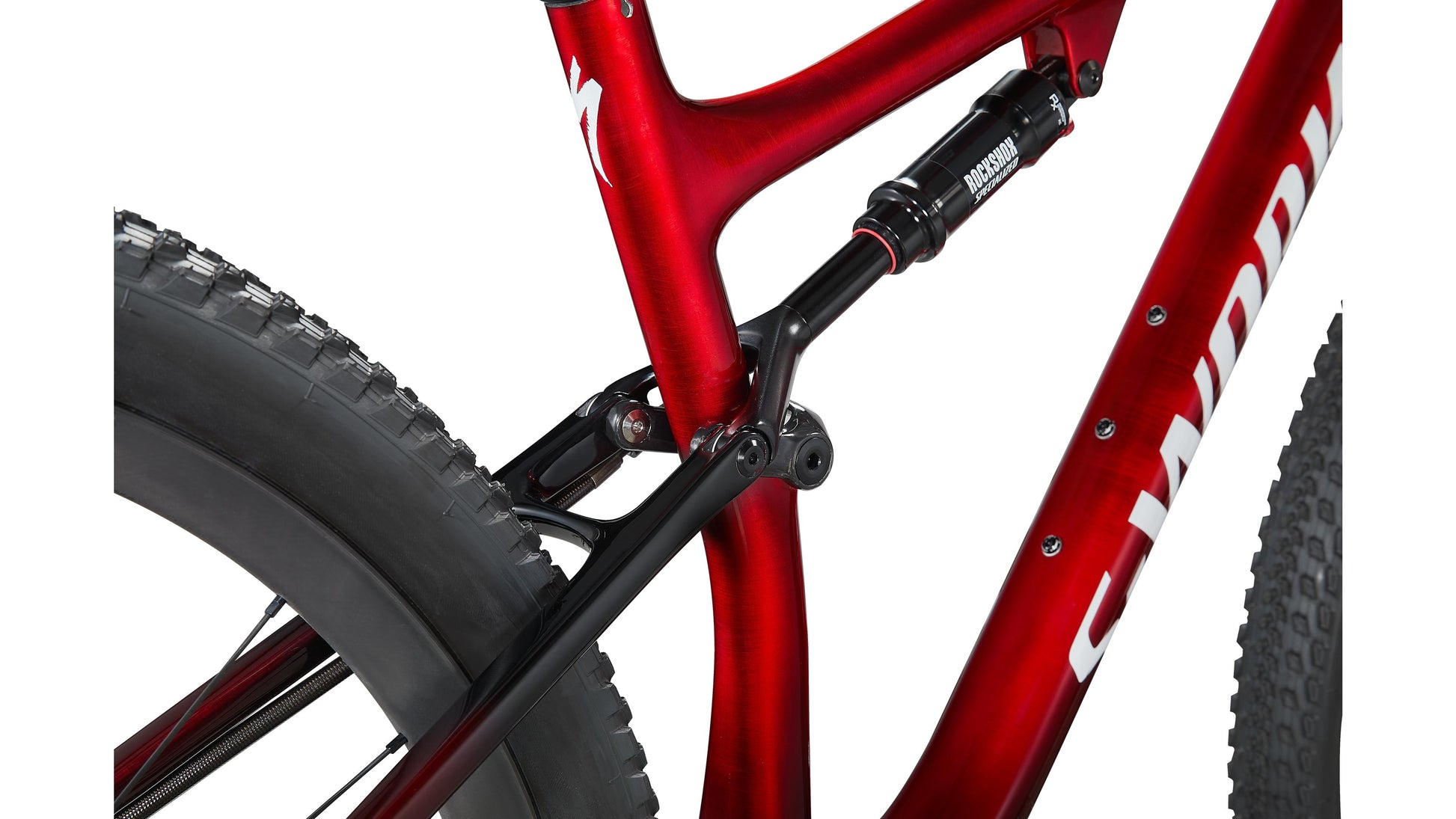

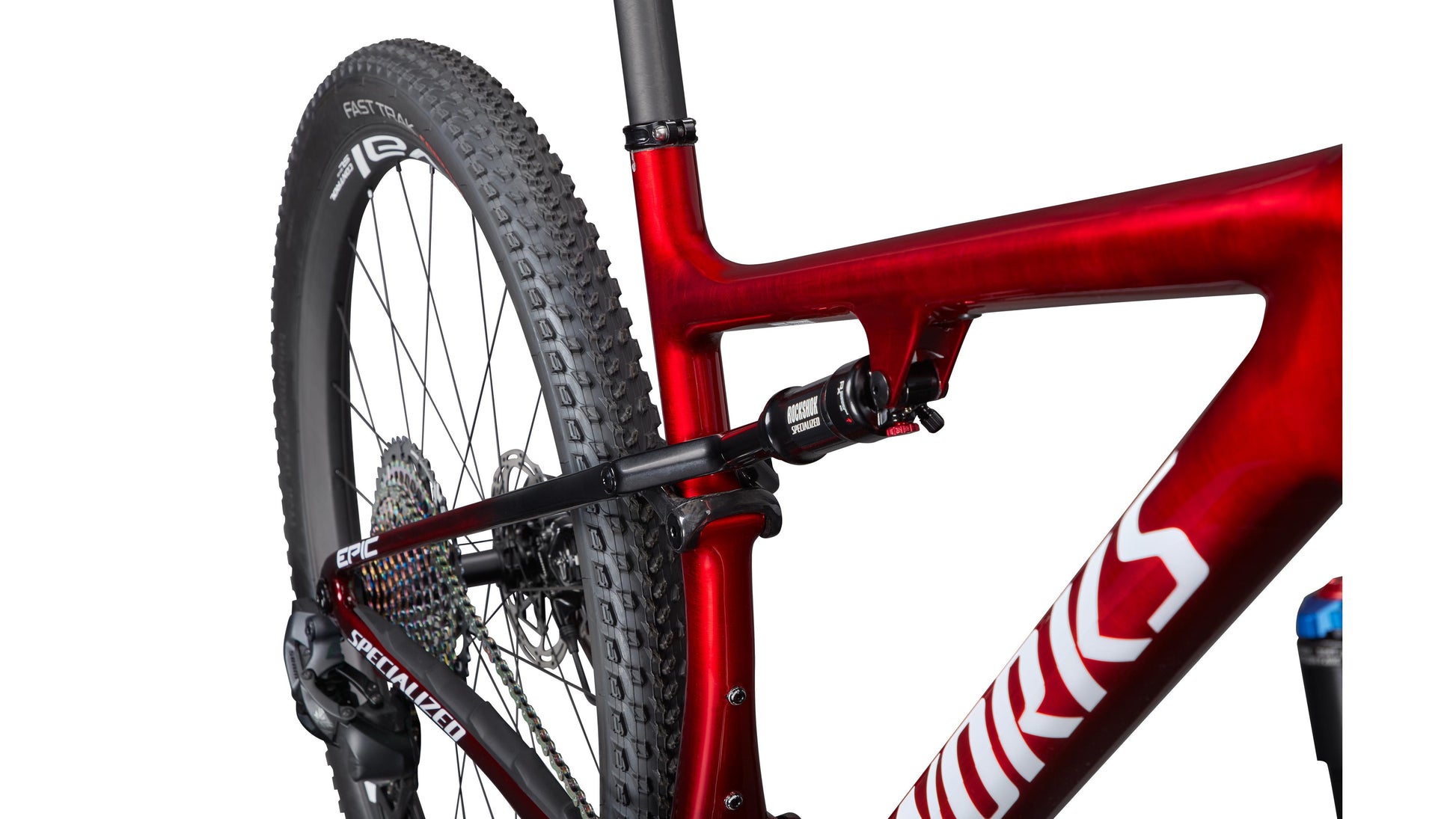

    Redesigned with a focus on efficient power transfer and better handling performance, the S-Works Epic frame features a 15-percent stiffer rear triangle in order to take full advantage of the BRAIN’s new race-tuned pedaling platform. A dedicated layup schedule and the use of our top-shelf FACT 12m Carbon takes weight savings yet a step further than it’s stablemates, while the pièce de résistance comes in the form of a carbon fiber shock link, combining to shave a total of over 100 grams from the previous generation S-works frame—no easy task, mind you.

    Pairing perfectly with the Brain rear shock for the most balanced suspension perfomance on an Epic yet, the S-Works' Position-Sensitive Brain fork

    benefits from RockShox’s svelte-yet-stiff SID SL Ultimate chassis, improving front-end stiffness and handling precision while keeping the grams at bay.

    SRAM’s flagship XX1 Eagle AXS group certainly fits the bill when only the best will do, dispatching shifts with electronic authority while we tasked Roval with creating an entirely new Control SL rim that wouldn’t just be able to go toe-to-toe with the Epic’s newfound speed and handling performance, but add a bit of its own into the mix as well.

    At a Glance

    • If speed could talk, it’d introduce itself as the all-new S-Works Epic frame. Offering 100-millimeters of brilliantly efficient Brain-controlled travel, the S-Work Epic increases rear-triangle stiffness for peerless power transfer, while the use of FACT 12m carbon, a dedicated layup and a full carbon shock link also make it the lightest full suspension frame we’ve ever created, all while offering the most capable handling in an Epic yet. Nice to meet you, speed.
    • Pairing 100 millimeters of the most efficent travel on earth with RockShox's svelte-yet-stiff SID SL Ultimate chassis, the RockShox SID SL Ultimate BRAIN fork serves as the pinnacle of XC-race supsension perfection.
    • SRAM's XX1 Eagle AXS isn't just the lightest electronic MTB groupset on the market, it's also designed to withstand World-Cup winning chain loads while instantaneously snapping of instantaneous shifts to ensure you're never caught on the back foot.
    • Created specifically to match the increased capabilities of the Epic, the Roval Control SL rim introduces a completely new offset rim profile that features a 29-millimeter-wide internal width and not only increases strength and reduces weight, but also improves pinch-flat resistance by 22-percent.

    Component Specifications

    Frame S-Works FACT 12m Carbon, Progressive XC Race Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 100mm of travel
    Seat Binder Specialized Alloy, 34.9mm, Titanium bolt
    Fork RockShox SID SL ULTIMATE BRAIN, Top-Adjust Brain damper, Debon Air, 15x110mm, 44mm offset, 100mm Travel

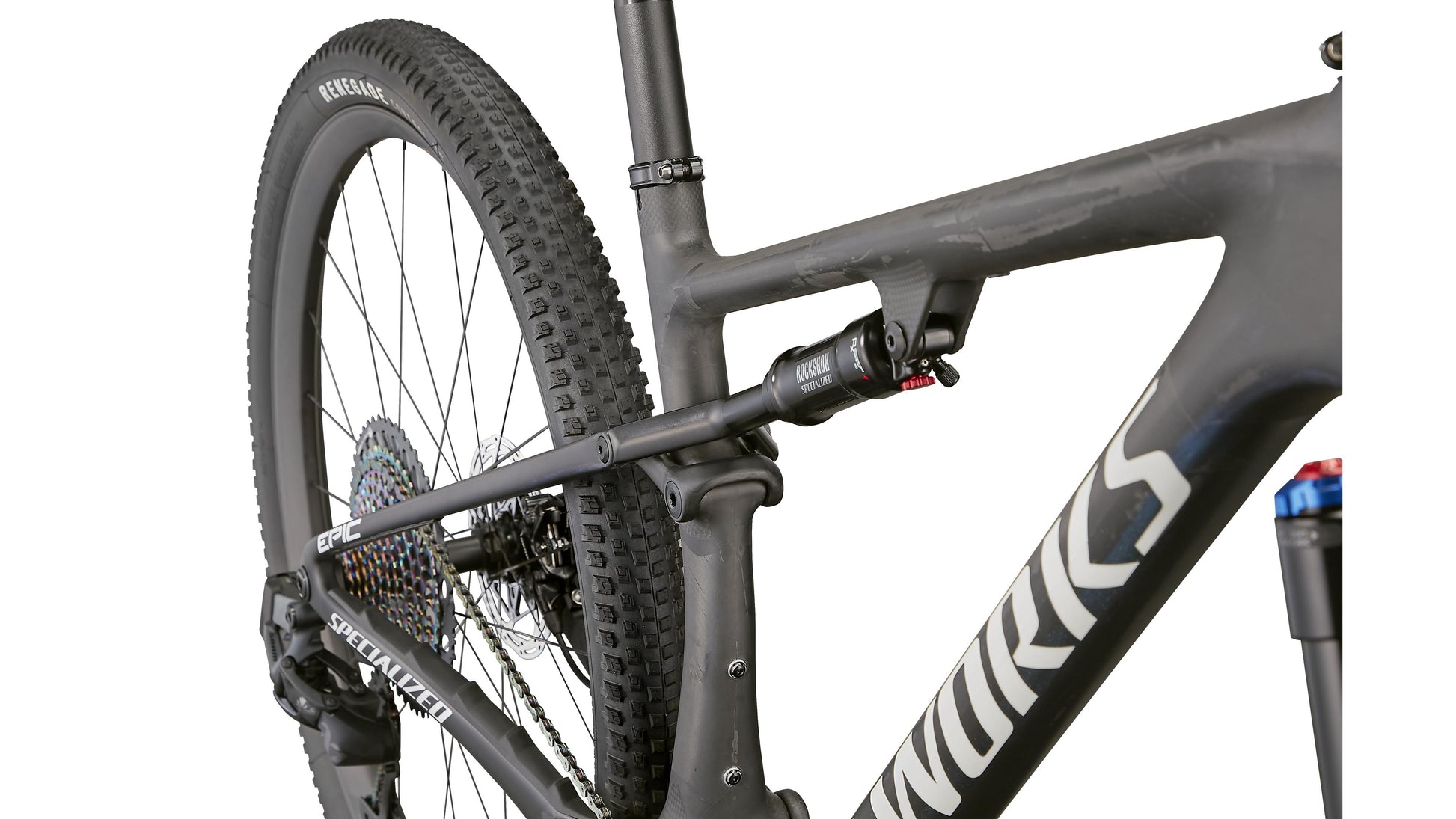

    Rear Shock RockShox-Specialized BRAIN, Rx XC Tune, 5 Position Platform Adjust, Rebound Adjust, Integrated Extension, 265x52.5mm
    Shift Levers SRAM AXS Eagle Controller

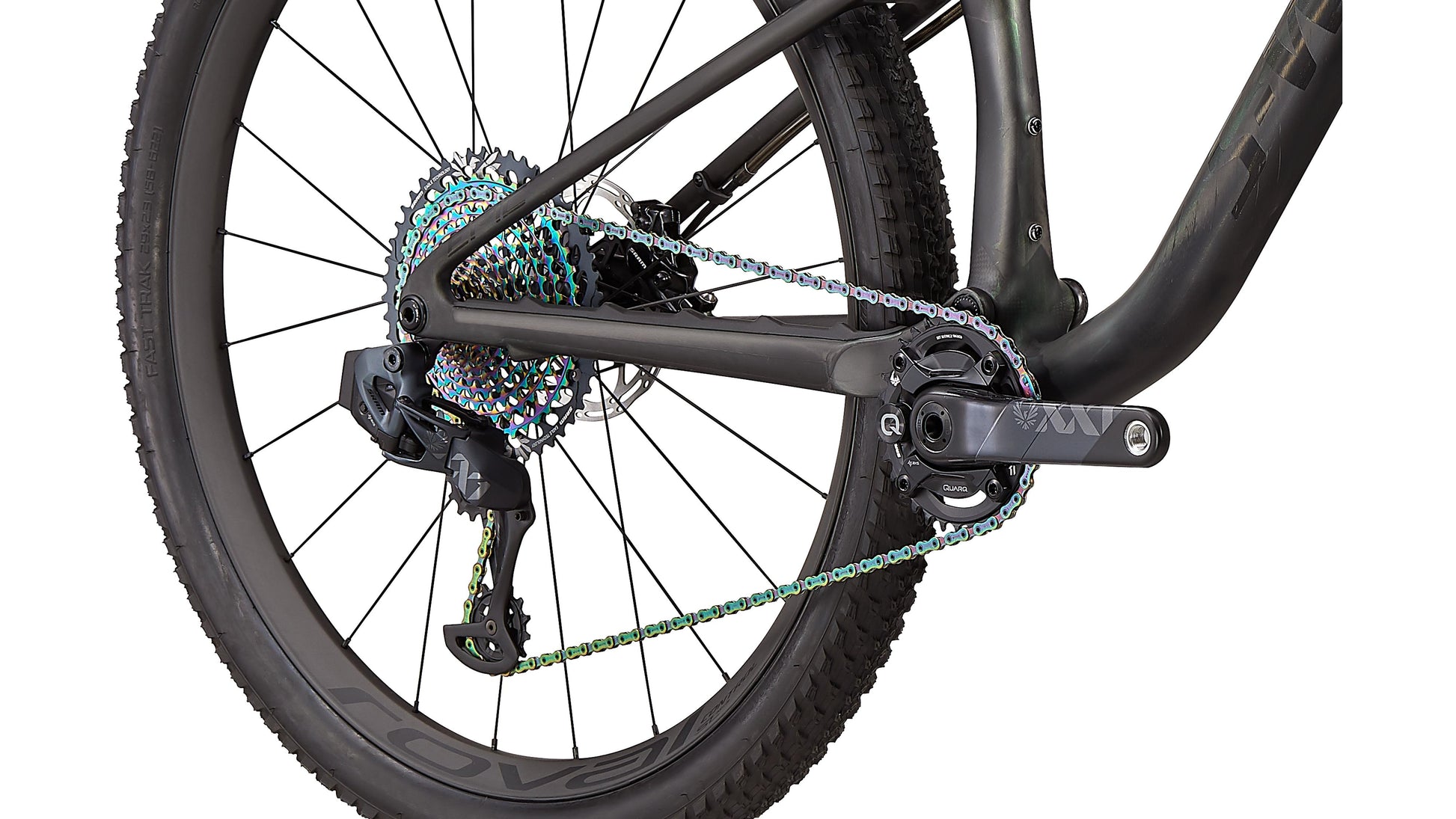

    Rear Derailleur SRAM XX1 Eagle AXS
    Cassette SRAM XG-1299 Eagle, 10-50t
    Chain SRAM XX1 Eagle
    Crankset QUARQ XX1 Eagle Power Meter, Boost™ 148, DUB, 170/175mm, 32T
    Chain Rings 32T
    Bottom Bracket SRAM DUB, BSA 73mm, Threaded
    Rims Roval Control SL, Carbon offset design, 29mm internal width, 4mm hook width, Tubeless ready, 24h
    Front Hub Roval Control SL, DT Swiss Internals, Ceramic Bearings, 6-bolt, 15mm thru-axle, 110mm spacing, Torque caps, 24h straight pull t-head
    Rear Hub Roval Control SL, DT Swiss 180 Internals, DT Swiss Ratchet EXP, Ceramic bearings, 12mm thru-axle, 148mm spacing, 24h straight-pull
    Spokes DT Swiss Aerolite T-head
    Front Tire Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"
    Rear Tire Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"
    Inner Tubes Presta, 60mm valve
    Front Brake SRAM Level Ultimate, 2-piston caliper, hydraulic disc
    Rear Brake SRAM Level Ultimate, 2-piston caliper, hydraulic disc
    Stem S-Works SL, alloy, titanium bolts, 6-degree rise

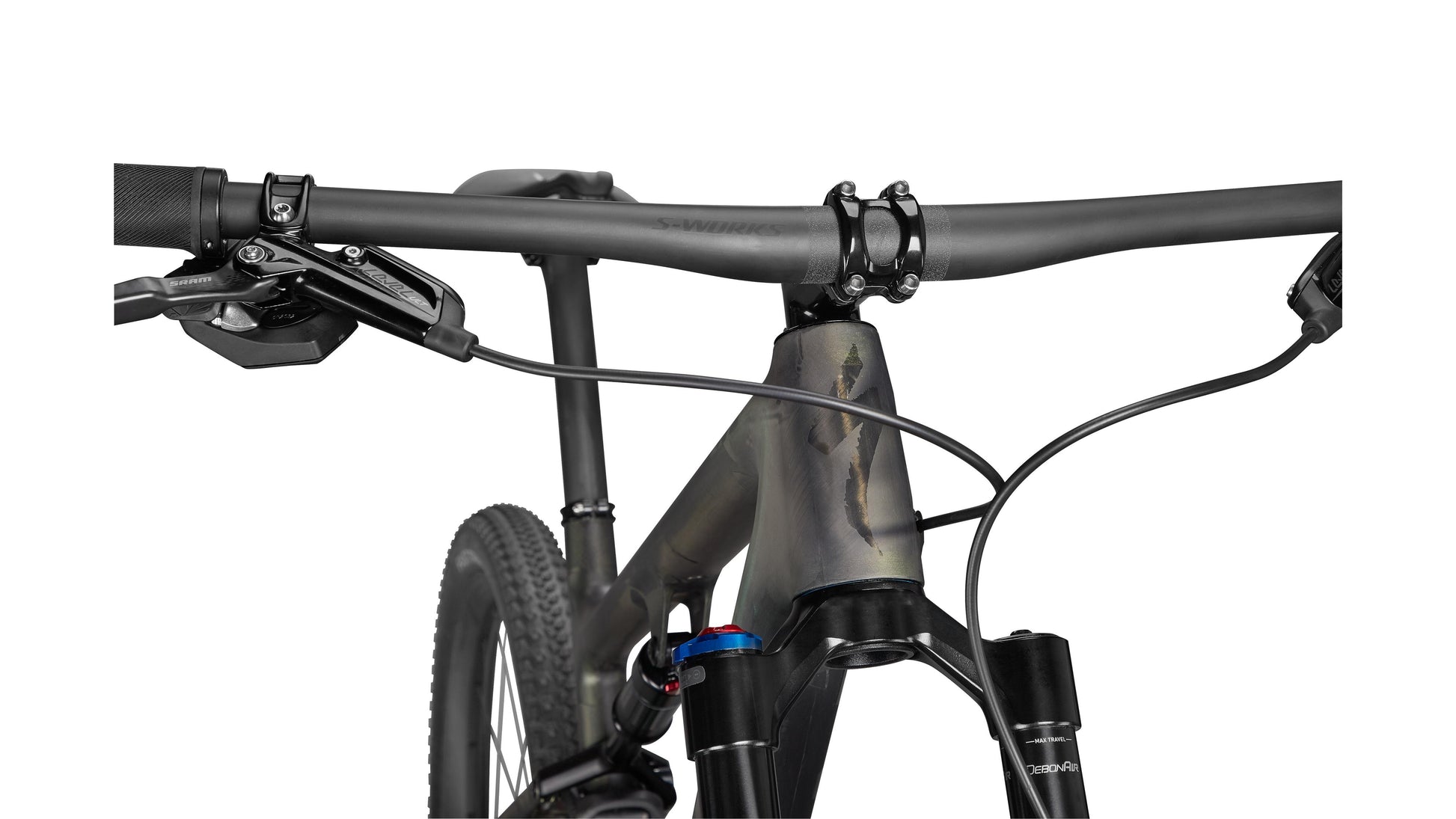

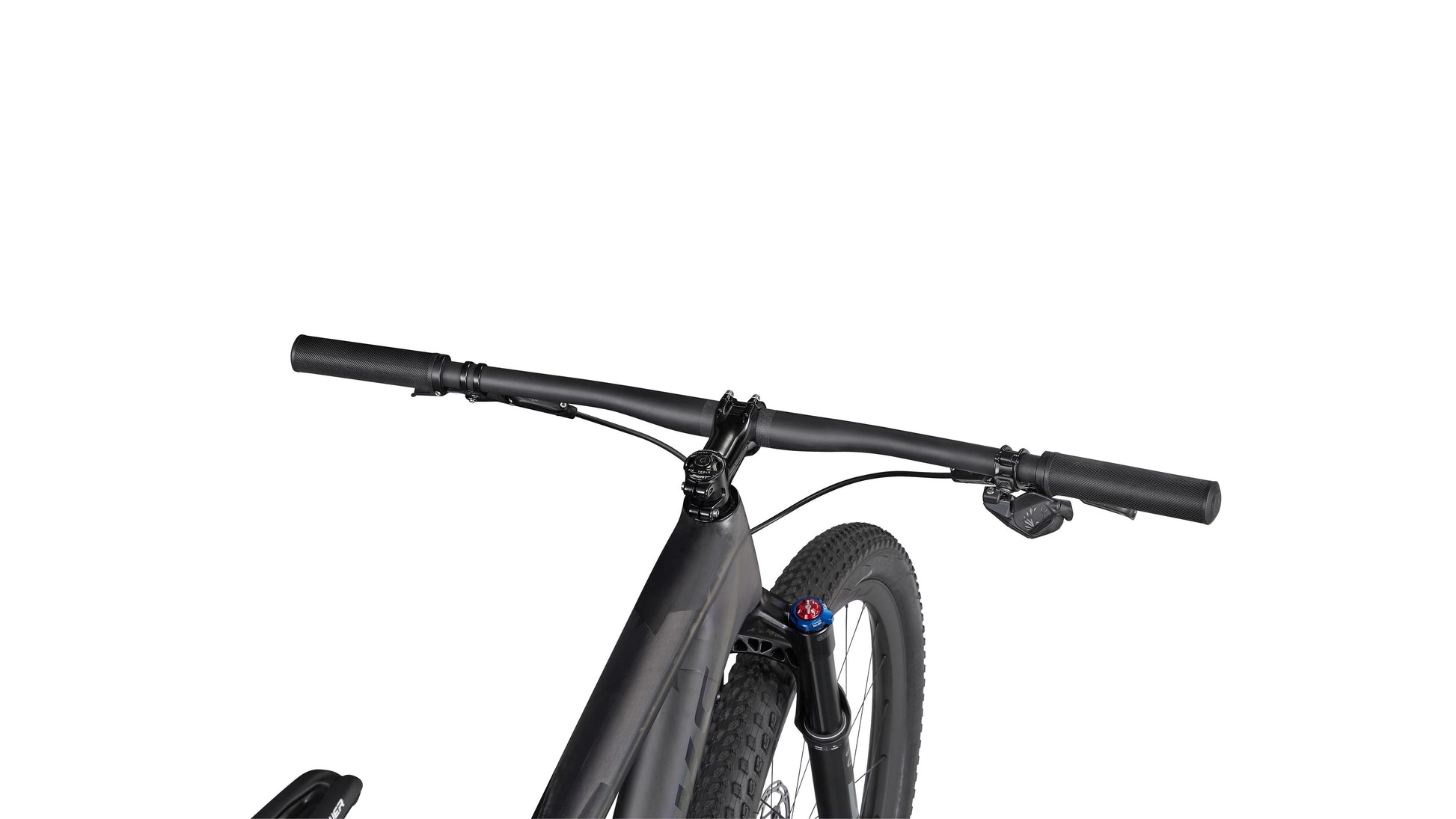

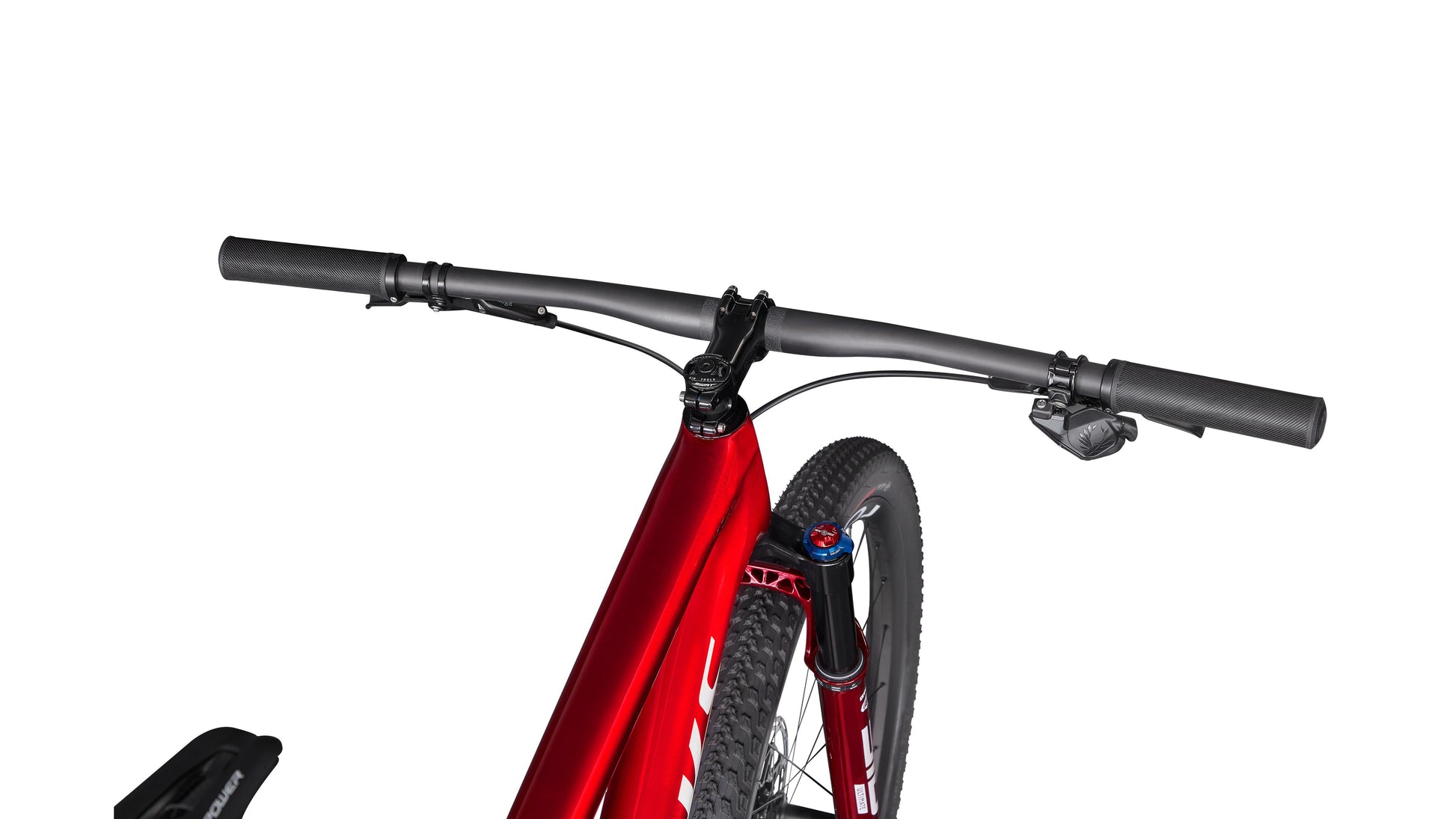

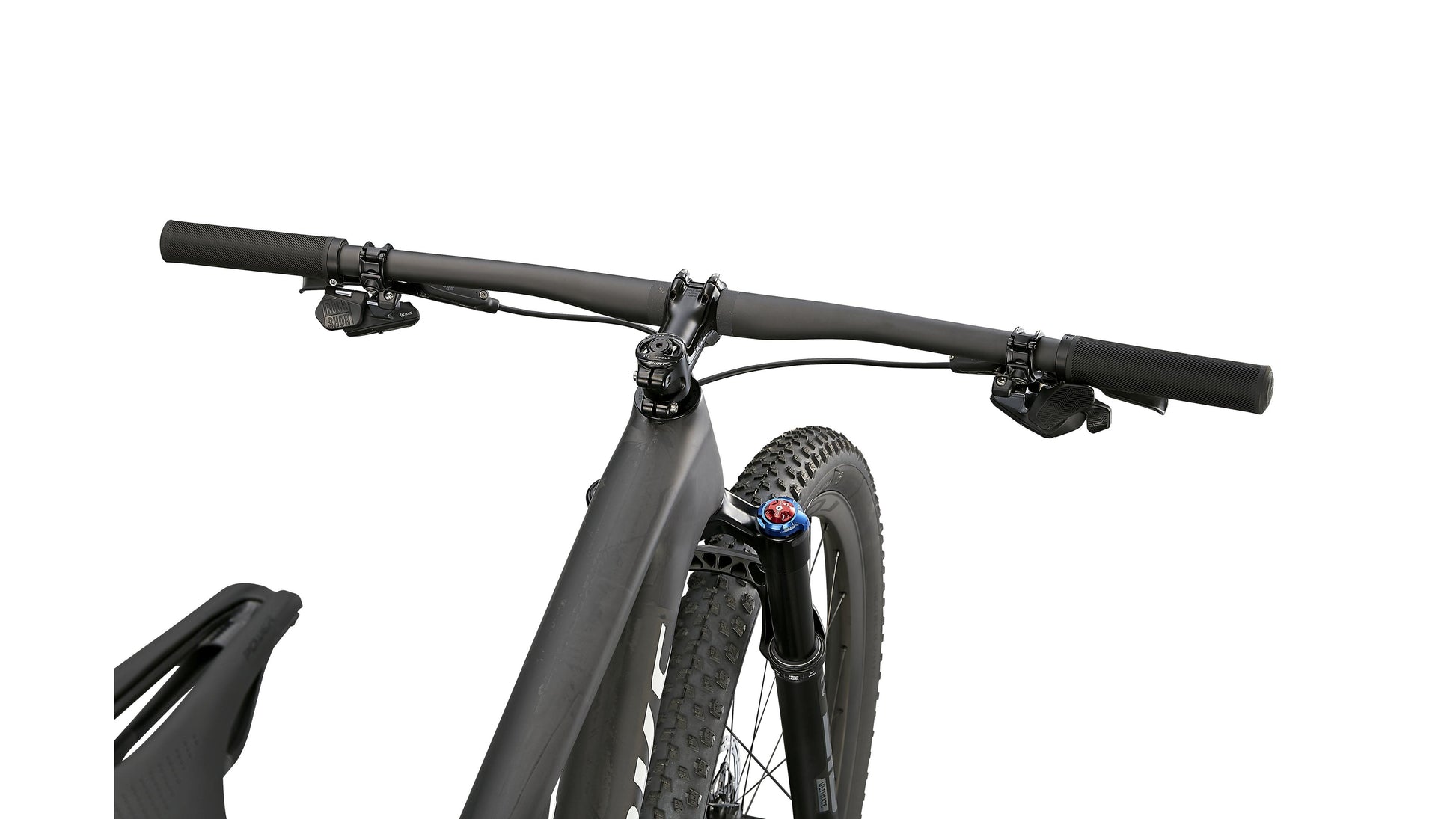

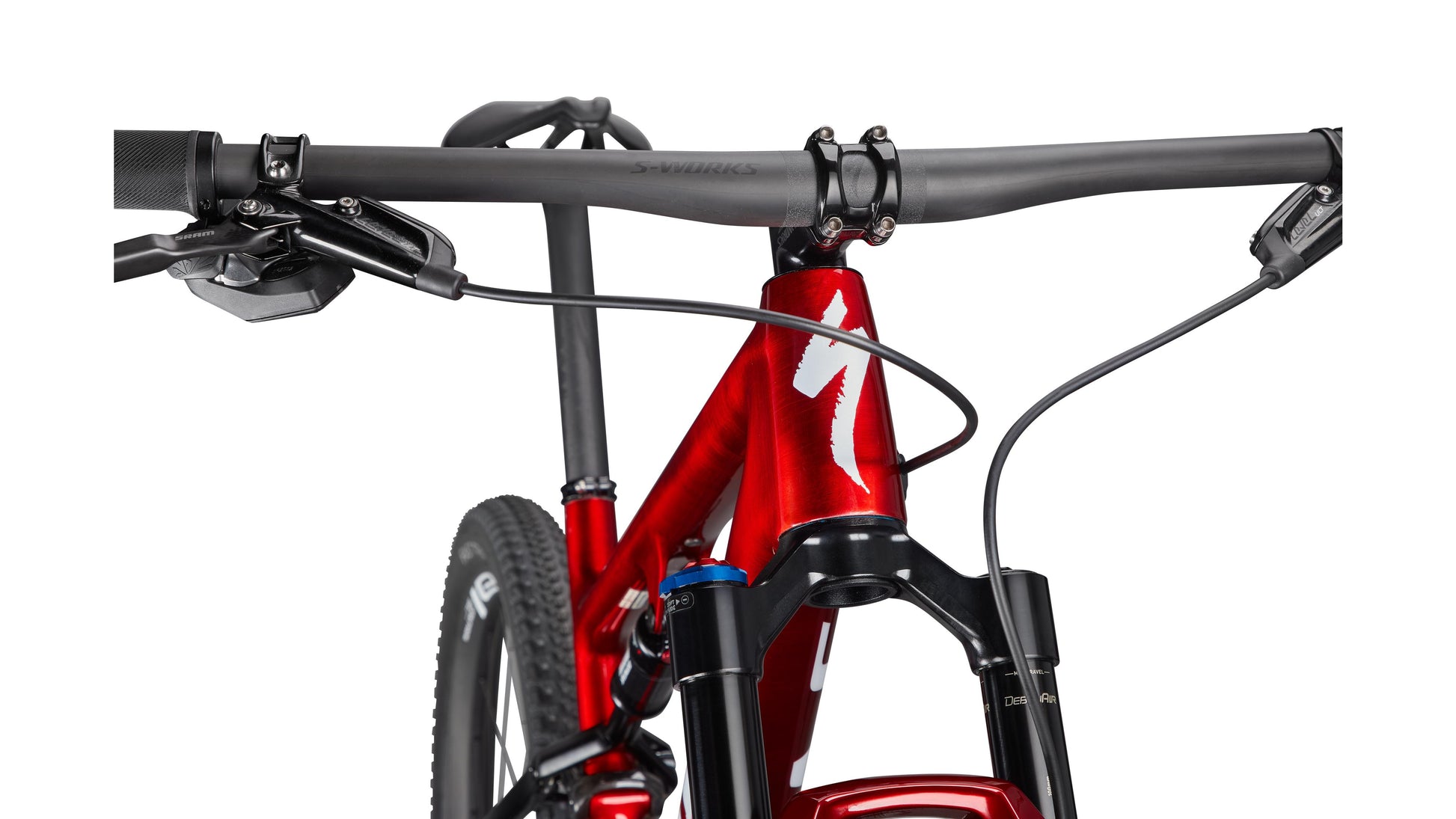

    Handlebars S-Works Carbon XC Mini Rise, 6-degree upsweep, 8-degree backsweep, 10mm rise, 760mm, 31.8mm
    Grips Specialized Trail Grips

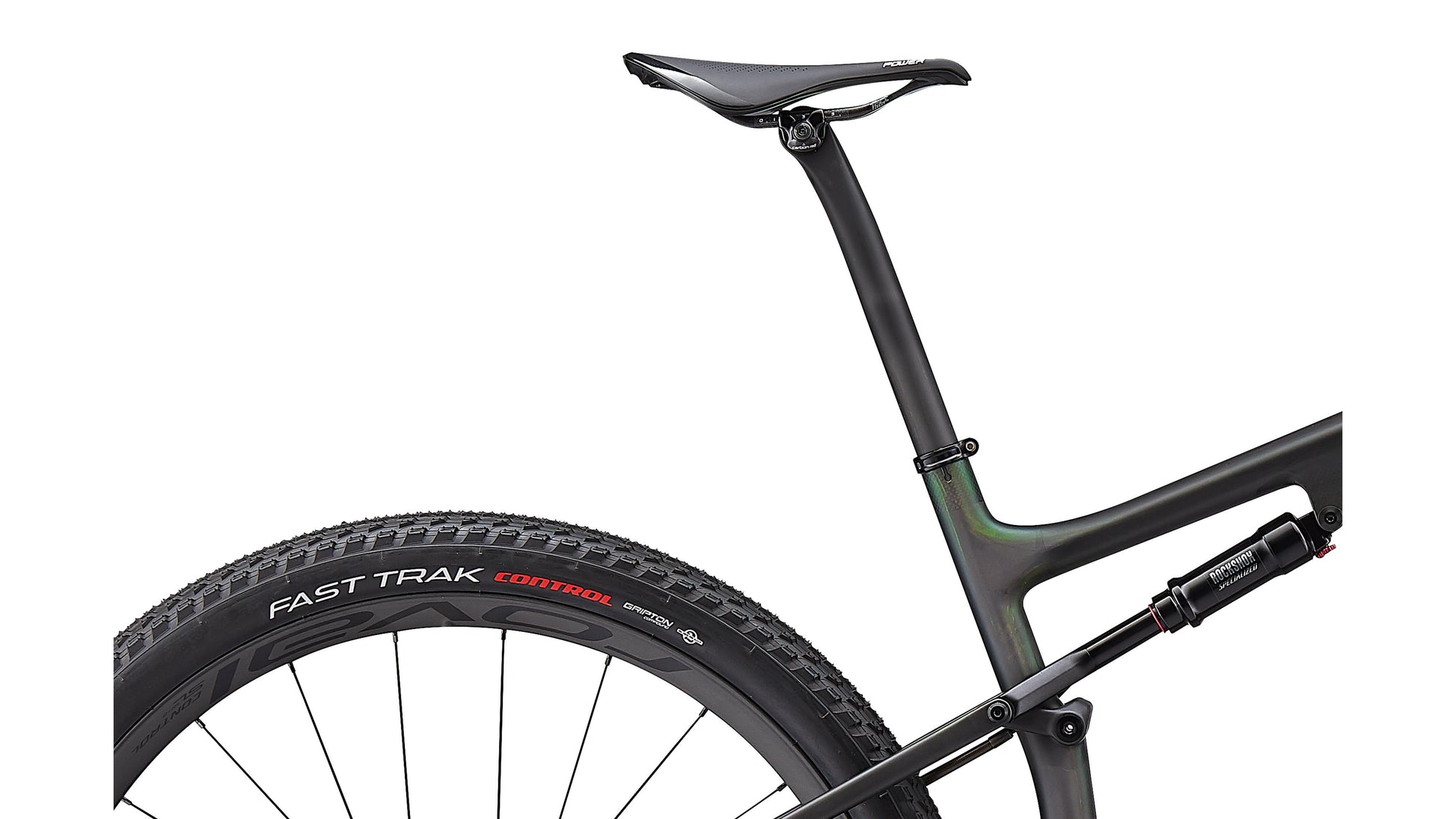

    Saddle Body Geometry S-Works Power, carbon fiber rails, carbon fiber base
    Seatpost S-Works FACT carbon, 10mm offset, 30.9mm

    Specialized Epic Sw

    Bike/Frame Size S M L XL
    Stack 586 mm 591 mm 605 mm 623 mm
    Reach 415 mm 445 mm 470 mm 495 mm
    Chainstay Length 433 mm 433 mm 433 mm 433 mm
    Wheelbase 1116 mm 1148 mm 1179 mm 1211 mm
    Bike Standover Height 763 mm 766 mm 776 mm 788 mm
    Seat Tube Length 400 mm 430 mm 470 mm 520 mm
    Seat Tube Angle 75.8° 75.5° 75.5° 75.5°
    Top Tube Length, Horizontal 563 mm 598 mm 626 mm 656 mm
    Head Tube Length 95 mm 100 mm 115 mm 135 mm
    Head Tube Angle 67.5° 67.5° 67.5° 67.5°
    BB Height 324 mm 324 mm 324 mm 324 mm
    BB Drop 48 mm 48 mm 48 mm 48 mm
    Trail 106 mm 106 mm 106 mm 106 mm
    Fork Length, Full 505 mm 505 mm 505 mm 505 mm
    Fork Rake/Offset 44 mm 44 mm 44 mm 44 mm
    Front Center 687 mm 719 mm 750 mm 782 mm
