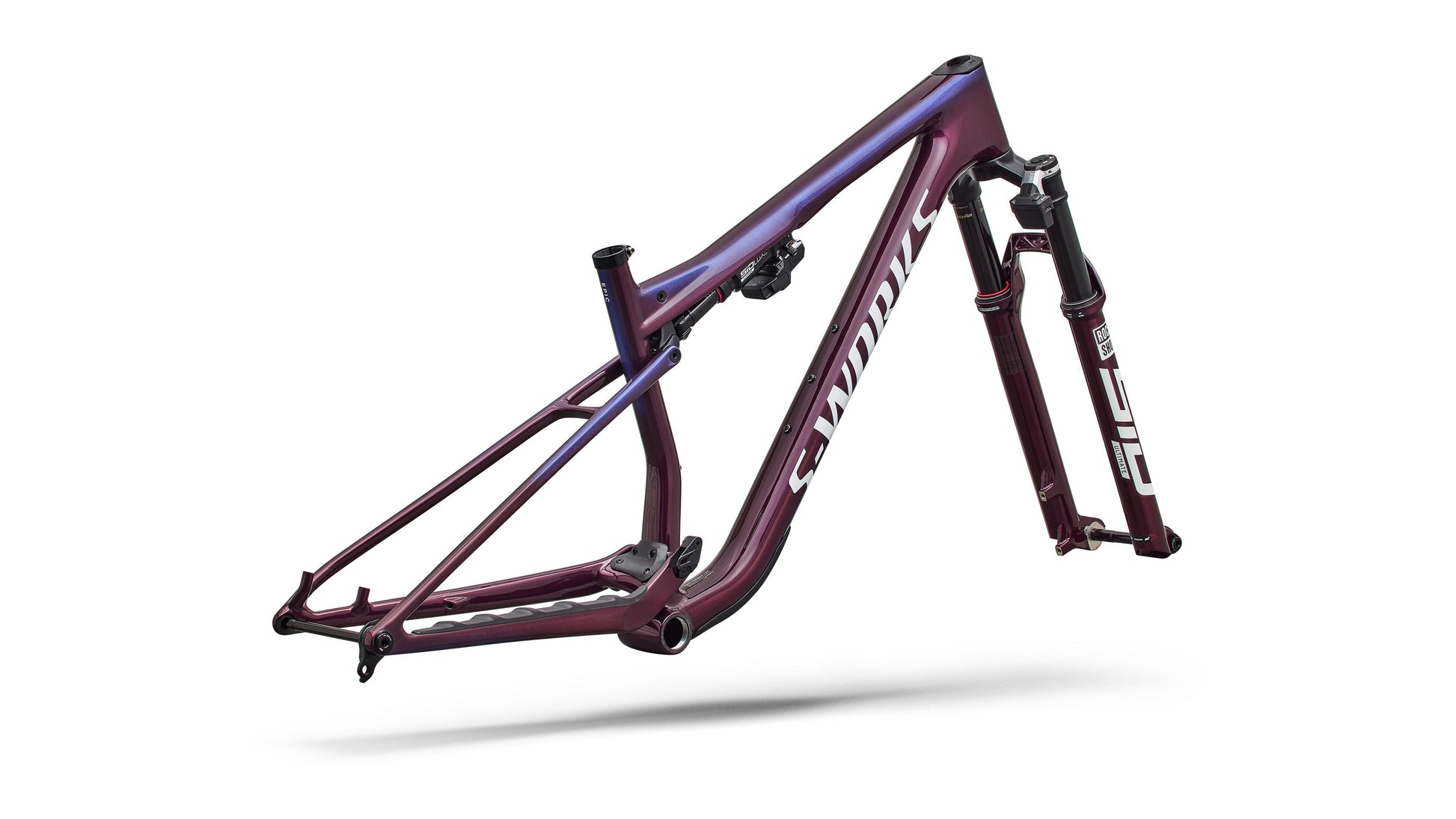

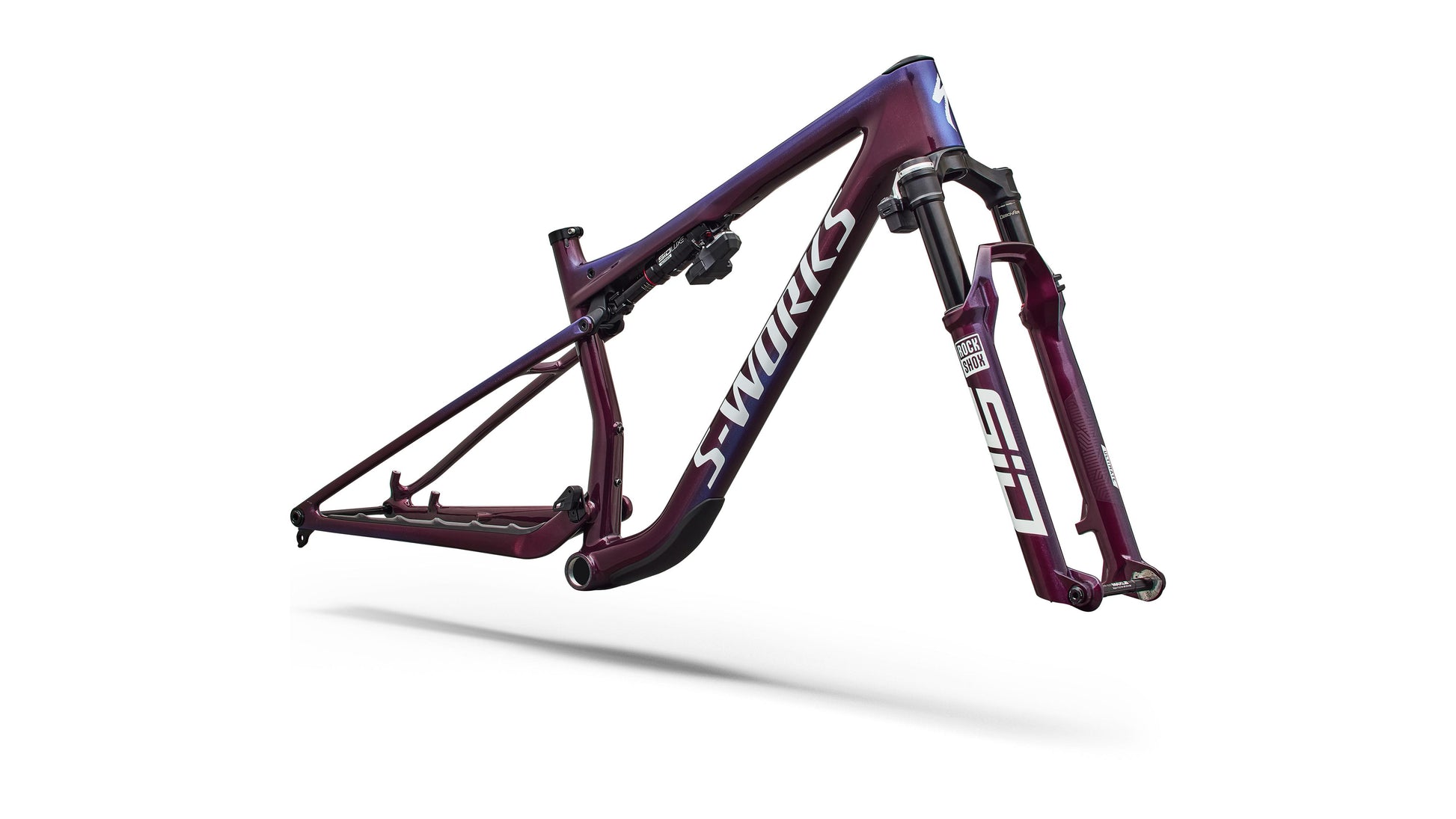

• 2027 Specialized S-Works Epic 9 Frameset - Gloss Bordeaux Metallic / Blue Pearl Edge Fade / Metallic White Silver

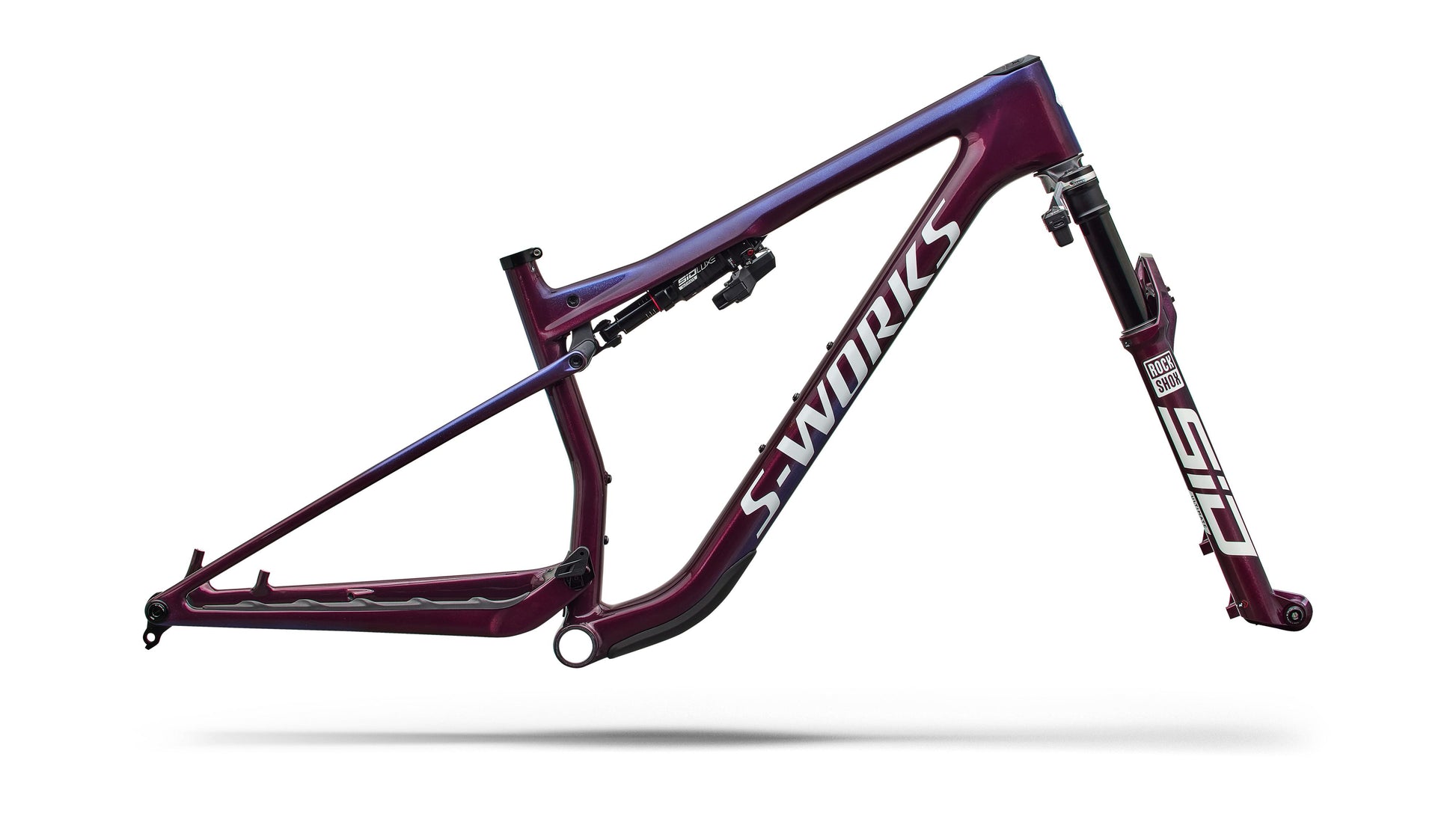

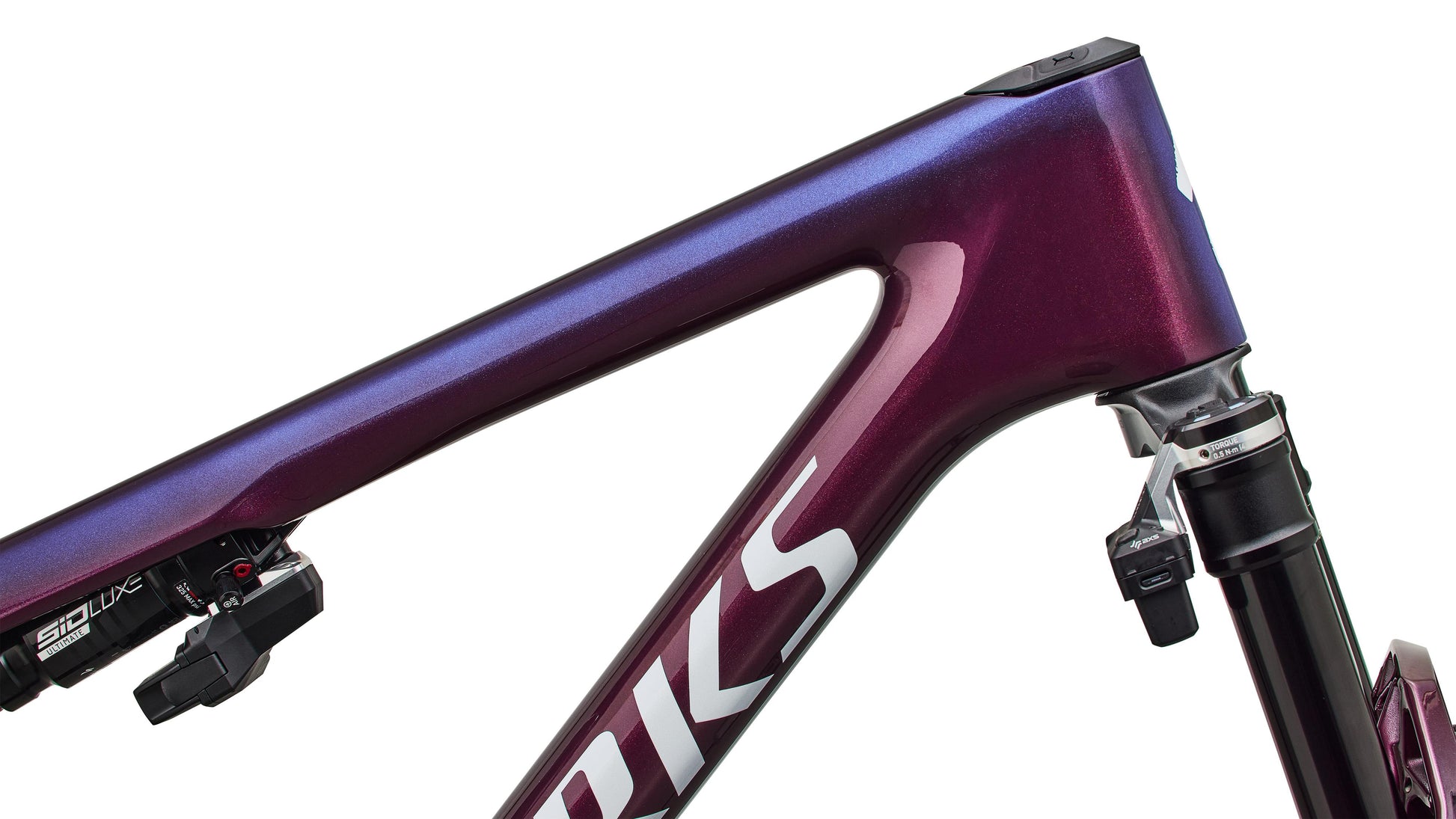

  • 2027 Specialized S-Works Epic 9 Frameset - Gloss Bordeaux Metallic / Blue Pearl Edge Fade / Metallic White Silver

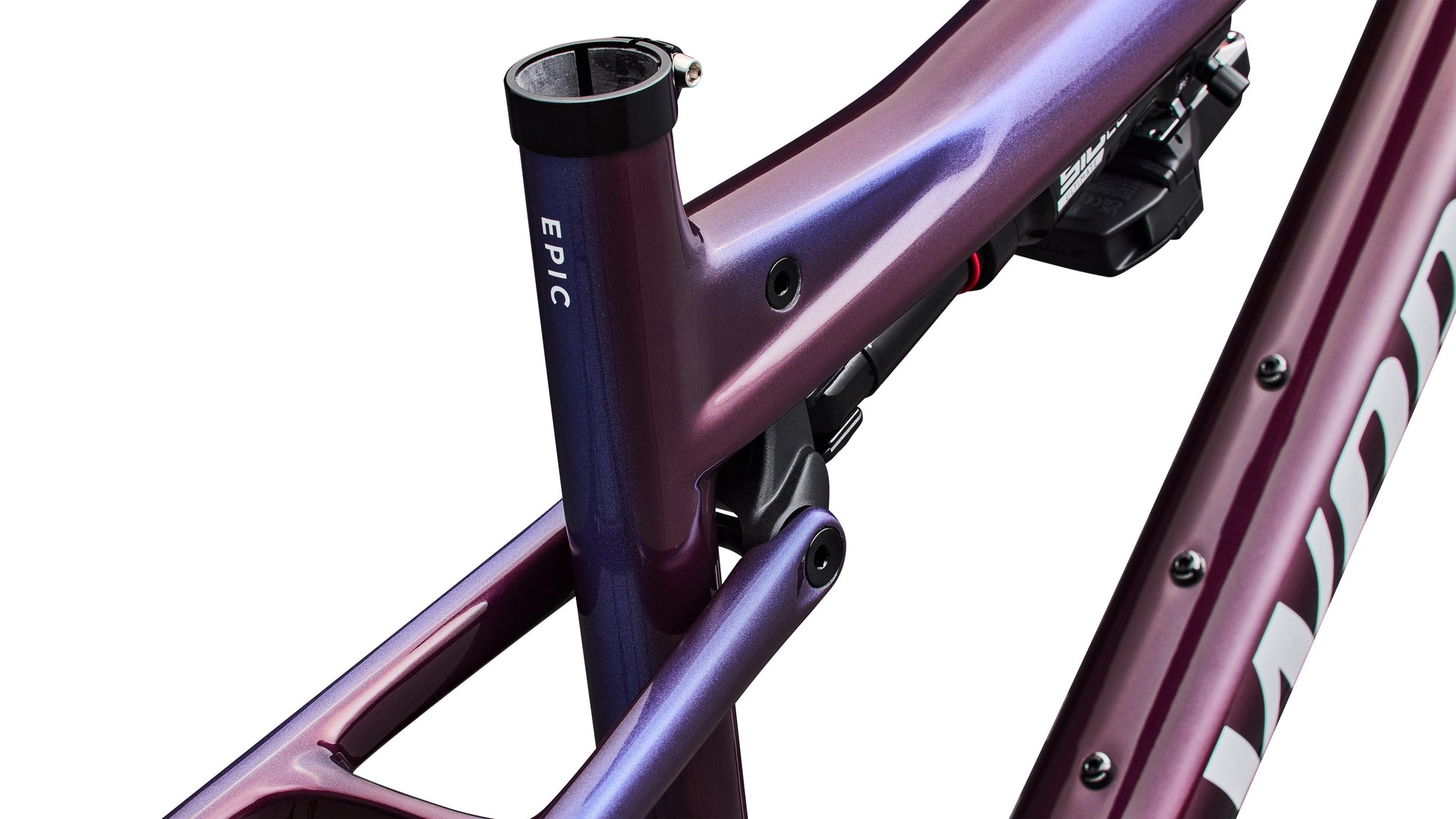

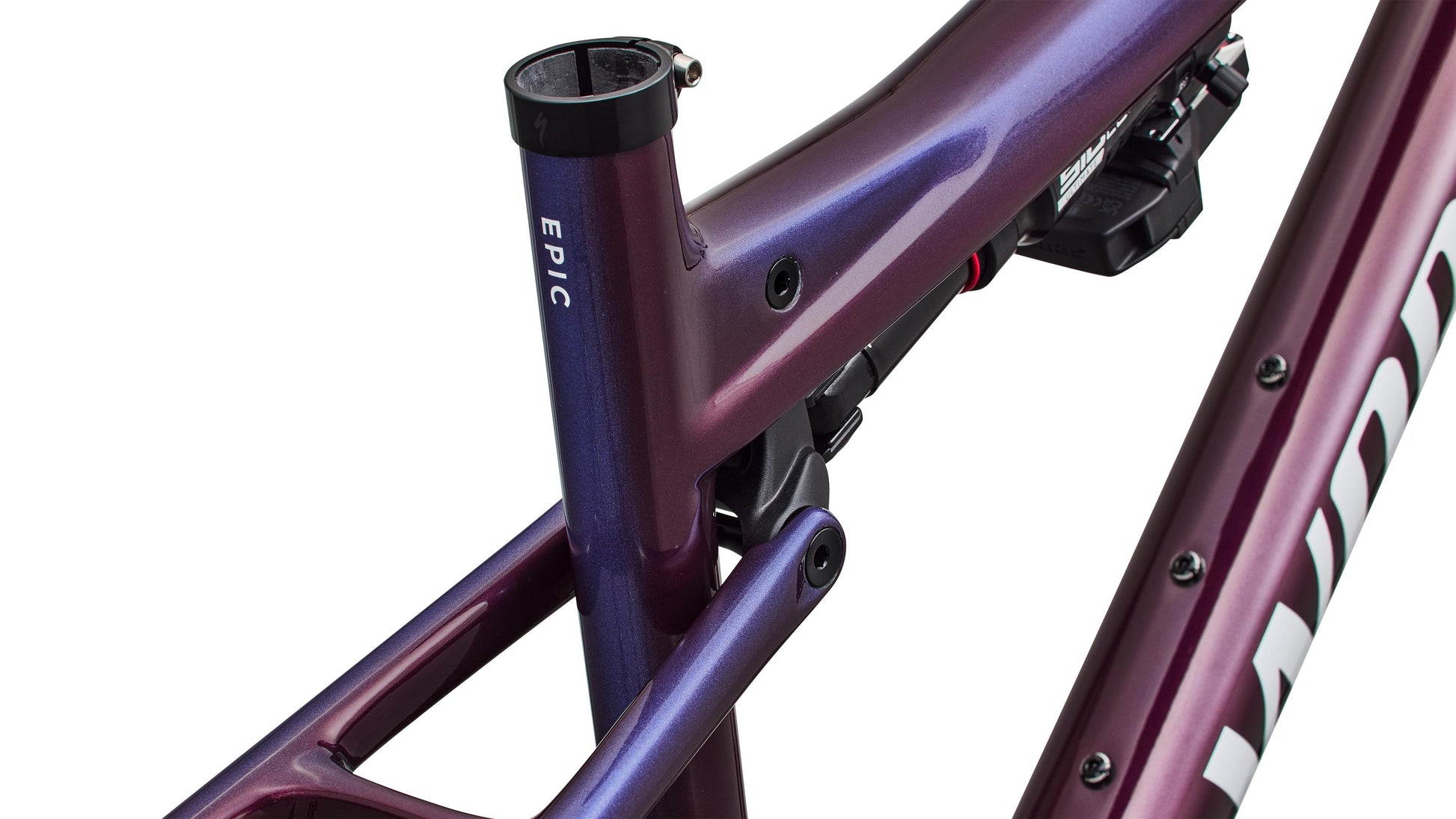

  • 2027 Specialized S-Works Epic 9 Frameset - Gloss Bordeaux Metallic / Blue Pearl Edge Fade / Metallic White Silver

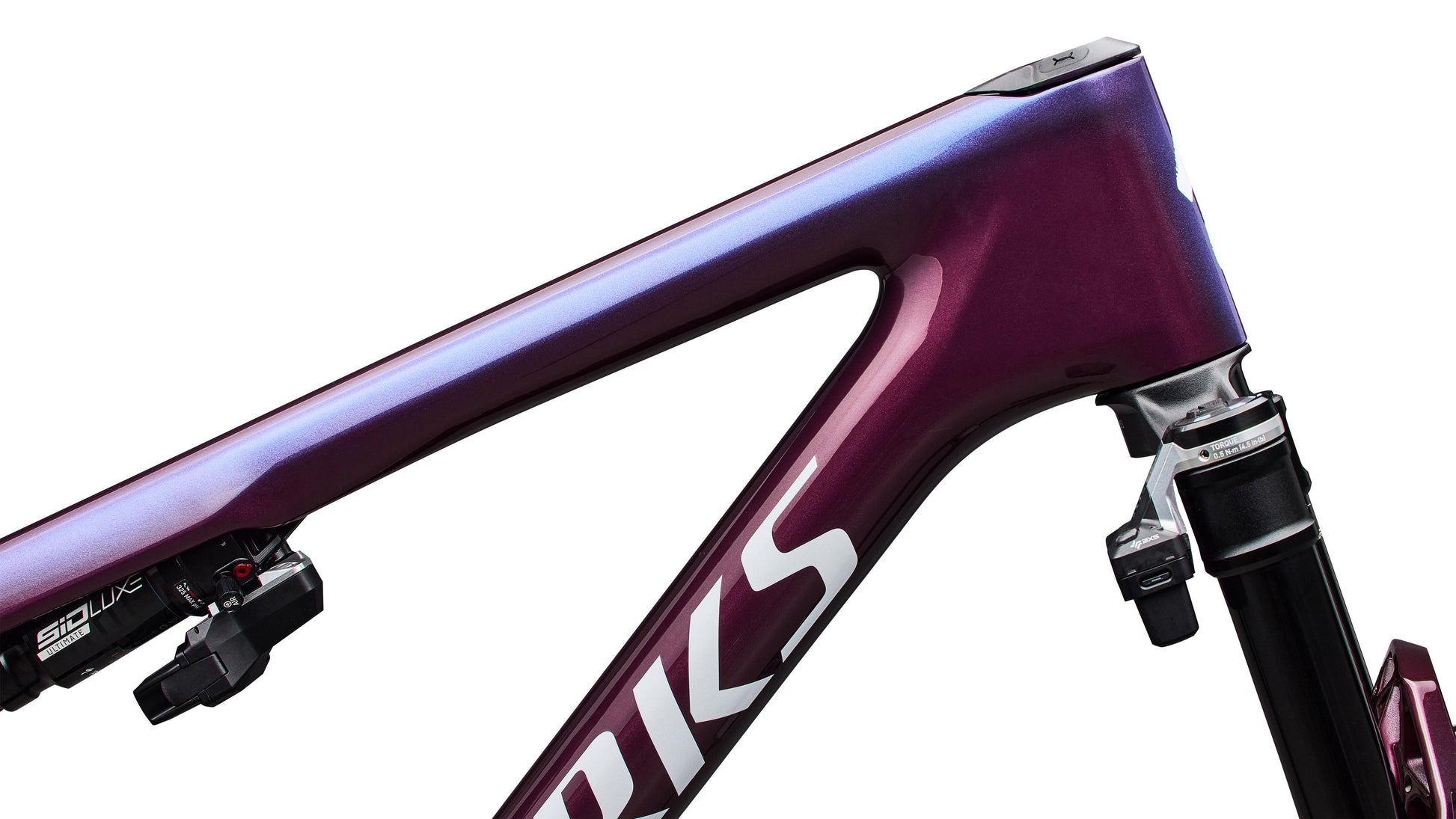

  • 2027 Specialized S-Works Epic 9 Frameset - Gloss Bordeaux Metallic / Blue Pearl Edge Fade / Metallic White Silver

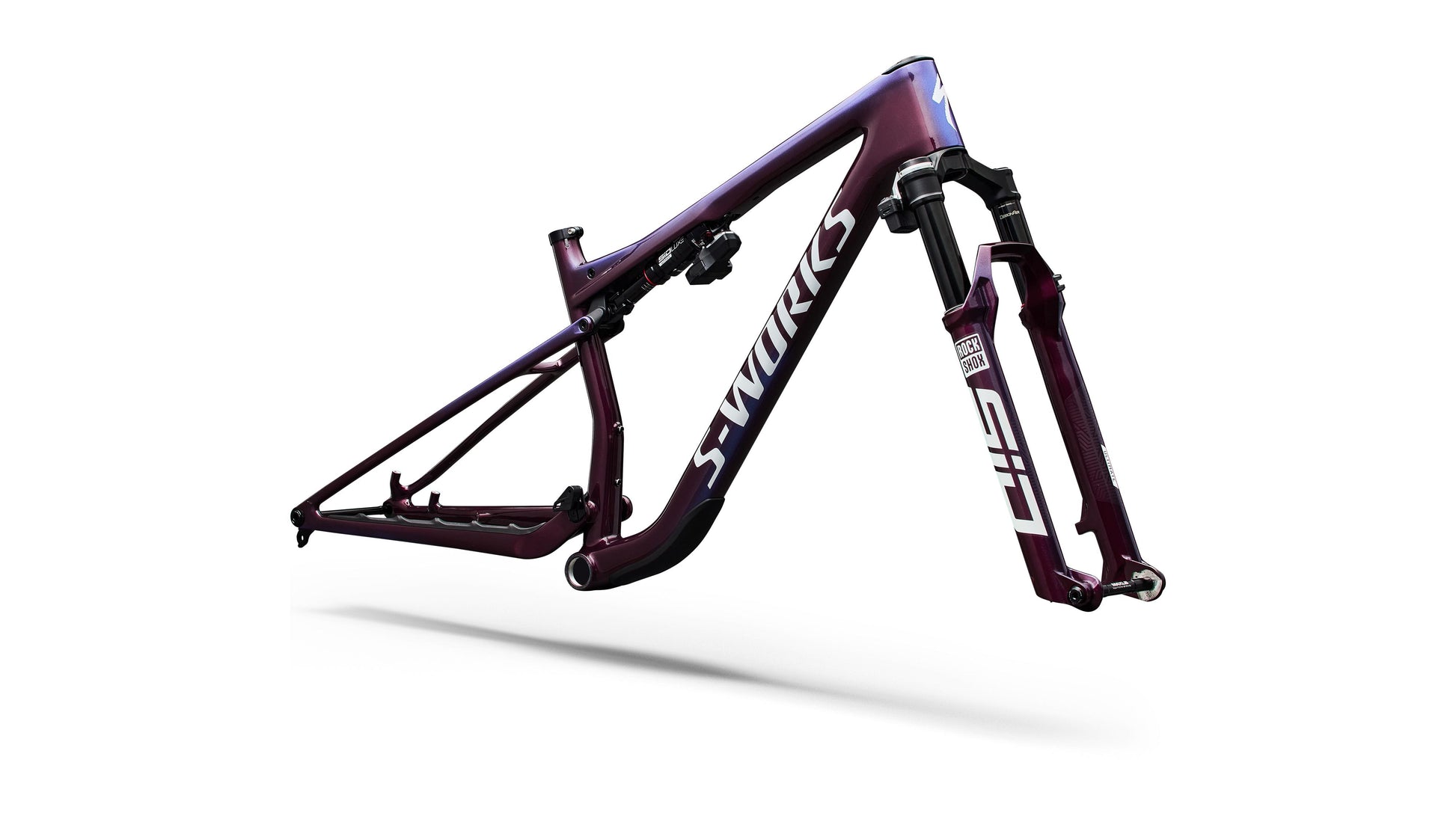

  • 2027 Specialized S-Works Epic 9 Frameset - Gloss Bordeaux Metallic / Blue Pearl Edge Fade / Metallic White Silver
  • 2027 Specialized S-Works Epic 9 Frameset - Gloss Bordeaux Metallic / Blue Pearl Edge Fade / Metallic White Silver
  • 2027 Specialized S-Works Epic 9 Frameset - Gloss Bordeaux Metallic / Blue Pearl Edge Fade / Metallic White Silver
  • 2027 Specialized S-Works Epic 9 Frameset - Gloss Bordeaux Metallic / Blue Pearl Edge Fade / Metallic White Silver
  • 2027 Specialized S-Works Epic 9 Frameset - Gloss Bordeaux Metallic / Blue Pearl Edge Fade / Metallic White Silver

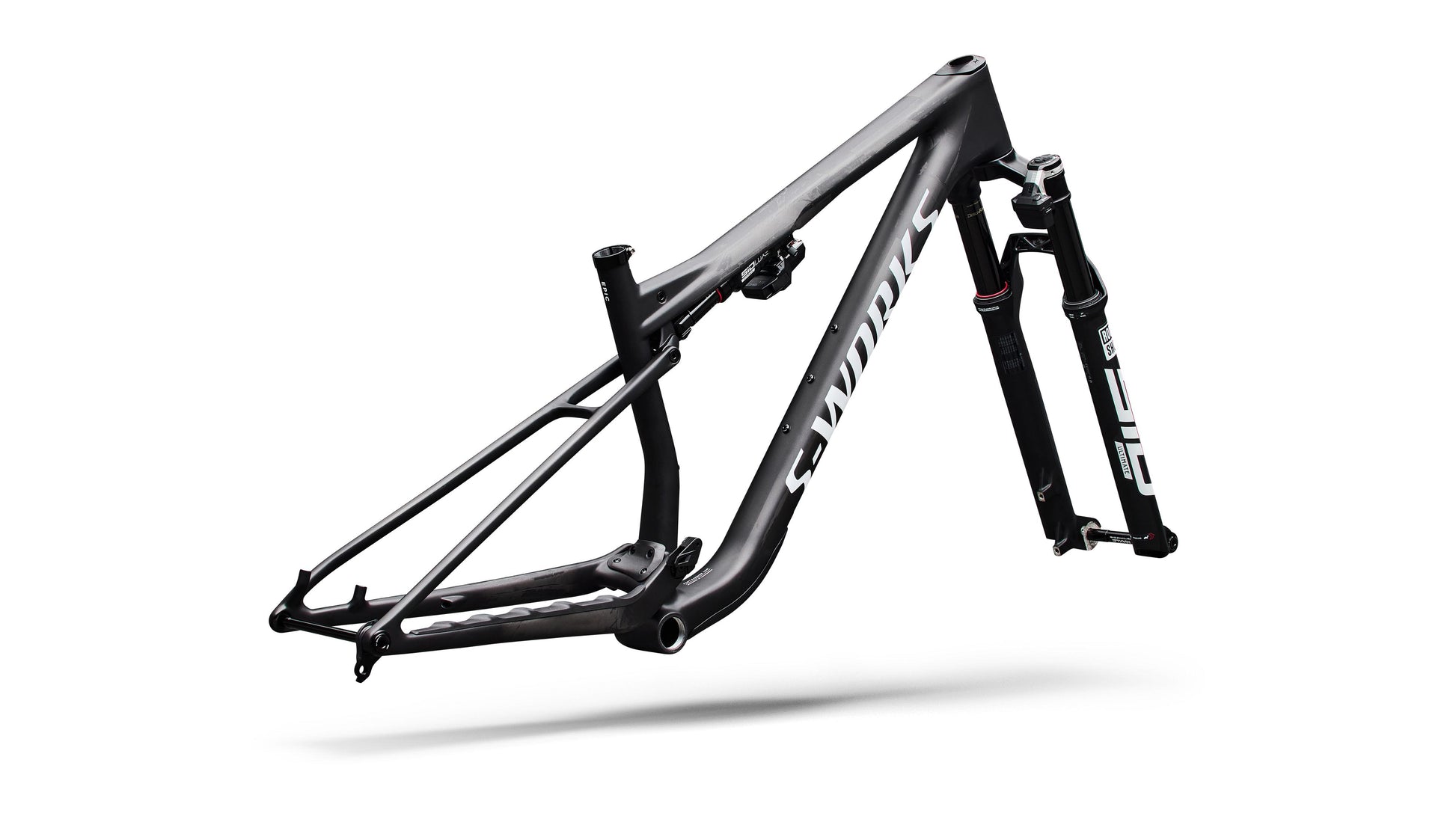

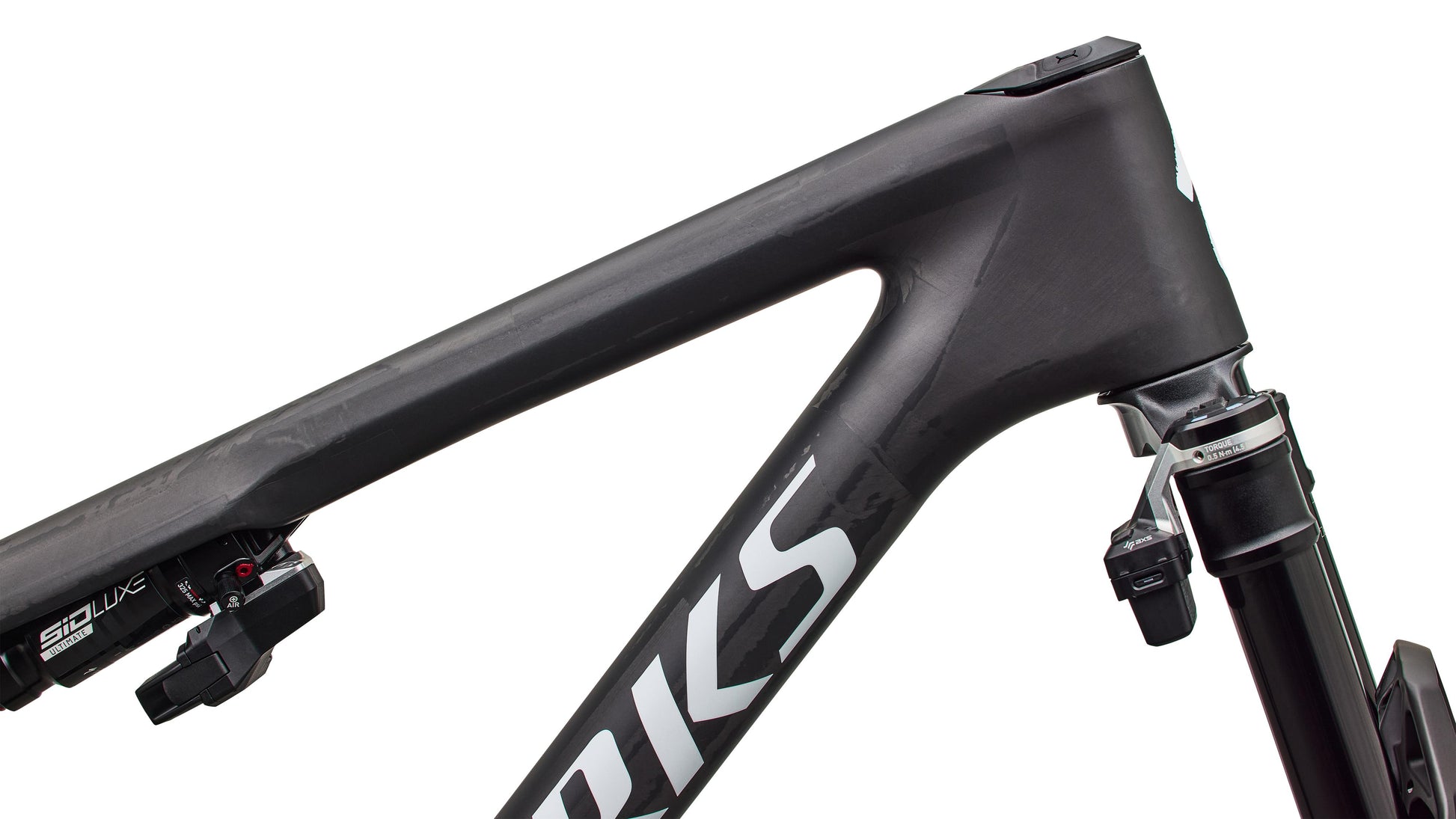

  • 2027 Specialized S-Works Epic 9 Frameset - Satin Carbon / Metallic White Silver

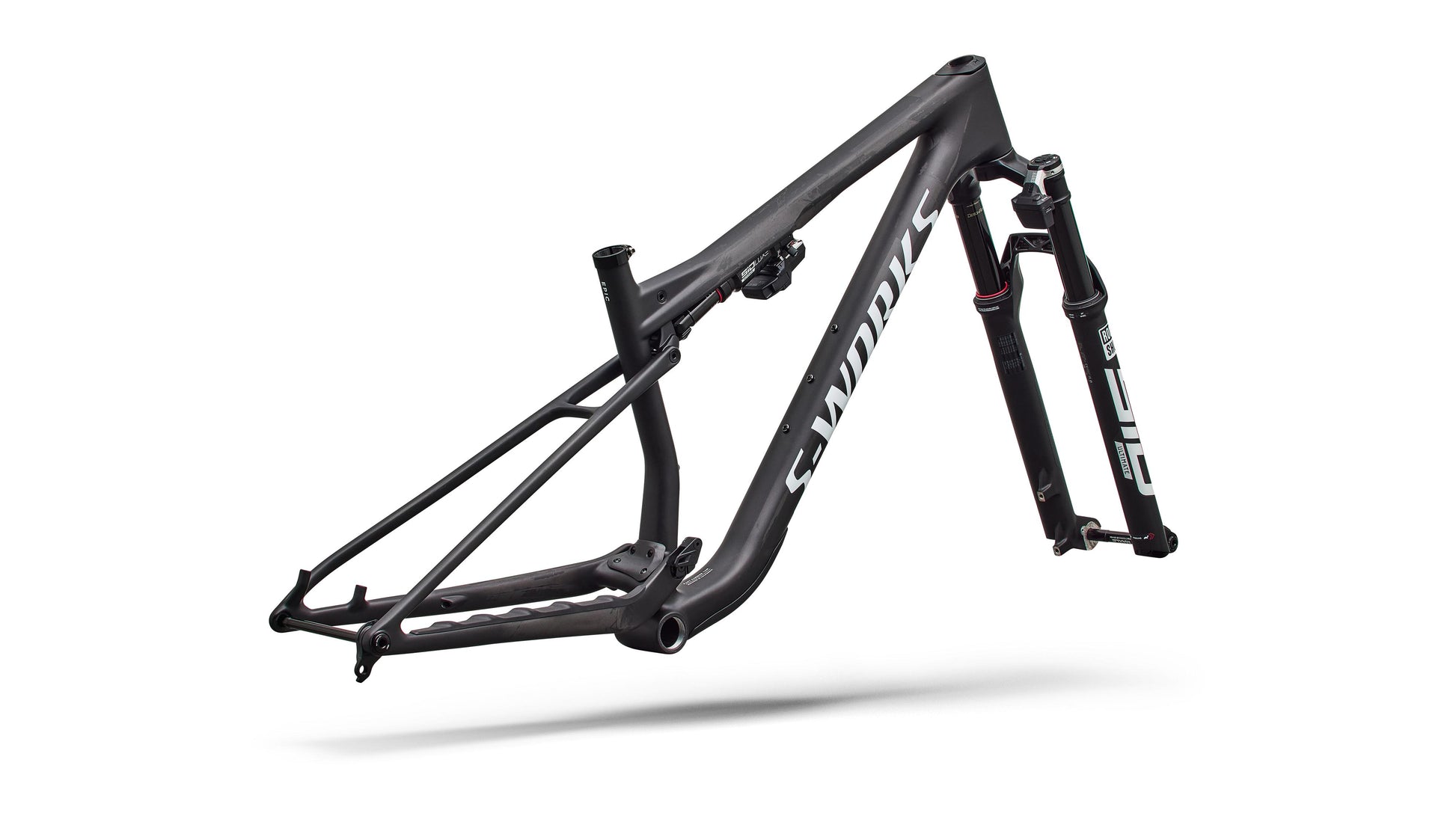

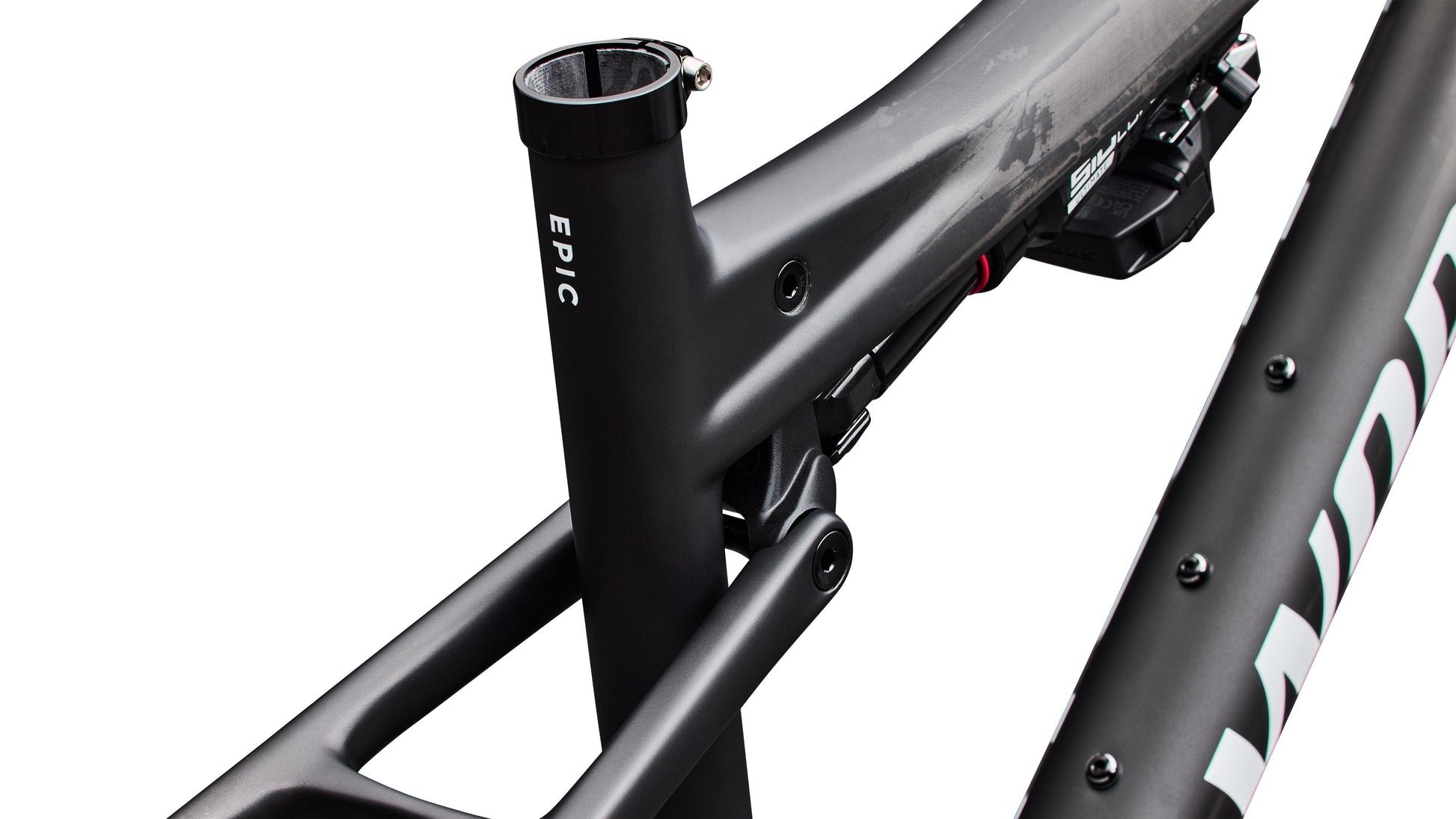

  • 2027 Specialized S-Works Epic 9 Frameset - Satin Carbon / Metallic White Silver

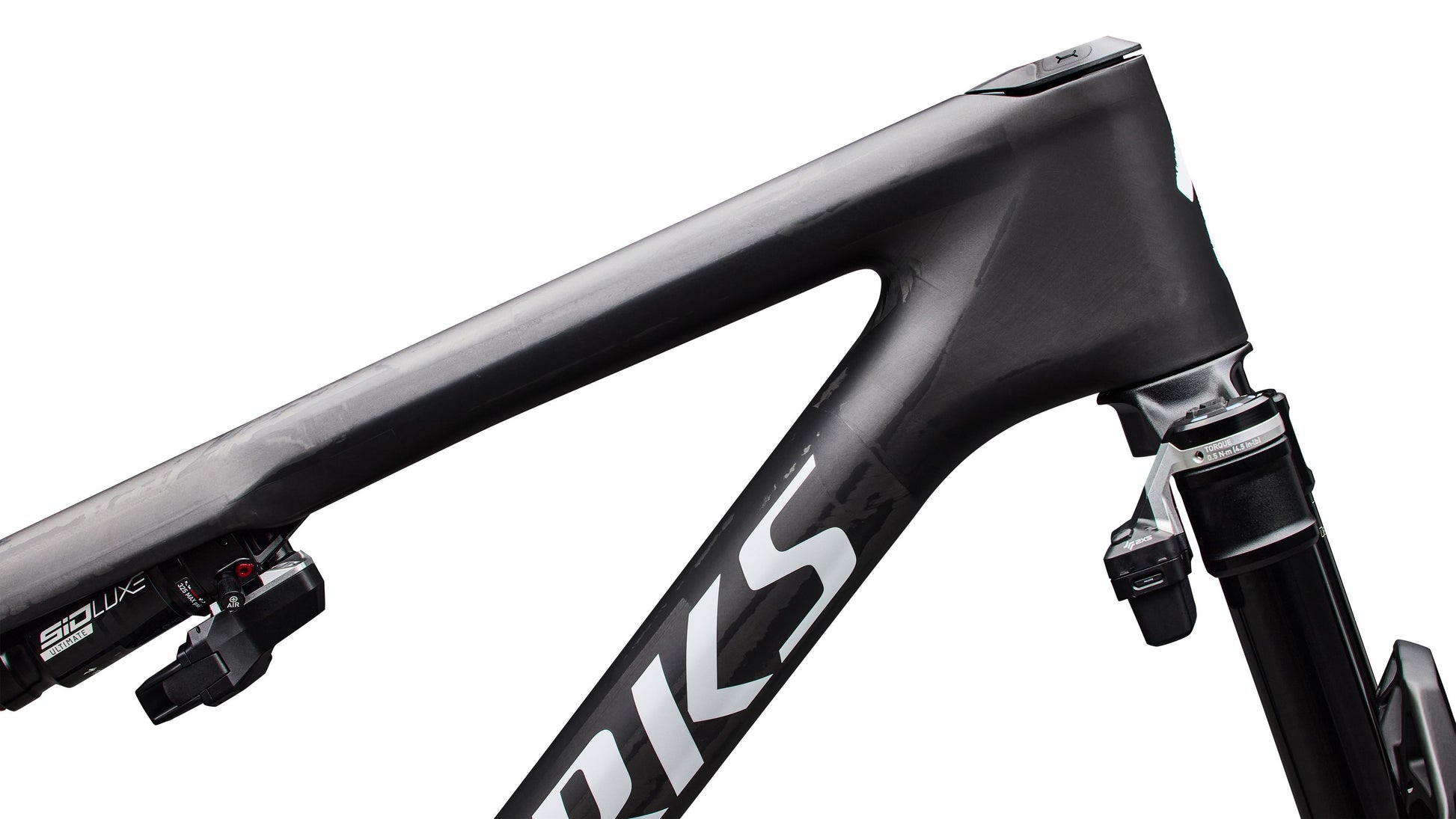

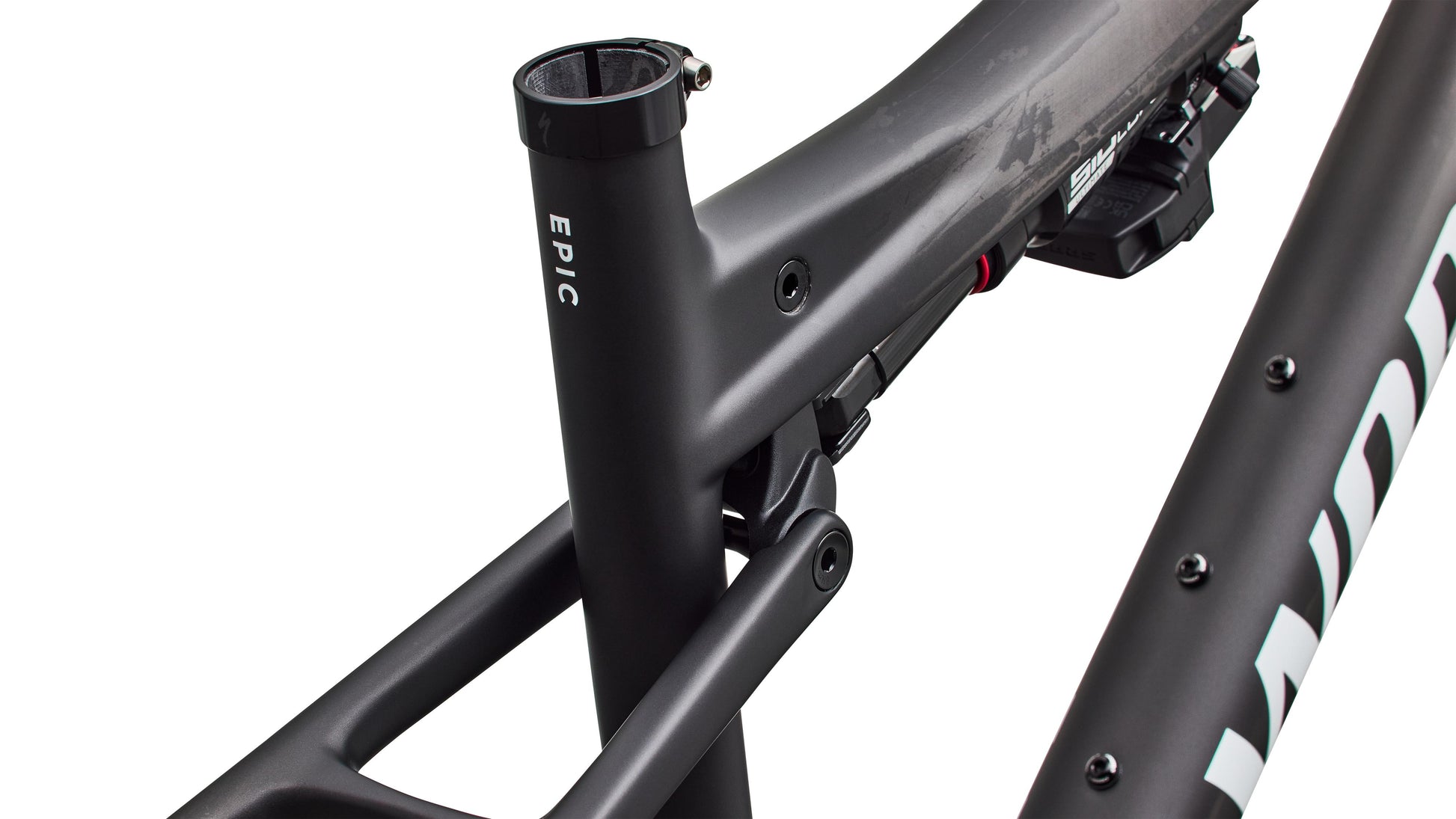

  • 2027 Specialized S-Works Epic 9 Frameset - Satin Carbon / Metallic White Silver

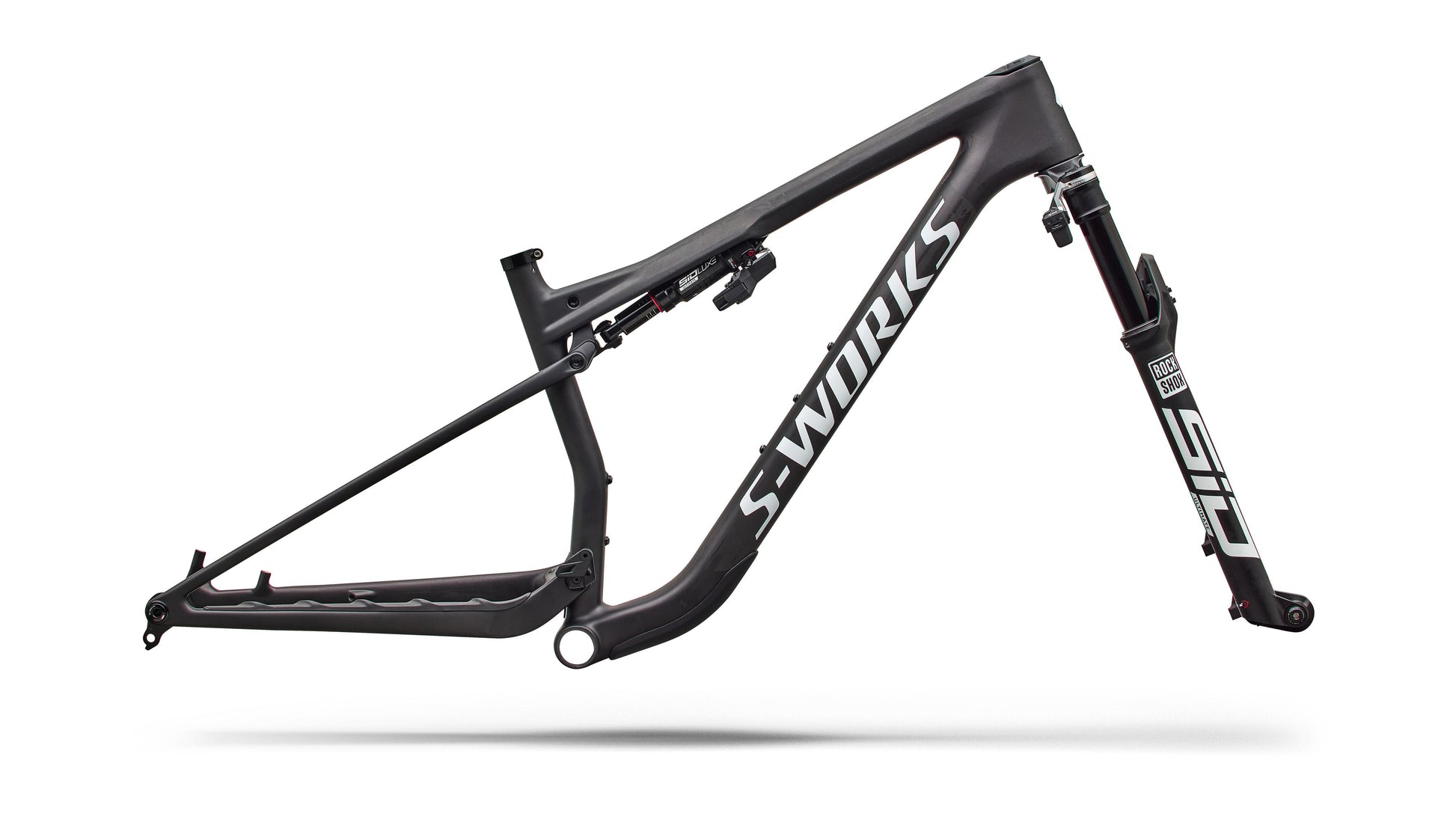

  • 2027 Specialized S-Works Epic 9 Frameset - Satin Carbon / Metallic White Silver
  • 2027 Specialized S-Works Epic 9 Frameset - Satin Carbon / Metallic White Silver
  • 2027 Specialized S-Works Epic 9 Frameset - Satin Carbon / Metallic White Silver
  • 2027 Specialized S-Works Epic 9 Frameset - Satin Carbon / Metallic White Silver
  • 2027 Specialized S-Works Epic 9 Frameset - Satin Carbon / Metallic White Silver
  • 2027 Specialized S-Works Epic 9 Frameset - Satin Carbon / Metallic White Silver
1 18

SPECIALIZED

2027 Specialized S-Works Epic 9 Frameset

2027 Specialized S-Works Epic 9 Frameset

70327-0102

$6,999.99
$6,999.99 $6,999.99
New Sold out
Color
Size
View full details

    2027 Specialized S-Works Epic 9 Frameset Features

    Epic 9 represents 24 years of winning XC innovation, distilled into the fastest race bike in the world. We started with Epic 8’s world-beating benchmark. Then removed what held it back. 206 grams gone, making Epic 9 the lightest full-suspension XC race bike on the planet. Then we cut suspension friction by 11% and refined the kinematics. The result: unmatched efficiency, capability, and speed per watt. Speed emerges as the natural outcome of a bike so seamlessly integrated around the rider that it disappears, leaving only the rider’s full potential, realized.

    At a Glance

    • Use - XC Racing
    • Frame - S-Works FACT 12m Carbon, Progressive XC Race Geometry, 120mm of travel
    • Suspension - Front: RockShox SID Ultimate Flight Attendant
      Rear: RockShox SIDLuxe Ultimate Flight Attendant
    • Weight - 7 lbs. 11.1 oz. (fork included)

    Product Specifications

    fork

    RockShox SID ULTIMATE Flight Attendant, Ride Dynamics developed 3 position, Debon Air, 15x110mm, 44mm offset, 120mm Travel

    frame

    S-Works FACT 12m Carbon, Progressive XC Race Geometry, Rider-First Engineered™, threaded BB, 12x148mm UDH compatible rear dropout, internal cable routing, 120mm of travel, Optimized for wireless drivetrain

    rear shock

    RockShox SIDLuxe ULTIMATE Flight Attendant, Ride Dynamics developed 3 position, Solo Air, 190x45mm

    seat binder

    Specialized Alloy 34.9, Ti Bolt

    swat

    SWAT BOX 2.0 ASSY

    category

    Mountain

    component geometry

    []

    experience

    Cross Country

    frame geometry

    [{"GEO_SET_NAME":"Epic 9","GEO_SET_ID":"16092","MODEL_YEAR":"2027","Children":[{"GEO_MEASUREMENT_DESCRIPTION":"Stack","MEASUREMENT_GEO_CODE":"185154","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"0","Children":[{"FRAME_SIZE_DESC":"S","GEO_VALUE":"594","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"604","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"618","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"645","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Reach (Low)","MEASUREMENT_GEO_CODE":"219078","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"1","Children":[{"FRAME_SIZE_DESC":"S","GEO_VALUE":"420","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"450","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"480","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"505","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Reach (High)","MEASUREMENT_GEO_CODE":"219077","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"2","Children":[{"FRAME_SIZE_DESC":"S","GEO_VALUE":"425","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"455","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"485","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"510","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Head-Tube Length","MEASUREMENT_GEO_CODE":"140152","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"3","Children":[{"FRAME_SIZE_DESC":"S","GEO_VALUE":"92","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"105","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"120","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"150","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Head-Tube Angle (Low)","MEASUREMENT_GEO_CODE":"219081","UOM":"degrees","GEO_MEASUREMENT_DISPLAY_ORDER":"4","Children":[{"FRAME_SIZE_DESC":"S","GEO_VALUE":"65.9","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"65.9","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"65.9","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"65.9","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Head-Tube Angle (High)","MEASUREMENT_GEO_CODE":"219075","UOM":"degrees","GEO_MEASUREMENT_DISPLAY_ORDER":"5","Children":[{"FRAME_SIZE_DESC":"S","GEO_VALUE":"66.3","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"66.3","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"66.3","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"66.3","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"B-B Height","MEASUREMENT_GEO_CODE":"171029","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"6","Children":[{"FRAME_SIZE_DESC":"S","GEO_VALUE":"333","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"335","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"335","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"335","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"B-B Drop (Low)","MEASUREMENT_GEO_CODE":"219082","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"7","Children":[{"FRAME_SIZE_DESC":"S","GEO_VALUE":"42","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"40","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"40","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"40","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"B-B Drop (High)","MEASUREMENT_GEO_CODE":"219080","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"8","Children":[{"FRAME_SIZE_DESC":"S","GEO_VALUE":"37","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"35","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"35","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"35","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Trail","MEASUREMENT_GEO_CODE":"185160","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"9","Children":[{"FRAME_SIZE_DESC":"S","GEO_VALUE":"120","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"120","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"120","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"120","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Fork Length (full)","MEASUREMENT_GEO_CODE":"178217","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"10","Children":[{"FRAME_SIZE_DESC":"S","GEO_VALUE":"531","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"531","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"531","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"531","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Fork Rake/Offset","MEASUREMENT_GEO_CODE":"185162","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"11","Children":[{"FRAME_SIZE_DESC":"S","GEO_VALUE":"44","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"44","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"44","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"44","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Front Center","MEASUREMENT_GEO_CODE":"185163","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"12","Children":[{"FRAME_SIZE_DESC":"L","GEO_VALUE":"788","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"823","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"716","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"752","GEO_DISPLAY_ORDER":"1"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Chain-Stay Length","MEASUREMENT_GEO_CODE":"218920","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"13","Children":[{"FRAME_SIZE_DESC":"S","GEO_VALUE":"435","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"435","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"438","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"442","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Wheelbase","MEASUREMENT_GEO_CODE":"185165","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"14","Children":[{"FRAME_SIZE_DESC":"S","GEO_VALUE":"1148","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"1184","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"1223","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"1264","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Top-Tube Length (horizontal)","MEASUREMENT_GEO_CODE":"178222","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"15","Children":[{"FRAME_SIZE_DESC":"S","GEO_VALUE":"568","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"601","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"634","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"666","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Frame Stand-Over Height","MEASUREMENT_GEO_CODE":"219076","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"16","Children":[{"FRAME_SIZE_DESC":"S","GEO_VALUE":"749","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"755","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"757","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"764","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Seat-Tube Length","MEASUREMENT_GEO_CODE":"178224","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"17","Children":[{"FRAME_SIZE_DESC":"S","GEO_VALUE":"390","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"410","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"455","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"505","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Seat-Tube Angle","MEASUREMENT_GEO_CODE":"139159","UOM":"degrees","GEO_MEASUREMENT_DISPLAY_ORDER":"18","Children":[{"FRAME_SIZE_DESC":"S","GEO_VALUE":"76","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"76","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"76","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"76","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Seat Post Max Insertion","MEASUREMENT_GEO_CODE":"218921","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"19","Children":[{"FRAME_SIZE_DESC":"S","GEO_VALUE":"190","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"220","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"260","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"315","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Seat Post Min Insertion","MEASUREMENT_GEO_CODE":"218919","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"20","Children":[{"FRAME_SIZE_DESC":"S","GEO_VALUE":"80","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"80","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"80","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"80","GEO_DISPLAY_ORDER":"3"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Saddle Height for Effective STA","MEASUREMENT_GEO_CODE":"219079","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"21","Children":[{"FRAME_SIZE_DESC":"S","GEO_VALUE":"690","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"735","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"780","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"825","GEO_DISPLAY_ORDER":"3"}]}]}]

    group

    Framesets

    line

    BIKES

    material

    Carbon

    model level

    S-Works

    model year

    2027

    product family

    Epic

    shifting

    Mechanical

    suspension

    Front & Rear

    wheel size

    29"

    base color

    Red

    color

    Gloss Bordeaux Metallic / Blue Pearl Edge Fade / Metallic White Silver

    size

    S

    2027 Specialized S-Works Epic 9 Frameset

    Bike/Frame Size S M L XL
    Stack 594 mm 604 mm 618 mm 645 mm
    Reach (Low) 420 mm 450 mm 480 mm 505 mm
    Fork Length (full) 531 mm 531 mm 531 mm 531 mm
    Fork Rake/Offset 44 mm 44 mm 44 mm 44 mm
    Front Center 716 mm 752 mm 788 mm 823 mm
    Chain-Stay Length 435 mm 435 mm 438 mm 442 mm
    Wheelbase 1148 mm 1184 mm 1223 mm 1264 mm
    Top-Tube Length (horizontal) 568 mm 601 mm 634 mm 666 mm
    Frame Stand-Over Height 749 mm 755 mm 757 mm 764 mm
    Seat-Tube Length 390 mm 410 mm 455 mm 505 mm
    Seat-Tube Angle 76° 76° 76° 76°
    Seat Post Max Insertion 190 mm 220 mm 260 mm 315 mm
    Reach (High) 425 mm 455 mm 485 mm 510 mm
    Seat Post Min Insertion 80 mm 80 mm 80 mm 80 mm
    Saddle Height for Effective STA 690 mm 735 mm 780 mm 825 mm
    Head-Tube Length 92 mm 105 mm 120 mm 150 mm
    Head-Tube Angle (Low) 65.9° 65.9° 65.9° 65.9°
    Head-Tube Angle (High) 66.3° 66.3° 66.3° 66.3°
    B-B Height 333 mm 335 mm 335 mm 335 mm
    B-B Drop (Low) 42 mm 40 mm 40 mm 40 mm
    B-B Drop (High) 37 mm 35 mm 35 mm 35 mm
    Trail 120 mm 120 mm 120 mm 120 mm
