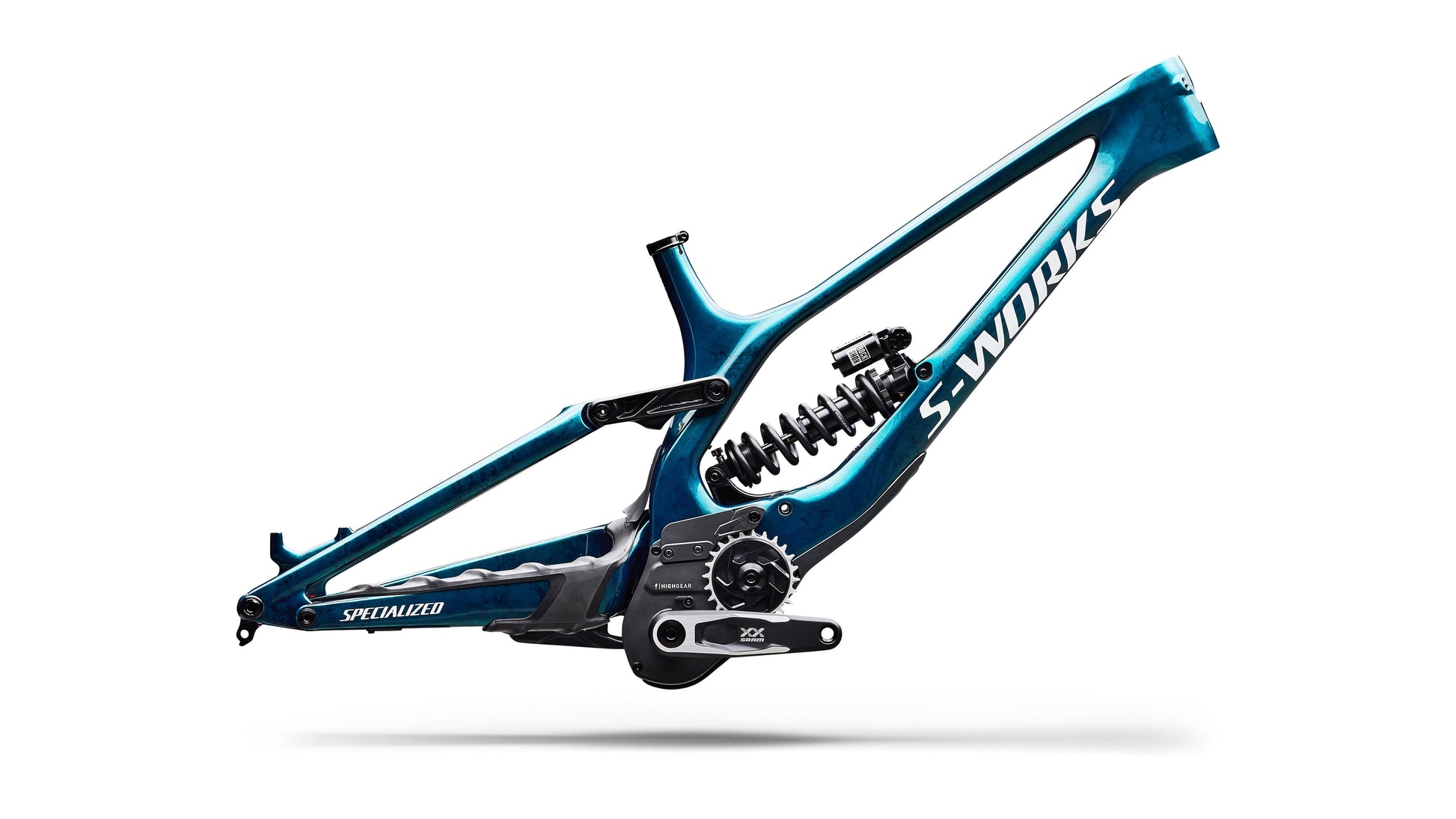

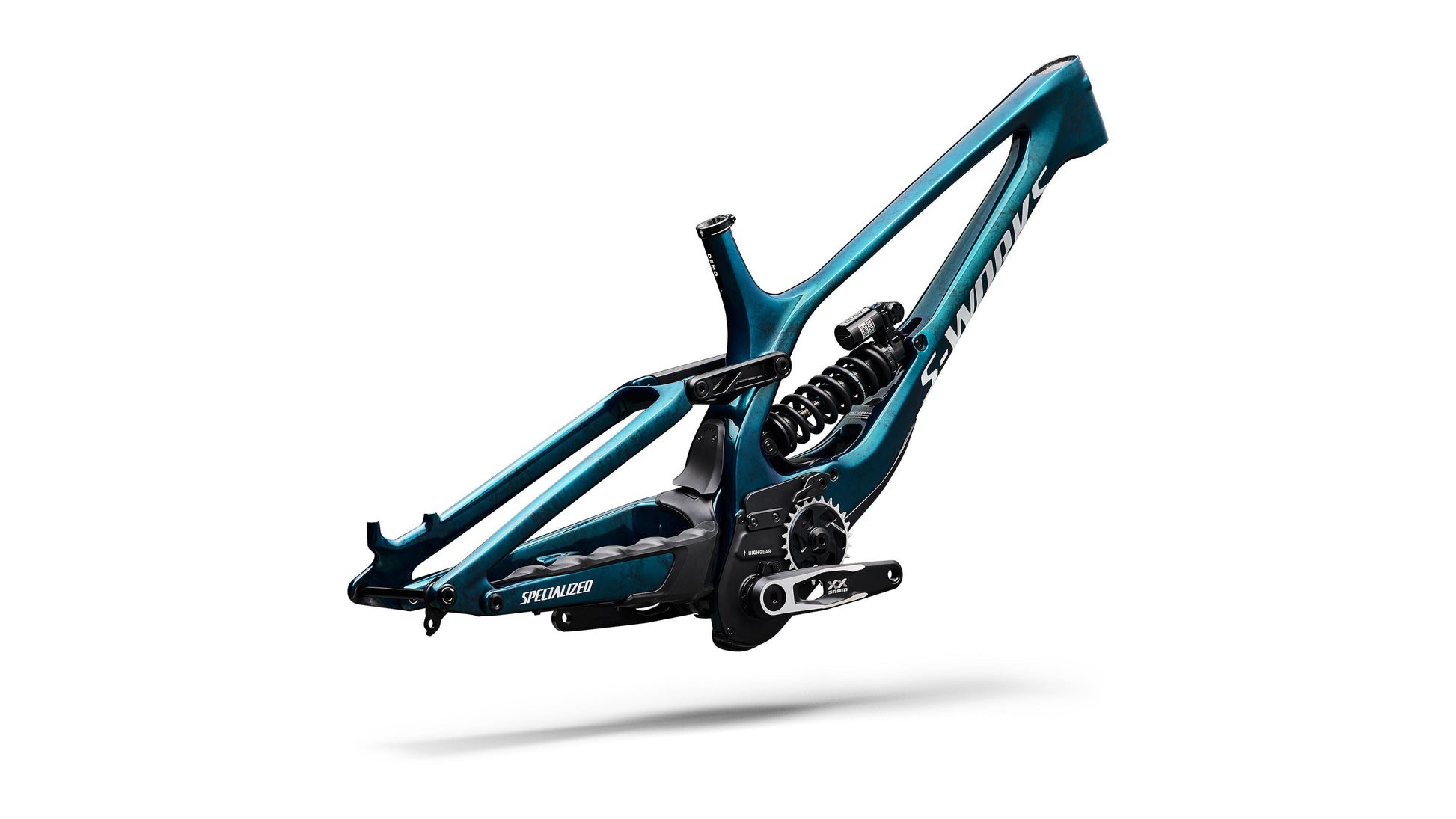

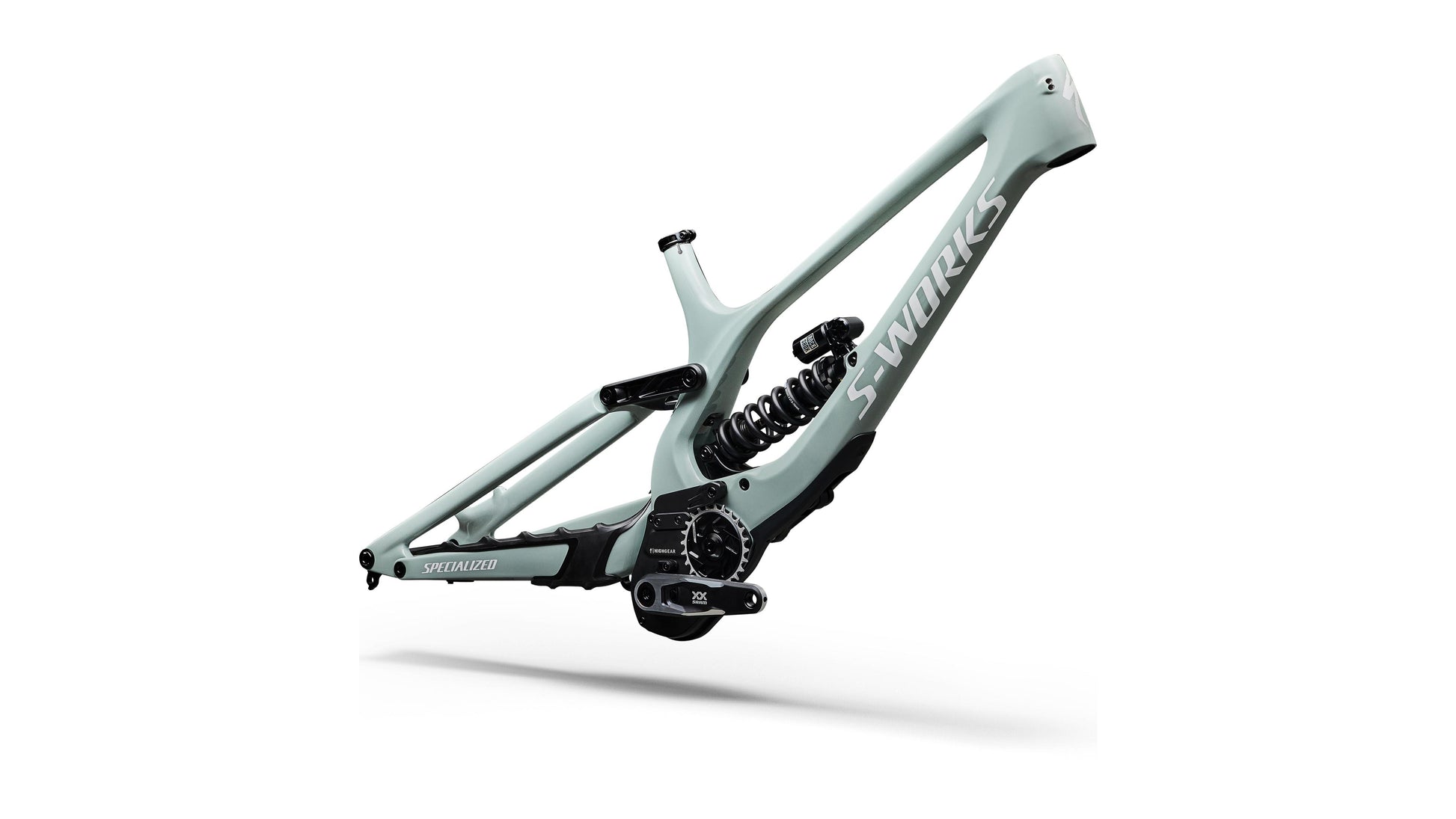

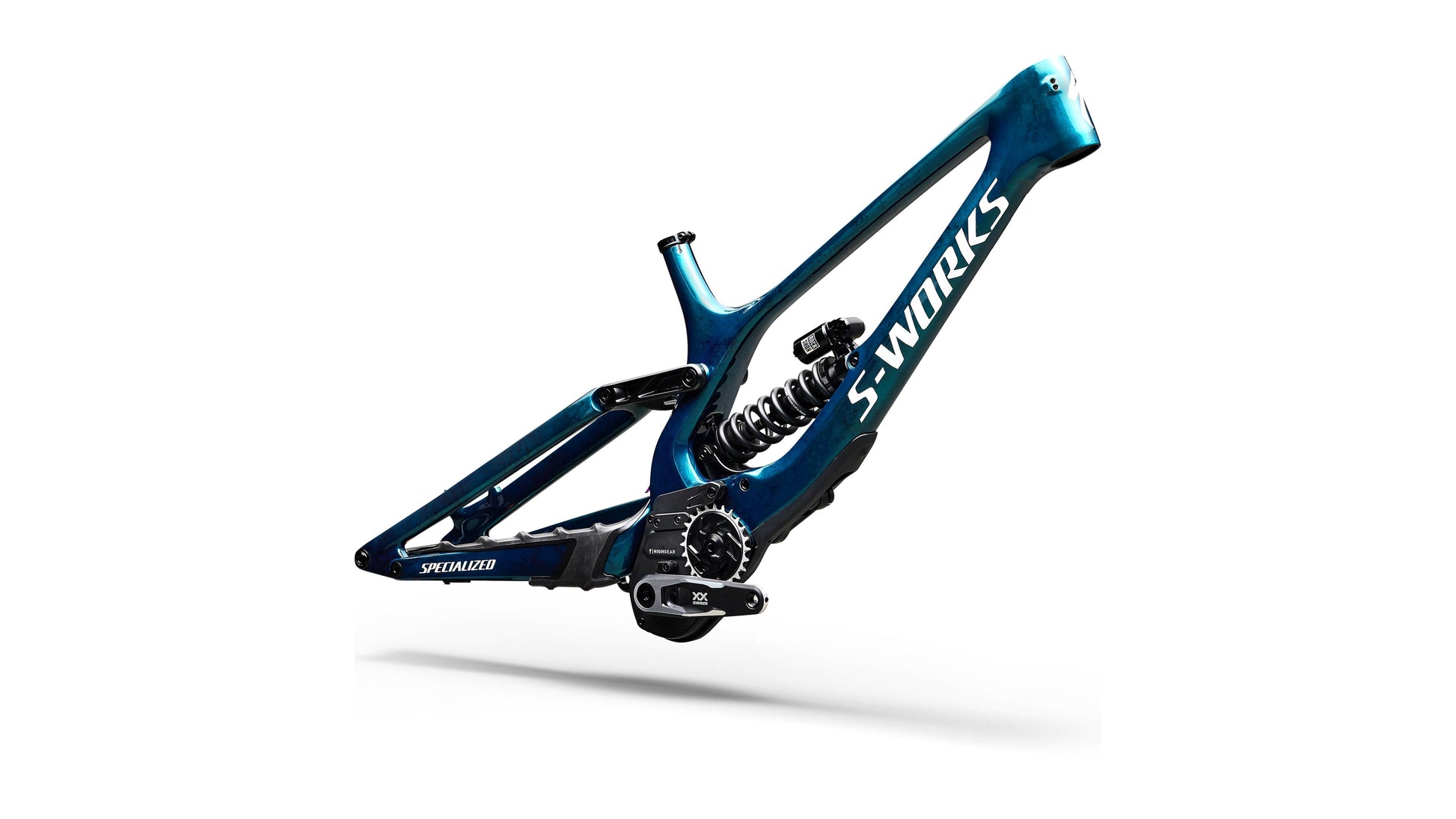

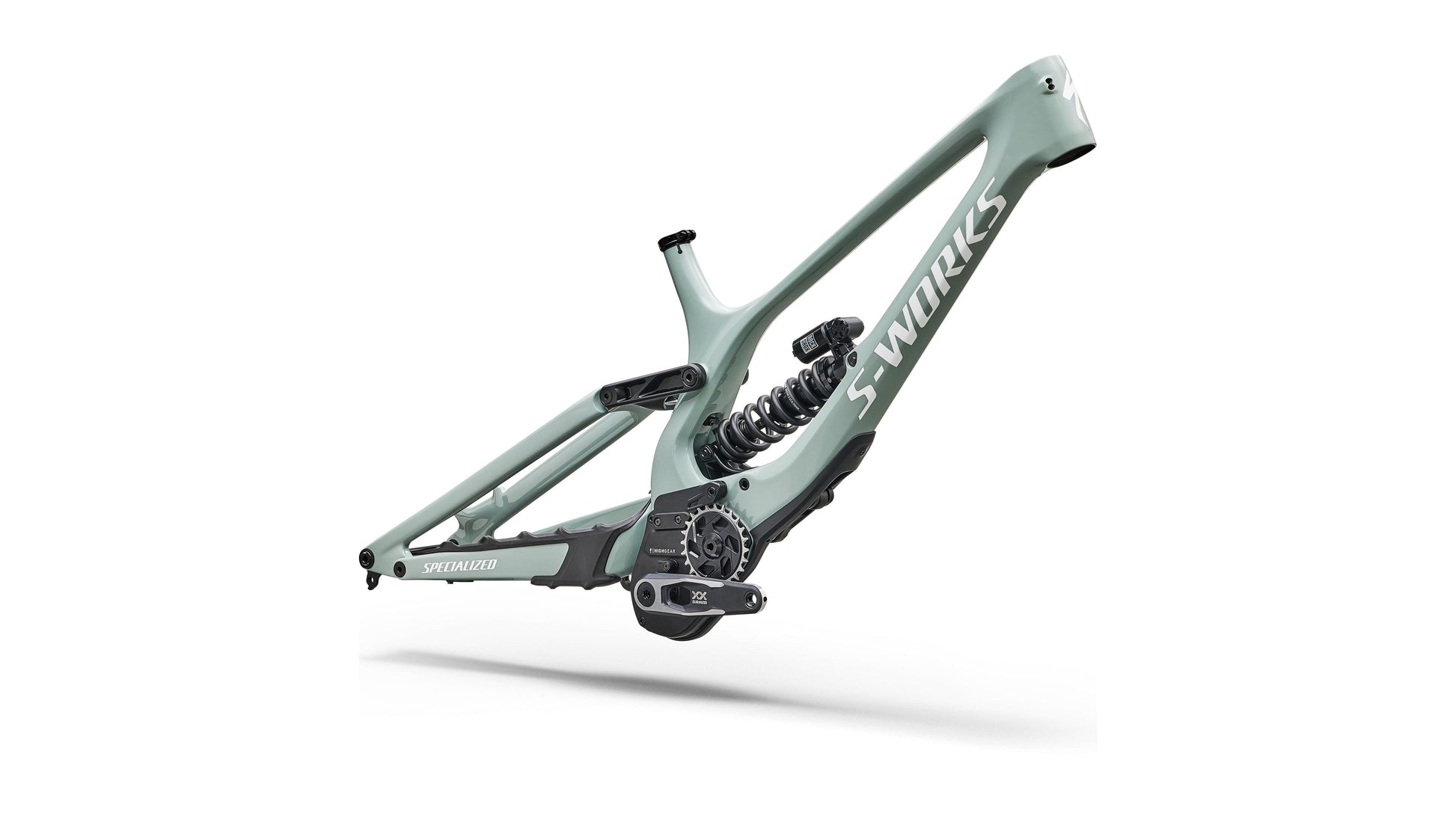

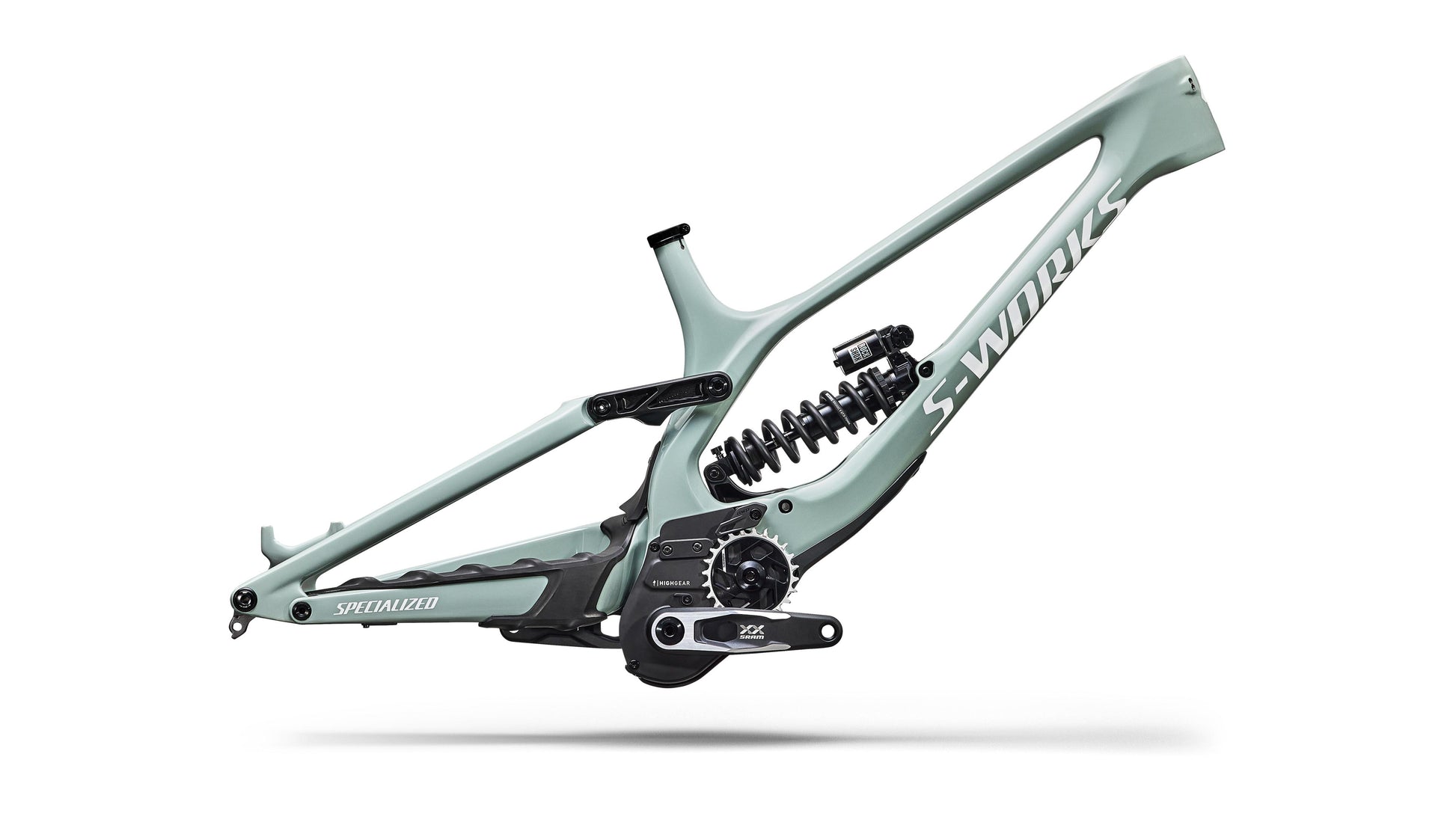

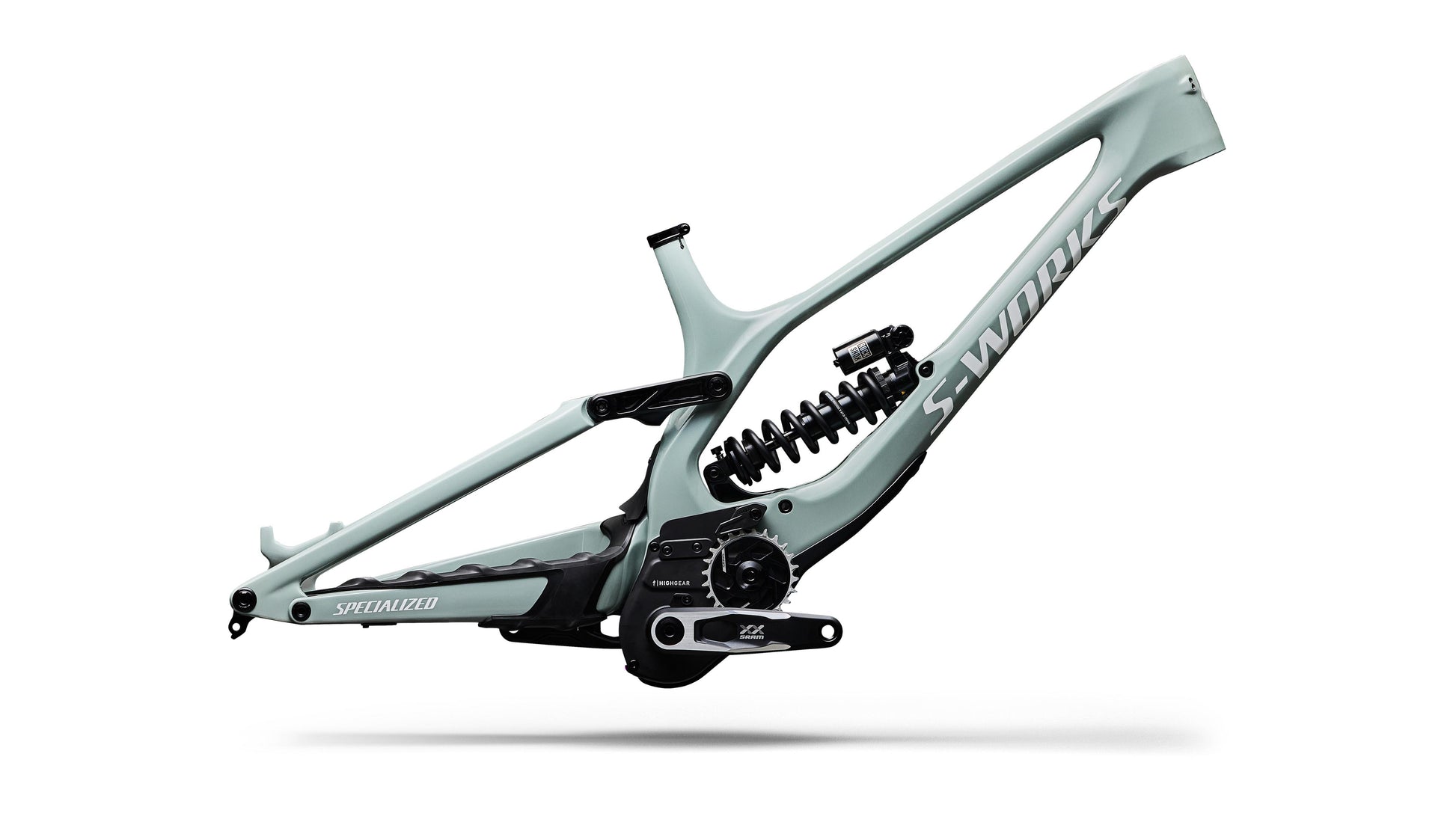

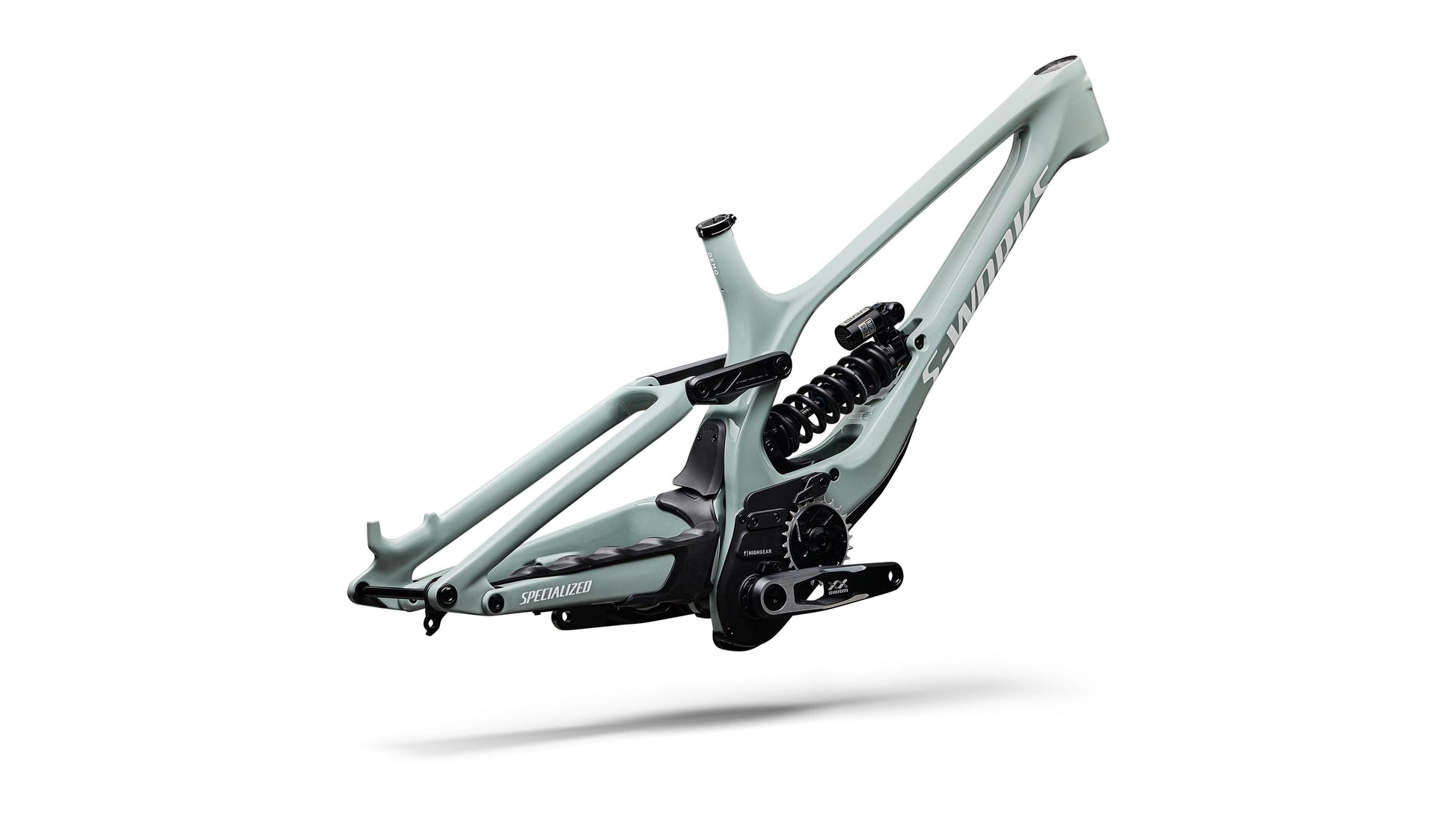

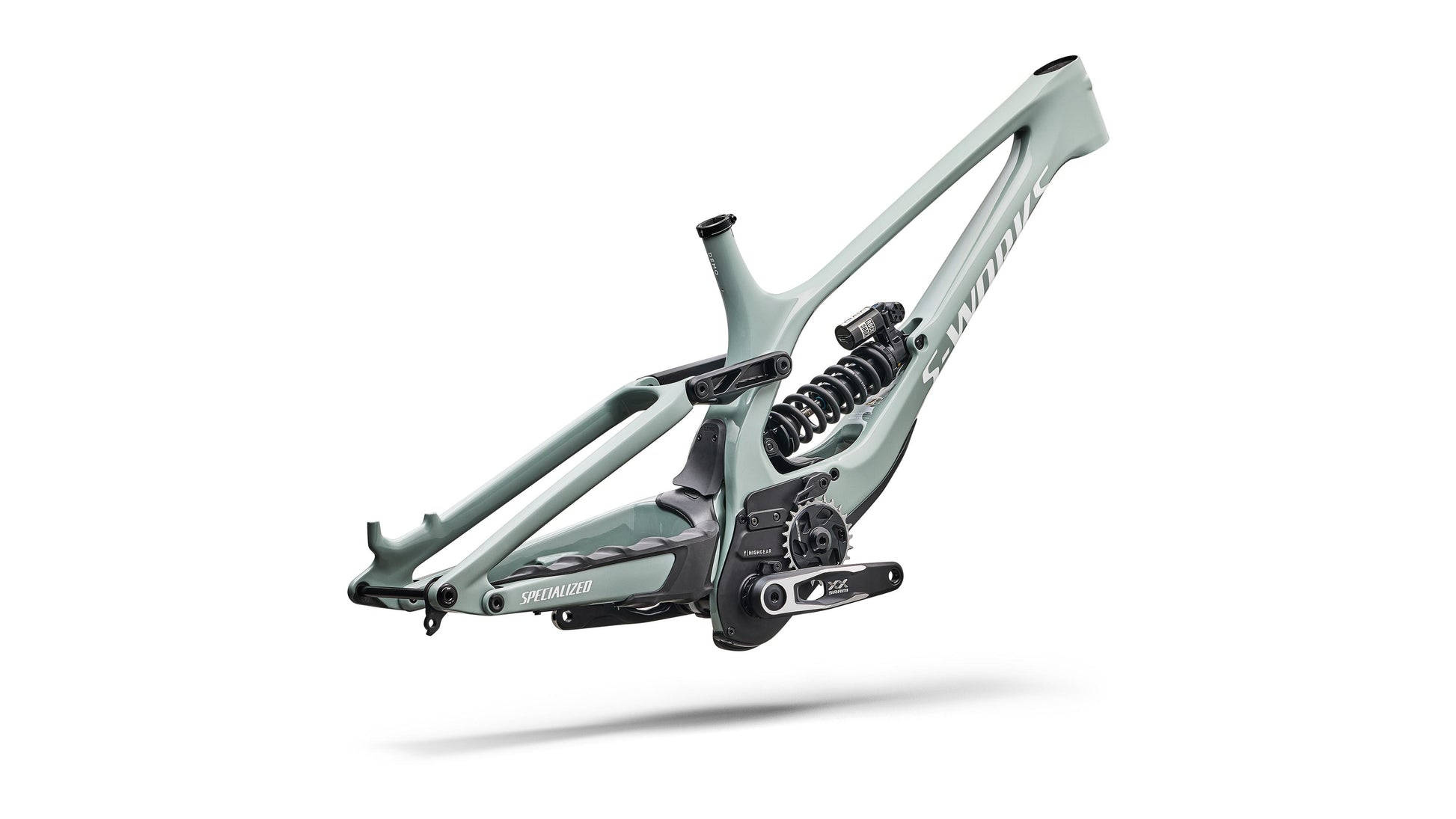

2027 Specialized S-Works Demo 11 Frameset

2027 Specialized S-Works Demo 11 Frameset

74527-0003

$6,499.99
$6,499.99 $6,499.99
New Sold out
Color
Size
View full details

    2027 Specialized S-Works Demo 11 Frameset Features

    Developed over three years with World Cup-winning prototypes and the fastest riders on the planet, Demo 11 had one objective: go faster everywhere. Not through hype. Through race-proven innovation that delivers the predictable control and composure racers trust to drop into flow instantly, commit harder, hold faster lines, and carry more speed from gate to finish.

    At a Glance

    • Use - World Cup Downhill Racing
    • Frame - FACT 11m Carbon Race Chassis w/OBB Linkage
    • Suspension - Shock: RockShox Vivid Coil Ultimate DH (200mm Travel)
    • Drivetrain - HighGear Drivetrain, +30mm Clearance

    Product Specifications

    bottom bracket

    SRAM GXP

    crankset

    SRAM XX HighGear Crankset, 165mm length.

    frame

    200mm travel FACT 11m carbon frame with HighGear system, 165mm cranks, reach adjust headset cups, BB adjust, full internal cable routing, 148mm rear spacing

    rear shock

    Rockshox Vivid Coil Ultimate DH, 250x75mm,S3 - 450lbs., S4 - 500lbs., S5 - 525lbs

    seat binder

    Specialized Alloy 34.9, Steel Bolt

    category

    Mountain

    component geometry

    [{"COMPONENT_GEO_CODE":"12912731","COMPONENT_MEASUREMENT_DESC":"Crank Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"101","SIZE_DESC":"S3","GEO_SIZE_VALUE":"165","GEO_SIZE_DISPLAY_ORDER":"1"},{"COMPONENT_GEO_CODE":"12912731","COMPONENT_MEASUREMENT_DESC":"Crank Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"101","SIZE_DESC":"S4","GEO_SIZE_VALUE":"165","GEO_SIZE_DISPLAY_ORDER":"2"},{"COMPONENT_GEO_CODE":"12912731","COMPONENT_MEASUREMENT_DESC":"Crank Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"101","SIZE_DESC":"S5","GEO_SIZE_VALUE":"165","GEO_SIZE_DISPLAY_ORDER":"3"}]

    experience

    Downhill

    frame geometry

    [{"GEO_SET_NAME":"Demo 11","GEO_SET_ID":"16194","MODEL_YEAR":"2027","Children":[{"GEO_MEASUREMENT_DESCRIPTION":"Stack (high)","MEASUREMENT_GEO_CODE":"113414","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"0","Children":[{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"640","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"640","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"640","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Stack (low)","MEASUREMENT_GEO_CODE":"113413","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"1","Children":[{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"645","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"645","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"645","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Reach (middle)","MEASUREMENT_GEO_CODE":"219115","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"2","Children":[{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"445","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"475","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"500","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Reach Adjustment","MEASUREMENT_GEO_CODE":"219117","UOM":"+/-","GEO_MEASUREMENT_DISPLAY_ORDER":"3","Children":[{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"6","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"6","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"6","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Headtube Length","MEASUREMENT_GEO_CODE":"201385","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"4","Children":[{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"110","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"110","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"110","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Headtube Angle","MEASUREMENT_GEO_CODE":"201382","UOM":"degrees","GEO_MEASUREMENT_DISPLAY_ORDER":"5","Children":[{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"62.5","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"62.5","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"62.5","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"BB Height (high)","MEASUREMENT_GEO_CODE":"111462","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"6","Children":[{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"355","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"355","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"355","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"BB Height (low)","MEASUREMENT_GEO_CODE":"111461","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"7","Children":[{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"348","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"348","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"348","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"BB Drop","MEASUREMENT_GEO_CODE":"185159","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"8","Children":[{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"20","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"20","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"20","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Fork Length (full)","MEASUREMENT_GEO_CODE":"178217","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"9","Children":[{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"611","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"611","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"611","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Trail","MEASUREMENT_GEO_CODE":"185160","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"10","Children":[{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"137","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"137","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"137","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Fork Rake/Offset","MEASUREMENT_GEO_CODE":"185162","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"11","Children":[{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"52","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"52","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"52","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Front Center","MEASUREMENT_GEO_CODE":"185163","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"12","Children":[{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"825","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"857","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"880","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Horizontal Rear Center","MEASUREMENT_GEO_CODE":"219116","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"13","Children":[{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"435","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"445","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"455","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Chainstay Length","MEASUREMENT_GEO_CODE":"185164","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"14","Children":[{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"435","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"445","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"455","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Wheelbase","MEASUREMENT_GEO_CODE":"185165","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"15","Children":[{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"1260","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"1302","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"1335","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Seat-Tube Length","MEASUREMENT_GEO_CODE":"178224","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"16","Children":[{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"420","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"400","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"420","GEO_DISPLAY_ORDER":"1"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Seat-Tube Angle","MEASUREMENT_GEO_CODE":"139159","UOM":"degrees","GEO_MEASUREMENT_DISPLAY_ORDER":"17","Children":[{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"78","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"78","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"78","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Top Tube Length","MEASUREMENT_GEO_CODE":"148123","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"18","Children":[{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"582","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"614","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S5","GEO_VALUE":"637","GEO_DISPLAY_ORDER":"2"}]}]}]

    group

    Framesets

    line

    BIKES

    material

    Carbon

    model level

    S-Works

    model year

    2027

    product family

    Demo

    shifting

    Mechanical

    suspension

    Front & Rear

    wheel size

    29"/27.5"

    base color

    Blue

    color

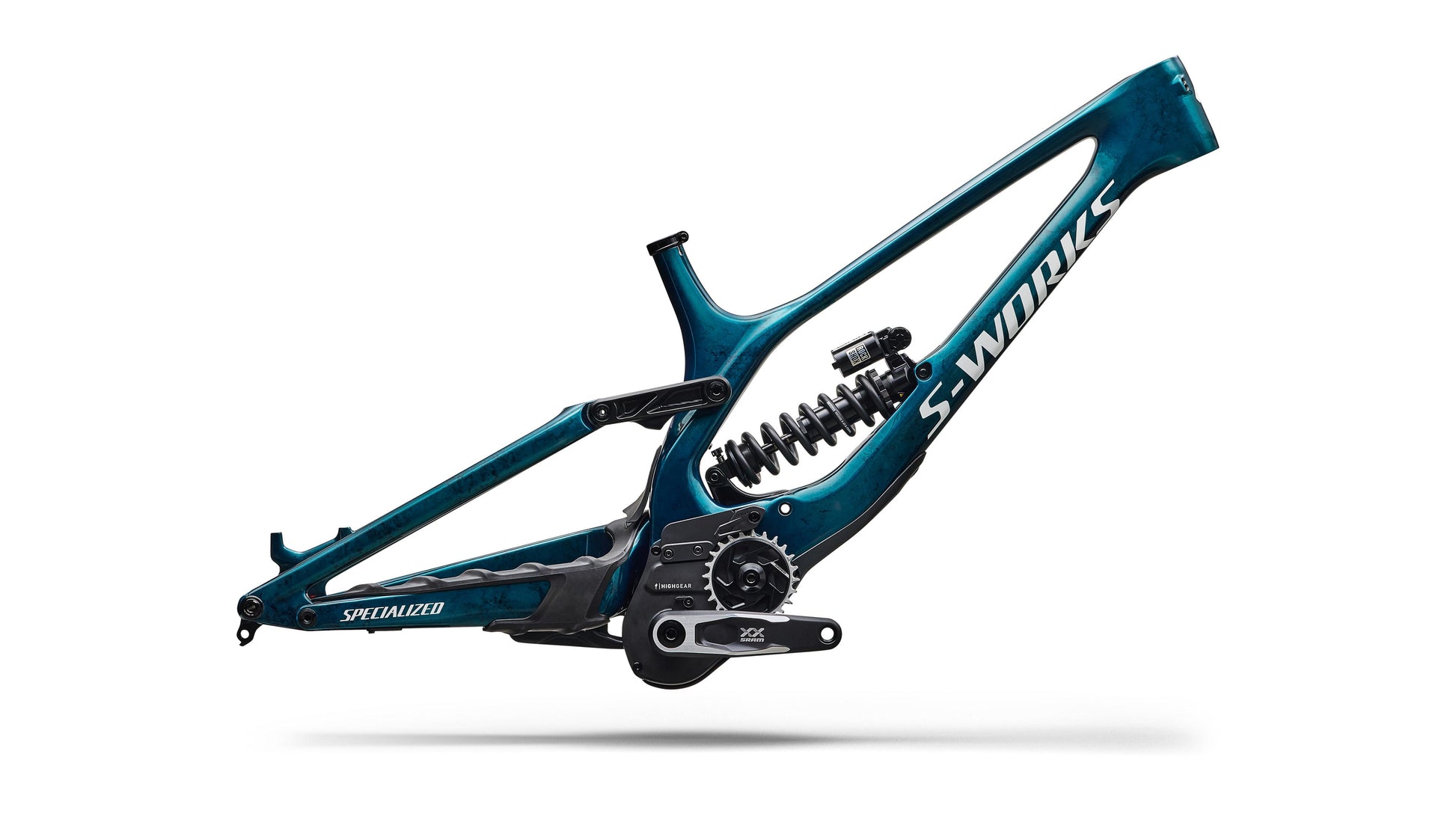

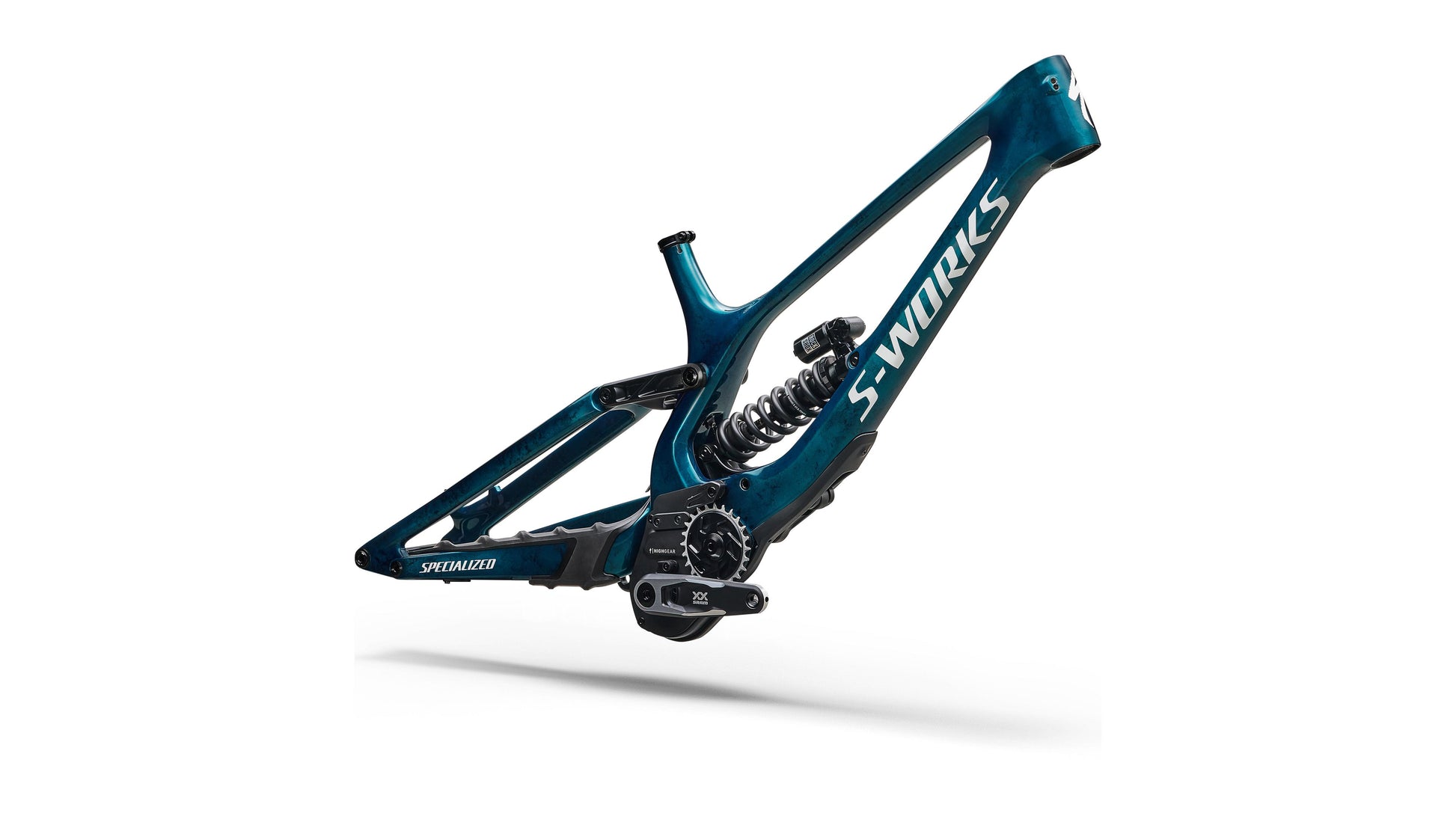

    Gloss Teal Tint Carbon / Smoke / White

    size

    S3

    2027 Specialized S-Works Demo 11 Frameset

    Bike/Frame Size S3 S4 S5
    Stack (high) 640 mm 640 mm 640 mm
    Stack (low) 645 mm 645 mm 645 mm
    Trail 137 mm 137 mm 137 mm
    Fork Rake/Offset 52 mm 52 mm 52 mm
    Front Center 825 mm 857 mm 880 mm
    Horizontal Rear Center 435 mm 445 mm 455 mm
    Chainstay Length 435 mm 445 mm 455 mm
    Wheelbase 1260 mm 1302 mm 1335 mm
    Seat-Tube Length 400 mm 420 mm 420 mm
    Seat-Tube Angle 78° 78° 78°
    Top Tube Length 582 mm 614 mm 637 mm
    Reach (middle) 445 mm 475 mm 500 mm
    Reach Adjustment 6 +/- 6 +/- 6 +/-
    Headtube Length 110 mm 110 mm 110 mm
    Headtube Angle 62.5° 62.5° 62.5°
    BB Height (high) 355 mm 355 mm 355 mm
    BB Height (low) 348 mm 348 mm 348 mm
    BB Drop 20 mm 20 mm 20 mm
    Fork Length (full) 611 mm 611 mm 611 mm

    Component Geometry

    Component S3 S4 S5
    Crank Length 165 mm 165 mm 165 mm
