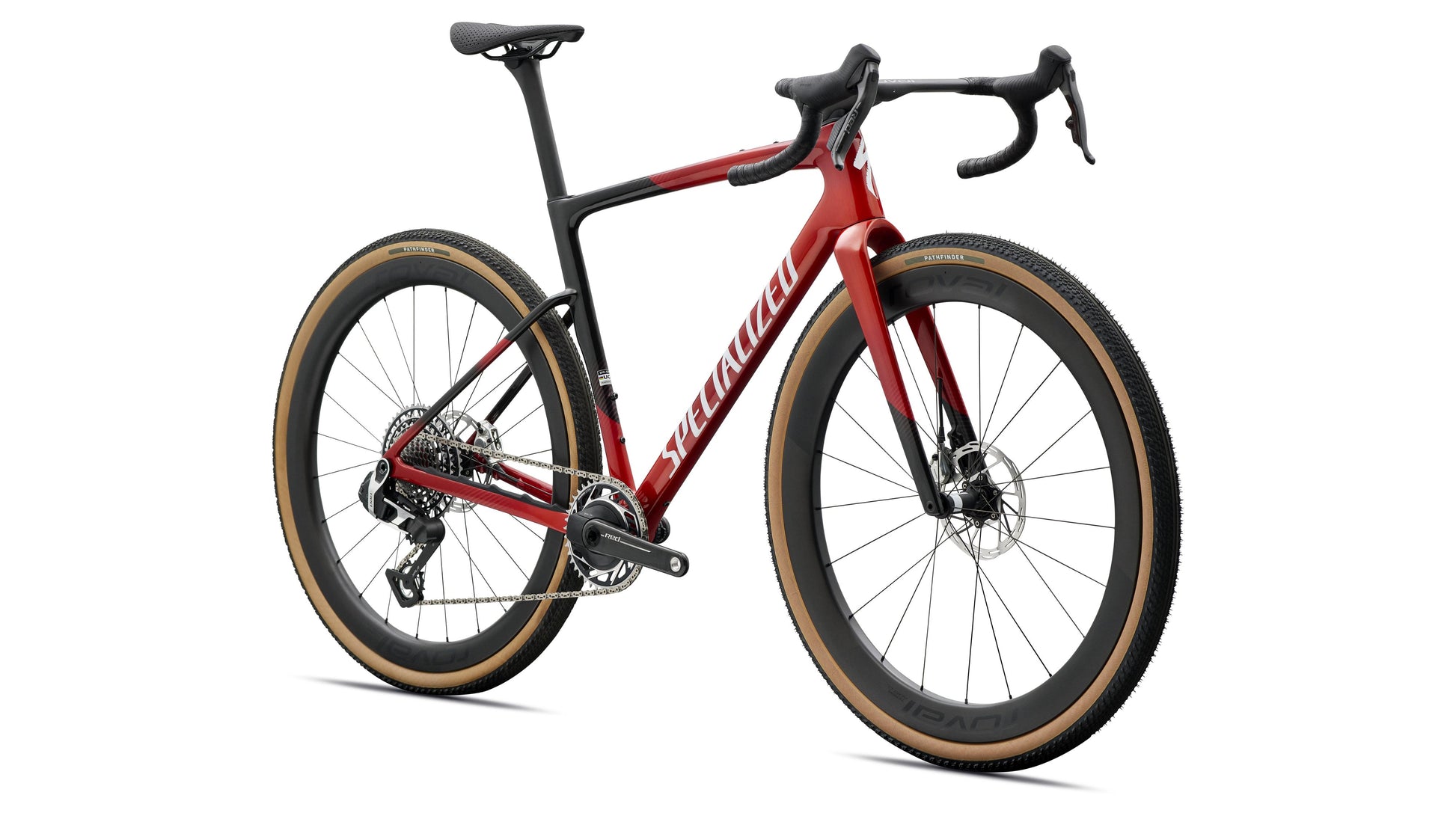

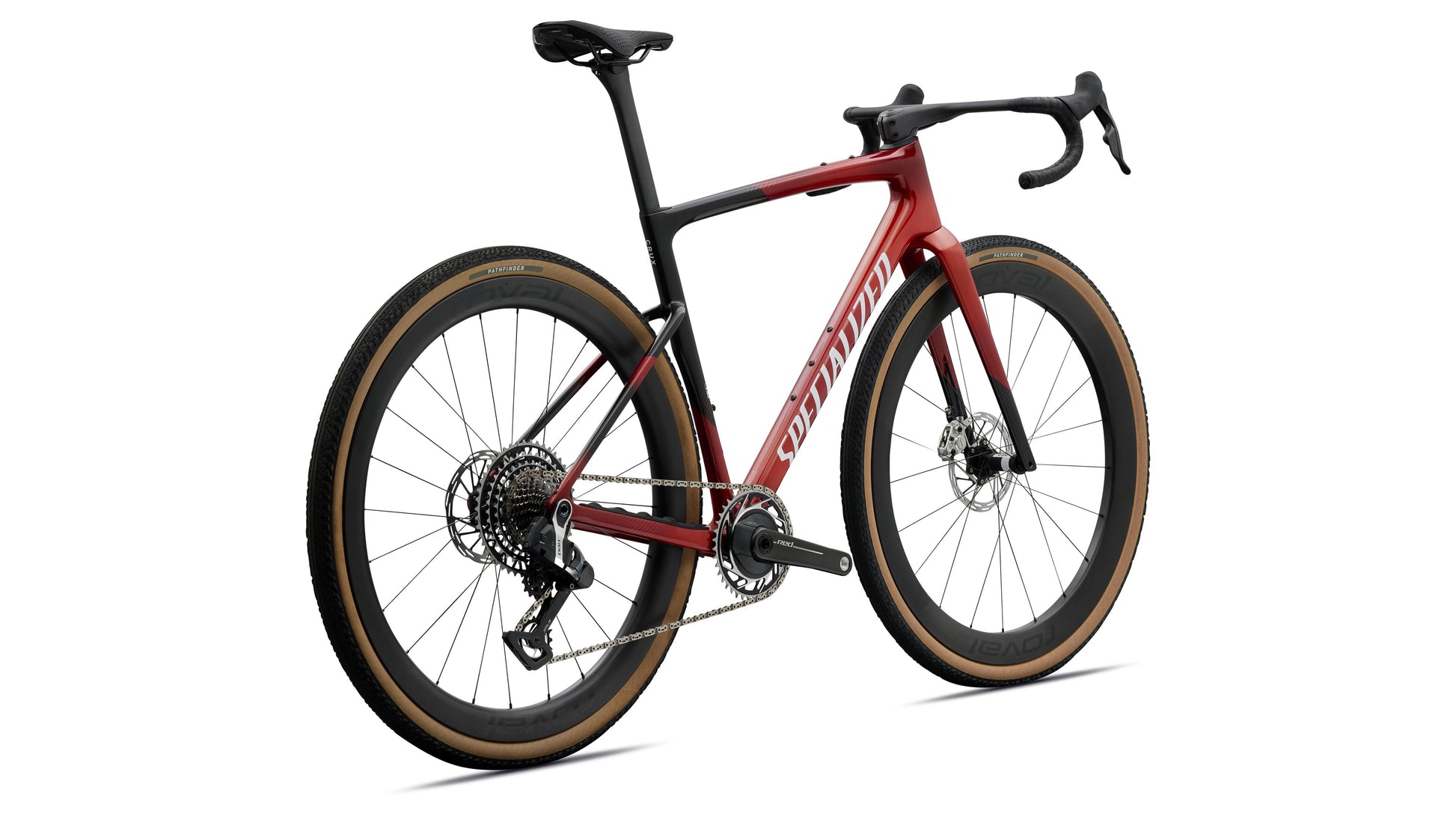

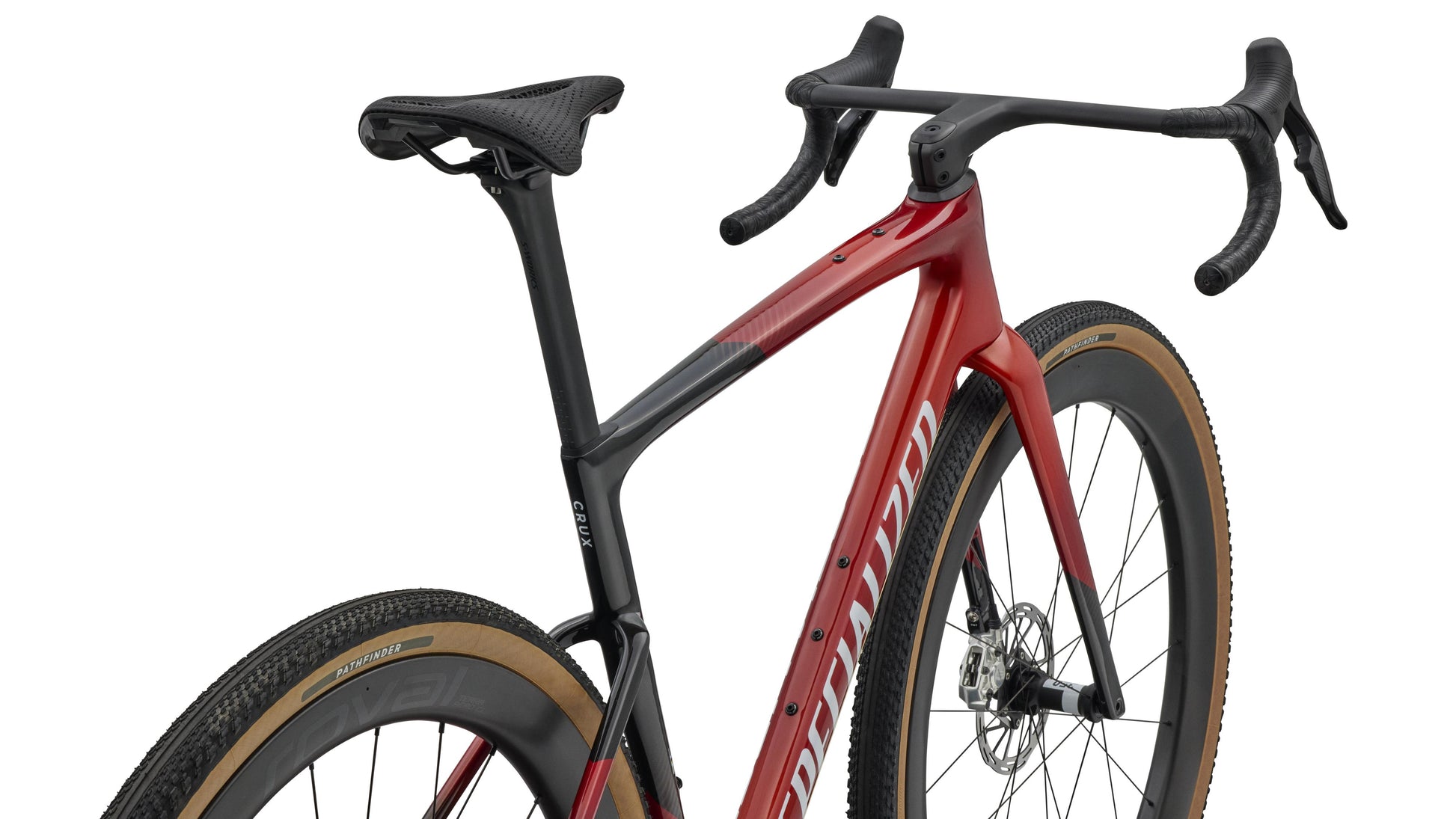

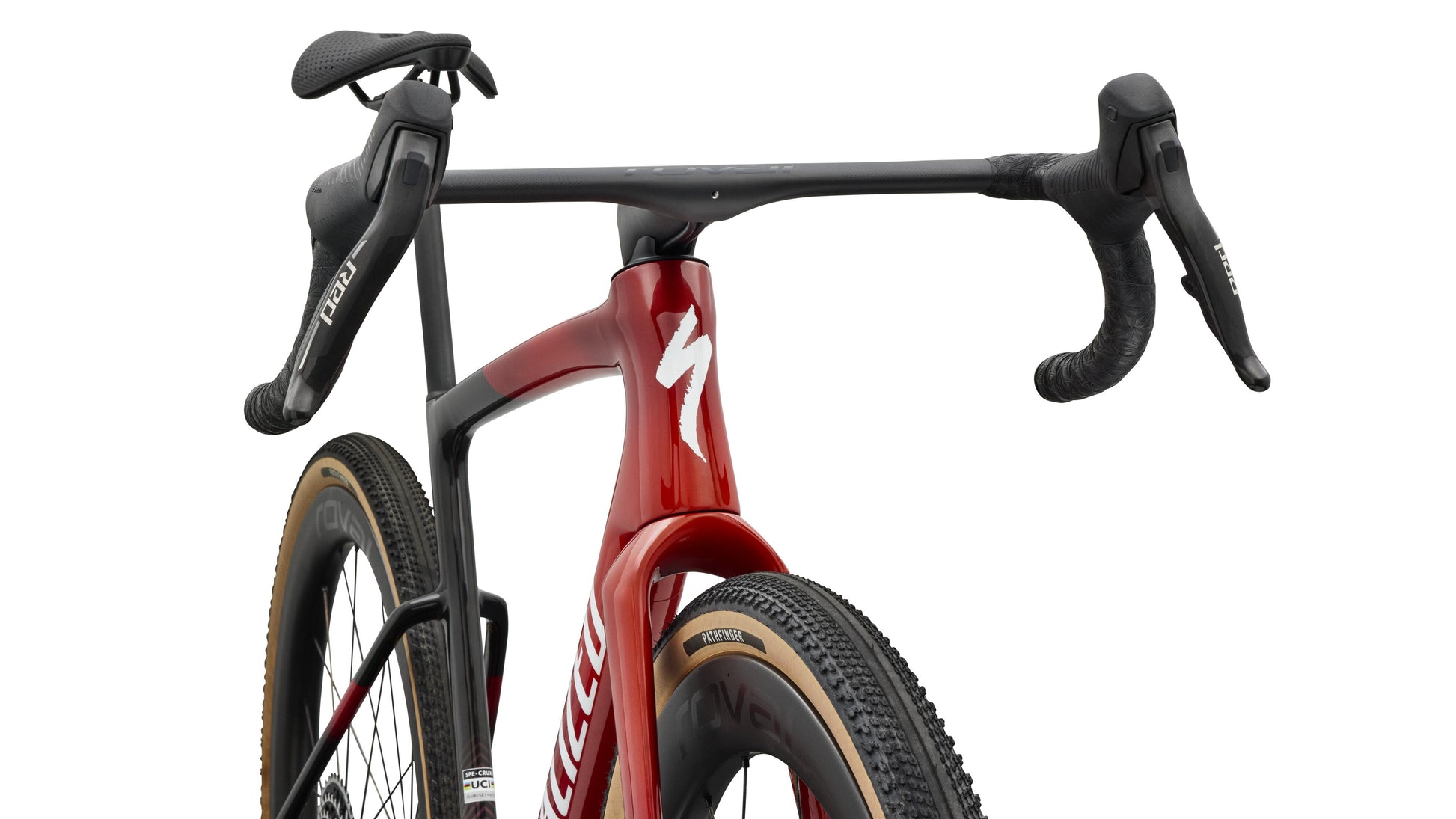

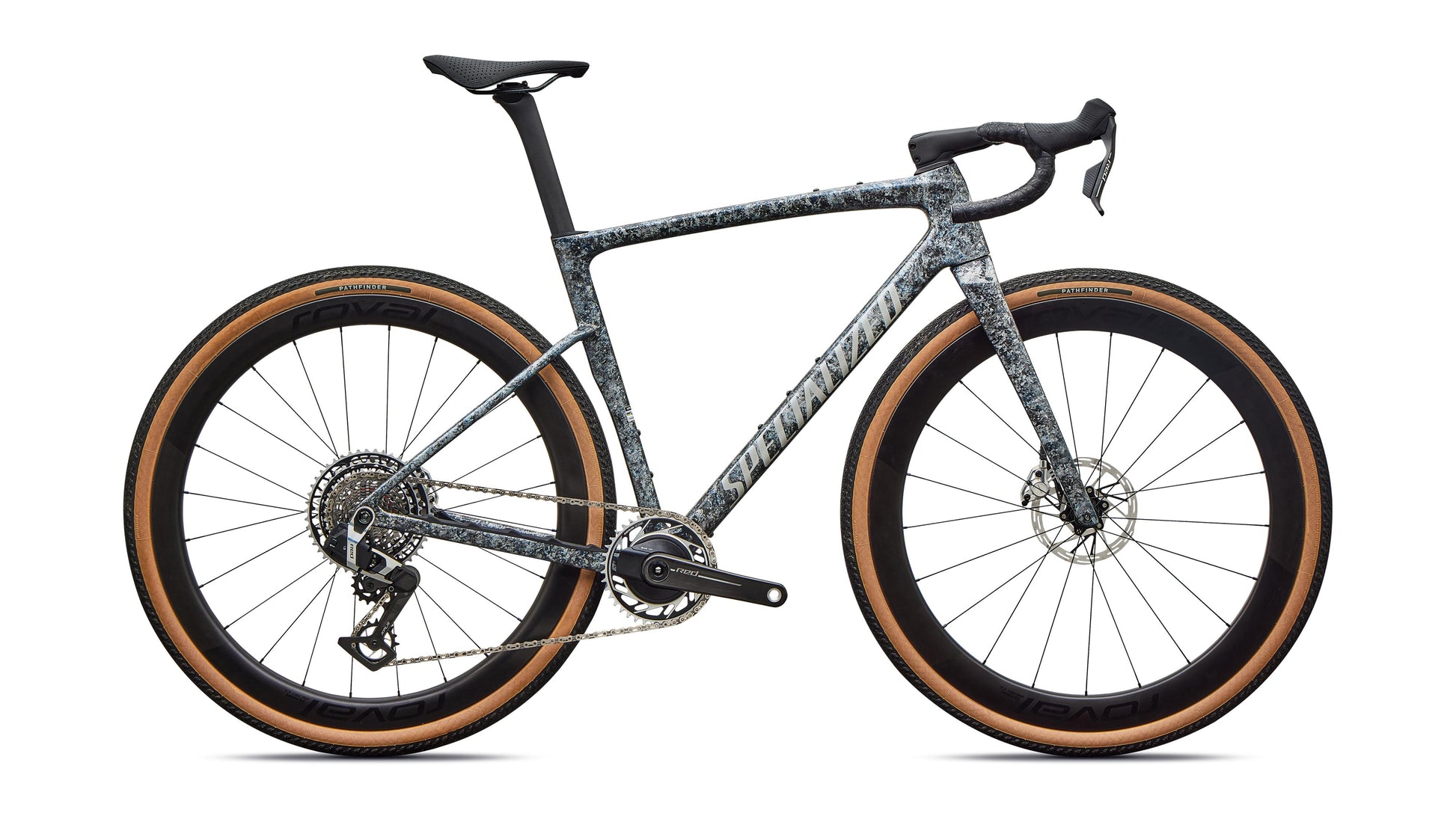

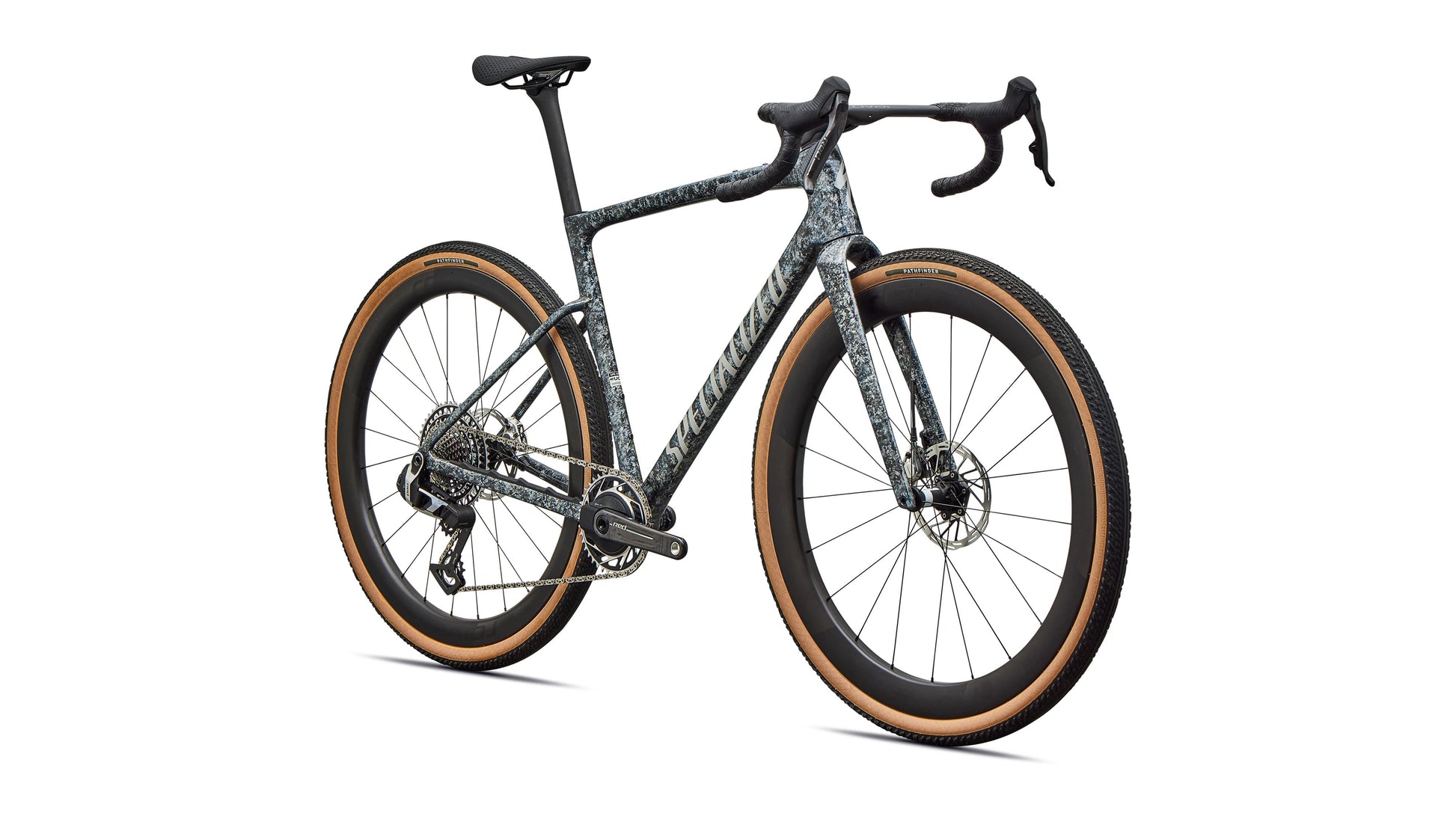

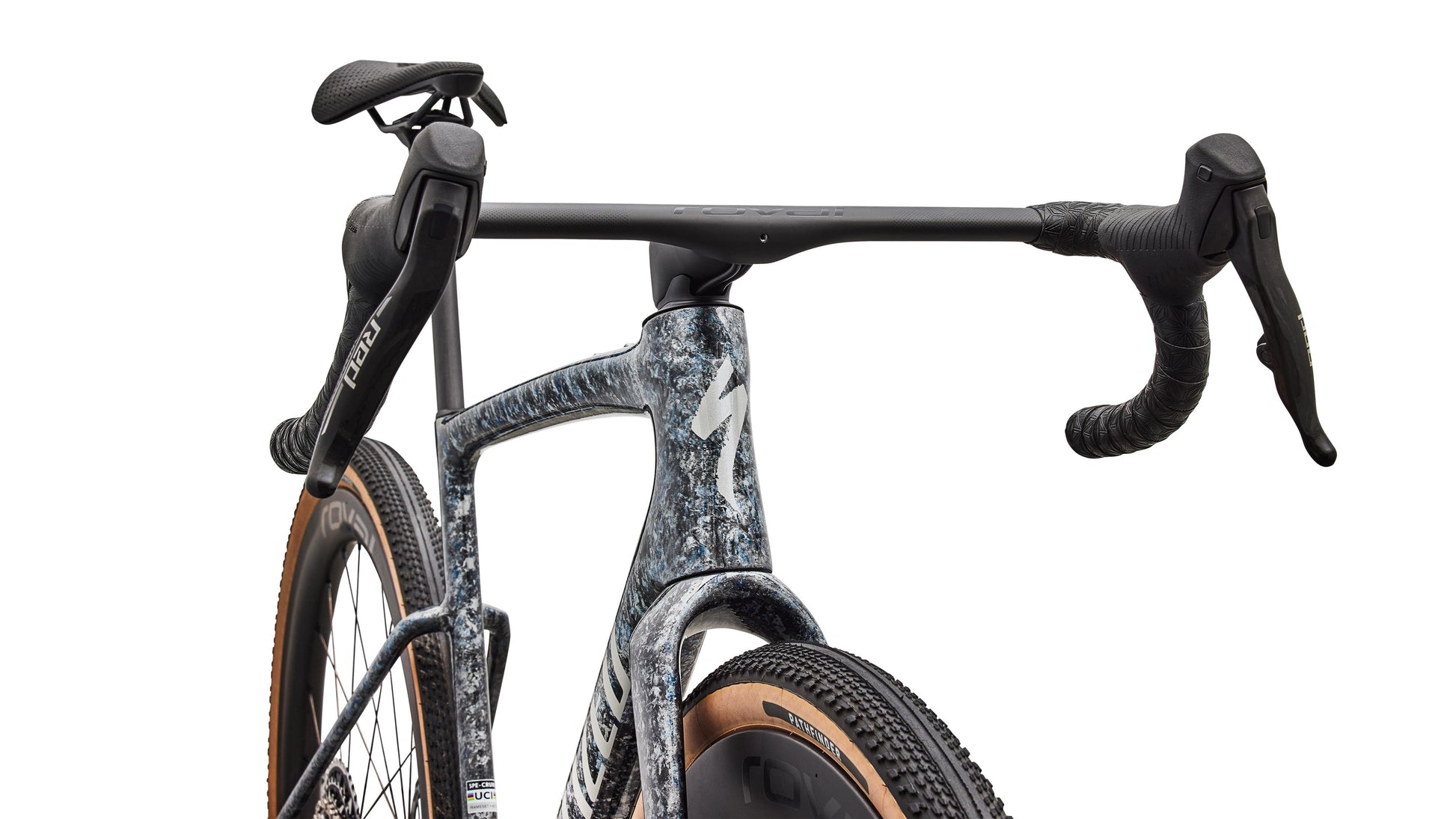

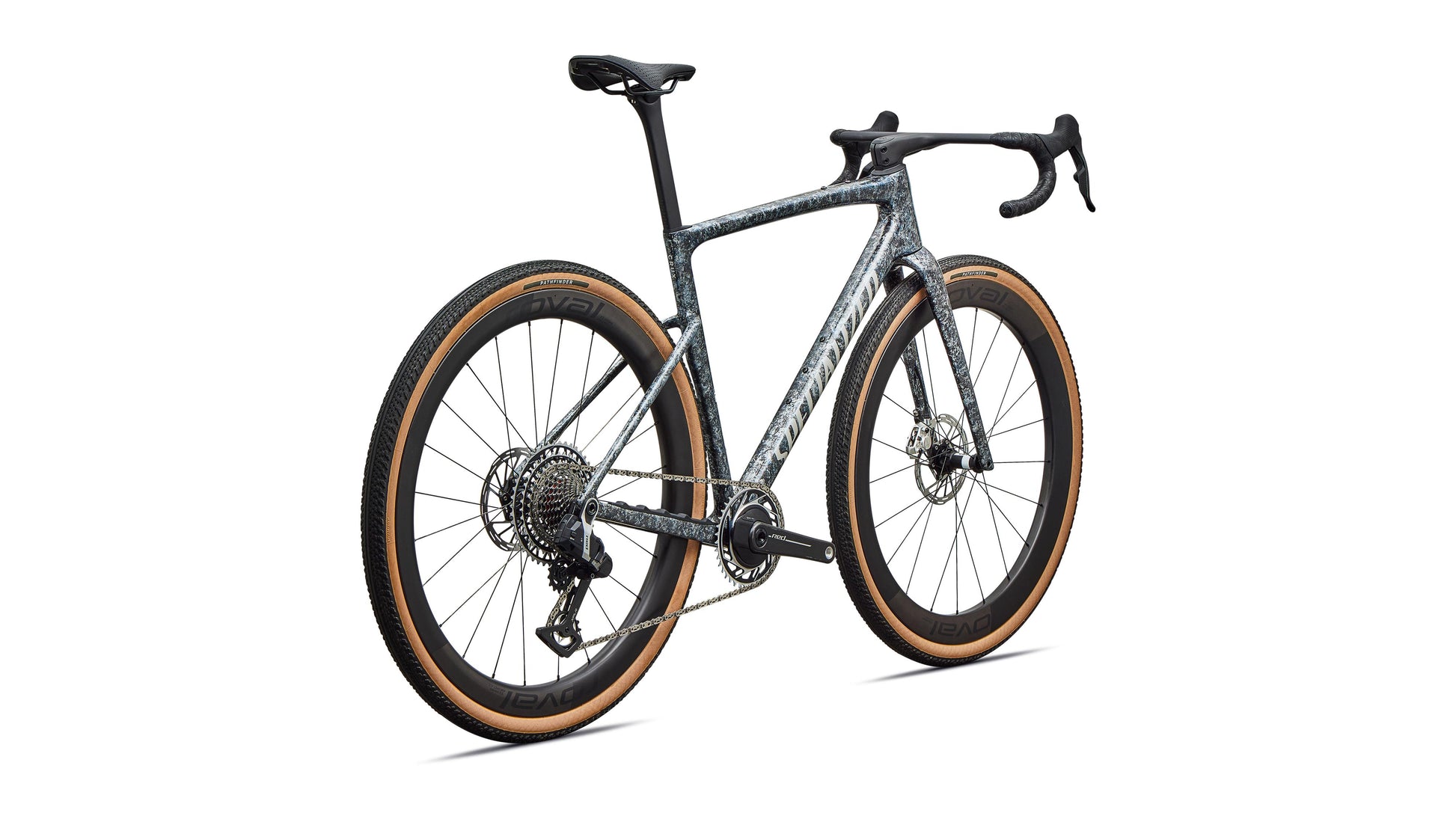

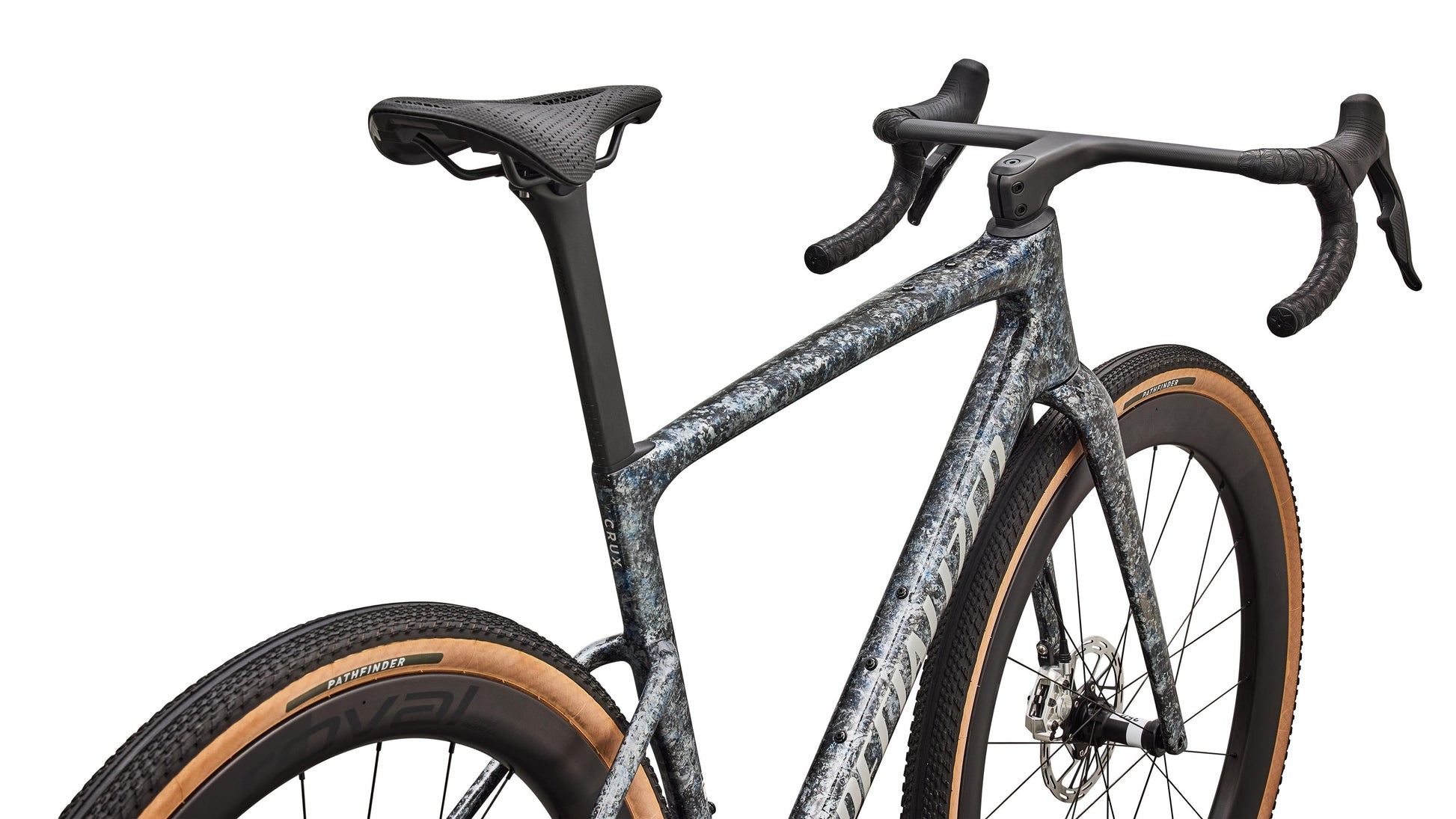

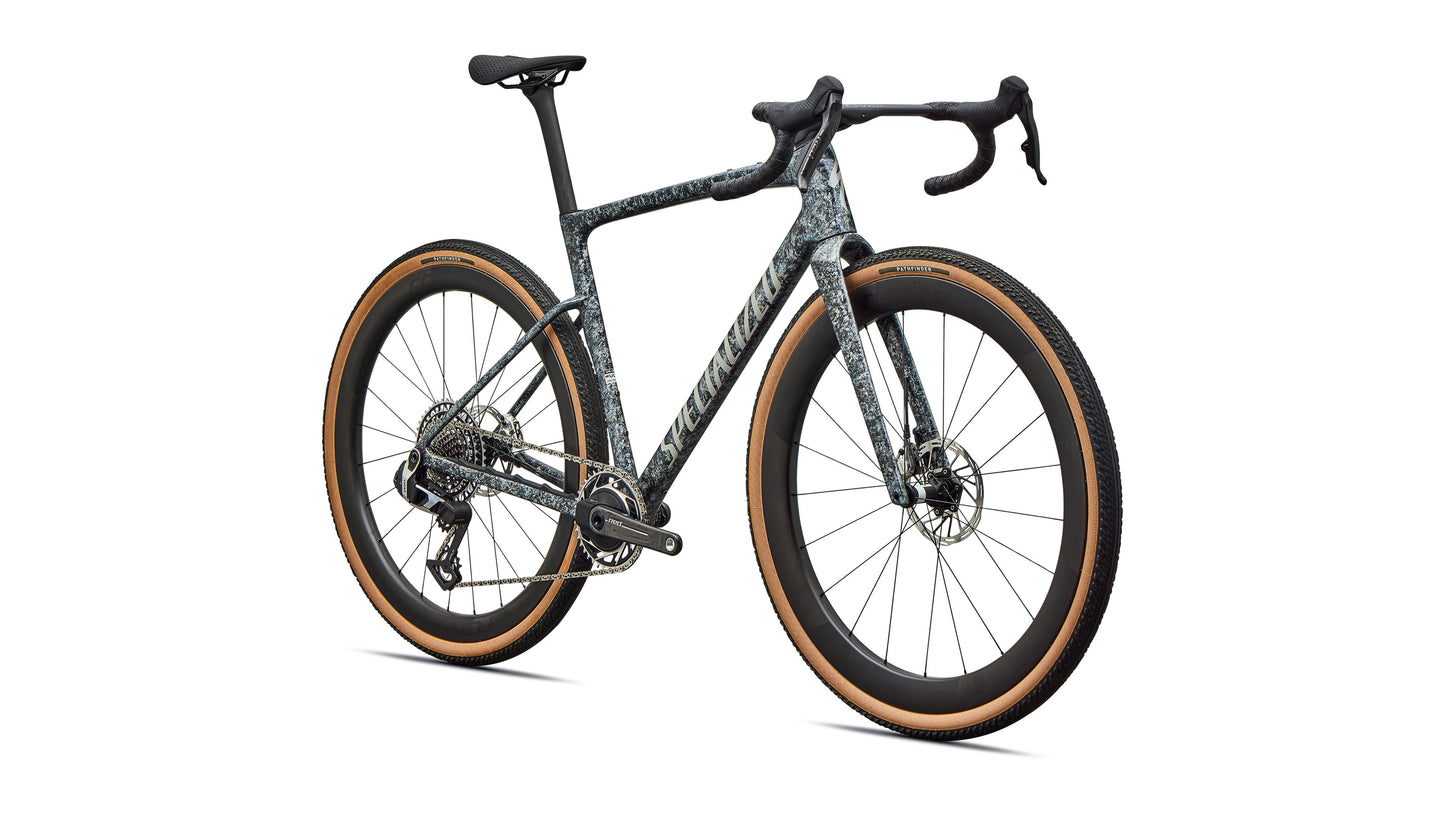

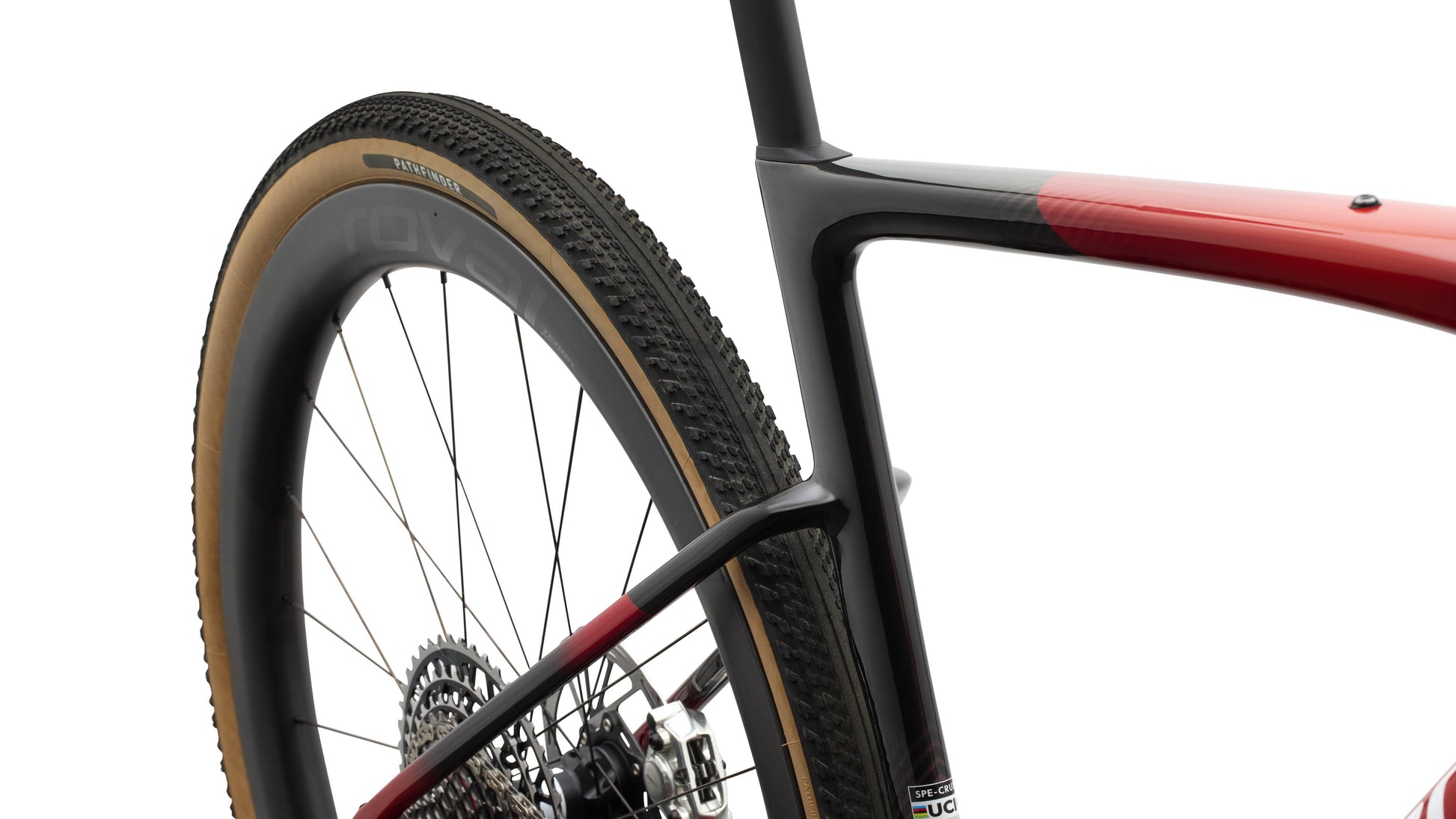

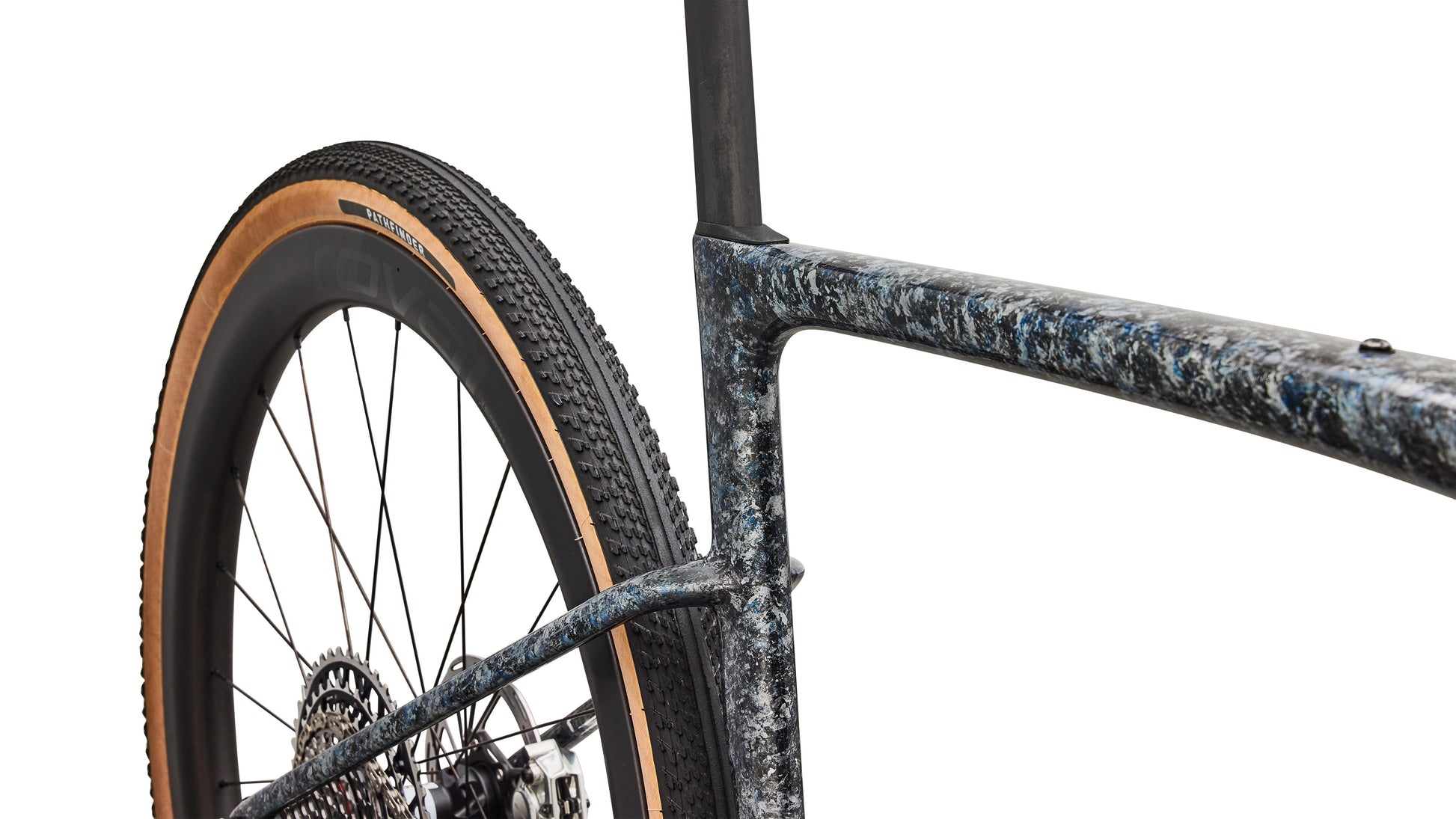

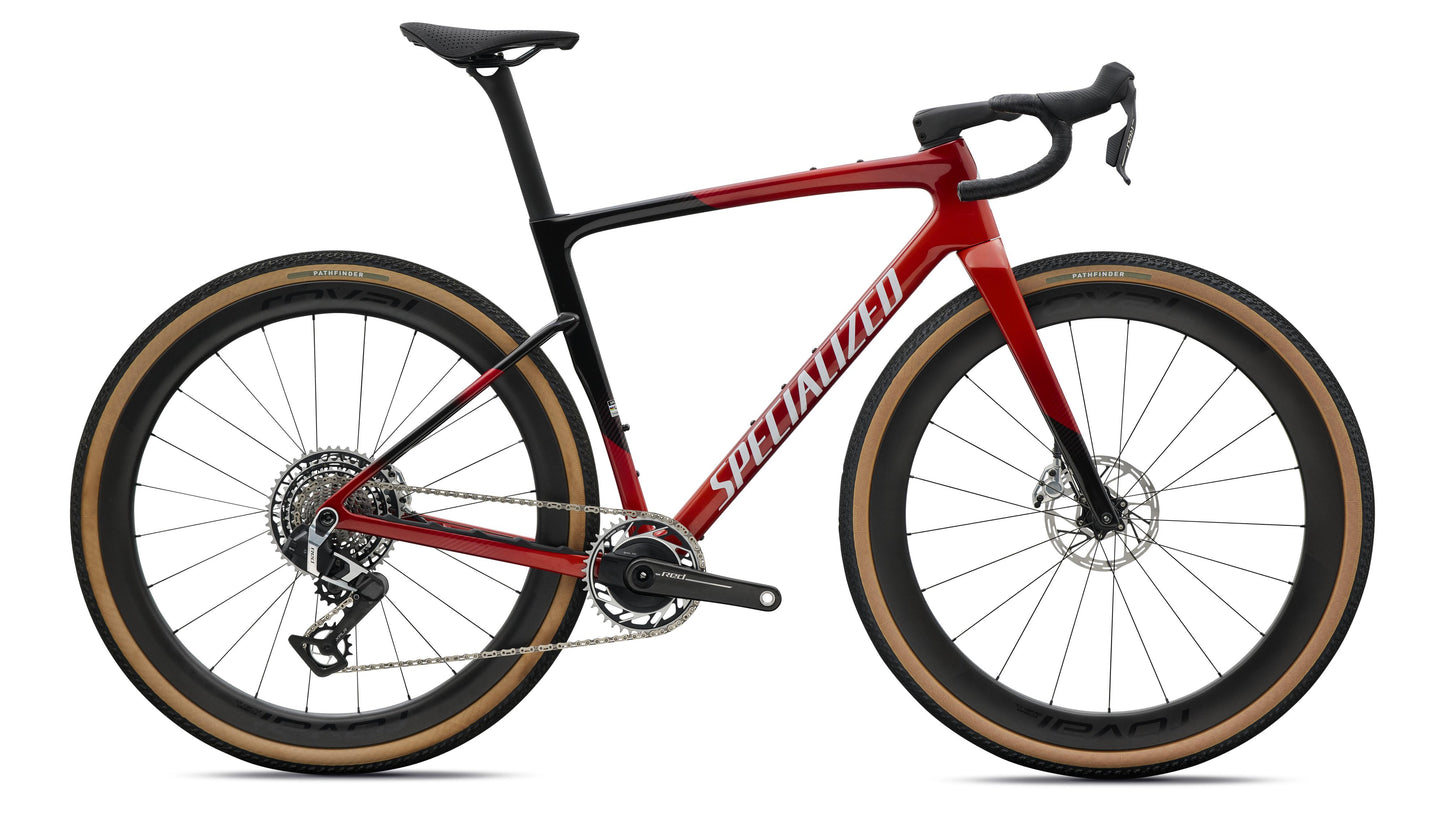

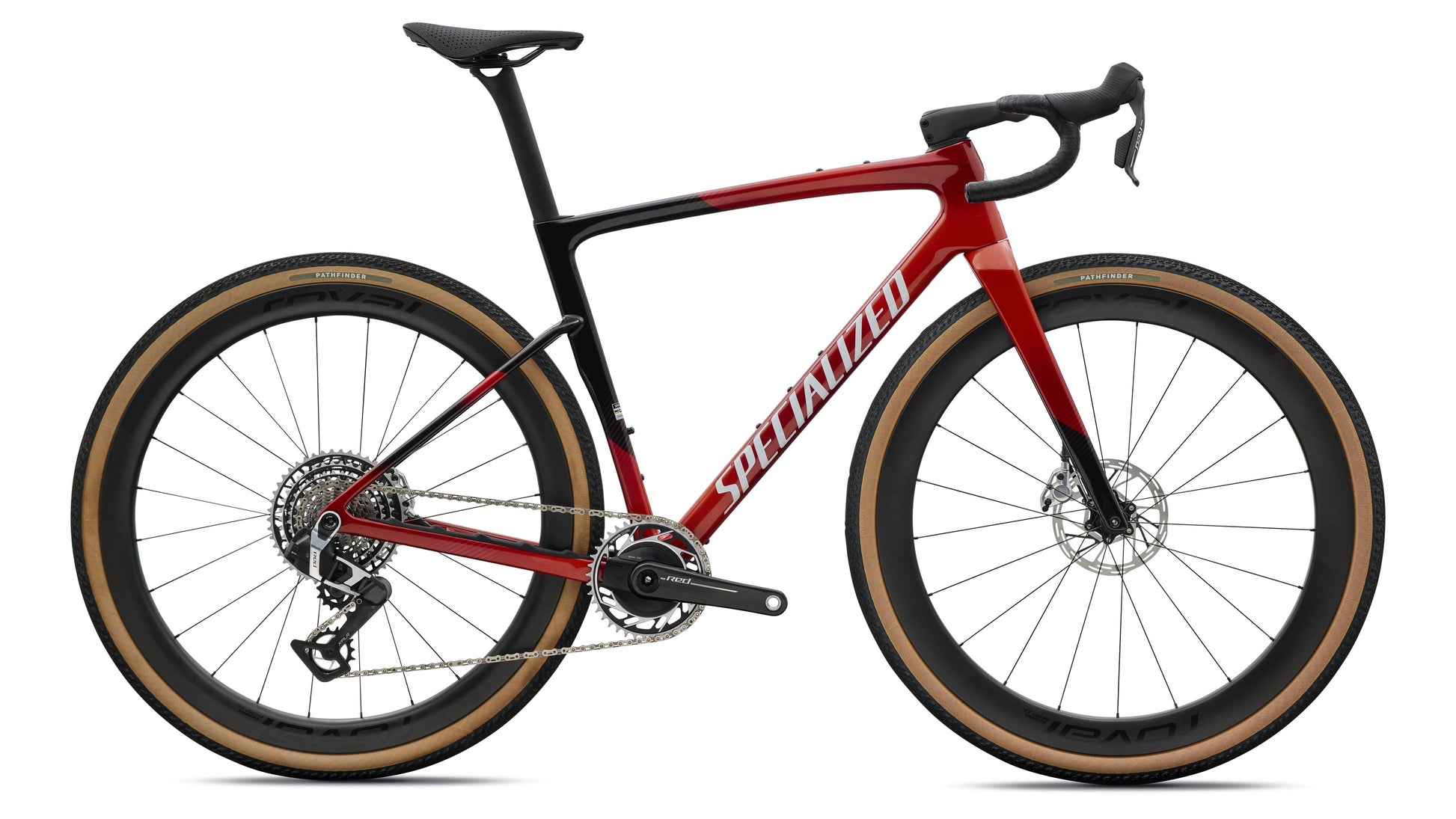

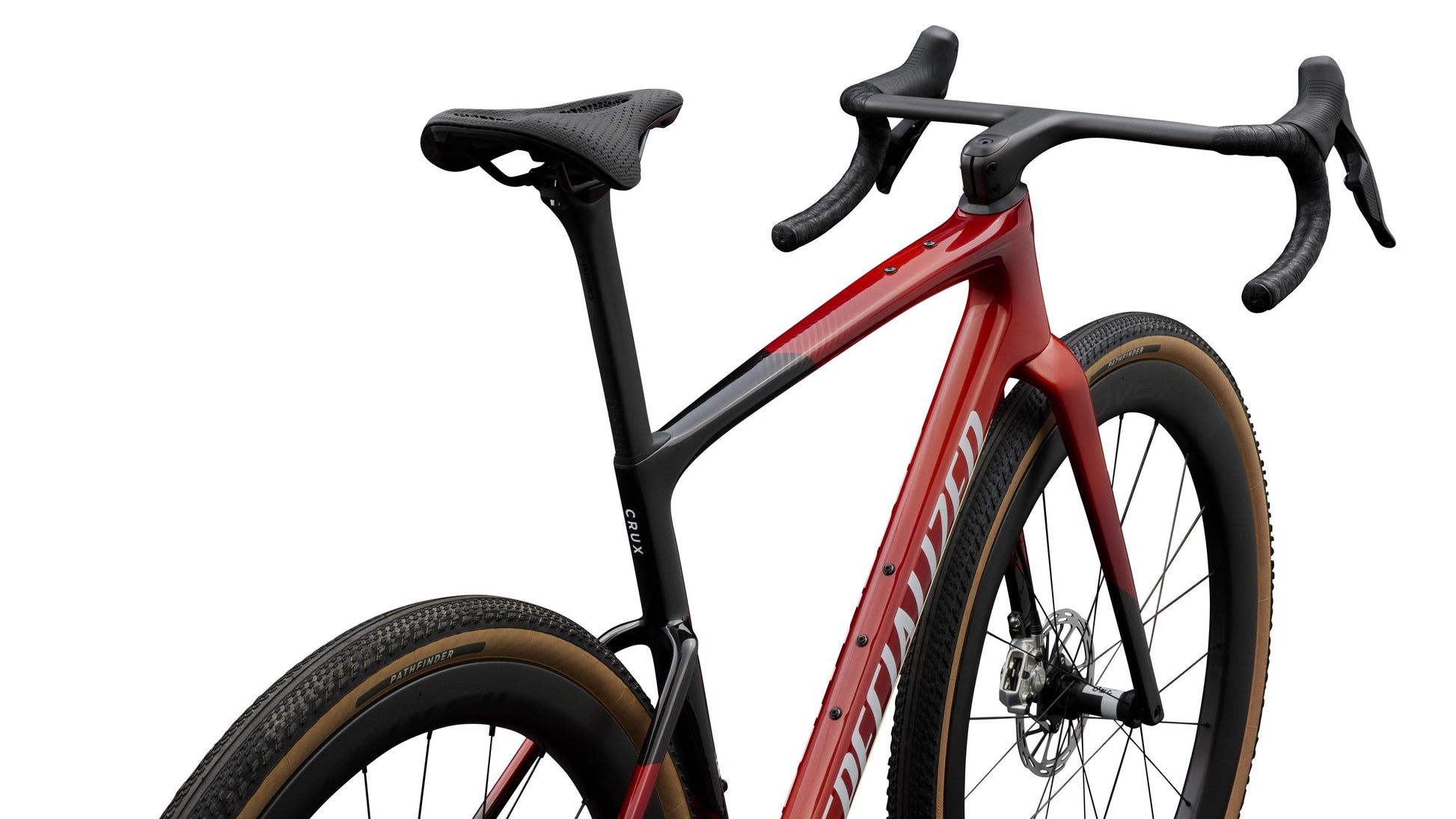

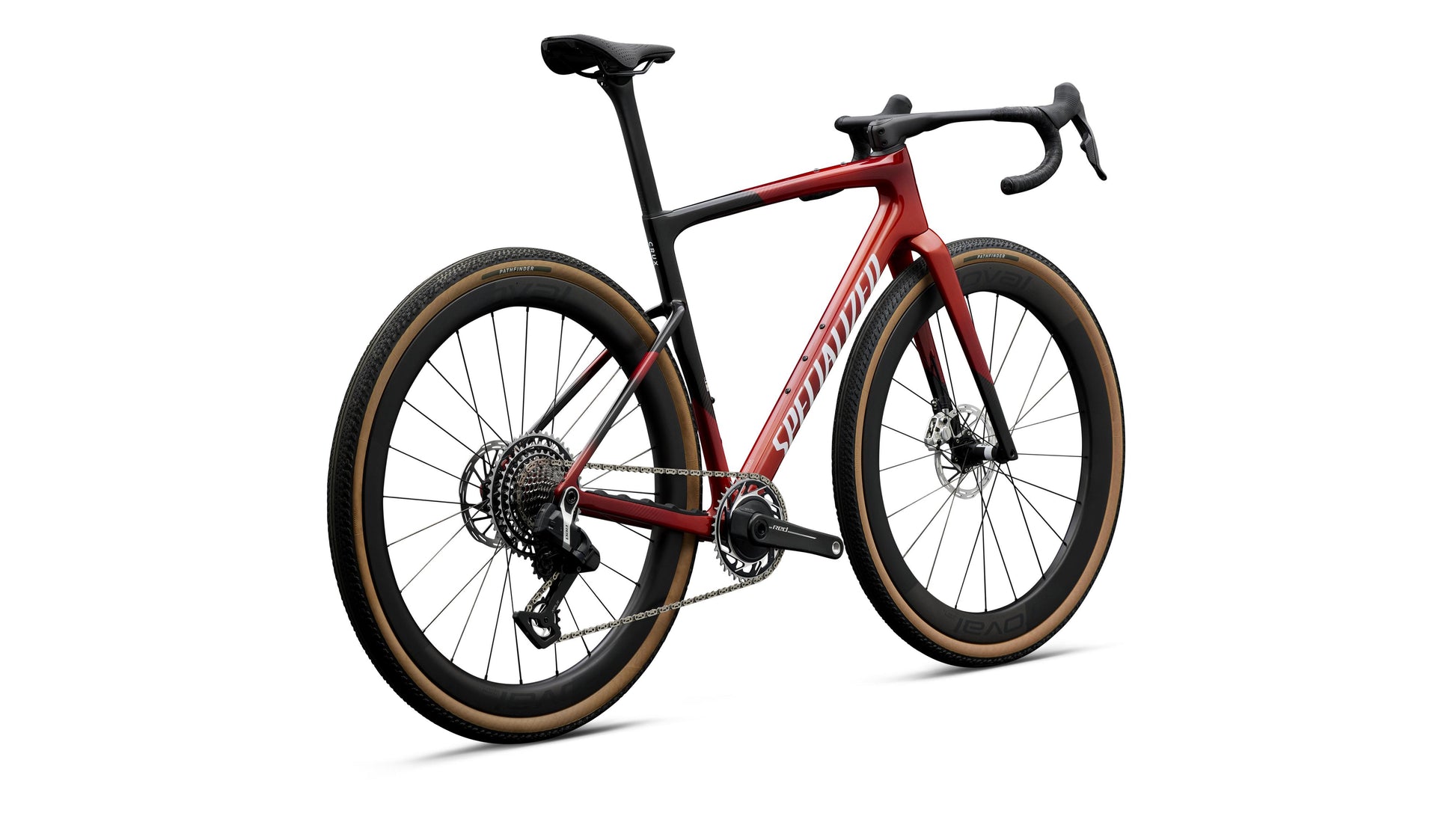

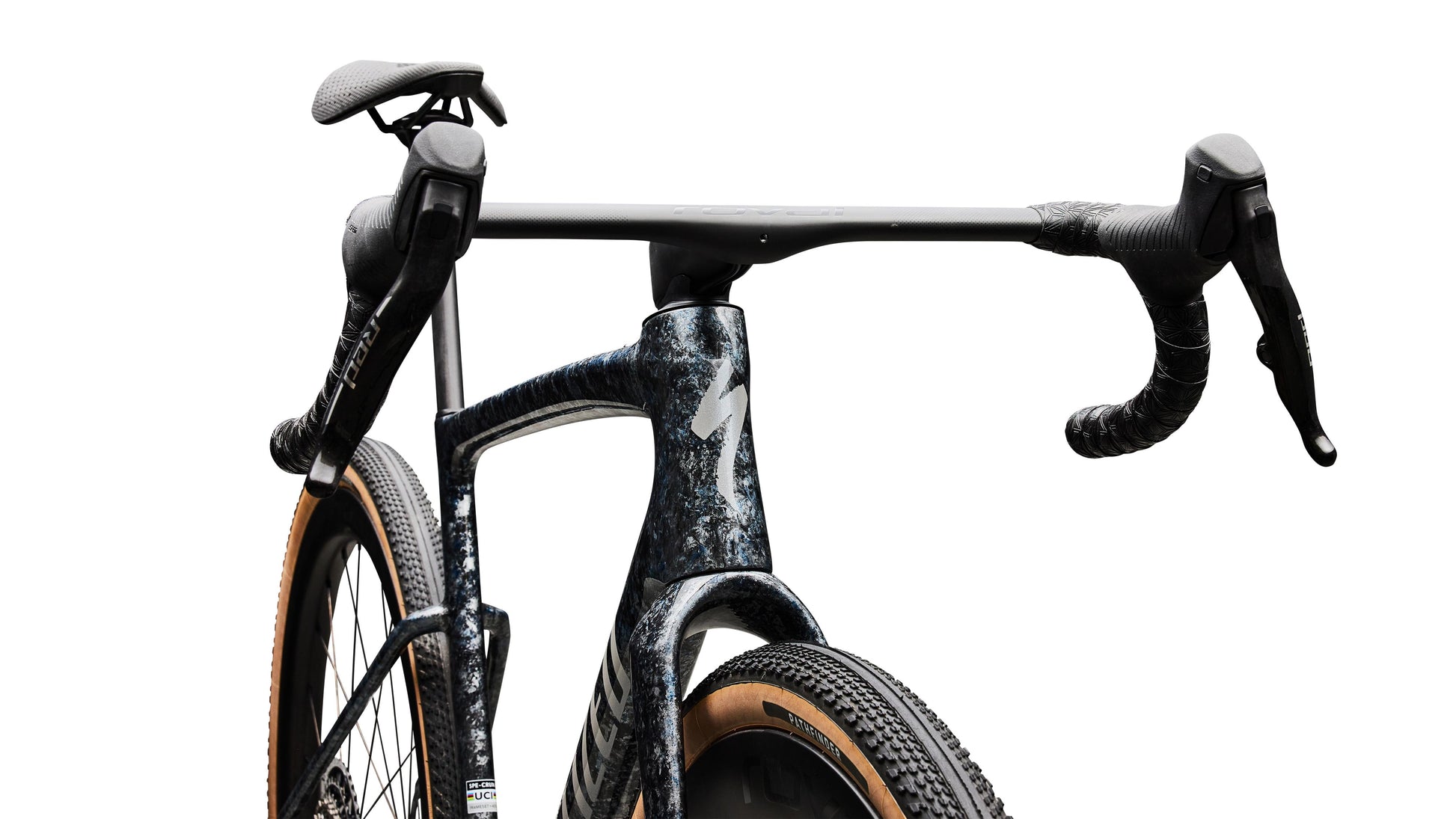

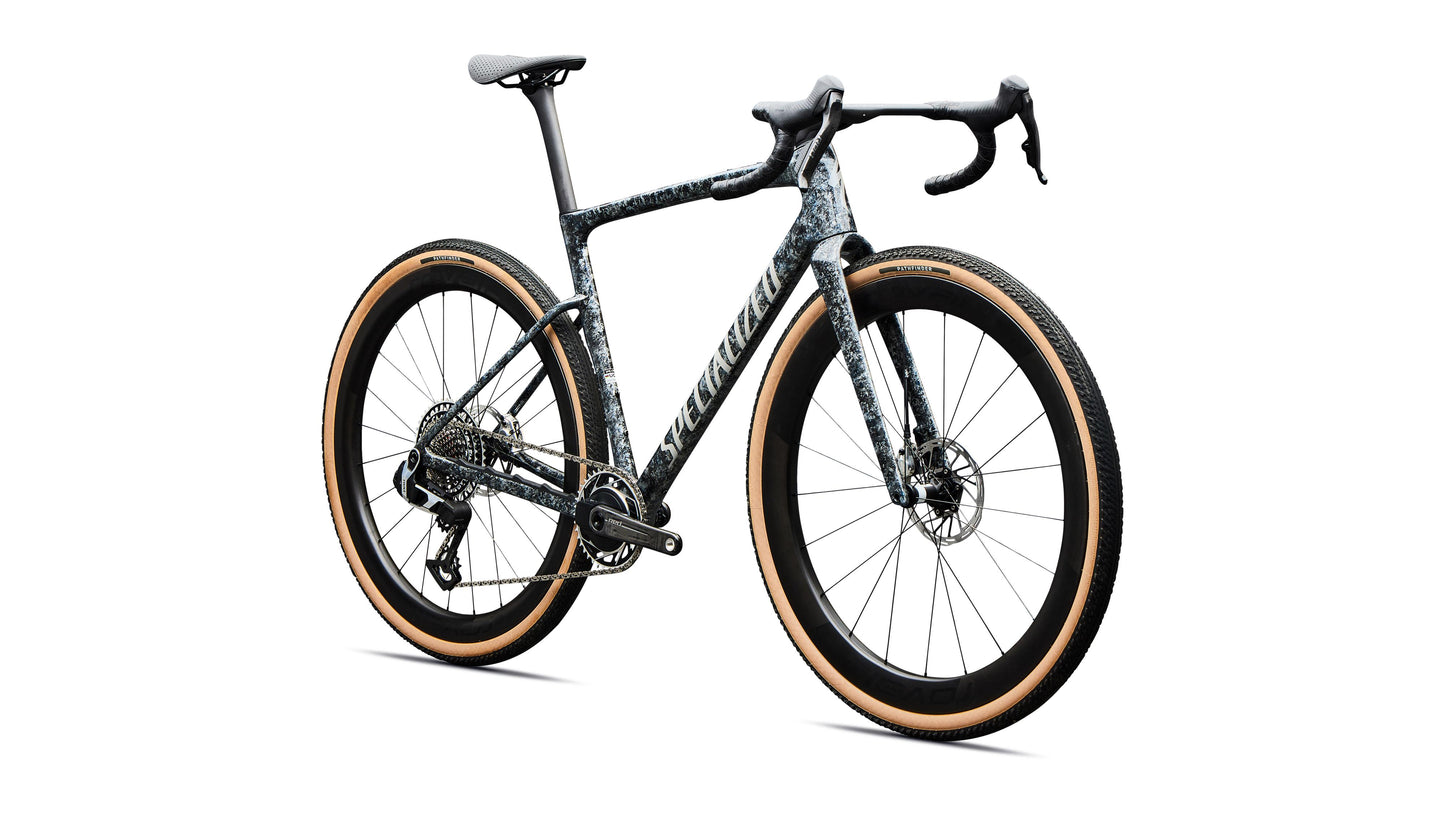

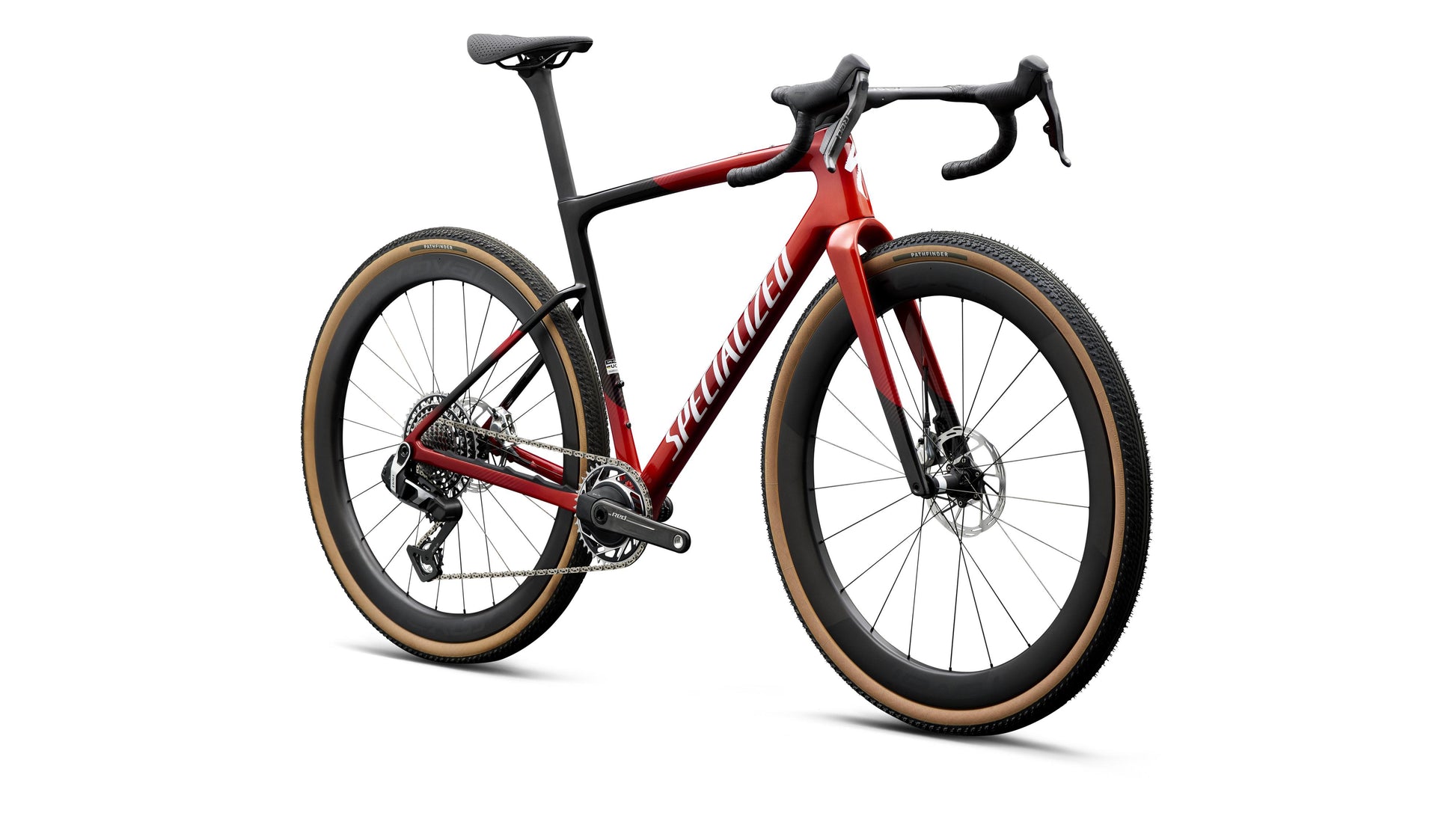

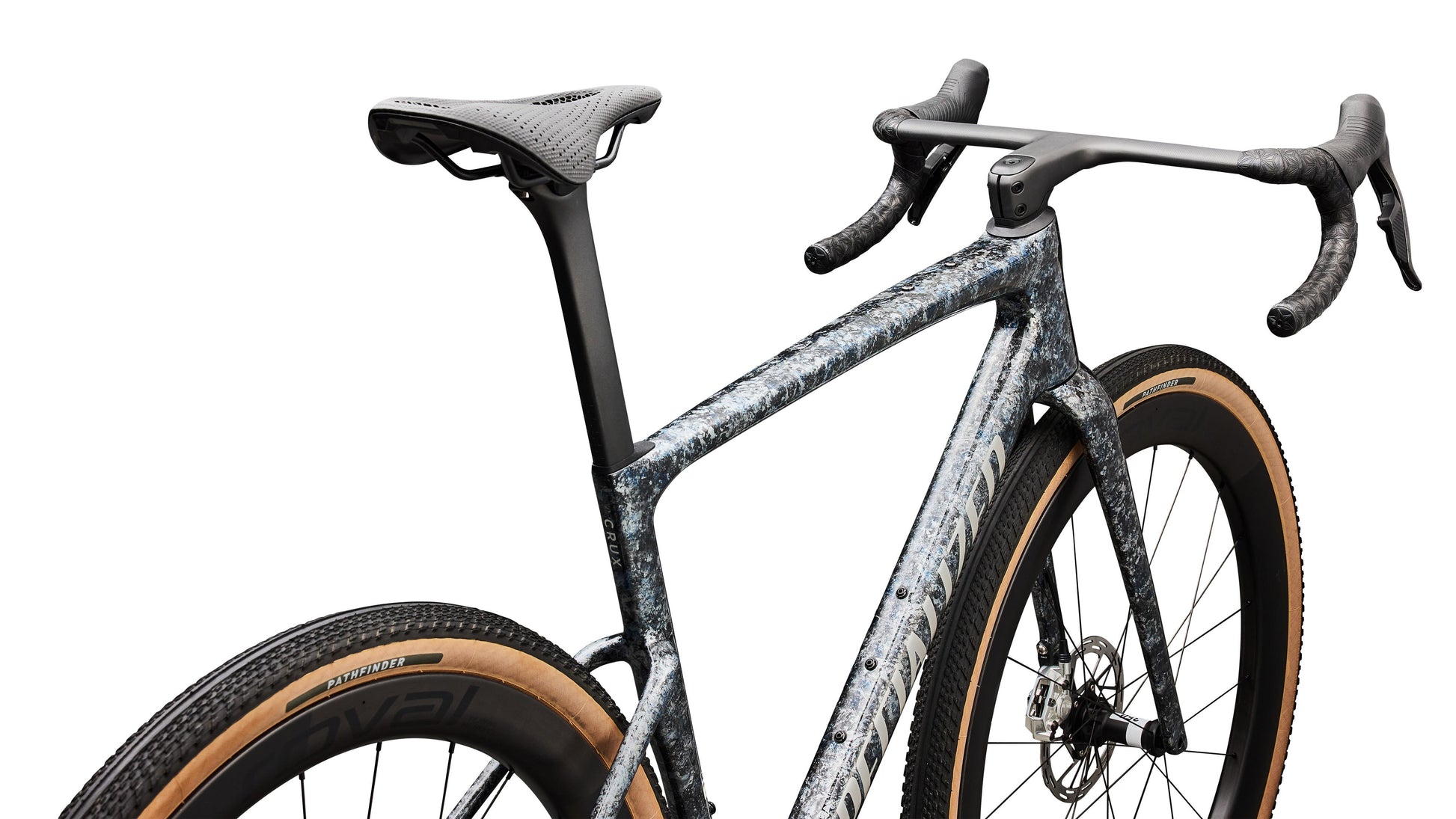

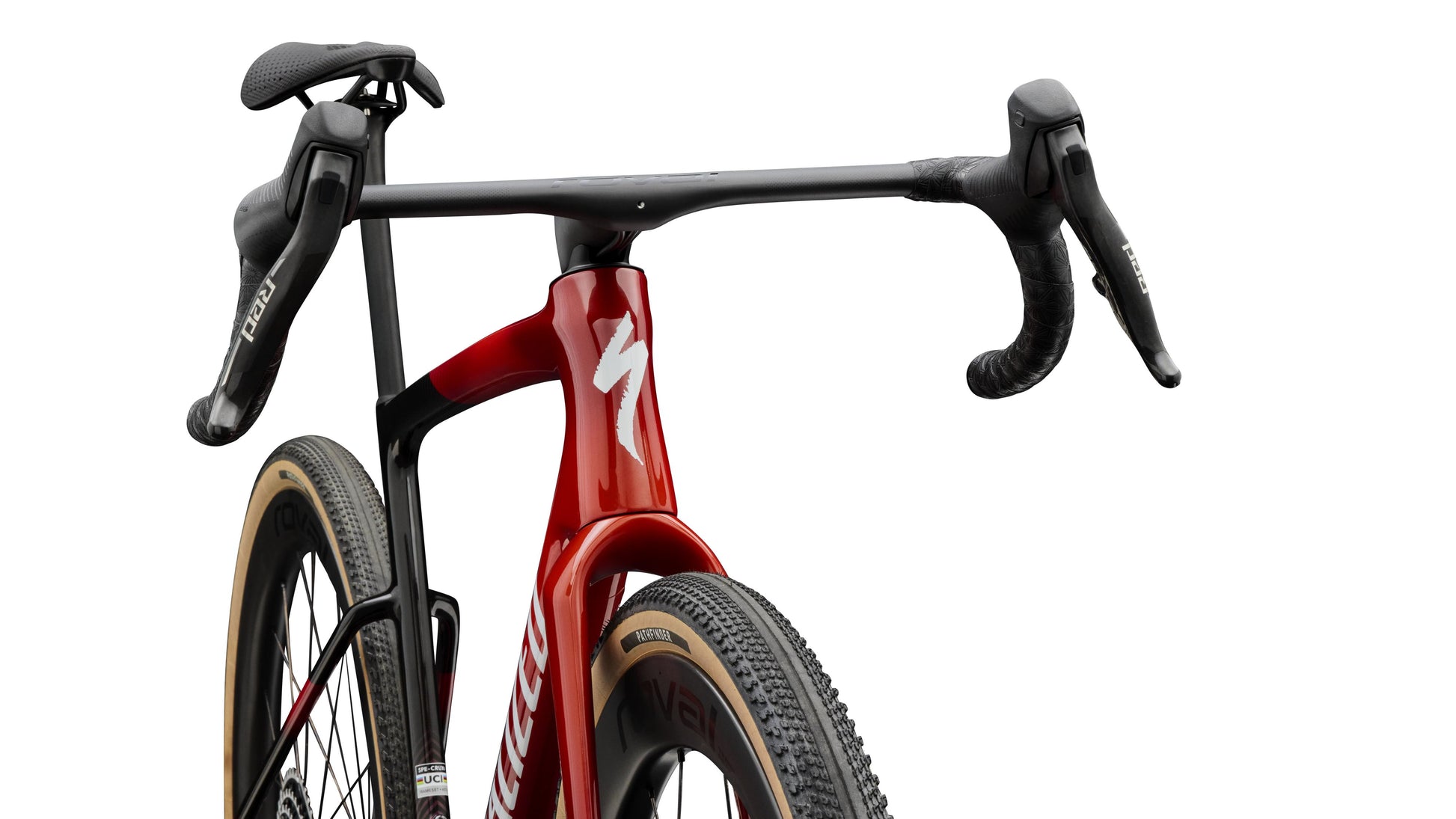

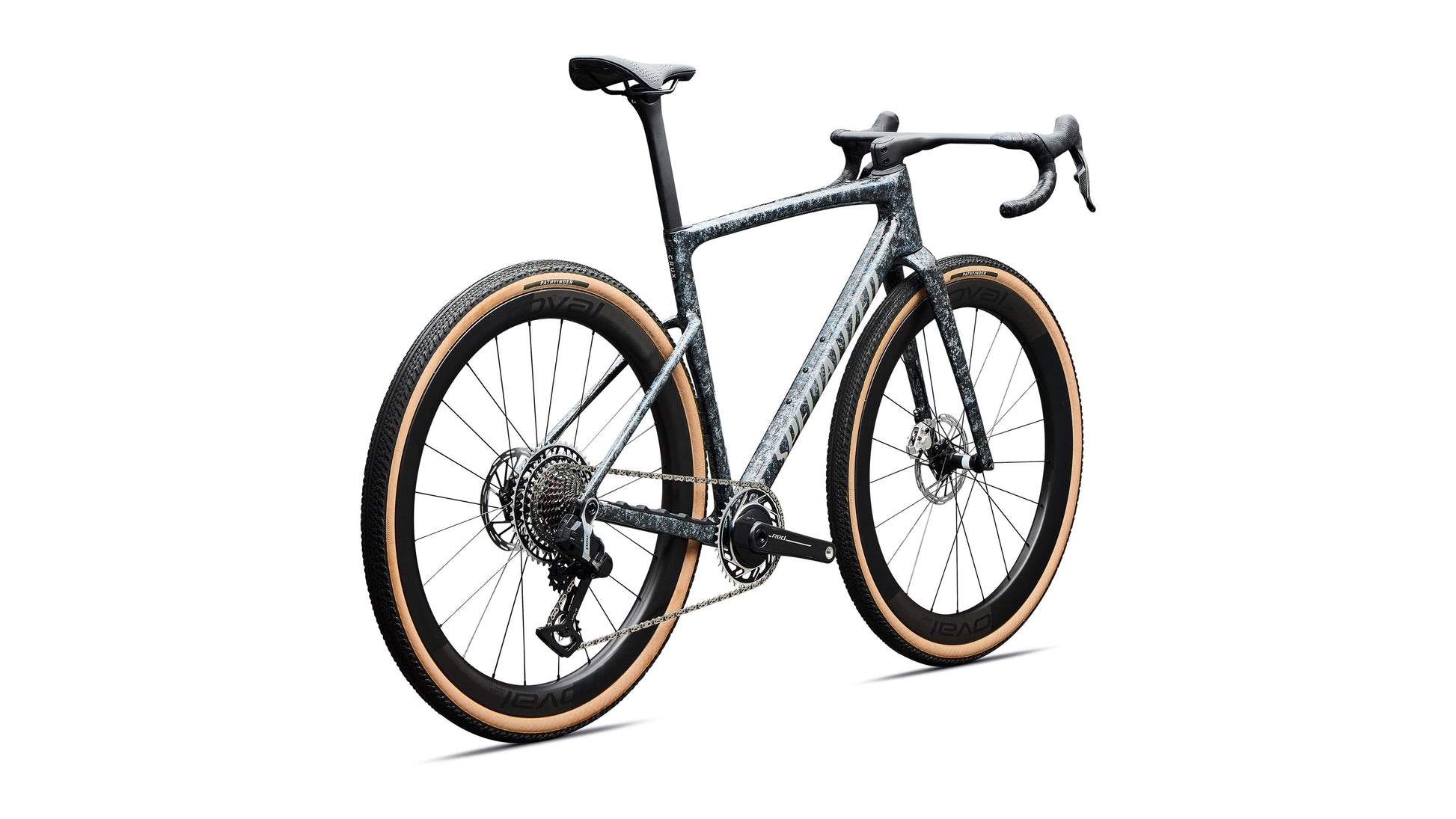

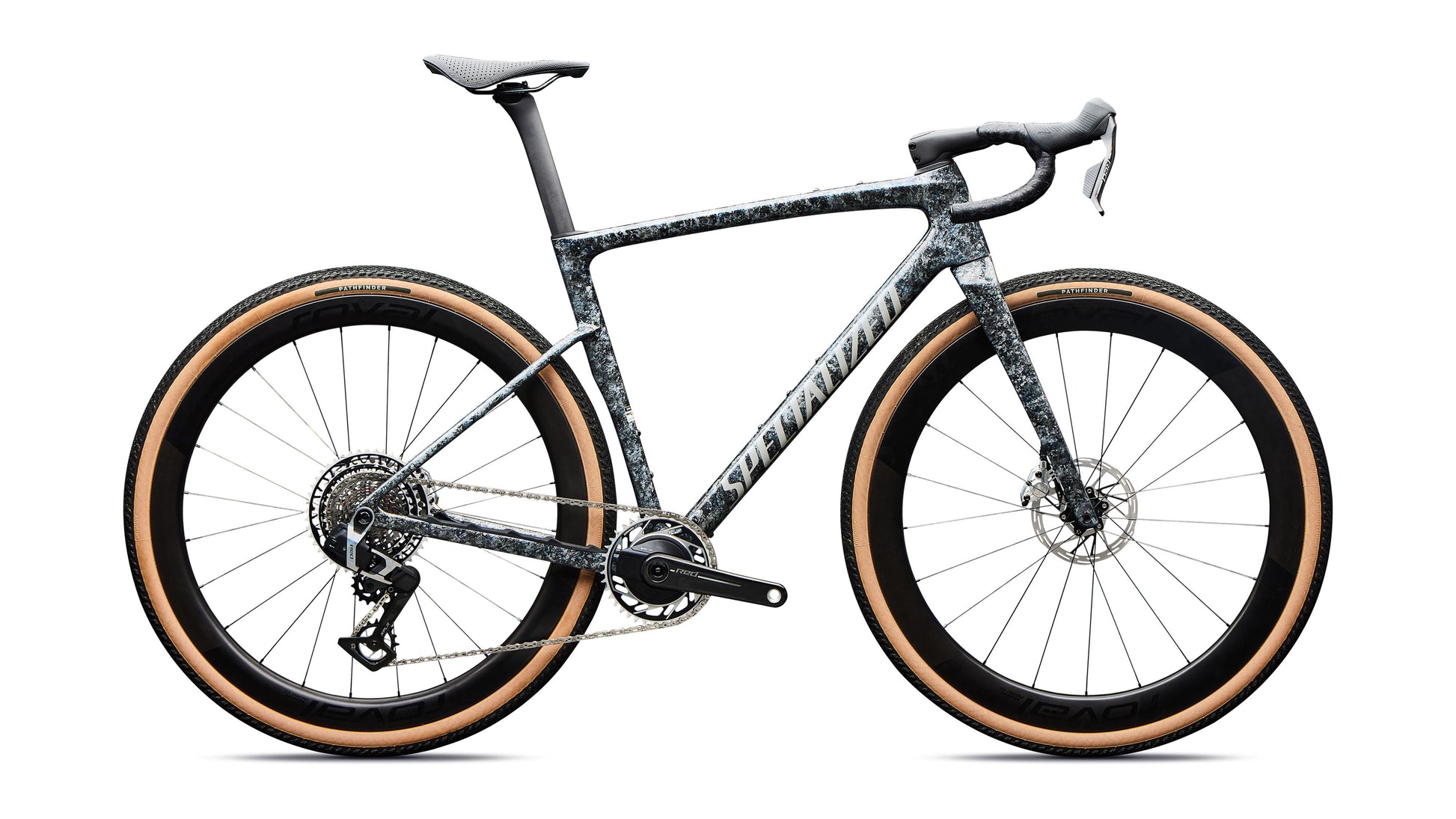

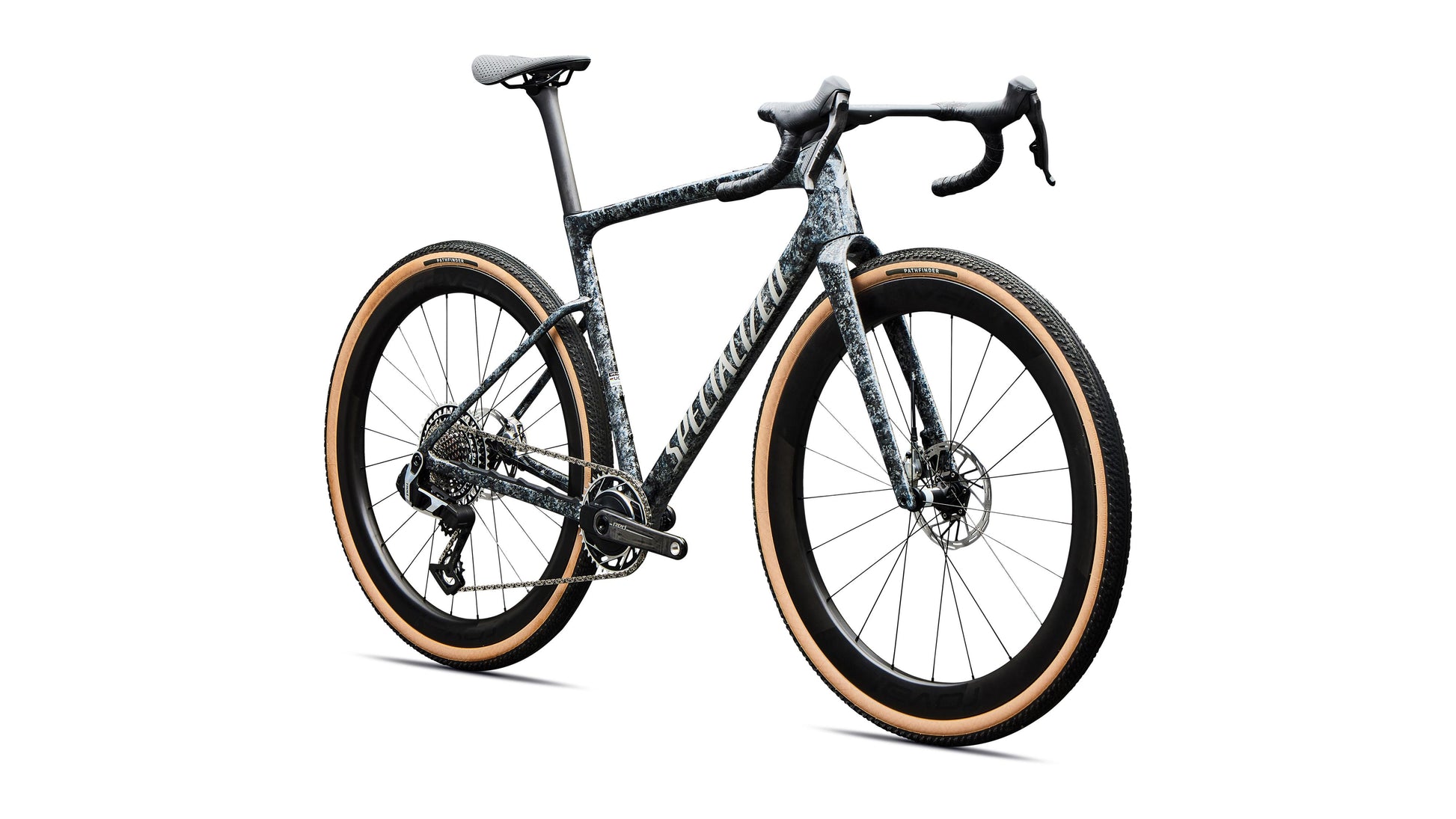

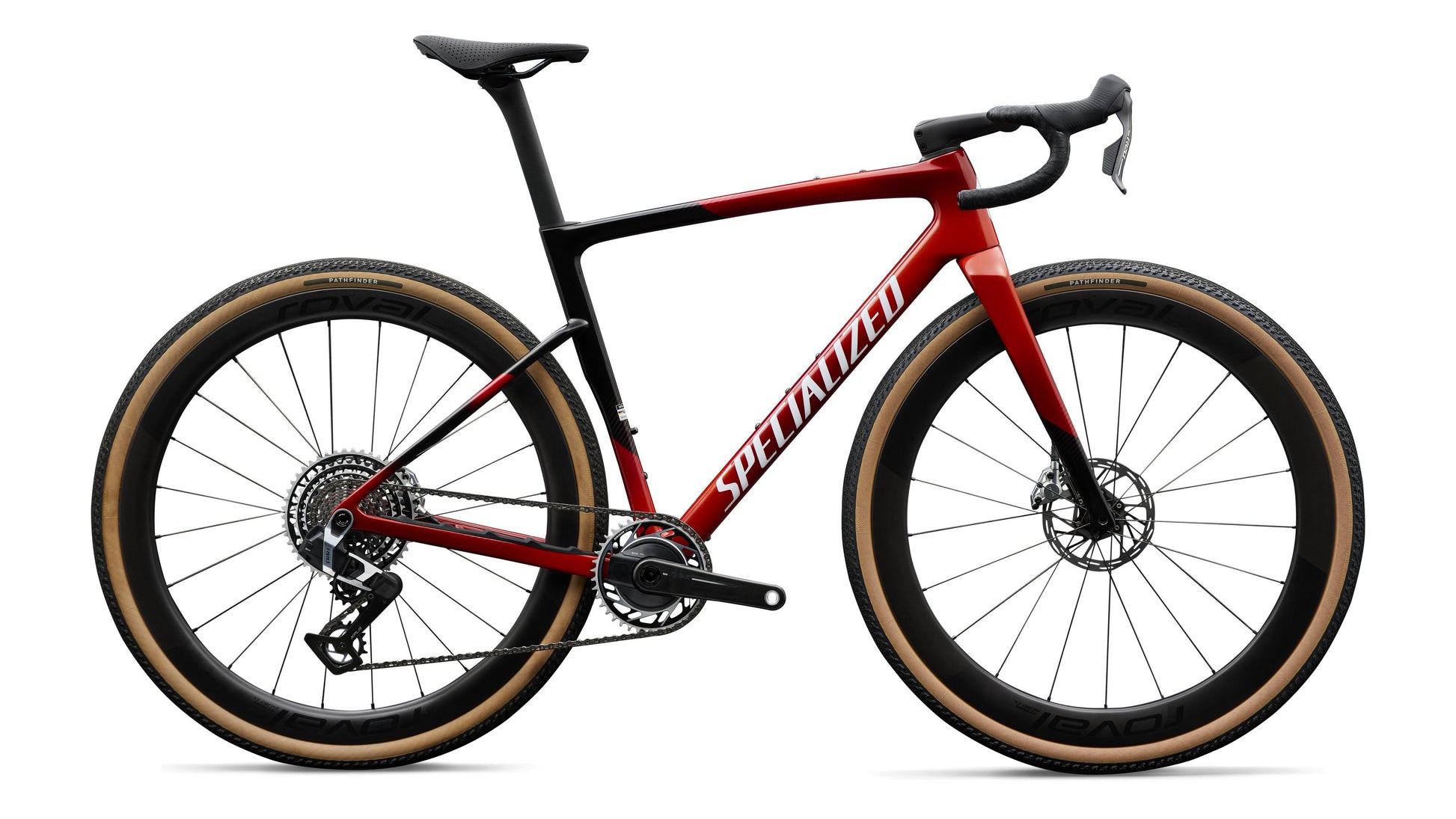

2027 Specialized Crux 5 S-Level - SRAM RED XPLR

2027 Specialized Crux 5 S-Level - SRAM RED XPLR

91427-1052

$10,499.99
$10,499.99 $10,499.99
New
Color
Size
Low Stock - Only 5 left!
View full details

    2027 Specialized Crux 5 S-Level - SRAM RED XPLR Features

    The Crux 5 S-Level was born from the fastest gravel race bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not just because it handles dirt like a Tarmac handles pavement. But because it delivers the lowest real-world Time to Finish of any gravel bike ever made. Crux 5 turns more of your effort into pure speed—validated across real race courses, real terrain, and real riders. When the goal is the top step, nothing in gravel gets you there faster.

    At a Glance

    • Use - Gravel Racing
    • Frame - FACT 10r Carbon: 897 grams
    • Wheels - Roval Terra CL
    • Cockpit - Roval Terra Integrated
    • Drivetrain - SRAM RED XPLR
    • Weight - 7.7 kg

    Component Specifications

    Frameset
    frame

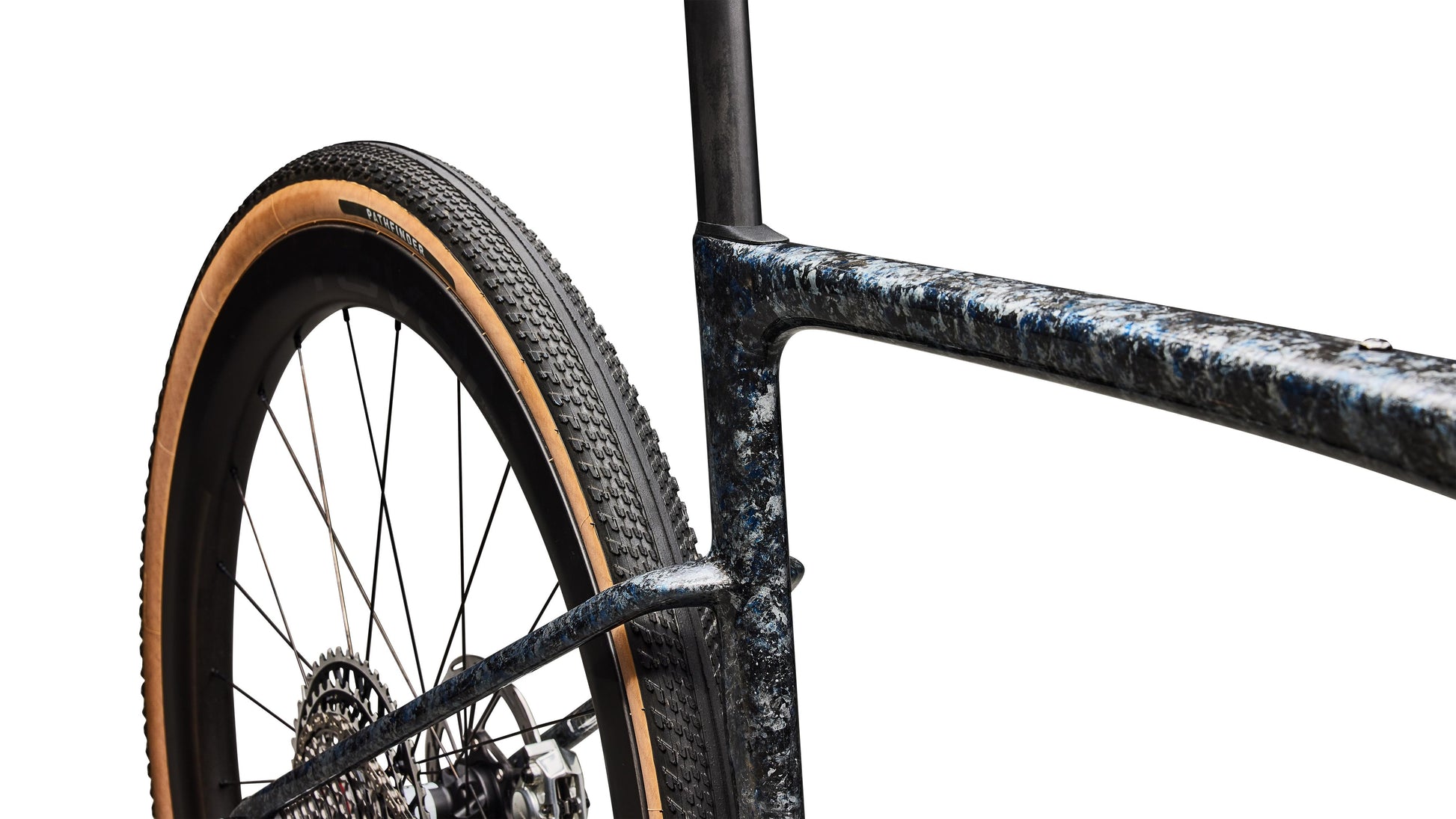

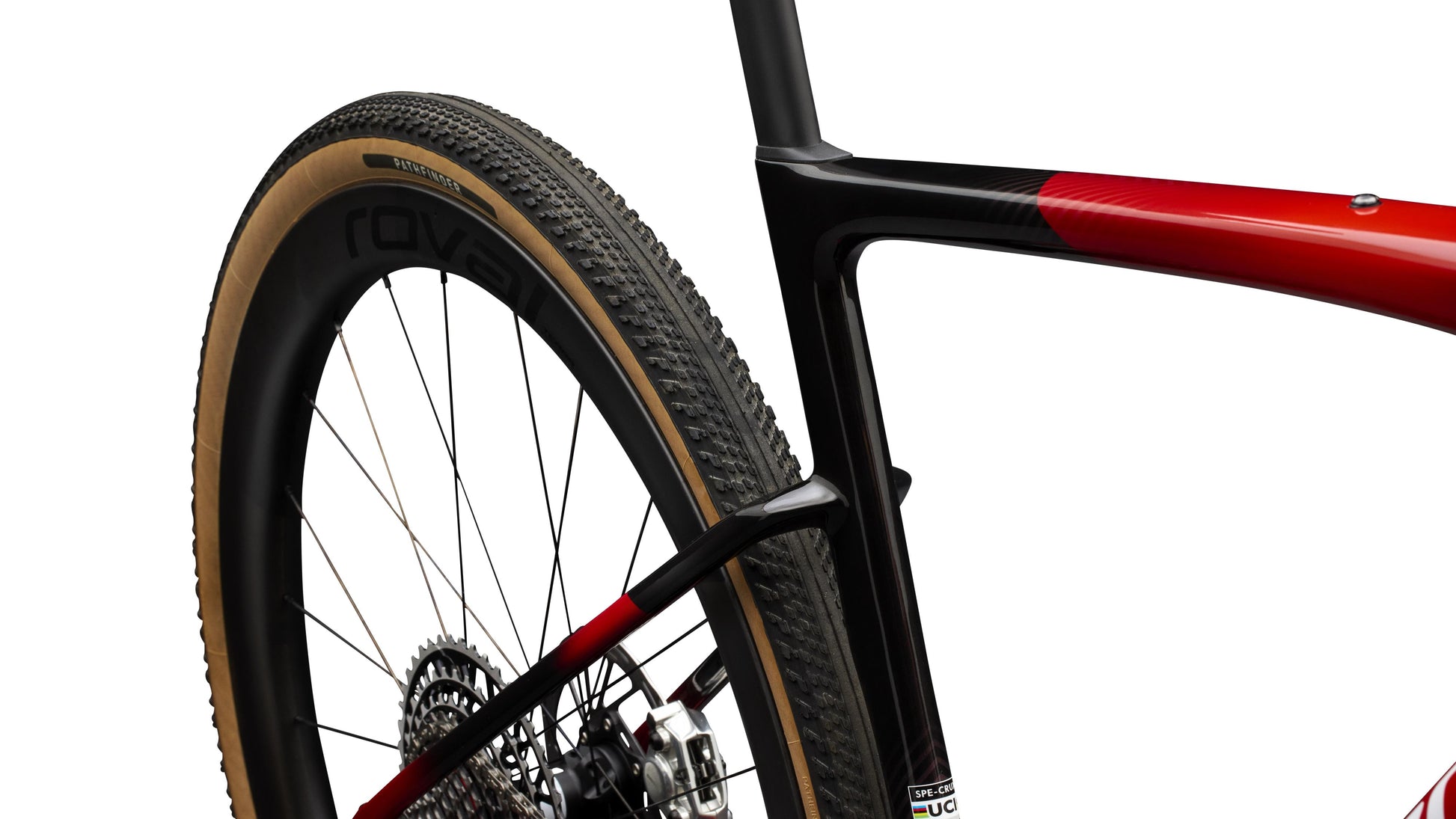

    Crux 5 FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
    seat binder
    Integrated Wedge
    Suspension
    fork
    S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
    Brakes
    front brake
    SRAM RED E1, hydraulic disc
    rear brake
    SRAM RED E1, hydraulic disc
    Drivetrain
    shift levers
    SRAM RED AXS E1, hydraulic disc
    rear derailleur
    SRAM RED AXS XPLR E1, 13-speed
    cassette
    SRAM RED XPLR E1, 13-speed, 10-46t
    chain
    SRAM RED E1
    crankset
    SRAM RED XPLR E1, Quarq power meter, 40t
    bottom bracket
    SRAM DUB BSA 68 Wide
    Wheels & Tires
    front tire
    Pathfinder 700x45, Tubeless Ready
    rear tire
    Pathfinder 700x45, Tubeless Ready
    inner tubes
    700x32x50mm, 60mm Presta valve
    front wheel
    Roval Terra Aero CL, 27mm internal width, tubeless ready, 50mm depth, 21h, DT 350 hub, Centerlock disc, DT Swiss Competition spokes
    rear wheel
    Roval Terra Aero CL, 27mm internal width, tubeless ready, 45mm depth, 24h, DT 350 hub, Centerlock disc, DT Swiss Competition spokes
    Cockpit
    stem
    Included in Handlebar
    handlebars
    Roval Terra Cockpit, Integrated Bar/Stem
    saddle
    Power Pro Mirror, Hollow Ti rails
    seatpost
    S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset
    tape
    Supacaz Super Sticky Kush

    2027 Specialized Crux 5 S-Level - SRAM RED XPLR

    Bike/Frame Size 49 52 54 56 58 61
    Stack 530 mm 547 mm 560 mm 578 mm 598 mm 621 mm
    Reach 375 mm 382 mm 388 mm 400 mm 412 mm 425 mm
    Chainstay Length 425 mm 425 mm 425 mm 425 mm 425 mm 425 mm
    Wheelbase 1008 mm 1016 mm 1026 mm 1039 mm 1057 mm 1078 mm
    Top Tube Length, Horizontal 512 mm 534 mm 543 mm 566 mm 583 mm 603 mm
    Bike Standover Height 753 mm 766 mm 781 mm 803 mm 823 mm 849 mm
    Seat Tube Length 445 mm 456 mm 473 mm 497 mm 515 mm 545 mm
    Seat Tube Angle 75.5° 74.5° 74.5° 74° 74° 74°
    Head Tube Length 95 mm 110 mm 125 mm 142 mm 163 mm 188 mm
    Head Tube Angle 70.5° 70.75° 71° 71.5° 71.5° 71.5°
    BB Height 278 mm 278 mm 280 mm 280 mm 280 mm 280 mm
    BB Drop 80 mm 80 mm 78 mm 78 mm 78 mm 78 mm
    Trail 72 mm 71 mm 69 mm 66 mm 66 mm 66 mm
    Fork Length, Full 401 mm 401 mm 401 mm 401 mm 401 mm 401 mm
    Fork Rake/Offset 51 mm 51 mm 51 mm 51 mm 51 mm 51 mm
    Front Center 594 mm 604 mm 613 mm 626 mm 644 mm 665 mm

    Component Geometry

    Component 49 52 54 56 58 61
    Crank Length 165 mm 165 mm 170 mm 170 mm 172.5 mm 172.5 mm
    Handlebar Width 380 mm 380 mm 400 mm 400 mm 420 mm 420 mm
    Stem Length 75 mm 90 mm 90 mm 100 mm 100 mm 100 mm
    Saddle Width 155 mm 155 mm 143 mm 143 mm 143 mm 143 mm
    Seatpost Length 300 mm 300 mm 380 mm 380 mm 380 mm 380 mm
