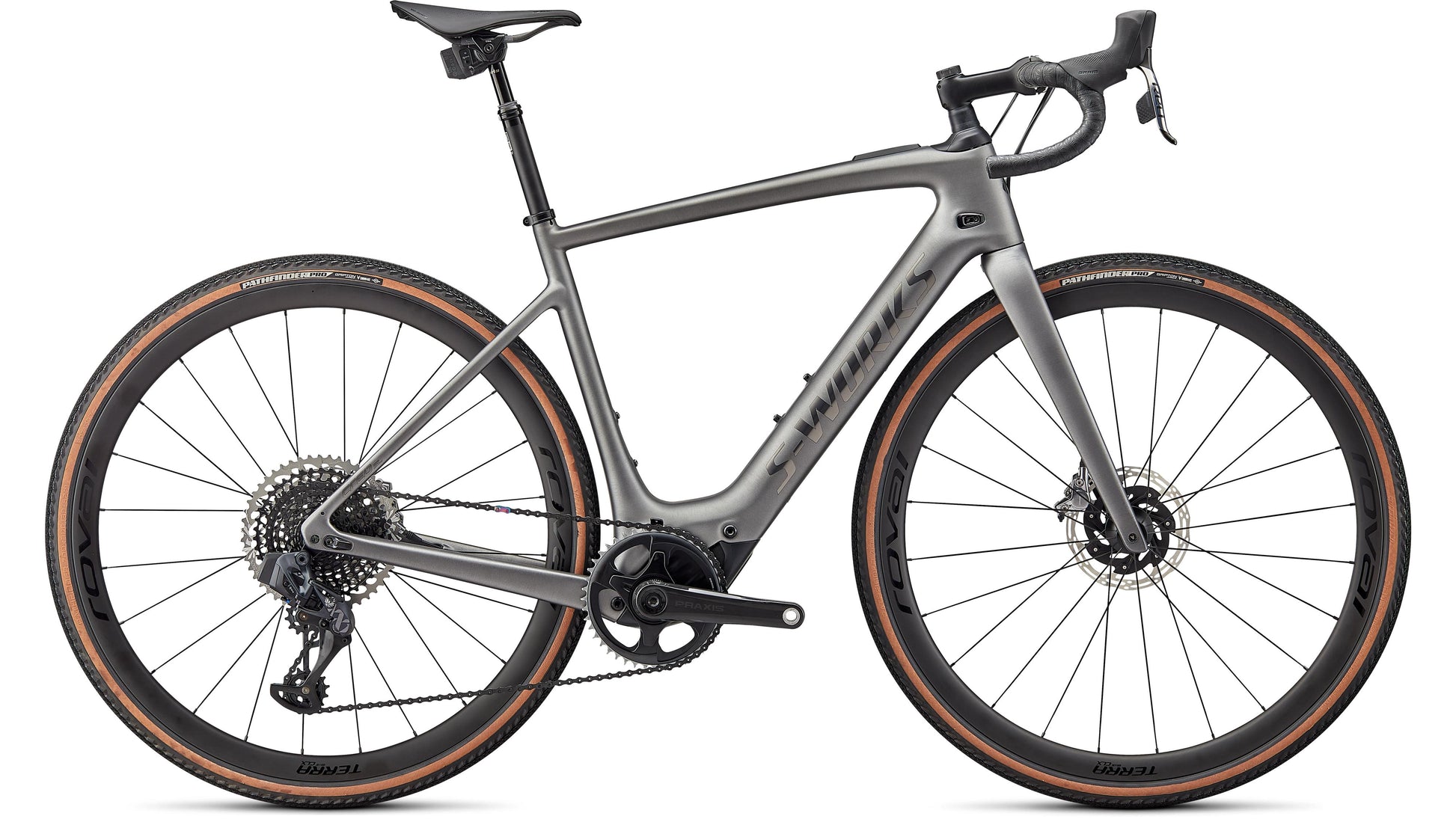

2022 Specialized S-Works Turbo Creo SL EVO

2022 Specialized S-Works Turbo Creo SL EVO

SKU:98122-0103

Regular price $9,997.97
Regular price $14,749.99 Sale price $9,997.97
Sale
Color
Size
Low Stock - Only 1 left!
View full details

    2022 Specialized S-Works Turbo Creo SL EVO Features

    What is it about gravel that's so appealing? Is it the break from hectic city streets and cars? Is it the audible crunch of rocks beneath your tires? Or maybe it's just the feeling of adventure? Whatever it is, the Turbo Creo SL EVO is here to assist you further into the forest, down the gravel road, or on your next adventure. It features the same motor, battery, and frame as its road-oriented cousin, but takes advantage of tire clearance and adds in some adventure-ready components to take you wherever your heart desires. It's you, only faster.

    Like all of our S-Works bikes, the S-Works Turbo Creo SL EVO is our pinnacle build. The FACT 11r chassis and Future Shock 2.0 with a hydraulic damper is dressed with a 1x build that includes SRAM Red AXS eTap, a SRAM XX1 Eagle rear derailleur, and a 10-50t cassette for an incredible gear range. It rolls on Roval Terra CLX Disc carbon wheels with 38mm Pathfinder Pro 2Bliss Ready tires to keep you rolling worry-free and super fast, no matter the terrain. And filling out the build are Roval Terra carbon bars with 12 degrees of flare, a S-Works Future Stem, a SRAM Reverb AXS dropper seatpost, and a Body Geometry S-Works Power saddle.

    At a Glance

    • The Creo SL is the lightest e-bike in its class—literally kilograms lighter than the competition. Not only does the lightweight and stiff FACT 11r carbon frame inspire dancing on the pedals and diving into corners, but it also reduces overall system weight and increases the range.

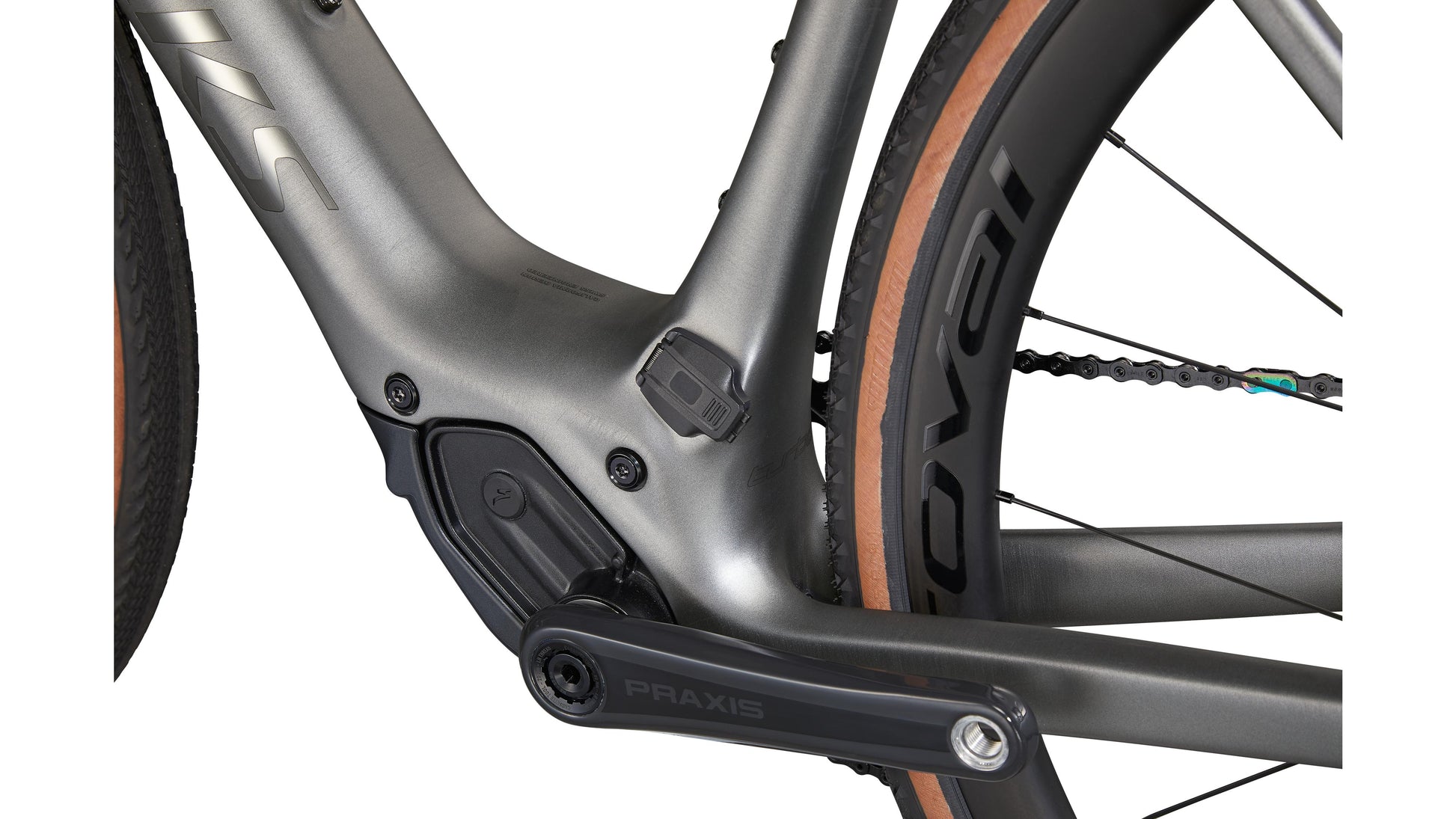

    • The lightweight SL 1.1 motor doubles your effort with as much as 240 watts of silent and powerful assistance to amplify your ride. The motor’s responsive torque curve delivers power perfectly in-tune with your normal riding cadence and leaves no resistance when riding unassisted.
    • Battery anxiety? Not on the Creo SL. With up to 80 miles of range from the internal battery, the Creo SL eats up big miles and long days. Our optional range extender provides up to 40 additional miles of mountain-flattening power.
    • By connecting with our Specialized app, you're able to tune the SL 1.1 motor to your riding style, record rides, and monitor the battery. The app can handle battery management automatically too, ensuring the battery will last as long as you need it to. The motor even has a built-in power meter that transmits to any ANT+ head unit.
    • With the Future Shock 2.0, you'll feel a reduction in fatigue and an increase in speed, no matter the terrain. The 2.0 iteration gives you more control via a knob atop the stem. This knob adjusts compression from fully-open to stiff, while hydraulically-damped internals control rebound. The new Smooth Boot, top cap, and Future Stem also enhance the aesthetic, so you get a clean transition from head tube to stem.
    • We’ve learned there can be more difference between two male cyclists than between a male and female. Gender alone doesn’t provide enough data to specialize. It means that separating bikes as male or female is arbitrary and outdated. With this in mind, we've developed a geometry that's best-fit for all riders. One that's comfortable and snappy on the road, yet features all of the attributes you'd want from a proper gravel bike—a long wheelbase, raked-out fork, and low bottom bracket that keeps the Turbo Creo SL EVO stable at high speeds and delivers control in corners.

    Component Specifications

    E-Bike
    motor
    Specialized SL 1.1, custom lightweight motor
    battery
    Specialized SL1-320, fully integrated, 320Wh; 160Wh Range Extender included
    ui remote
    Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
    charger
    Custom charger, 48V System w/ SL system charger plug
    wiring harness
    Custom Specialized wiring harness w/ chargeport
    Frameset
    frame
    FACT 11r carbon, Open Road Geometry, front/rear thru-axles, fully integrated down tube battery, internal cable routing, fender/rack mounts, Boost™ 12x148mm
    seat binder
    Specialized Alloy, 30.8mm
    Suspension
    fork
    Future Shock 2.0 w/ Smooth Boot, Boost™ 12x110mm thru-axle, flat-mount disc
    Brakes
    front brake
    SRAM Red eTAP AXS, hydraulic disc
    rear brake
    SRAM Red eTAP AXS, hydraulic disc
    Drivetrain
    shift levers
    SRAM Red eTap AXS
    rear derailleur
    SRAM XX1 Eagle AXS
    cassette
    SRAM XG-1295 Eagle, 12-speed, 10-50t
    chain
    SRAM XX1 Eagle
    crankset
    Praxis Carbon/M30 Spindle Interface
    chain rings
    SRAM X-SYNC, 44T
    Wheels & Tires
    front tire
    Pathfinder Pro 2Bliss Ready, Transparent Sidewall, 700x38c
    rear tire
    Pathfinder Pro 2Bliss Ready, Transparent Sidewall, 700x38c
    inner tubes
    Presta valve, 48mm
    front wheel
    Roval Terra CLX, 25mm inner width carbon rim, 32mm depth, Roval AFD hub, 24h, DT Swiss Aerolite spokes
    rear wheel
    Roval Terra CLX, 25mm inner width carbon rim, 32mm depth, Roval AFD hub, 24h, DT Swiss Aerolite spokes
    Cockpit
    stem
    S-Works Future Stem w/ Integrated Computer mount
    handlebars
    Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare
    saddle
    Body Geometry S-Works Power, carbon fiber rails, carbon fiber base
    seatpost
    RockShox Reverb AXS, 27.2mm
    tape
    Supacaz Super Sticky Kush

    2022 Specialized S-Works Turbo Creo SL EVO

    Bike/Frame Size XS S M L XL XXL
    Stack 573 mm 575 mm 592 mm 615 mm 643 mm 675 mm
    Reach 363 mm 373 mm 379 mm 384 mm 391 mm 399 mm
    Chain-Stay Length 426 mm 426 mm 426 mm 427 mm 427 mm 428 mm
    Wheelbase 999 mm 1005 mm 1012 mm 1020 mm 1036 mm 1052 mm
    Top-Tube Length (horizontal) 527 mm 539 mm 548 mm 566 mm 581 mm 605 mm
    Bike Stand-Over Height 728 mm 731 mm 759 mm 782 mm 810 mm 840 mm
    Seat-Tube Length 415 mm 447.5 mm 477.5 mm 502.5 mm 527.5 mm 557.5 mm
    Seat-Tube Angle 74° 74° 74° 73.5° 73.5° 73°
    Head-Tube Length 145.5 mm 145.5 mm 163.5 mm 185.5 mm 217 mm 250 mm
    Head-Tube Angle 71.5° 72° 72.5° 73° 73° 73°
    B-B Height 264.5 mm 264.5 mm 267 mm 267 mm 269.5 mm 269.5 mm
    B-B Drop 80.5 mm 80.5 mm 78 mm 78 mm 75.5 mm 75.5 mm
    Trail 68 mm 60 mm 56 mm 53 mm 53 mm 52 mm
    Fork Length (full) 390 mm 390 mm 390 mm 390 mm 390 mm 390 mm
    Fork Rake/Offset 50 mm 50 mm 50 mm 50 mm 50 mm 50 mm
    Front-Center 586 mm 592 mm 598 mm 605 mm 621 mm 636 mm

    Component Geometry

    Component XS S M L XL XXL
    Crank Length 165 mm 170 mm 172.5 mm 172.5 mm 175 mm 175 mm
    Handlebar Width 380 mm 400 mm 420 mm 420 mm 440 mm 440 mm
    Stem Length 80 mm 90 mm 100 mm 100 mm 110 mm 110 mm
    Saddle Width 155 mm 155 mm 143 mm 143 mm 143 mm 143 mm
    Seatpost Length 350 mm 350 mm 350 mm 400 mm 400 mm 400 mm
