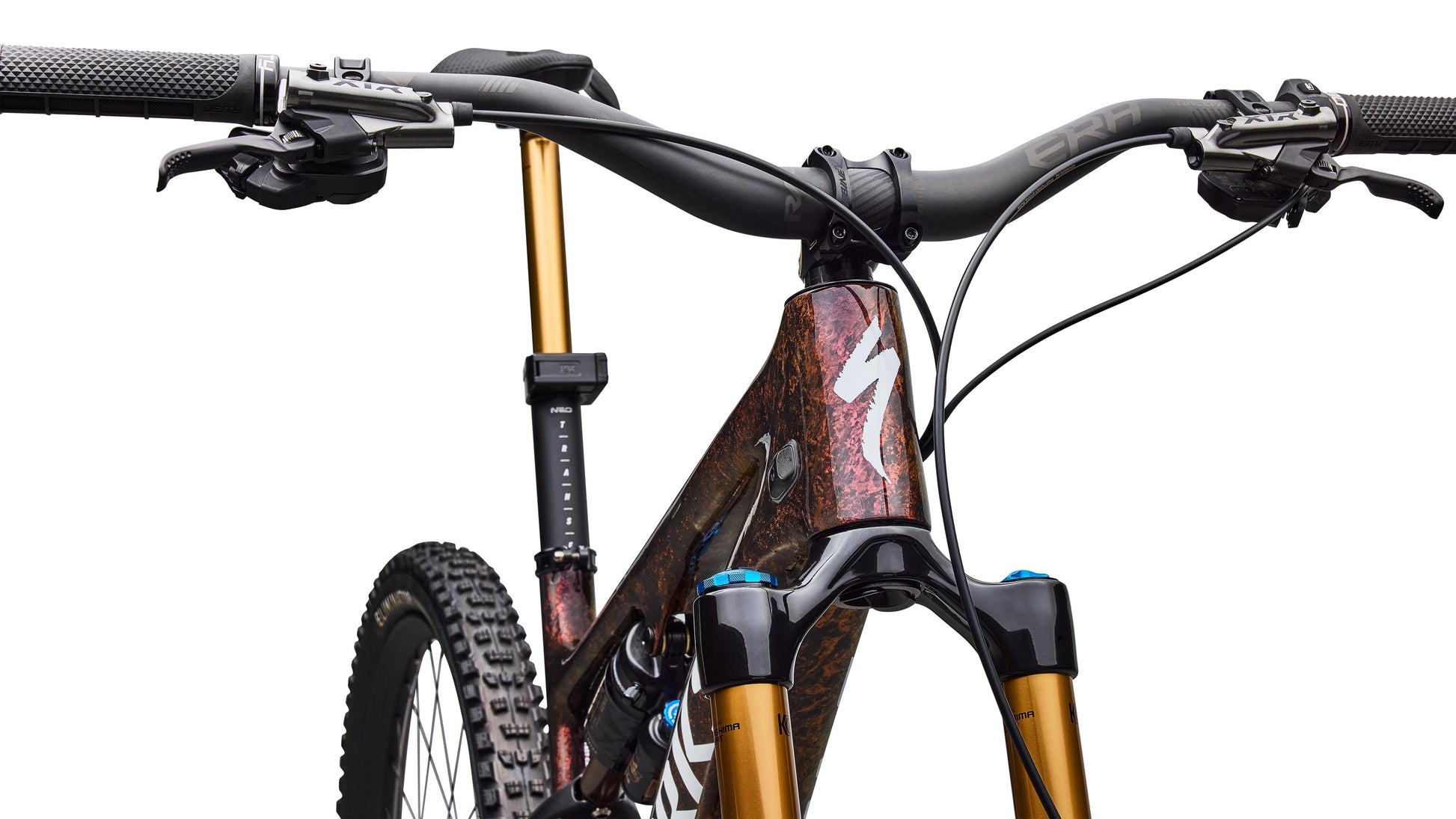

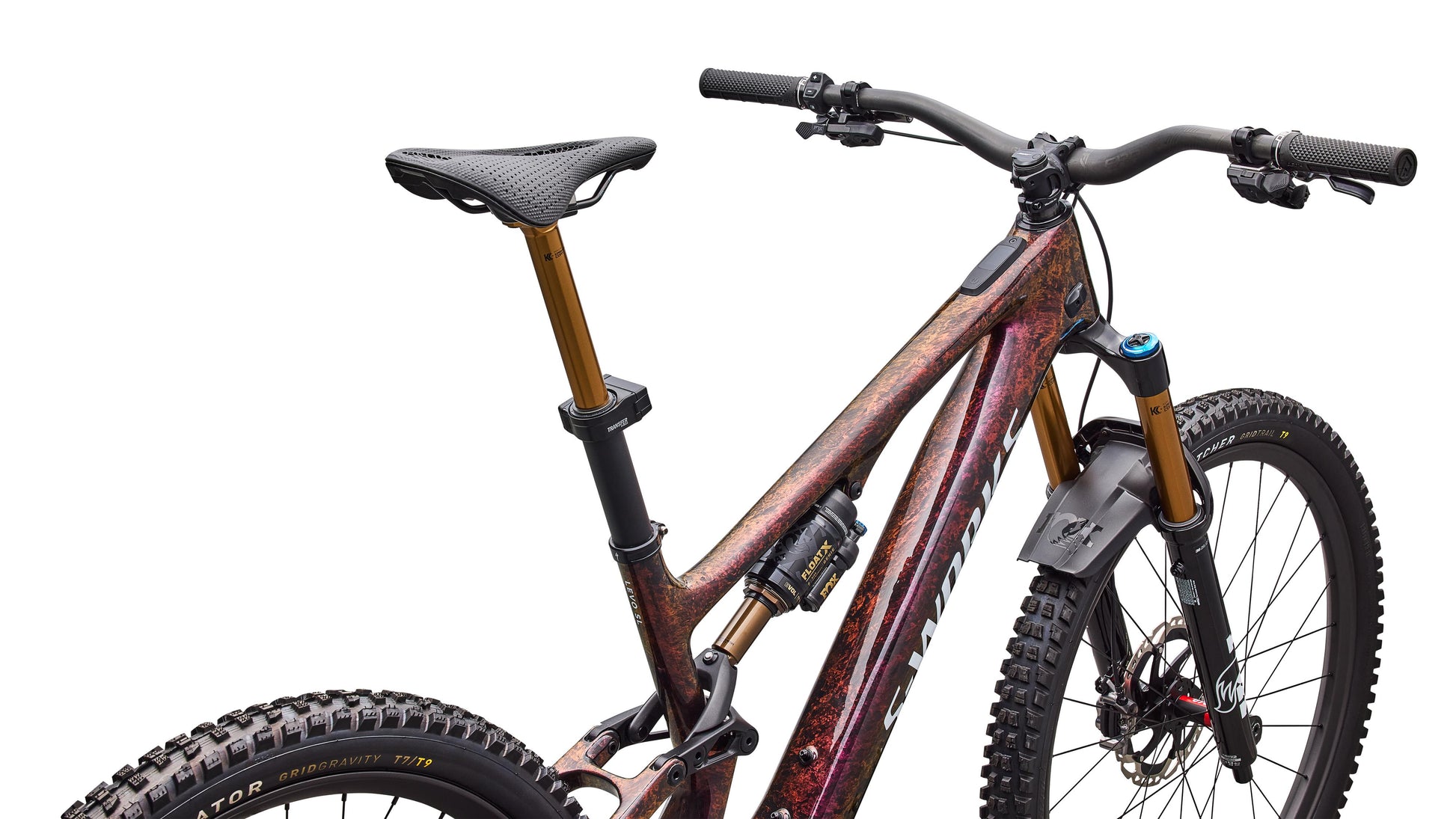

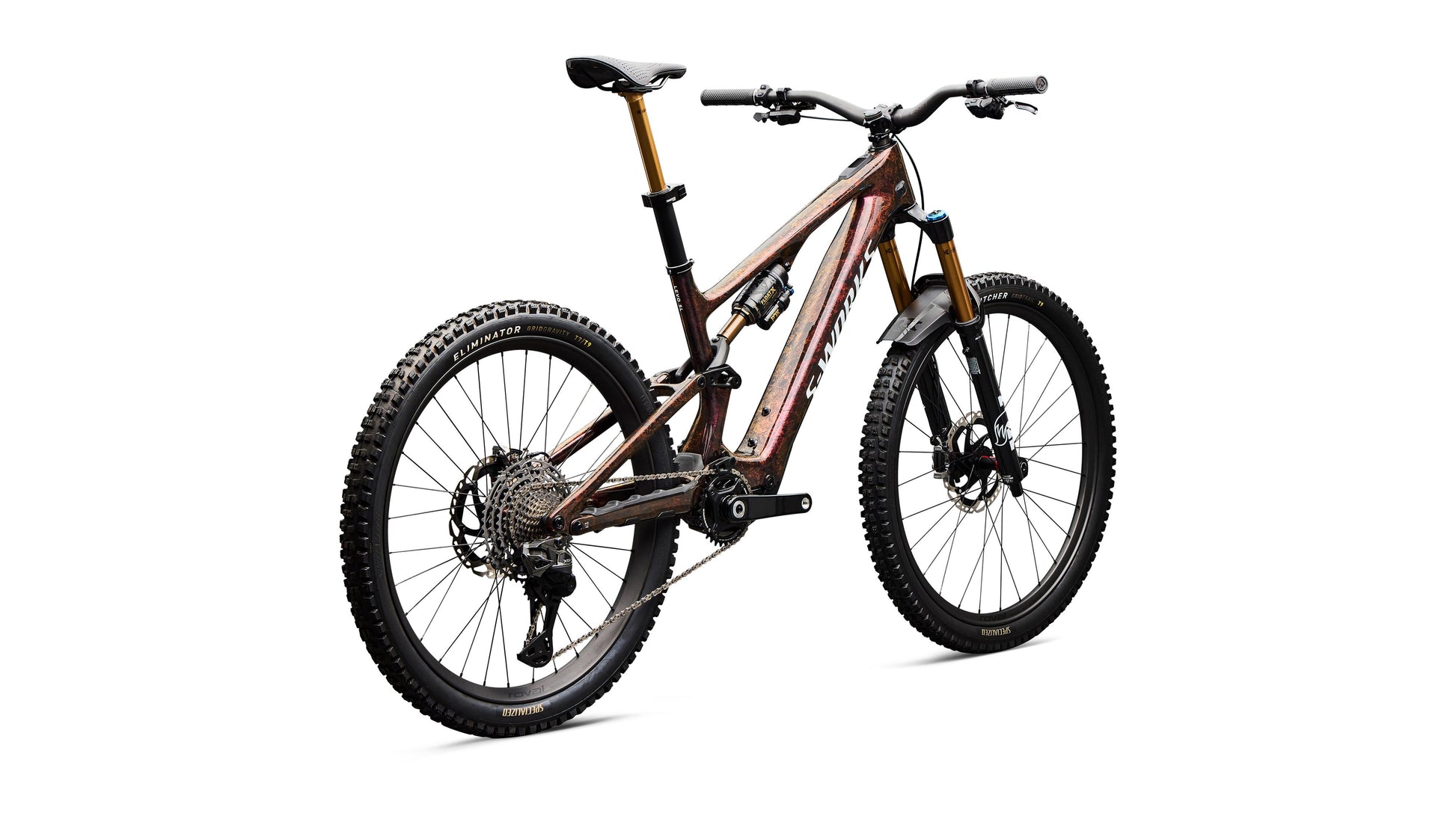

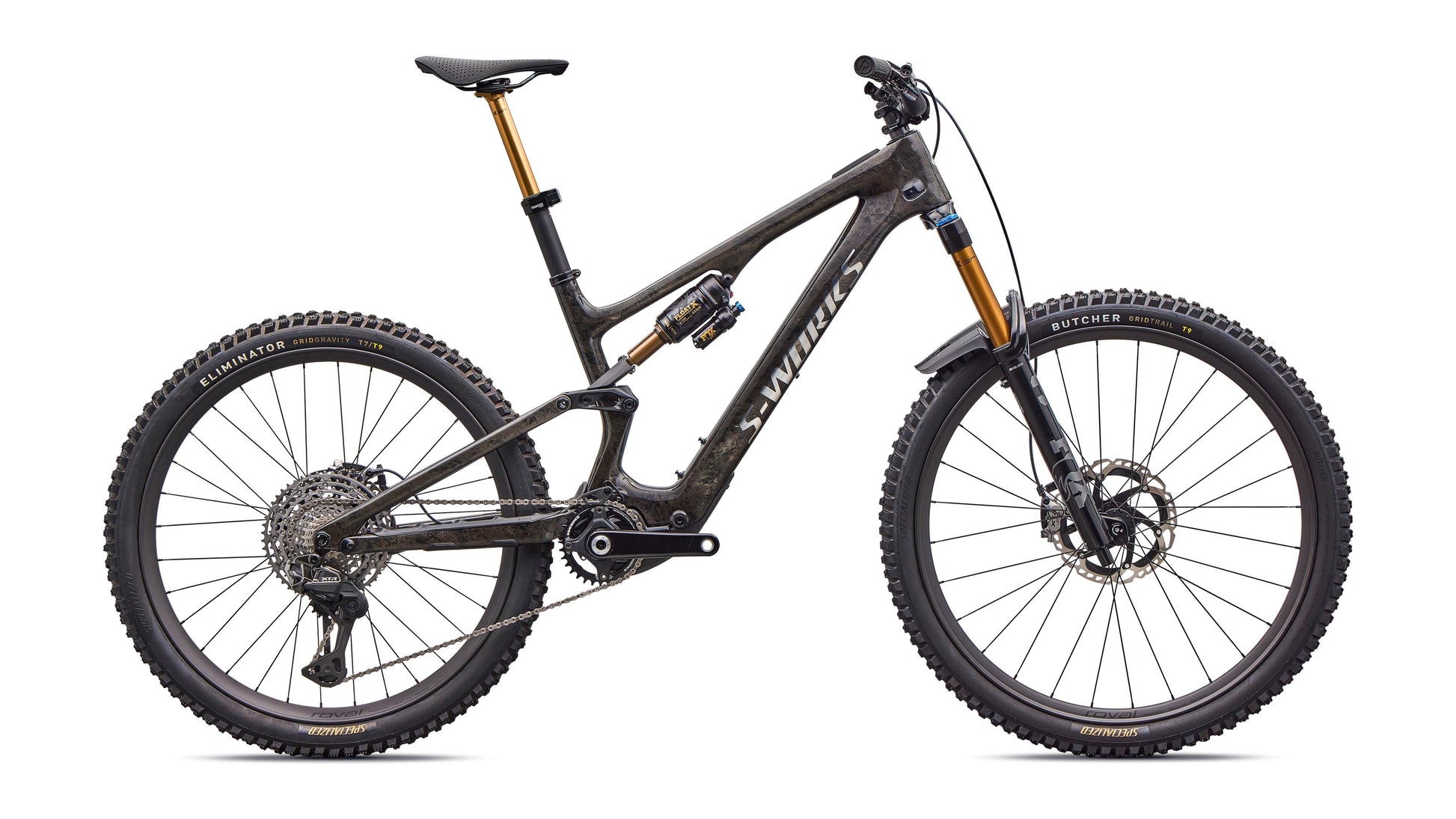

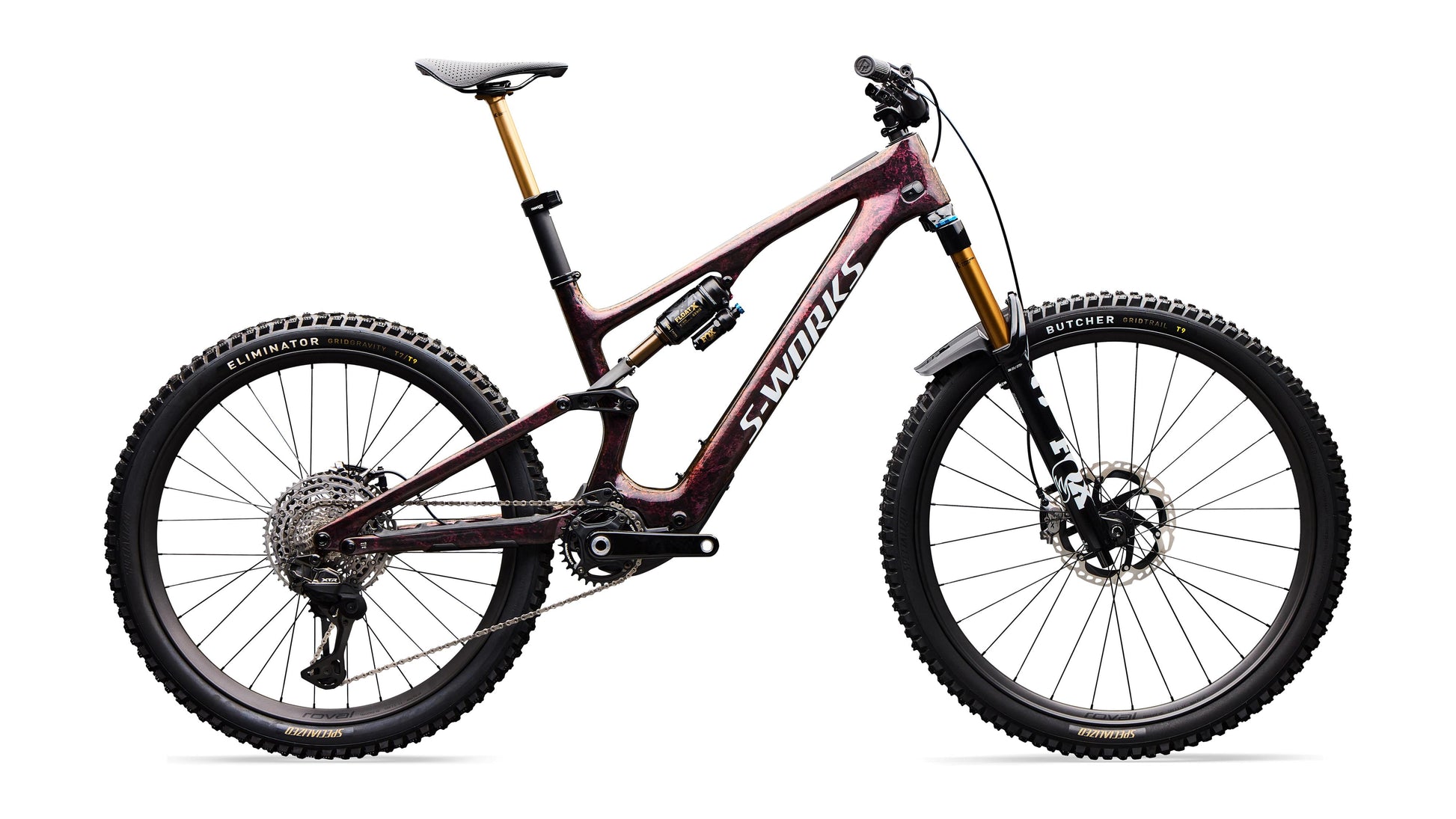

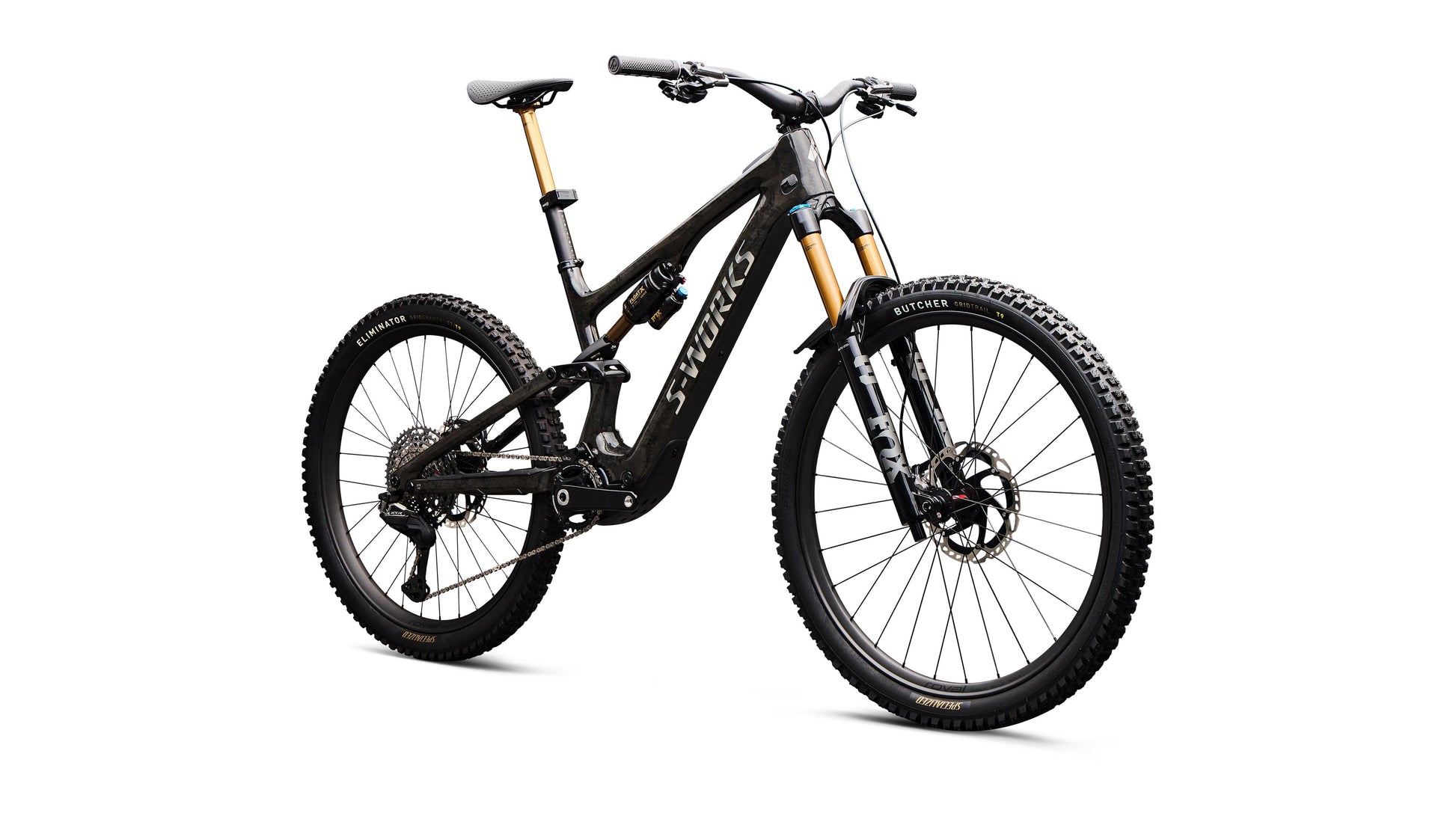

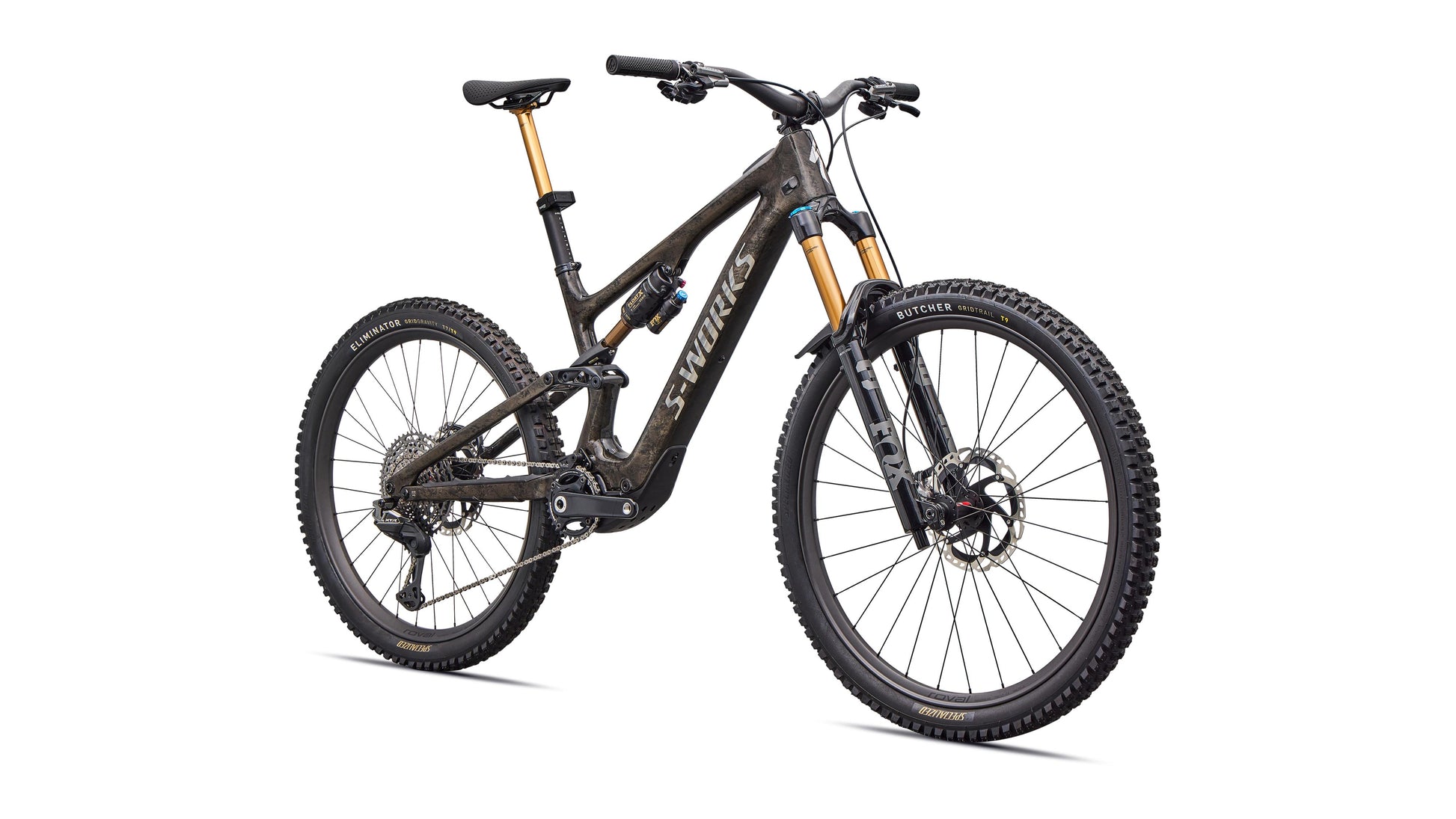

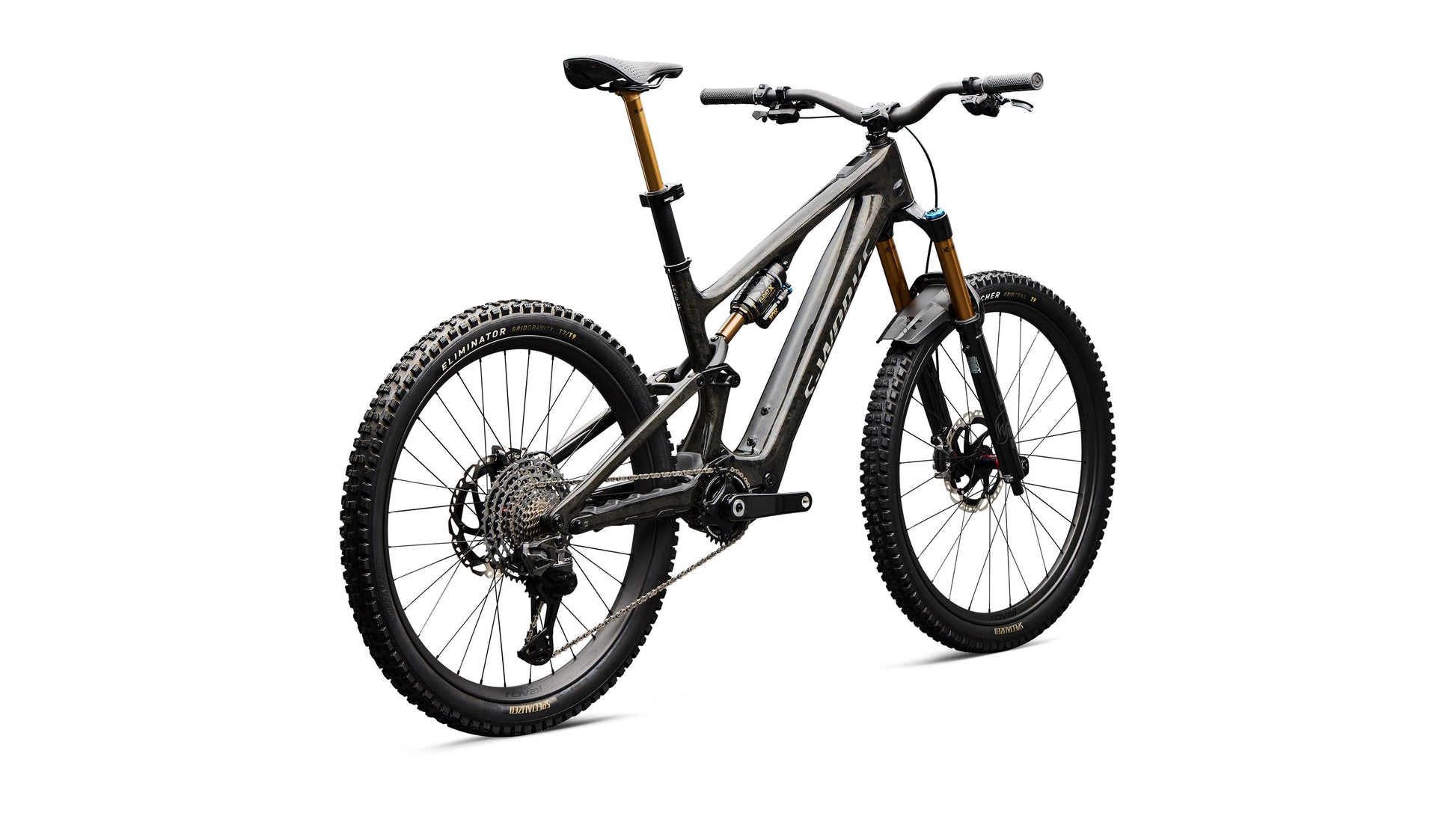

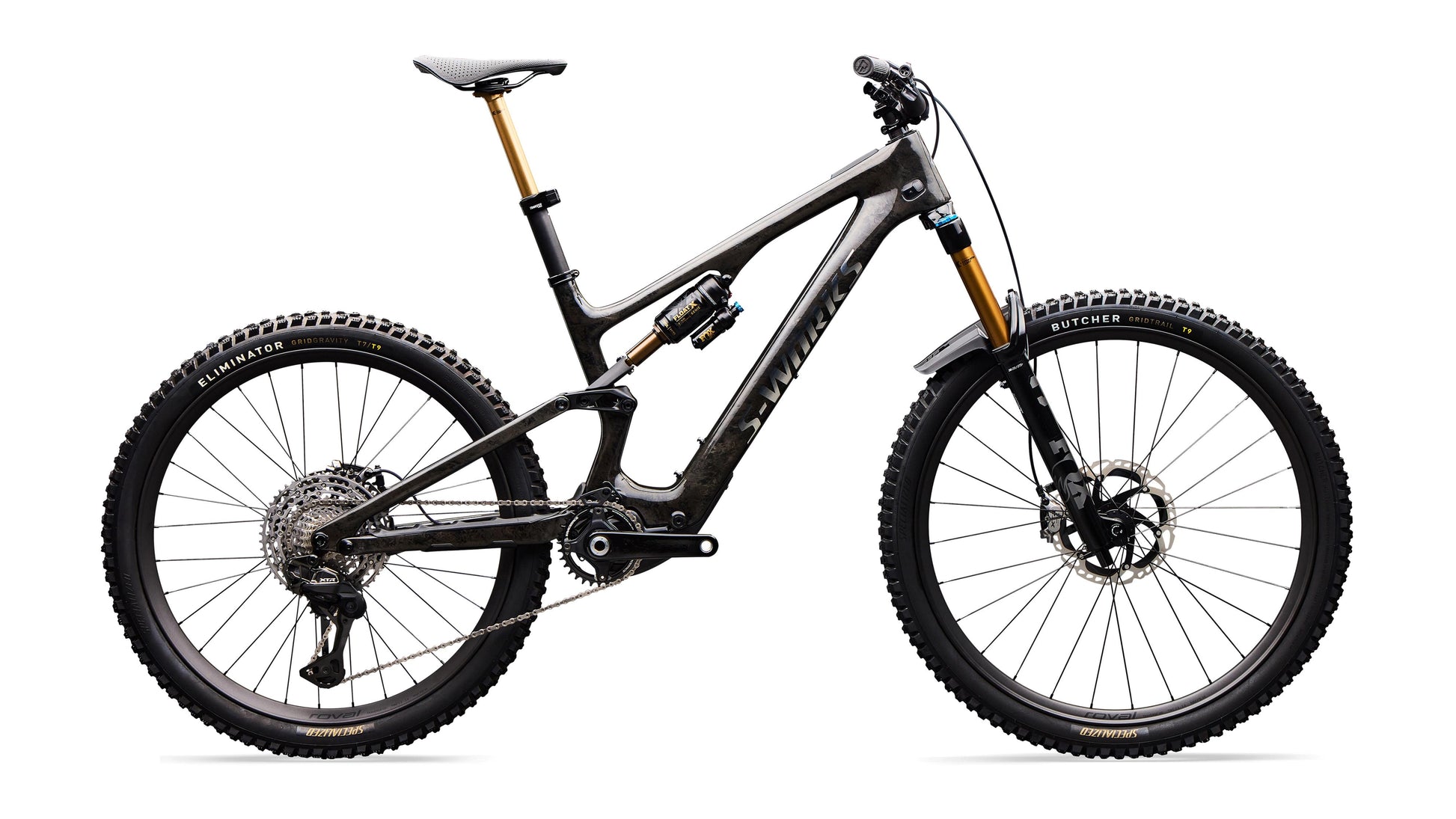

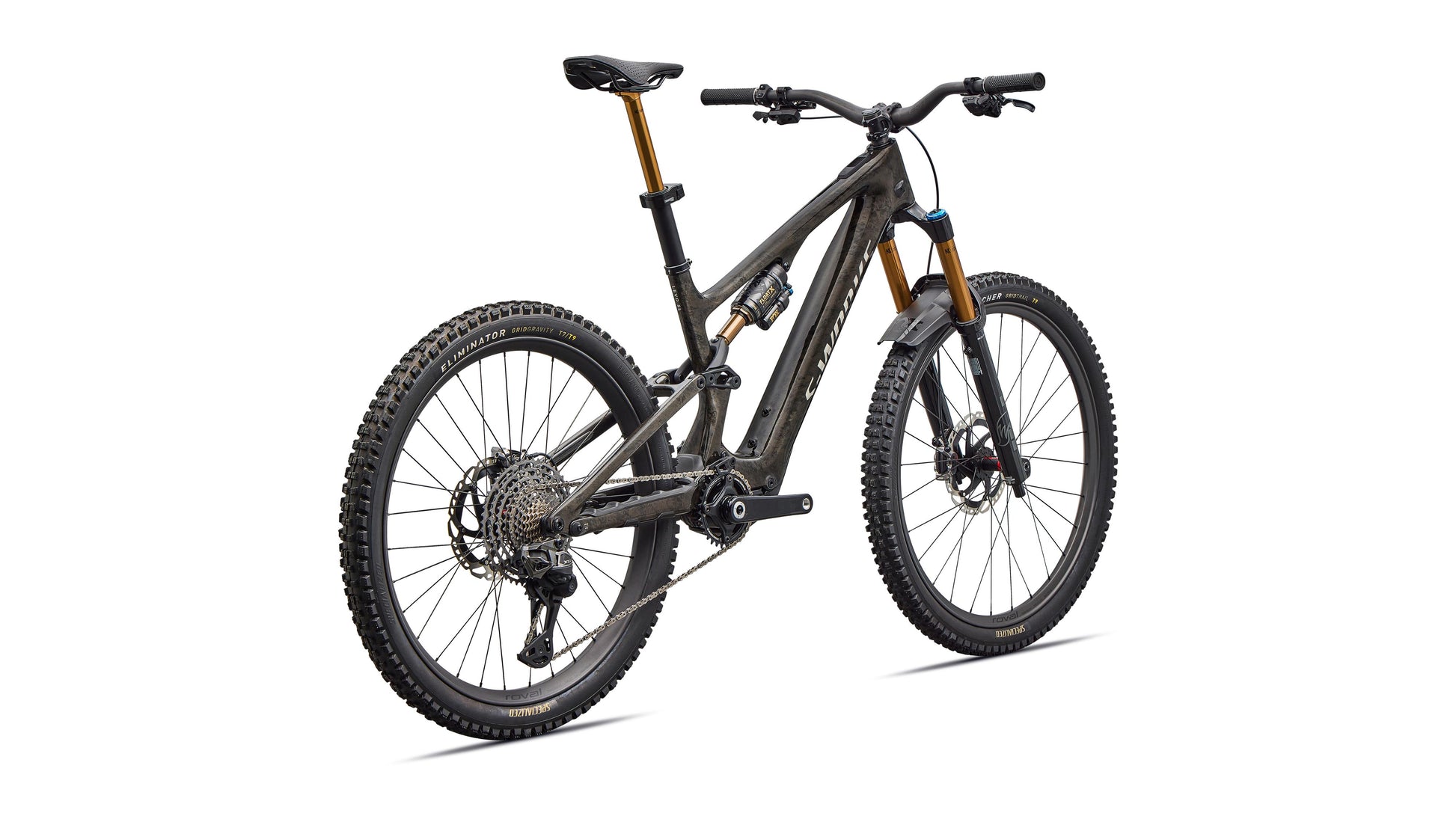

2026 Specialized S-Works Turbo Levo SL Di2 Features
With its unmatched combination of lightweight, ride quality, and supernatural amplification, the Levo SL delivers the best ride, amplified. Compare it to anything out there, with a motor or without, and we think you’ll agree—Levo SL is The Ultimate Trail Bike
At a Glance
- Use - Trail
- Frameset - Levo SL carbon Fact 11m carbon Frame
- Suspension - Front: 160mm FOX FLOAT 36 Factory
Rear: 150mm FOX FLOAT X GENIE Factory - Drivetrain - Shimano XTR Di2
- Electric System - Specialized 1.2 SL Motor w/ 320 Watts & 50Nm, 320Wh battery
- Wheels - Roval Traverse HD/DT Swiss 240 DEG
Component Specifications

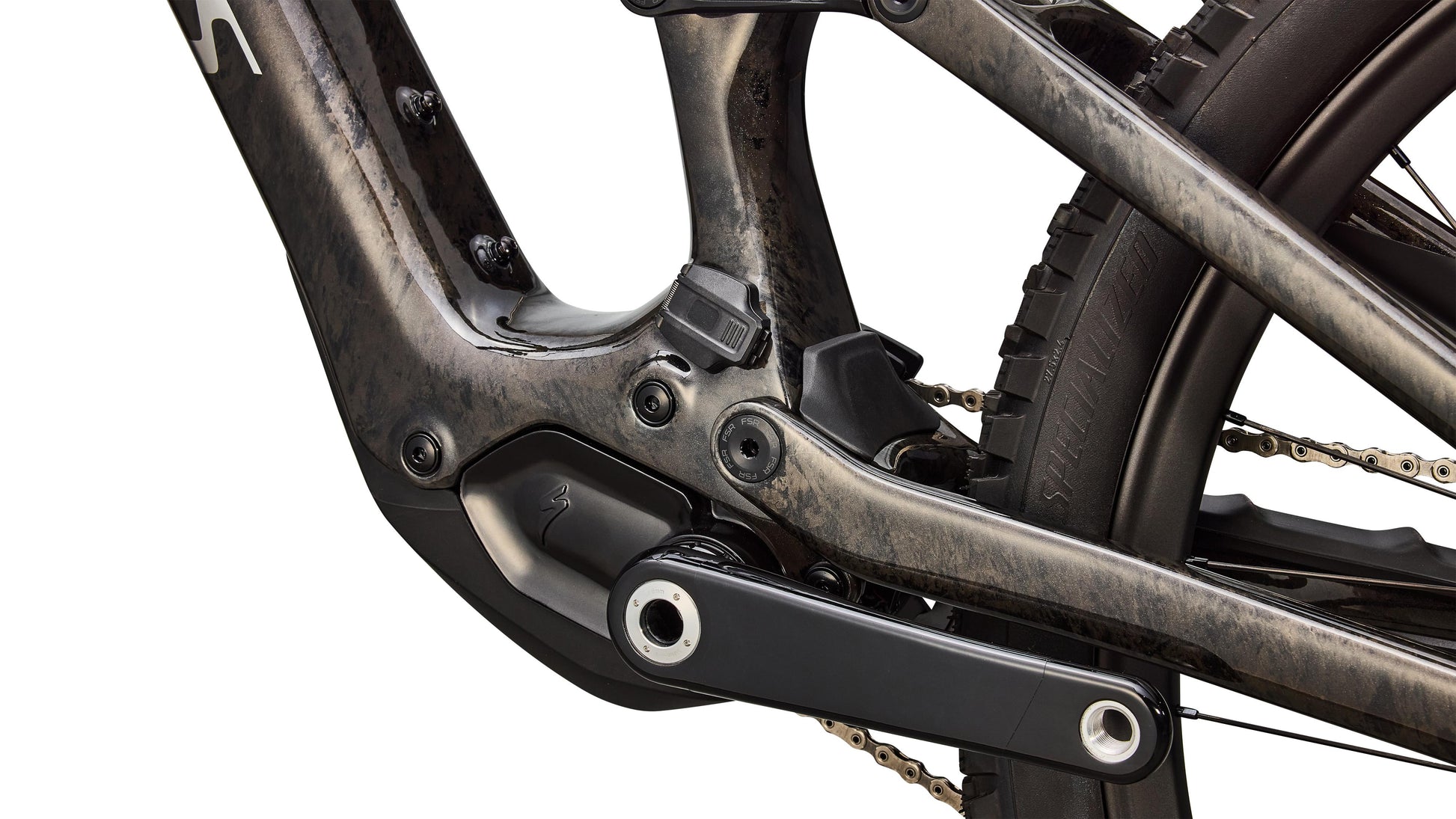

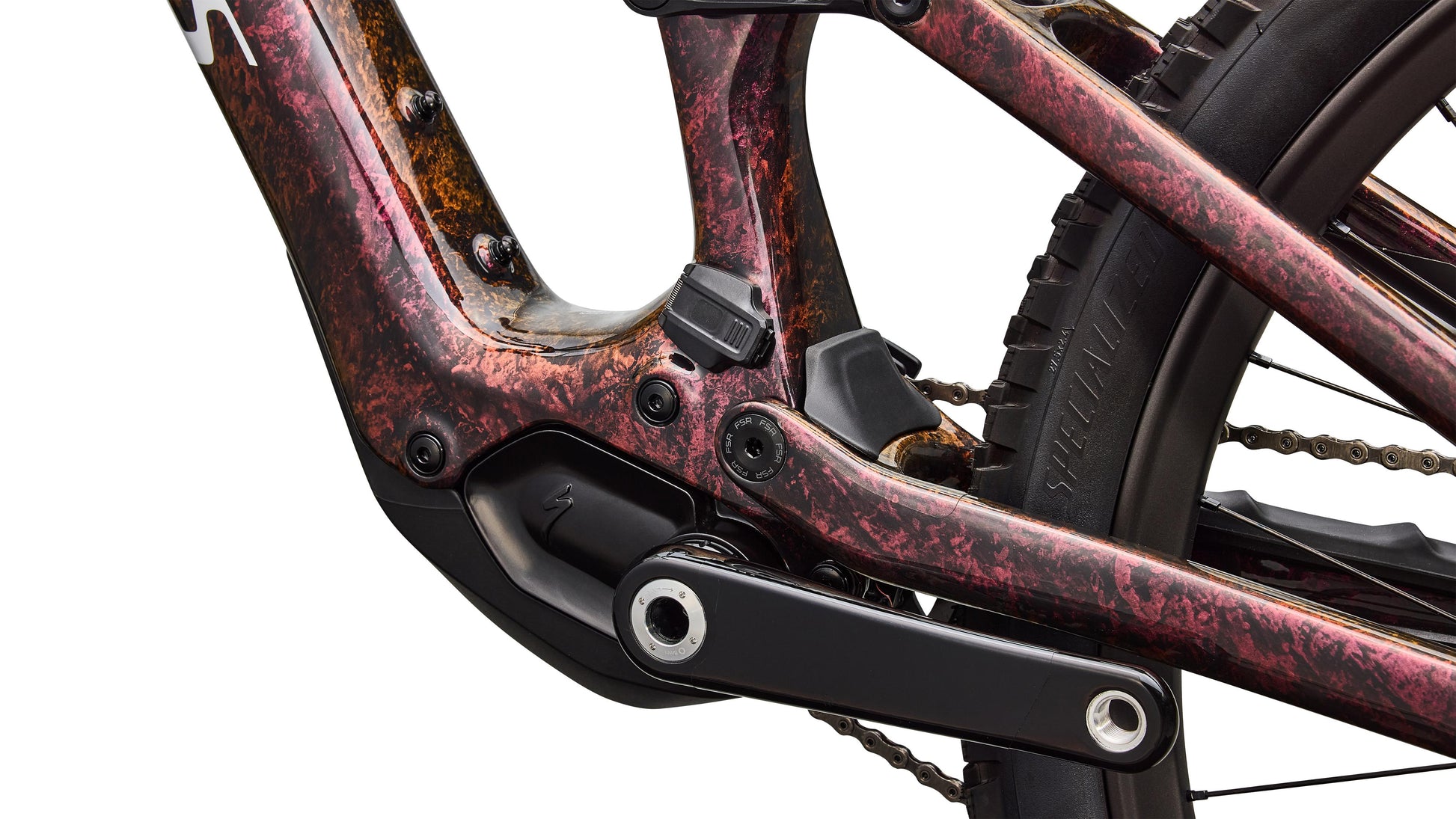

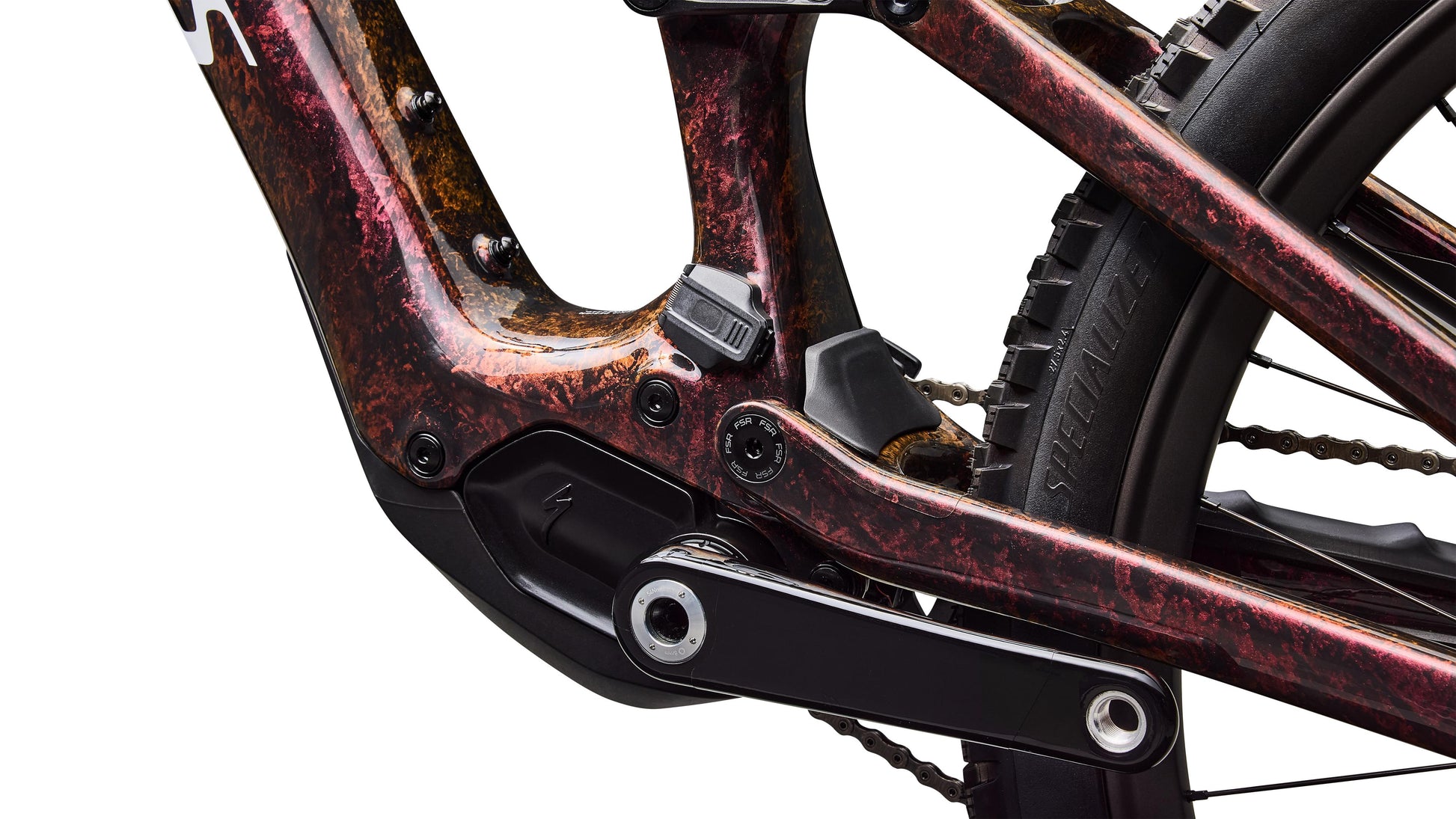

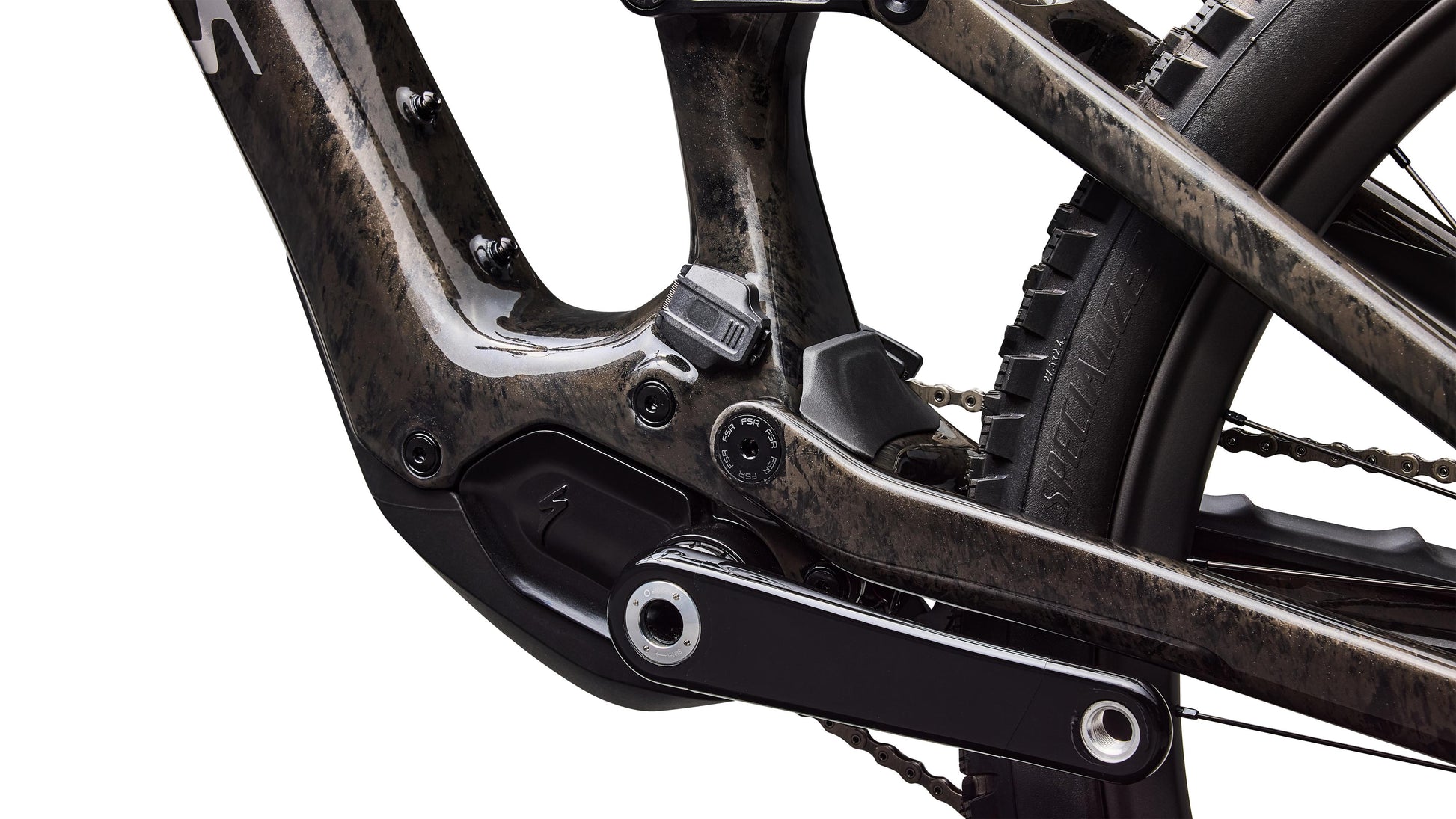

| Motor | Specialized SL 1.2 Custom Rx Trail Tuned Motor |
| Battery | Specialized SL1-320, fully integrated, 320Wh |

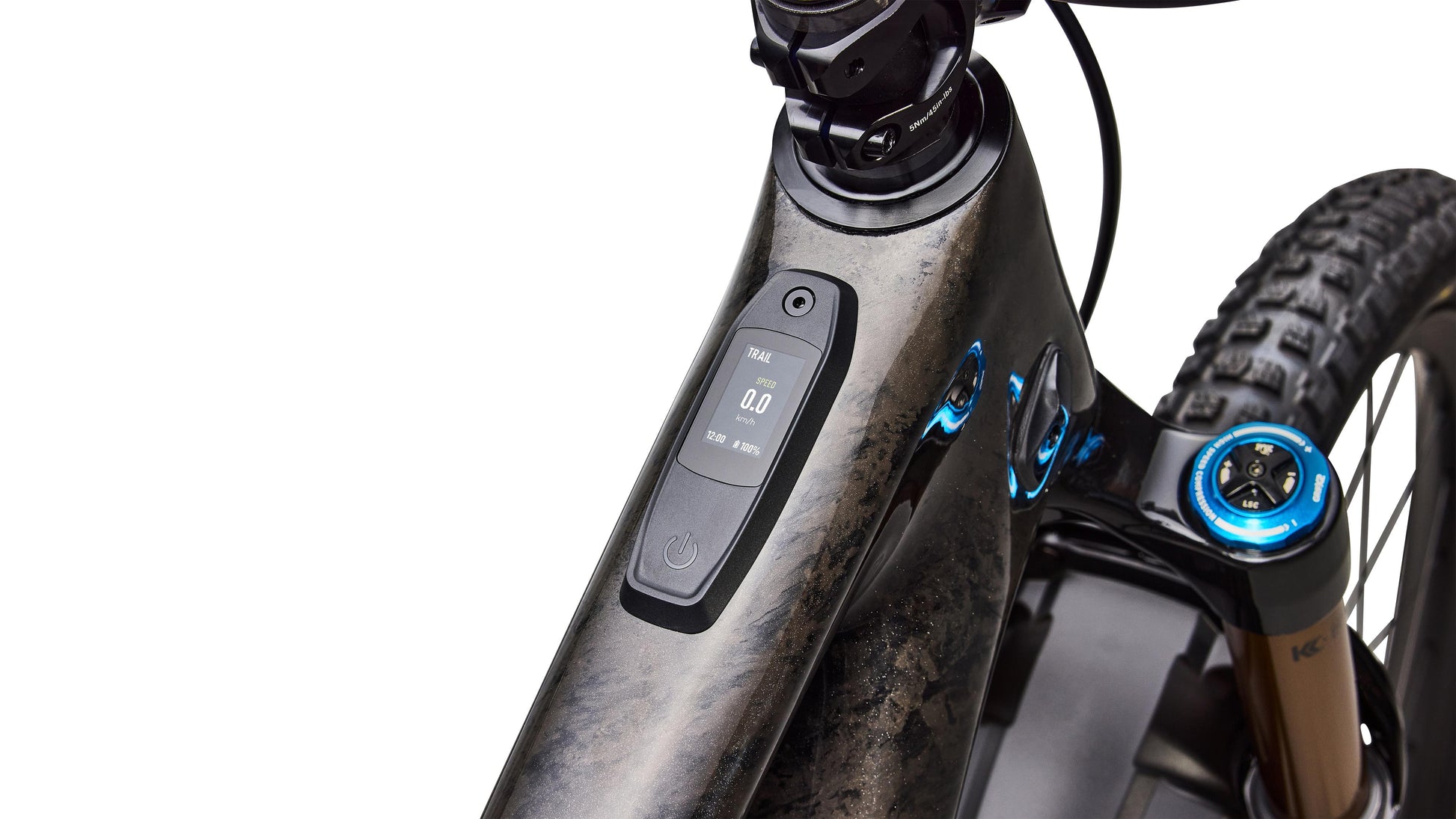

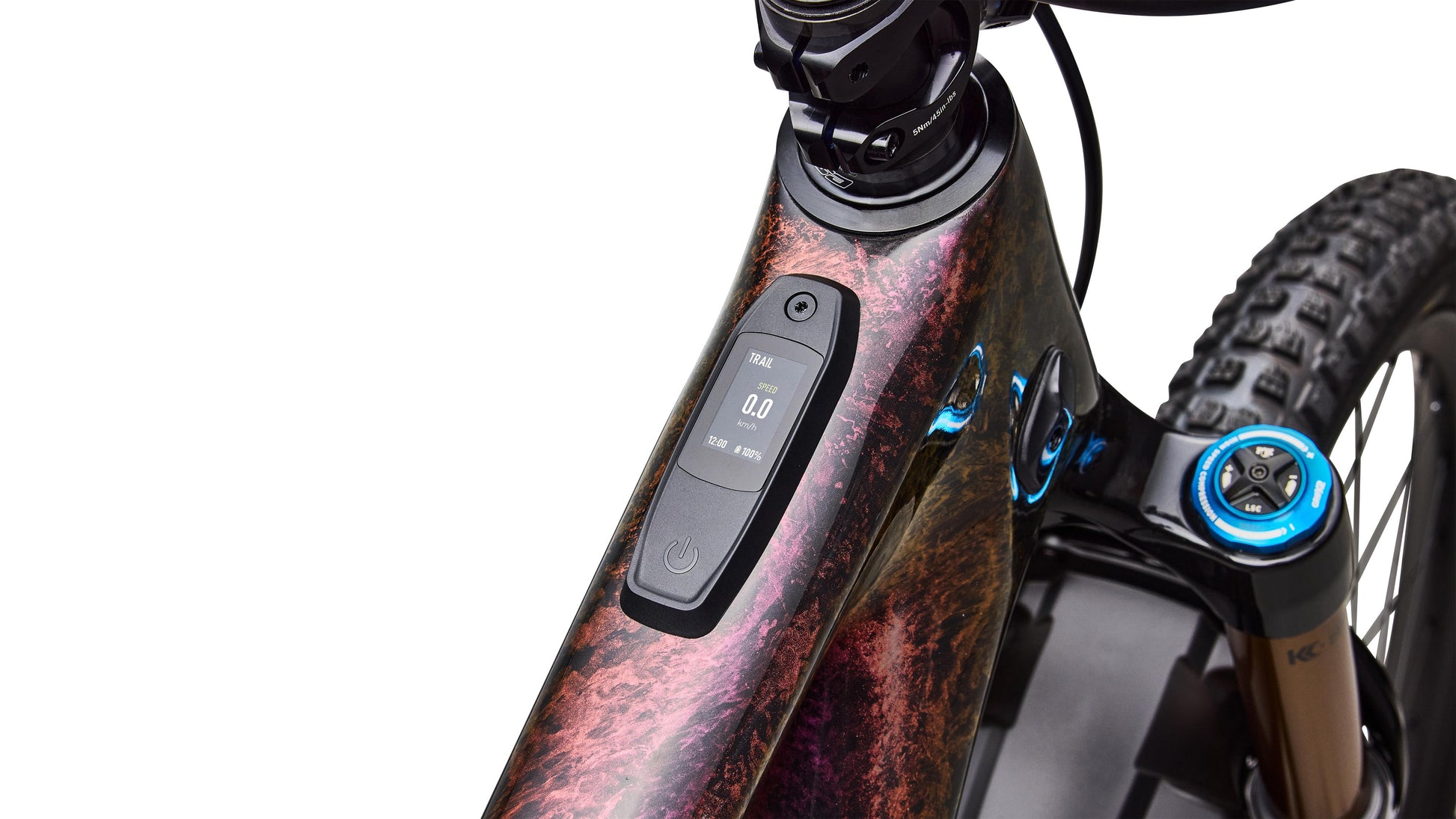

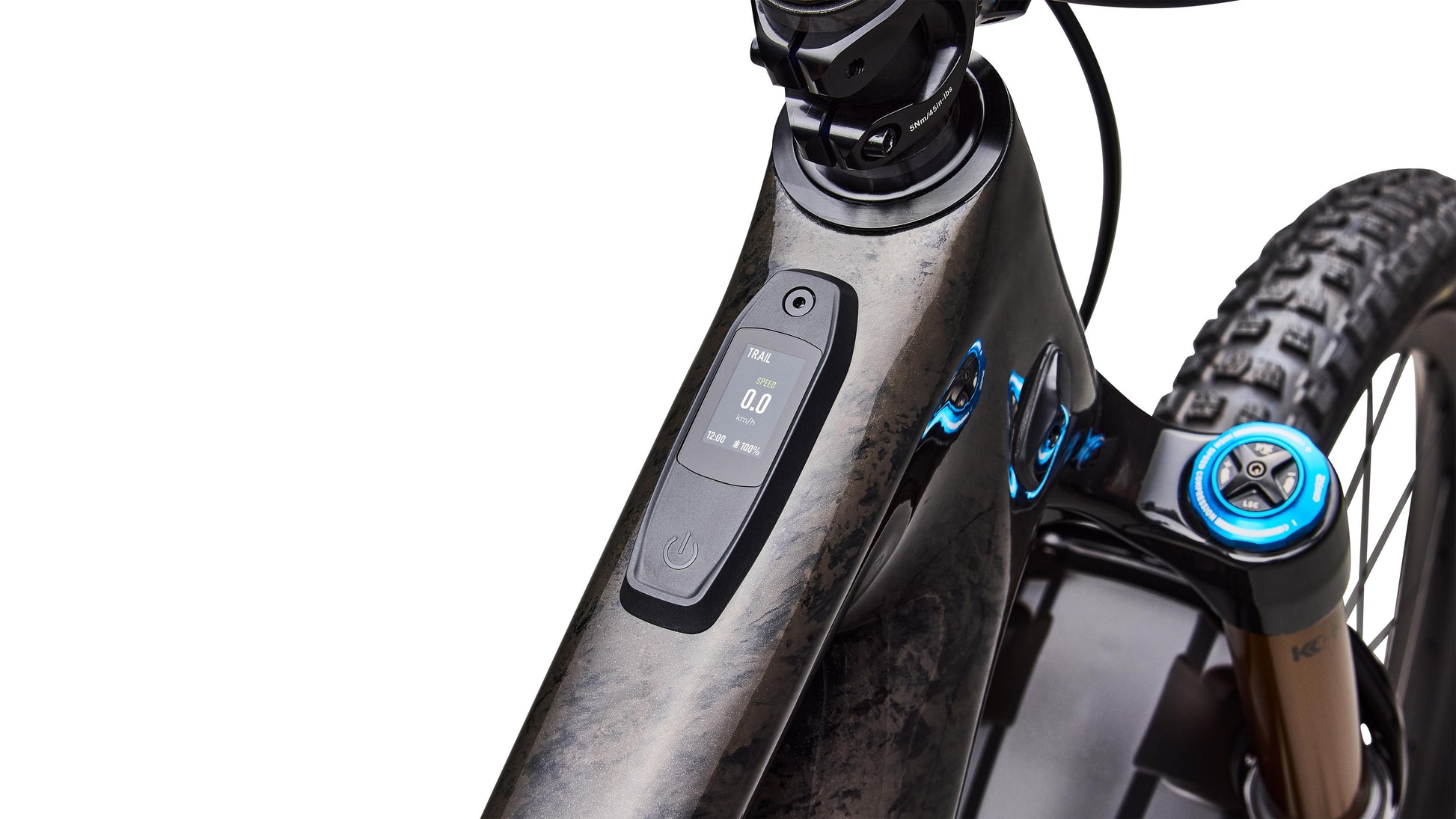

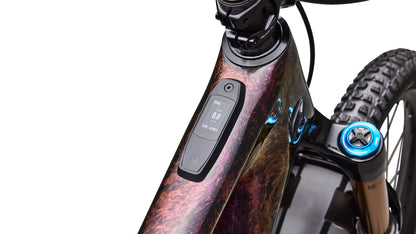

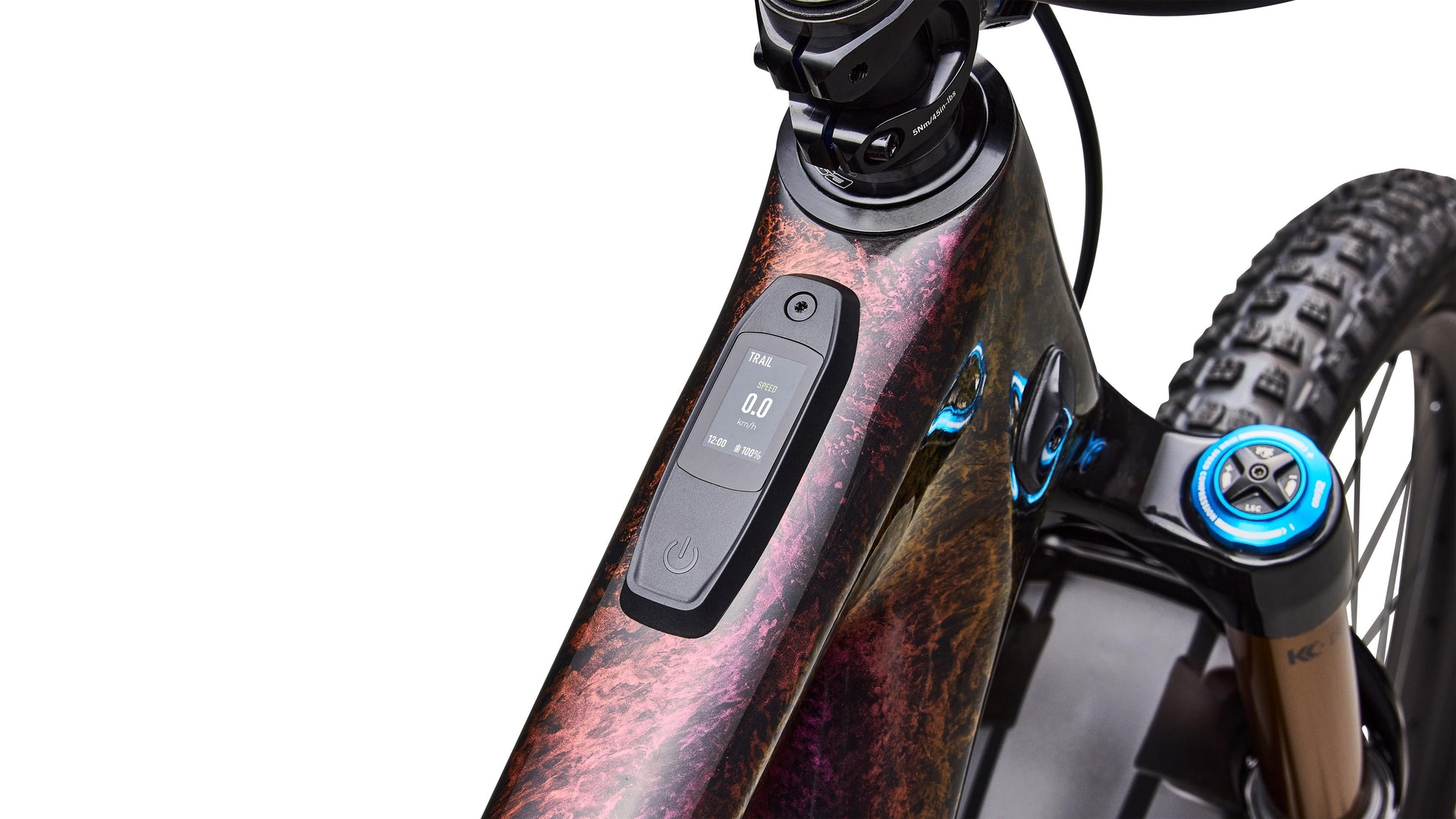

| UI Remote | Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote |
| Charger | Custom charger, 48V System w/ SL system charger plug |
| Frame | Levo SL Carbon Frame, Fact 11m Carbon, Carbon shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels. |
| Seat Binder | Alloy, 38.6mm |
| Fork | FOX FLOAT 36 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm QR axle, 44mm offset |

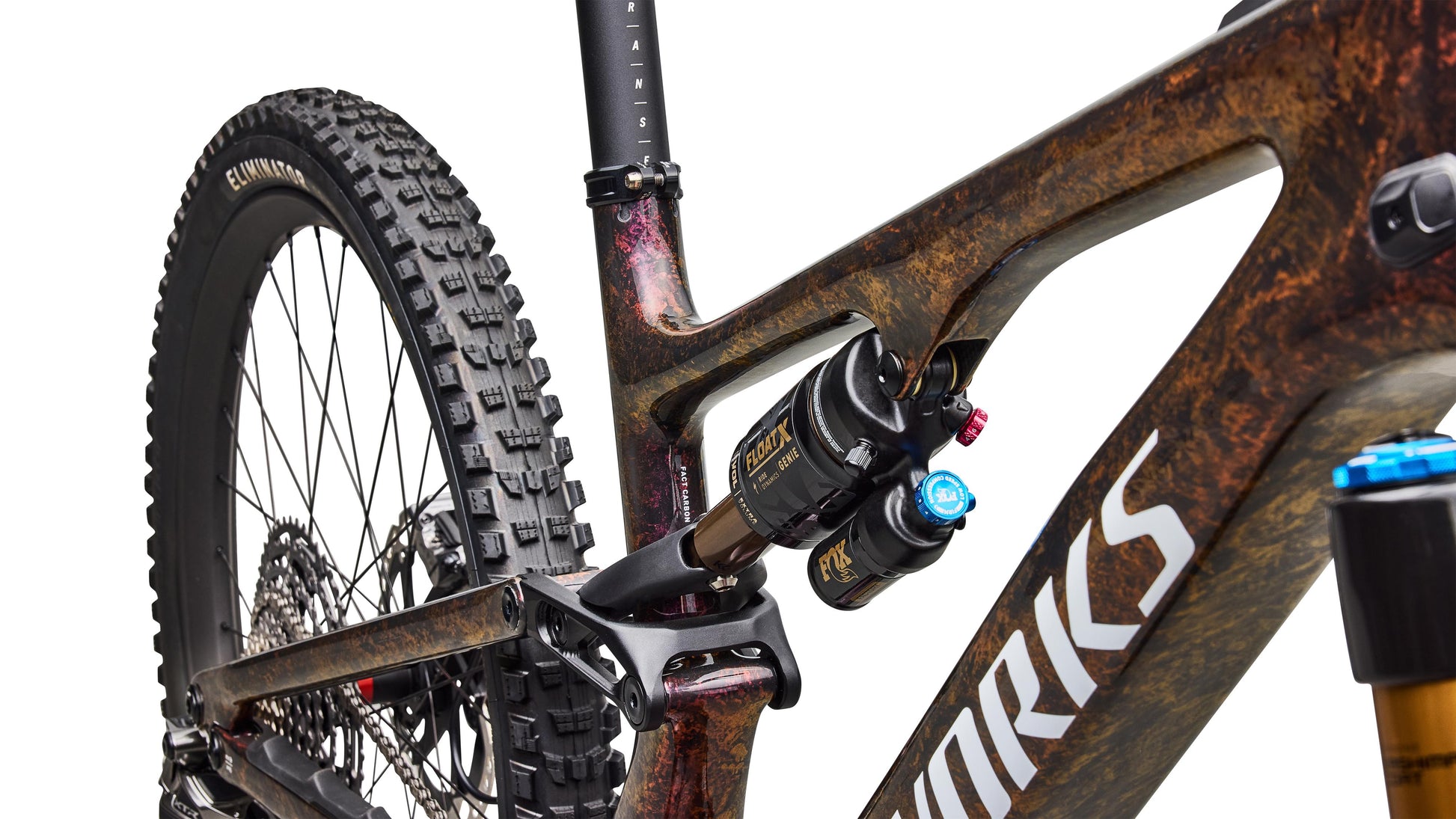

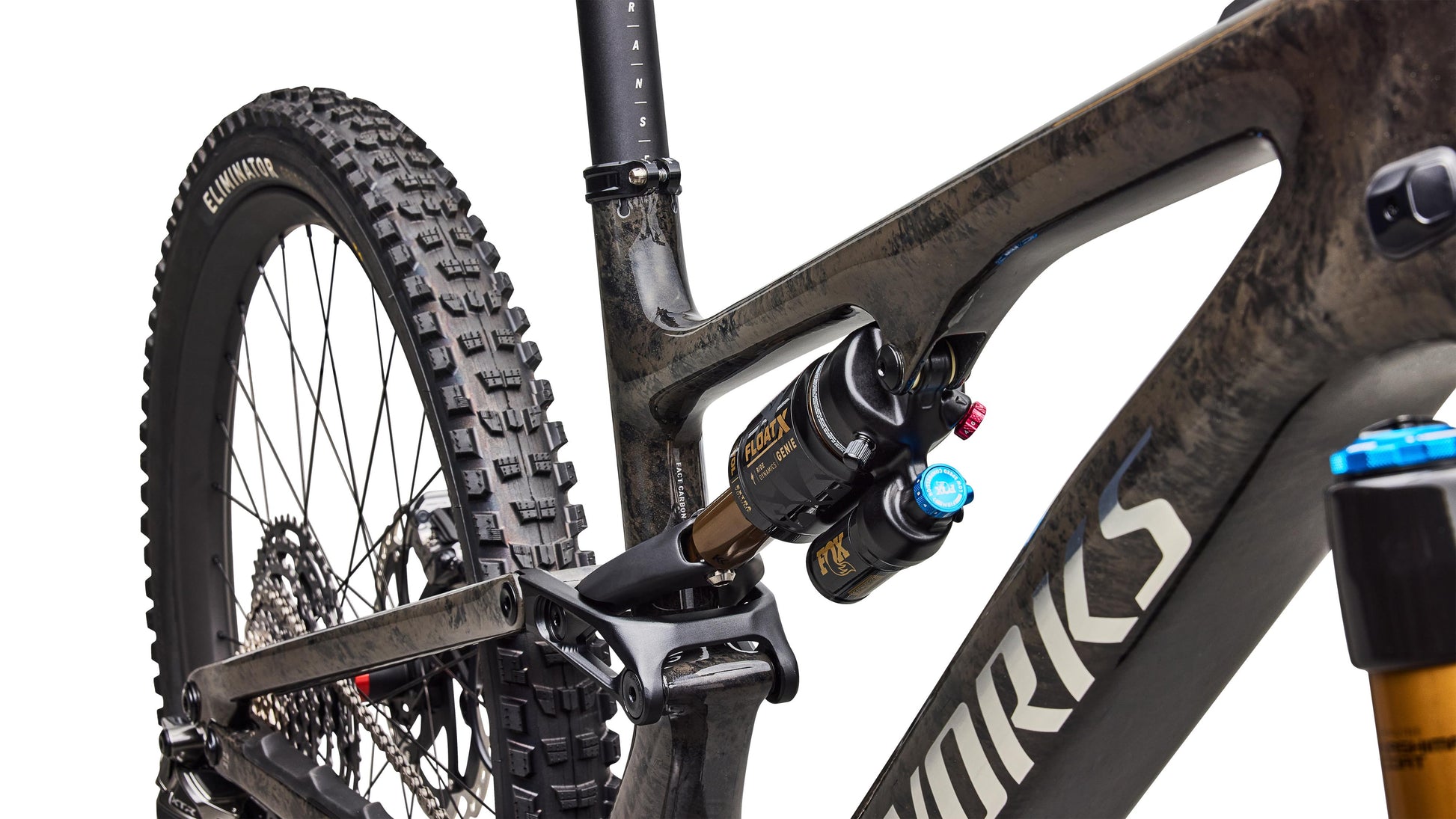

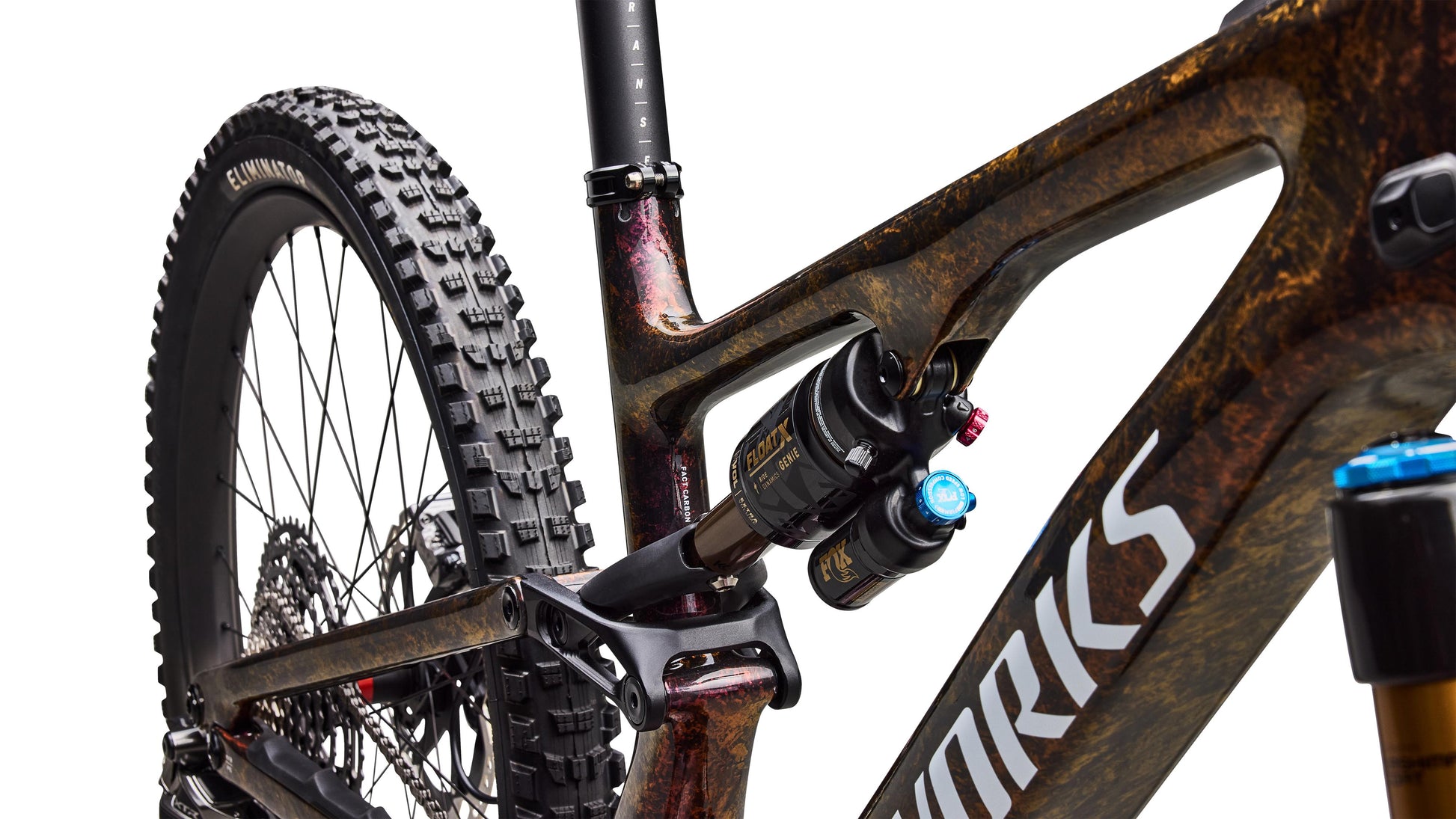

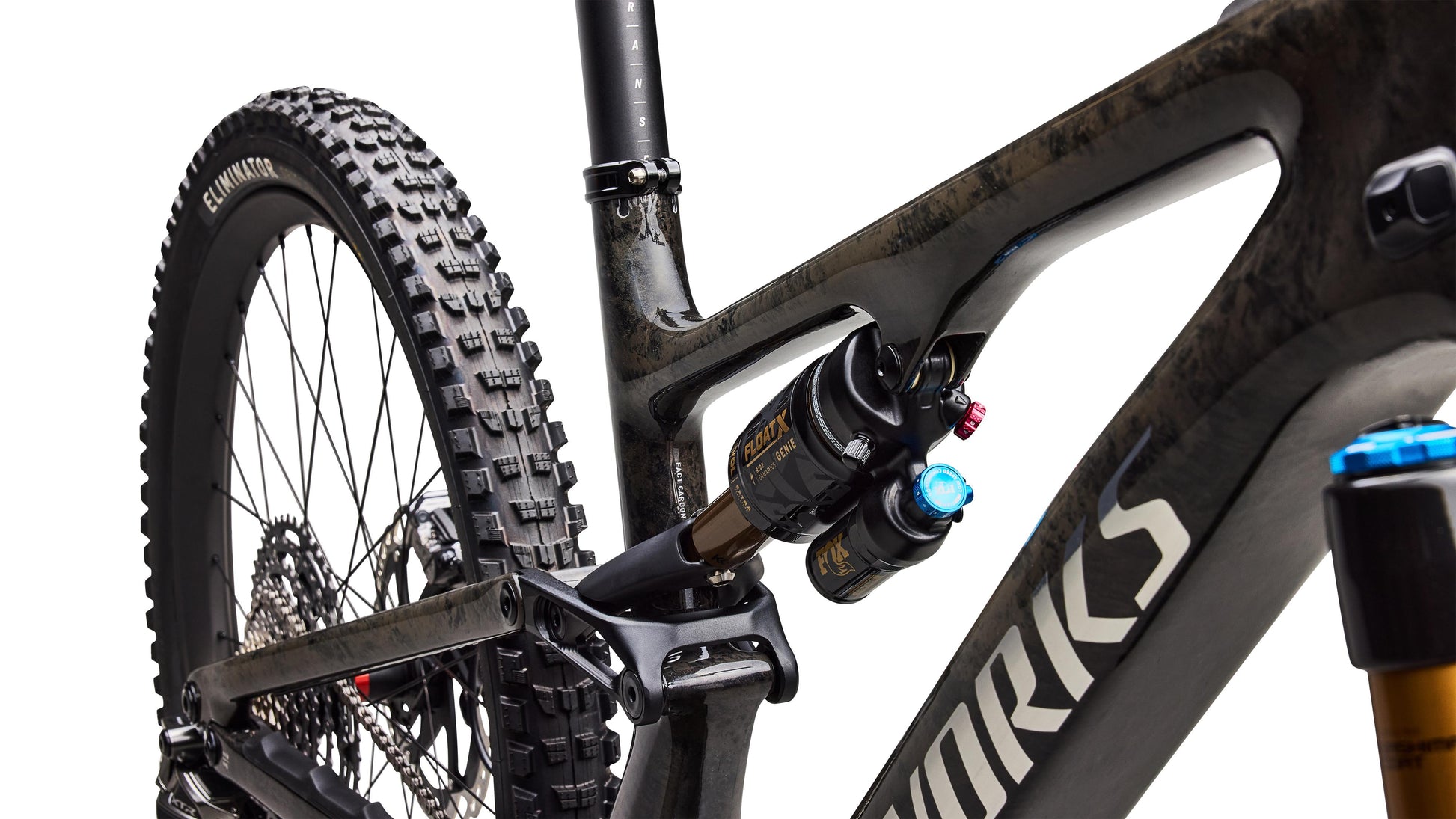

| Rear Shock | FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, S2-S6:210x55mm, S1: FOX FLOAT Factory 210x52.5mm |
| Shift Levers | Shimano XTR Di2 |
| Rear Derailleur | Shimano XTR Di2, 12-speed |
| Cassette | Shimano XTR, 12 Speed, 10-51T |
| Chain | Shimano XTR M9100, 12-speed w/ quick link |
| Crankset | SRAM Carbon crankset, 165mm, Dub interface |
| Chain Rings | Race Face alloy chainring, 104 BCD, 32T |
| Front Tire | Butcher, GRID TRAIL casing, GRIPTON® T9 compound, TLR, 29X2.4 |
| Rear Tire | Eliminator, GRID GRAVITY casing, GRIPTON® T7/T9 compound, TLR, 27.5X2.4 |
| Inner Tubes | Standard, Presta Valve |
| Front Brake | Shimano XTR 9220, 4-piston caliper, hydraulic disc, 203mm rotor |
| Rear Brake | Shimano XTR 9220, 4-piston caliper, hydraulic disc, 203mm rotor |
| Stem | Race Face Turbine R,35mm clamp,40mm length |

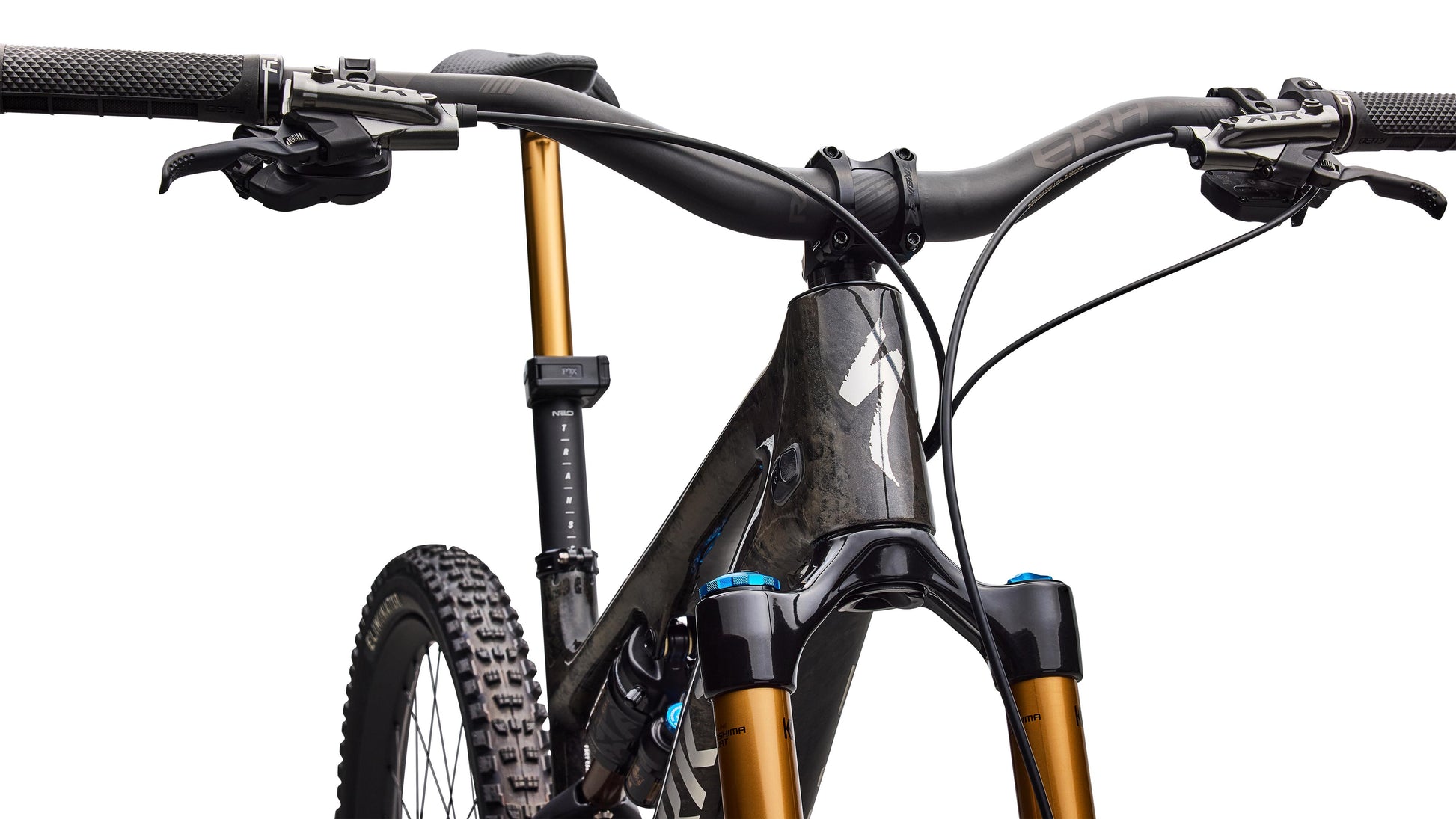

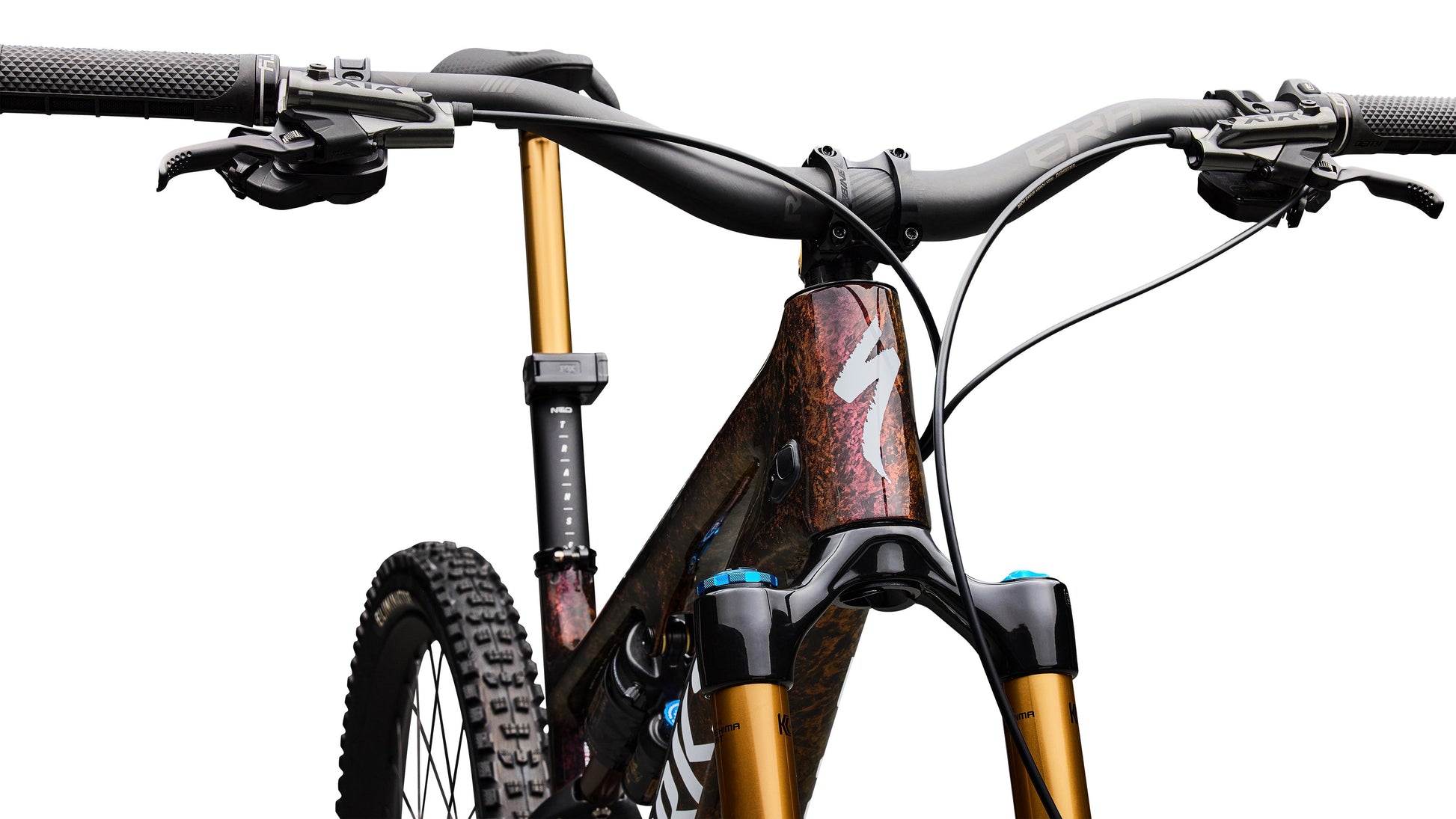

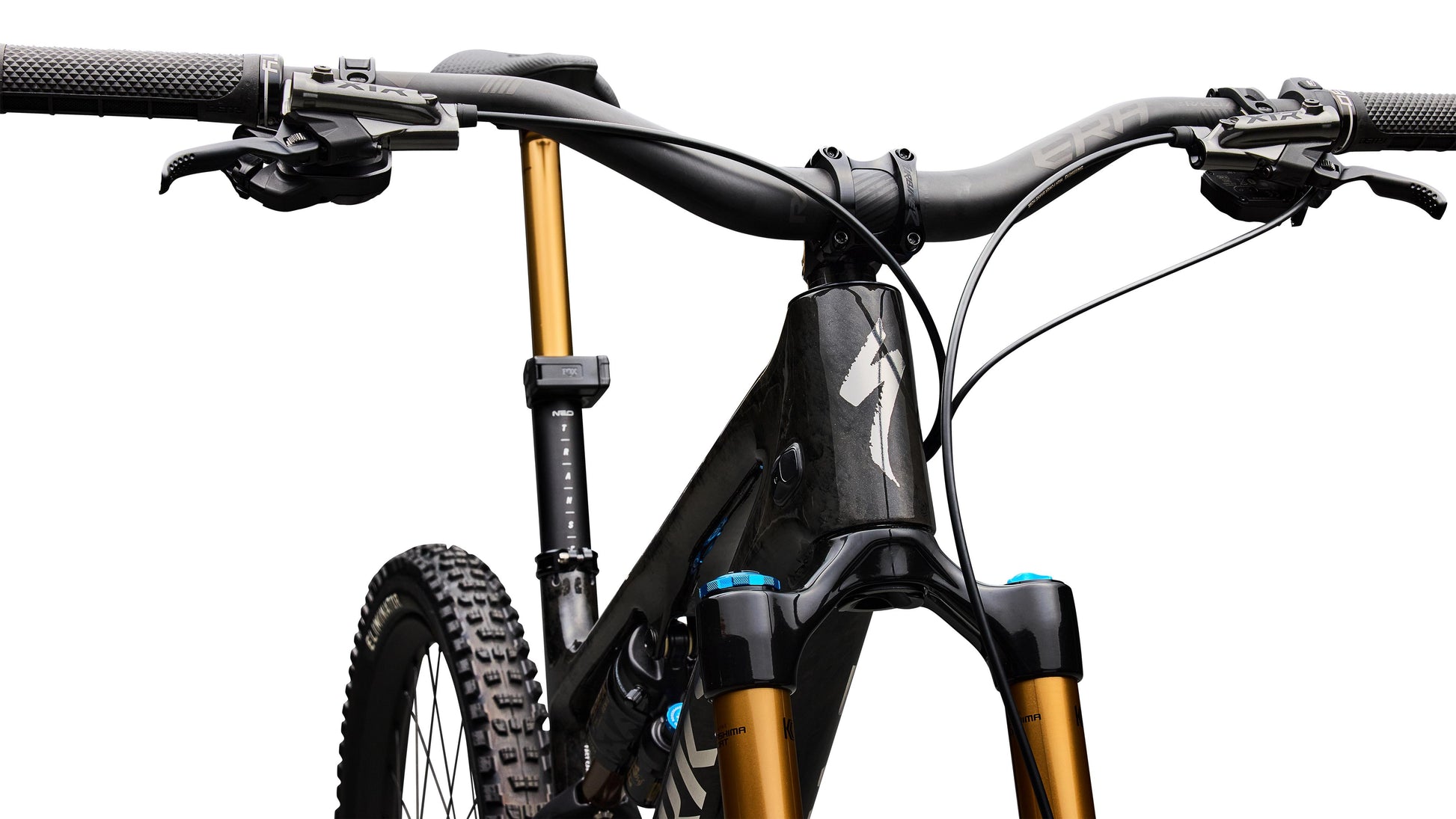

| Handlebars | Race Face Era Carbon Handlebars, 35mm clamp, back-sweep 8-degrees, up-sweep 5 degrees, 800mm width, S1/S2: 40mm rise, S3-S6: 55mm rise |
| Grips | Deity Lockjaw Grips |
| Saddle | Specialized Power Pro Mirror, Ti Rails, 143/155mm |
| Seatpost | FOX Transfer Neo wireless, 34.9mm, S1: 100mm, S2: 125mm, S3: 175mm, S4-S6: 200mm |
2026 Specialized S-Works Turbo Levo SL Di2
| Bike/Frame Size | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
| Stack | 609 mm | 617 mm | 626 mm | 635 mm | 645 mm | 654 mm |
| Reach | 405 mm | 425 mm | 445 mm | 470 mm | 495 mm | 525 mm |
| Chain-Stay Length | 433 mm | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1158 mm | 1184 mm | 1208 mm | 1238 mm | 1267 mm | 1301 mm |
| Top Tube Length, Horizontal | 560 mm | 582 mm | 604 mm | 631 mm | 659 mm | 691 mm |
| Bike Stand-Over Height | 727 mm | 763 mm | 766 mm | 767 mm | 773 mm | 778 mm |
| Seat-Tube Length | 385 mm | 385 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Seat-Tube Angle | 75.8° | 75.8° | 75.8° | 75.8° | 75.8° | 75.8° |
| Head-Tube Length | 95 mm | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Head-Tube Angle | 64.6° | 64.6° | 64.6° | 64.6° | 64.6° | 64.6° |
| B-B Height | 343 mm | 348 mm | 348 mm | 348 mm | 348 mm | 348 mm |
| B-B Drop | -34 mm | -29 mm | -29 mm | -29 mm | -29 mm | -29 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm | 132 mm | 132 mm |
| Fork Length, Full | 560 mm | 570 mm | 570 mm | 570 mm | 570 mm | 570 mm |
| Fork Rake/Offset | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Front-Center | 726 mm | 752 mm | 776 mm | 806 mm | 835 mm | 869 mm |
Size Guide: 2026 Specialized S-Works Turbo Levo SL Di2
