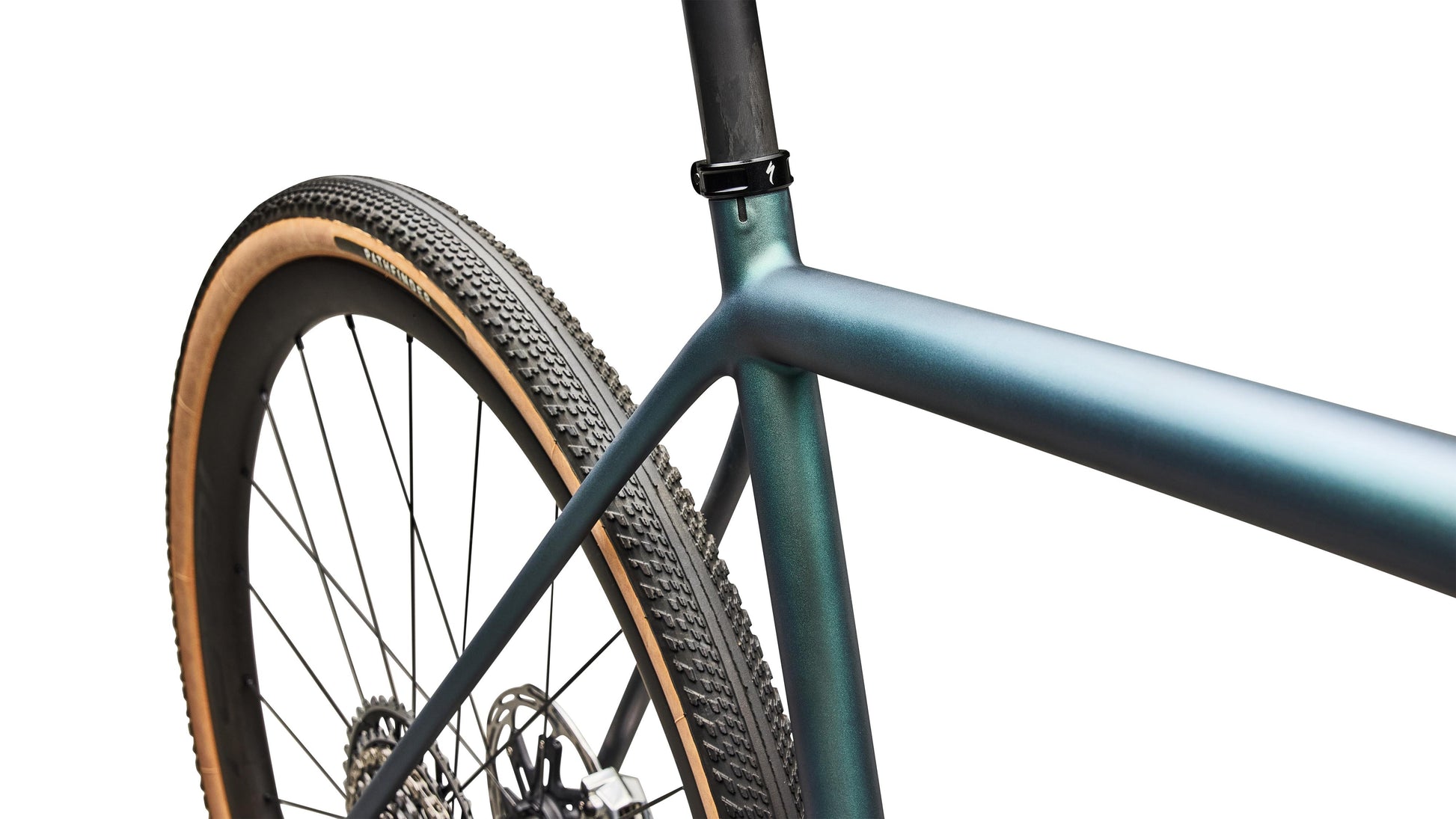

2026 Specialized S-Works Crux - SRAM RED XPLR

2026 Specialized S-Works Crux - SRAM RED XPLR

91426-0149

$9,999.99
$11,999.99 $9,999.99
Spring Sale
Color
Size
View full details

    2026 Specialized S-Works Crux - SRAM RED XPLR Features

    We made Crux, the lightest gravel bike in the world, even lighter. With the unrivaled capability of massive tire clearance and performance gravel geometry, it’s not just the ultimate expression of gravel performance—it’s your one-way ticket to gravel enlightenment.

    With UDH and the all-new SRAM RED XPLR, the S-Works Crux drops another 102 grams. Featuring Roval Terra CLX II wheels, Terra Bars, Alpinist seat post, S-Works Power Saddle with Mirror, and Pathfinder Pro tires, the new S-Works Crux with SRAM RED XPLR is our most premium build.

    At a Glance

    • Lightest: 725g S-Works 12r frame. We took the breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
    • Capable: 47c/650b x 2.1” tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine at full gas.
    • Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux’s iconic history in ‘cross.
    • Now equipped with UDH - Universal Derailleur Hanger - and built with the new SRAM RED XPLR, it features a 13-speed 10-46 cassette, power meter, updated lever ergonomics, and brake calipers that reduce brake effort by up to 80%.

    Component Specifications

    Frameset
    frame
    S-Works Crux FACT 12r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
    seat binder
    Specialized Alloy, 30.0mm, titanium bolt
    Suspension
    fork
    S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
    Brakes
    front brake
    See override
    rear brake
    See override
    Drivetrain
    shift levers
    SRAM RED AXS E1, hydraulic disc
    rear derailleur
    SRAM RED AXS XPLR E1, 13-speed
    cassette
    SRAM RED E1 XPLR, 13-speed, 10-46t
    chain
    SRAM Red XPLR, 13sp
    crankset
    SRAM RED E1 XPLR, DUB Wide, 40t, Quarq Power Meter
    bottom bracket
    SRAM DUB BSA 68 Wide
    Wheels & Tires
    front tire
    Pathfinder 700x40, Tubeless Ready
    rear tire
    Pathfinder 700x40, Tubeless Ready
    inner tubes
    700x32-50mm, 40mm Presta valve
    front wheel
    Roval Terra CLX II, 25mm internal width, Tubeless Ready, 32mm depth, 21h, Roval LF13 hub with ceramic SINC bearings, Centerlock disc, DT Swiss Aerolite spokes
    rear wheel
    Roval Terra CLX II, 25mm internal width, Tubeless Ready, 32mm depth, 24h, Roval LF14R2, Centerlock, DT Swiss EXP internals, SRAM XDR, DT Swiss Aerolite spokes
    Cockpit
    stem
    S-Works SL, alloy, titanium bolts, 6-degree rise
    handlebars
    Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare
    saddle
    S-Works Power with Mirror
    seatpost
    Roval Alpinist Carbon Seatpost
    tape
    Supacaz Super Sticky Kush

    2026 Specialized S-Works Crux - SRAM RED XPLR

    Bike/Frame Size 49 52 54 56 58 61
    Stack 530 mm 547 mm 560 mm 578 mm 598 mm 621 mm
    Reach 375 mm 382 mm 388 mm 397 mm 405 mm 415 mm
    Chainstay Length 425 mm 425 mm 425 mm 425 mm 425 mm 425 mm
    Wheelbase 1008 mm 1014 mm 1023 mm 1033 mm 1045 mm 1059 mm
    Top Tube Length, Horizontal 512 mm 539 mm 549 mm 568 mm 582 mm 599 mm
    Bike Standover Height 749 mm 772 mm 794 mm 816 mm 841 mm 866 mm
    Seat Tube Length 466 mm 496 mm 521 mm 546 mm 576 mm 606 mm
    Seat Tube Angle 75.5° 74° 74° 73.5° 73.5° 73.5°
    Head Tube Length 100 mm 115 mm 130 mm 147 mm 167 mm 190 mm
    Head Tube Angle 70.5° 71.25° 71.5° 72° 72.25° 72.5°
    BB Height 284 mm 284 mm 286 mm 286 mm 286 mm 286 mm
    BB Drop 74 mm 74 mm 72 mm 72 mm 72 mm 72 mm
    Trail 74 mm 69 mm 67 mm 64 mm 62 mm 60 mm
    Fork Length, Full 401 mm 401 mm 401 mm 401 mm 401 mm 401 mm
    Fork Rake/Offset 50 mm 50 mm 50 mm 50 mm 50 mm 50 mm
    Front Center 594 mm 600 mm 608 mm 618 mm 630 mm 644 mm

    Component Geometry

    Component 49 52 54 56 58 61
    Crank Length 165 mm 170 mm 172.5 mm 172.5 mm 175 mm 175 mm
    Handlebar Width 380 mm 400 mm 420 mm 420 mm 440 mm 440 mm
    Stem Length 70 mm 80 mm 90 mm 100 mm 110 mm 110 mm
    Saddle Width 155 mm 155 mm 143 mm 143 mm 143 mm 143 mm
    Seatpost Length 300 mm 300 mm 300 mm 360 mm 360 mm 360 mm
