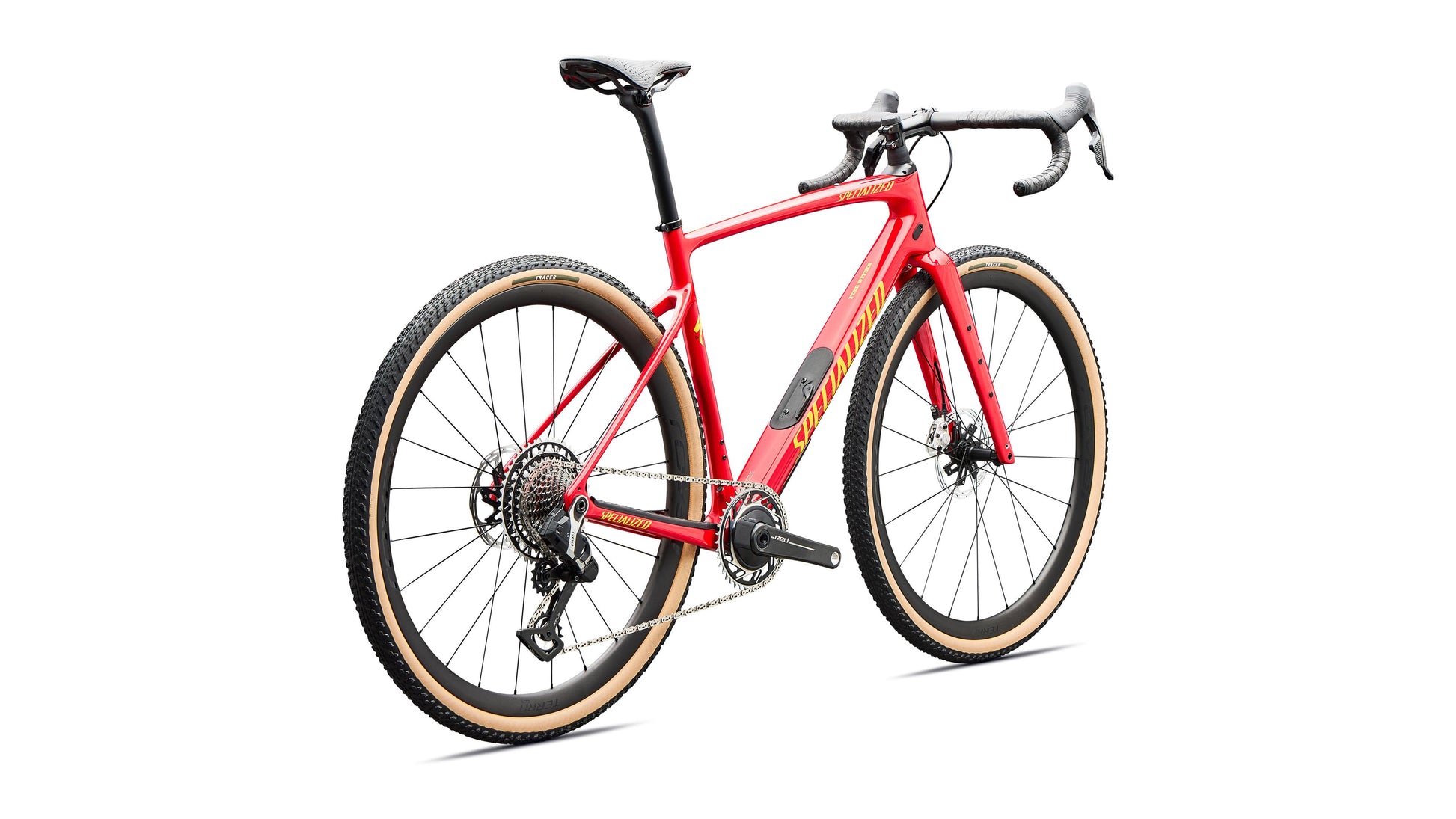

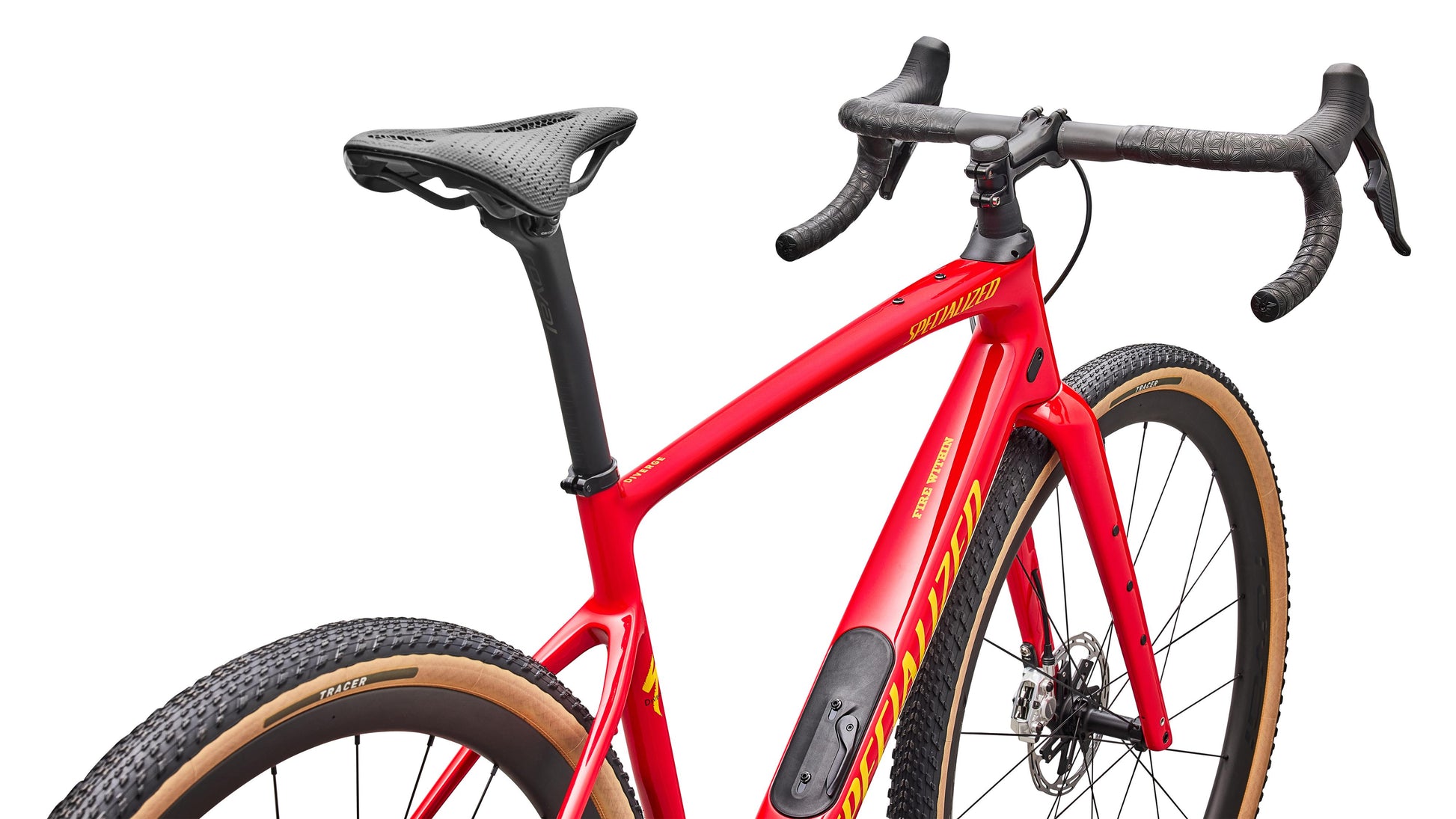

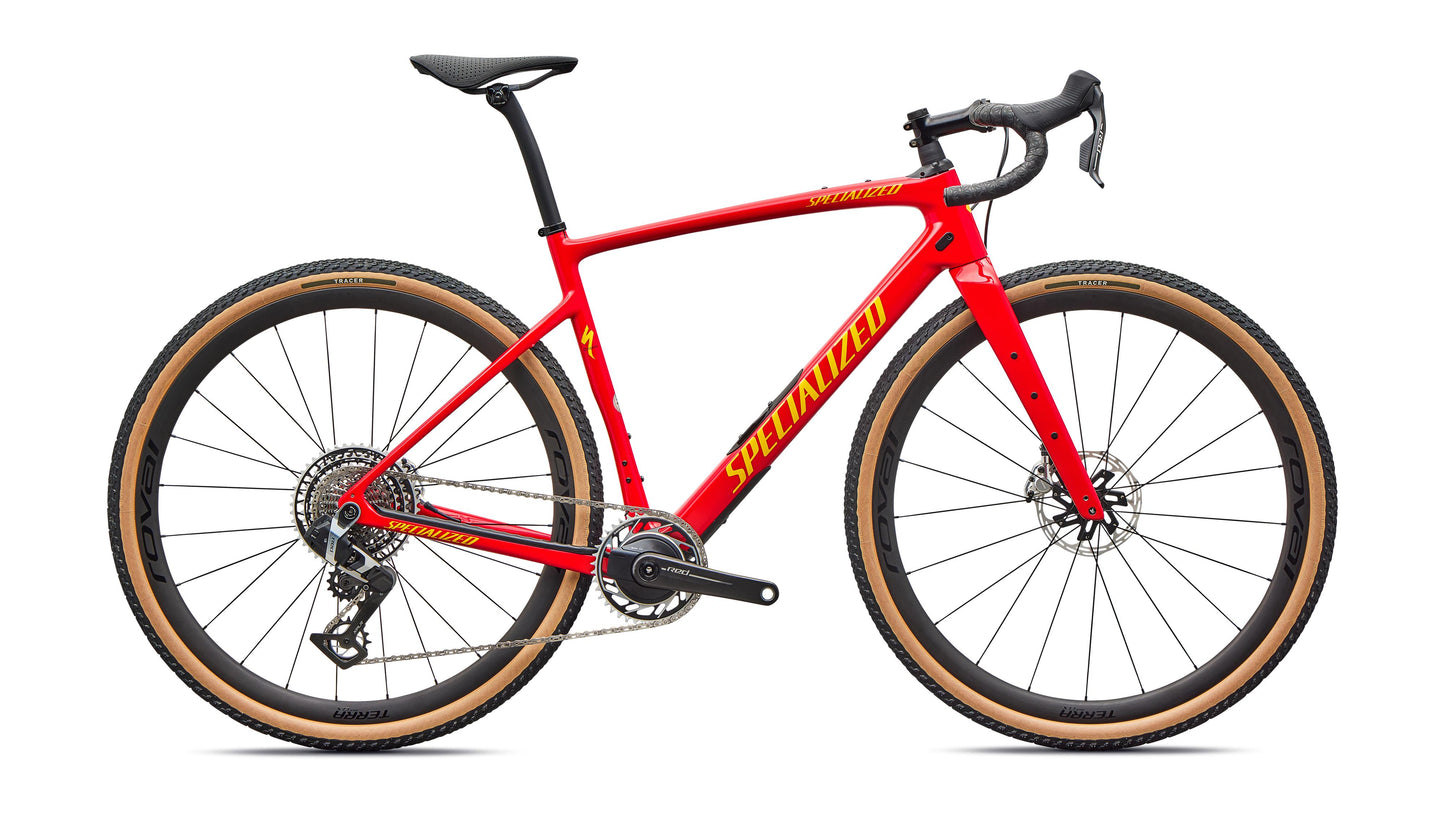

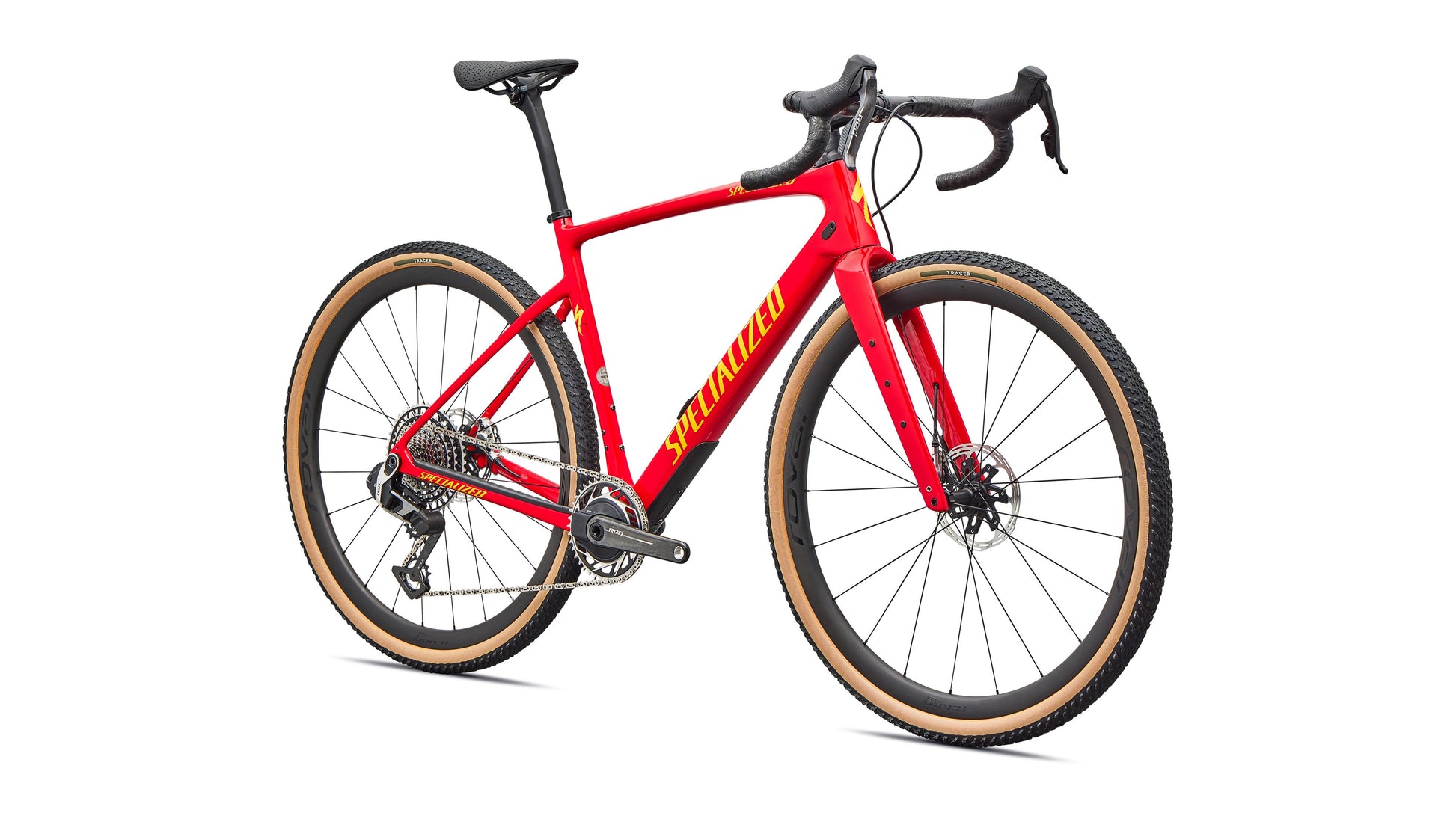

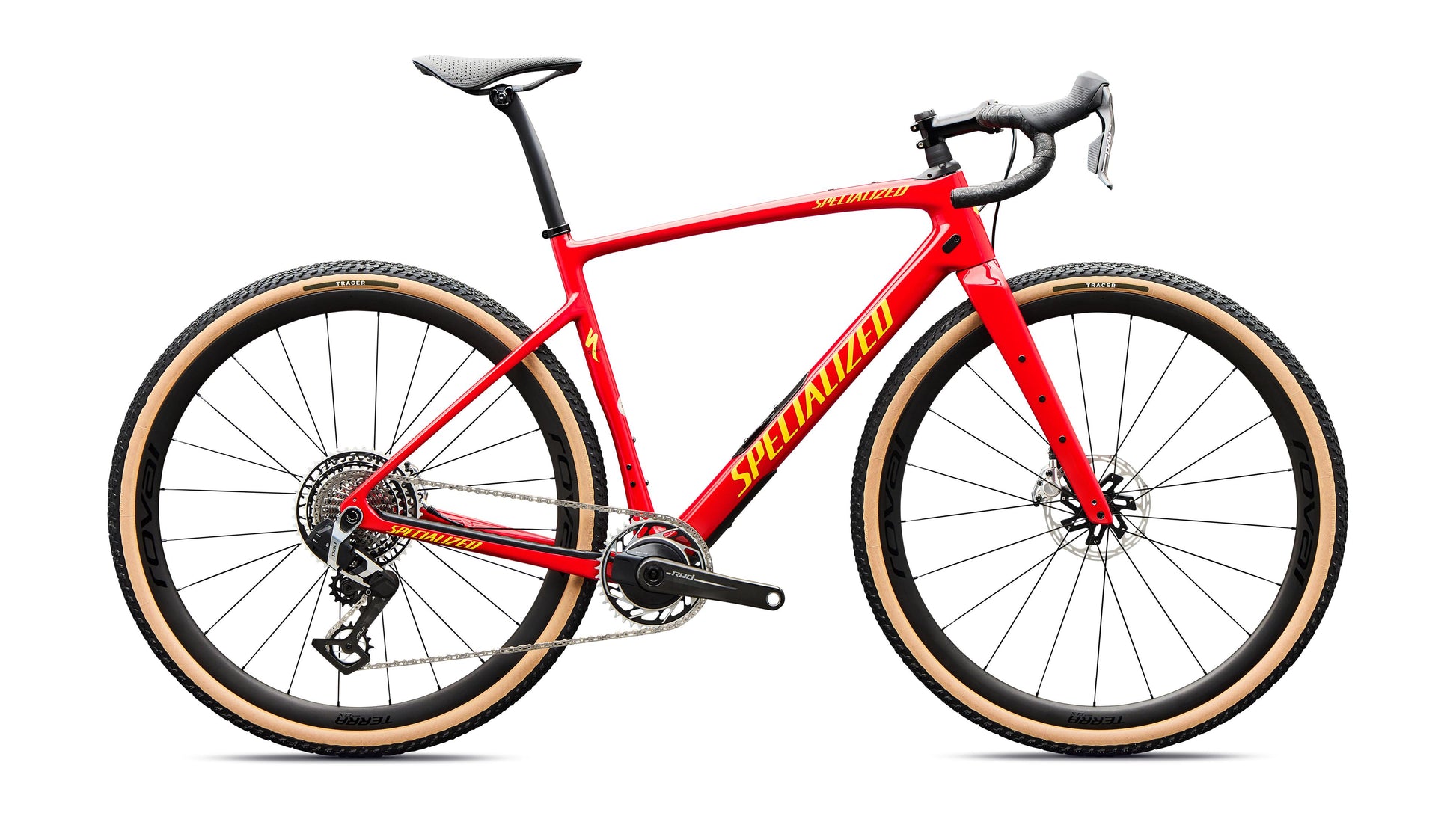

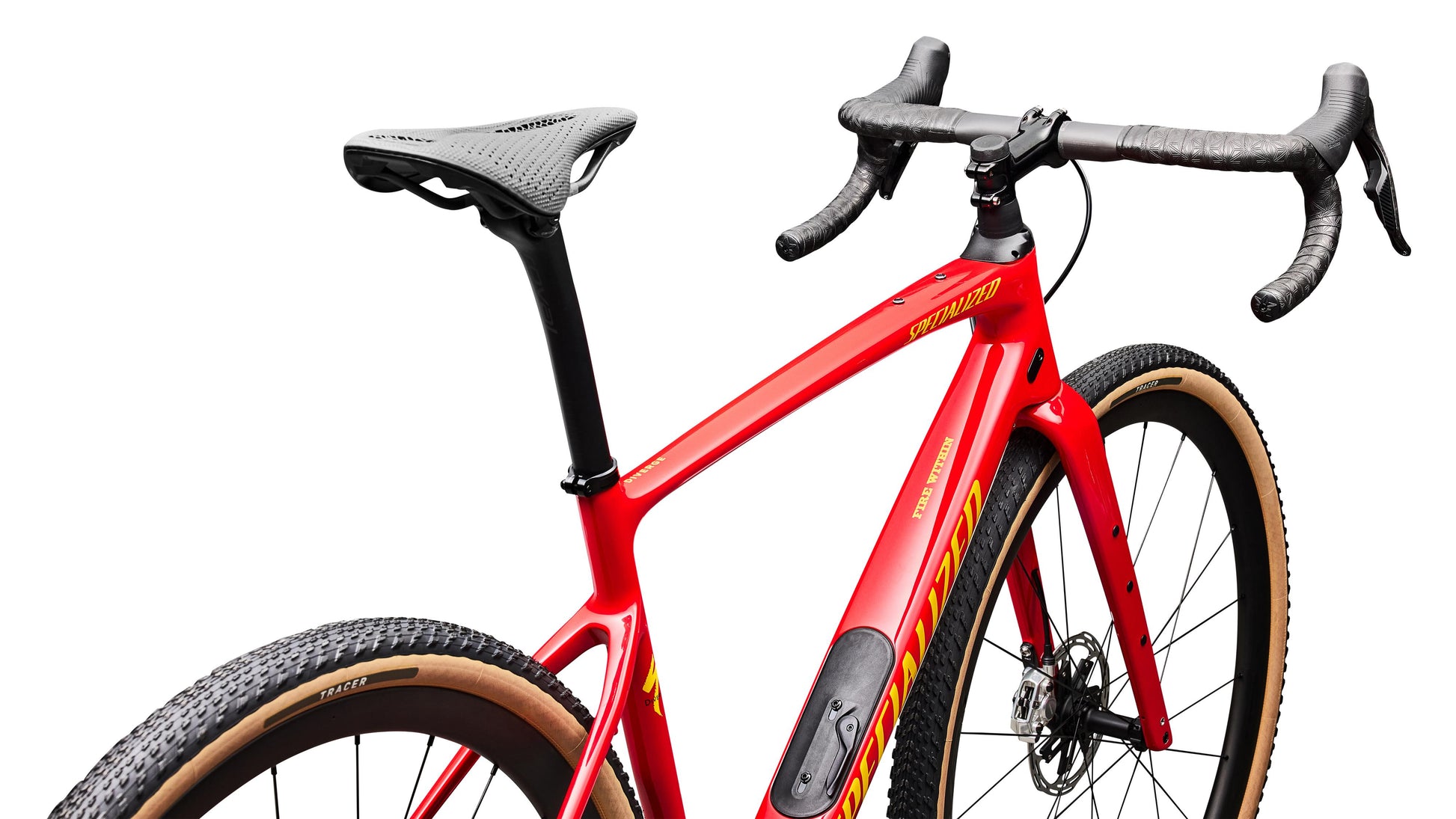

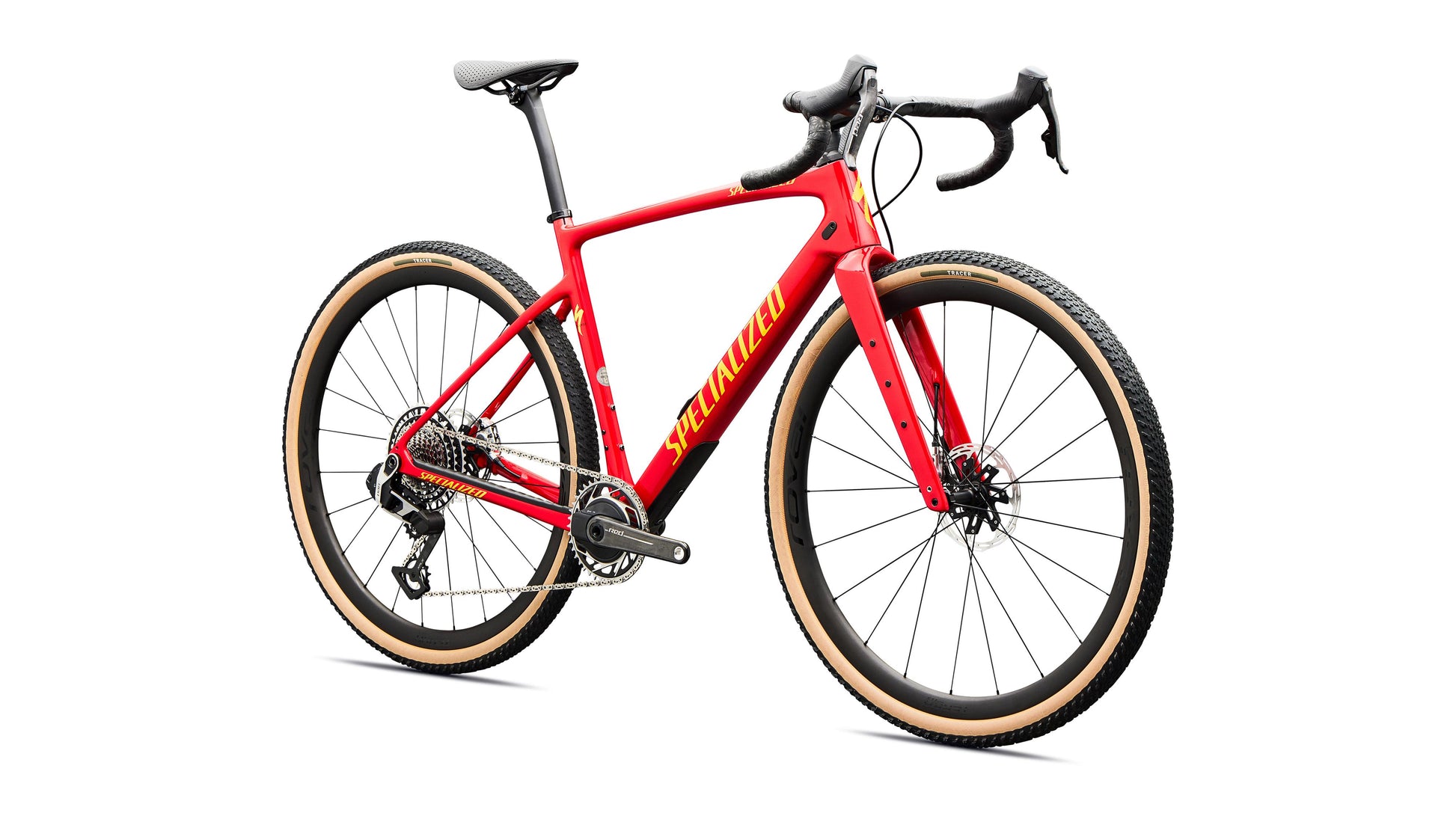

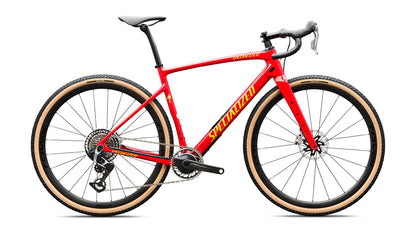

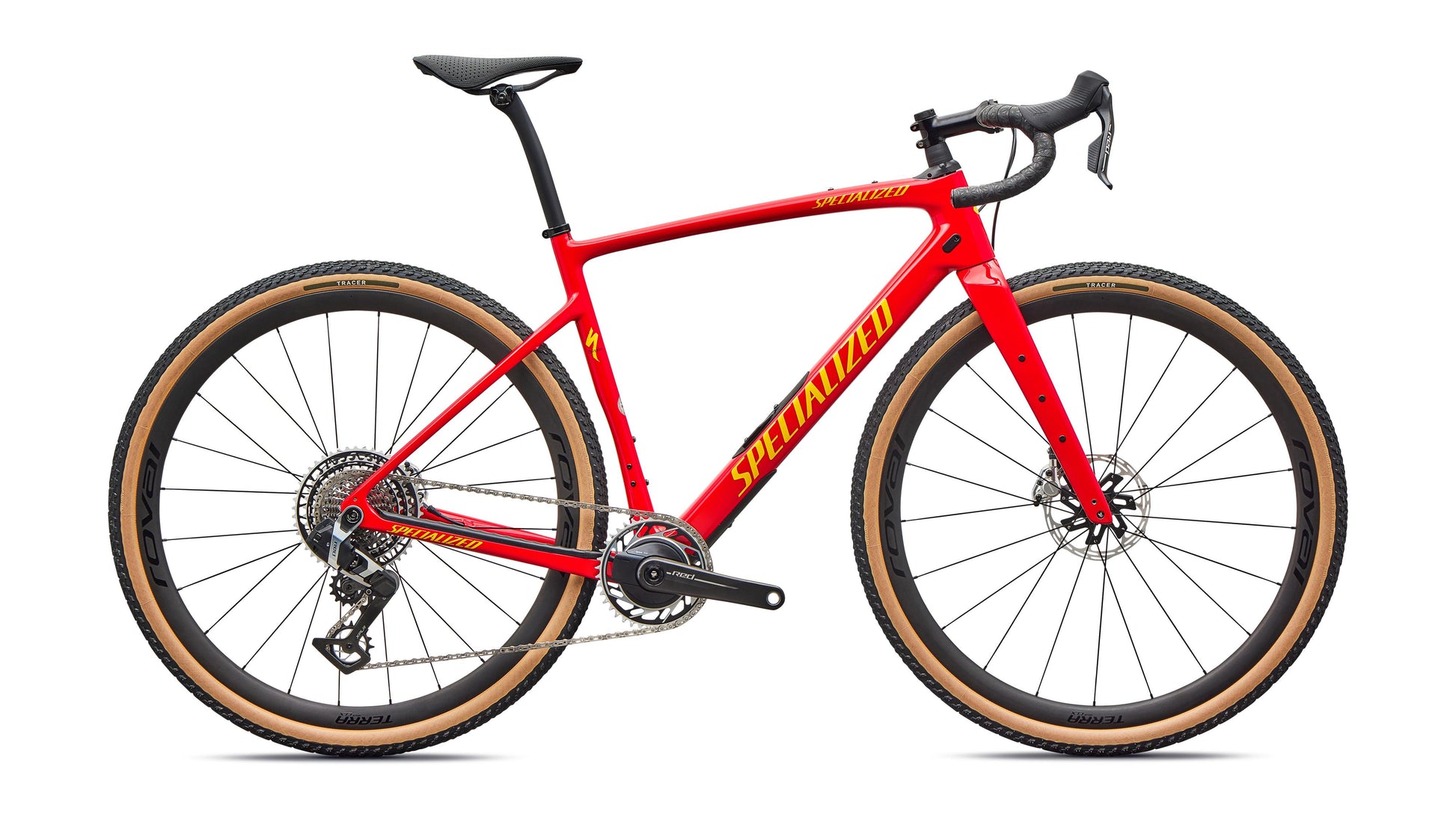

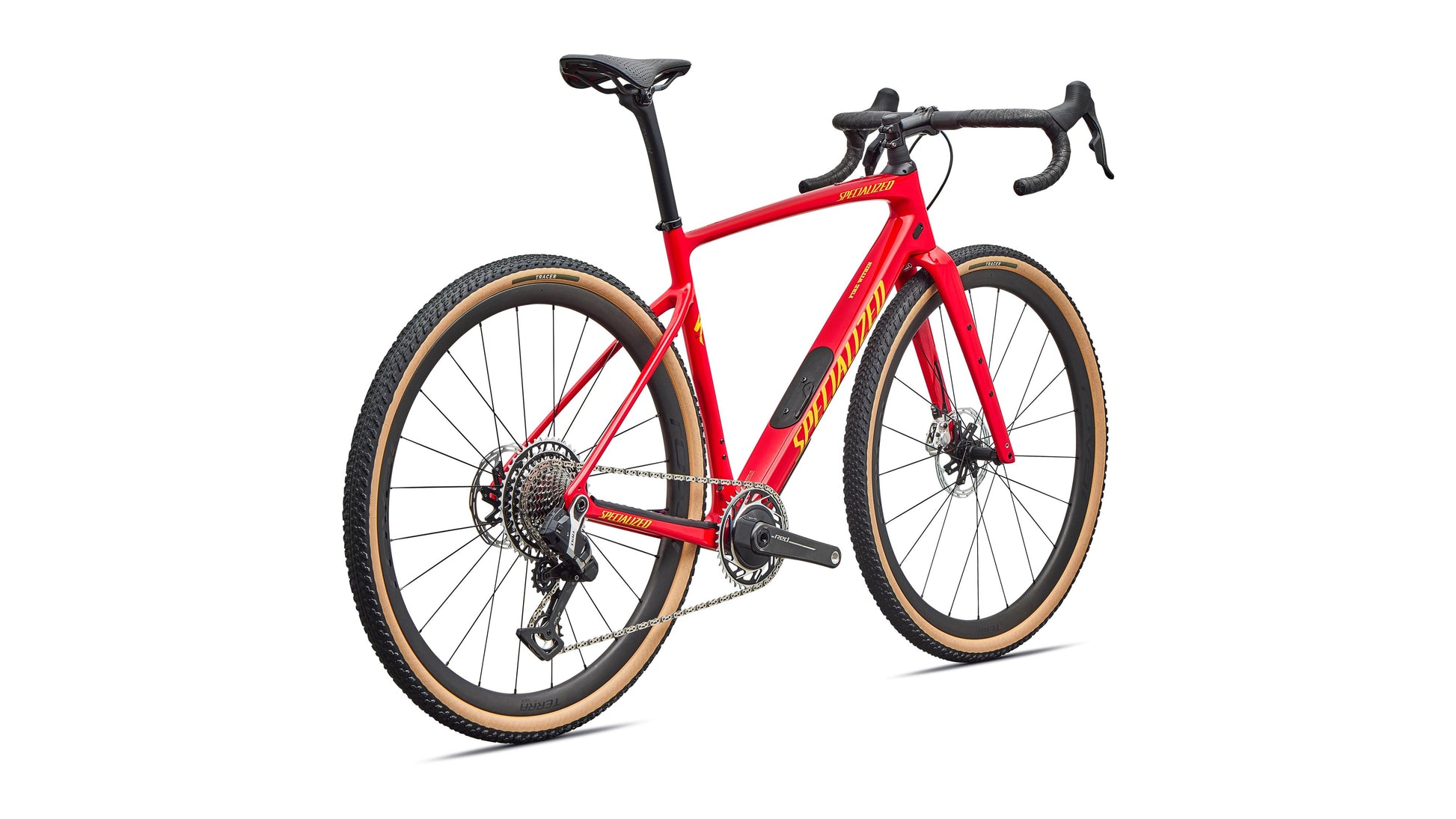

2026 Specialized Diverge 4 Pro LTD - SRAM RED XPLR

2026 Specialized Diverge 4 Pro LTD - SRAM RED XPLR

95426-1152

$10,499.99
$10,499.99 $10,499.99
Color
Size
Low Stock - Only 1 left!
View full details

    2026 Specialized Diverge 4 Pro LTD - SRAM RED XPLR Features

    Race-tuned. Adventure-approved. The Diverge 4 gravel bike is built for full-gas race days and off-grid epics. With Future Shock 3.0, our most responsive frame ever, massive tire clearance, and the biggest internal storage in gravel, the best gravel bike in the world just got better. Chase the horizon—or your rivals—it’s built for both.

    At a Glance

    • Use - Gravel Adventure/Race
    • Frameset - FACT 9r Carbon
    • Suspension - Future Shock 3.3
    • Drivetrain/Wheels- SRAM Red with Quarq XPLR/Roval Terra CLX II
    • Storage - SWAT 4.0
    • 8.01kg

    Component Specifications

    Frameset
    frame

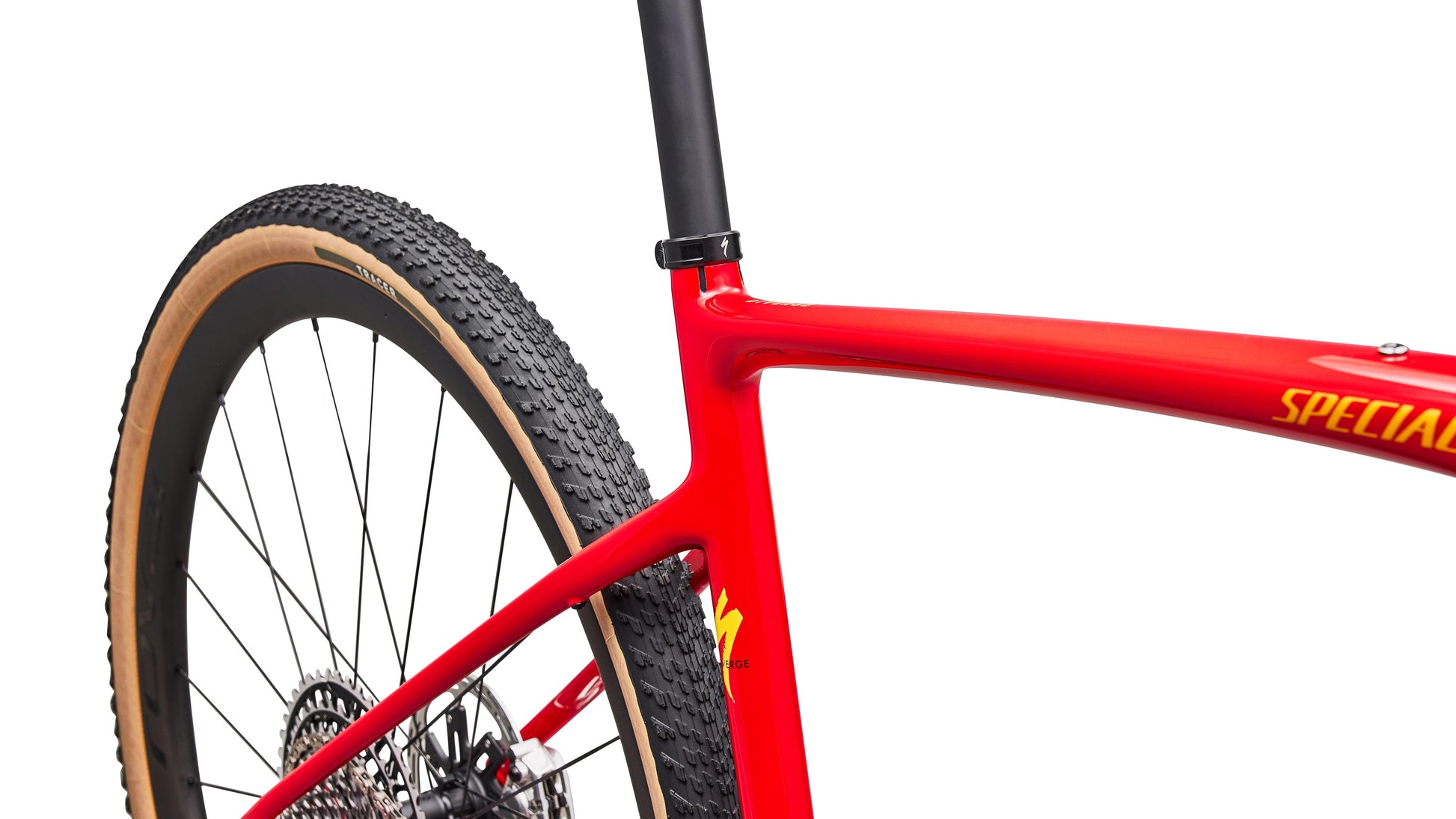

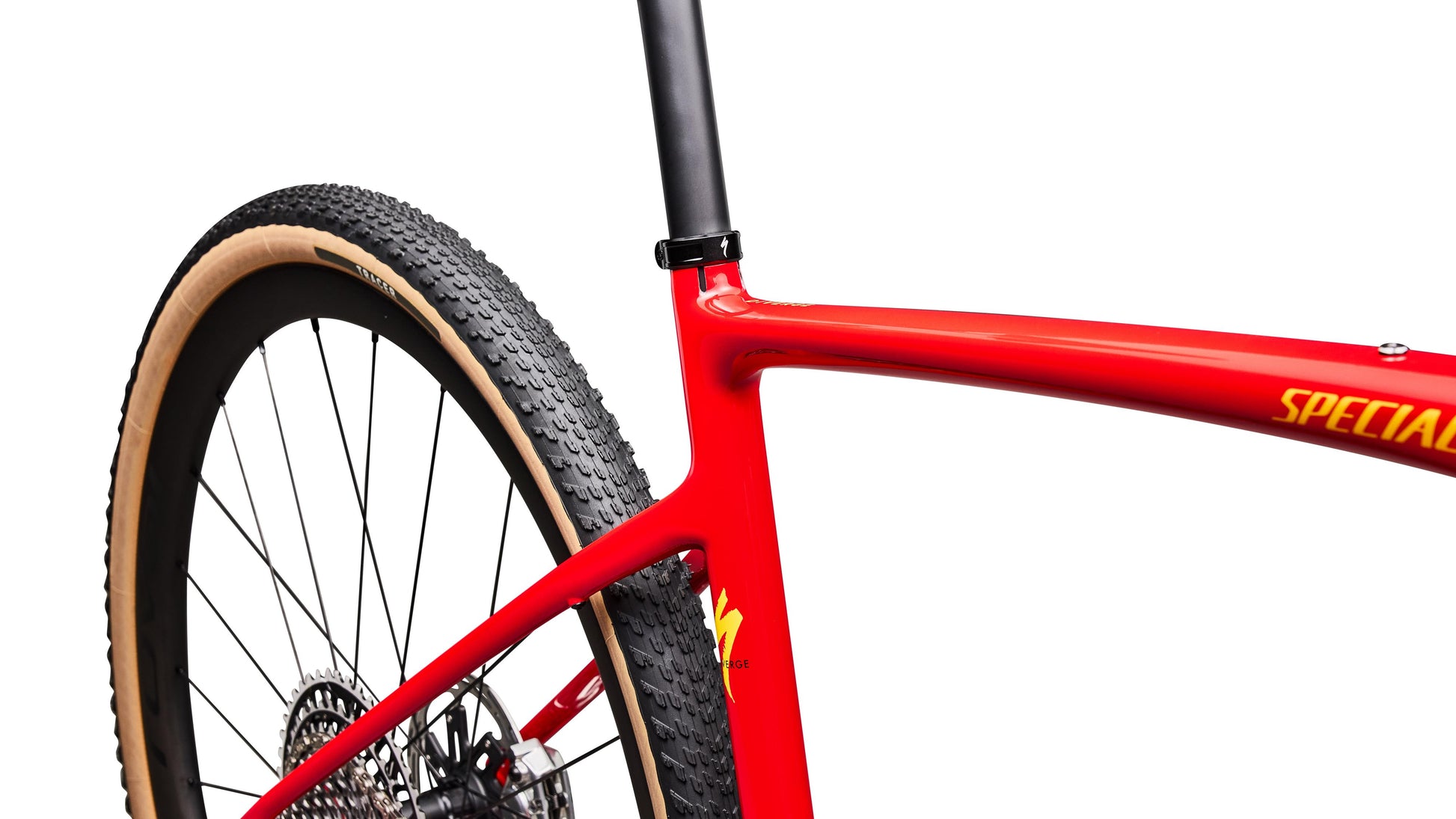

    Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout
    seat binder
    Specialized Alloy, 30.8mm
    Suspension
    fork
    Future Shock 3.3 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
    Brakes
    front brake
    SRAM RED AXS, hydraulic disc
    rear brake
    SRAM RED E1, hydraulic disc
    Drivetrain
    shift levers
    SRAM RED AXS E1
    rear derailleur
    SRAM RED AXS XPLR E1, 13-speed
    cassette
    SRAM RED E1 XPLR, 13-speed, 10-46t
    chain
    SRAM RED E1 Chain
    crankset
    SRAM RED AXS, Quarq Power Meter, 40t Chainring
    bottom bracket
    SRAM DUB BSA 68 Wide
    Wheels & Tires
    front tire
    Tracer TLR All Terrain Gravel Tire 700x45, Tan Sidewall, Tubeless Ready
    rear tire
    Tracer TLR All Terrain Gravel Tire 700x45, Tan Sidewall, Tubeless Ready
    inner tubes
    Presta, 700x32-50mm
    front wheel
    Roval Terra CLX II, 25mm internal width, Tubeless Ready, 32mm depth, 21h, Roval LF13 hub with ceramic SINC bearings, Centerlock disc, DT Swiss Aerolite spokes
    rear wheel
    Roval Terra CLX II, 25mm internal width, Tubeless Ready, 32mm depth, 24h, Roval LF14R2, Centerlock, DT Swiss EXP internals, SRAM XDR, DT Swiss Aerolite spokes
    Cockpit
    stem
    Roval Alpinist, 7075 alloy, titanium bolts, 6-degree rise

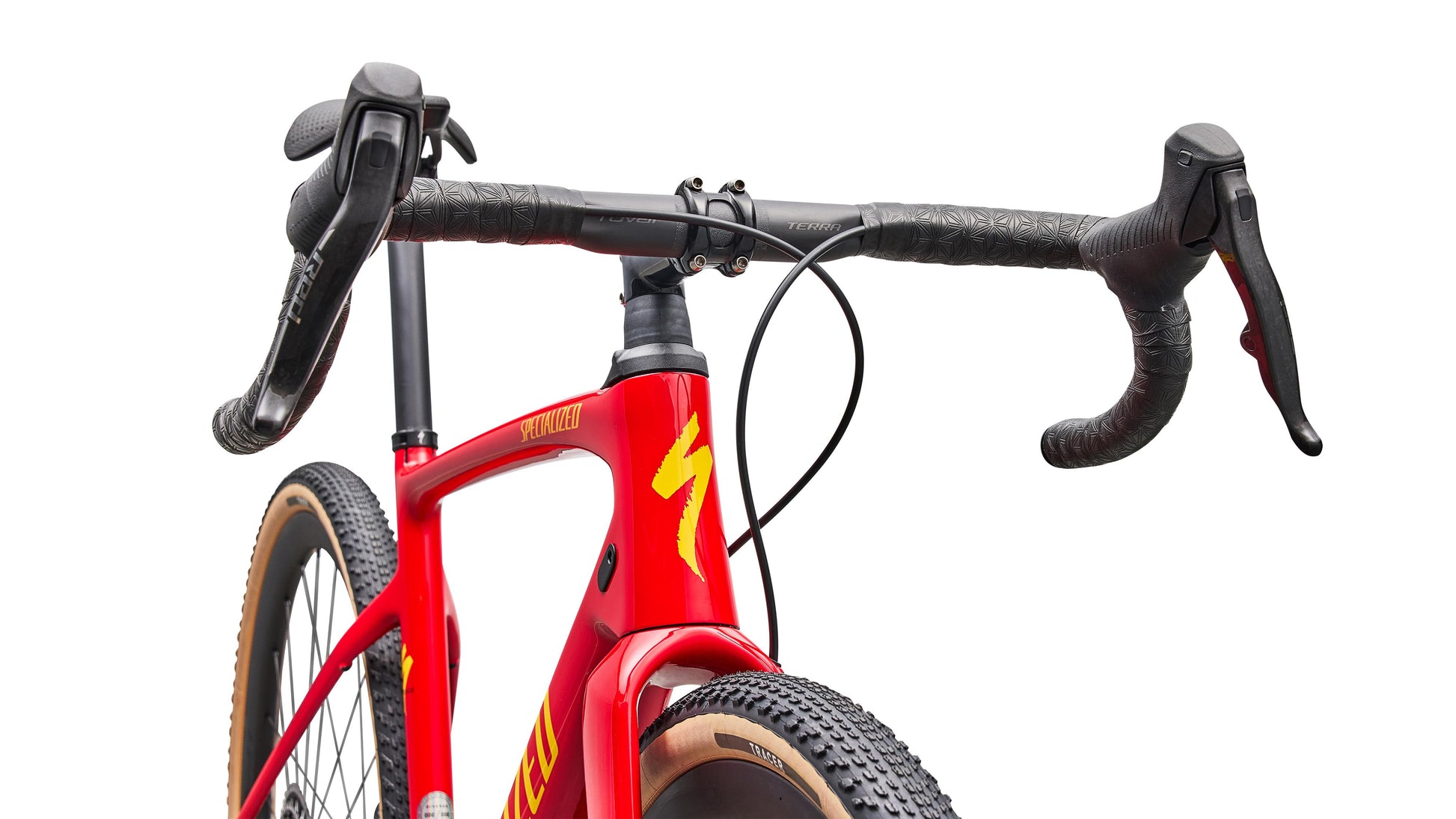

    handlebars
    Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare
    saddle
    S-Works Power with Mirror
    seatpost
    Roval Terra Carbon Seat Post, 20mm Offset
    tape
    Supacaz Super Sticky Kush
    Accessories
    swat
    SWAT 4.0 internal downtube storage

    2026 Specialized Diverge 4 Pro LTD - SRAM RED XPLR

    Bike/Frame Size 49 52 54 56 58 61
    Stack 563 mm 578 mm 592 mm 610 mm 634 mm 659 mm
    Reach 365 mm 374 mm 387 mm 400 mm 412 mm 425 mm
    Chainstay Length 430 mm 430 mm 430 mm 430 mm 430 mm 430 mm
    Wheelbase 1019 mm 1031 mm 1041 mm 1060 mm 1081 mm 1102 mm
    Top Tube Length, Horizontal 521 mm 537 mm 556 mm 575 mm 593 mm 613 mm
    Bike Standover Height 700 mm 725 mm 754 mm 779 mm 805 mm 832 mm
    Seat Tube Length 400 mm 430 mm 470 mm 500 mm 530 mm 560 mm
    Seat Tube Angle 74.5° 74° 74° 74° 74° 74°
    Head Tube Length 90 mm 104 mm 116 mm 135 mm 161 mm 187 mm
    Head Tube Angle 70° 70.5° 71° 71° 71° 71°
    BB Drop 85 mm 85 mm 85 mm 85 mm 85 mm 85 mm
    Trail 72 mm 68 mm 65 mm 65 mm 65 mm 65 mm
    Fork Length, Full 391 mm 391 mm 391 mm 391 mm 391 mm 391 mm
    Fork Rake/Offset 55 mm 55 mm 55 mm 55 mm 55 mm 55 mm
    Front Center 604 mm 613 mm 626 mm 645 mm 665 mm 686 mm

    Component Geometry

    Component 49 52 54 56 58 61
    Crank Length 165 mm 170 mm 172.5 mm 172.5 mm 175 mm 175 mm
    Handlebar Width 380 mm 400 mm 420 mm 420 mm 440 mm 440 mm
    Stem Length 60 mm 70 mm 80 mm 90 mm 100 mm 100 mm
    Saddle Width 155 mm 155 mm 143 mm 143 mm 143 mm 143 mm
    Seatpost Length 330 mm 330 mm 380 mm 380 mm 380 mm 380 mm
