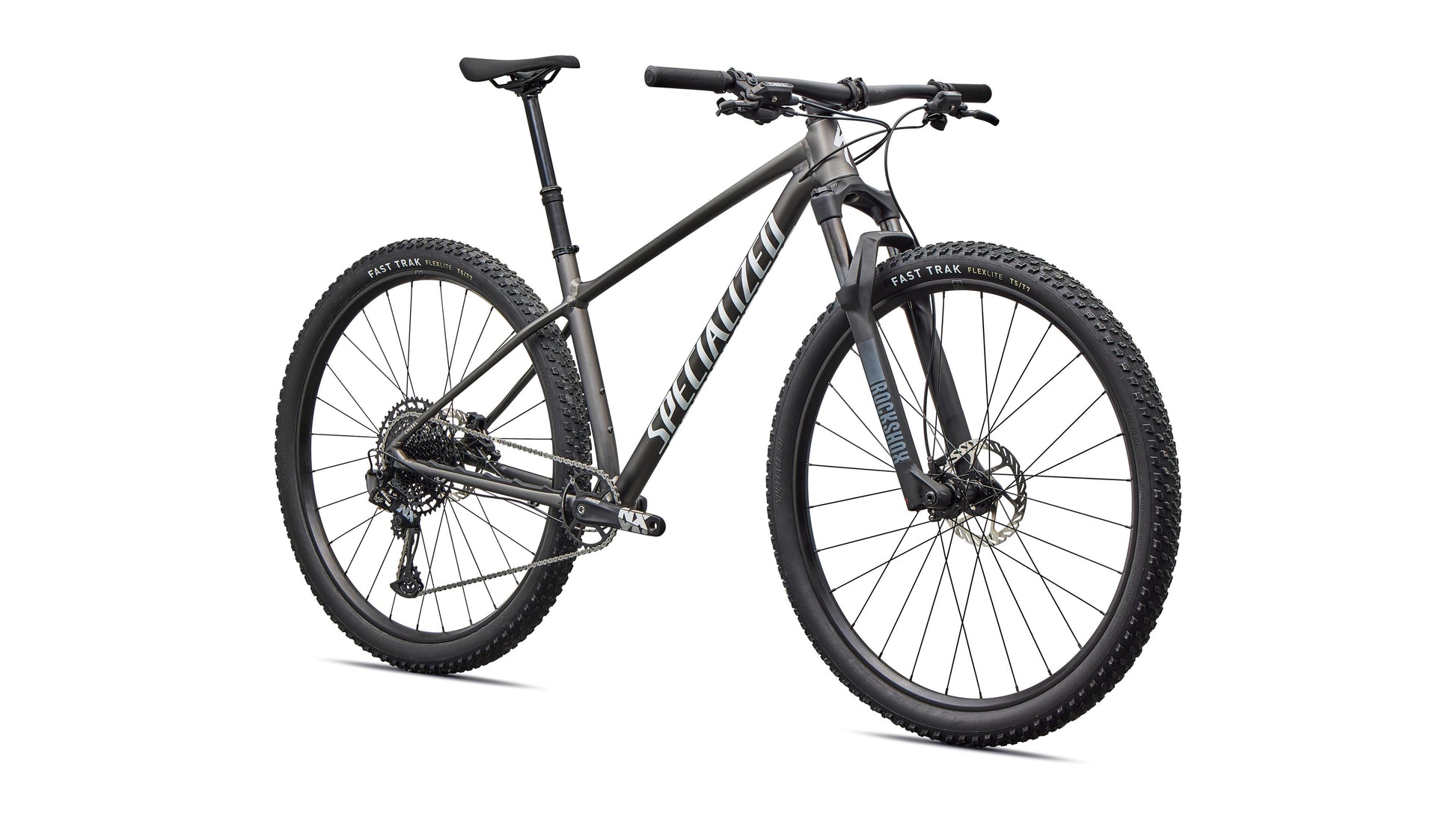

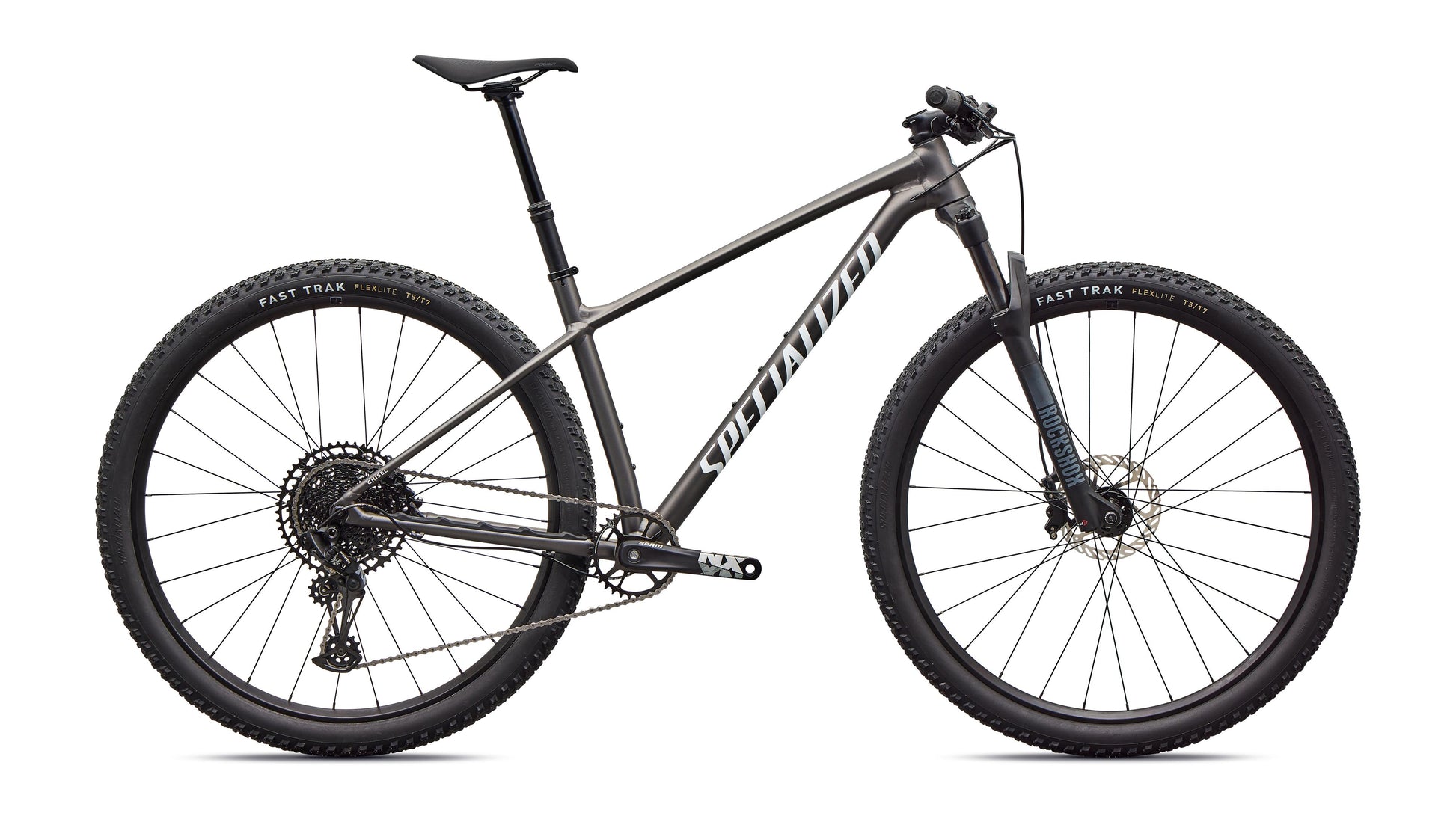

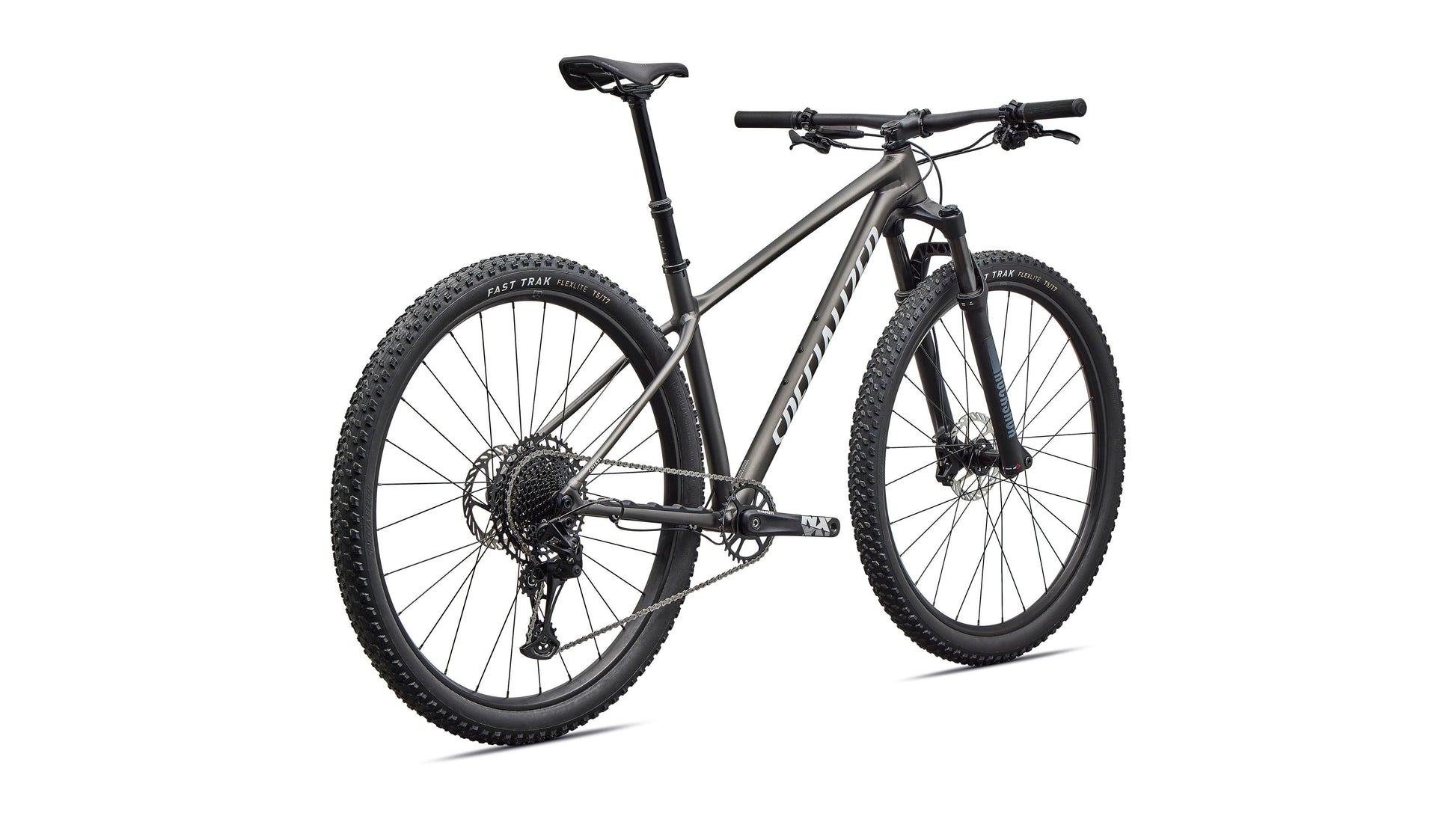

2026 Specialized Chisel Hardtail

2026 Specialized Chisel Hardtail

93826-7301

$1,899.99
$1,899.99 $1,899.99
Sold out
View full details

    2026 Specialized Chisel Hardtail Features

    The Chisel has been purpose-built to tackle modern cross-country trails and race courses with the utmost speed. In fact, it shares many of the same modern features as its Epic Hardtail sibling but in a more budget-friendly package—making it the most efficient and capable alloy hardtail out there.

    This Chisel comes with SRAM's tried and true NX Eagle 1x12 speed drivetrain and DB6 hydraulic disc brakes, a RockShox Recon Silver fork, and 27mm internal width alloy wheels wrapped in 2.35 Fast Track Control casing tires.

    At a Glance

    • We asked ourselves, “How do we bring pro-level performance down to a price more riders can afford?” D'Aluisio Smartweld Technology, that's how. Smartweld allows us to create the most consistent, high-strength welds possible while taking full advantage of compliant, hydroformed alloy tubes. The result? One of the lightest alloy hardtail frames out there at 1,350g, which also features size-tuned stiffness.
    • The Chisel also houses all of the modern features that you expect from an XC bike, like Progressive XC Geometry with a 68-degree headtube angle and longer reach, internal cable routing, a threaded bottom bracket, boost spacing, 30.9mm dropper post compatibility, and 1x-only drivetrains.

    Product Specifications

    bottom bracket

    SRAM Powerspline

    cassette

    SRAM NX Eagle, 12-speed, 11-50t

    chain

    SRAM NX Eagle, 12-speed

    chain rings

    Steel, 30T

    crankset

    SRAM NX Eagle, Powerspline, 165/170/175mm, 32T

    fork

    Rockshox Recon Silver RL, 15x110mm, 42mm offset, XS: 80mm, S-XL 100mm travel

    frame

    Specialized D''Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible

    front brake

    SRAM DB6, 4-piston caliper, hydraulic disc, 180mm rotor

    front hub

    Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h

    front tire

    Specialized Fast Trak, Flex Lite Casing, T5/T7 Compound, 29x2.35

    grips

    Specialized Trail Grips

    handlebars

    Specialized Alloy XC minirise, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm

    inner tubes

    Specialized Turbo Tube

    rear brake

    SRAM DB6, 4-piston caliper, hydraulic disc, 160mm rotor

    rear derailleur

    SRAM NX Eagle, 12-speed

    rear hub

    Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h

    rear tire

    Specialized Fast Trak, Flex Lite Casing, T5/T7 Compound, 29x2.35

    rims

    Specialized Alloy, Tubeless ready, 27mm inner width, disc, 28h

    saddle

    Body Geometry Power Sport, steel rails

    seatpost

    TranzX Dropper, 30.9mm, XS-SM: 100mm, M: 125mm, L-XL: 150mm

    seat binder

    Specialized Alloy 34.9, Steel Bolt

    shift levers

    SRAM NX Eagle, trigger, 12-speed

    spokes

    Stainless, 14g

    stem

    Specialized, 3D-forged alloy, 4-bolt, 7-degree rise

    category

    Mountain

    component geometry

    [{"COMPONENT_GEO_CODE":"12912731","COMPONENT_MEASUREMENT_DESC":"Crank Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"101","SIZE_DESC":"XS","GEO_SIZE_VALUE":"165m","GEO_SIZE_DISPLAY_ORDER":"1"},{"COMPONENT_GEO_CODE":"12912731","COMPONENT_MEASUREMENT_DESC":"Crank Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"101","SIZE_DESC":"S","GEO_SIZE_VALUE":"170","GEO_SIZE_DISPLAY_ORDER":"2"},{"COMPONENT_GEO_CODE":"12912731","COMPONENT_MEASUREMENT_DESC":"Crank Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"101","SIZE_DESC":"M","GEO_SIZE_VALUE":"170","GEO_SIZE_DISPLAY_ORDER":"3"},{"COMPONENT_GEO_CODE":"12912731","COMPONENT_MEASUREMENT_DESC":"Crank Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"101","SIZE_DESC":"L","GEO_SIZE_VALUE":"175","GEO_SIZE_DISPLAY_ORDER":"4"},{"COMPONENT_GEO_CODE":"12912731","COMPONENT_MEASUREMENT_DESC":"Crank Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"101","SIZE_DESC":"XL","GEO_SIZE_VALUE":"175","GEO_SIZE_DISPLAY_ORDER":"5"},{"COMPONENT_GEO_CODE":"12912771","COMPONENT_MEASUREMENT_DESC":"Handlebar Width","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"102","SIZE_DESC":"XS","GEO_SIZE_VALUE":"750","GEO_SIZE_DISPLAY_ORDER":"1"},{"COMPONENT_GEO_CODE":"12912771","COMPONENT_MEASUREMENT_DESC":"Handlebar Width","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"102","SIZE_DESC":"S","GEO_SIZE_VALUE":"750","GEO_SIZE_DISPLAY_ORDER":"2"},{"COMPONENT_GEO_CODE":"12912771","COMPONENT_MEASUREMENT_DESC":"Handlebar Width","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"102","SIZE_DESC":"M","GEO_SIZE_VALUE":"750","GEO_SIZE_DISPLAY_ORDER":"3"},{"COMPONENT_GEO_CODE":"12912771","COMPONENT_MEASUREMENT_DESC":"Handlebar Width","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"102","SIZE_DESC":"L","GEO_SIZE_VALUE":"750","GEO_SIZE_DISPLAY_ORDER":"4"},{"COMPONENT_GEO_CODE":"12912771","COMPONENT_MEASUREMENT_DESC":"Handlebar Width","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"102","SIZE_DESC":"XL","GEO_SIZE_VALUE":"750","GEO_SIZE_DISPLAY_ORDER":"5"},{"COMPONENT_GEO_CODE":"12912775","COMPONENT_MEASUREMENT_DESC":"Stem Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"103","SIZE_DESC":"XS","GEO_SIZE_VALUE":"60","GEO_SIZE_DISPLAY_ORDER":"1"},{"COMPONENT_GEO_CODE":"12912775","COMPONENT_MEASUREMENT_DESC":"Stem Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"103","SIZE_DESC":"S","GEO_SIZE_VALUE":"60","GEO_SIZE_DISPLAY_ORDER":"2"},{"COMPONENT_GEO_CODE":"12912775","COMPONENT_MEASUREMENT_DESC":"Stem Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"103","SIZE_DESC":"M","GEO_SIZE_VALUE":"70","GEO_SIZE_DISPLAY_ORDER":"3"},{"COMPONENT_GEO_CODE":"12912775","COMPONENT_MEASUREMENT_DESC":"Stem Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"103","SIZE_DESC":"L","GEO_SIZE_VALUE":"70","GEO_SIZE_DISPLAY_ORDER":"4"},{"COMPONENT_GEO_CODE":"12912775","COMPONENT_MEASUREMENT_DESC":"Stem Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"103","SIZE_DESC":"XL","GEO_SIZE_VALUE":"70","GEO_SIZE_DISPLAY_ORDER":"5"},{"COMPONENT_GEO_CODE":"12912785","COMPONENT_MEASUREMENT_DESC":"Saddle Width","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"104","SIZE_DESC":"XS","GEO_SIZE_VALUE":"155","GEO_SIZE_DISPLAY_ORDER":"1"},{"COMPONENT_GEO_CODE":"12912785","COMPONENT_MEASUREMENT_DESC":"Saddle Width","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"104","SIZE_DESC":"S","GEO_SIZE_VALUE":"155","GEO_SIZE_DISPLAY_ORDER":"2"},{"COMPONENT_GEO_CODE":"12912785","COMPONENT_MEASUREMENT_DESC":"Saddle Width","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"104","SIZE_DESC":"M","GEO_SIZE_VALUE":"143","GEO_SIZE_DISPLAY_ORDER":"3"},{"COMPONENT_GEO_CODE":"12912785","COMPONENT_MEASUREMENT_DESC":"Saddle Width","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"104","SIZE_DESC":"L","GEO_SIZE_VALUE":"143","GEO_SIZE_DISPLAY_ORDER":"4"},{"COMPONENT_GEO_CODE":"12912785","COMPONENT_MEASUREMENT_DESC":"Saddle Width","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"104","SIZE_DESC":"XL","GEO_SIZE_VALUE":"143","GEO_SIZE_DISPLAY_ORDER":"5"},{"COMPONENT_GEO_CODE":"12912786","COMPONENT_MEASUREMENT_DESC":"Seatpost Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"105","SIZE_DESC":"XS","GEO_SIZE_VALUE":"357","GEO_SIZE_DISPLAY_ORDER":"1"},{"COMPONENT_GEO_CODE":"12912786","COMPONENT_MEASUREMENT_DESC":"Seatpost Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"105","SIZE_DESC":"S","GEO_SIZE_VALUE":"412","GEO_SIZE_DISPLAY_ORDER":"2"},{"COMPONENT_GEO_CODE":"12912786","COMPONENT_MEASUREMENT_DESC":"Seatpost Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"105","SIZE_DESC":"M","GEO_SIZE_VALUE":"459","GEO_SIZE_DISPLAY_ORDER":"3"},{"COMPONENT_GEO_CODE":"12912786","COMPONENT_MEASUREMENT_DESC":"Seatpost Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"105","SIZE_DESC":"L","GEO_SIZE_VALUE":"499","GEO_SIZE_DISPLAY_ORDER":"4"},{"COMPONENT_GEO_CODE":"12912786","COMPONENT_MEASUREMENT_DESC":"Seatpost Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"105","SIZE_DESC":"XL","GEO_SIZE_VALUE":"499","GEO_SIZE_DISPLAY_ORDER":"5"}]

    experience

    Cross Country

    frame geometry

    [{"GEO_SET_NAME":"Chisel HT","GEO_SET_ID":"15356","MODEL_YEAR":"2025","Children":[{"GEO_MEASUREMENT_DESCRIPTION":"Stack","MEASUREMENT_GEO_CODE":"185154","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"0","Children":[{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"591","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"605","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"605","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"619","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"633","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Reach","MEASUREMENT_GEO_CODE":"185155","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"1","Children":[{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"385","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"405","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"430","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"455","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"480","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Head Tube Length","MEASUREMENT_GEO_CODE":"185156","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"2","Children":[{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"95","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"95","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"95","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"110","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"125","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Head Tube Angle","MEASUREMENT_GEO_CODE":"185157","UOM":"degrees","GEO_MEASUREMENT_DISPLAY_ORDER":"3","Children":[{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"68","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"68","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"68","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"68","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"68","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"BB Height","MEASUREMENT_GEO_CODE":"185158","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"4","Children":[{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"304","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"309","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"309","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"309","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"309","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"BB Drop","MEASUREMENT_GEO_CODE":"185159","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"5","Children":[{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"68","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"63","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"63","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"63","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"63","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Trail","MEASUREMENT_GEO_CODE":"185160","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"6","Children":[{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"103","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"103","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"103","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"103","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"103","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Fork Length, Full","MEASUREMENT_GEO_CODE":"185161","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"7","Children":[{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"486","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"506","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"506","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"506","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"506","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Fork Rake/Offset","MEASUREMENT_GEO_CODE":"185162","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"8","Children":[{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"44","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"44","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"44","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"44","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"44","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Front Center","MEASUREMENT_GEO_CODE":"185163","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"9","Children":[{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"647","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"674","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"699","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"730","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"760","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Chainstay Length","MEASUREMENT_GEO_CODE":"185164","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"10","Children":[{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"432","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"432","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"432","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"432","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"432","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Wheelbase","MEASUREMENT_GEO_CODE":"185165","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"11","Children":[{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"1070","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"1099","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"1124","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"1154","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"1185","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Top Tube Length, Horizontal","MEASUREMENT_GEO_CODE":"185166","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"12","Children":[{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"555","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"578","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"603","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"632","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"661","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Bike Standover Height","MEASUREMENT_GEO_CODE":"185167","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"13","Children":[{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"732","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"762","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"792","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"816","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"847","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Seat Tube Length","MEASUREMENT_GEO_CODE":"185168","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"14","Children":[{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"367","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"400","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"430","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"470","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"520","GEO_DISPLAY_ORDER":"4"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Seat Tube Angle","MEASUREMENT_GEO_CODE":"185169","UOM":"degrees","GEO_MEASUREMENT_DISPLAY_ORDER":"15","Children":[{"FRAME_SIZE_DESC":"XS","GEO_VALUE":"74","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S","GEO_VALUE":"74","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"M","GEO_VALUE":"74","GEO_DISPLAY_ORDER":"2"},{"FRAME_SIZE_DESC":"L","GEO_VALUE":"74","GEO_DISPLAY_ORDER":"3"},{"FRAME_SIZE_DESC":"XL","GEO_VALUE":"74","GEO_DISPLAY_ORDER":"4"}]}]}]

    gender

    Men|Women

    group

    Bikes

    line

    BIKES

    material

    Aluminum

    model level

    Base

    model year

    2026

    product family

    Chisel Hardtail

    shifting

    Mechanical

    suspension

    Rigid

    wheel size

    29"

    base color

    Black

    color

    Satin Smoke / White

    size

    XS

    2026 Specialized Chisel Hardtail

    Bike/Frame Size XS S M L XL
    Stack 591 mm 605 mm 605 mm 619 mm 633 mm
    Reach 385 mm 405 mm 430 mm 455 mm 480 mm
    Chainstay Length 432 mm 432 mm 432 mm 432 mm 432 mm
    Wheelbase 1070 mm 1099 mm 1124 mm 1154 mm 1185 mm
    Top Tube Length, Horizontal 555 mm 578 mm 603 mm 632 mm 661 mm
    Bike Standover Height 732 mm 762 mm 792 mm 816 mm 847 mm
    Seat Tube Length 367 mm 400 mm 430 mm 470 mm 520 mm
    Seat Tube Angle 74° 74° 74° 74° 74°
    Head Tube Length 95 mm 95 mm 95 mm 110 mm 125 mm
    Head Tube Angle 68° 68° 68° 68° 68°
    BB Height 304 mm 309 mm 309 mm 309 mm 309 mm
    BB Drop 68 mm 63 mm 63 mm 63 mm 63 mm
    Trail 103 mm 103 mm 103 mm 103 mm 103 mm
    Fork Length, Full 486 mm 506 mm 506 mm 506 mm 506 mm
    Fork Rake/Offset 44 mm 44 mm 44 mm 44 mm 44 mm
    Front Center 647 mm 674 mm 699 mm 730 mm 760 mm

    Component Geometry

    Component XS S M L XL
    Crank Length 165m mm 170 mm 170 mm 175 mm 175 mm
    Handlebar Width 750 mm 750 mm 750 mm 750 mm 750 mm
    Stem Length 60 mm 60 mm 70 mm 70 mm 70 mm
    Saddle Width 155 mm 155 mm 143 mm 143 mm 143 mm
    Seatpost Length 357 mm 412 mm 459 mm 499 mm 499 mm

    Size Guide: 2026 Specialized Chisel Hardtail

    Size guide for 2026 Specialized Chisel Hardtail
