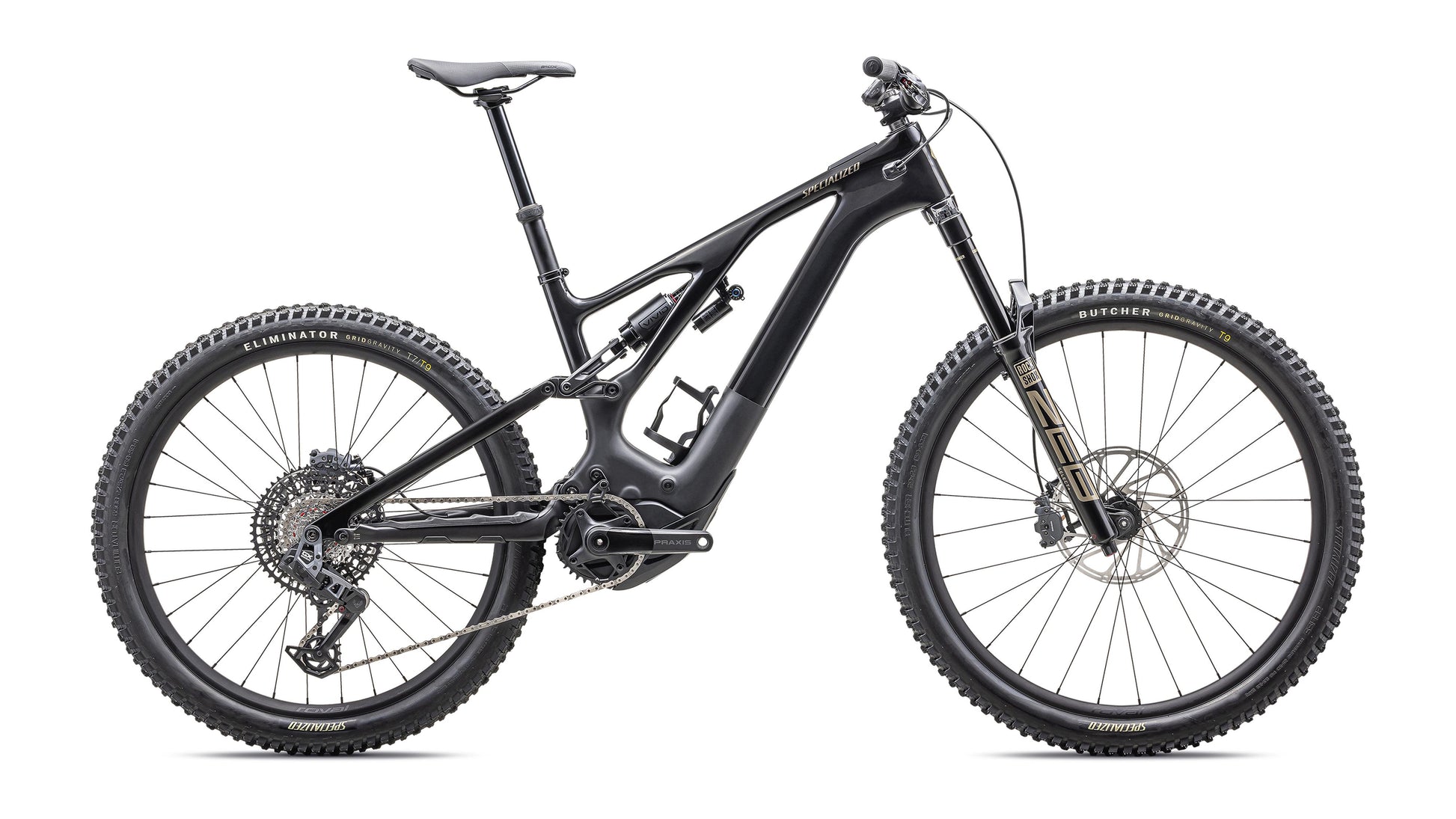

2025 Specialized Turbo Levo Expert T-Type Features
The Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the new Levo raises that bar again.
It starts with our Turbo Full Power 2.2 motor and MasterMind Turbo Control Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.
Here’re where the gloves come off—the Levo Expert brings it with SRAM’s new AXS GX Eagle Transmission 12-speed drivetrain, dialed-in Rockshox Select Plus suspension, and a high-performing Roval HD Traverse wheelset.
At a Glance

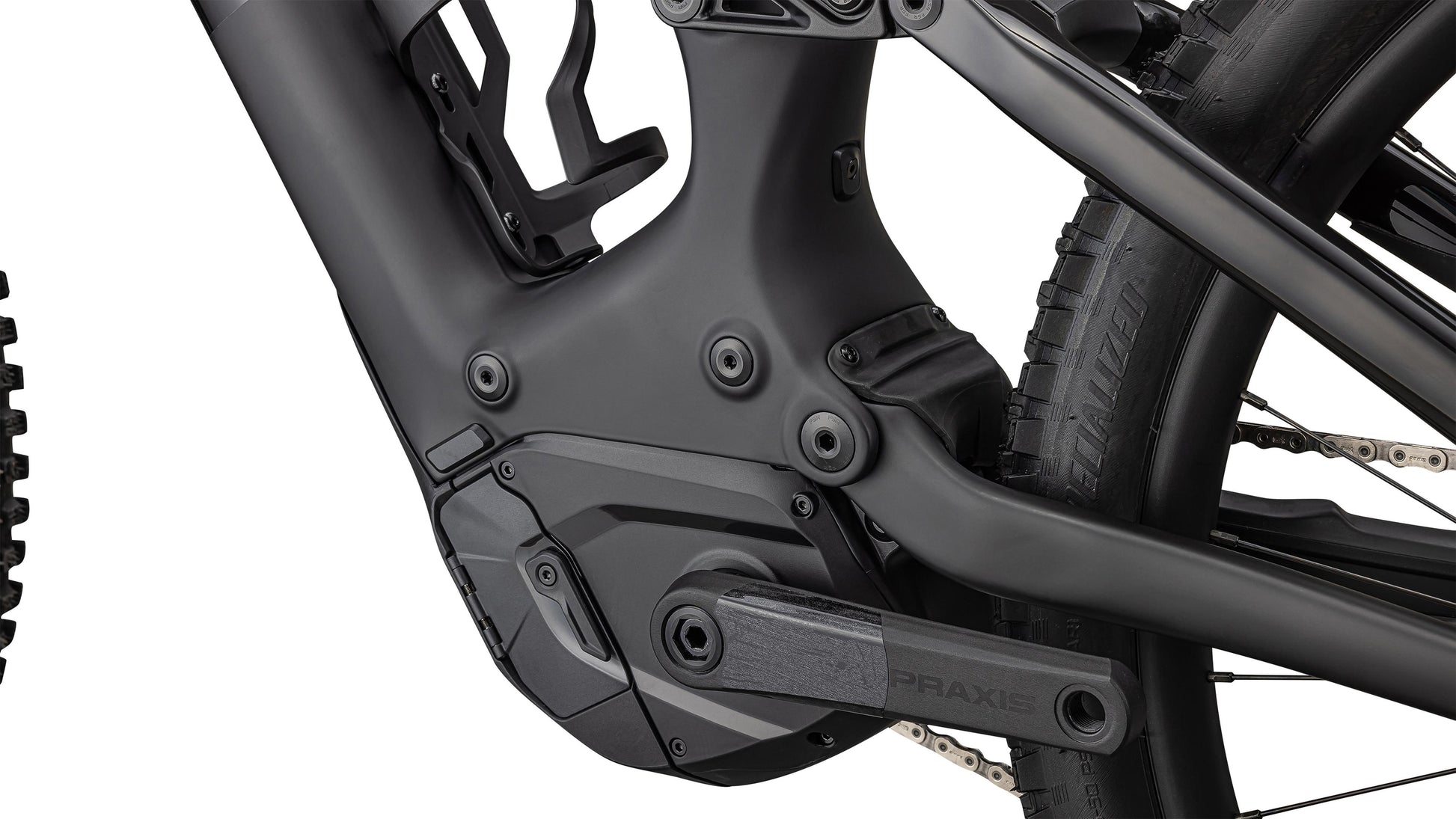

- Levo’s fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and advanced MasterMind Turbo Control Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, empowering you to ride farther and faster than ever before.

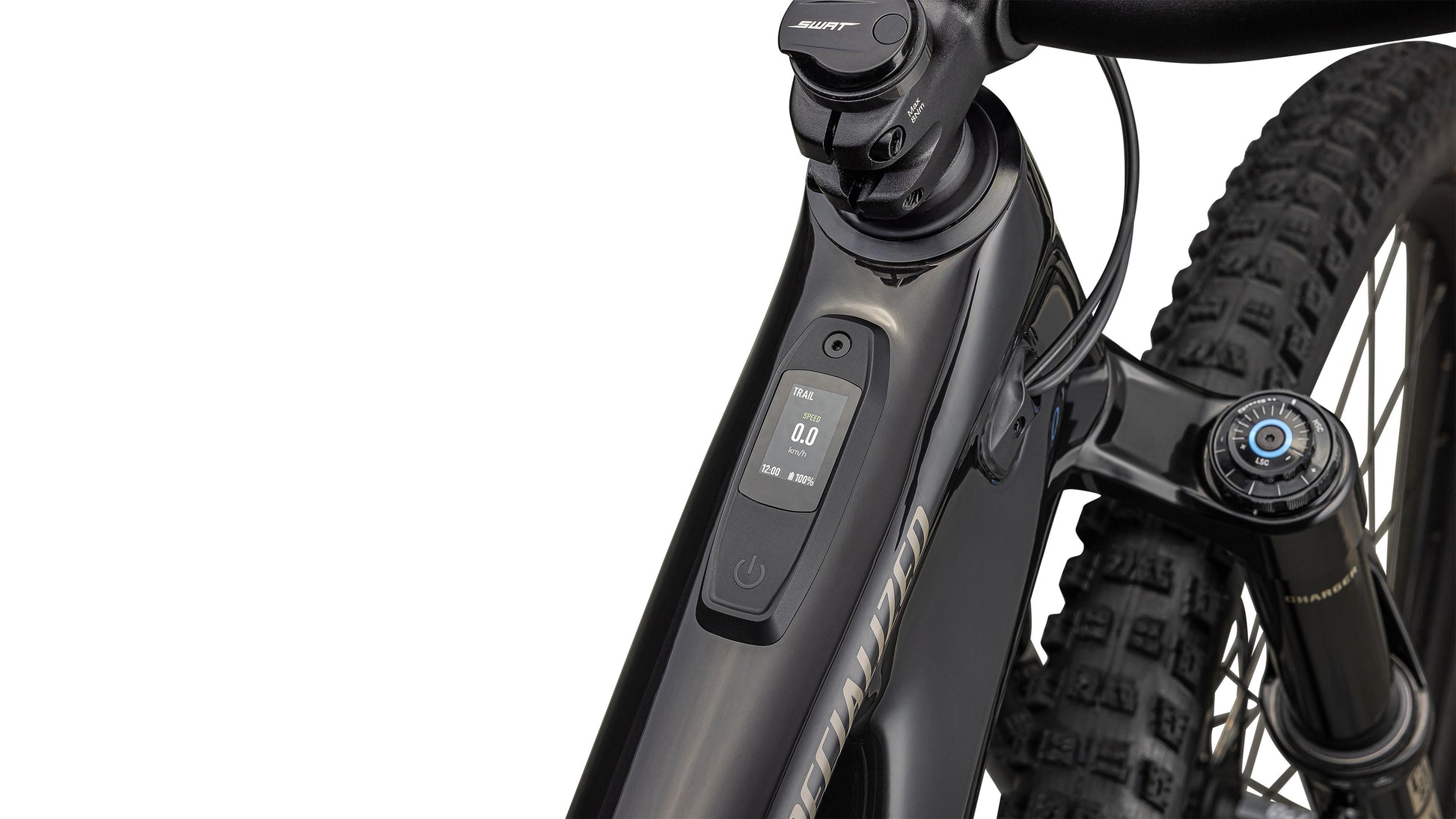

- The MasterMind Turbo Control Unit is your information hub with customizable display fields, including the exact percentage of battery level, and it features our all-new MicroTune function to adjust power delivery in 10% increments, so you get exactly the support you need to experience precisely the ride you want.
- A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.
- Levo offers six distinct geometry settings, allowing you to easily dial-in its performance for any riding style andany terrain. Head tube angle can be adjusted between 63- and 65.5-degrees. Bottom bracket height can be fine-tuned up or down by 7mm.

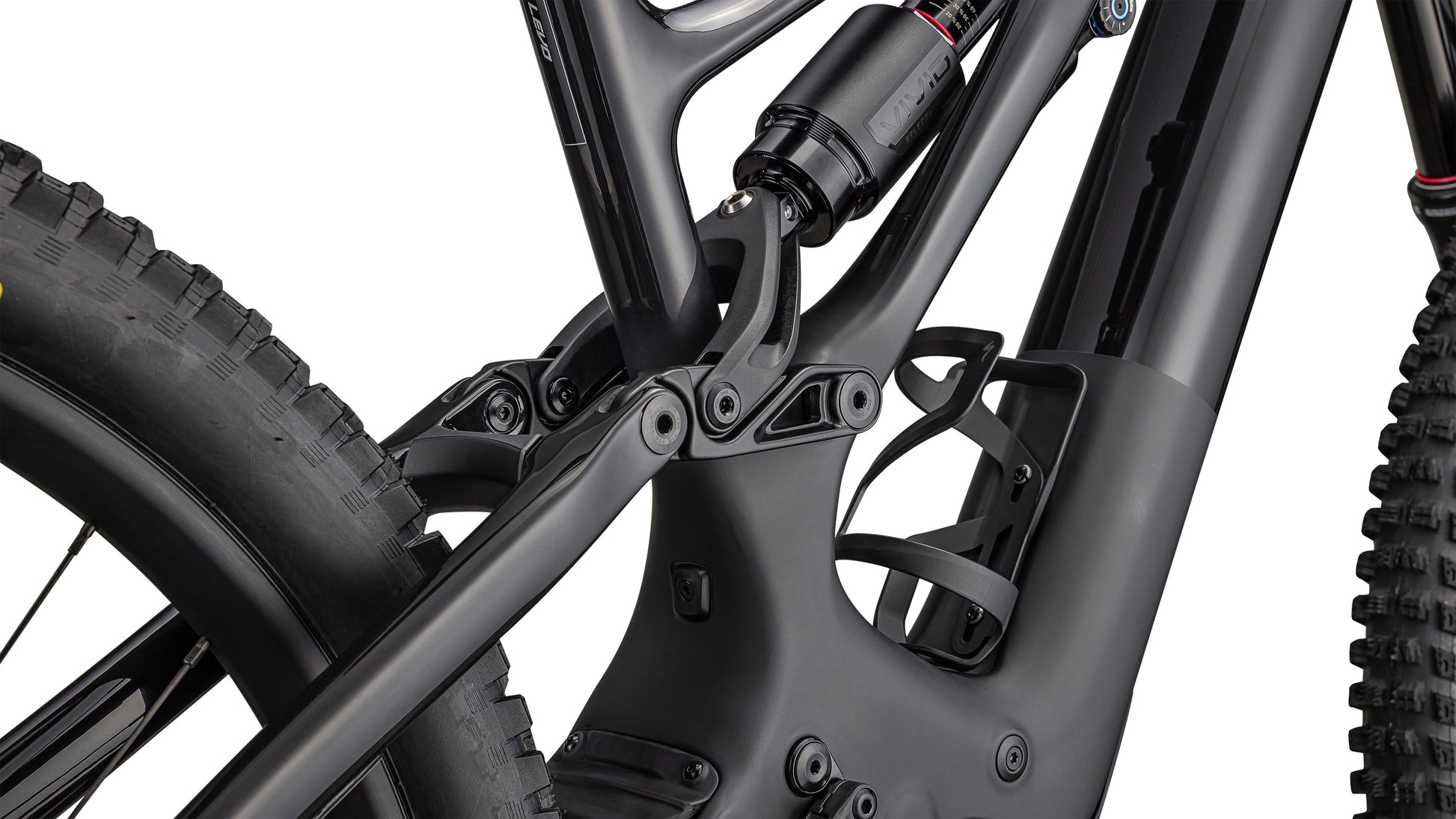

- Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.
- The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.
Component Specifications
| Motor | Specialized 2.2 Custom Rx Trail Tuned Motor, 90Nm Torque, 565W Power |
| Battery | Specialized M3-700, Integrated battery, 700Wh |
| UI Remote | Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote |
| Charger | Custom charger, 42V4A w/ Rosenberger plug, 100-240V |
| Frame | FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot |
| Seat Binder | Alloy, 38.6mm |
| Fork | Rockshox Zeb Select Plus, 29", S2-S6: 160mm, S1: 150mm |

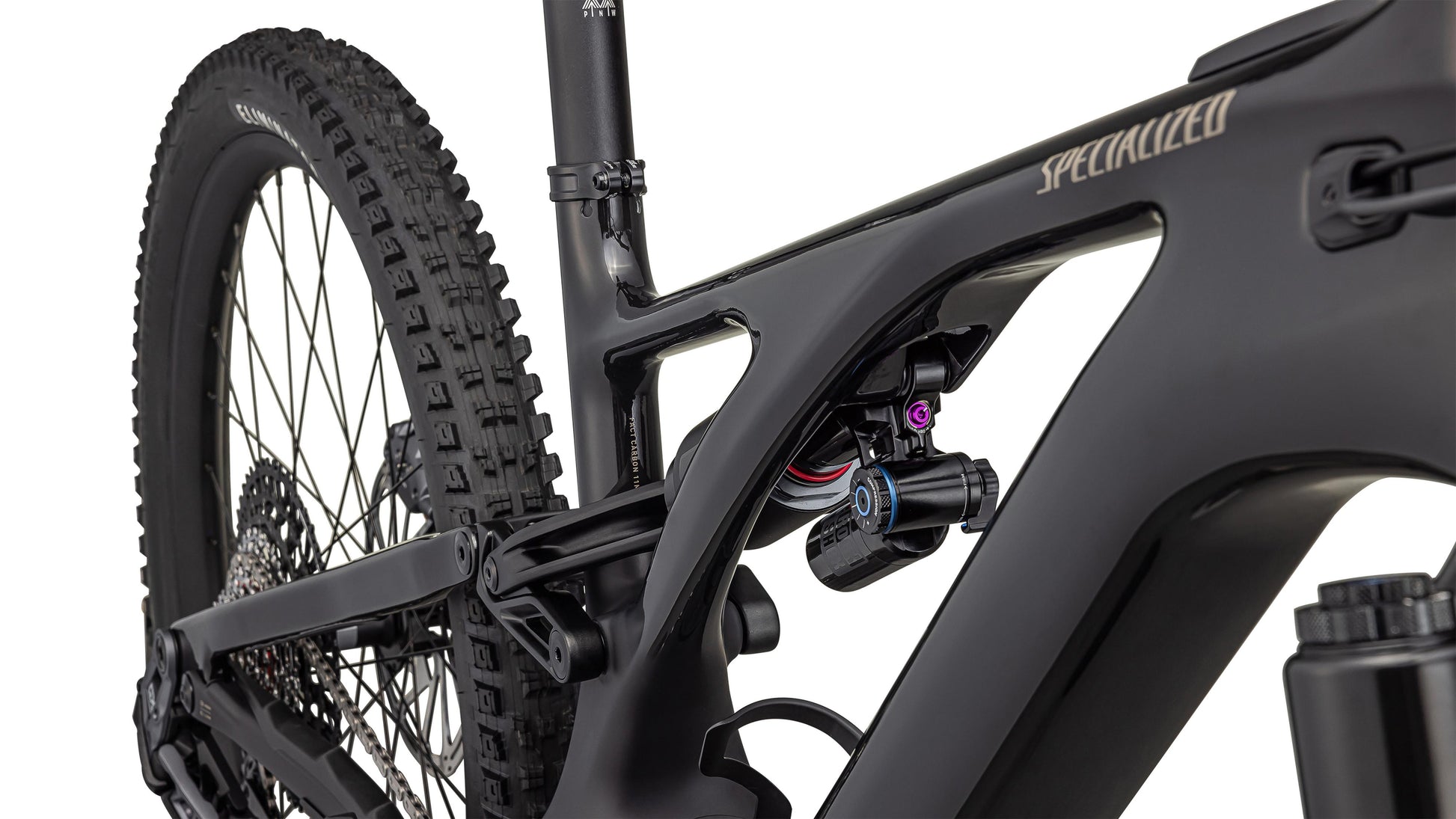

| Rear Shock | S2-S6: Rockshox Vivid Select Plus, 210x55mm, S1: Rockshox Deluxe Select Plus, 210x52.5mm |
| Shift Levers | SRAM AXS POD Controller |
| Rear Derailleur | SRAM GX Eagle Transmission Derailleur |
| Cassette | SRAM GX Eagle Transmission Cassette, 12spd, 10-52t |
| Chain | SRAM GX Eagle Transmission Flattop Chain |
| Crankset | Praxis forged M30, custom offset, 160mm |
| Chain Rings | SRAM Eagle Transmission 34t Steel, 104BCD |
| Front Tire | Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" |
| Rear Tire | Eliminator, GRID GRAVITY casing, GRIPTON® T9/T7 compound, 27.5x2.3" |
| Inner Tubes | Standard, Presta Valve |
| Front Brake | SRAM Maven Bronze, 220mm rotor, metallic pads |
| Rear Brake | SRAM Maven Bronze, 200mm rotor, metallic pads |
| Stem | Alloy Trail Stem, 35mm bar bore |

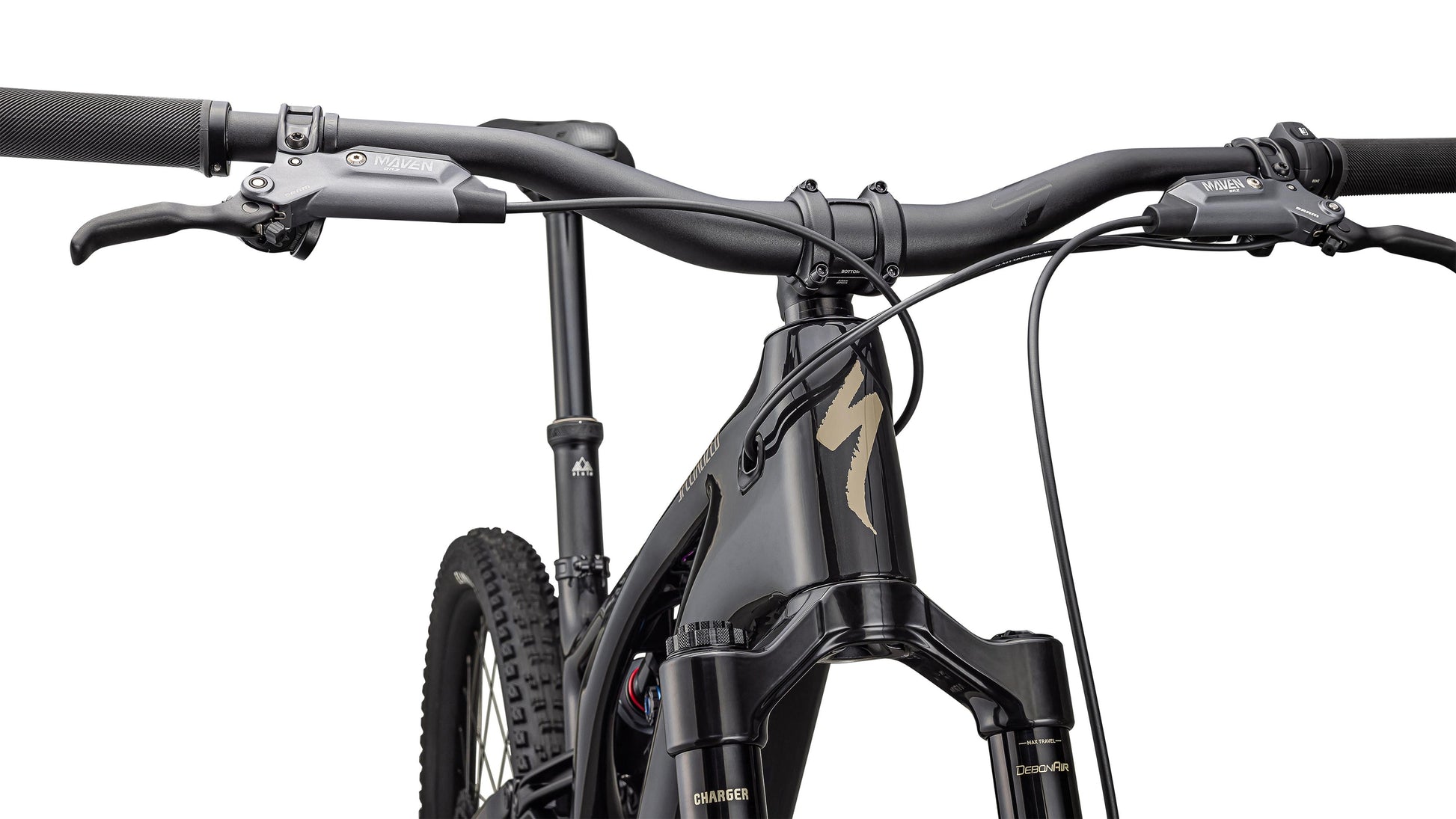

| Handlebars | 6061 mtn bars, 35mm diameter, 8 degree back sweep, 6 degrees up sweep, 800mm width. S1/S2: 30mm rise, S3-S6: 40mm rise |
| Grips | Specialized Trail Grips |
| Saddle | Specialized Bridge Comp with Mimic |
| Seatpost | PNW Loam Dropper, S1: 125mm, S2: 150mm, S3: 170mm, S4-S6: 200mm |
2025 Specialized Turbo Levo Expert T-Type
| Bike/Frame Size | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
| Stack | 605 mm | 617 mm | 626 mm | 635 mm | 644 mm | 653 mm |
| Reach | 412 mm | 432 mm | 452 mm | 477 mm | 502 mm | 532 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1179 mm | 1200 mm | 1225 mm | 1255 mm | 1284 mm | 1318 mm |
| Bike Standover Height | 752 mm | 776 mm | 783 mm | 787 mm | 788 mm | 790 mm |
| Seat Tube Length | 380 mm | 390 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Seat Tube Angle | 78° | 77.2° | 76.7° | 76.2° | 76.2° | 76.2° |
| Max Seatpost Insertion | 210 mm | 220 mm | 240 mm | 255 mm | 275 mm | 295 mm |
| Min Seatpost Insertion | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Headtube Length | 105 mm | 105 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| BB Height | 352 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| BB Drop | 25 mm | 27 mm | 27 mm | 27 mm | 27 mm | 27 mm |
| Trail | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm |
| Fork Length (full) | 557 mm | 567 mm | 567 mm | 567 mm | 567 mm | 567 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 738 mm | 760 mm | 784 mm | 814 mm | 843 mm | 878 mm |
