2025 Specialized Stumpjumper 15 FOX DHX Limited Edition Features
The S-Works Stumpjumper 15 LTD trail bike is here to obliterate every trade-off in the trail game. Devour bumps like a big bike? Check. Short-travel control and optimal pedaling efficiency? Double check. Swapping between those two scenarios automatically without ever flipping a switch? Check, check, check. Meet the all-new S-Works Stumpjumper LTD with FOX Live Valve Neo.
KINEMATICS PERFECTED — As the quintessential trail bike, Stumpjumper 15 balances efficiency and optimal bump force management. For the anti-squat on Stumpjumper 15, we struck a balance between the previous Stumpjumper and Stumpjumper EVO, as both had excellent pedaling characteristics.

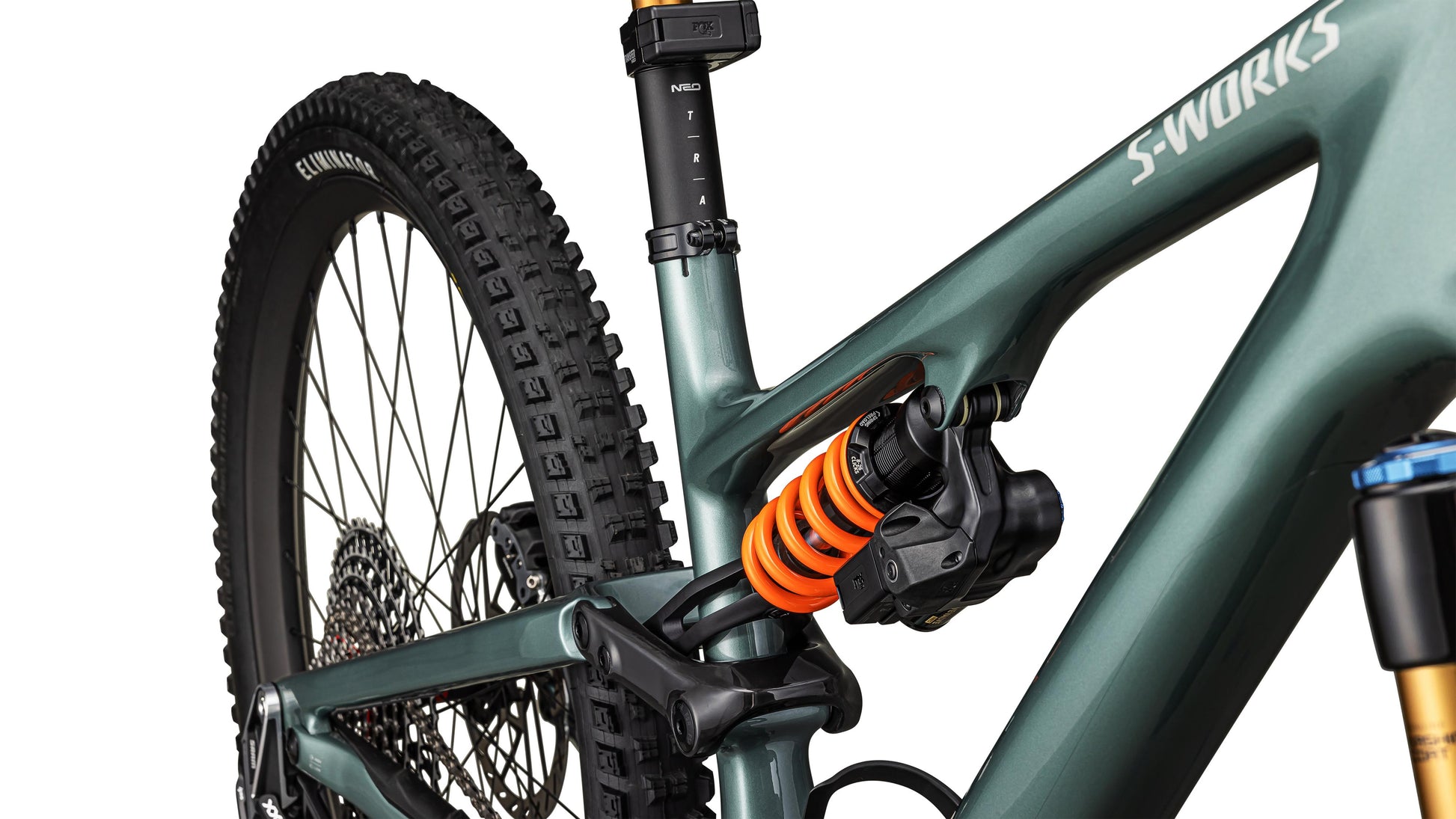

IT’S [A]LIVE — No, we haven’t finally created a sentient bike… It’s FOX’s brand new Live Valve Neo system equipped on S-Works Stumpjumper 15 LTD. A lightning-fast wireless rear suspension system that provides infinite tuning options through the FOX Bike app, and the best possible combination of XC pedaling efficiency and enduro descending capability—faster than the blink of an eye.
HONED GEOMETRY — This bike’s geometry delivers big bike capability when you need it, a nimble feel in tight sections, and lively, efficient climbing manners. The generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack head tube angle, and optimized fork offset keep things stable in the rough.
RIDE YOUR WAY — The Stumpjumper 15 seamlessly integrates benchmark geo adjustability, making it the most personalizable trail bike ever. Six distinct geometry settings allow you to hone performance for any style, any terrain. Head angle and bottom bracket can be fine-tuned for stability or clearance.
FORM FOLLOWS FUN — We can make a frame as stiff as we want, but there’s such a thing as too stiff. To be one with the bike requires engineered compliance in the frame. We engineered the FACT 11M carbon—front end, rear end, and the link between them—as a single unit that hits the stiffness target we established for trail riding.

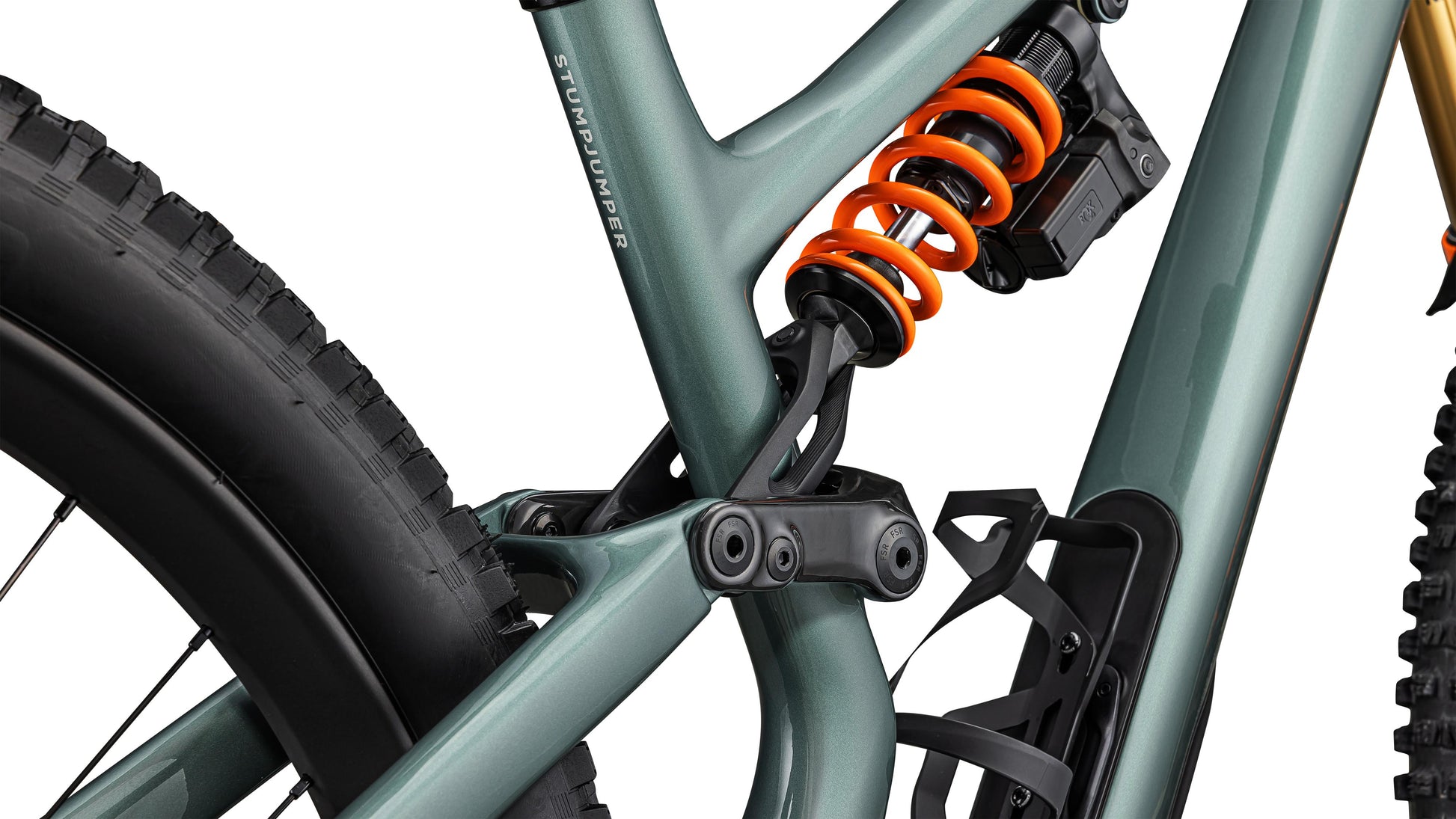

WHEEL CHOICE — With our aftermarket link shock links, you can choose between big wheels front and rear or mix things up with a 27.5” rear for a more responsive and playful ride. No matter what you choose, geometry is unaffected.
CARRY IT ALL — SWAT 4.0 on Stumpjumper 15 elevates downtube storage, an innovation we pioneered. It’s the smoothest operating, most weather-resistant, flush-mounted system ever.
MORE RELENTLESS THAN YOU — Our full-suspension bikes are built to be relentless, designed to endure years of hard riding, and backed by the best support and policies to keep you on the trail. Our unbeatable lifetime, no-questions-asked replacement suspension pivot bearings to the original owner (one bearing set, per bike, per year) is just one way we've got you covered. See your local Specialized Retailer for details.
At a Glance
- Lightweight FACT 11m carbon chassis, rear-end, and link
- Total confidence from super tough Roval Traverse HD wheels, DT Swiss 240 hub
- Tuneable and supportive Ride Dynamics Tuned FOX DHX Live Valve NEO Factory shock
- Planted and tuneable FOX FLOAT 36 Factory fork with GRIP X2 damper
- Superior shifting experience from SRAM XX Eagle T-Type AXS drivetrain
- Top-tier braking power from SRAM Maven Ultimate 4-piston brakes
- Incredibly smooth and reliable FOX Transfer NEO Factory dropper post
- Lifetime replacement suspension pivot bearings to the original owner
- Compatible with electronic drivetrains only
Component Specifications
| Frame | FACT 11m carbon chassis, rear-end, and link, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal brake and dropper cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel |
| Seat Binder | Alloy, 38.6mm |
| Fork | FOX FLOAT 36 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm QR axle, 44mm offset, 150mm of travel |
| Rear Shock | FOX DHX Live Valve NEO Factory, Ride Dynamics Trail Tune, 210x55mm, S2: 400lbs, S3: 450lbs, S4: 500bs, S5: 550lbs, S6: 600lbs |
| Shift Levers | SRAM AXS POD Ultimate Controller |
| Rear Derailleur | SRAM XX Eagle Transmission Derailleur |
| Cassette | SRAM XX Eagle SL Transmission Cassette, 12spd, 10-52t |
| Chain | SRAM XX Eagle SL Transmission Flattop Chain |
| Crankset | SRAM XX Eagle Crankset, 32T ring, 55mm Chainline, S2-S3:165mm, S4-S6: 170mm |
| Bottom Bracket | SRAM DUB, BSA 73mm Wide, Threaded |
| Rims | Roval Traverse HD, hookless carbon, 30mm inner width, tubeless ready, Front: 29, Rear: S2: 27.5, S3- S6: 29 |
| Front Hub | DT Swiss 240, 15x110mm, 28h |
| Rear Hub | DT Swiss 240, 12x148mm, 32h |
| Spokes | DT Swiss Revolite |
| Front Tire | Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" |
| Rear Tire | Eliminator, GRID GRAVITY casing, GRIPTON® T7/T9 compound, 2Bliss Ready, S2: 27.5x2.3, S3- S6: 29x2.3" |
| Inner Tubes | Standard, Presta valve |
| Front Brake | SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor |
| Rear Brake | SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, S2: 180mm, S3-S6: 200mm HS2 Rotor |
| Stem | Industry 9 Moutain stem, 35mm clamp, 40mm length |
| Handlebars | Race Face ERA Carbon, 5-degree upsweep, 8-degree backsweep,S2: 780mm, 20mm rise: S3-S6: 800mm, 40mm rise |
| Grips | Deity Lockjaw |
| Saddle | Power Pro with Mirror, Hollow Ti rails, S2: 155mm, S3-S6: 143mm |
| Seatpost | FOX Transfer NEO Factory, 34.9, S2: 150mm, S3: 175mm, S4-S6: 200mm |
2025 Specialized Stumpjumper 15 FOX DHX Limited Edition
| Bike/Frame Size | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|
| Stack | 618 mm | 627 mm | 640 mm | 654 mm | 667 mm |
| Reach | 425 mm | 450 mm | 475 mm | 500 mm | 530 mm |
| Chainstay Length | 432 mm | 435 mm | 435 mm | 445 mm | 445 mm |
| Wheelbase | 1181 mm | 1213 mm | 1244 mm | 1285 mm | 1322 mm |
| Top-tube Length (horizontal) | 573 mm | 595 mm | 624 mm | 647 mm | 677 mm |
| Bike Standover Height | 751 mm | 745 mm | 745 mm | 745 mm | 751 mm |
| Seat Tube Length | 385 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Seat Tube Angle | 77° | 77° | 76.5° | 76.5° | 76.5° |
| Saddle Height for Effective ST Angle | 690 mm | 735 mm | 780 mm | 825 mm | 870 mm |
| Max Seatpost Insertion | 245 mm | 255 mm | 255 mm | 285 mm | 285 mm |
| Min Seatpost Insertion | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Headtube Length | 100 mm | 110 mm | 125 mm | 140 mm | 155 mm |
| Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| BB Height | 337 mm | 337 mm | 337 mm | 337 mm | 337 mm |
| BB Drop | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Trail | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm |
| Fork Length (full) | 561 mm | 561 mm | 561 mm | 561 mm | 561 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 751 mm | 780 mm | 812 mm | 843 mm | 879 mm |
Size Guide: 2025 Specialized Stumpjumper 15 FOX DHX Limited Edition
