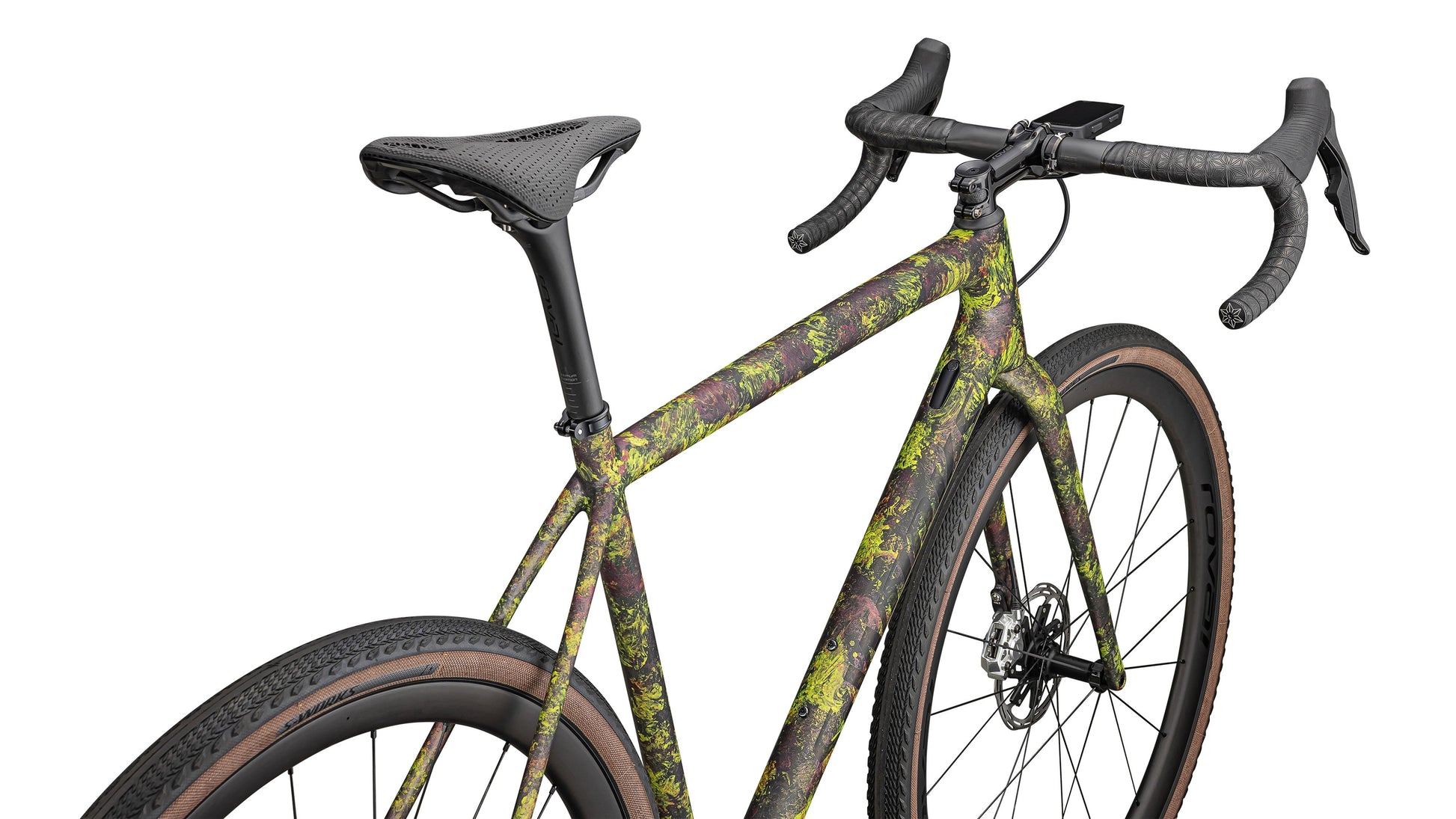

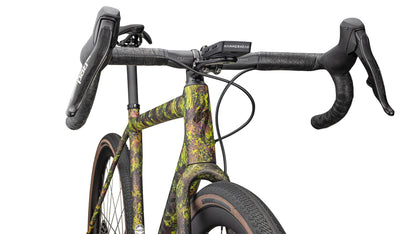

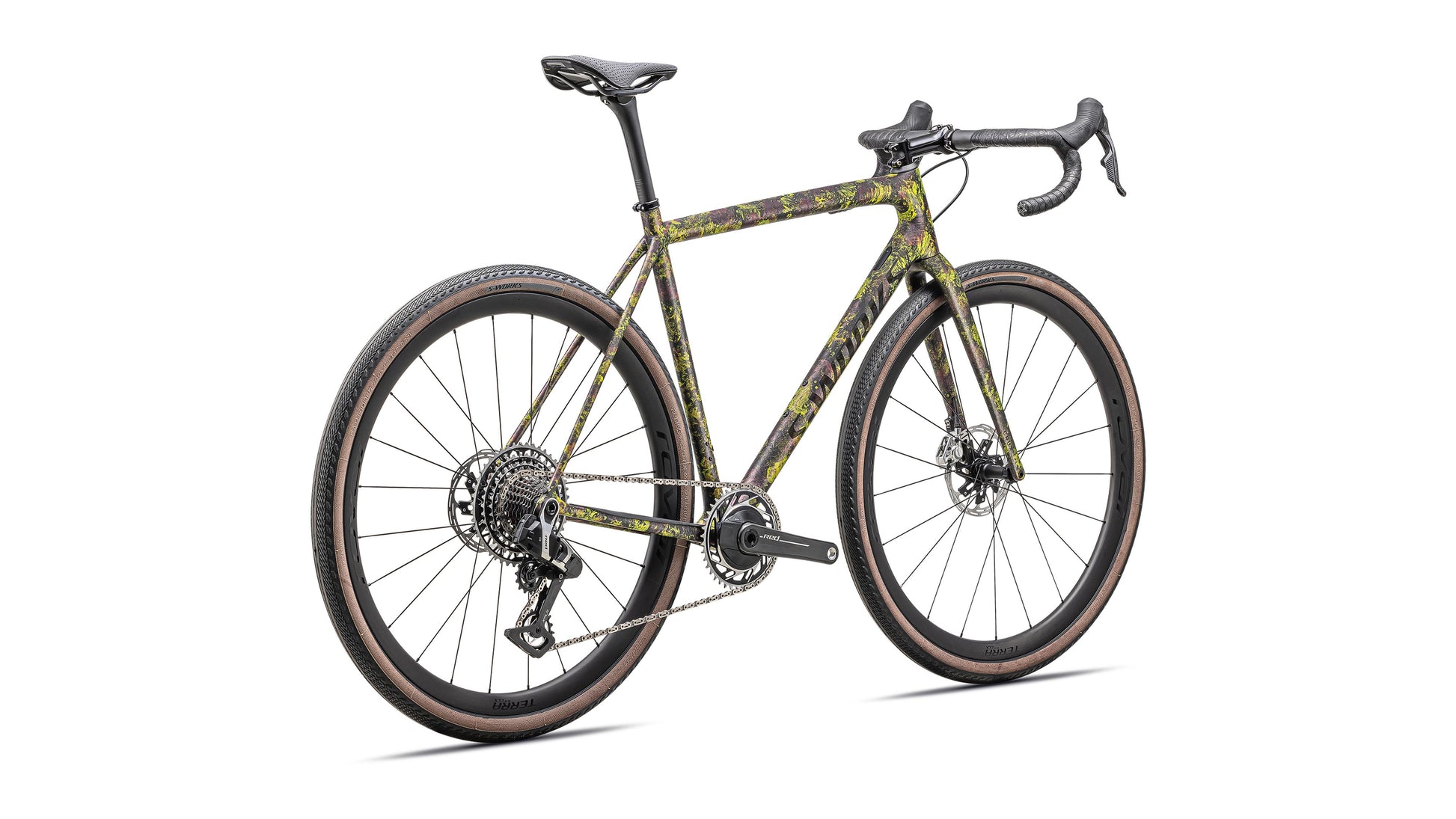

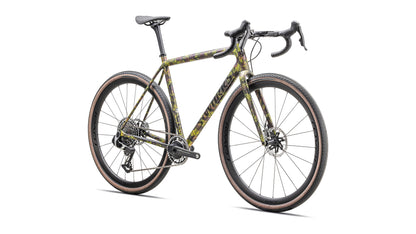

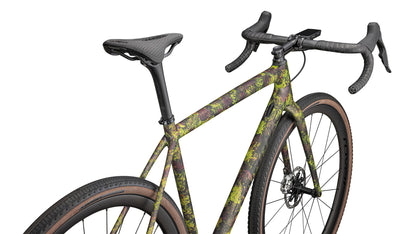

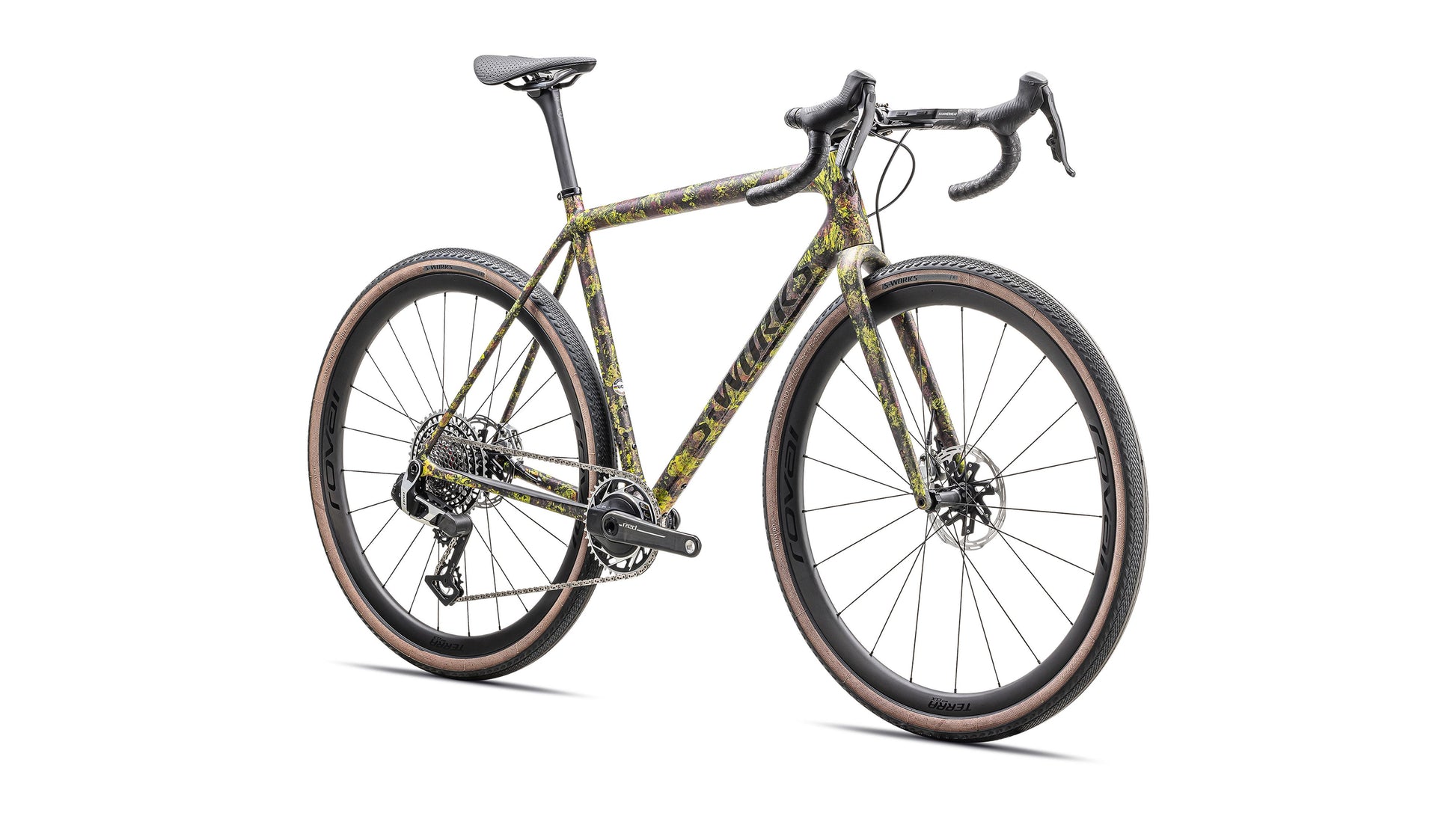

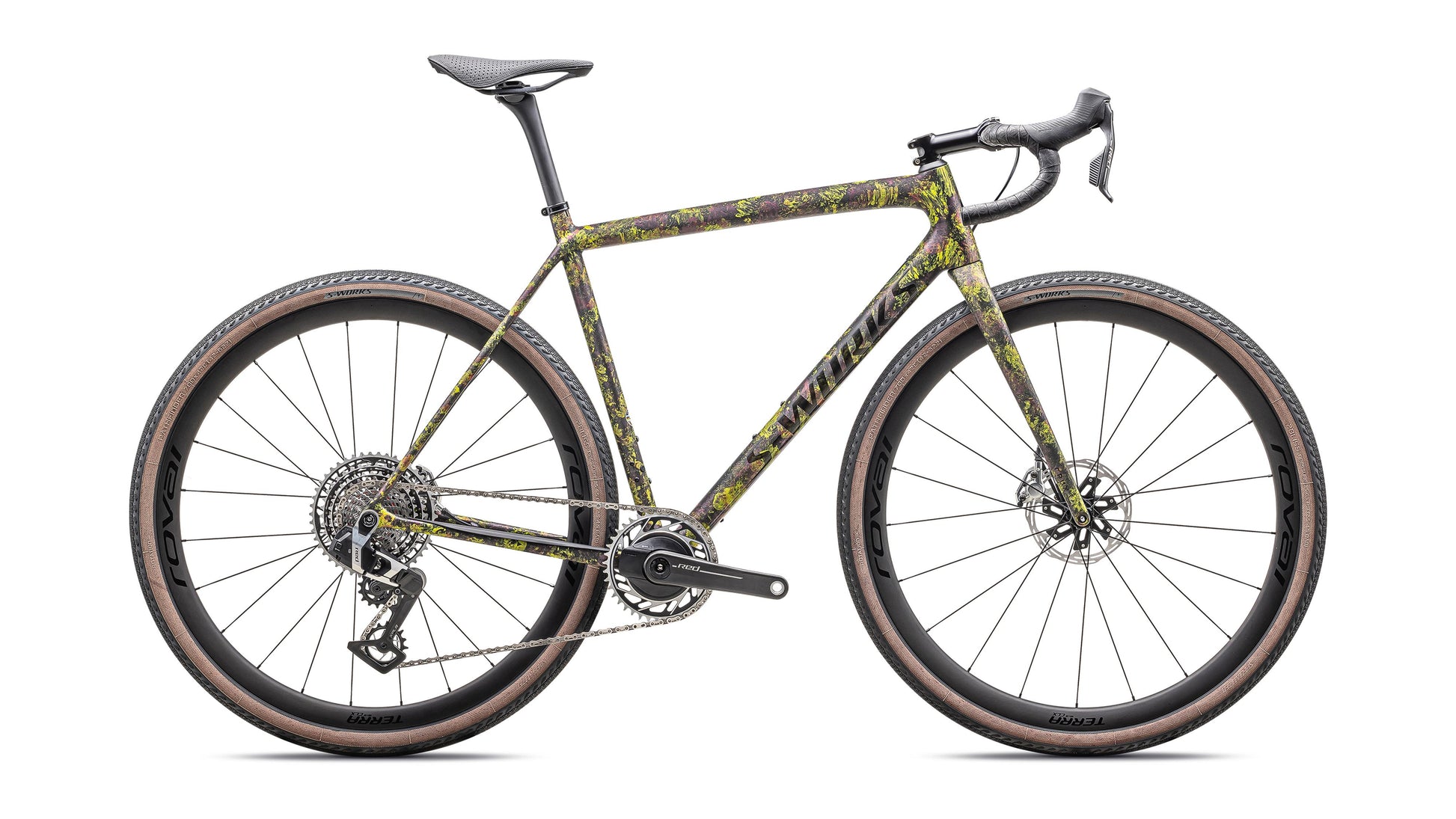

2025 Specialized S-Works Crux LTD SRAM RED XPLR Features
We made Crux, the lightest gravel bike in the world, even lighter. With the unrivaled capability of massive tire clearance combined with nimble gravel geometry, it’s not just the ultimate expression of gravel performance—it’s your one-way ticket to gravel enlightenment.
With Universal Derailleur Hanger and the all-new SRAM RED XPLR, the S-Works Crux LTD drops another 102 grams. Featuring Roval Terra CLX II wheels, Terra Bars, Alpinist seat post, S-Works Power Saddle with Mirror, and S-Works Pathfinder tires, the new S-Works Crux LTD with SRAM RED XPLR is our most premium build.

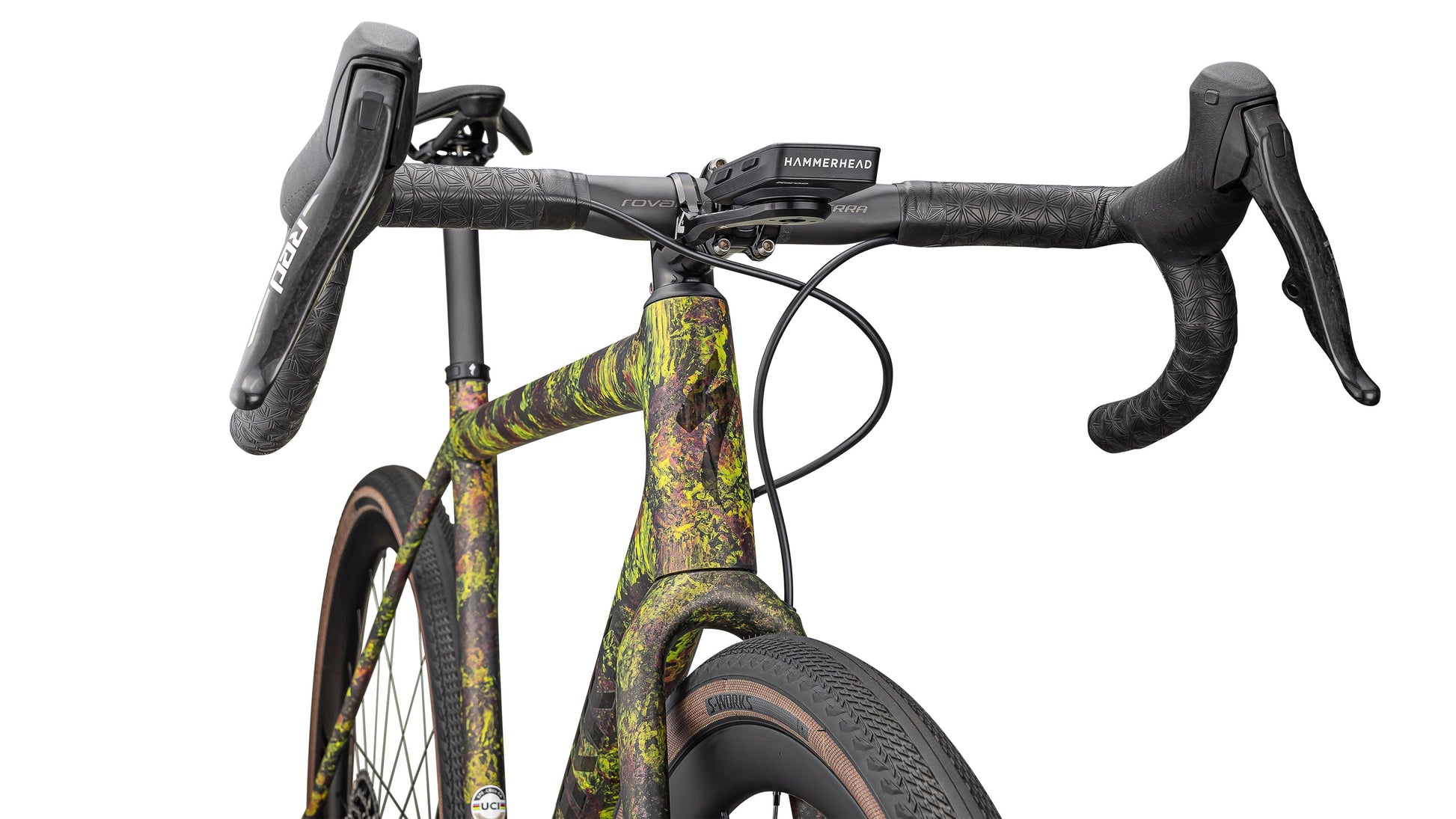

S-Works Crux LTD keeps the incredible features coming. The hand-painted “Blurred Impasto” technique makes each frame unique, while an included Hammerhead Karoo III Bike computer and custom K-edge mount will have you chasing KOMs and pioneering new routes on day one. But with only 50 of these bikes ever made, you’ll need to act quickly.
At a Glance
- Lightest: 725g S-Works 12r frame. We took the breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream floats over nightmarish terrain and weighs less than a full bottle in your cage.
- Capable: 47c/650b x 2.1” tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine at full gas.
- Responsive: Nimble, supple, and reactive. With performance gravel geometry and race-influenced fit inspired by Crux’s iconic history in ‘cross; it’s responsive at the pedals and supple in the saddle.
- Now equipped with UDH - Universal Derailleur Hanger - and built with the new SRAM RED XPLR, it features a 13-speed 10-46 cassette, power meter, updated lever ergonomics, and brake calipers that reduce braking effort by up to 80%.

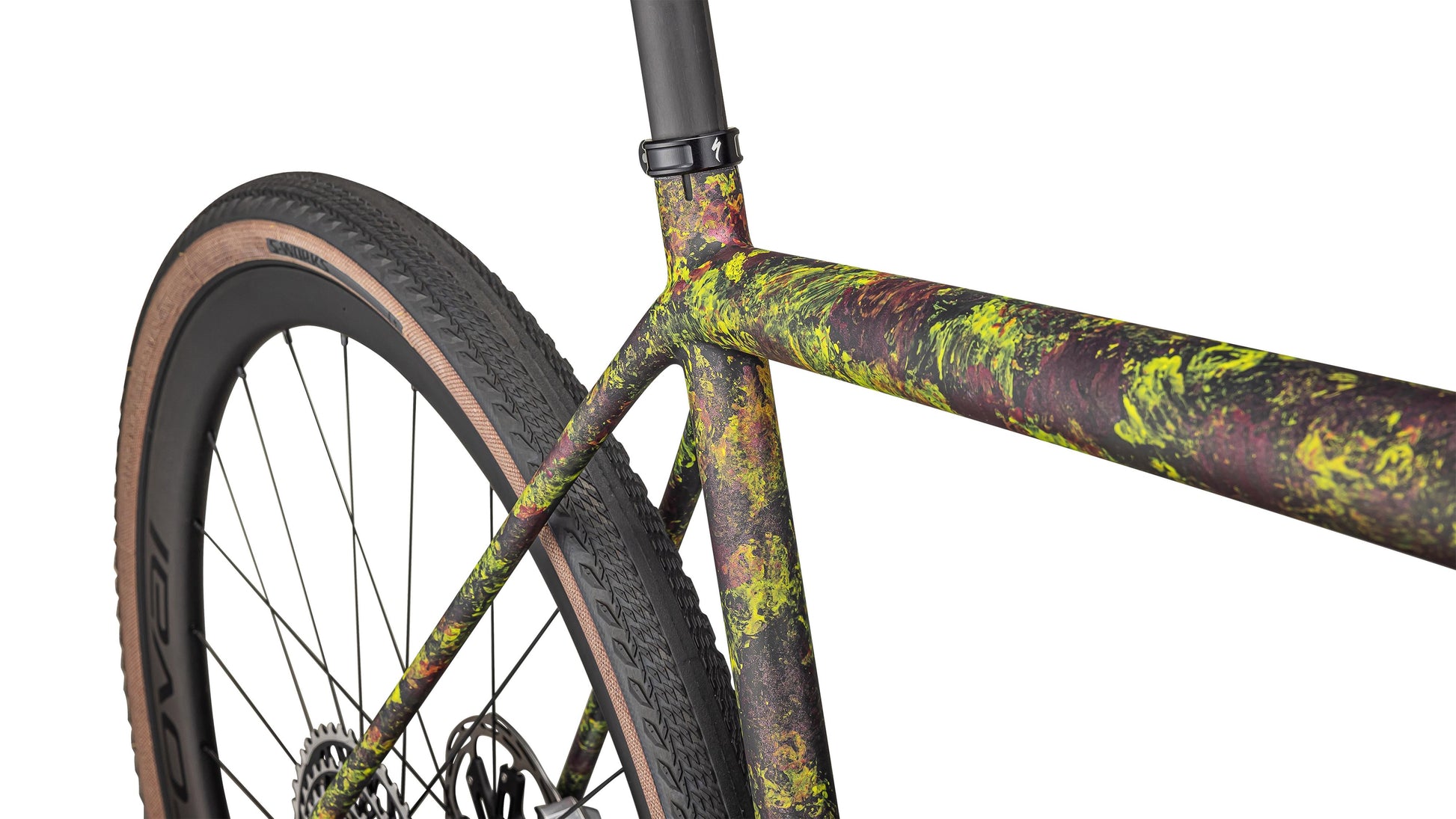

- S-Works Crux LTD features a hand-painted “Blurred Impasto” technique and includes a Hammerhead Karoo III Bike computer and custom K-edge mount.
Component Specifications
| Frame | S-Works Crux FACT 12r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout |
| Seat Binder | Specialized Alloy, 30.0mm, titanium bolt |
| Fork | S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc |
| Shift Levers | SRAM Red AXS |
| Rear Derailleur | NEW SRAM Red XPLR, 13sp |
| Cassette | NEW SRAM Red XPLR, 13sp, 10-46t |
| Chain | NEW SRAM Red XPLR, 13sp |
| Crankset | SRAM Red AXS Power Meter |
| Chain Rings | 40t |
| Bottom Bracket | SRAM DUB BSA |
| Front Tire | S-works Pathfinder, 2BR, 700x42 |
| Rear Tire | S-works Pathfinder, 2BR, 700x42 |
| Inner Tubes | 48mm Presta Valve, 700X28-38 |
| Front Brake | NEW SRAM Red XPLR, Hydraulic Disc |
| Rear Brake | NEW SRAM Red XPLR, Hydraulic Disc |
| Stem | Alpinist SL, alloy, titanium bolts, 6-degree rise |
| Handlebars | Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare |
| Saddle | Body Geometry S-Works Power with Mirror, carbon fiber rails, carbon fiber base |
| Seatpost | Roval Alpinist Carbon Seatpost |
2025 Specialized S-Works Crux LTD SRAM RED XPLR
| Bike/Frame Size | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Stack | 530 mm | 547 mm | 560 mm | 578 mm | 598 mm | 621 mm |
| Reach | 375 mm | 382 mm | 388 mm | 397 mm | 405 mm | 415 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1008 mm | 1014 mm | 1023 mm | 1033 mm | 1045 mm | 1059 mm |
| Top Tube Length, Horizontal | 512 mm | 539 mm | 549 mm | 568 mm | 582 mm | 599 mm |
| Bike Standover Height | 749 mm | 772 mm | 794 mm | 816 mm | 841 mm | 866 mm |
| Seat Tube Length | 466 mm | 496 mm | 521 mm | 546 mm | 576 mm | 606 mm |
| Seat Tube Angle | 75.5° | 74° | 74° | 73.5° | 73.5° | 73.5° |
| Head Tube Length | 100 mm | 115 mm | 130 mm | 147 mm | 167 mm | 190 mm |
| Head Tube Angle | 70.5° | 71.25° | 71.5° | 72° | 72.25° | 72.5° |
| BB Height | 284 mm | 284 mm | 286 mm | 286 mm | 286 mm | 286 mm |
| BB Drop | 74 mm | 74 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Trail | 74 mm | 69 mm | 67 mm | 64 mm | 62 mm | 60 mm |
| Fork Length, Full | 401 mm | 401 mm | 401 mm | 401 mm | 401 mm | 401 mm |
| Fork Rake/Offset | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Front Center | 594 mm | 600 mm | 608 mm | 618 mm | 630 mm | 644 mm |
Size Guide: 2025 Specialized S-Works Crux LTD SRAM RED XPLR
