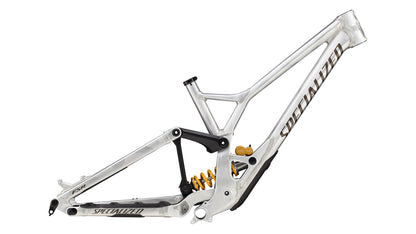

2025 Specialized Demo Race Frameset

2025 Specialized Demo Race Frameset

74525-7002

$2,999.99
$2,999.99 $2,999.99
Sold out
Color
Size
View full details

    2025 Specialized Demo Race Frameset Features

    The same chassis piloted to riotous success in its very first season on the World Cup circuit, the Demo Race frameset brings 27.5/29-inch rear wheel compatibility to the fore in the search for the optimal balance of speed, traction, and maneuverability while allowing for unmatched versatility.

    Öhlins's TTX22M.2 coil shock gives you a head start on suspension perfection, just hang your time-tested race kit before you pick up the search where we left off, and there’s a good chance you’ll find a few podiums along the way.

    At a Glance

    • The Demo Race M5 alloy frame is fully optimized to take advantage of the traction benefits of a 29-inch front wheel and the increased maneuverability of a 27.5-inch rear wheel while maintaining the ability to change your rear wheel size to 29-inch to suit different terrain and riding styles with an adjustable rear end that ensures chainstay length and bottom-bracket height stay dialed no matter the hoop size.
    • The Öhlins TTX22M.2 coil shock is designed to handle the most challenging World Cup Downhill tracks, offering external low speed compression and rebound adjustment while the Trunnion mount offers extra bushing overlap for increased durability.

    Product Specifications

    frame

    M5 alloy, Style-Specific DH Geometry, horst pivot flip chip for 27.5 or 29 rear wheel, BSA threaded BB, full internal cable routing with option for full external brake, 148mm rear spacing, sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm of travel

    rear shock

    Öhlins TTX22M.2 Coil, external rebound adjust, external high and low speed compression adjustment, Trunnion mount, 225x75

    saddle

    Body Geometry Henge DH, hollow titanium rails, 130mm

    seatpost

    Thomson, alloy, straight, 12-degree clamp

    seat binder

    Alloy, 34.9mm

    category

    Mountain

    component geometry

    [{"COMPONENT_GEO_CODE":"12912785","COMPONENT_MEASUREMENT_DESC":"Saddle Width","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"104","SIZE_DESC":"S2","GEO_SIZE_VALUE":"130","GEO_SIZE_DISPLAY_ORDER":"1"},{"COMPONENT_GEO_CODE":"12912785","COMPONENT_MEASUREMENT_DESC":"Saddle Width","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"104","SIZE_DESC":"S3","GEO_SIZE_VALUE":"130","GEO_SIZE_DISPLAY_ORDER":"2"},{"COMPONENT_GEO_CODE":"12912785","COMPONENT_MEASUREMENT_DESC":"Saddle Width","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"104","SIZE_DESC":"S4","GEO_SIZE_VALUE":"130","GEO_SIZE_DISPLAY_ORDER":"3"},{"COMPONENT_GEO_CODE":"12912786","COMPONENT_MEASUREMENT_DESC":"Seatpost Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"105","SIZE_DESC":"S2","GEO_SIZE_VALUE":"367","GEO_SIZE_DISPLAY_ORDER":"1"},{"COMPONENT_GEO_CODE":"12912786","COMPONENT_MEASUREMENT_DESC":"Seatpost Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"105","SIZE_DESC":"S3","GEO_SIZE_VALUE":"367","GEO_SIZE_DISPLAY_ORDER":"2"},{"COMPONENT_GEO_CODE":"12912786","COMPONENT_MEASUREMENT_DESC":"Seatpost Length","COMPONENT_GEO_UOM":"mm","COMPONENT_GEO_DISPLAY_ORDER":"105","SIZE_DESC":"S4","GEO_SIZE_VALUE":"367","GEO_SIZE_DISPLAY_ORDER":"3"}]

    experience

    Downhill

    frame geometry

    [{"GEO_SET_NAME":"Demo 29/27.5 (GRAV FSR F1.1 I1.3 )","GEO_SET_ID":"14290","MODEL_YEAR":"2024","Children":[{"GEO_MEASUREMENT_DESCRIPTION":"Chain-Stay Length (29)","MEASUREMENT_GEO_CODE":"201372","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"21","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"448","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"448","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"448","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"B-B Drop","MEASUREMENT_GEO_CODE":"151451","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"13","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"25","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"25","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"25","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Front-Center (27.5 mid)","MEASUREMENT_GEO_CODE":"201378","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"20","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"801","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"821","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"841","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Stack","MEASUREMENT_GEO_CODE":"185154","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"0","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"632","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"632","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"632","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Head-Tube Angle","MEASUREMENT_GEO_CODE":"143686","UOM":"degrees","GEO_MEASUREMENT_DISPLAY_ORDER":"7","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"62.8","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"62.8","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"62.8","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Head-Tube Angle (27.5 mid)","MEASUREMENT_GEO_CODE":"201380","UOM":"degrees","GEO_MEASUREMENT_DISPLAY_ORDER":"9","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"62.5","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"62.5","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"62.5","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Stack (27.5 mid)","MEASUREMENT_GEO_CODE":"201396","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"2","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"635","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"635","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"635","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Reach","MEASUREMENT_GEO_CODE":"185155","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"3","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"426","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"446","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"466","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Wheelbase (mid)","MEASUREMENT_GEO_CODE":"201409","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"26","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"1244","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"1264","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"1284","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Seat-Tube Length","MEASUREMENT_GEO_CODE":"178224","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"27","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"394","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"420","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"420","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Seat-Tube Angle","MEASUREMENT_GEO_CODE":"139159","UOM":"degrees","GEO_MEASUREMENT_DISPLAY_ORDER":"28","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"78.2","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"76.8","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"76.8","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Seat-Tube Angle (29 mid)","MEASUREMENT_GEO_CODE":"201395","UOM":"degrees","GEO_MEASUREMENT_DISPLAY_ORDER":"29","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"78.5","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"77.1","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"77.1","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Stack (29 mid)","MEASUREMENT_GEO_CODE":"201397","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"1","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"629","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"629","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"629","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Head-Tube Angle (29 mid)","MEASUREMENT_GEO_CODE":"201381","UOM":"degrees","GEO_MEASUREMENT_DISPLAY_ORDER":"8","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"63.2","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"63.2","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"63.2","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"B-B Height (29 mid)","MEASUREMENT_GEO_CODE":"201366","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"11","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"355","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"355","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"355","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Chain-Stay Length (mid)","MEASUREMENT_GEO_CODE":"201373","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"23","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"443","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"443","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"443","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Wheelbase (27.5)","MEASUREMENT_GEO_CODE":"201405","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"24","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"1239","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"1259","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"1279","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Fork Rake/Offset","MEASUREMENT_GEO_CODE":"185162","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"17","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"56","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"56","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"56","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Chain-Stay Length (27.5)","MEASUREMENT_GEO_CODE":"201371","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"22","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"438","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"438","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"438","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Trail (27.5 mid)","MEASUREMENT_GEO_CODE":"201401","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"16","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"132","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"132","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"132","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Front-Center","MEASUREMENT_GEO_CODE":"145431","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"18","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"801","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"821","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"841","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Reach (29 mid)","MEASUREMENT_GEO_CODE":"201389","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"4","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"430","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"450","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"470","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Reach (27.5 mid)","MEASUREMENT_GEO_CODE":"201388","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"5","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"423","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"443","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"463","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"B-B Height","MEASUREMENT_GEO_CODE":"171029","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"10","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"350","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"350","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"350","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Trail (29 mid)","MEASUREMENT_GEO_CODE":"201402","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"15","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"127","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"127","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"127","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Seat-Tube Angle (27.5 mid)","MEASUREMENT_GEO_CODE":"201394","UOM":"degrees","GEO_MEASUREMENT_DISPLAY_ORDER":"30","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"77.8","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"76.4","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"76.4","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Trail","MEASUREMENT_GEO_CODE":"185160","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"14","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"130","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"130","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"130","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Front-Center (29 mid)","MEASUREMENT_GEO_CODE":"201379","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"19","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"801","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"821","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"841","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Head-Tube Length","MEASUREMENT_GEO_CODE":"140152","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"6","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"105","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"105","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"105","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"B-B Height (27.5 mid)","MEASUREMENT_GEO_CODE":"201365","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"12","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"345","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"345","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"345","GEO_DISPLAY_ORDER":"2"}]},{"GEO_MEASUREMENT_DESCRIPTION":"Wheelbase (29)","MEASUREMENT_GEO_CODE":"201406","UOM":"mm","GEO_MEASUREMENT_DISPLAY_ORDER":"25","Children":[{"FRAME_SIZE_DESC":"S2","GEO_VALUE":"1249","GEO_DISPLAY_ORDER":"0"},{"FRAME_SIZE_DESC":"S3","GEO_VALUE":"1269","GEO_DISPLAY_ORDER":"1"},{"FRAME_SIZE_DESC":"S4","GEO_VALUE":"1289","GEO_DISPLAY_ORDER":"2"}]}]}]

    gender

    Men|Women

    group

    Framesets

    line

    BIKES

    material

    Aluminum

    model level

    Race

    model year

    2025

    product family

    Demo

    shifting

    Mechanical

    suspension

    Front & Rear

    wheel size

    29"/27.5"

    base color

    Grey

    color

    Gloss Flake Silver / Gunmetal / Brushed

    size

    S2

    2025 Specialized Demo Race Frameset

    Bike/Frame Size S2 S3 S4
    Stack 632 mm 632 mm 632 mm
    Stack (29 mid) 629 mm 629 mm 629 mm
    B-B Height 350 mm 350 mm 350 mm
    B-B Height (29 mid) 355 mm 355 mm 355 mm
    B-B Height (27.5 mid) 345 mm 345 mm 345 mm
    B-B Drop 25 mm 25 mm 25 mm
    Trail 130 mm 130 mm 130 mm
    Trail (29 mid) 127 mm 127 mm 127 mm
    Trail (27.5 mid) 132 mm 132 mm 132 mm
    Fork Rake/Offset 56 mm 56 mm 56 mm
    Front-Center 801 mm 821 mm 841 mm
    Front-Center (29 mid) 801 mm 821 mm 841 mm
    Stack (27.5 mid) 635 mm 635 mm 635 mm
    Front-Center (27.5 mid) 801 mm 821 mm 841 mm
    Chain-Stay Length (29) 448 mm 448 mm 448 mm
    Chain-Stay Length (27.5) 438 mm 438 mm 438 mm
    Chain-Stay Length (mid) 443 mm 443 mm 443 mm
    Wheelbase (27.5) 1239 mm 1259 mm 1279 mm
    Wheelbase (29) 1249 mm 1269 mm 1289 mm
    Wheelbase (mid) 1244 mm 1264 mm 1284 mm
    Seat-Tube Length 394 mm 420 mm 420 mm
    Seat-Tube Angle 78.2° 76.8° 76.8°
    Seat-Tube Angle (29 mid) 78.5° 77.1° 77.1°
    Reach 426 mm 446 mm 466 mm
    Seat-Tube Angle (27.5 mid) 77.8° 76.4° 76.4°
    Reach (29 mid) 430 mm 450 mm 470 mm
    Reach (27.5 mid) 423 mm 443 mm 463 mm
    Head-Tube Length 105 mm 105 mm 105 mm
    Head-Tube Angle 62.8° 62.8° 62.8°
    Head-Tube Angle (29 mid) 63.2° 63.2° 63.2°
    Head-Tube Angle (27.5 mid) 62.5° 62.5° 62.5°

    Component Geometry

    Component S2 S3 S4
    Saddle Width 130 mm 130 mm 130 mm
    Seatpost Length 367 mm 367 mm 367 mm
