2025 Specialized Chisel Hardtail Frameset Features
The all-new Chisel has been purpose-built to tackle modern cross country trails and race courses with the utmost speed. In fact, it shares many of the same modern features as its Epic Hardtail sibling, but in a more budget-friendly package—making it the most efficient and capable alloy hardtail out there.
And with this frame option, you can build your new Chisel exactly how you like. Top-end build for a durable XC shredder? Oh, yeah. Or maybe a budget-friendly one that you can upgrade later? Easy. The Chisel frame is the perfect canvas to start painting your new path to XC racing. Non-UDH Compatible
At a Glance
- We asked ourselves, “How do we bring pro-level performance down to a price more riders can afford?” D'Aluisio Smartweld Technology, that's how. Smartweld allows us to create the most consistent, high-strength welds possible while taking full advantage of compliant, hydroformed alloy tubes. The result? One of the lightest alloy hardtail frames out there at 1,350g, which also features size-tuned stiffness.
- The new Chisel also houses all of the modern features that you expect from an XC bike, like Progressive XC Geometry with a 68-degree headtube angle and longer reach, internal cable routing, a threaded bottom bracket, boost spacing, 30.9mm dropper post compatibility, and 1x-only drivetrains.
Product Specifications
Product Specifications
Frame |
|
Seat Binder |
|
Seatpost |

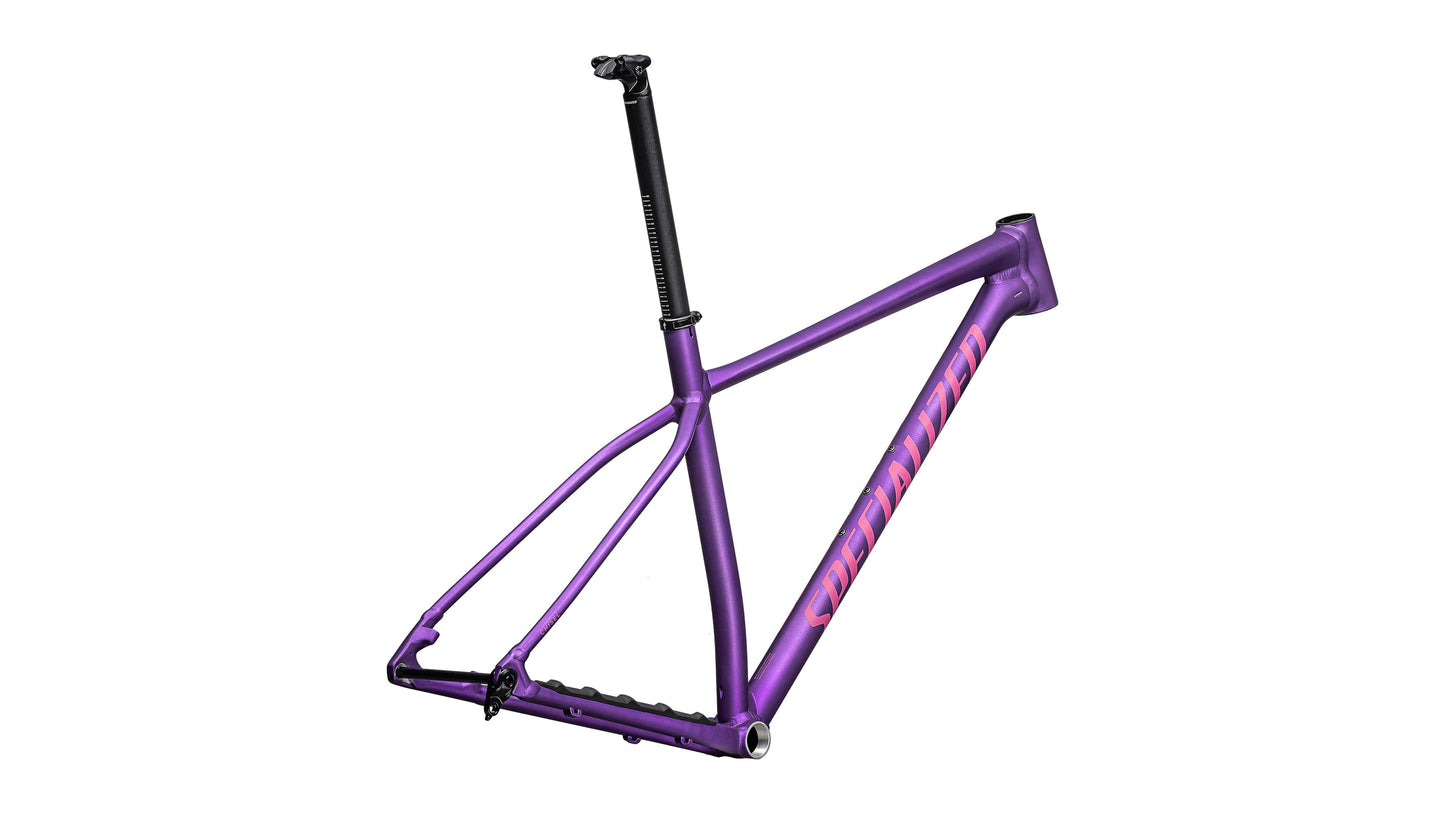

2025 Specialized Chisel Hardtail Frameset
| Bike/Frame Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Stack | 591 mm | 605 mm | 605 mm | 619 mm | 633 mm |
| Reach | 385 mm | 405 mm | 430 mm | 455 mm | 480 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1070 mm | 1099 mm | 1124 mm | 1154 mm | 1185 mm |
| Top Tube Length, Horizontal | 555 mm | 578 mm | 603 mm | 632 mm | 661 mm |
| Bike Standover Height | 732 mm | 762 mm | 792 mm | 816 mm | 847 mm |
| Seat Tube Length | 367 mm | 400 mm | 430 mm | 470 mm | 520 mm |
| Seat Tube Angle | 74° | 74° | 74° | 74° | 74° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 110 mm | 125 mm |
| Head Tube Angle | 68° | 68° | 68° | 68° | 68° |
| BB Height | 304 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| BB Drop | 68 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Trail | 103 mm | 103 mm | 103 mm | 103 mm | 103 mm |
| Fork Length, Full | 486 mm | 506 mm | 506 mm | 506 mm | 506 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 647 mm | 674 mm | 699 mm | 730 mm | 760 mm |
Size Guide: 2025 Specialized Chisel Hardtail Frameset
