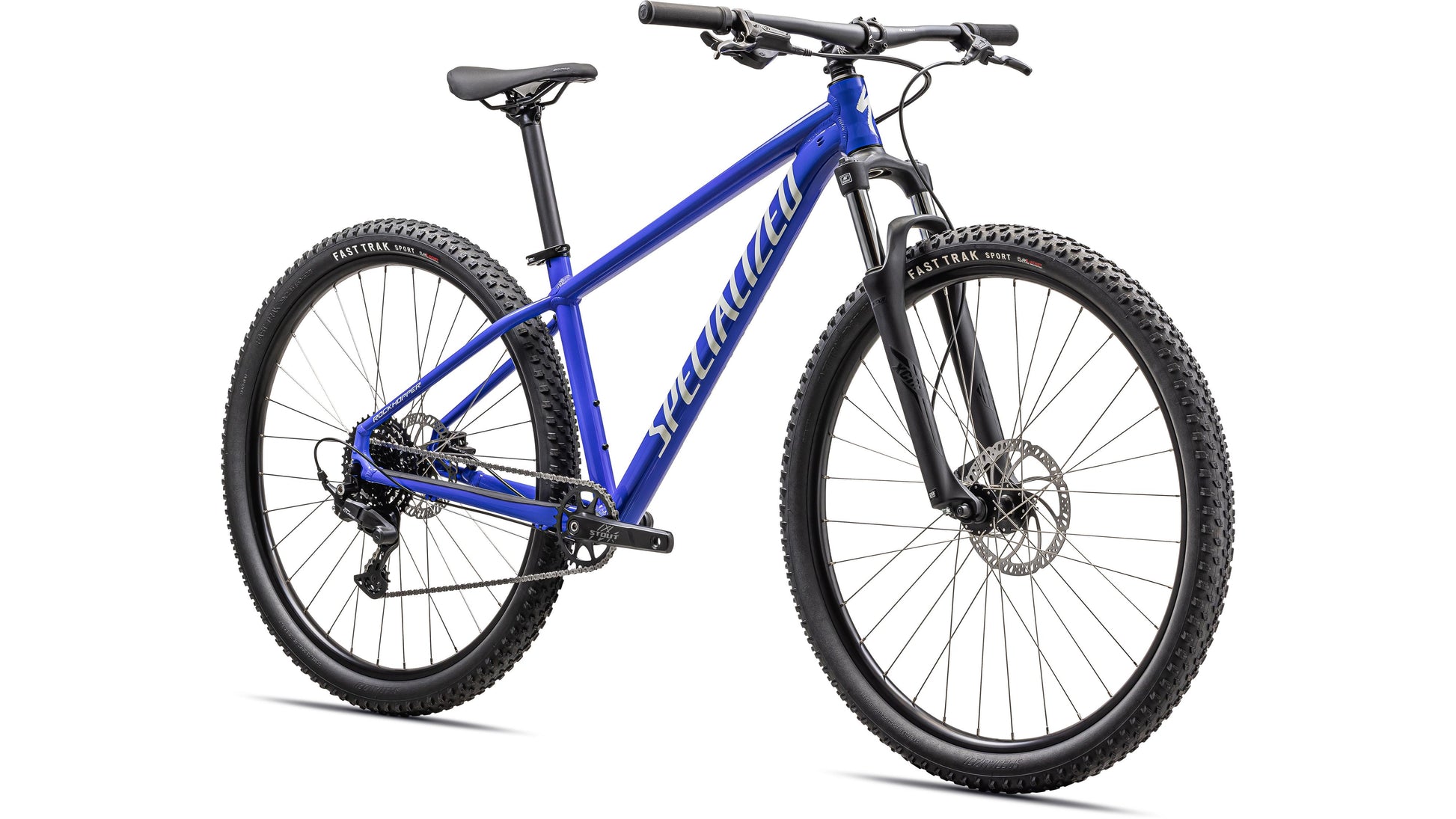

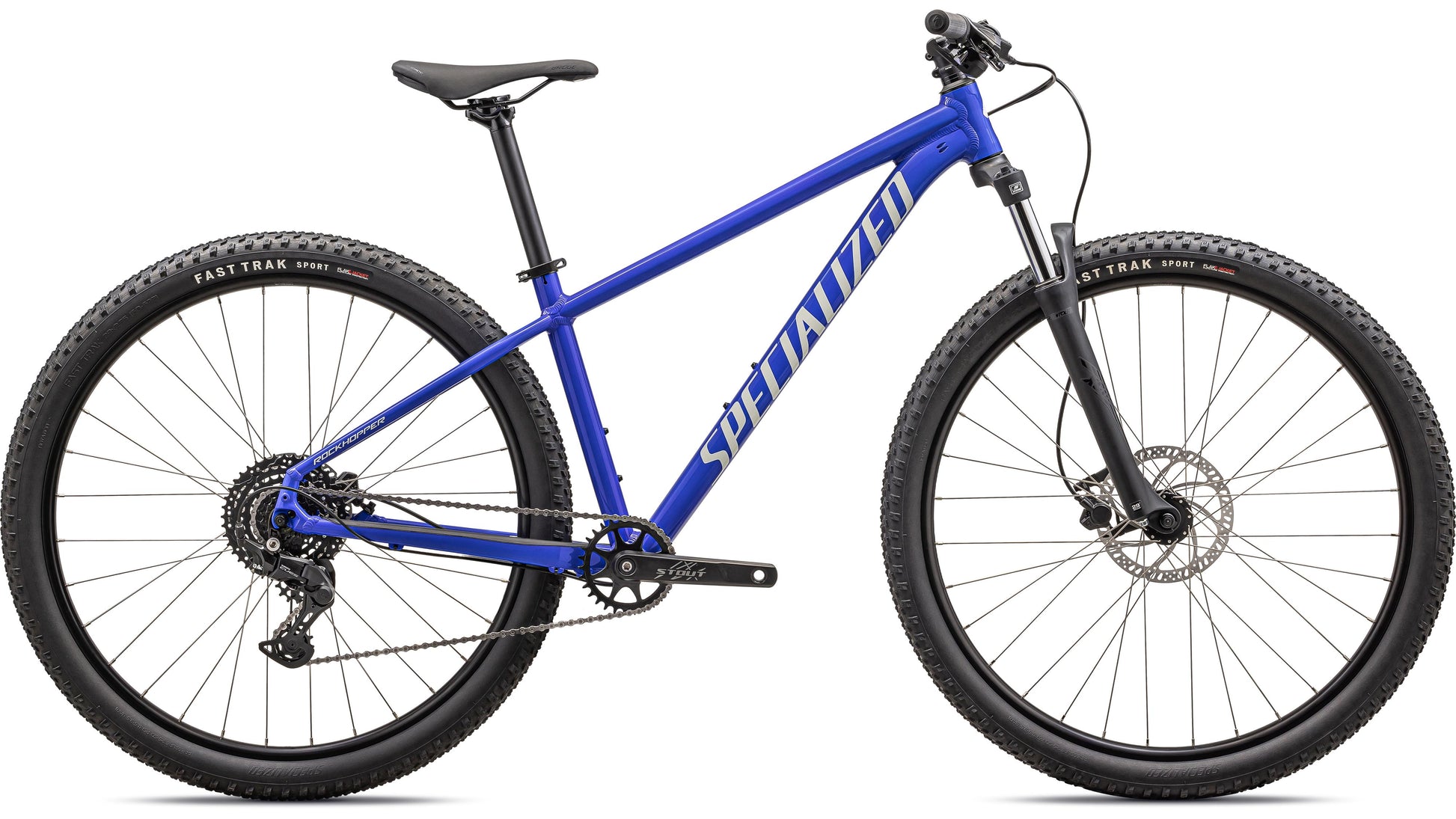

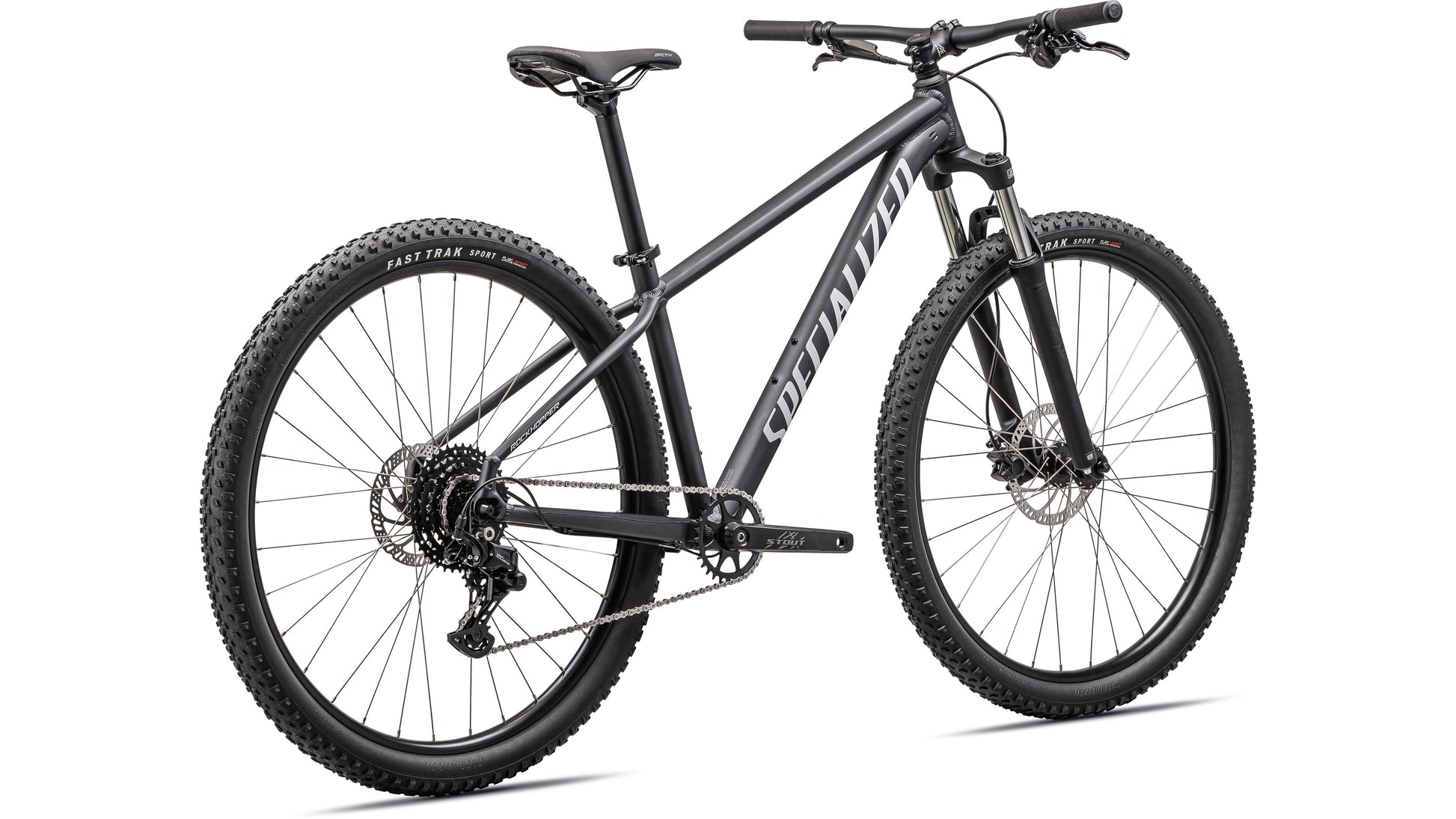

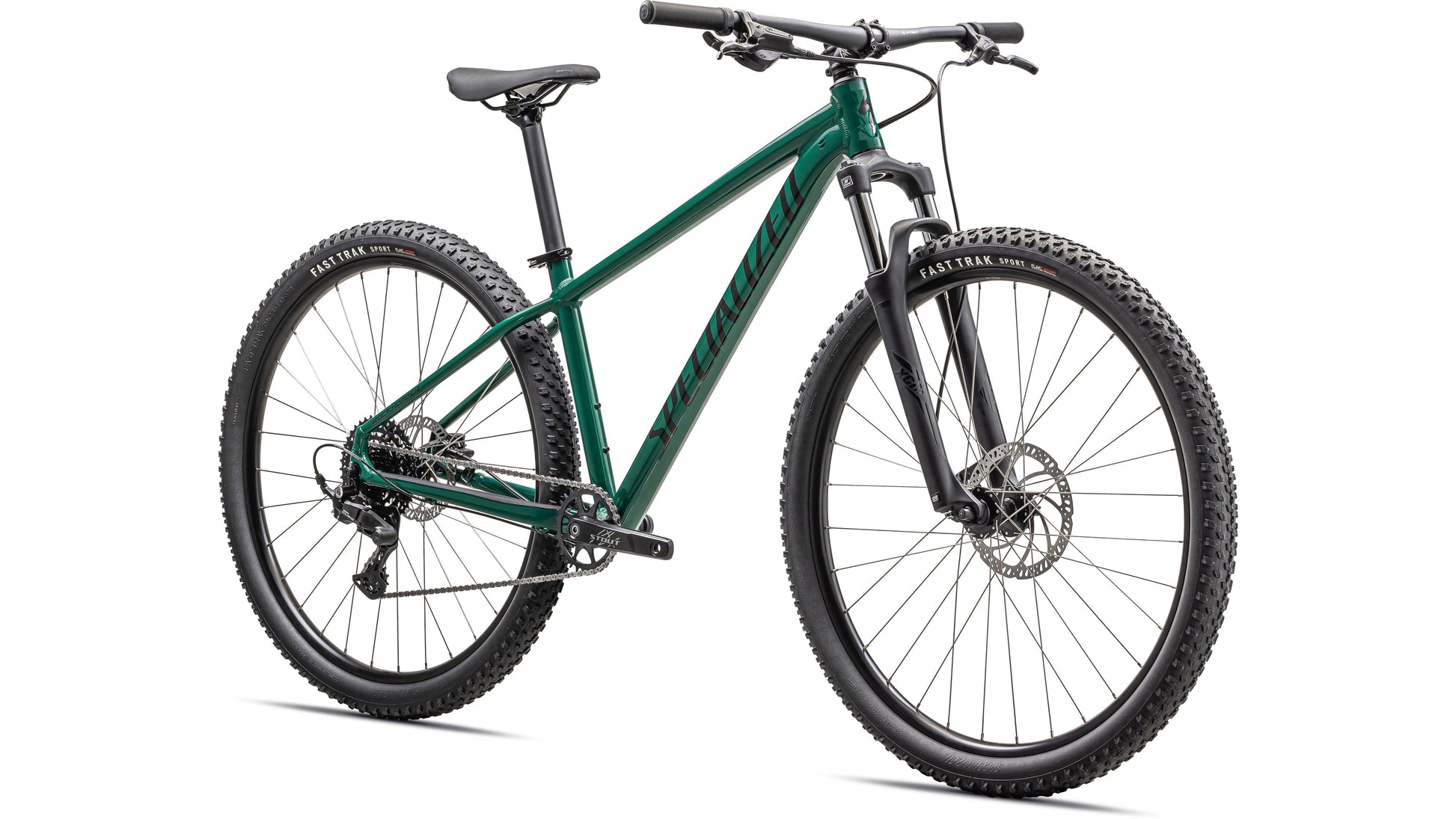

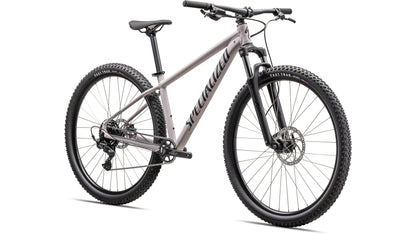

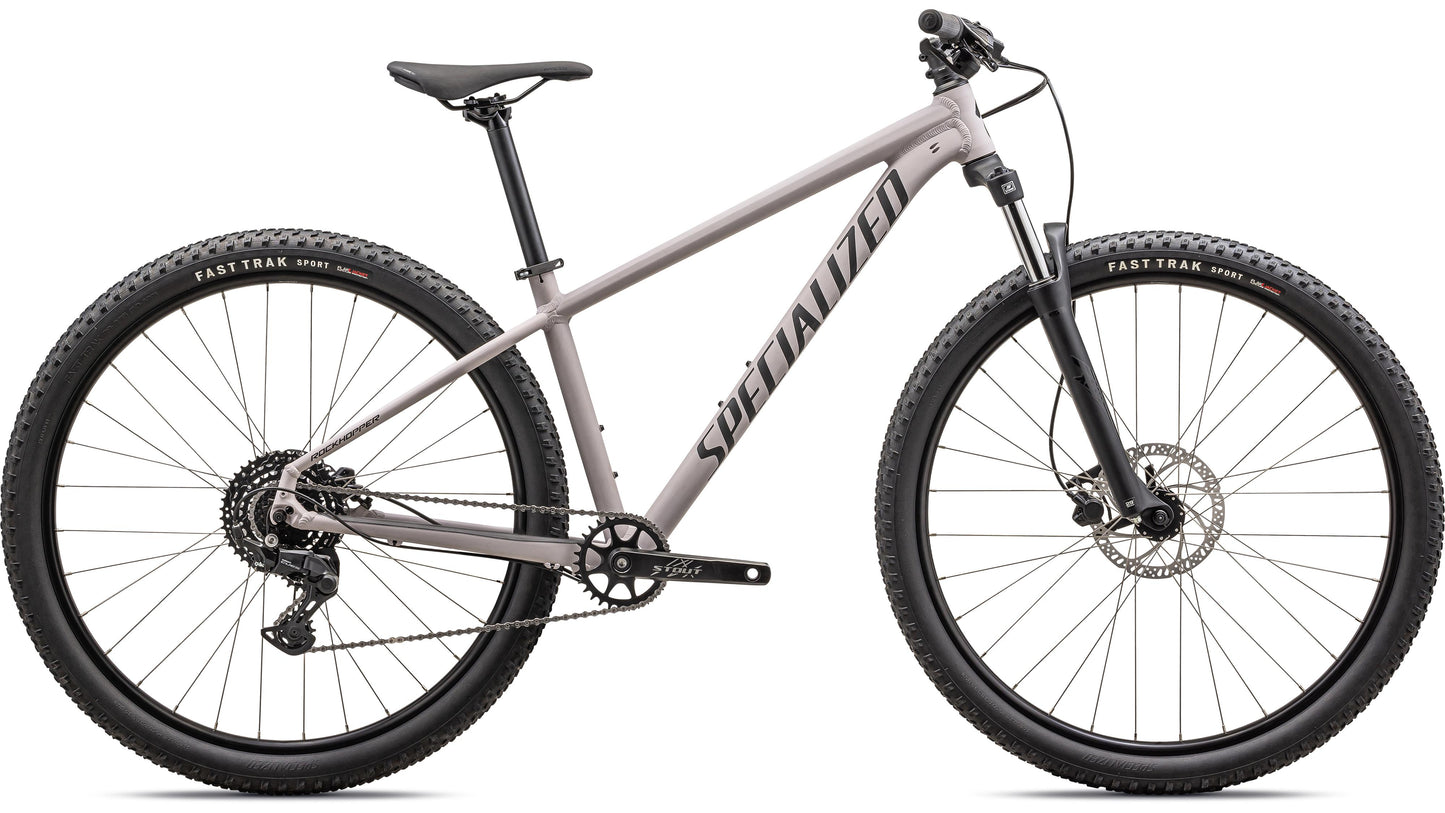

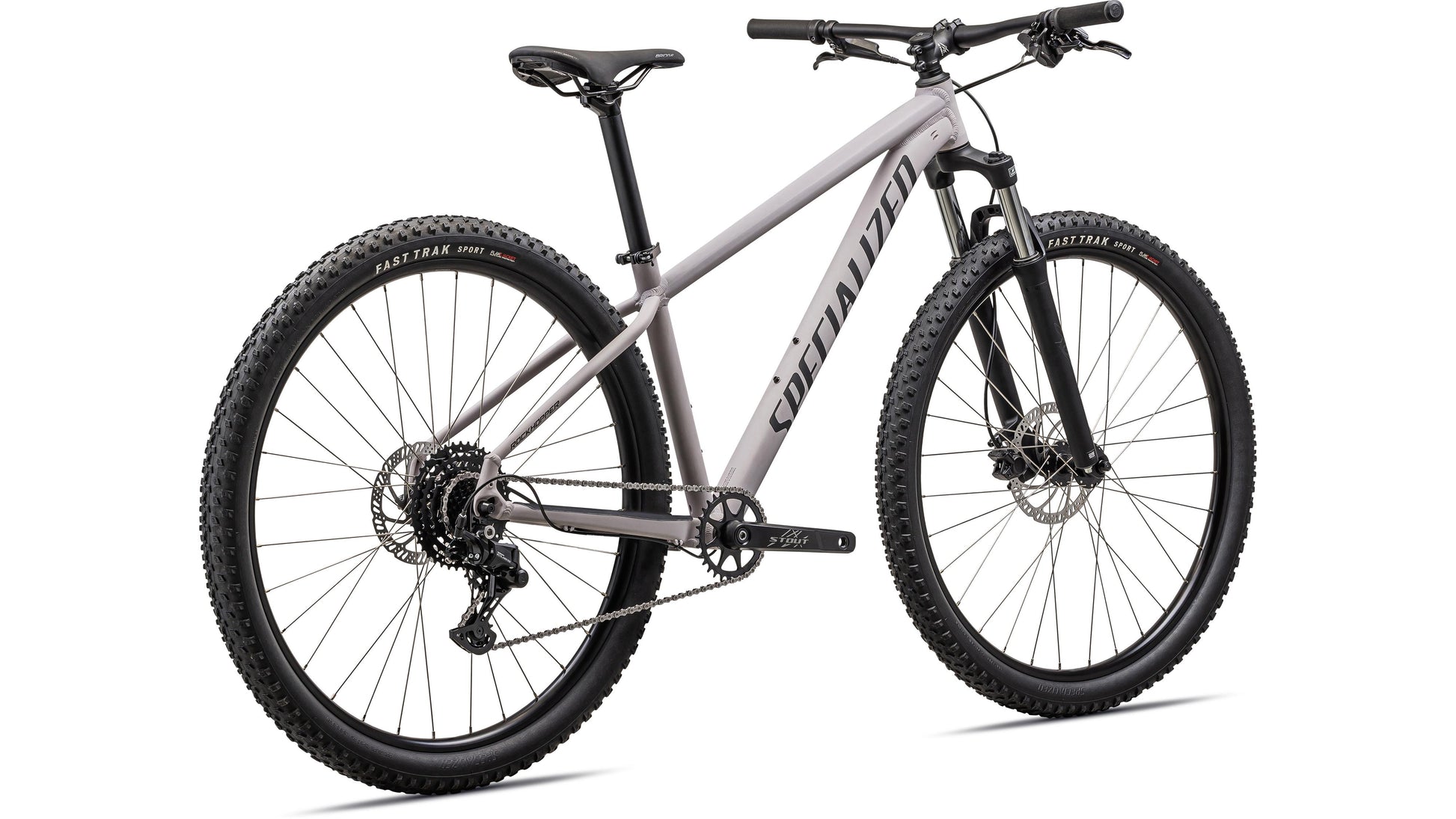

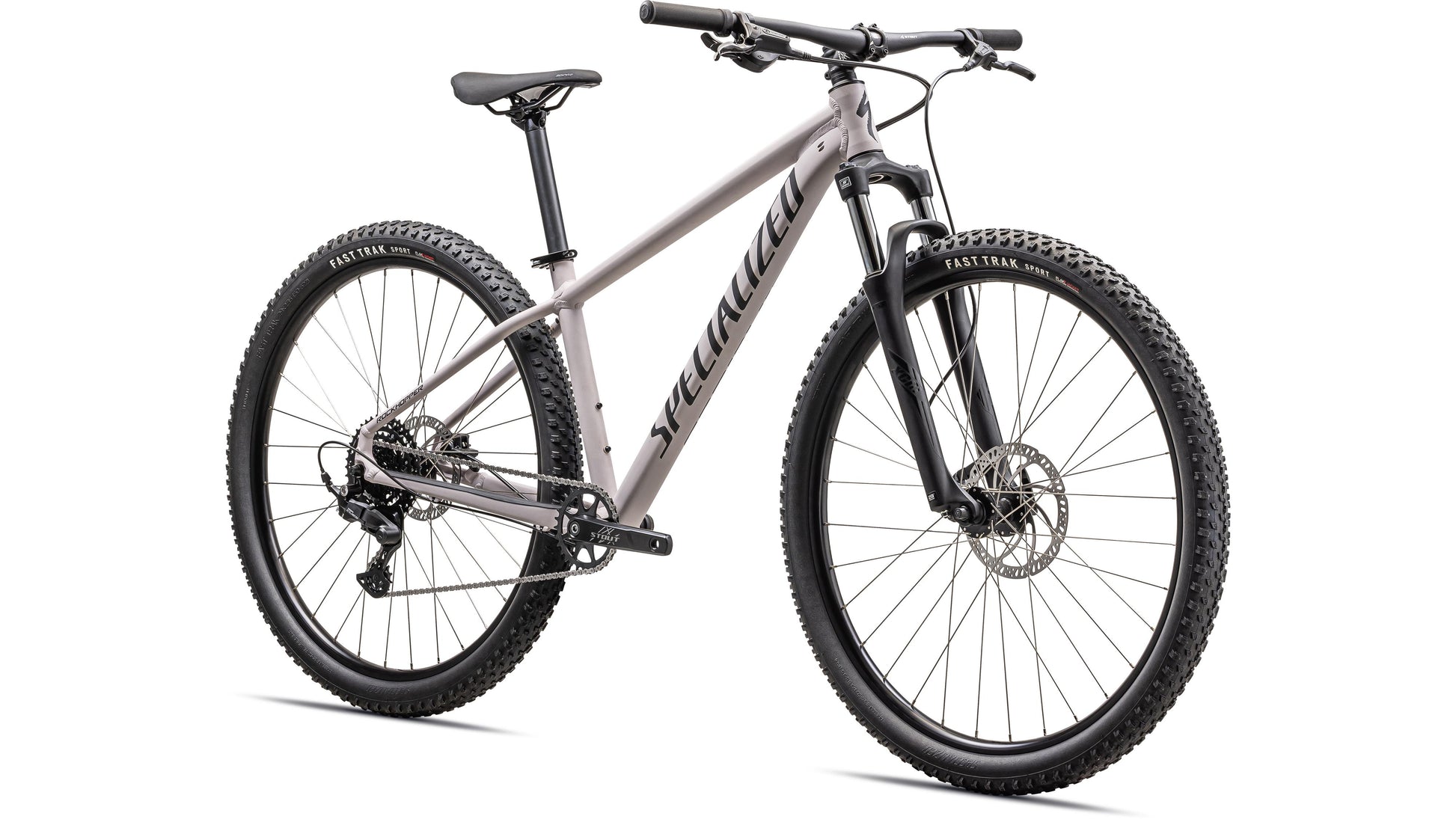

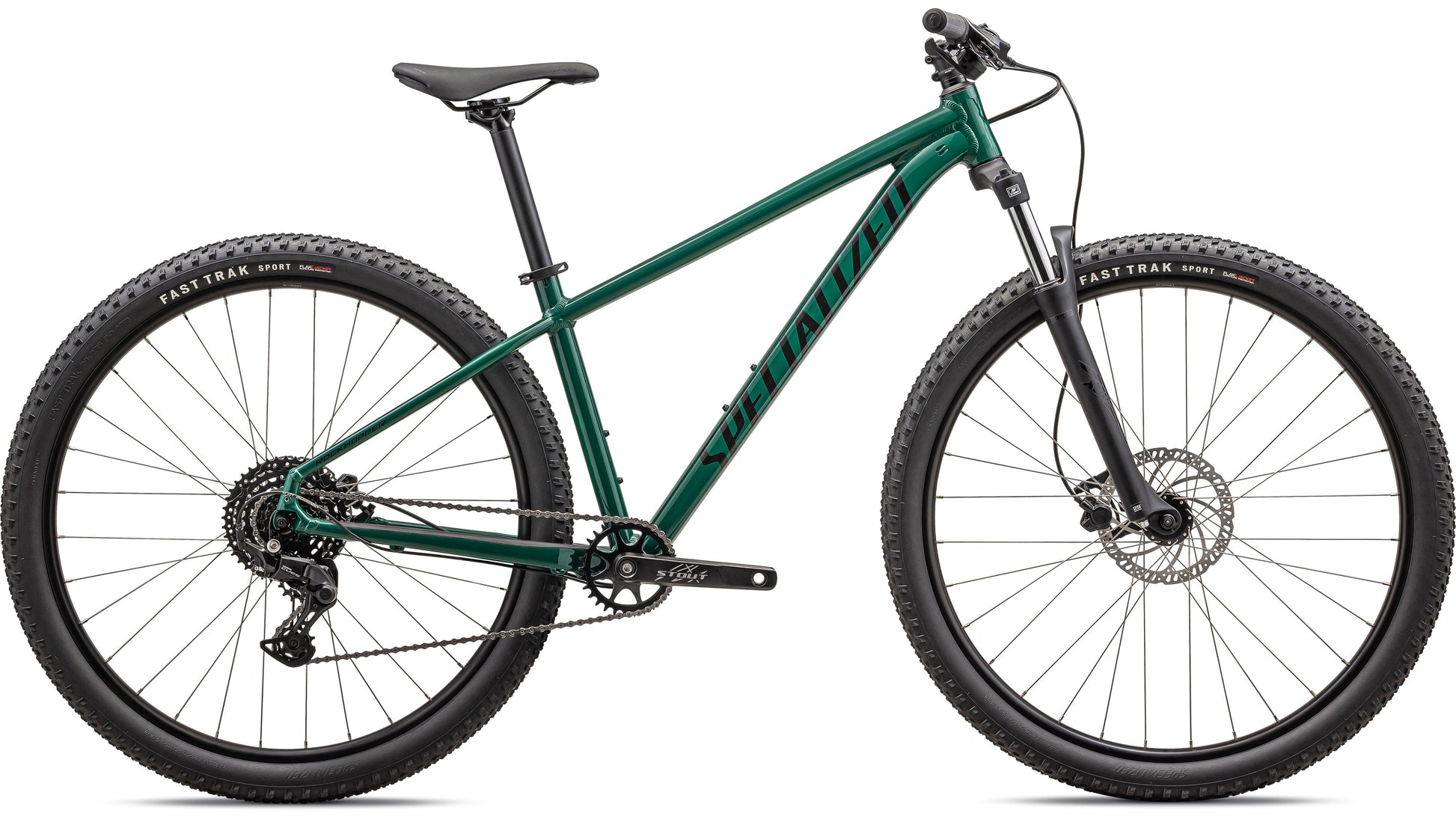

2024 Specialized Rockhopper Sport Features
All barn-burner and no benchwarmer, the Rockhopper Sport throws out the playbook when it comes to putting performance points on the board while playing some serious defense on behalf of your wallet.
Game-ready with Tektro M275 hydraulic disc brakes, Shimano CUES shifting, and an SR SunTour XCM fork that’s built to hustle, the Rockhopper Sport can tack up the win on any given Sunday—and the rest of the week too for that matter.
At a Glance
- A heart of gold, presented in our lightweight yet durable Premium A1 Aluminum, the Rockhopper’s butted aluminum frame features hydroformed top and downtubes to keep weight low and strength high, all while providing increased standover clearance, slick internal cable routing, and dropper-post compatibility.
- To ensure that the Rockhopper offers both the best fit and best performance for every person, no matter their measure, we’ve paired each Rockhopper frame size with the optimal wheel size. The result is a Rockhopper to fit every rider and the assurance that every Rockhopper is rolling on the best-handling wheel for its frame size.
- Bringing our Rx Tune to Rockhopper for the very first time, the SR Suntour XCM with custom Multi-Circuit damping brings size-specific travel and spring rates to the show in a performance that’s sure to impress while also ensuring consistent geometry, handling, and suspension performance, regardless of frame or wheel size.
- Beautifully beastly, Tektro hydraulic disc brakes pack a mean bite but deliver their power with a refined, intuitive feel to make for a package that punches way above its pay grade.
- Keep things simple with a durable 1x Shimano drivetrain with plenty of range and a clutch-equipped rear derailleur that keeps your ride quiet—and your chain on.
- Pair dead-reliable hubs from Formula with our 25-millimeter internal diameter, hookless Specialized rims for a strong, light, and durable wheelset hat trick.
Component Specifications
| Frame | Specialized A1 premium butted alloy, zero-stack head tube, internal cable routing, 135x9mm forged dropouts, chainstay-mounted disc brake, replaceable alloy derailleur hanger, stealth rack mounts, dropper post compatible |
| Seat Binder | Alloy, quick release, 34.9 |
| Fork | SR Suntour XCM 29, 30mm stanchions, Rx Tune, coil spring, QR, 90/100mm travel (size-specific), 42mm offset |
| Shift Levers | Shimano CUES SL-U4000-9R,RAPIDFIRE PLUS |
| Rear Derailleur | SHIMANO REAR DERAILLEUR, RD-U4000, CUES, GS 9-SPEED, TOP NORMAL, SHADOW DESIGN |
| Cassette | SHIMANO CUES CS-LG300-9, 9-SPEED, 11-41T |
| Chain | SHIMANO CN-LG500, W/QUICK-LINK |
| Crankset | Stout 1x, forged alloy |
| Bottom Bracket | Square-tapered, 73mm, internal bearings, 122.5mm spindle |
| Rims | Specialized alloy, disc only, double-wall, 25mm inner width, 32h |
| Front Hub | Formula SP-2120 6-Bolt, disc, 100x9mm spacing, quick-release |
| Rear Hub | Formula SP-2125, 6-Bolt freehub, disc, 135x9mm spacing, quick-release |
| Spokes | Stainless, 14g |
| Front Tire | Fast Trak Sport, 650b/29x2.35" |
| Rear Tire | Fast Trak Sport, 650b/29x2.35" |
| Inner Tubes | Standard 40mm SV 650B/29x1.75-2.4 |
| Front Brake | Tektro BR-M275 Hydraulic Disc, 180/160mm |
| Rear Brake | Tektro BR-M275 Hydraulic Disc, 160mm |
| Stem | 3D-forged alloy, 31.8mm, 7-degree rise |
| Handlebars | Stout Mini Rise, alloy, 9-degree backsweep, 15mm rise, 31.8mm |
| Grips | Specialized Trail Grips, lock-on |
| Saddle | Bridge Sport, Steel rails, 155/143mm |
| Seatpost | Alloy, 2-bolt clamp, 30.9mm |
2024 Specialized Rockhopper Sport
| Bike/Frame Size | XS - 27.5 | S - 27.5 | M - 27.5 | S - 29 | M - 29 | L - 29 | XL - 29 | XXL - 29 |
|---|---|---|---|---|---|---|---|---|
| Wheel Size | 27.5 in | 27.5 in | 27.5 in | 29 in | 29 in | 29 in | 29 in | 29 in |
| Stack | 559 mm | 573 mm | 589 mm | 607 mm | 616 mm | 626 mm | 640 mm | 654 mm |
| Front-Center | 630 mm | 656 mm | 682 mm | 672 mm | 696 mm | 719 mm | 745 mm | 770 mm |
| Chain-Stay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1067 mm | 1092 mm | 1118 mm | 1105 mm | 1128 mm | 1152 mm | 1178 mm | 1203 mm |
| Top-Tube Length (horizontal) | 541 mm | 565 mm | 589 mm | 586 mm | 608 mm | 630 mm | 654 mm | 679 mm |
| Bike Stand-Over Height | 658 mm | 695 mm | 735 mm | 732 mm | 754 mm | 781 mm | 820 mm | 853 mm |
| Seat-Tube Length | 310 mm | 350 mm | 400 mm | 360 mm | 400 mm | 450 mm | 500 mm | 560 mm |
| Seat-Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Crank Length | 165 mm | 165 mm | 170 mm | 170 mm | 170 mm | 175 mm | 175 mm | 175 mm |
| Handlebar Width | 700 mm | 720 mm | 740 mm | 720 mm | 740 mm | 740 mm | 740 mm | 740 mm |
| Stem Length | 35 mm | 45 mm | 60 mm | 45 mm | 60 mm | 60 mm | 70 mm | 70 mm |
| Reach | 375 mm | 395 mm | 415 mm | 405 mm | 425 mm | 445 mm | 465 mm | 485 mm |
| Seat-Post Length | 300 mm | 350 mm | 400 mm | 350 mm | 400 mm | 400 mm | 400 mm | 400 mm |
| Saddle Width | 155 mm | 155 mm | 143 mm | 155 mm | 143 mm | 143 mm | 143 mm | 143 mm |
| Head-Tube Length | 95 mm | 100 mm | 105 mm | 95 mm | 95 mm | 105 mm | 120 mm | 135 mm |
| Head-Tube Angle | 68° | 68° | 68° | 68.5° | 68.5° | 68.5° | 68.5° | 68.5° |
| B-B Height | 310 mm | 310 mm | 310 mm | 310 mm | 310 mm | 310 mm | 310 mm | 310 mm |
| B-B Drop | 43 mm | 43 mm | 43 mm | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm |
| Trail | 97 mm | 97 mm | 97 mm | 97 mm | 97 mm | 97 mm | 97 mm | 97 mm |
| Fork Length (full) | 475 mm | 485 mm | 495 mm | 505 mm | 515 mm | 515 mm | 515 mm | 515 mm |
| Fork Rake/Offset | 42 mm | 42 mm | 42 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
Size Guide: 2024 Specialized Rockhopper Sport
