2024 Specialized Allez Sprint LTD Features
We created the all-new Allez Sprint by cannibalizing the Tarmac SL7. We tore the Tarmac apart, and rebuilt it from alloy with our Smartweld technology. We leveraged every innovation and insight learned during its development to create the all-new Allez Sprint. Whether chasing a National title or attacking your buddies 15 minutes into an “easy” Sunday spin, we won’t be offended if you mistake the Allez for a Tarmac SL7. Some may call it a carbon copy, we call it the World’s First Alloy Super Bike.
At a Glance
- The Allez Sprint is the fastest alloy road bike in history, thanks to the time its sibling, the Tarmac SL7, spent in the wind. It’s details like the most complex alloy head tube we’ve ever made and integrated cables that make it 41 seconds faster over 40km than the previous Allez Sprint. That’s a hell of a facelift. With 41 seconds, you’d have a podium picture in your Insta feed, just saying.
- Whether you’re launching a sprint out of the final corner or attacking from the gun like a young Italian at the Giro, the Allez Sprint, with its one-piece bottom bracket and downtube, delivers the ruthless efficiency of alloy with unprecedented stability. By balancing power at the pedals with input at the bars, the Allez Sprint keeps you fast and confident on the limit.
- Dive for the winning gap, bang elbows in the final meters, dissect the most technical descents, all without feeling like you’ve gone ten rounds with the heavyweight champ. Dropped seat stays, and the Tarmac SL7’s carbon seat post and fork make the Allez Sprint supple in the saddle and precise at the bars—all with Tarmac SL7's World Championship-proven geometry. It’s as comfy as it is beautiful. Well, almost.
- One innovation over any other helps us deliver the new Allez Sprint’s aerodynamics, power transfer, and handling—Smartweld. Making the fastest bikes in the world out of carbon wasn’t hard enough. We hydroformed the bottom bracket and down tube from a single piece of alloy, built our most complex alloy head tube ever, and then put it all together with Smartweld. It’s what makes the Allez Sprint the first alloy super bike.
Component Specifications
| Frame | Specialized E5 Premium Aluminum Disc frame with D'Aluisio Smartweld Sprint Technology, hydroformed aluminum tubing, tapered head tube, fully internally routed cables, threaded BB |
| Seat Binder | Allez Sprint seat collar |
| Fork | FACT Carbon, 12x100mm thru-axle, flat-mount disc |
| Shift Levers | Shimano 105 Di2 ST-R7170, 12-speed |
| Front Derailleur | Shimano 105 Di2 R7170, braze-on |
| Rear Derailleur | Shimano 105 Di2 R7170, 12-speed |
| Cassette | Shimano 105, 12-speed, 11-34t |
| Chain | Shimano SLX, M7100, 12-speed |
| Crankset | Shimano 105, 12-speed |
| Chain Rings | 32T |
| Bottom Bracket | Shimano Threaded BSA BB |
| Front Tire | Turbo Pro, 60 TPI, folding bead, BlackBelt protection, 700x26mm |
| Rear Tire | Turbo Pro, 60 TPI, folding bead, BlackBelt protection, 700x26mm |
| Inner Tubes | Presta, 40mm valve |
| Front Brake | Shimano 105, Hydraulic disc |
| Rear Brake | Shimano 105, Hydraulic disc |
| Stem | Specialized Pro SL, alloy, 4-bolt |
| Handlebars | Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp |
| Saddle | Body Geometry Power Sport, steel rails |
| Seatpost | 2021 S-Works Tarmac Carbon seat post, FACT Carbon, 20mm offset |

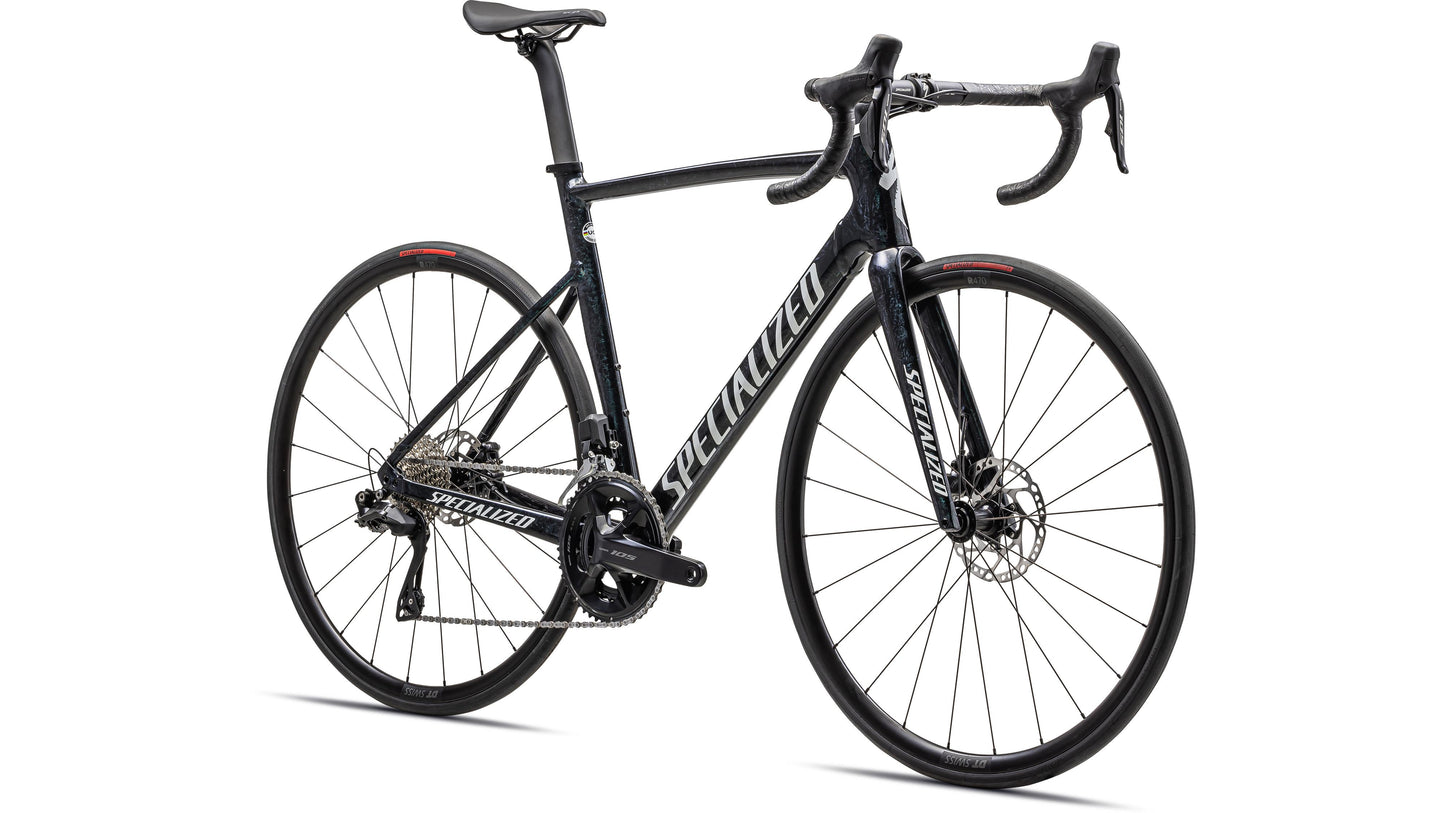

2024 Specialized Allez Sprint LTD
| Bike/Frame Size | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Stack | 508 mm | 520 mm | 537 mm | 558 mm | 584 mm | 605 mm |
| Reach | 378 mm | 383 mm | 387 mm | 398 mm | 405 mm | 411 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 974 mm | 976 mm | 979 mm | 992 mm | 1006 mm | 1013 mm |
| Top Tube Length, Horizontal | 509 mm | 532 mm | 541 mm | 563 mm | 578 mm | 596 mm |
| Bike Standover Height | 735 mm | 755 mm | 765 mm | 795 mm | 815 mm | 835 mm |
| Seat Tube Length | 470 mm | 495 mm | 510 mm | 530 mm | 550 mm | 570 mm |
| Seat Tube Angle | 75.5° | 74° | 74° | 73.5° | 73.5° | 73° |
| Head Tube Length | 105 mm | 115 mm | 133 mm | 153 mm | 180 mm | 200 mm |
| Head Tube Angle | 71.75° | 72.5° | 73° | 73.5° | 73.5° | 74° |
| BB Height | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| BB Drop | 74 mm | 74 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Trail | 63 mm | 58 mm | 58 mm | 55 mm | 55 mm | 52 mm |
| Fork Length, Full | 366 mm | 366 mm | 366 mm | 366 mm | 366 mm | 366 mm |
| Fork Rake/Offset | 47 mm | 47 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 575 mm | 578 mm | 580 mm | 592 mm | 607 mm | 614 mm |
