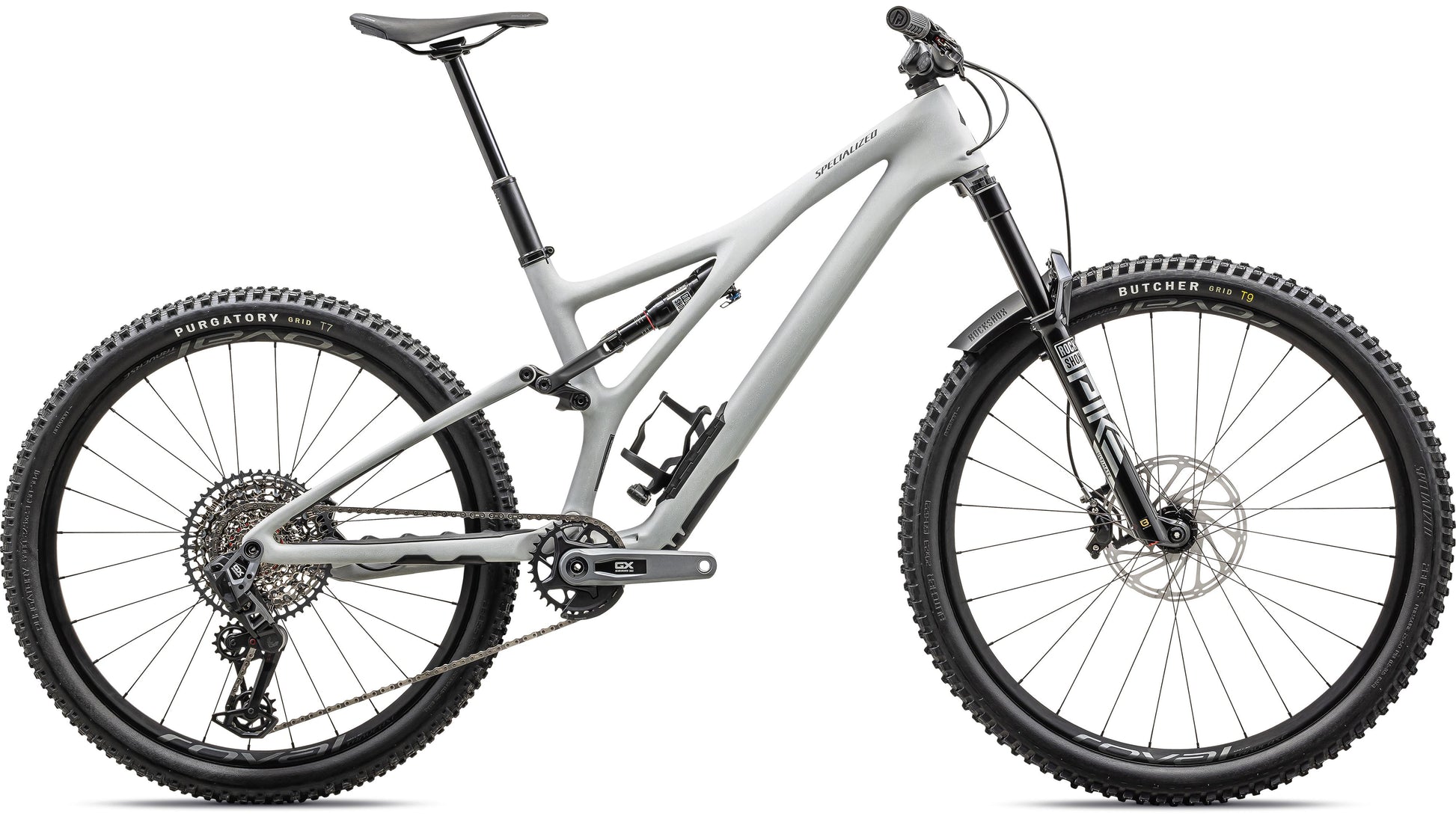

2023 Specialized Stumpjumper LTD Features
When we say "The Ultimate Trail Bike;" we mean it—the all-new Stumpjumper is everything you could ever ask for in a trail-ripping steed. Want a bike that climbs with ease? The Stumpjumper delivers, thanks to a ground-up suspension redesign and lightest-in-class frame weight. How about something that's ready to shred when the trail turns downhill? That suspension re-design - paired with new Trail Geometry and the Rider-First Engineered™ frame’s perfect blend of stiffness and light weight - turns the Stumpjumper into an absolute monster descending. Point it where you want to go and let the party begin.
The Stumpjumper LTD raises the bar yet again with an expansive SRAM GX Eagle AXS wireless electronic 12-speed drivetrain, RockShox Pike Ultimate fork and Deluxe Ultimate shock, and a bomber Roval Traverse 29/27.5 Alloy wheelset.
At a Glance
- THE TRAIL BENCHMARK—When we set out to design the all-new Stumpjumper, we pursued some hefty goals. It had to excel on any kind of trail, for every style of rider. To achieve that, we went after serious weight reduction without sacrificing durability, a stiff, responsive chassis that still rides light and lively, geometry that improves everyone’s riding, and the best suspension kinematics we know how to design. Turns out, you can have your cake and eat it too with the new Stumpjumper.
- THE SWEETEST 130MM OF TRAVEL YOU’LL EVER RIDE—We massaged the kinematics of the Stumpjumper suspension to bring out the very best all-round performance possible in a 130mm package. Countless hours of suspension lab development and field testing created a refined mid-travel ripper that eats big terrain like a gravity fed beast, handles like a dream everywhere, and climbs like it has a motor.
- PROGRESSIVE GEOMETRY—The S-Sizing geometry of the new Stumpjumper hits the progressive sweet spot. It’s long, low and slack, with a short offset fork and a steeper seat tube angle. These numbers combine to make your ride more stable, more carvealicious, more comfortable climbing, more better everywhere. With FlipChip adjustability you’re able to further fine-tune your fit, ensuring that your new Stumpjumper performs flawlessly on whatever terrain you choose.
- RIDER-FIRST ENGINEERED™—Rider-First Engineered™ frames use a size-specific approach to ride characteristics that ensures benchmark handling and flawless performance, regardless of frame or rider size. Whether you’re a jump-happy grom riding an S1, or a DH-fiend giant in need of the lengthy S6, you’ll experience the same ride traits – rail-sharp cornering and balanced front and rear stiffness – at the lightest-possible weight, And by light, we mean real light: 2,250 grams (S-Works, S-3 size, with rear shock).
- SWAT™—We introduced the SWAT™ door on the Stumpjumper in 2016, adding room IN your frame for those “oh sh**t” necessities like pumps and spare tubes, and immediately rendering jersey pockets redundant.
Component Specifications
| Frame | FACT 11m carbon chassis and rear-end, asymmetrical design, 29/27.5 Trail Geometry, SWAT™ Door integration, flip chip Head Tube/Bottom Bracket adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel |
| Seat Binder | Alloy, 38.6mm |
| Fork | RockShox Pike Ultimate, Charger 3 RC2 Damper w/Buttercups, 15x110mm axle, 44mm offset, 140mm of travel |
| Rear Shock | RockShox Deluxe Ultimate, Rx Trail Tune, 190x45 |
| Shift Levers | SRAM AXS POD Controller |
| Rear Derailleur | SRAM GX Eagle Transmission Cassette, 12spd, 10-52t |
| Cassette | SRAM GX Eagle Transmission Cassette, 12spd, 10-52t |
| Chain | SRAM GX Eagle Transmission Flattop Chain |
| Crankset | SRAM GX Eagle Crankset, Alloy, Integrated Guard, 55mm Chainline, S1:165mm, S2-S5: 170mm, S6: 175mm |
| Chain Rings | 32T |
| Bottom Bracket | SRAM DUB, BSA 73mm Wide, Threaded |
| Rims | Roval Traverse 29F/27.5R Alloy, 30mm inner width, hand-built, 2Bliss Ready |
| Front Hub | Roval, sealed cartridge bearings, 15x110mm spacing, 28h |
| Rear Hub | Roval DT Swiss 370, Ratchet LN, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h |
| Spokes | DT Swiss Competition Race |
| Front Tire | Butcher, GRID casing, GRIPTON® T9 compound, 29x2.3" |
| Rear Tire | Purgatory, GRID casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.3" |
| Inner Tubes | Standard, Presta Valve |
| Front Brake | SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 200mm |
| Rear Brake | SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 180mm |
| Stem | Alloy Trail Stem, 35mm bar bore |
| Handlebars | Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 800mm, 35mm clamp |
| Grips | Deity Lockjaw |
| Saddle | Bridge Comp, Hollow Cr-mo rails 155/143 |
| Seatpost | OneUp, Dropper Post-V2, MMX lever, 34.9 (S1:120mm, S2/S3:150mm, S4: 180mm, S5/S6: 210mm) |

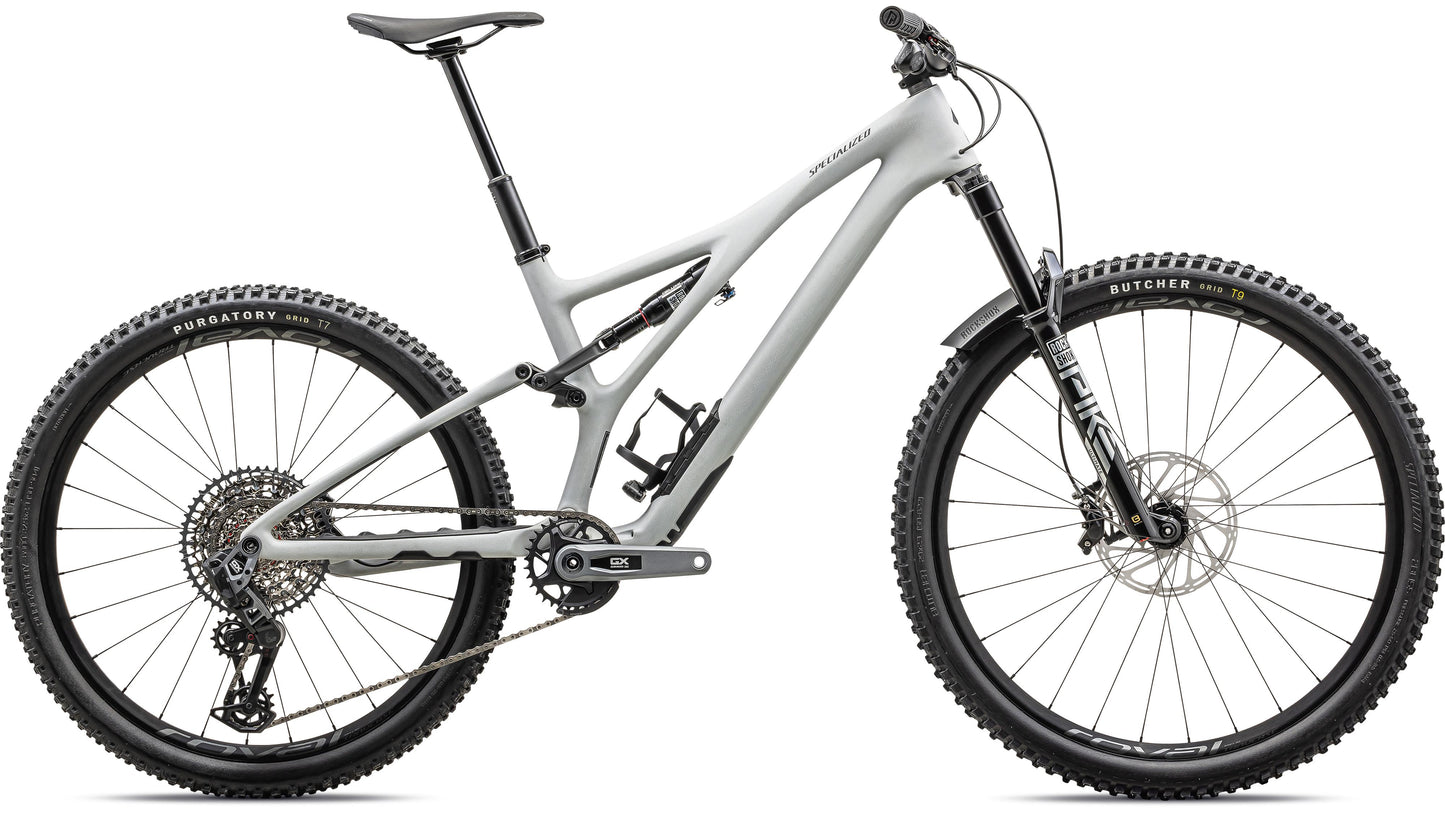

2023 Specialized Stumpjumper LTD
| Bike/Frame Size | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
| Stack (Low BB) | 614 mm | 613 mm | 622 mm | 632 mm | 641 mm | 650 mm |
| Stack (High BB) | 610 mm | 609 mm | 618 mm | 627 mm | 636 mm | 646 mm |
| BB Drop (High BB) | 40 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Trail (Low BB) | 126 mm | 126 mm | 126 mm | 126 mm | 126 mm | 126 mm |
| Trail (High BB) | 123 mm | 123 mm | 123 mm | 123 mm | 123 mm | 123 mm |
| Fork Length (full) | 550 mm | 550 mm | 550 mm | 550 mm | 550 mm | 550 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 724 mm | 746 mm | 770 mm | 800 mm | 829 mm | 863 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 442 mm | 442 mm |
| Wheelbase | 1152 mm | 1175 mm | 1200 mm | 1228 mm | 1268 mm | 1302 mm |
| Top-tube Length (horizontal) | 563 mm | 583 mm | 605 mm | 632 mm | 660 mm | 692 mm |
| Bike Standover Height | 730 mm | 734 mm | 744 mm | 749 mm | 757 mm | 757 mm |
| Reach (Low BB) | 410 mm | 430 mm | 450 mm | 475 mm | 500 mm | 530 mm |
| Seat Tube Length | 385 mm | 385 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Seat Tube Angle (Low BB) | 76° | 76° | 76° | 76° | 76° | 76° |
| Seat Tube Angle (High BB) | 76.5° | 76.5° | 76.5° | 76.5° | 76.5° | 76.5° |
| Max Seatpost Insertion | 220 mm | 220 mm | 240 mm | 260 mm | 280 mm | 300 mm |
| Min Seatpost Insertion | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Reach (High BB) | 415 mm | 435 mm | 455 mm | 480 mm | 505 mm | 535 mm |
| Headtube Length | 95 mm | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Headtube Angle (Low BB) | 65° | 65° | 65° | 65° | 65° | 65° |
| Headtube Angle (High BB) | 65.5° | 65.5° | 65.5° | 65.5° | 65.5° | 65.5° |
| BB Height (Low BB) | 328 mm | 333 mm | 333 mm | 333 mm | 333 mm | 333 mm |
| BB Height (High BB) | 335 mm | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| BB Drop (Low BB) | 47 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
Size Guide: 2023 Specialized Stumpjumper LTD
