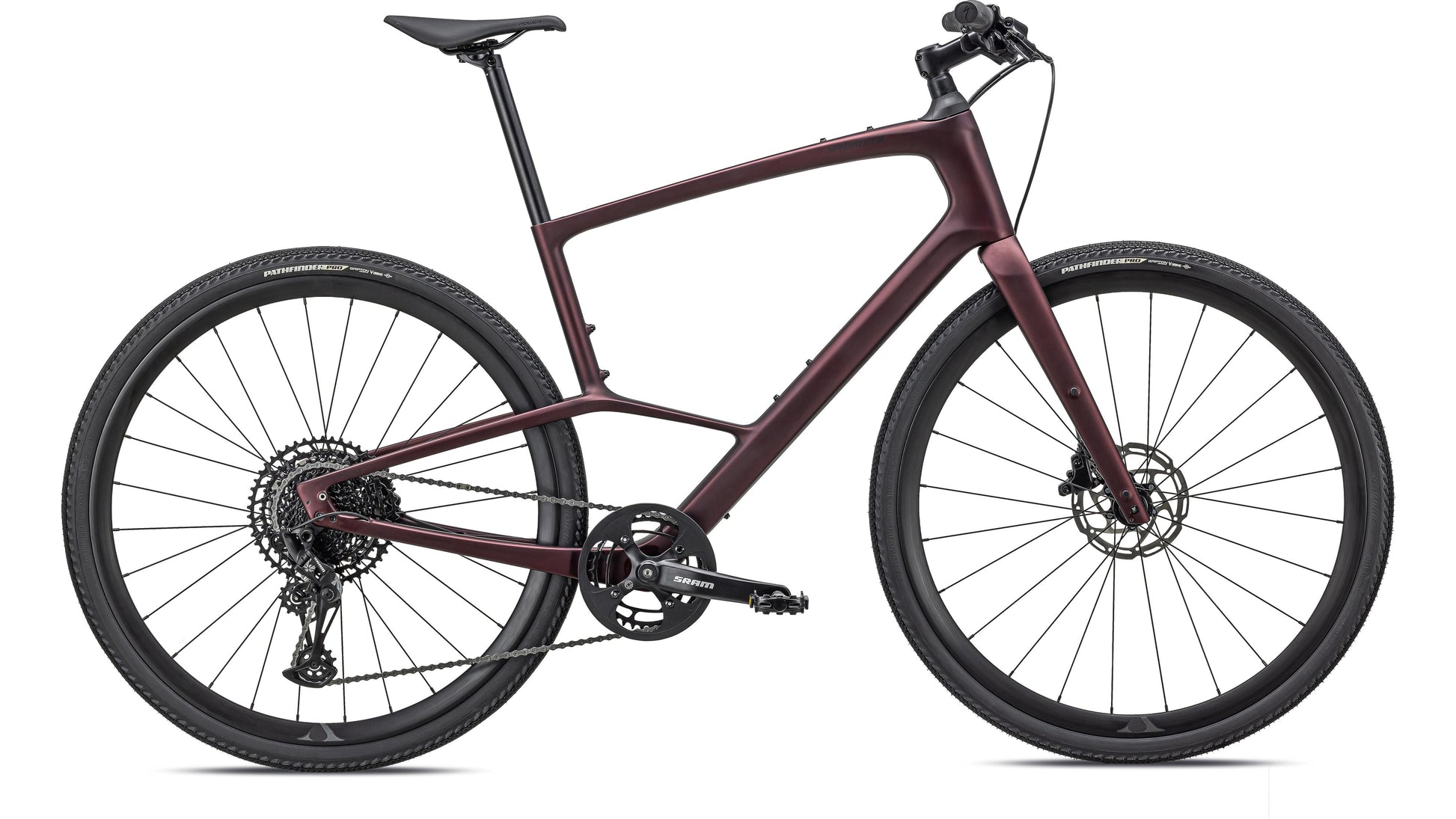

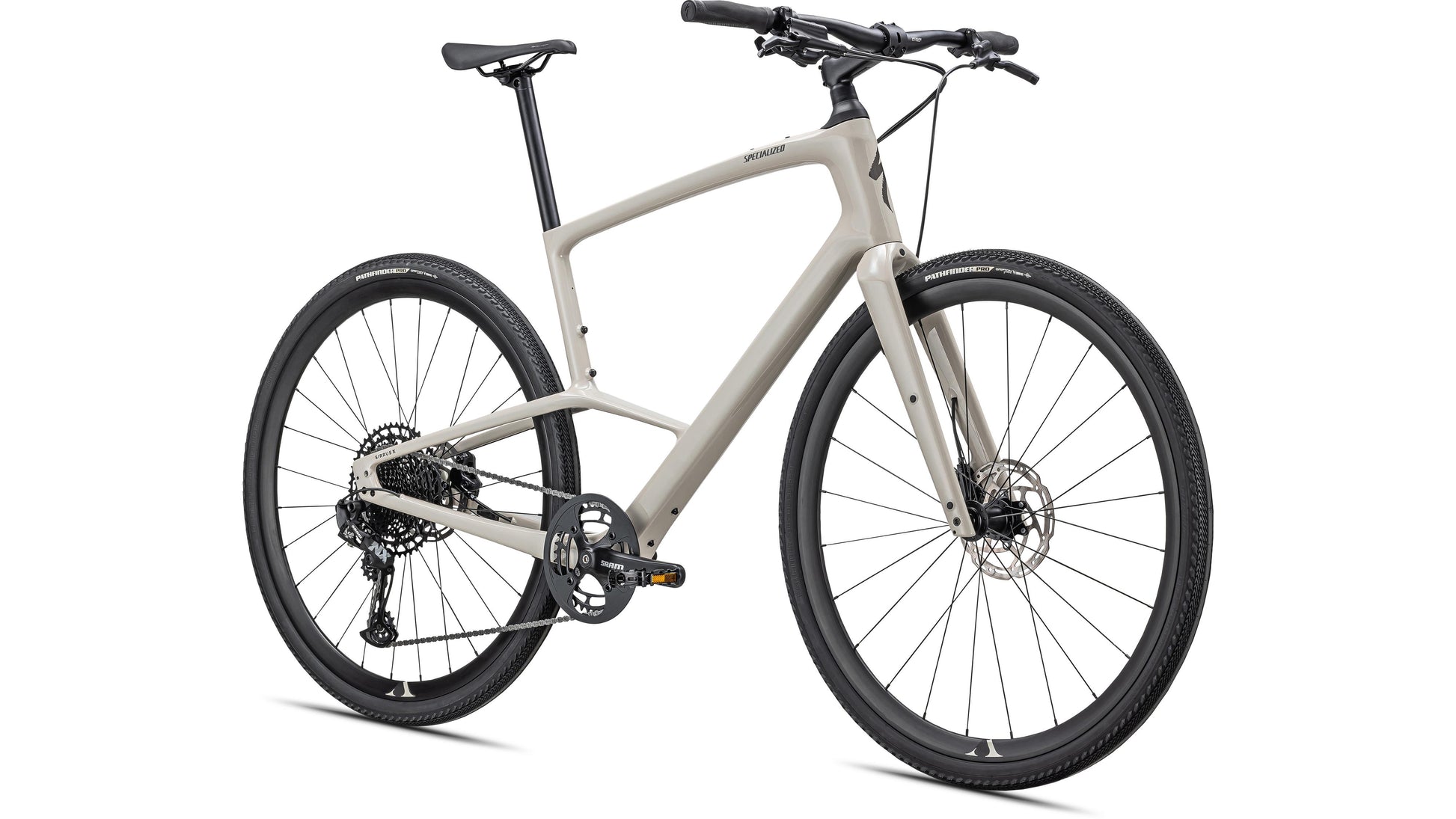

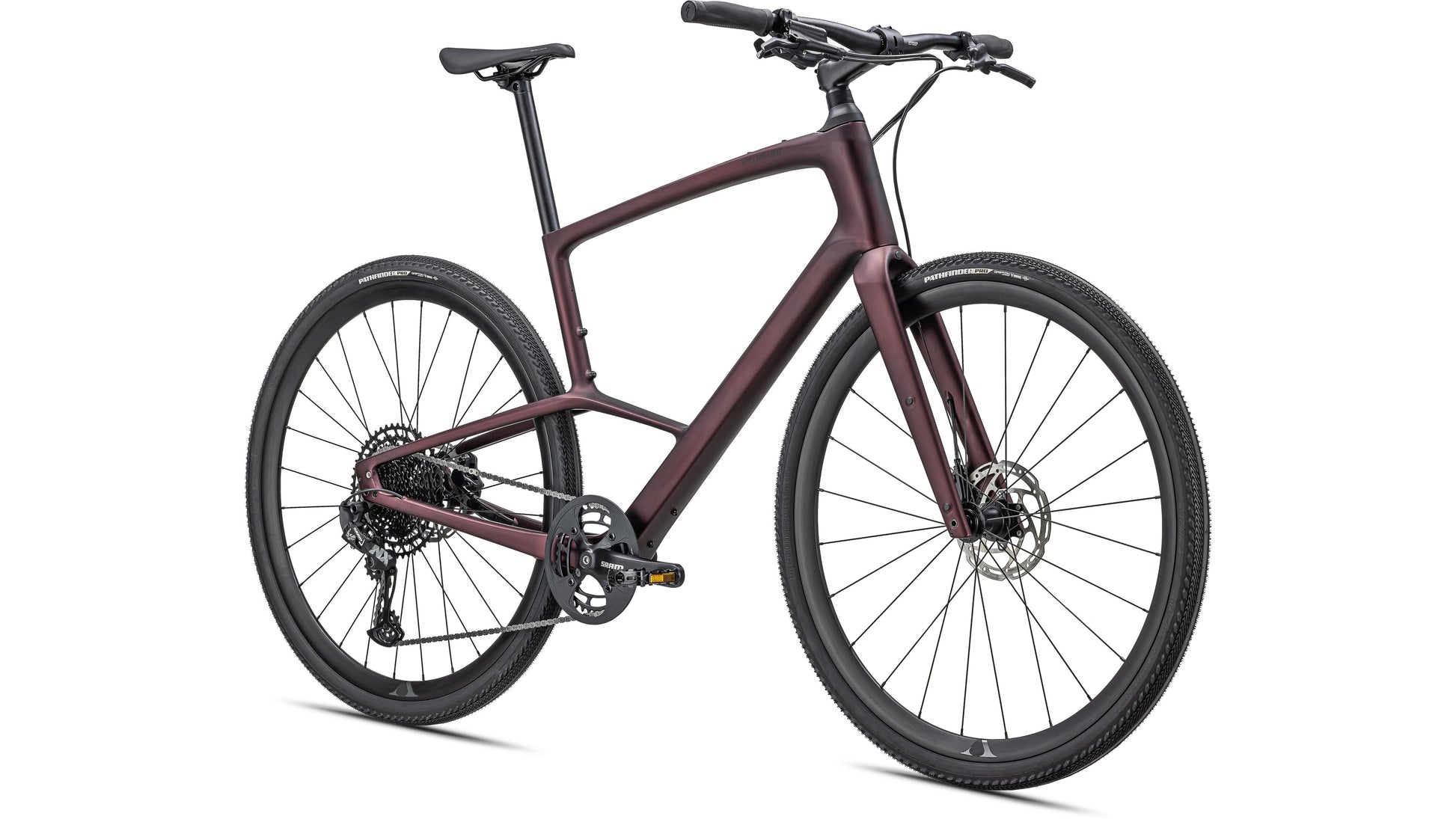

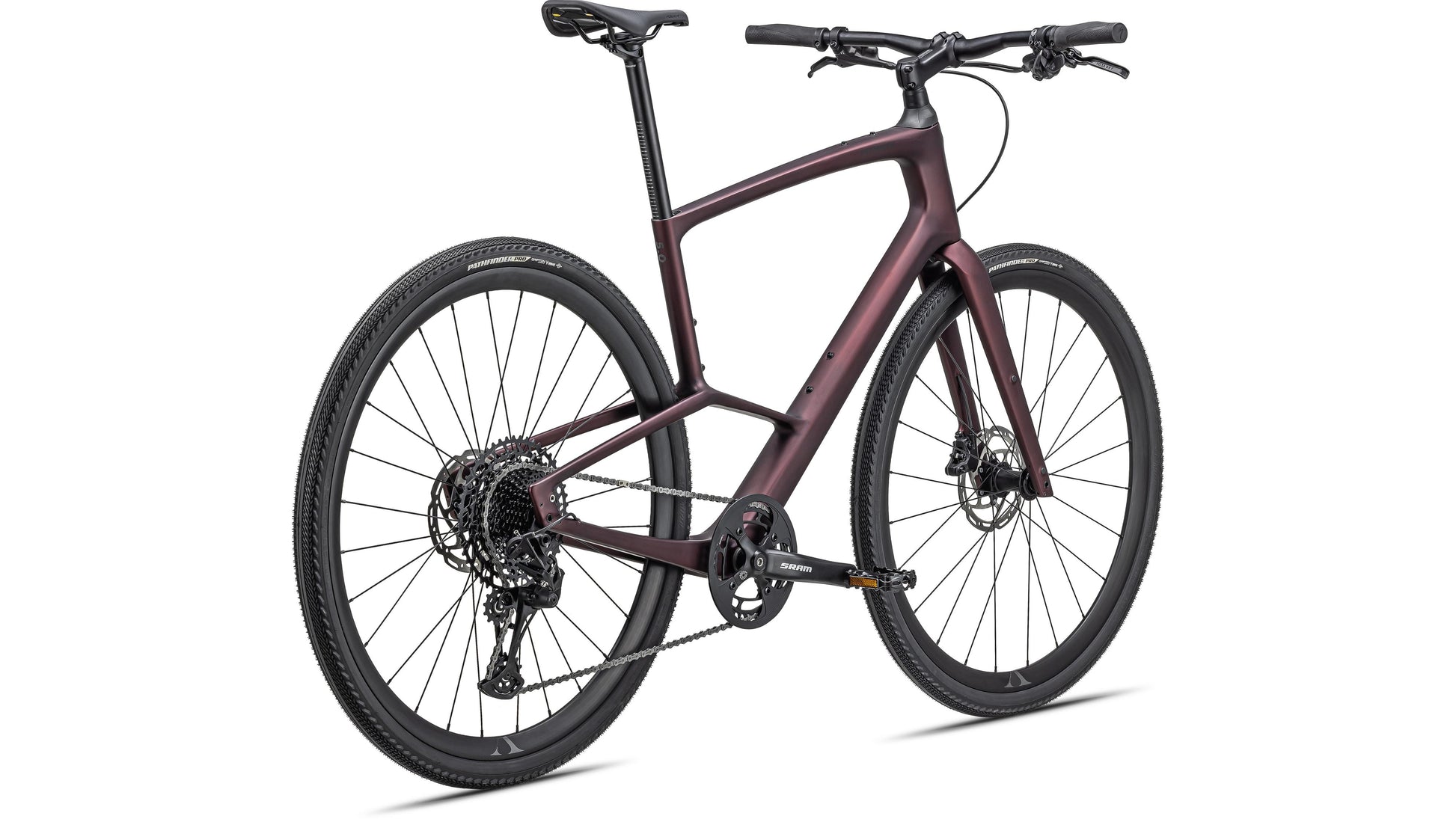

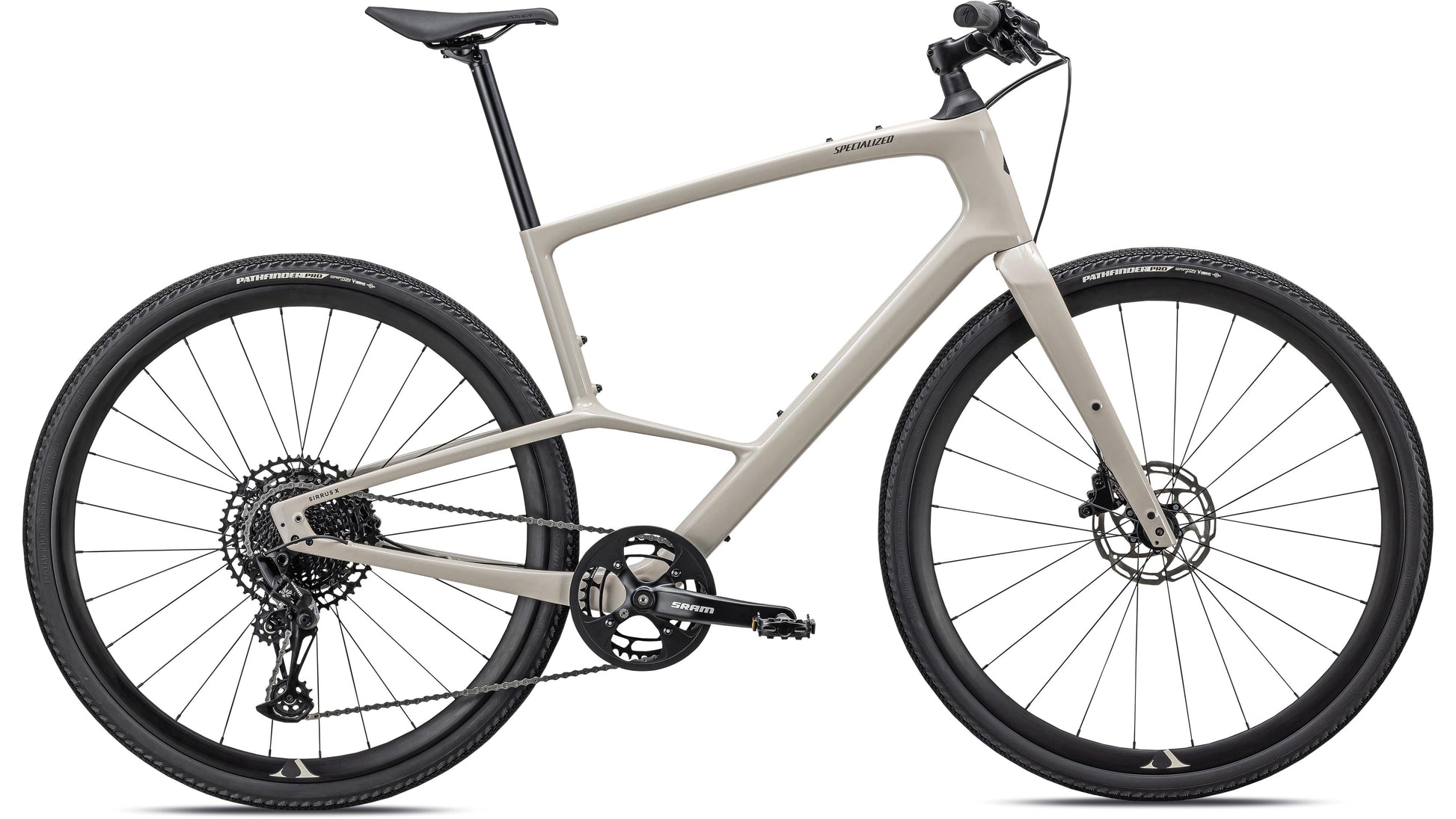

2023 Specialized Sirrus X 5.0 Features
Offering an unprecedented combination of comfort, efficiency, and nimble handling, the Sirrus X excels on pavement, dirt, and any terrain in between.
SMOOTH; COMFORTABLE, AND EFFICIENT: The patent pending Compliance Junction frame design of the Sirrus X provides the smoothest ride in its class.
Engineered vertical compliance without sacrificing lateral rigidity translates to more comfort, control, and efficiency on all roads, paved or gravel. RIDER-FIRST ENGINEERED:
Like all Specialized carbon bikes, the geometry of each frame is uniquely crafted. This means that for every frame, each tube size and carbon layup is specifically selected to achieve the optimal balance of rigidity, weight, and responsiveness to ensure that no matter what size you’re riding, you’re going to experience the world’s best ride.
NIMBLE: Class-leading light-weight, exceptional pedaling efficiency, and steering precision merge for confident, nearly telepathic handling characteristics.
At a Glance
- Specialized FACT 9r carbon frame features internal cable routing.
- Using our Rider-First Engineered™ philosophy, the geometry of each frame is uniquely crafted. Each tube size and carbon layup is specifically selected to achieve the optimal balance of rigidity, weight, and responsiveness no matter the frame size.
- The Compliance Junction provides just the right amount of flex and forgiveness across the carbon frame without sacrificing performance and efficiency.

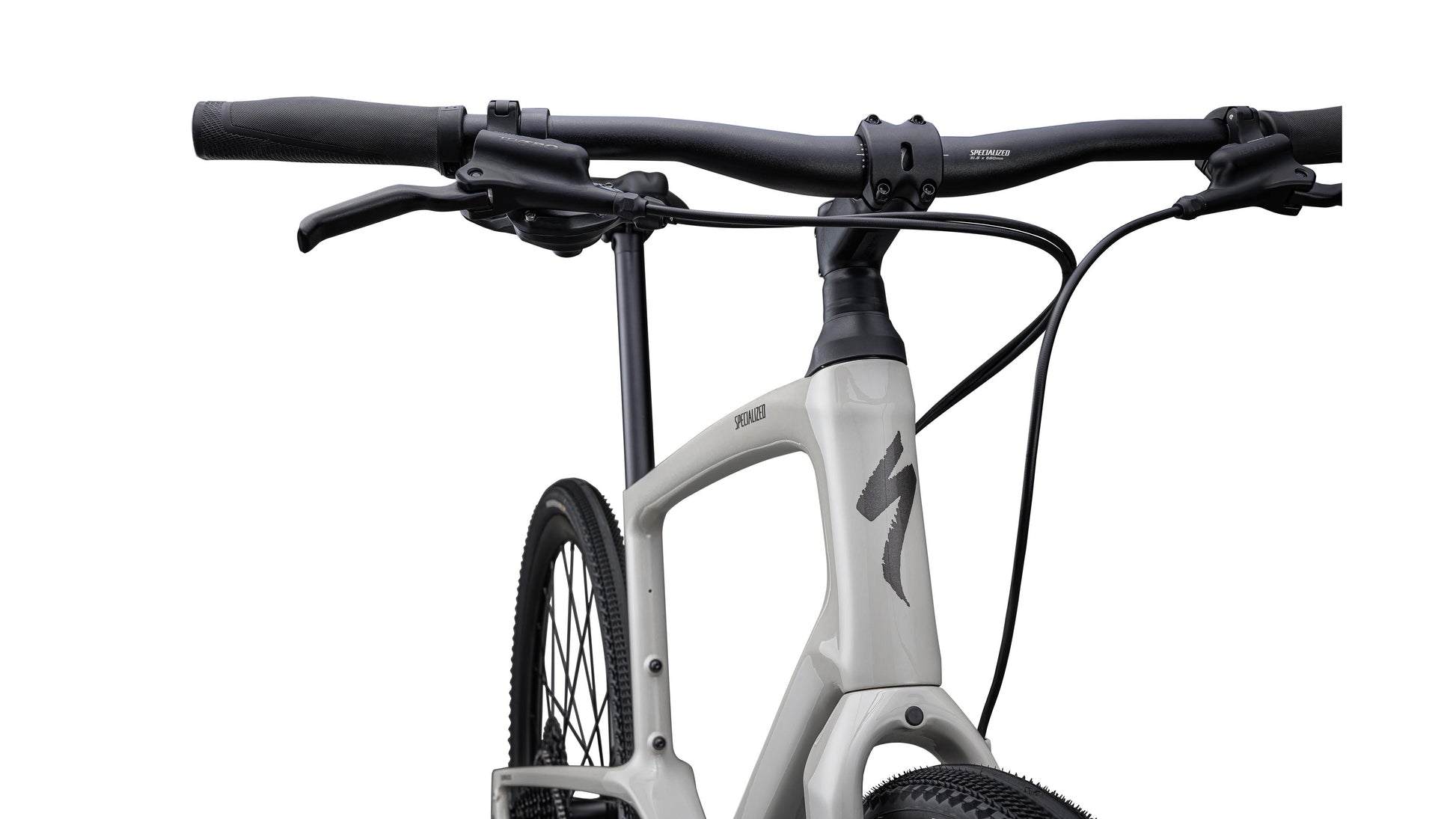

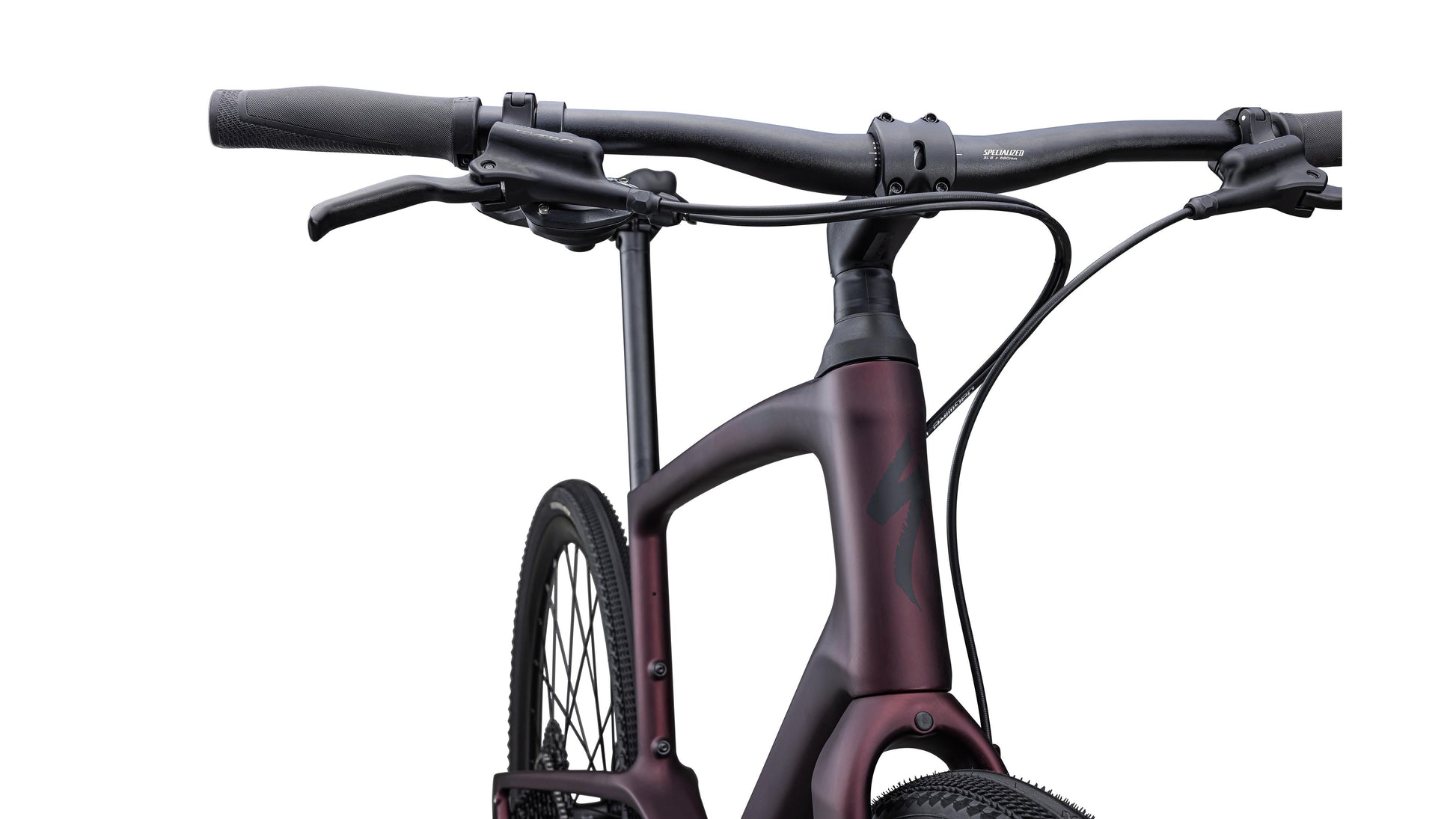

- Future Shock 1.5, Specialized’s unique suspension design, is placed inside the headtube to prevent harsh frequencies caused by bumps in the road from reaching the handlebars.
- Wide 38c Pathfinder tubeless-ready tires are ideal for mastering variable terrain, providing traction and comfort off the beaten path.

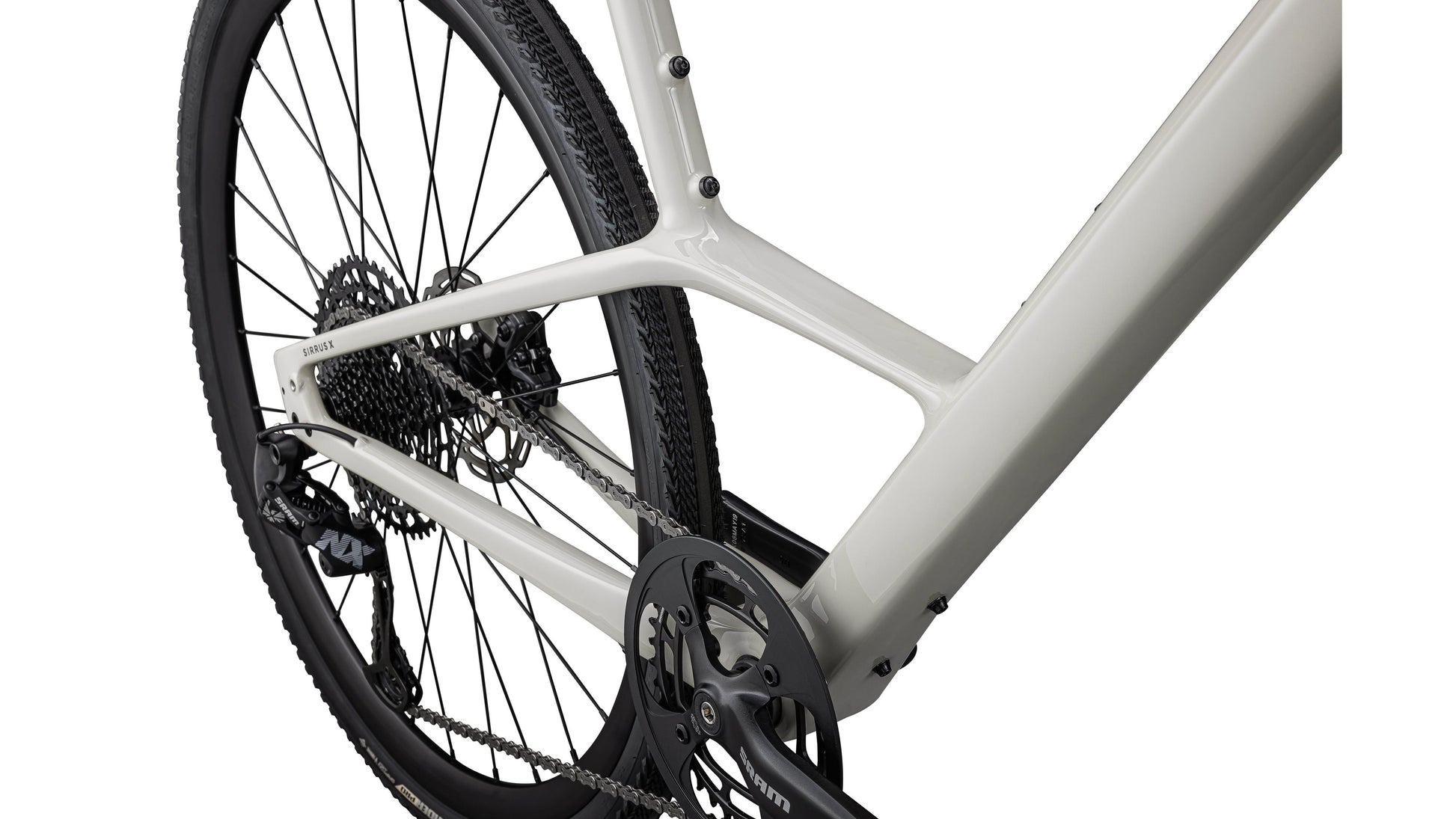

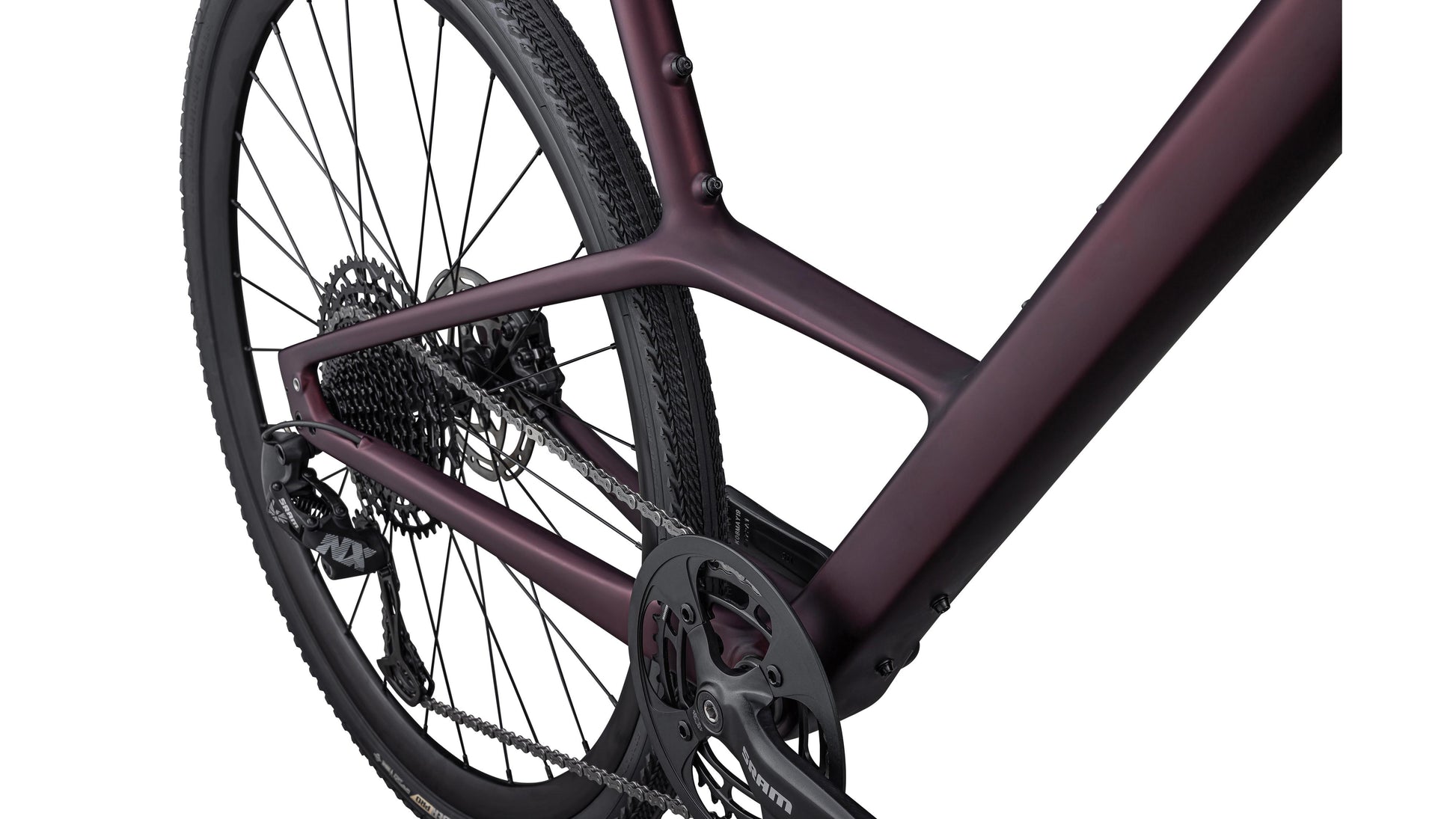

- The minimalist yet efficient SRAM NX Eagle 1x drivetrain with wide-range gearing ensures smooth and reliable shifting.
- Tektro hydraulic brakes with large 160mm rotors provide reliable stopping power on- and off-road.
- Sirrus X 5.0 is fender and rack compatible with top tube and fork mounts, and racks can be used with 51c DRYTECH fenders, making Sirrus easy to rack and roll.
Component Specifications
| Frame | Specialized FACT 9r Carbon, Fitness Geometry, 1x Drivetrain, 12x142 thru-axle, internal cable routing, flat-mount disc, Plug + Play rack/fender mounts |
| Seat Binder | Integrated w/ frame |
| Fork | Specialized FACT 9r Carbon Monocoque, flat-mount disc, 12x100mm thru-axle, low rider mounts, Plug + Play fender mounts, Future Shock 1.5 |
| Shift Levers | SRAM SL NX Eagle Trigger |
| Rear Derailleur | SRAM NX Eagle, 12-speed |
| Cassette | SRAM PG-1210 Eagle, 11-50t |
| Chain | SRAM NX Eagle, 12-speed |
| Crankset | SRAM S650, 3-piece, Powerspline |
| Chain Rings | 38T |
| Bottom Bracket | SRAM Powerspline |
| Rims | 700C disc, double-wall alloy, 30mm depth, 21mm internal width |
| Front Hub | Alloy, sealed cartridge bearings, Center Lock, 12x100mm thru-axle, 24h |
| Rear Hub | Alloy, sealed cartridge bearings, Center Lock, 12x142mm thru-axle, 28h |
| Spokes | Stainless, 14g |
| Front Tire | Pathfinder Pro, 2Bliss Ready, 700x38mm |
| Rear Tire | Pathfinder Pro, 2Bliss Ready, 700x38mm |
| Inner Tubes | Standard 40mm SV 700x32-50 |
| Front Brake | Tektro HD-R510, hydraulic disc, 160mm |
| Rear Brake | Tektro HD-R510, hydraulic disc, 160mm |
| Stem | Future Stem, Comp |

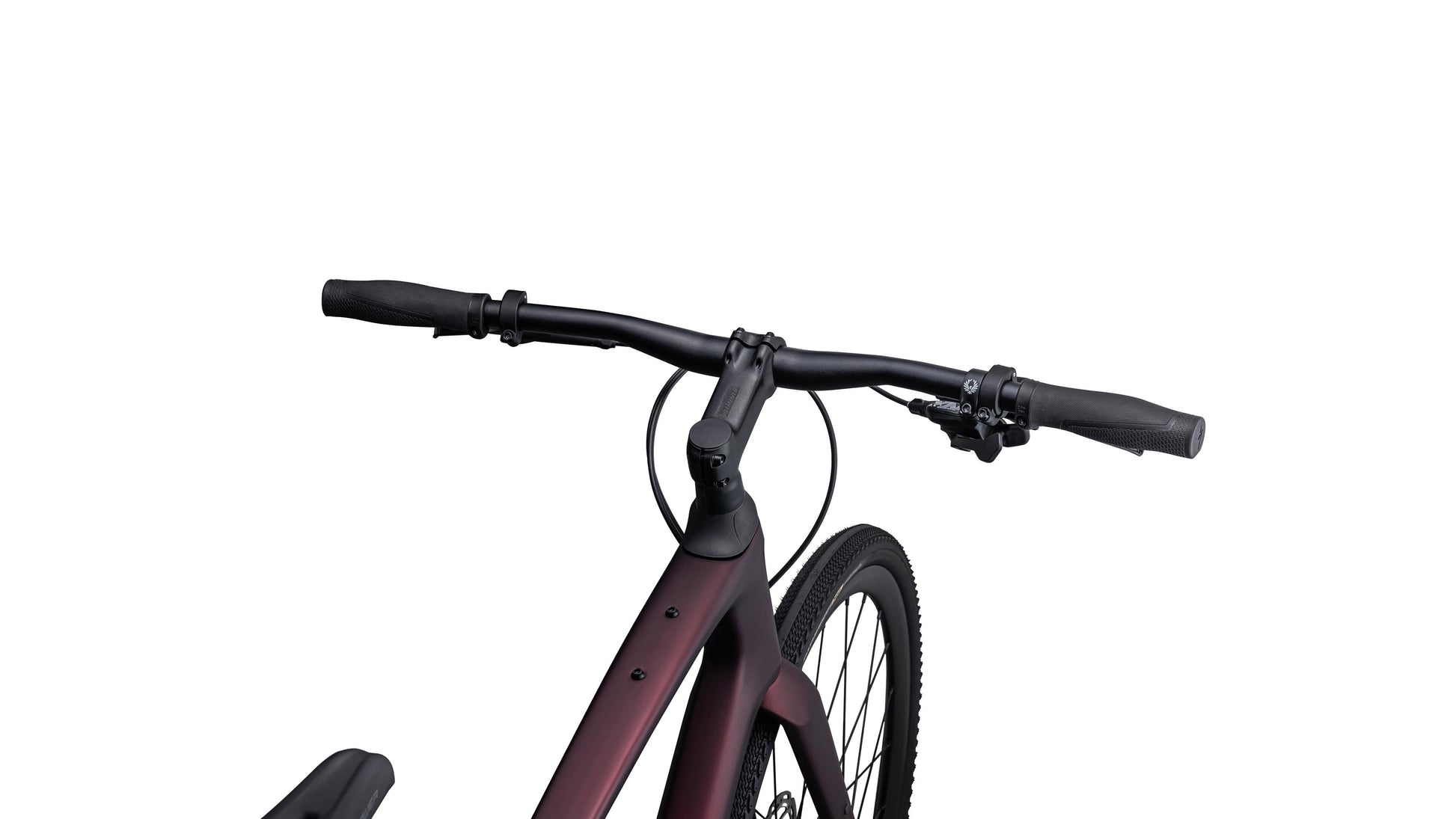

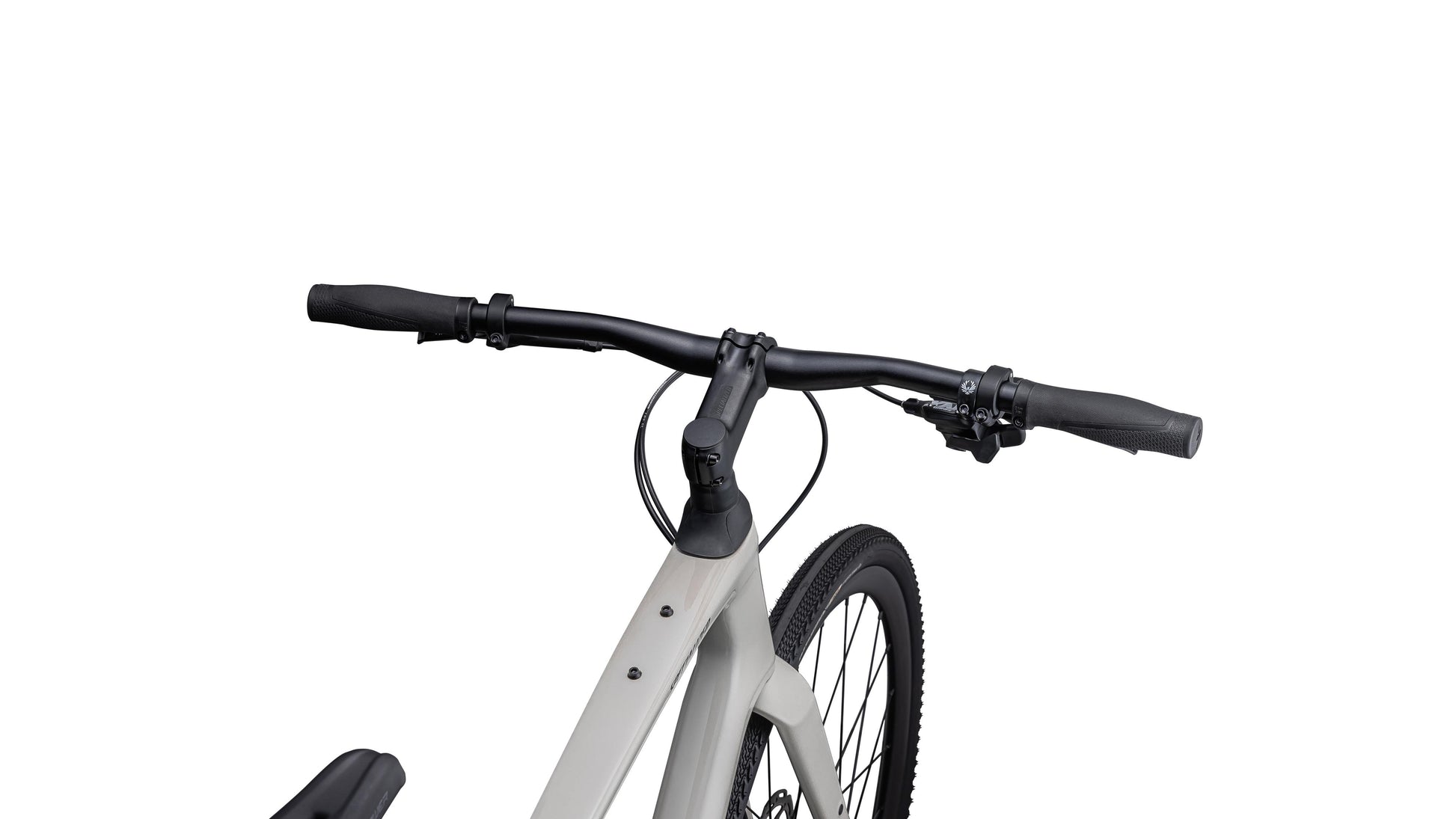

| Handlebars | Double-butted alloy, 9-degree backsweep, 15mm rise, 31.8mm |

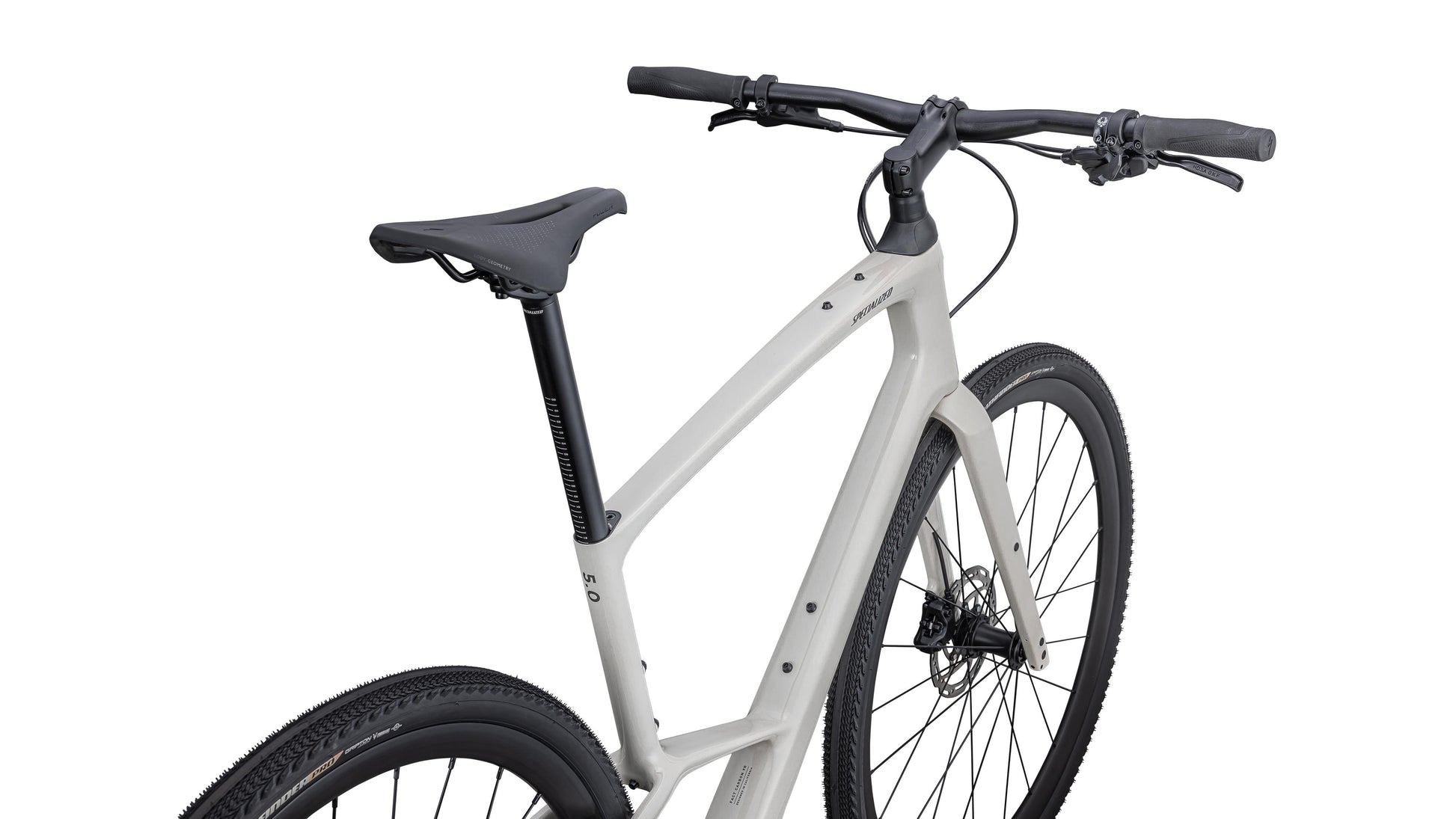

| Saddle | Body Geometry Power Sport, steel rails |
| Seatpost | Alloy, 2-bolt, 14mm offset, 27.2mm |

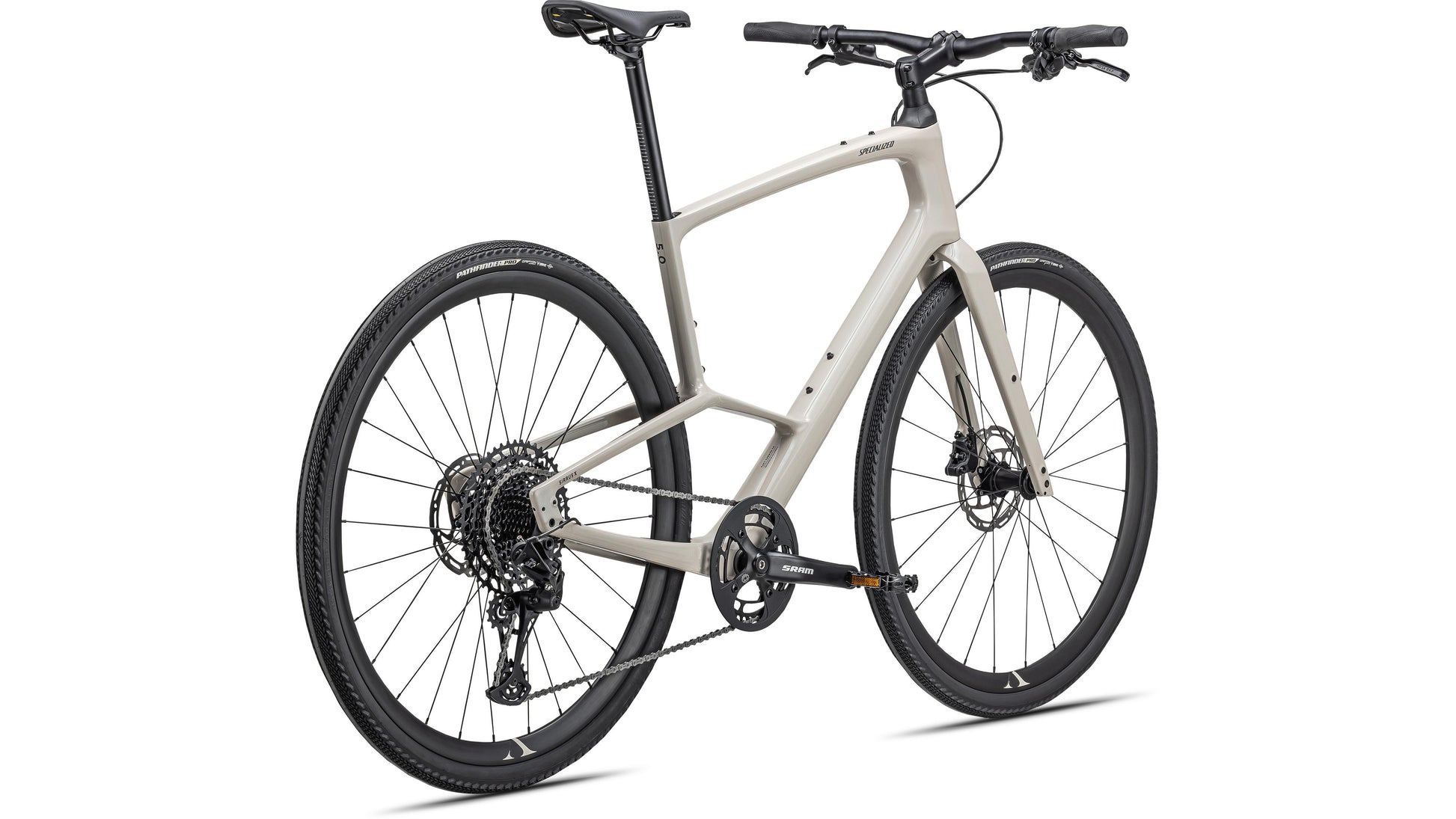

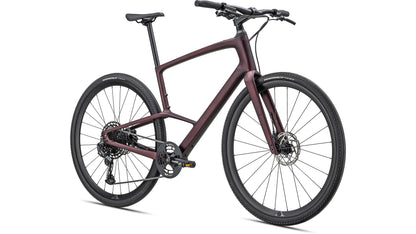

2023 Specialized Sirrus X 5.0
| Bike/Frame Size | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Stack | 580 mm | 600 mm | 625 mm | 650 mm | 680 mm | 710 mm |
| Reach | 350 mm | 365 mm | 380 mm | 395 mm | 410 mm | 425 mm |
| Chain-Stay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1024 mm | 1047 mm | 1065 mm | 1084 mm | 1109 mm | 1128 mm |
| Top-Tube Length (horizontal) | 521 mm | 547 mm | 568 mm | 590 mm | 614 mm | 644 mm |
| Bike Stand-Over Height | 703.3 mm | 748.3 mm | 780.5 mm | 807.1 mm | 847.7 mm | 872.5 mm |
| Seat-Tube Length | 355 mm | 416 mm | 453 mm | 483 mm | 533 mm | 563 mm |
| Seat-Tube Angle | 74° | 73.5° | 73.5° | 73.5° | 73.5° | 73° |
| Head-Tube Length | 107 mm | 128 mm | 151 mm | 176 mm | 208 mm | 237 mm |
| Head-Tube Angle | 69.5° | 69.5° | 70° | 70.5° | 70.5° | 71° |
| B-B Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| B-B Drop | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Trail | 76 mm | 76 mm | 72 mm | 69 mm | 69 mm | 66 mm |
| Fork Length (full) | 395 mm | 395 mm | 395 mm | 395 mm | 395 mm | 395 mm |
| Fork Rake/Offset | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Front-Center | 597 mm | 619 mm | 637 mm | 656 mm | 681 mm | 700 mm |
Size Guide: 2023 Specialized Sirrus X 5.0
