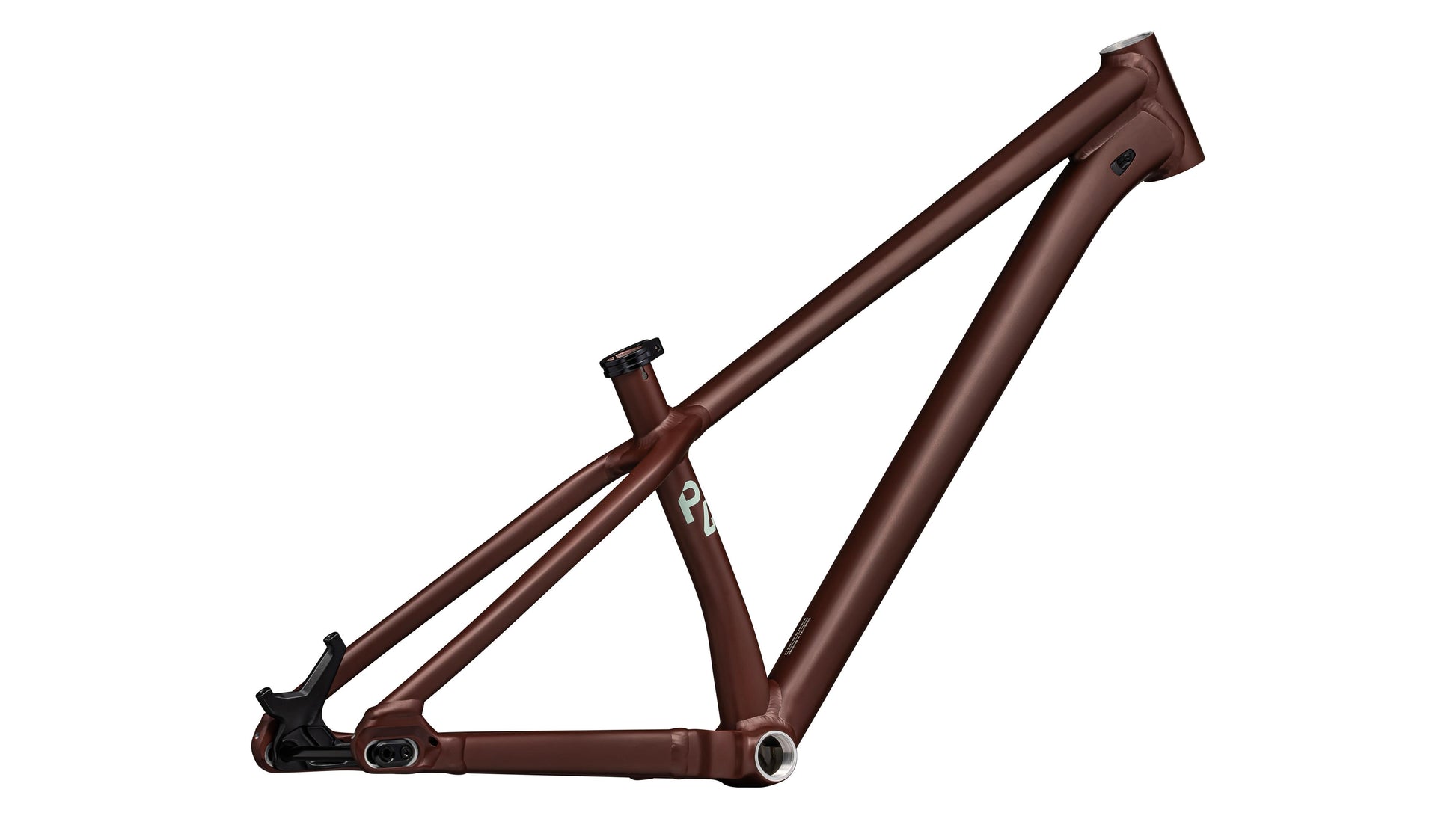

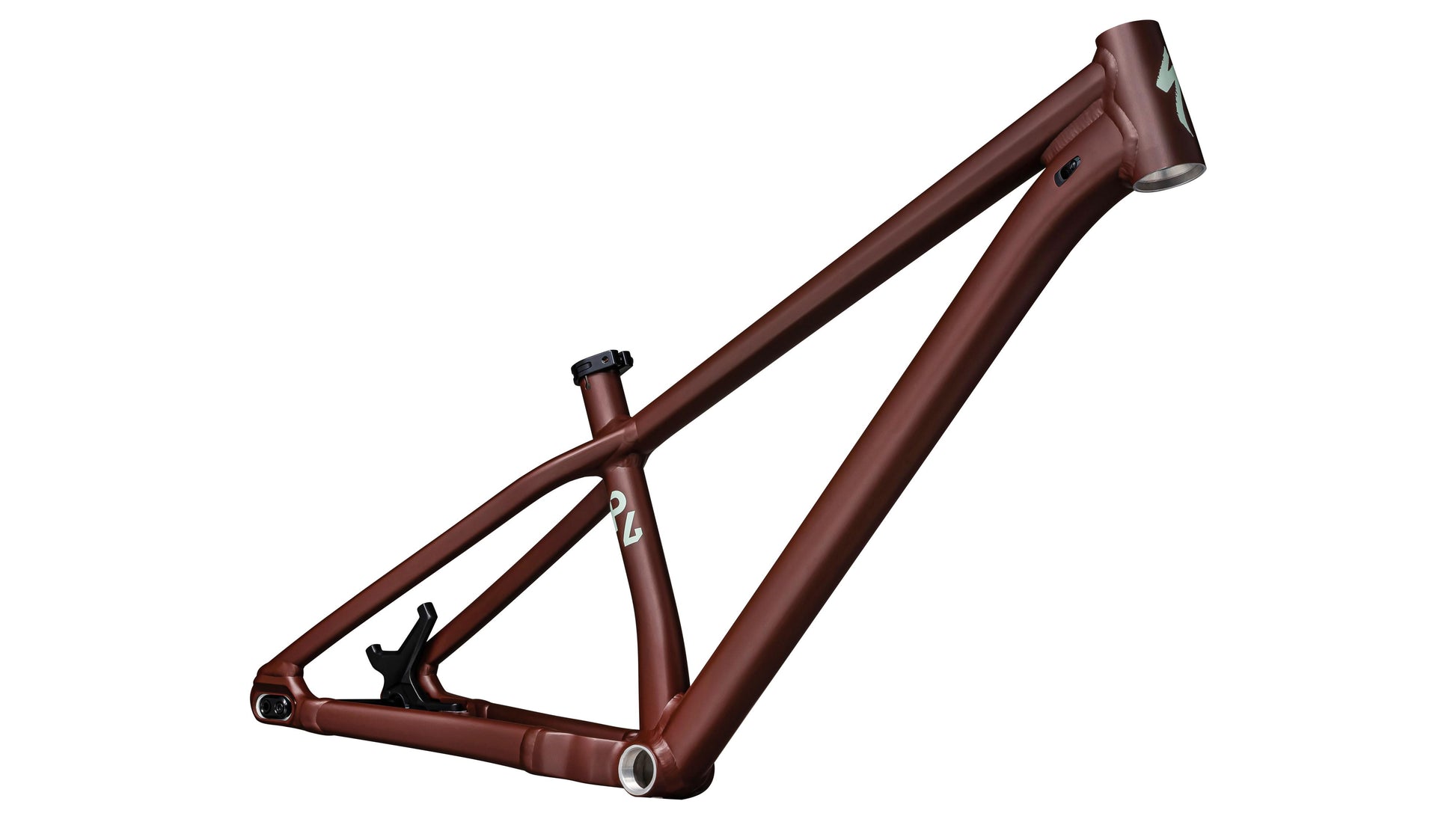

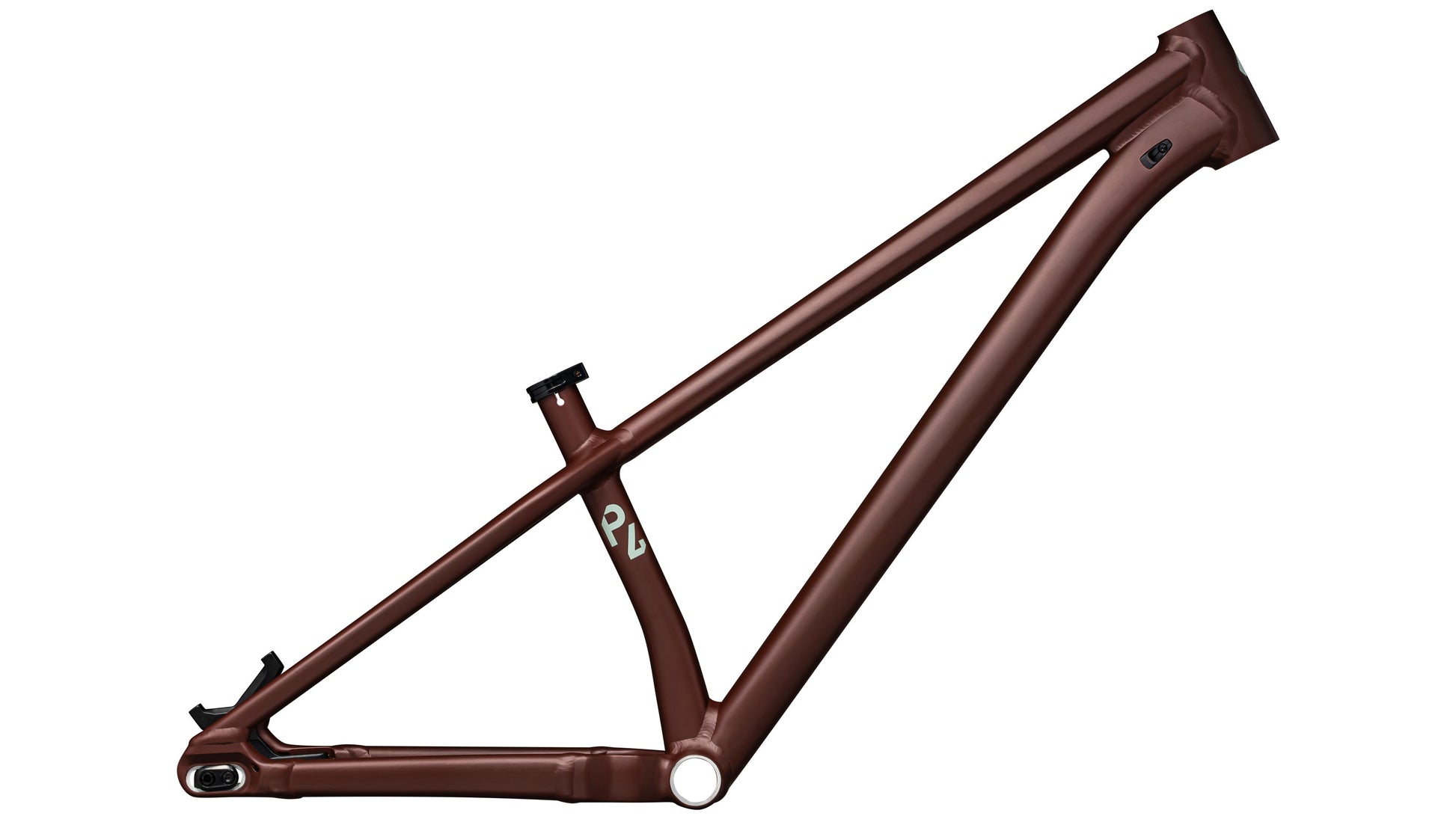

Specialized P.4 Frame - Satin Rusted Red / White Sage 27.5" Features
This totally redesigned P.Series frame gives riders of all sizes a jumping off point to a life on bikes. The lightweight, but tough alloy frame is designed to take all the hits and keep rolling—across all frame sizes. Our approach to these robust bikes centers around delivering a simple, high-quality platform that's versatile for all riders, and packs in category-first features that make a difference to the rider.
SLEEK SIMPLICITY — For the rider focusing on progression, eliminating every other variable is paramount. The durable lightweight alloy frame of the P.Series stands up to the tough demands of a modern DJ rig and accepts internally routed cables.
SIZED FOR ALL — Frames available in dedicated 20”; 24”; and 26” configurations as well as the P.4 that can run both 26” and 27.5” (P.4 is spec’d with 27.5”).
REIMAGINE YOUR RIDE — P.Series frames are dropper ready, derailleur compatible, and use adjustable dropouts.
TOUGH TECH — Boost spacing in the rear, a tapered headtube, and threaded bottom-bracket make P.Series stiff and easy to maintain.
At a Glance
- Specialized P.4, A1 Premium Alloy, 27.5"; fully-butted tubing, dropper post compatible and 26" wheel compatible.
Product Specifications
Product Specifications
Frame |
|
Seat Binder |
Specialized P.4 Frame - Satin Rusted Red / White Sage 27.5"
| Bike/Frame Size | P4 |
|---|---|
| Wheel Size | 27.5 inch |
| Stack | 588 mm |
| Front-Center | 711 mm |
| Chain-Stay Length | 385 mm |
| Wheelbase | 1094 mm |
| Top-Tube Length (horizontal) | 636 mm |
| Bike Stand-Over Height | 697 mm |
| Seat-Tube Length | 350 mm |
| Seat-Tube Angle | 72° |
| Reach | 445 mm |
| Head-Tube Length | 120 mm |
| Head-Tube Angle | 68.5° |
| B-B Height | 318 mm |
| B-B Drop | 34 mm |
| Trail | 91 mm |
| Fork Length (full) | 492 mm |
| Fork Rake/Offset | 44 mm |
