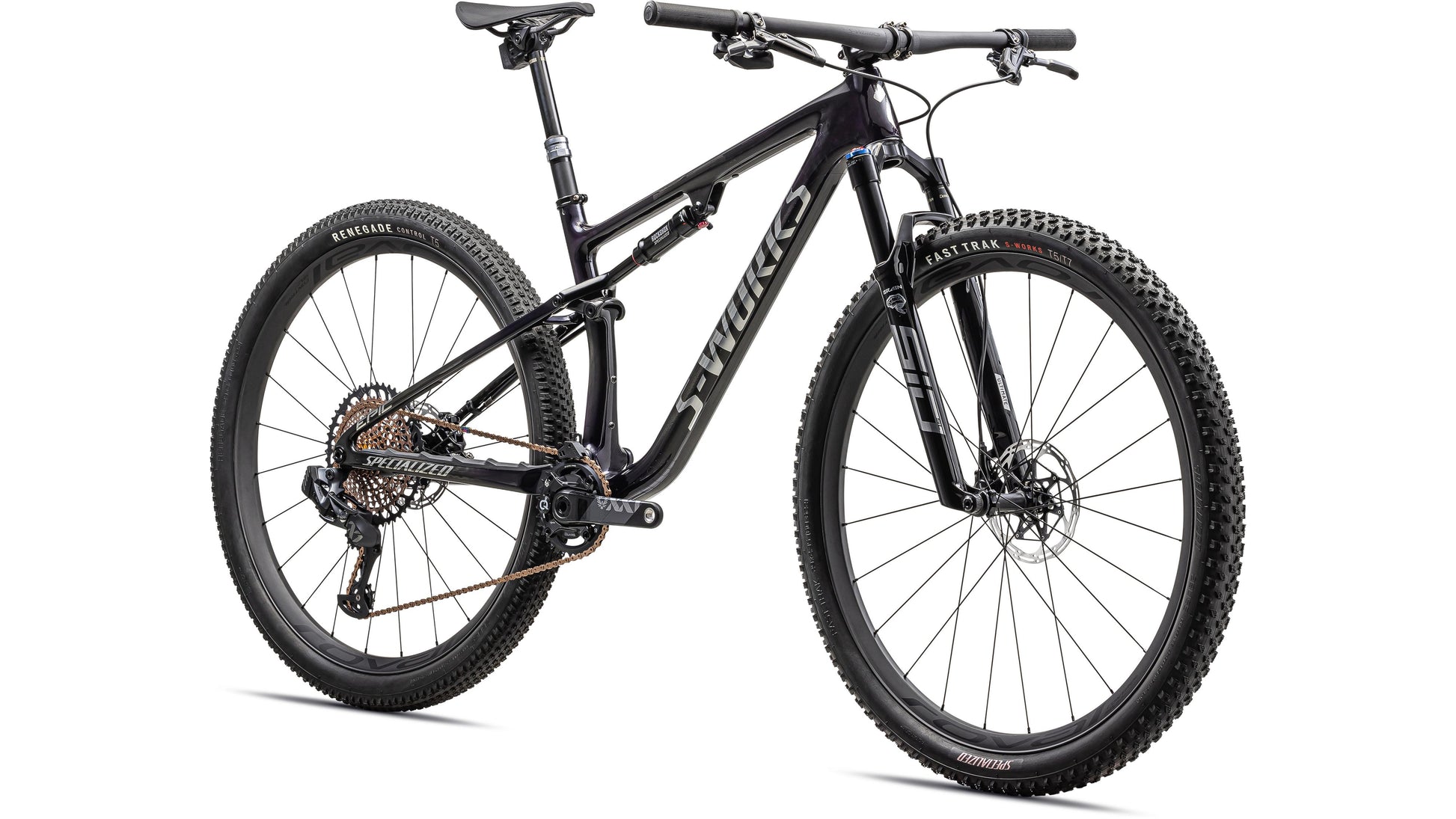

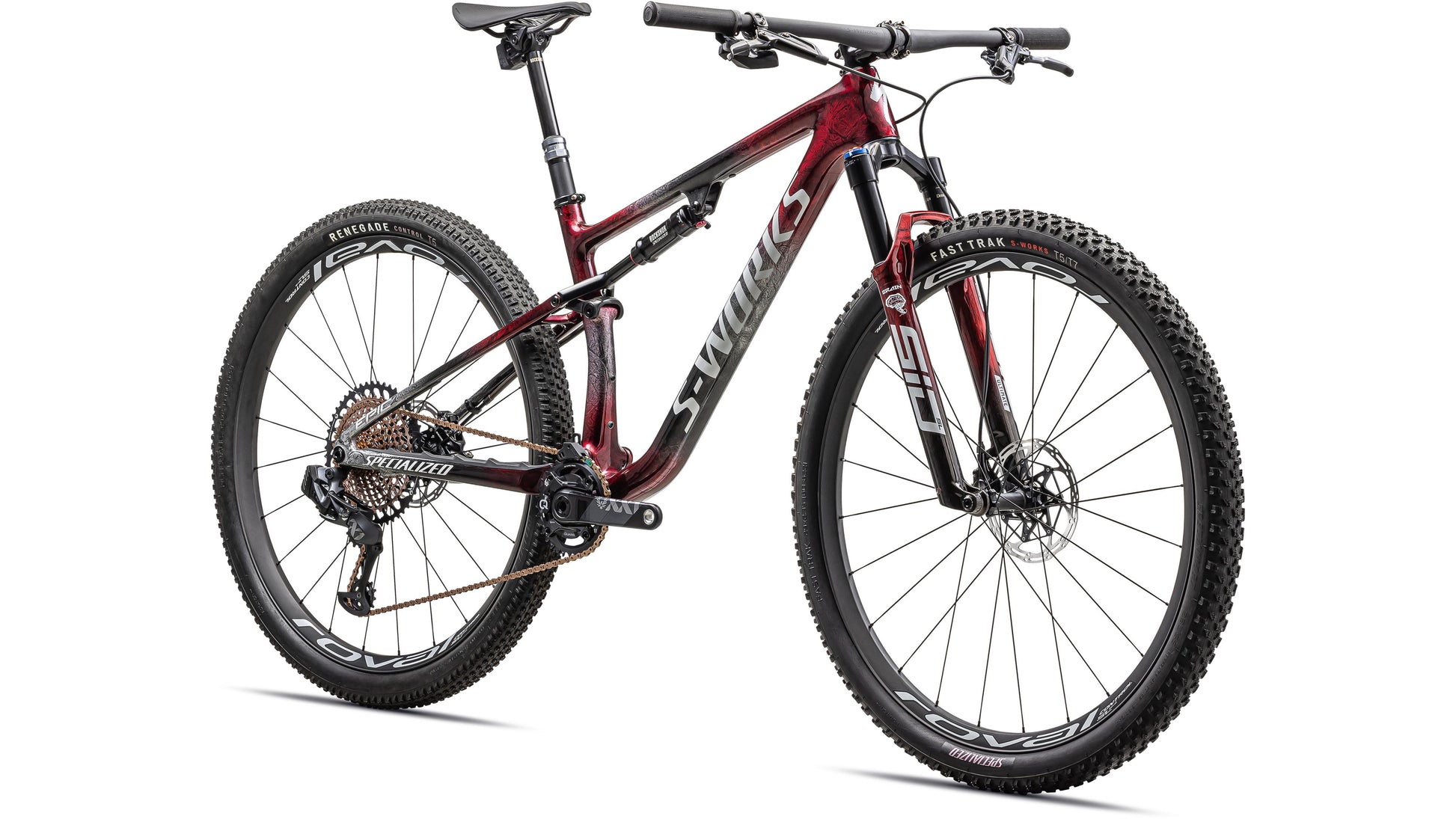

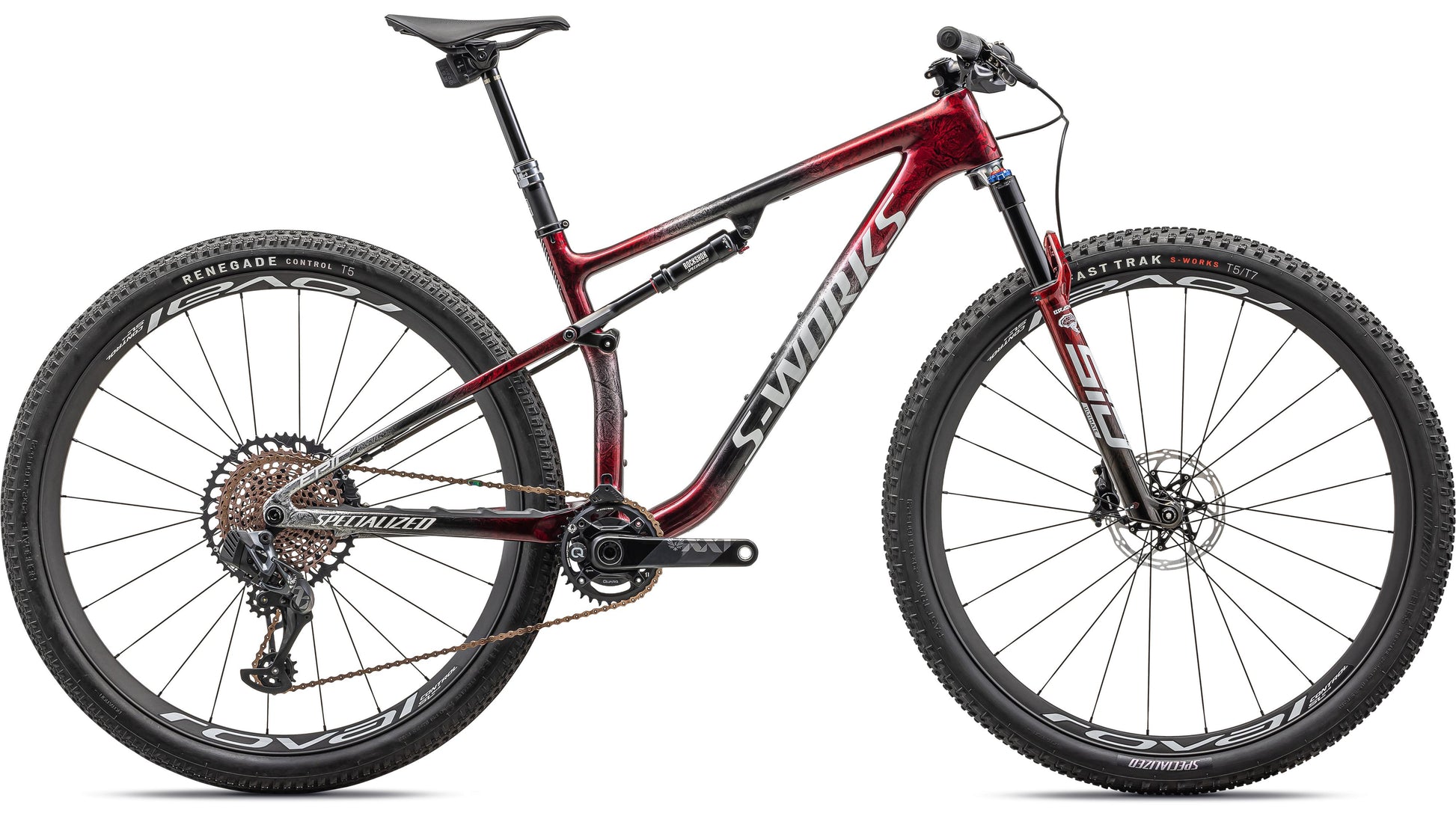

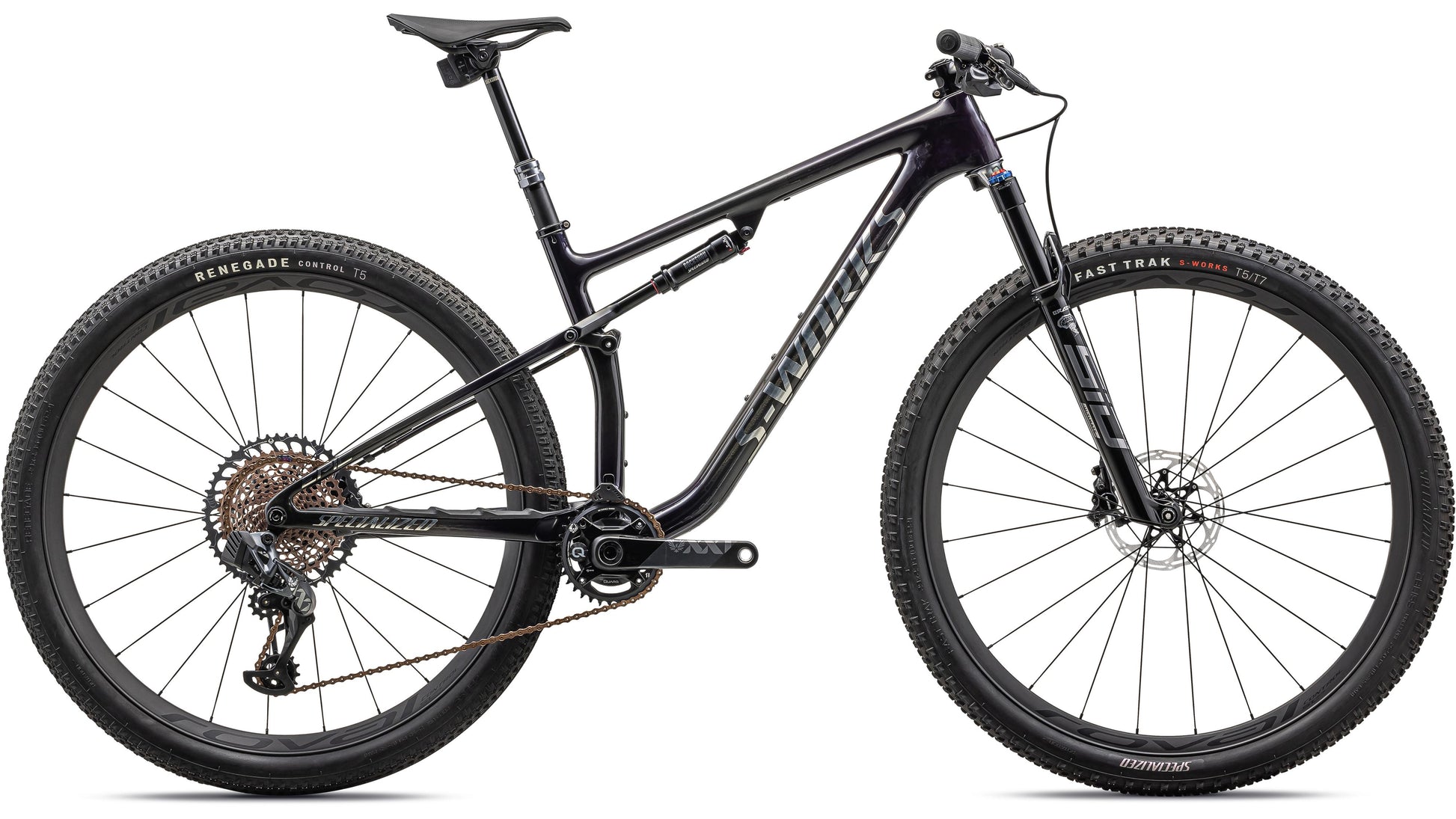

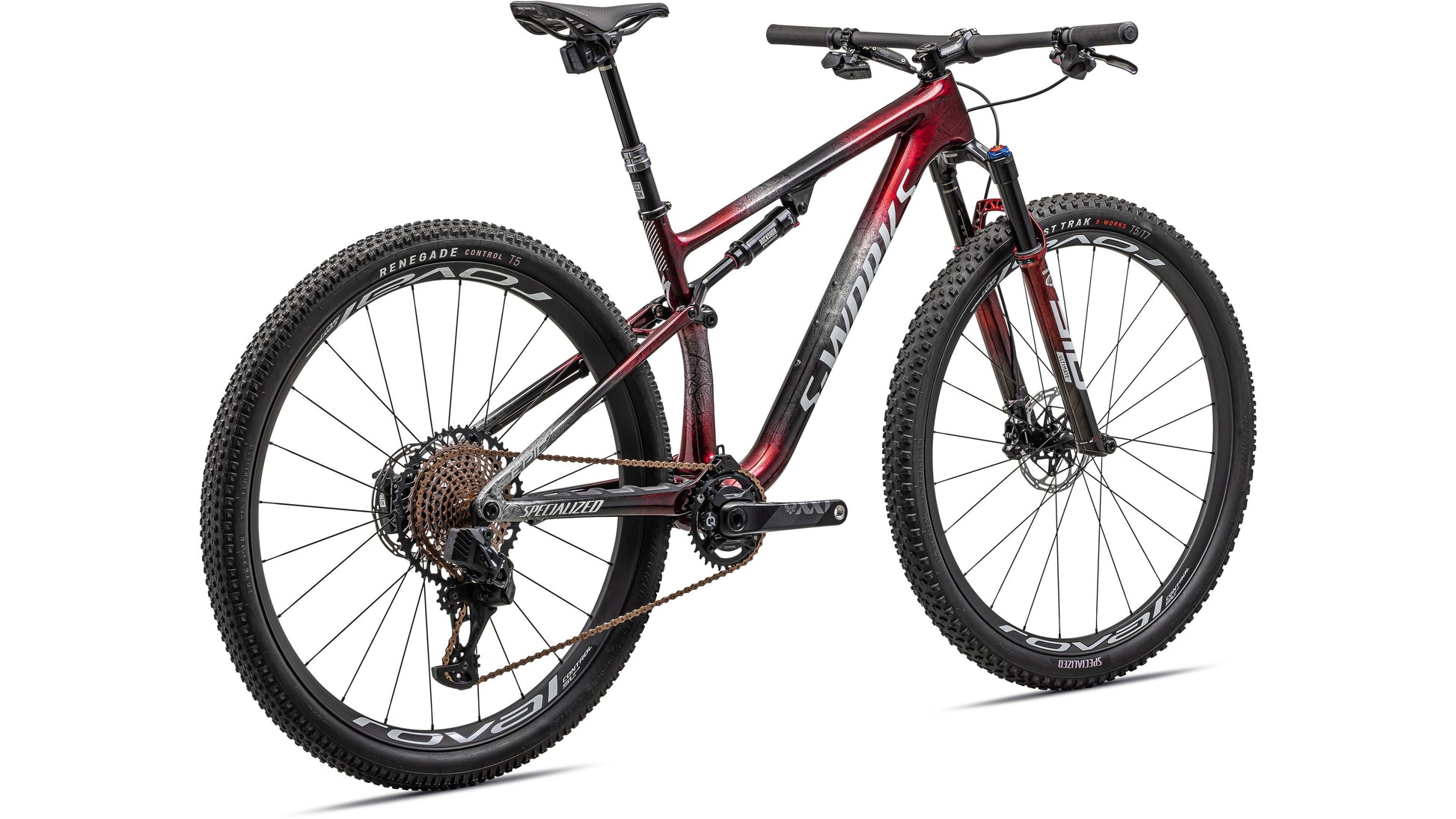

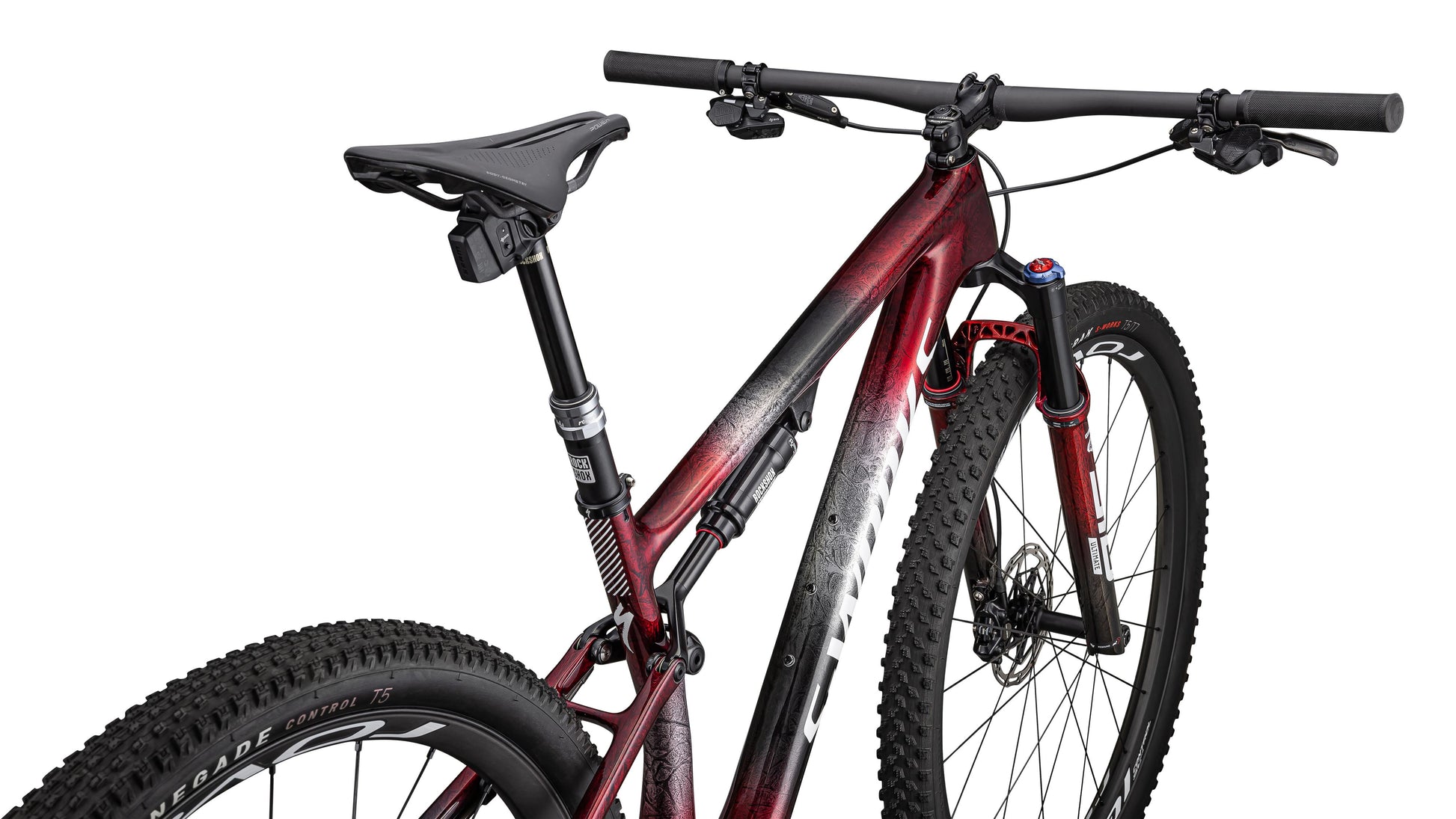

2023 Specialized Epic S-Works Features
Hey you, yeah, you...the one with the scale out seeing which of the six identical tires on the shelf is the lightest. Sure, some might call you a bit obsessive, but no worries, here, the S-Works Epic is speaking exactly the same language. Countless design hours, endless test laps, terabytes of telemetry data—all of it to make sure not a single ounce of speed was left on the table.
Mixing hardtail efficiency and full-suspension capability to impressively quick results, the S-Works Epic has always been defined by obsessive commitment to speed. Well, that and over 100 World Cup wins and podiums too.
A Smarter BRAIN
True to form, the latest Epic continues the tradition, taking advantage of the most efficient BRAIN suspension we’ve ever created to ensure it’s always on a first-name-basis with fast.
Re-engineered hand-in-hand with the new Epic, the latest BRAIN design resets the expectation for efficiency, employing a new race-tuned pedaling platform to ensure every watt possible is translated into forward motion, while handily soaking up momentum-killing chatter and big hits alike—all more smoothly than ever.
Frame-Changer

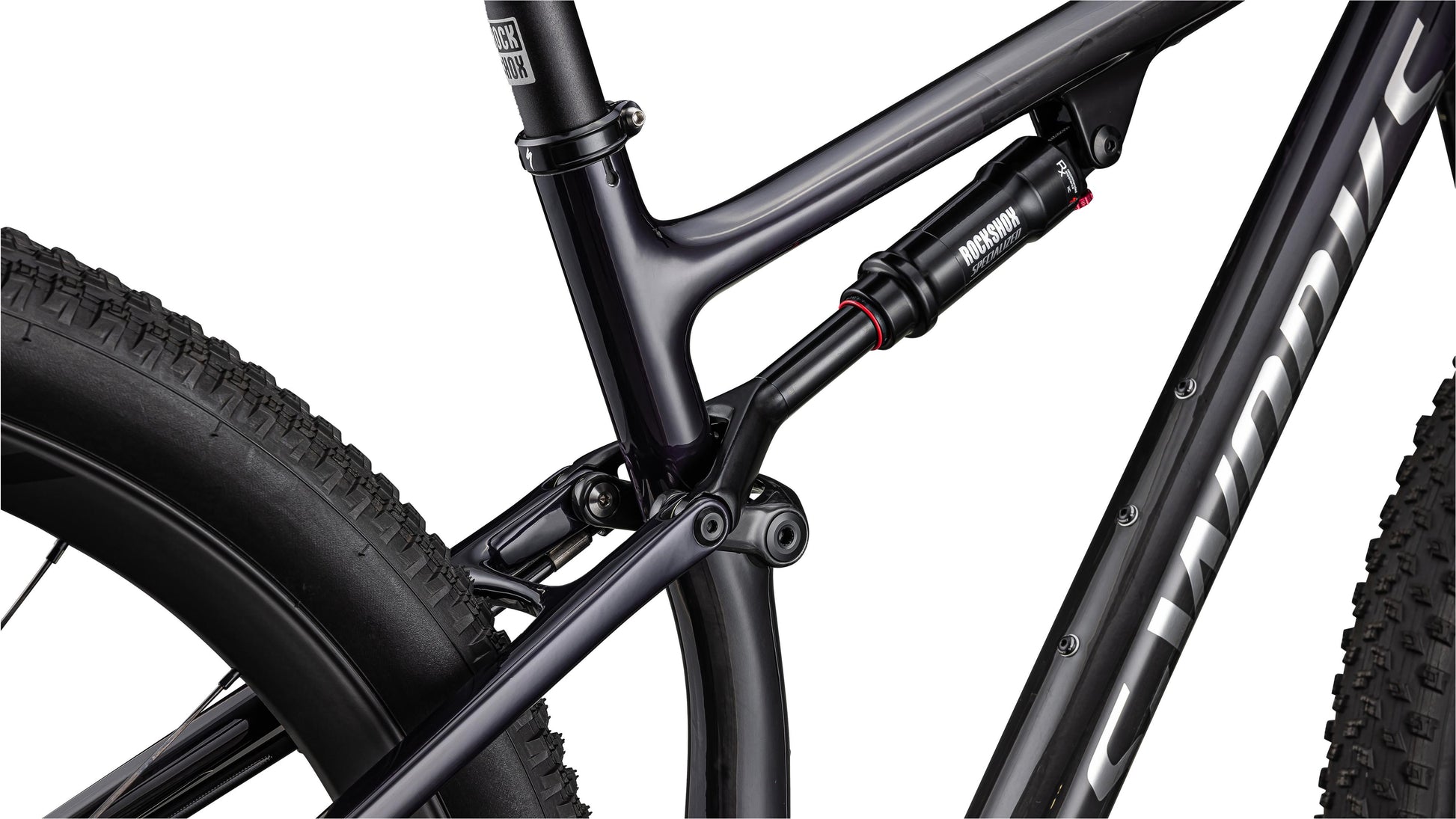

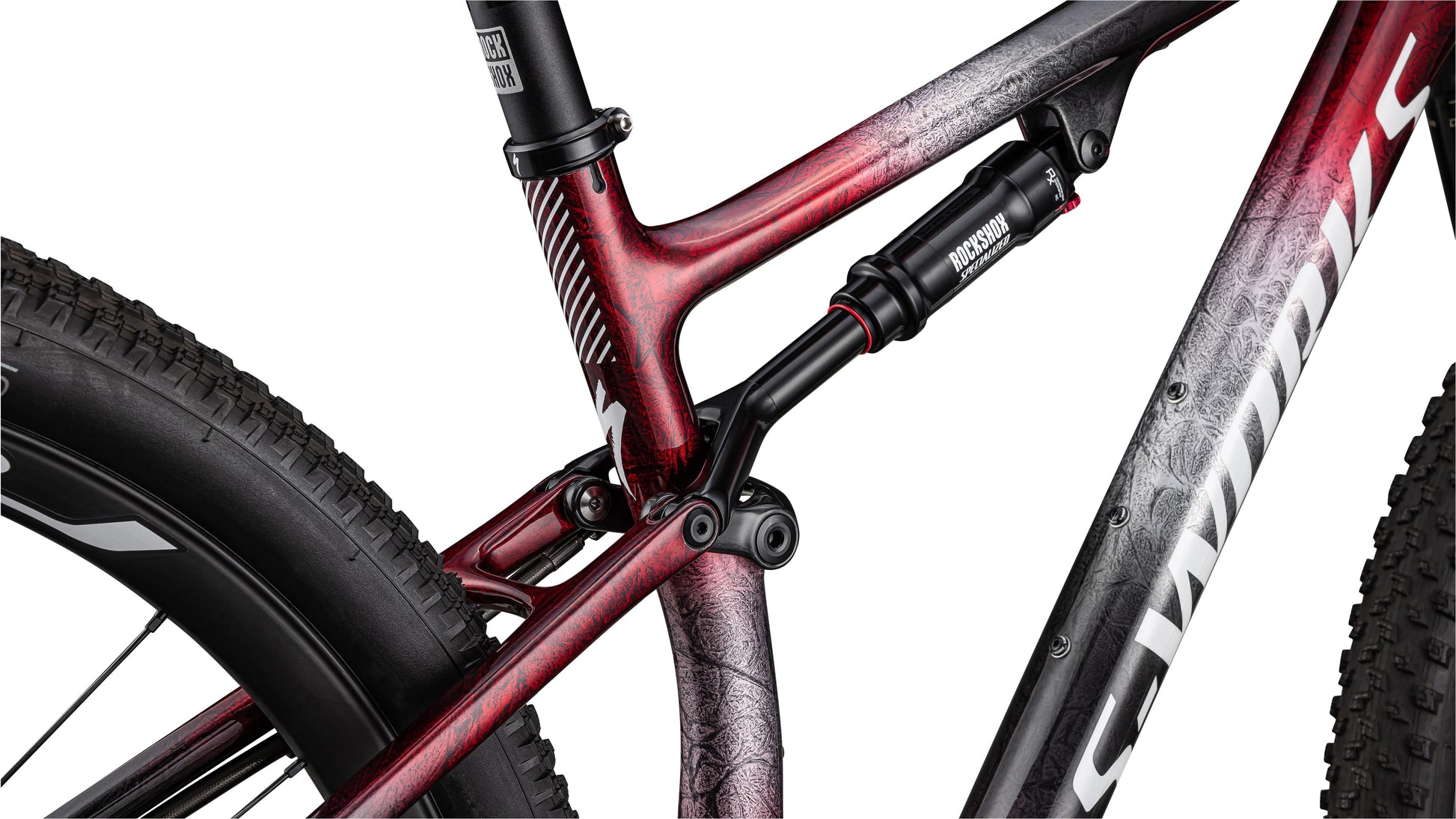

Redesigned with a focus on efficient power transfer and better handling performance, the S-Works Epic frame features a 15-percent stiffer rear triangle in order to take full advantage of the BRAIN’s new race-tuned pedaling platform. A dedicated layup schedule and the use of our top-shelf FACT 12m Carbon takes weight savings yet a step further than it’s stablemates, while the pièce de résistance comes in the form of a carbon fiber shock link, combining to shave a total of over 100 grams from the previous generation S-works frame—no easy task, mind you.
Pairing perfectly with the Brain rear shock for the most balanced suspension perfomance on an Epic yet, the S-Works' Position-Sensitive Brain fork
benefits from RockShox’s svelte-yet-stiff SID SL Ultimate chassis, improving front-end stiffness and handling precision while keeping the grams at bay.
SRAM’s flagship XX1 Eagle AXS group certainly fits the bill when only the best will do, dispatching shifts with electronic authority while we tasked Roval with creating an entirely new Control SL rim that wouldn’t just be able to go toe-to-toe with the Epic’s newfound speed and handling performance, but add a bit of its own into the mix as well.
At a Glance
- If speed could talk, it’d introduce itself as the all-new S-Works Epic frame. Offering 100-millimeters of brilliantly efficient Brain-controlled travel, the S-Work Epic increases rear-triangle stiffness for peerless power transfer, while the use of FACT 12m carbon, a dedicated layup and a full carbon shock link also make it the lightest full suspension frame we’ve ever created, all while offering the most capable handling in an Epic yet. Nice to meet you, speed.
- Pairing 100 millimeters of the most efficent travel on earth with RockShox's svelte-yet-stiff SID SL Ultimate chassis, the RockShox SID SL Ultimate BRAIN fork serves as the pinnacle of XC-race supsension perfection.
- SRAM's XX1 Eagle AXS isn't just the lightest electronic MTB groupset on the market, it's also designed to withstand World-Cup winning chain loads while instantaneously snapping of instantaneous shifts to ensure you're never caught on the back foot.
- Created specifically to match the increased capabilities of the Epic, the Roval Control SL rim introduces a completely new offset rim profile that features a 29-millimeter-wide internal width and not only increases strength and reduces weight, but also improves pinch-flat resistance by 22-percent.
Component Specifications
| Frame | S-Works FACT 12m Carbon, Progressive XC Race Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 100mm of travel |
| Seat Binder | Specialized Alloy 34.9, Titanium Bolt |
| Fork | RockShox SID SL ULTIMATE BRAIN, Top-Adjust Brain damper, Debon Air, 15x110mm, 44mm offset, 100mm Travel |

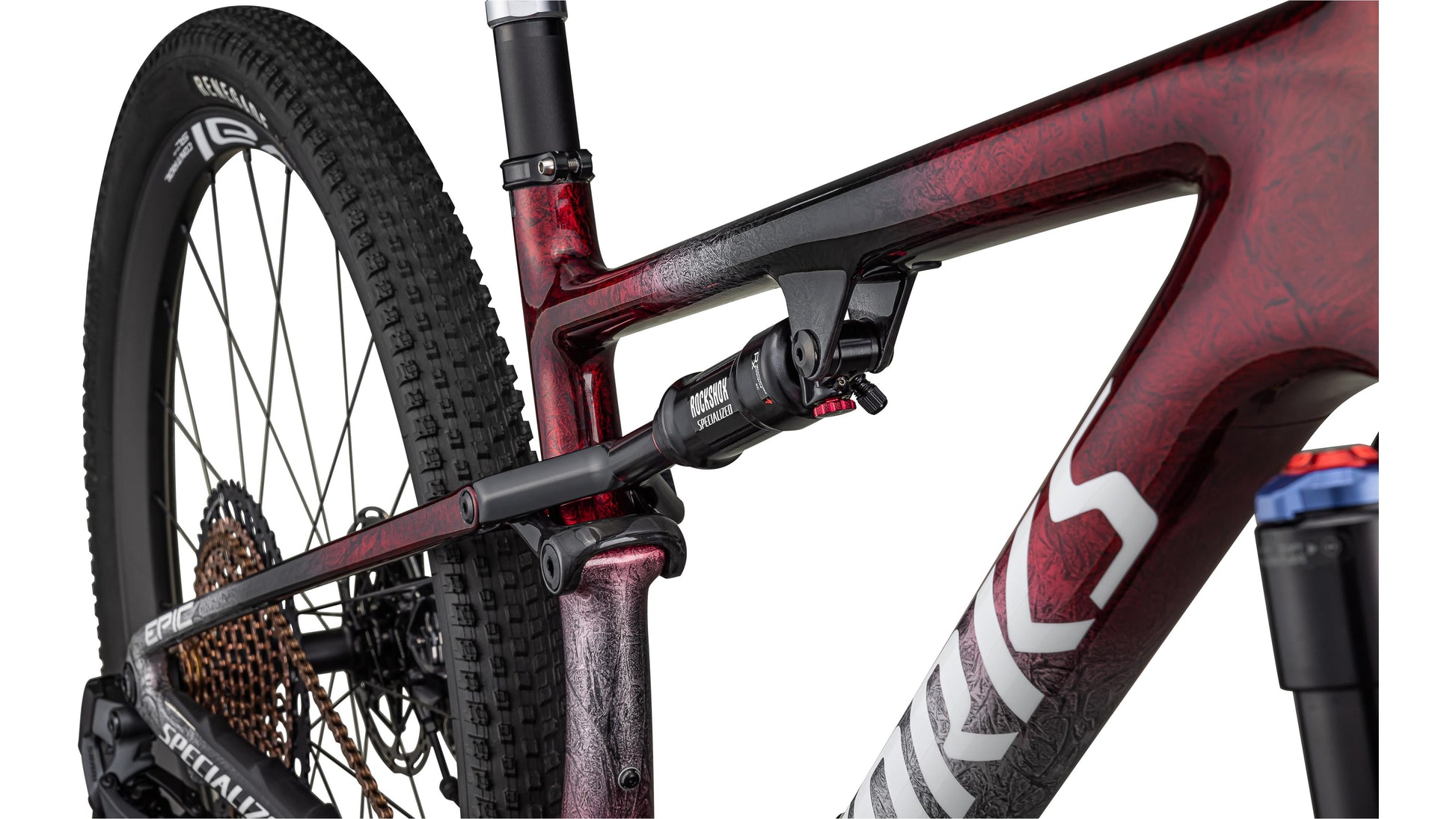

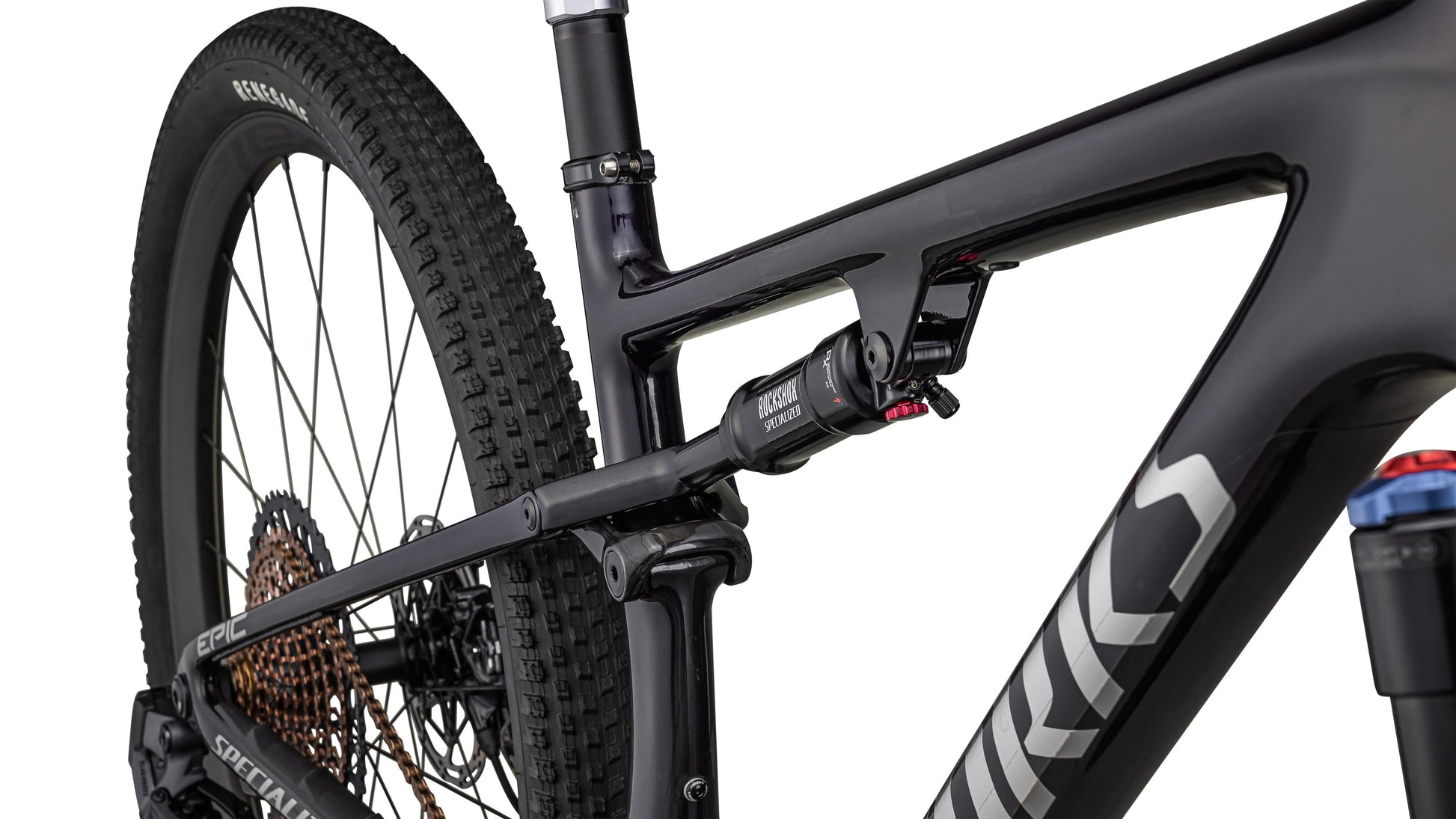

| Rear Shock | RockShox-Specialized BRAIN, Rx XC Tune, 5 Position Platform Adjust, Rebound Adjust, Integraded Extension, 265x52.5mm |
| Shift Levers | SRAM Eagle AXS Rocker Paddle |
| Rear Derailleur | SRAM XX1 Eagle AXS |
| Cassette | Sram XG-1299, 12-Speed, 10-52t |
| Chain | SRAM XX1 Eagle |
| Crankset | Quarq XX1 Powermeter, DUB, 170/175mm, 34t |
| Chain Rings | 34T |
| Bottom Bracket | SRAM DUB, BSA 73mm, Threaded |
| Rims | Roval Control SL, Carbon offset design, 29mm internal width, 4mm hook width, Tubeless ready, 24h |
| Front Hub | Roval Control SL, DT Swiss Internals, Ceramic Bearings, 6-bolt, 15mm thru-axle, 110mm spacing, Torque caps, 24h straight pull |
| Rear Hub | Roval Control SL, DT Swiss 180 Internals, DT Swiss Ratchet EXP, Ceramic bearings, 12mm thru-axle, 148mm spacing, 24h straight-pull |
| Spokes | DT Swiss Aerolite T-head |
| Front Tire | Specialized S-Works Fast Trak, S-Works Casing, T5/T7 Compound, 29x2.35 |
| Rear Tire | Specialized Renegade, Control Casing, T5 Compound, 29x2.35 |
| Inner Tubes | Specialized Turbo Tube |
| Front Brake | SRAM Level Ultimate, 2-piston caliper, hydraulic disc |
| Rear Brake | SRAM Level Ultimate, 2-piston caliper, hydraulic disc |
| Stem | S-Works SL, alloy, titanium bolts, 6-degree rise |

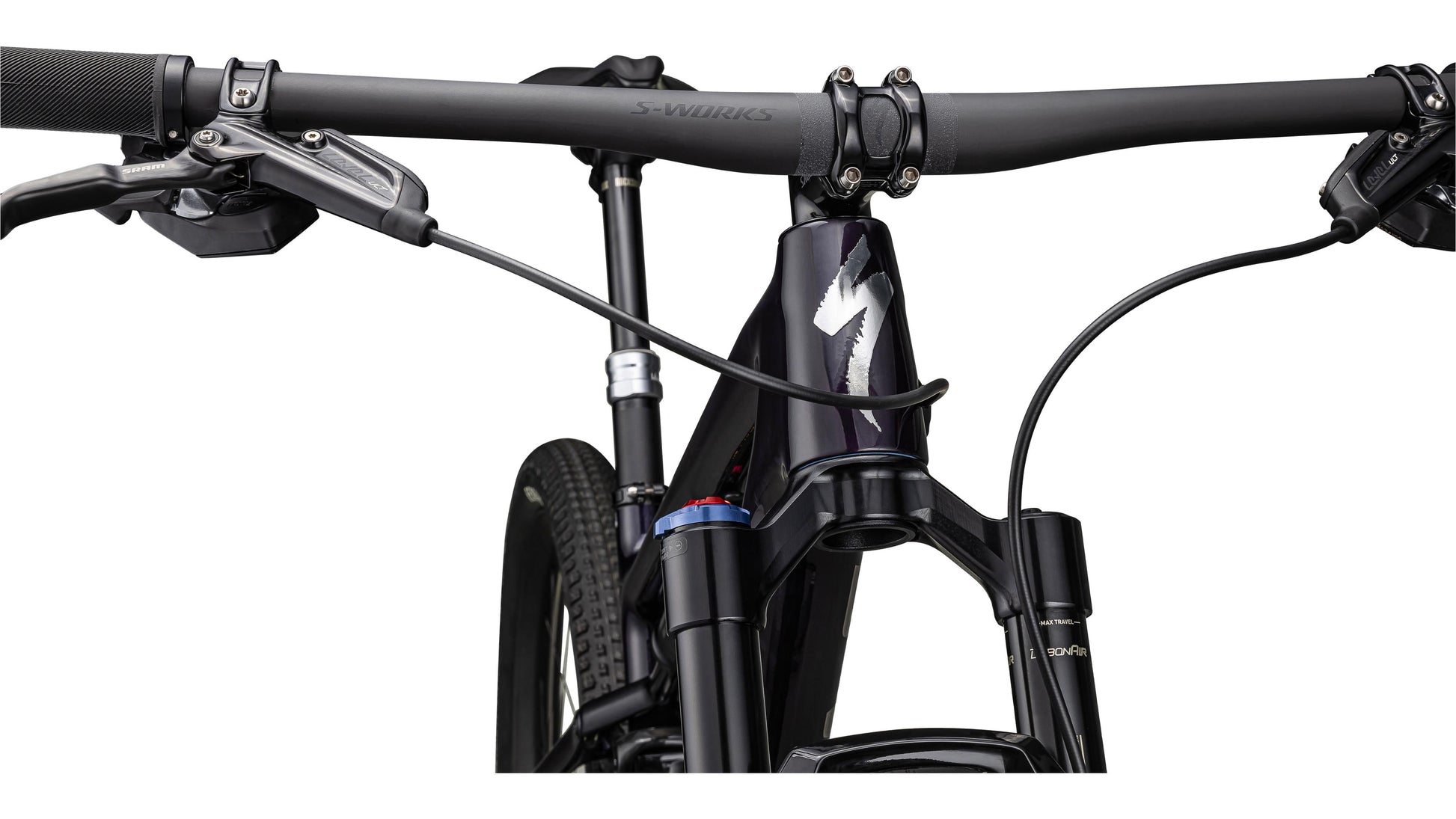

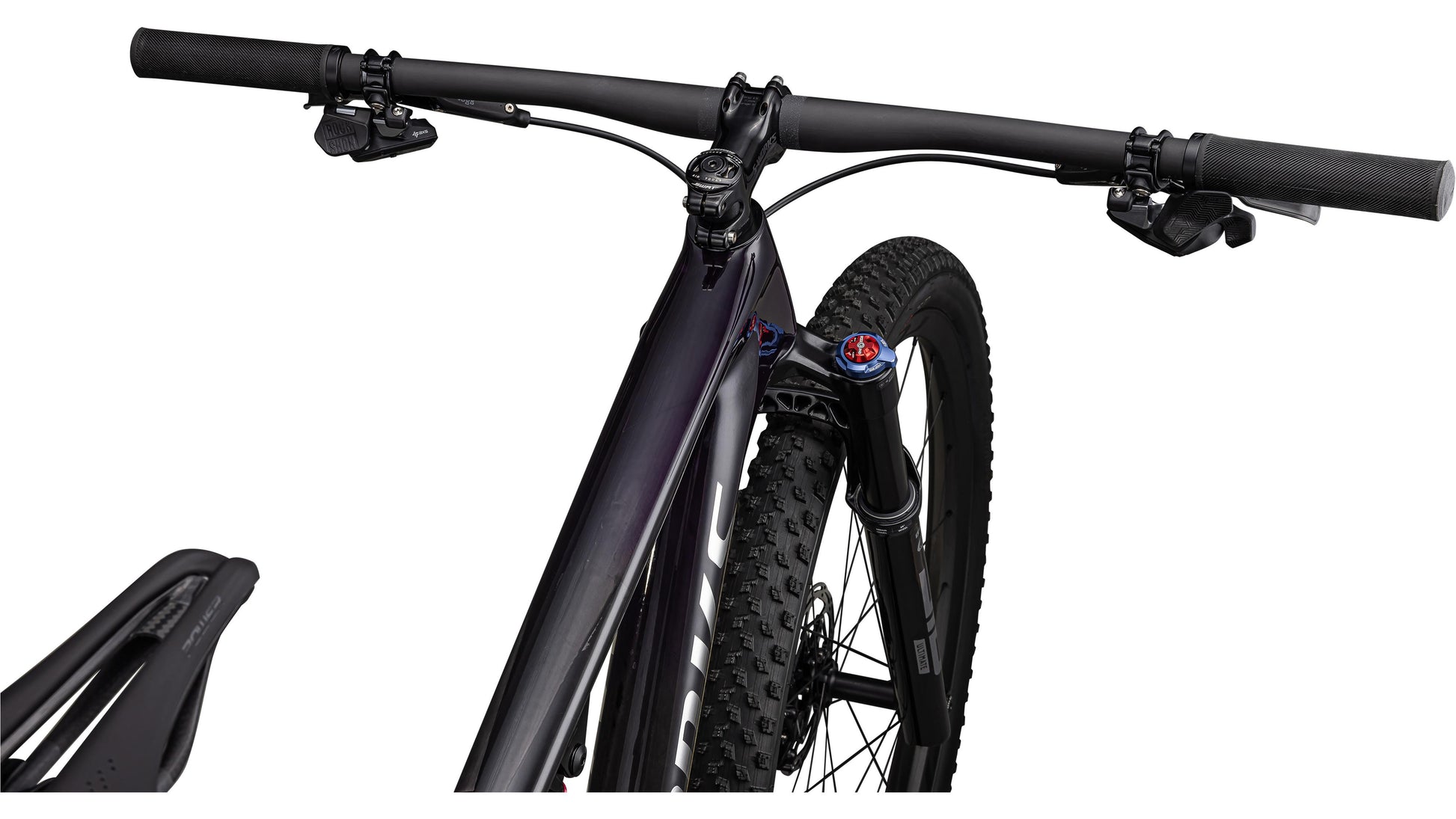

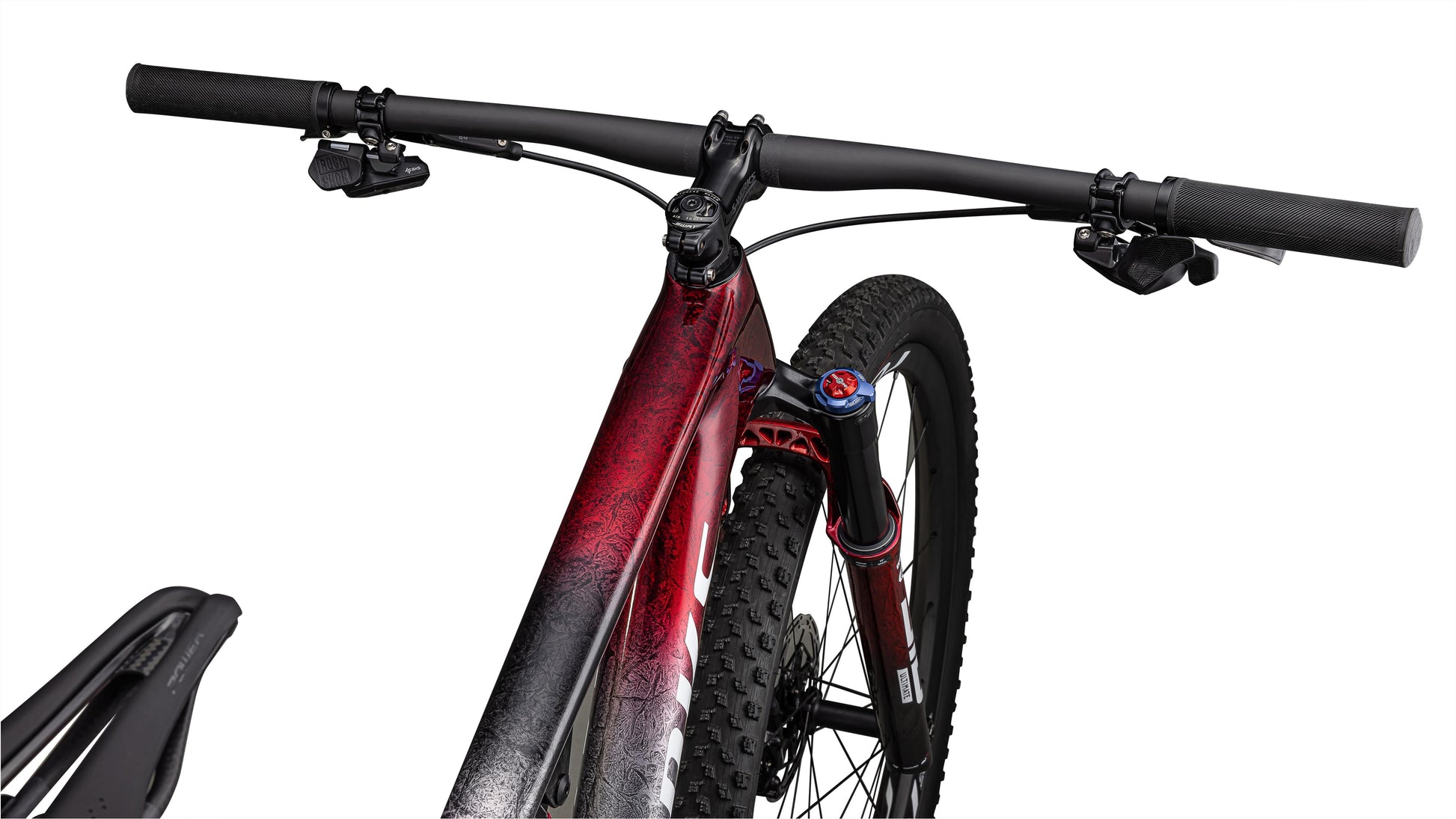

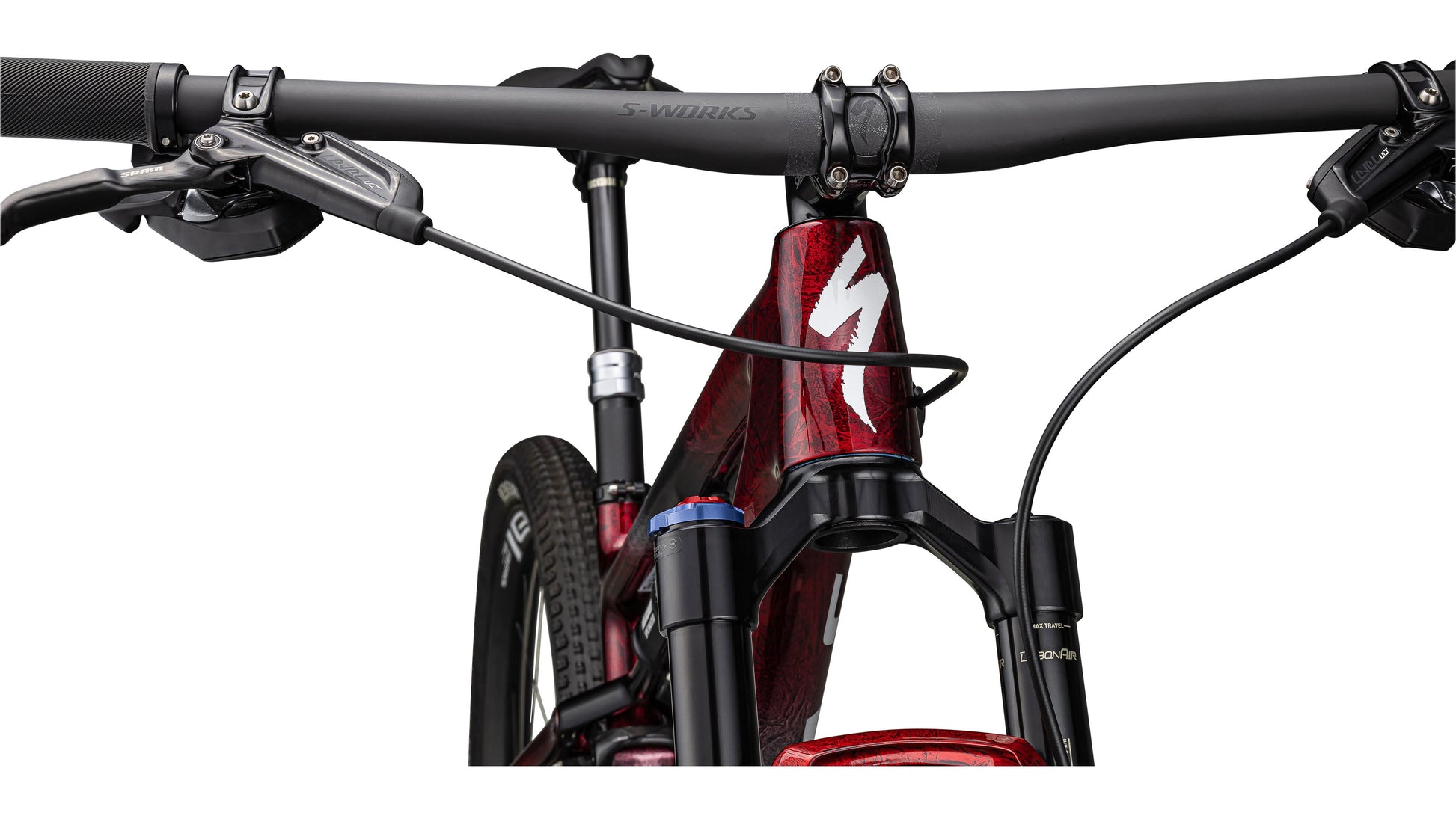

| Handlebars | S-Works Carbon XC Mini Rise, 6-degree upsweep, 8-degree backsweep, 10mm rise, 760mm, 31.8mm |
| Grips | Specialized Trail Grips |
| Saddle | Body Geometry S-Works Power, carbon fiber rails, carbon fiber base |
| Seatpost | RockShox Reverb AXS, 30.9mm, S/M: 125, L-XL:150, |

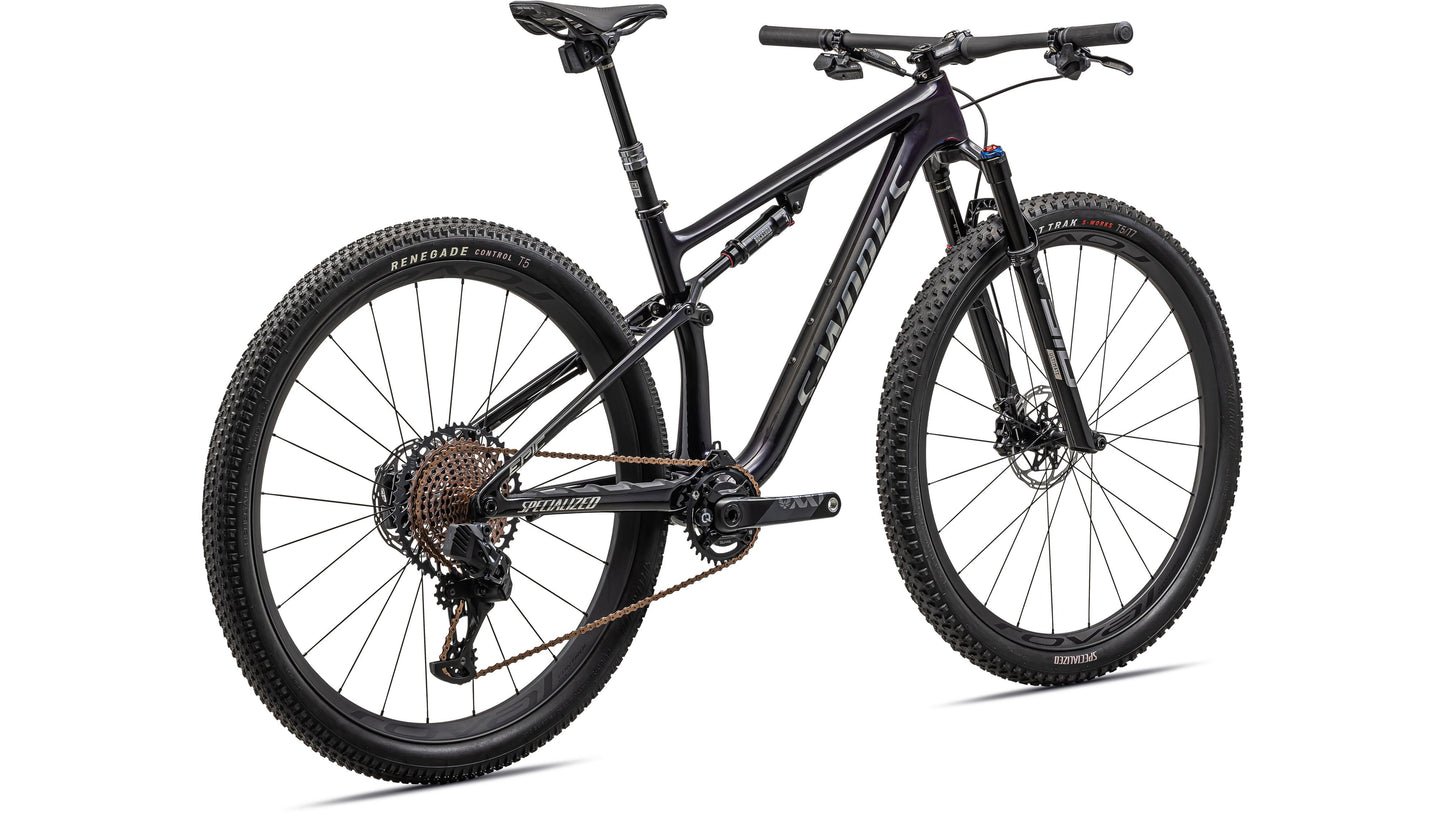

2023 Specialized Epic S-Works
| Bike/Frame Size | S | M | L | XL |
|---|---|---|---|---|
| Stack | 586 mm | 591 mm | 605 mm | 623 mm |
| Reach | 415 mm | 445 mm | 470 mm | 495 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1116 mm | 1148 mm | 1179 mm | 1211 mm |
| Bike Standover Height | 763 mm | 766 mm | 776 mm | 788 mm |
| Seat Tube Length | 400 mm | 430 mm | 470 mm | 520 mm |
| Seat Tube Angle | 75.8° | 75.5° | 75.5° | 75.5° |
| Top Tube Length, Horizontal | 563 mm | 598 mm | 626 mm | 656 mm |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 135 mm |
| Head Tube Angle | 67.5° | 67.5° | 67.5° | 67.5° |
| BB Height | 324 mm | 324 mm | 324 mm | 324 mm |
| BB Drop | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 106 mm | 106 mm | 106 mm | 106 mm |
| Fork Length, Full | 505 mm | 505 mm | 505 mm | 505 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 687 mm | 719 mm | 750 mm | 782 mm |
