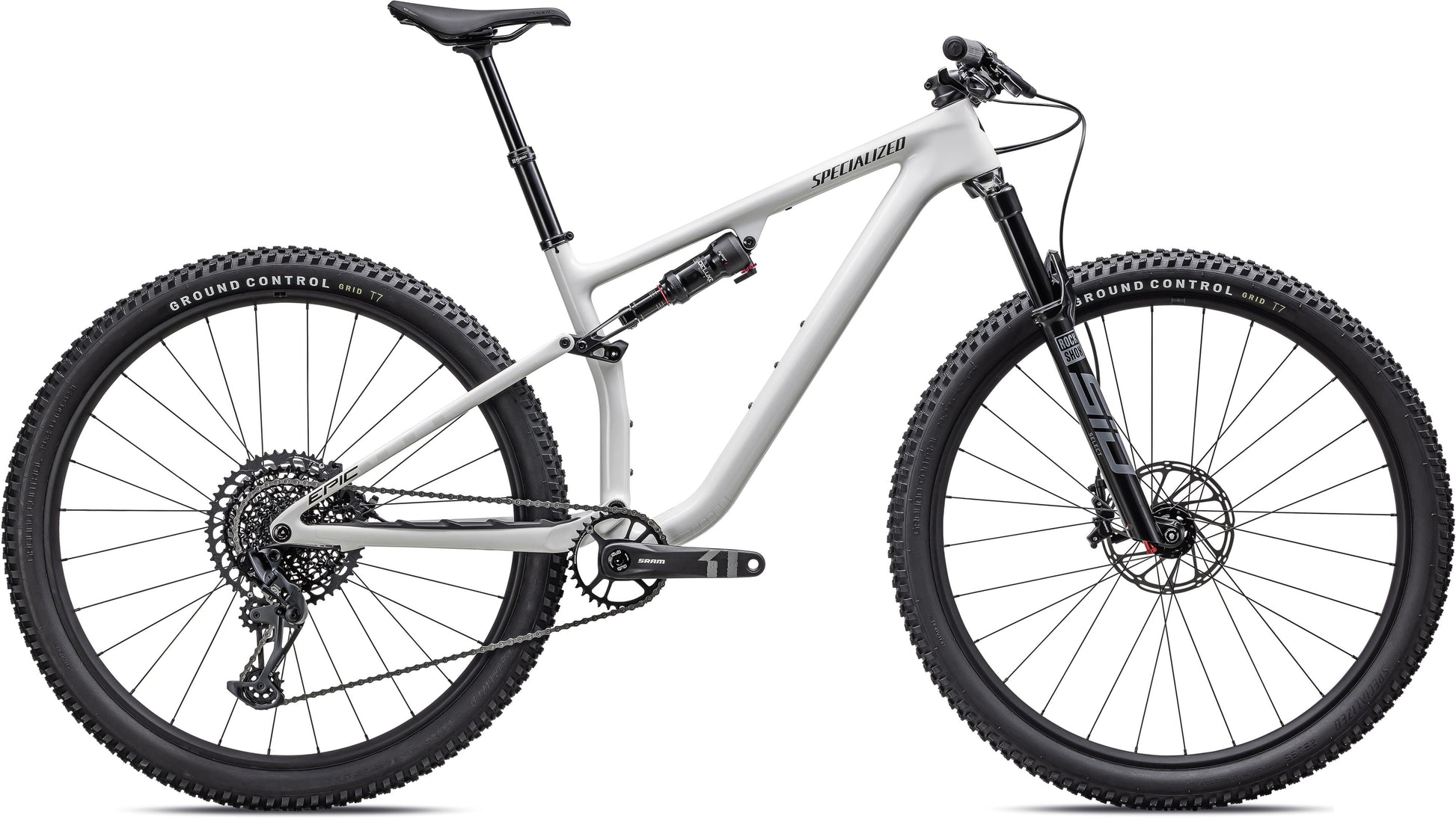

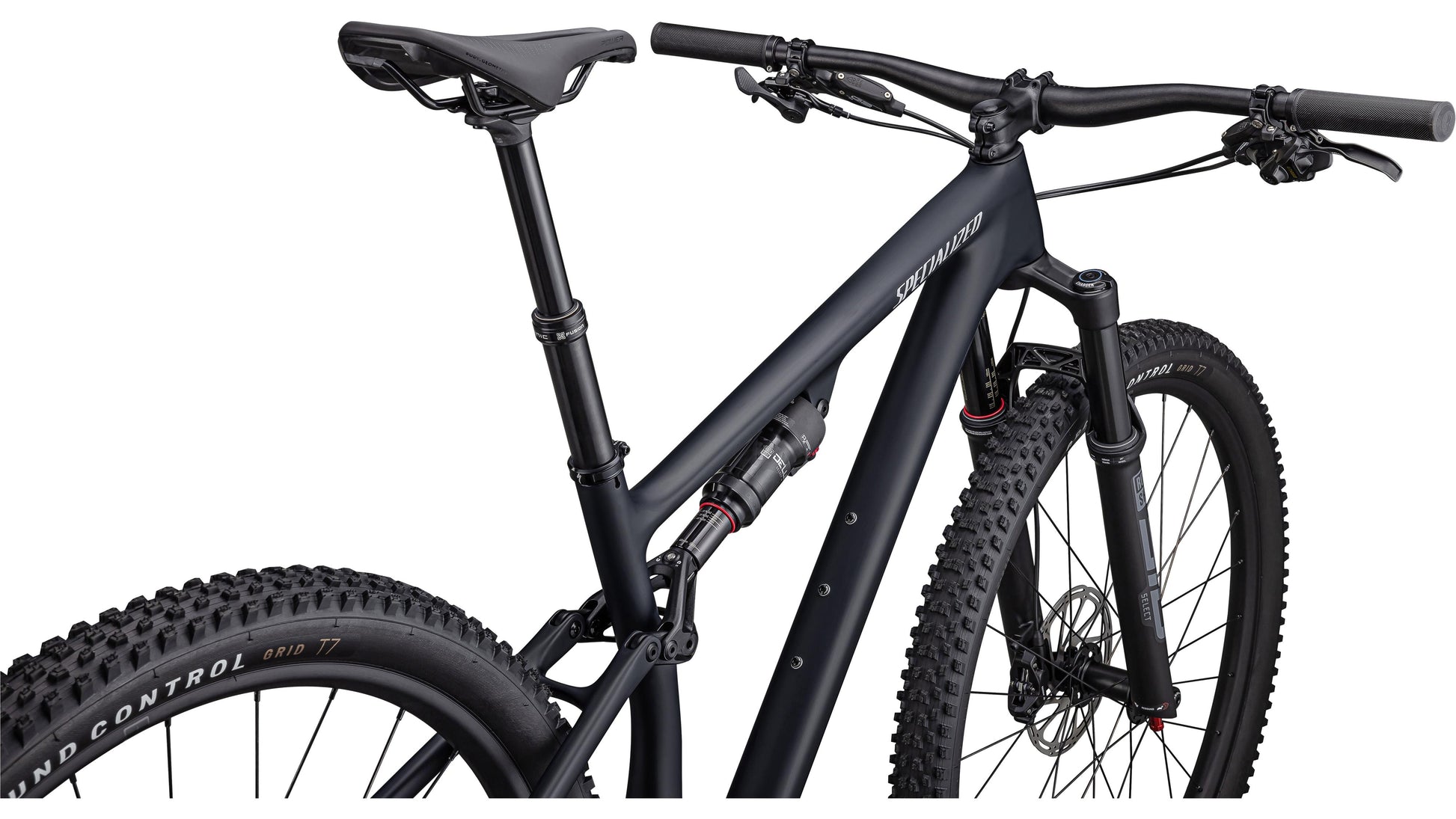

2023 Specialized Epic Evo Comp Features
Lightweight yet stiff. Capable yet efficient. Fun yet focused. Hell, if Goldilocks ever wanted to drop you, our money’s on her picking an Epic EVO Comp to do the job.
While the Epic EVO sees a seemingly modest 20-millimeter increase in suspension travel up front over its Epic stablemate and just 10-millimeters out back, we’ve worked overtime to make sure it’s been implemented in a way that’ll have you saying ‘Whoa!’ as soon as you hit your first stretch of singletrack.
Meticulously engineered to retain as much of the Epic’s standard-setting efficiency as possible, the EVO’s new suspension kinematics work in concert with Rx XC Tune customized suspension front and rear to ensure you're able to make the absolute most out of every inch of travel on tap, while still offering increased anti-squat characteristics for improved pedaling efficiency.
With plenty of practice at staying ahead of the curve, the Epic EVO now lays claim to the most capable iteration of our Progressive XC Geometry ever to grace an Epic. It’s also more versatile than ever thanks to a new flip chip-equipped rear end that allows riders to adjust headtube angle and bottom bracket height to easily customize Epic EVO’s handling characteristics.
Keeping the Epic EVO Comp
just
right is a well-balanced component mix featuring powerful four-piston SRAM G2 RS brakes, an X-Fusion Manic dropper, and RockShox SID Select fork.
At a Glance
- Flip It To Rip It: Tune the ride of the Epic EVO’s FACT 11m carbon frame to match your preferred handling characteristics with flip-chip simplicity that allows riders to reduce the EVO’s headtube angle by half a degree while lowering bottom bracket height by 10 millimeters.
- X-Fusion's Manic dropper post offers infinitely adjustable travel via it's slick shifter-stye remote lever for hassle-free operation when things get dicey.
- 4-piston calipers on an XC bike? What a wonderful time to be alive—SRAM's 4-piston G2 RS calipers offer plenty of smooth, controllable power to keep the EVO's newfound speed in check.
- Tubeless-ready rims feature a modern 30-millimeter internal width, allowing tires to achieve their ideal profile and footprint for optimal traction.
Component Specifications
| Frame | FACT 11m Full Carbon, Progressive XC Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 110mm of travel |
| Seat Binder | Specialized Alloy, 34.9mm |
| Fork | Rockshox SID Select, Charger RL Damper, Debon Air, 15x110mm, 44mm offset, 120mm Travel |
| Rear Shock | RockShox DELUXE Select+, Rx XC Tune, Two Position, Rebound Adjust, 190x40mm |
| Shift Levers | SRAM GX, trigger, 12-speed |
| Rear Derailleur | SRAM GX Eagle, 12-speed |
| Cassette | Sram XG-1275, 12-speed, 10-52t |
| Chain | SRAM NX Eagle, 12-speed |
| Crankset | SRAM, X1 Alloy Eagle, 12-speed |
| Chain Rings | 32T |
| Bottom Bracket | SRAM DUB, BSA 73mm, Threaded |
| Rims | Specialized 29, 27mm inner width, 28h, tubeless ready |
| Front Hub | Specialized alloy, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 28h |
| Rear Hub | Specialized alloy, sealed cartridge bearings, 6-bolt, 148mmx12mm thru-axle, 28h |
| Spokes | DT Swiss Industry |
| Front Tire | Specialized Ground Control, GRID Casing, T7 Compound, 29x2.35 |
| Rear Tire | Specialized Ground Control, GRID Casing, T7 Compound, 29x2.35 |
| Inner Tubes | Standard, Presta valve |
| Front Brake | SRAM G2 RS, 4-piston caliper, hydraulic disc, 180mm rotor |
| Rear Brake | SRAM G2 RS, 4-piston caliper, hydraulic disc, 180mm rotor |
| Stem | Alloy Stem, 35mm clamp, 60mm |
| Handlebars | Specialized Alloy, 20mm rise, 35mm, 760mm wide |
| Grips | Specialized Trail Grips |
| Saddle | Body Geometry Power Sport, steel rails |
| Seatpost | X-Fusion Manic, 30.9, 125/150 Travel, 0mm offset |
2023 Specialized Epic Evo Comp
| Bike/Frame Size | S | M | L | XL |
|---|---|---|---|---|
| Stack | 593 mm | 597 mm | 611 mm | 629 mm |
| Reach | 406 mm | 436 mm | 460 mm | 485 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1132 mm | 1164 mm | 1194 mm | 1227 mm |
| Bike Standover Height | 779 mm | 781 mm | 793 mm | 804 mm |
| Seat Tube Length | 400 mm | 430 mm | 470 mm | 520 mm |
| Seat Tube Angle | 74.8° | 74.5° | 74.5° | 74.5° |
| Top Tube Length, Horizontal | 567 mm | 602 mm | 629 mm | 659 mm |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 135 mm |
| Head Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° |
| BB Height | 336 mm | 336 mm | 336 mm | 336 mm |
| BB Drop | 36 mm | 36 mm | 36 mm | 36 mm |
| Trail | 114 mm | 114 mm | 114 mm | 114 mm |
| Fork Length, Full | 530 mm | 530 mm | 530 mm | 530 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 697 mm | 729 mm | 759 mm | 792 mm |
