2023 Specialized S-Works Diverge STR Frameset - FACT 11r Carbon Features
With Future Shock suspension front and rear, the new Diverge STR delivers compliance without compromise. By suspending the rider—instead of the bike—Future Shock technology increases control and efficiency while decreasing fatigue, so you’ll be riding farther and faster over chunkier terrain than you believed possible. And the Diverge STR does this without the weight, sluggish pedal response, and inefficiency of other suspension systems.

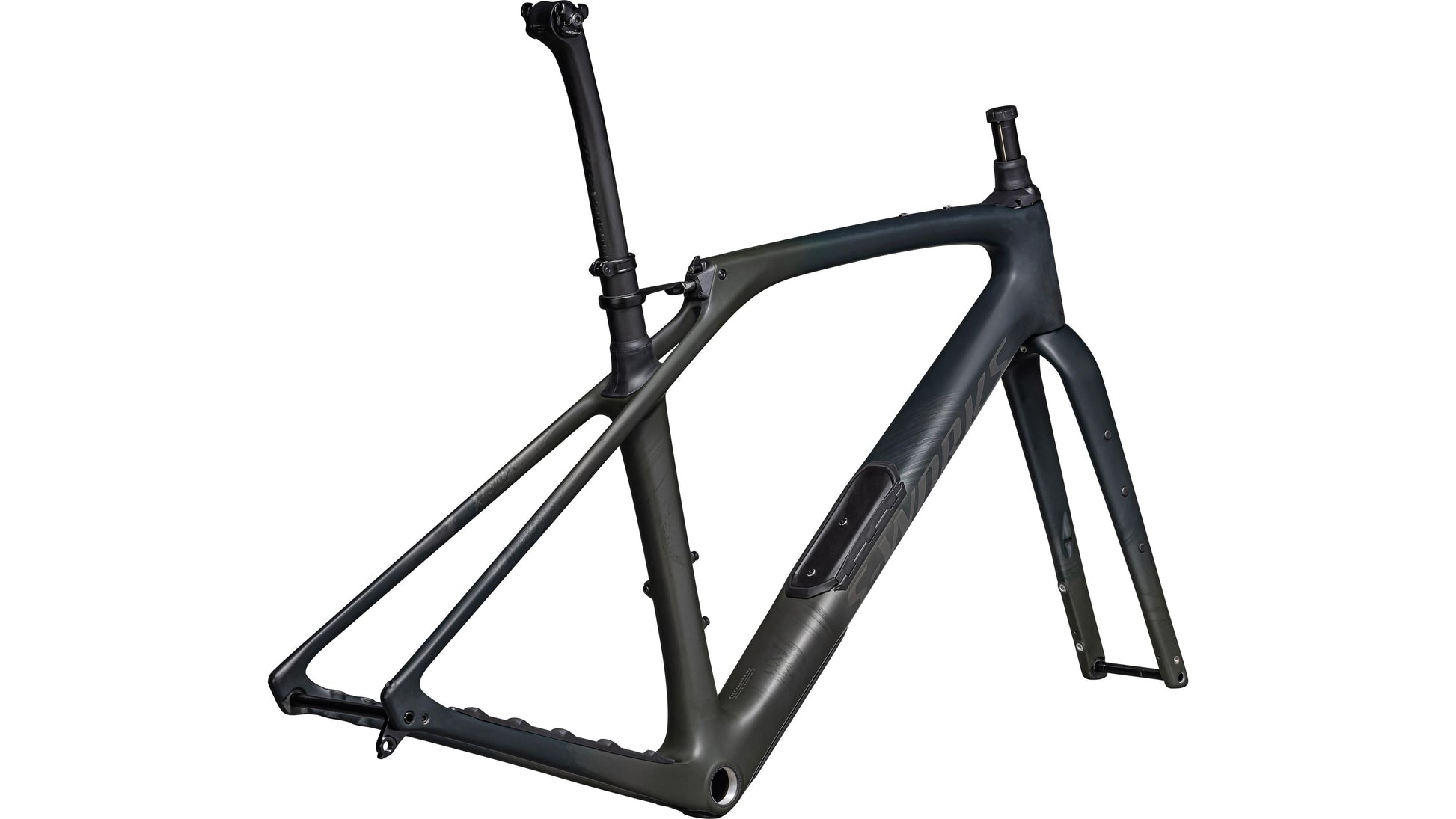

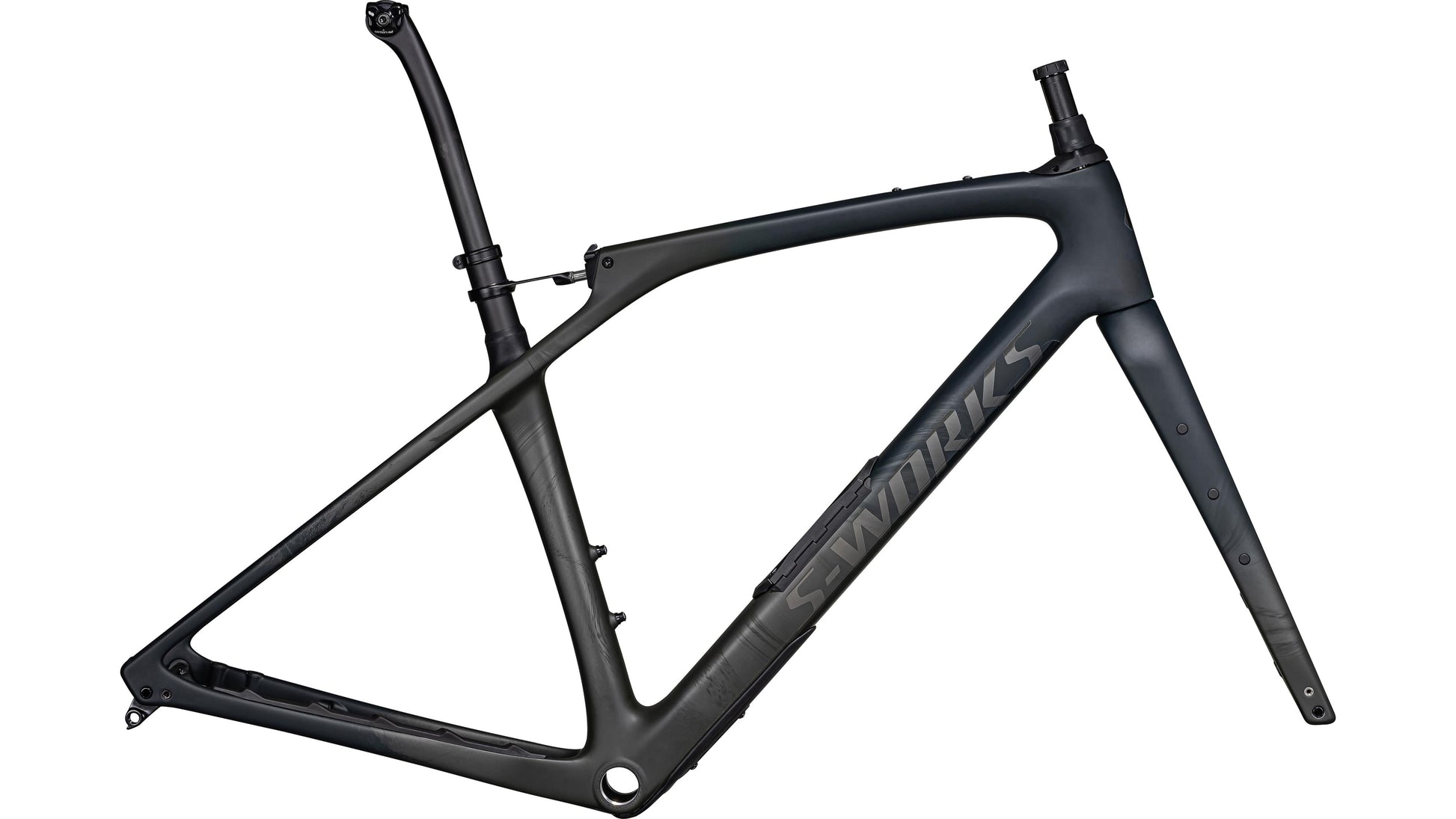

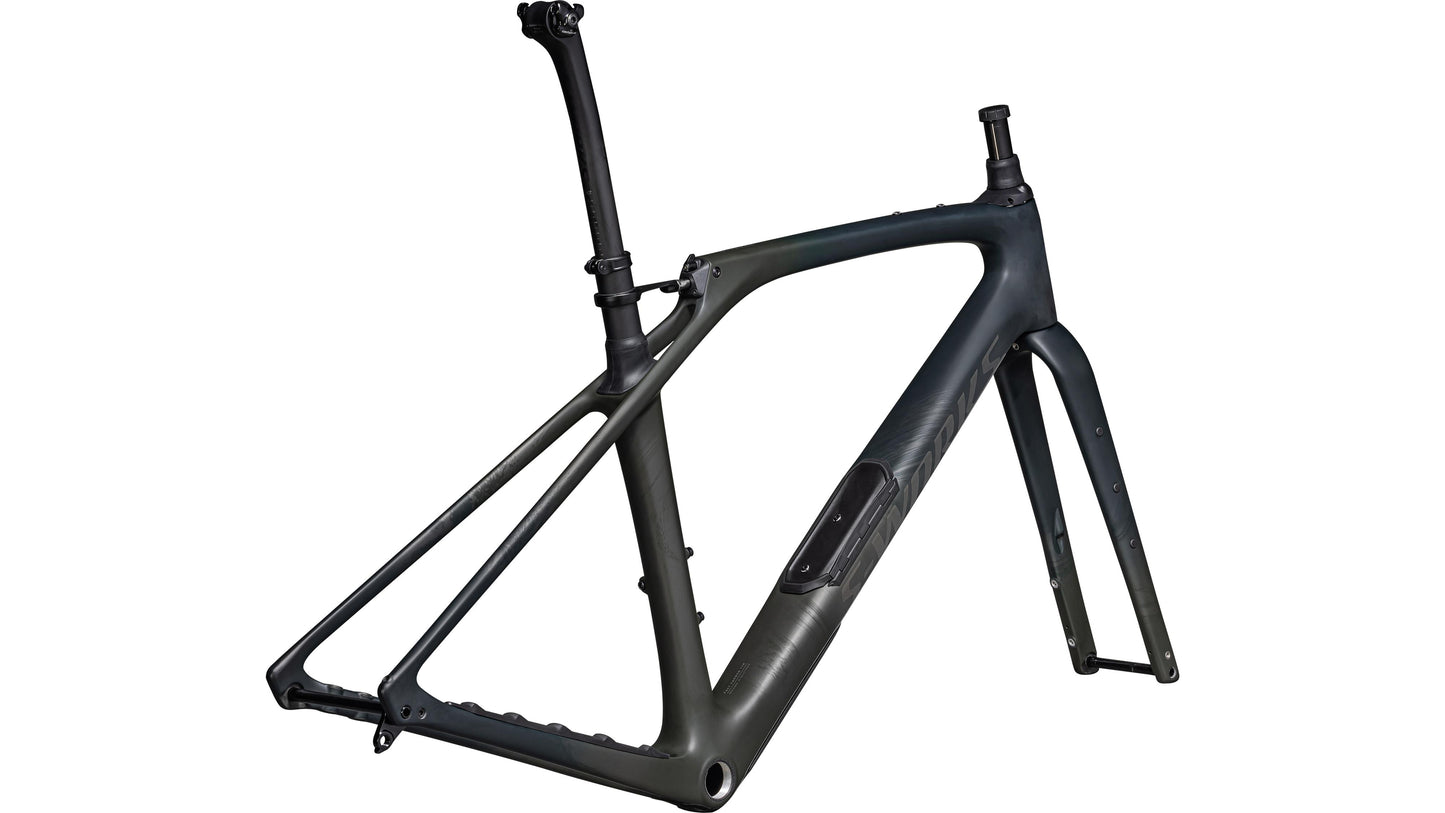

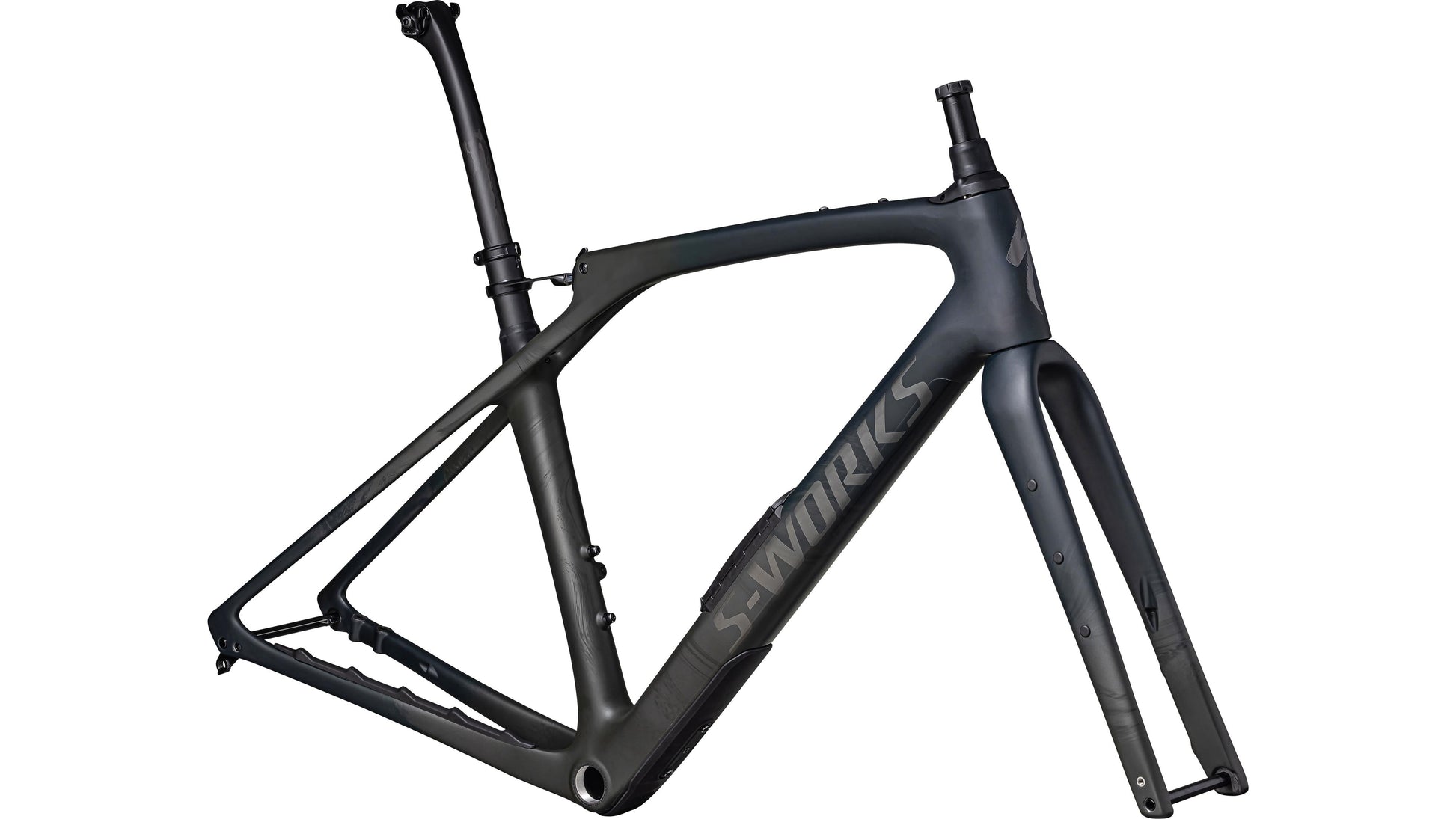

The S-Works Diverge STR starts with our FACT 11r carbon frameset with front and rear Future Shock suspension.
At a Glance
- By suspending the rider with damped, tunable travel—20mm front/30mm rear—Future Shock Technology absorbs bump forces to boost your control and capability while retaining the efficiency and responsiveness of a rigid frame. Because as far as power transfer goes, it is a rigid frame. Power to the pedals makes the bike jump like a scared cat. You’re efficient, you’re comfortable, you’re in control. Your bike is light, nimble, and responsive.
- The new Diverge doesn’t just have gorgeous lines, it has perfect curves too. Future Shock Rear puts 30mm of rear travel in the ideal path to smooth out rough road. Its hydraulic damping controls travel to eliminate “bobbing” under power and ensure big hits never catapult you from the saddle, all without compromising fit or pedaling efficiency.
- Born from decades of innovation and our Smoother is Faster philosophy, Future Shock was created to develop bikes that win on cobblestones, but it’s found its purest expression on gravel. It’s 20mm of adjustable, damped front travel that keeps you in control and on target, all while protecting your hands, arms, and shoulders from the battering.
- More capability means more confidence, more confidence means more rides, more rides mean more fun, and it all starts at the contact patch. Nothing unlocks capability like tire clearance, and we’re feeling generous. 47mm on a 700c wheel and 2.1” on 650B. Diverge STR is the most capable gravel bike we’ve ever made, so it’s the most fun. We did the math.
- The S-Works Diverge STR FACT 11r carbon frame is more compliant than any drop bar bike we have ever made yet adds just 100 grams compared to the S-Works Diverge frame. Never have so few grams added so much capability. Climb it, race it, or load it down with bags and gear for the long haul—Diverge STR does it all faster and smoother without any excess baggage.
Product Specifications
Product Specifications
fork |
|
frame |
|
seatpost |
|
seat binder |
|
swat |
|
category |
|
component geometry |
|
frame geometry |
|
gender |
|
group |
|
line |
|
material |
|
model level |
|
model year |
|
product family |
|
shifting |
|
suspension |
|
wheel size |
|
base color |
|
color |
|
size |
2023 Specialized S-Works Diverge STR Frameset - FACT 11r Carbon
| Bike/Frame Size | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Stack | 569 mm | 576 mm | 593 mm | 609 mm | 633 mm | 659 mm |
| Reach | 365 mm | 374 mm | 383 mm | 392 mm | 401 mm | 410 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1023 mm | 1027 mm | 1034 mm | 1044 mm | 1060 mm | 1078 mm |
| Top Tube Length, Horizontal | 527 mm | 540 mm | 556 mm | 570 mm | 586 mm | 602 mm |
| Bike Standover Height | 704 mm | 730 mm | 753 mm | 778 mm | 804 mm | 833 mm |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Seat Tube Angle | 74.5° | 74.25° | 74° | 74° | 74° | 74° |
| Head Tube Length | 100 mm | 100 mm | 115 mm | 130 mm | 155 mm | 182 mm |
| Head Tube Angle | 70° | 70.5° | 71.25° | 71.75° | 71.75° | 71.75° |
| BB Height | 270 mm | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm |
| BB Drop | 80 mm | 85 mm | 85 mm | 85 mm | 85 mm | 85 mm |
| Trail | 69 mm | 66 mm | 61 mm | 57 mm | 57 mm | 57 mm |
| Fork Length, Full | 390 mm | 390 mm | 390 mm | 390 mm | 390 mm | 390 mm |
| Fork Rake/Offset | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Front Center | 607 mm | 612 mm | 619 mm | 629 mm | 645 mm | 663 mm |
Component Geometry
| Component | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Seatpost Length | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
