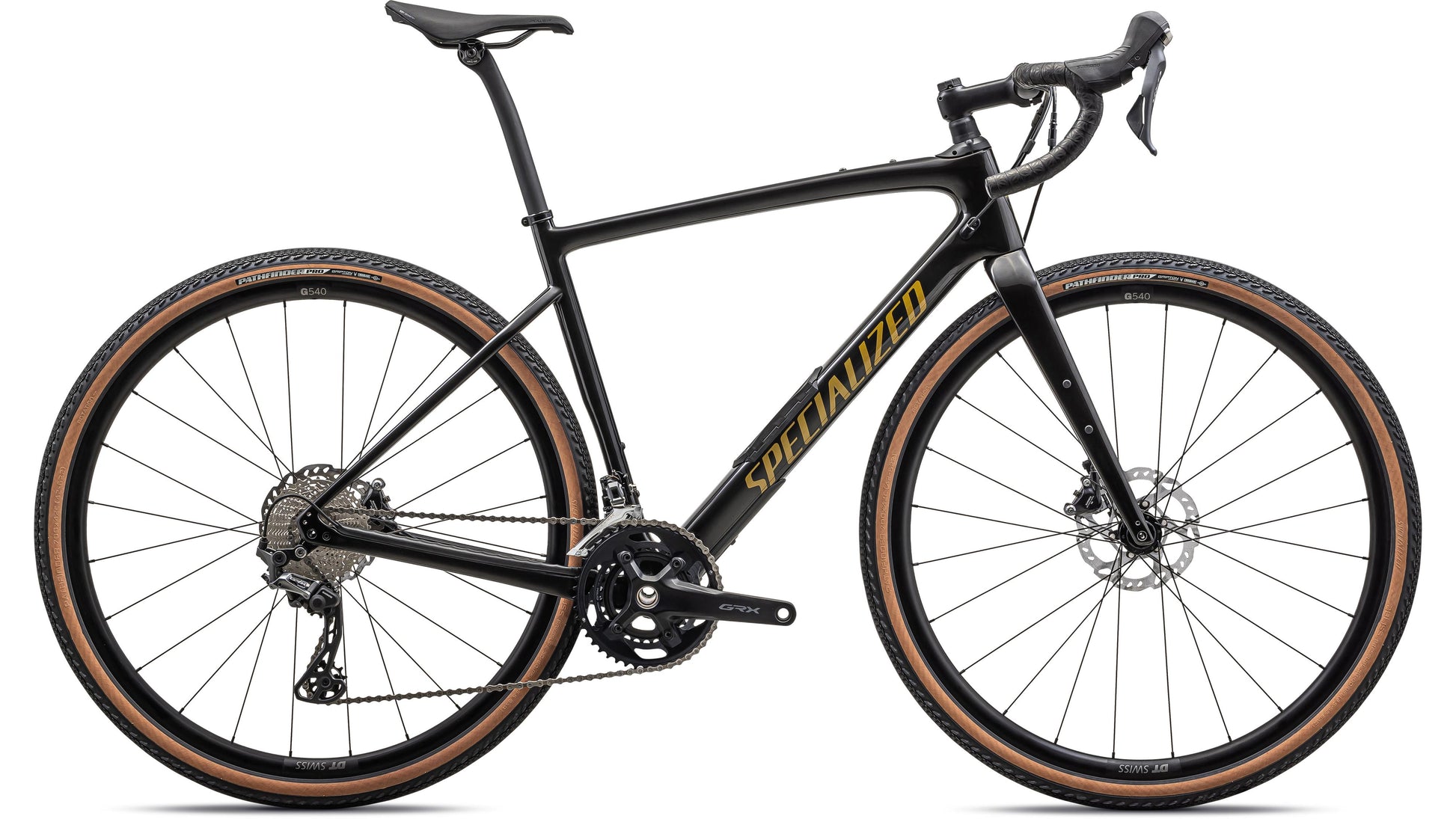

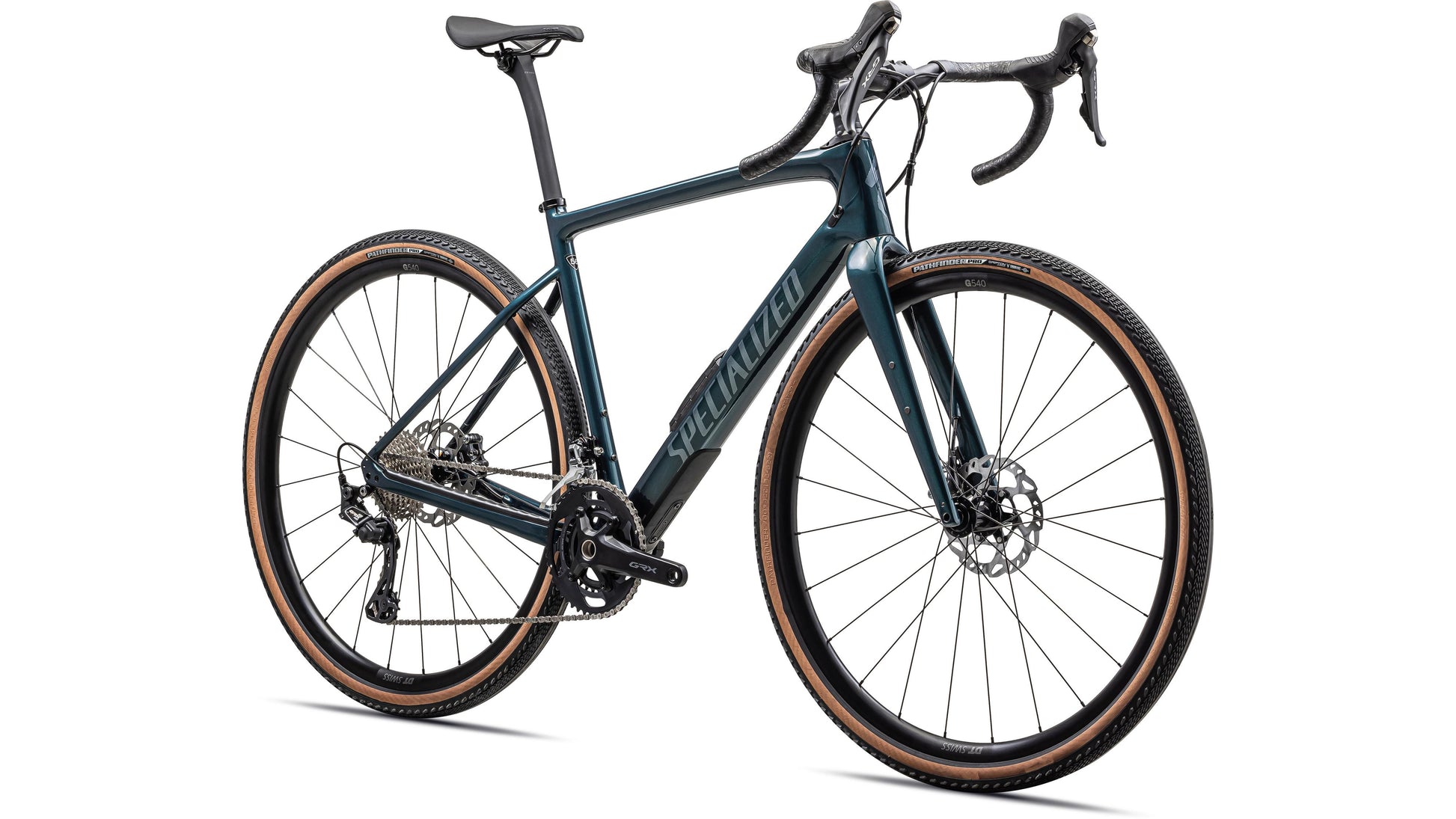

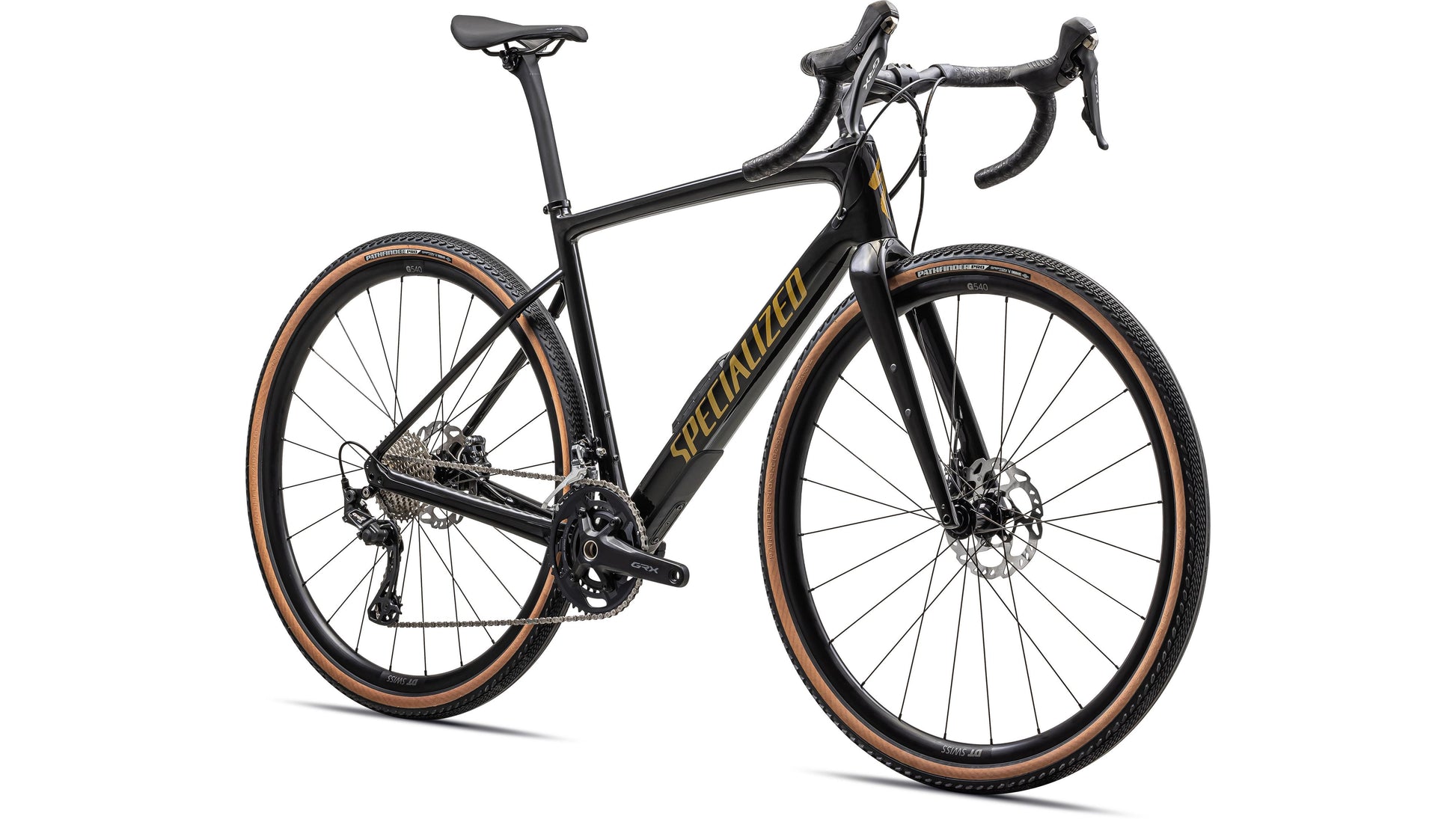

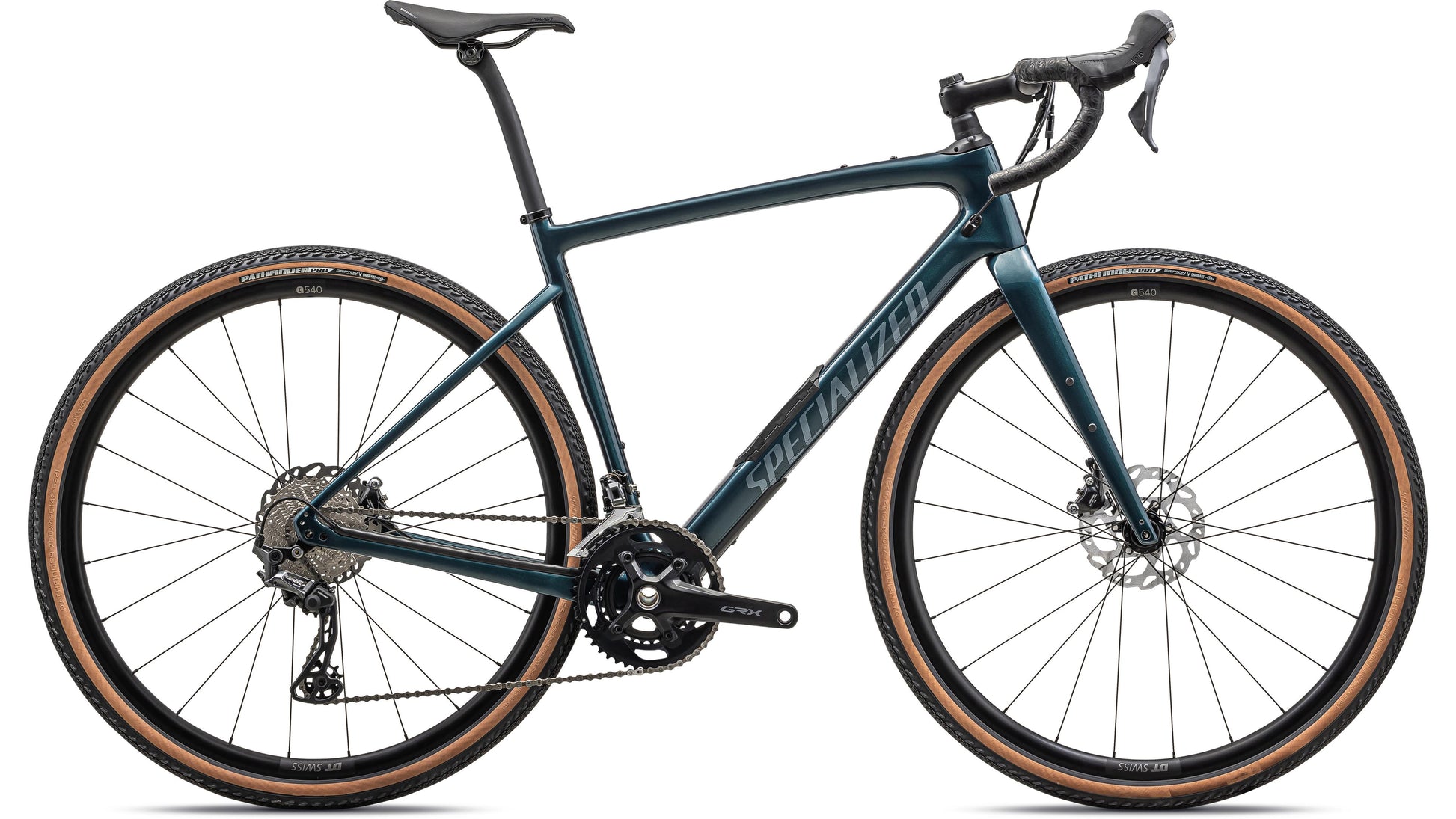

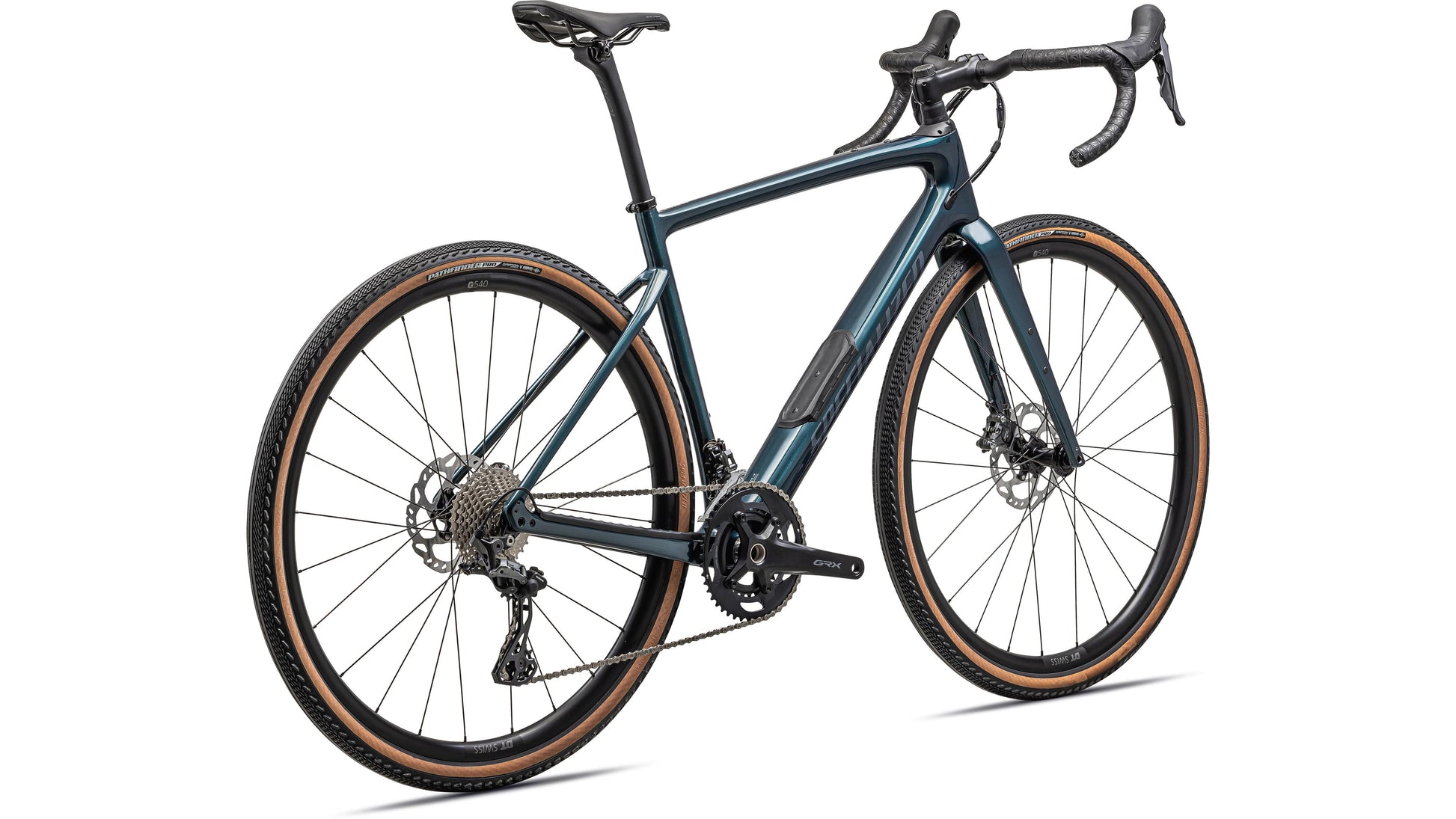

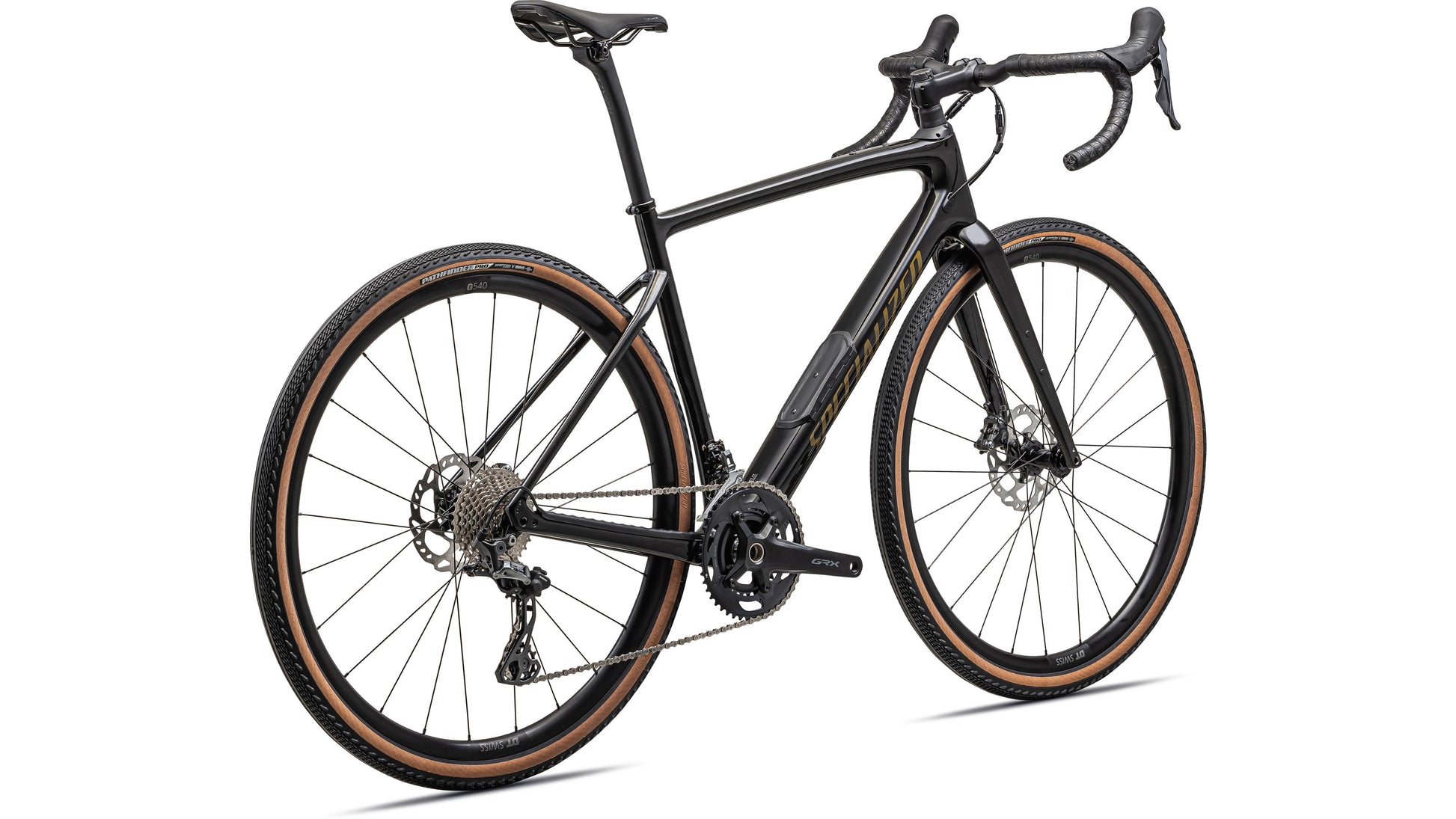

2023 Specialized Diverge Comp Carbon Features
Whether your goal is to escape on gravel back roads, far from cars and crowds, or drop the hammer at the front of your favorite gravel race, no bike does it better than the new Diverge. It’s quite simply the fastest, most capable - and just maybe the most fun - bike we’ve ever made, delivering a ride that’s quick and lively under power, but stable and confidence inspiring when the terrain gets rough. From Future Shock 2.0 and all-new gravel geometry, to internal storage and category leading tire clearance, the new Diverge represents everything we’ve learned over more than 40 years of riding road, gravel and dirt. The Diverge writes an entirely new chapter in the gravel bike category, so you can dream up entirely new rides. It’s the ultimate getaway vehicle.
The Diverge Comp Carbon features the same game changing FACT 9r Carbon frame and Future Shock 2.0 as our Pro build but spec’d with Shimano's mechanical shifting GRX 2x11 gravel group.
Alloy DT Swiss G540 wheels keep you rolling efficiently, while Kanza winning Pathfinder Pro 42mm tires deliver performance across smooth pavement, dirt roads and gravel tracks. To give the Diverge Comp a perfectly balanced ride we spec Roval’s Terra seat post.
At a Glance
- With a FACT 9r carbon frame, the Diverge Comp frame is incredible capable and race bike light. Pin it for your local dirt climb KOM, or grind up a giant back country peak, the light and lively Diverge will get you there faster.
- Speed, control and confidence - Future Shock 2.0 is the ultimate technology for the gravel rider. With 20mm of axial compliance and a hydraulic damper, Future Shock 2.0 suspends the rider not the bike. This keeps you confident and in control, able to keep the power down and stay off the brakes over rough dirt roads and in thick loose gravel, all while keeping your hands, arms and neck fresh. Since Future Shock 2.0’s damper is adjustable, you’ll be ready for the rough stuff and efficient on smooth pavement.
- We’ve given the Diverge plenty of rack mounts, including fork and top tube mounts, to ensure you can take what you need, no matter how far you plan to go, or how long you plan to stay out. Note: all carbon models will need an aftermarket seatpost clamp with rack mount to install a rear rack. (Part Number: S184700001).
- We’ve given the Diverge plenty of rack mounts, including fork and top tube mounts, to ensure you can take what you need, no matter how far you plan to go, or how long you plan to stay out.
- Nothing unlocks a bike’s capability like tire clearance, so we gave the new Diverge a whopping 47mm of tire clearance with a 700c wheel and 2.1” with a 650b wheel. Thanks to a drive side chain stay utilizing a solid beam of carbon behind the chain rings we’ve created clearance without using a fragile dropped chain stay design or increasing chain stay length.

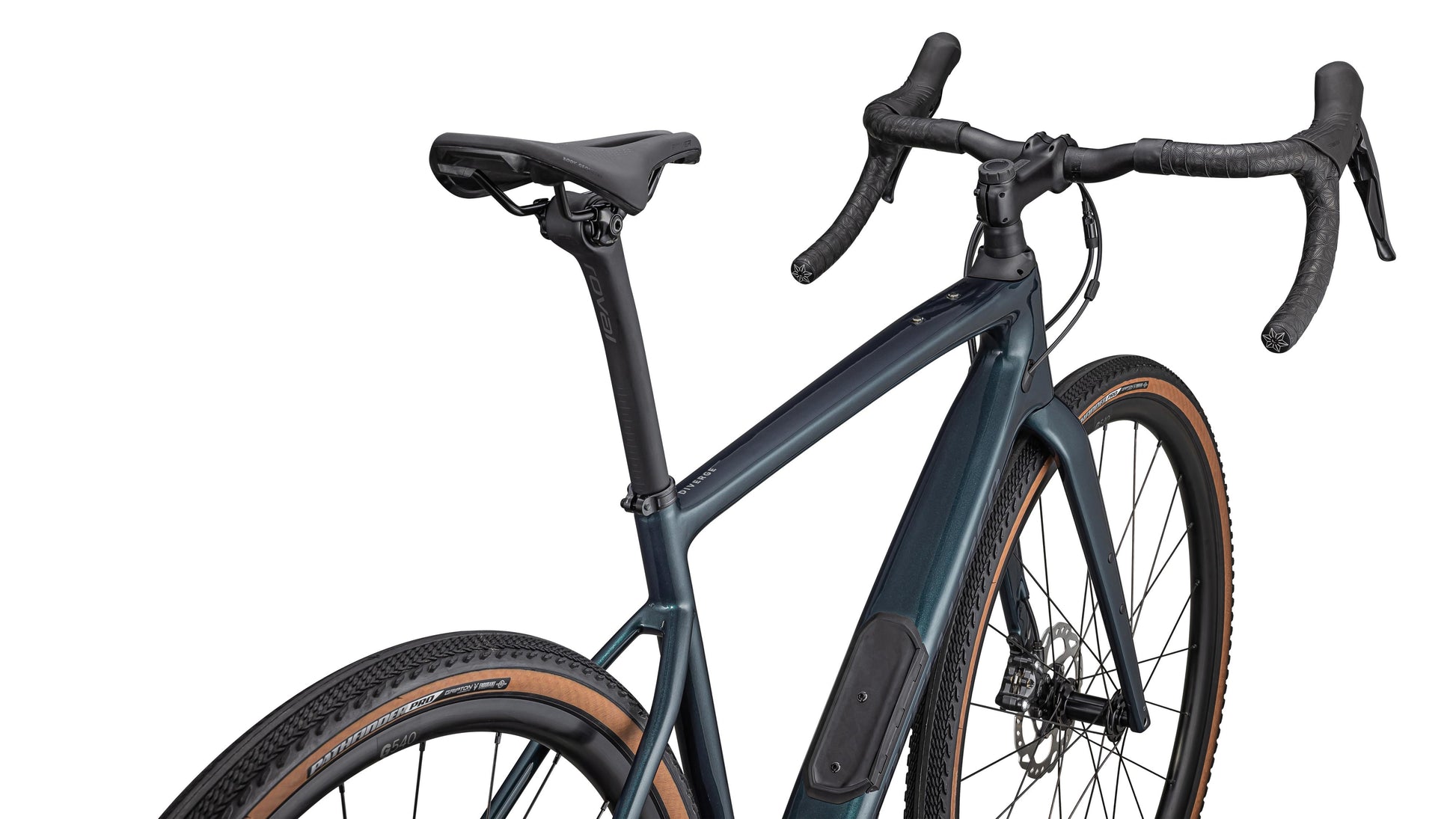

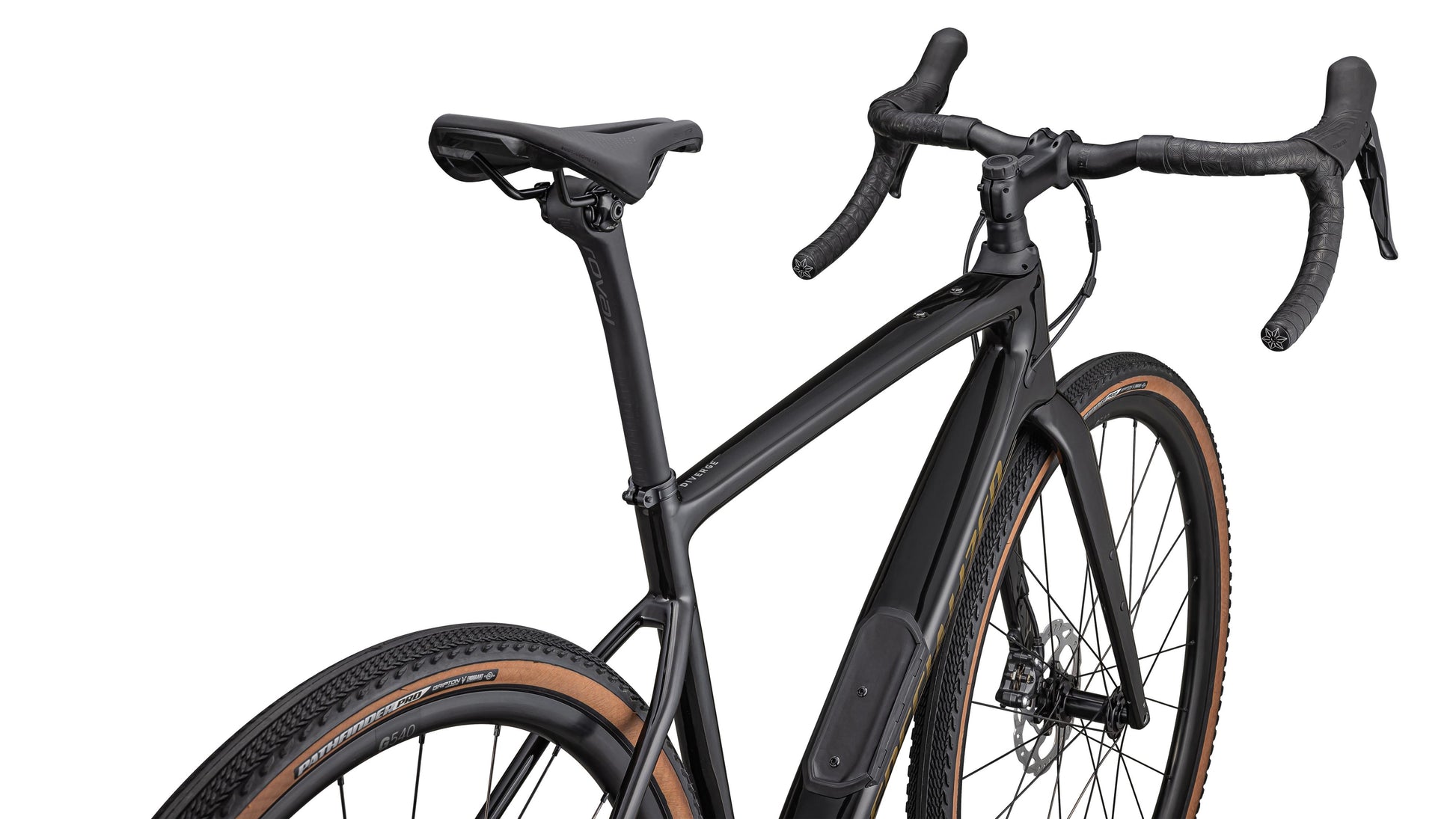

- The more capable your bike, the bigger your rides get, so Diverge borrows SWAT internal storage from the legendary Stumpy. The SWAT door lets you utilize space in the down tube to store tools, a flat kit, nutrition and even our SWAT Jacket. It keeps weight off your body, low in the bike for better handling, and makes you more self-sufficient, so get out there. SWAT’s got your back.
Component Specifications
| Frame | Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc |
| Seat Binder | Specialized Alloy, 30.8mm |
| Fork | Future Shock 2.0 w/ Damper, Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount |
| Shift Levers | Shimano GRX 2x11 speed, ST-R810, Hydraulic Disc |
| Front Derailleur | Shimano GRX R810 |
| Rear Derailleur | Shimano GRX R810, 11speed |
| Cassette | Shimano Ultegra, 11-speed, 11-34t |
| Chain | Shimano Ultegra, 11-speed |
| Crankset | Shimano GRX RX600 |
| Chain Rings | 46/30T |
| Bottom Bracket | Shimano BSA Threaded |
| Front Tire | Pathfinder Pro 2BR, Tan sidewall, 700x42 |
| Rear Tire | Pathfinder Pro 2BR, Tan sidewall, 700x42 |
| Inner Tubes | Standard 40mm SV 700x32-50 |
| Front Brake | Shimano GRX ST-R810, Hydraulic Disc, 160mm centerlock, SM-RT70 |
| Rear Brake | Shimano GRX ST-R810, Hydraulic Disc, 160mm centerlock, SM-RT70 |
| Stem | Future Stem, Comp |

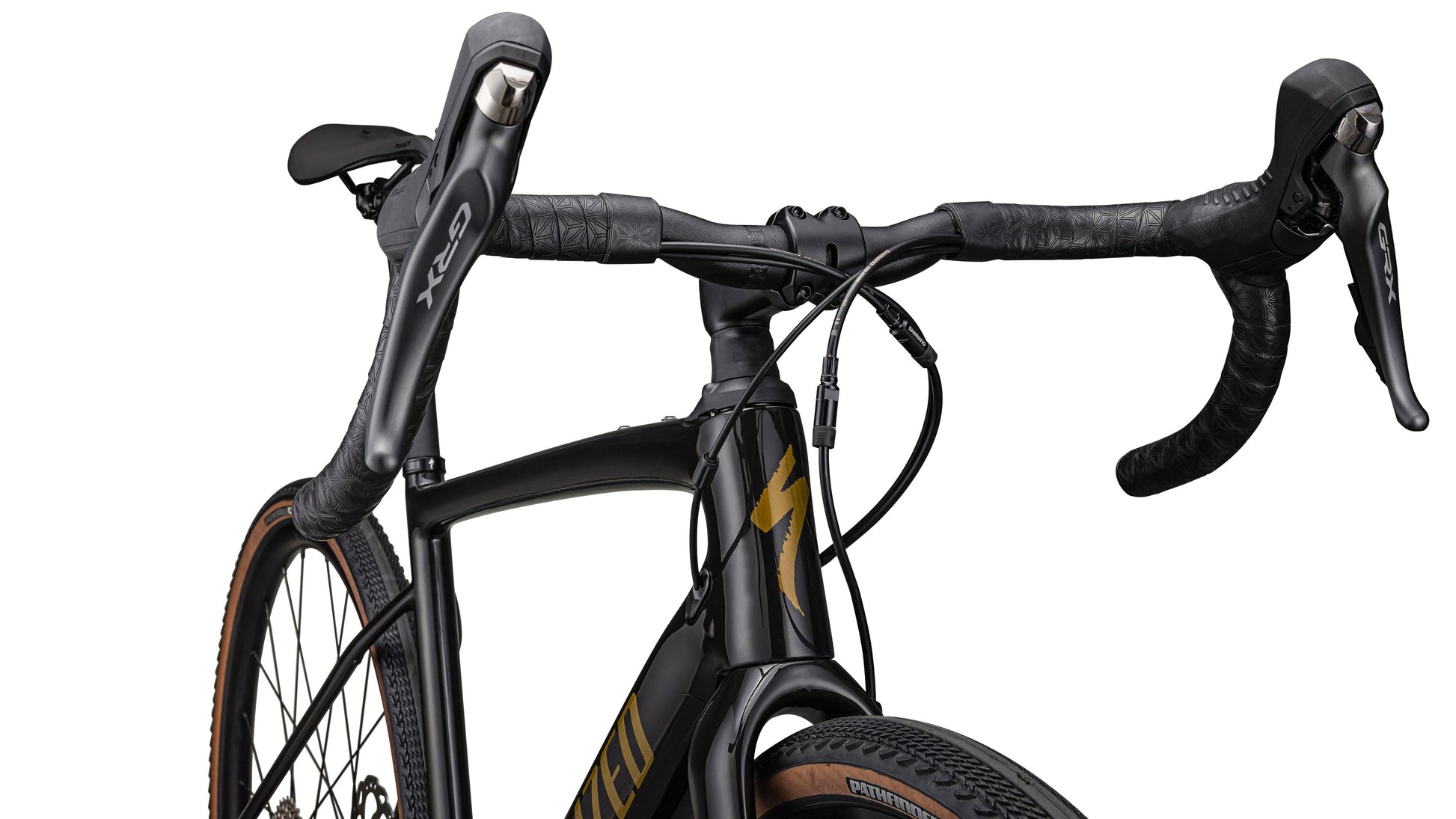

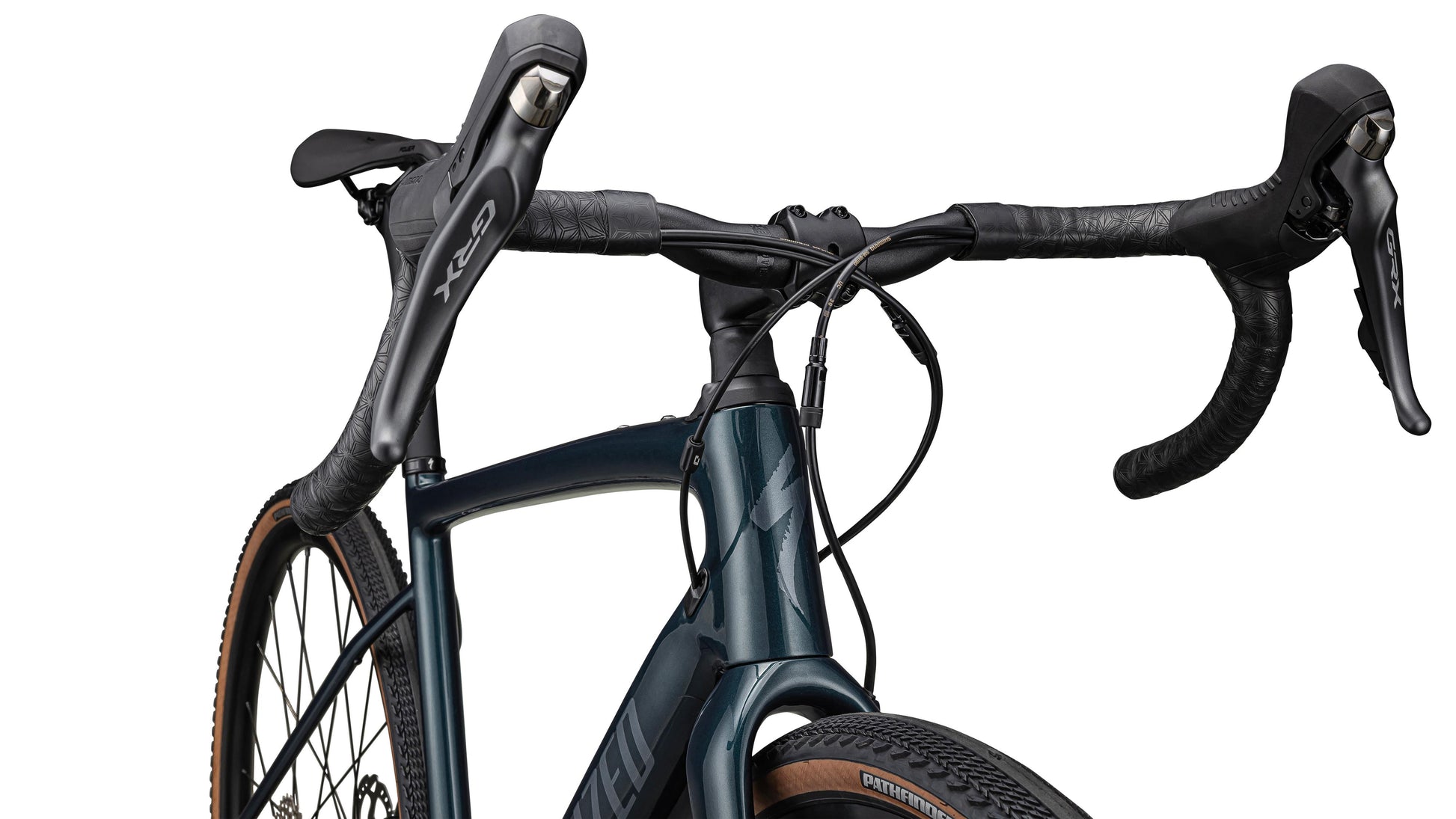

| Handlebars | Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare |
| Saddle | Body Geometry Power Sport, steel rails |
| Seatpost | Roval Terra Carbon Seat Post, 20mm Offset |
2023 Specialized Diverge Comp Carbon
| Bike/Frame Size | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Stack | 571 mm | 577 mm | 592 mm | 610 mm | 634 mm | 659 mm |
| Reach | 365 mm | 374 mm | 383 mm | 392 mm | 401 mm | 410 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1019 mm | 1026 mm | 1032 mm | 1042 mm | 1059 mm | 1076 mm |
| Top Tube Length, Horizontal | 529 mm | 542 mm | 558 mm | 573 mm | 589 mm | 605 mm |
| Bike Standover Height | 700 mm | 725 mm | 754 mm | 779 mm | 805 mm | 832 mm |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Seat Tube Angle | 74° | 73.75° | 73.5° | 73.5° | 73.5° | 73.5° |
| Head Tube Length | 99 mm | 104 mm | 116 mm | 133 mm | 159 mm | 185 mm |
| Head Tube Angle | 70° | 70.5° | 71.25° | 71.75° | 71.75° | 71.75° |
| BB Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| BB Drop | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Trail | 69 mm | 66 mm | 61 mm | 57 mm | 57 mm | 57 mm |
| Fork Length, Full | 389 mm | 389 mm | 389 mm | 389 mm | 389 mm | 389 mm |
| Fork Rake/Offset | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Front Center | 607 mm | 614 mm | 620 mm | 630 mm | 647 mm | 664 mm |
