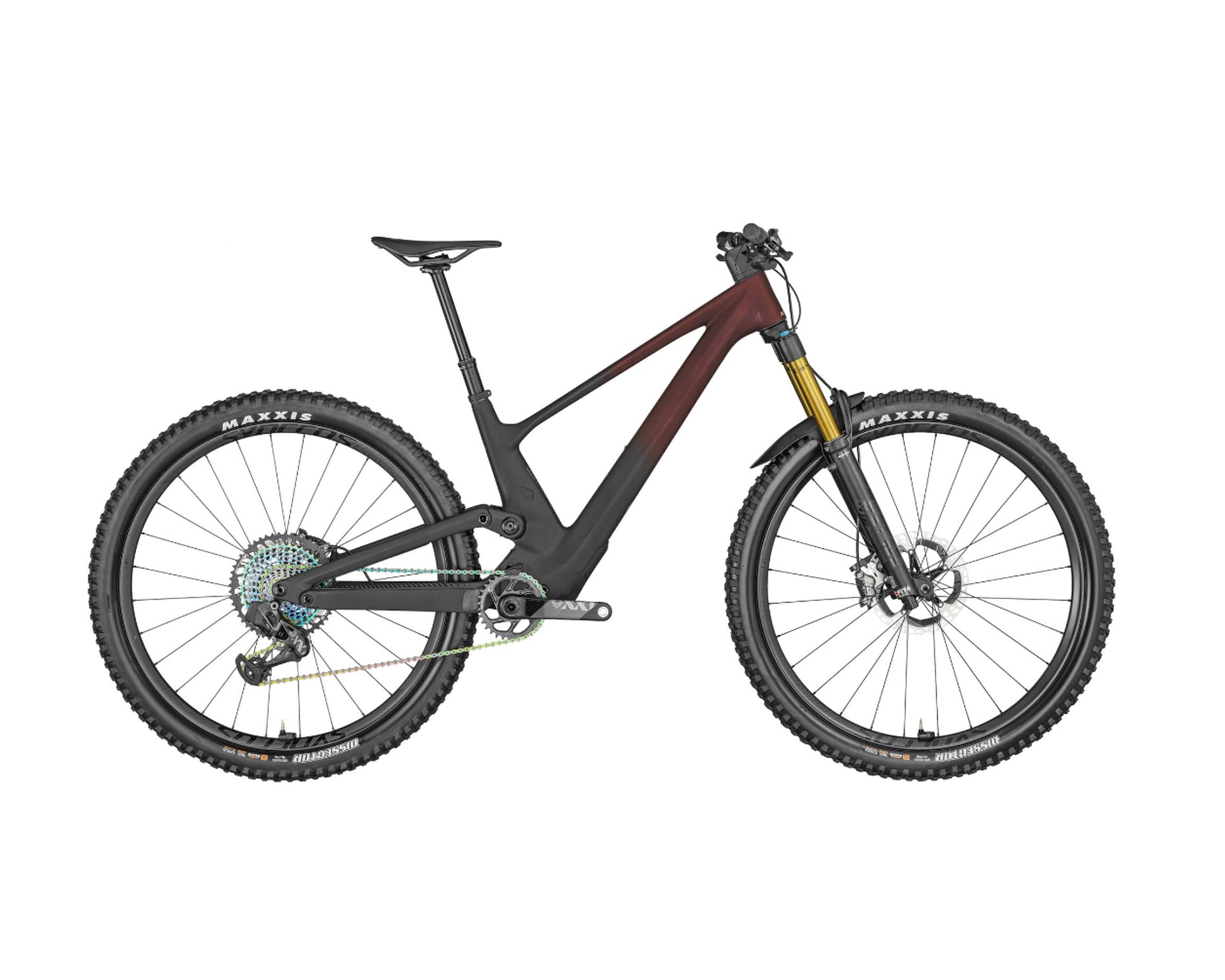

2023 Scott Genius 900 Ultimate

Chain

SRAM CN XX1 Eagle

Crankset

SRAM XX1 Eagle AXS Carbon crankarm DUB / 55mm CL / 32T

Fork

FOX 36 Float Factory Air / Kashima FIT4 3-Modes with low Speed adj. / Kabolt 15x110mm axle 44mm offset / tapered steerer / Reb. Adj. / Lockout 160mm travel

Frame

Genius Carbon HMX Integrated Suspension Technology Virtual 4 Link kinematic / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline

Front Tire

Maxxis Dissector / 2.6" / 60TPI Foldable Tubeless Ready / EXO 3C maxx Terra

Handlebar

Syncros Hixon iC Carbon Size S & M 15mm rise / Size L & XL 25mm rise back sweep 8° / 780mm Syncros Endurance lock-on grips

Rear Derailleur

SRAM XX1 Eagle AXS 12 Speed Wireless Electronic Shift System

Rear Shock

FOX NUDE 5T Factory EVOL Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend Custom large Air volume / DPS / Kashima / Reb. Adj. Travel 150-100-Lockout / T185X55mm

Rear Tire

Maxxis Dissector / 2.6" / 60TPI Foldable Tubeless Ready / EXO 3C maxx Terra

Remote System

SCOTT TwinLoc 2 Technology Suspension & Dropper Remote 3 Suspension modes

Saddle

Syncros Tofino SL Regular 1.0 Carbon rails

Seatpost

Syncros Duncan Dropper Post 1.5 31.6mm / S size 140mm / M size 160mm / L size 170mm / XL size 200mm

Shifters

SRAM Eagle AXS Rocker Controller

Wheelset

Syncros Revelstoke 1.0S-30 CL F: 15x110mm, R: 12x148mm 30mm Tubeless ready Carbon rim 28H DT Swiss 240 Ratchet EXP 36 / XD Driver SRAM TyreWiz / Syncros Axle w/Removable Lever with 6mm Allen, T30 and T25 Tools
