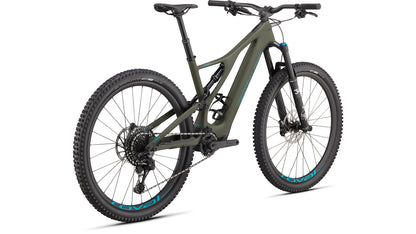

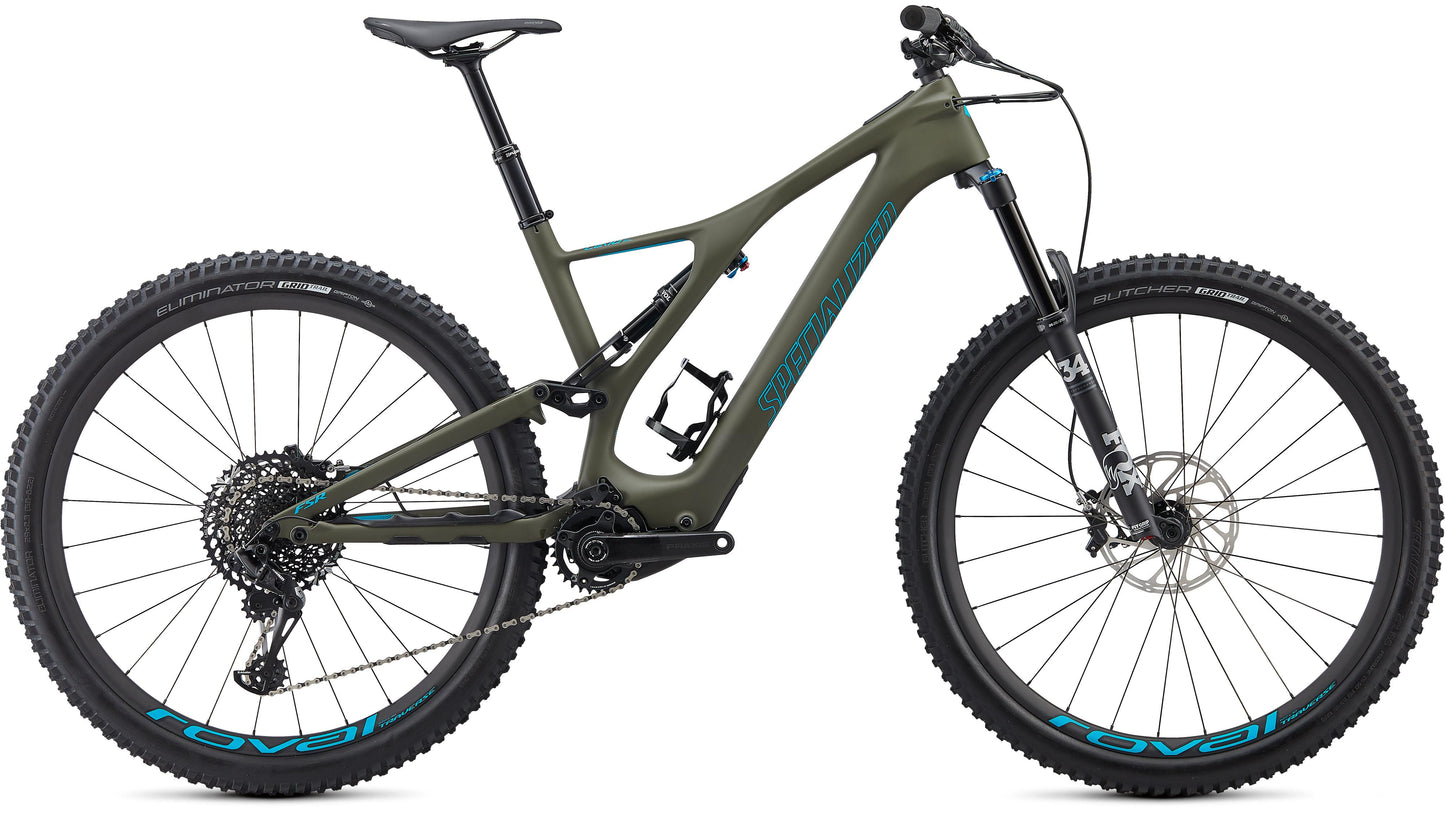

Specialized Turbo Levo SL Expert Carbon - Oak Green / Aqua S Features
The Turbo Levo SL is a new, lightweight breed of eMTB that harnesses the quick and lively ride of our Stumpjumper...and adds just enough power to introduce a whole new dimension of kick ass. The Turbo Levo SL Expert Carbon features a full carbon frame paired to full FOX suspension and a SRAM Eagle GX drivetrain.
It’s You, Just Going Faster and Farther.
The Turbo Levo SL is effectively a Stumpjumper that lets you embark on ridiculously long adventures with no fear of bonking and helps you snag three laps of your favorite trail instead of just one. Looking for a ton of power and range? Check out our Turbo Levo and Kenevo models. Want a bike, on the other hand, that simply feels like you—a faster you, with the power to ride more trails, kind of you? That's Turbo Levo SL.
Tune it to Your Style.

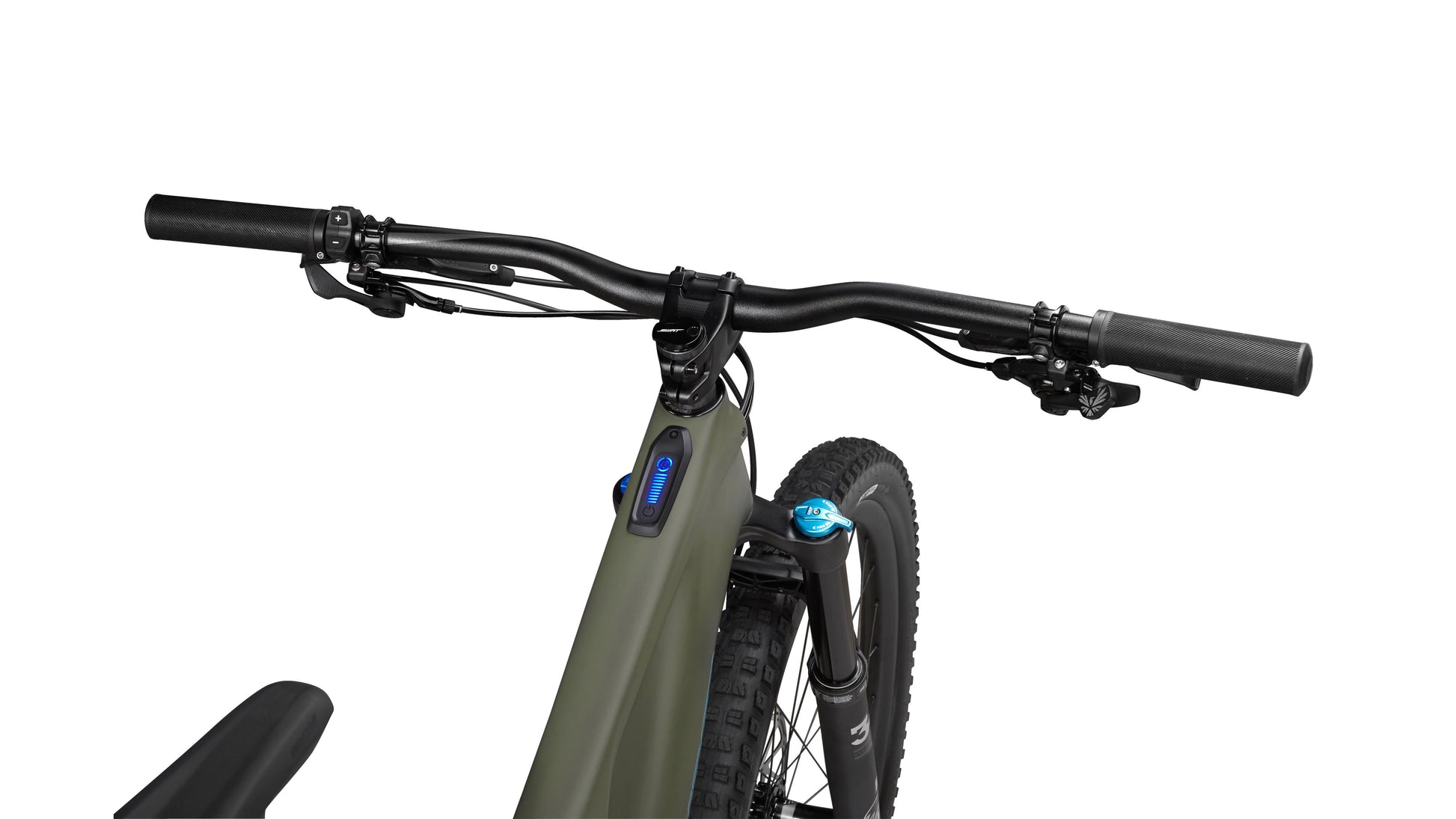

By connecting with our Mission Control App, you can tune the SL 1.1 motor to your riding style, record rides, and monitor the battery. The motor even has a built-in power meter that transmits to any ANT+ head unit. Don't want to connect? No worries—the simple Turbo Connect Unit (TCU) on the top tube gives you all the control you need to just climb on and ride all day.
• Lightweight, carbon Stumpjumper-inspired frame is pure ride quality and control.
• Ultra-smooth and lightweight SL 1.1 motor doubles your pedaling power.
• 150mm of suspension front and rear, courtesy of FOX's 34 Performance fork and DPS shock.
At a Glance

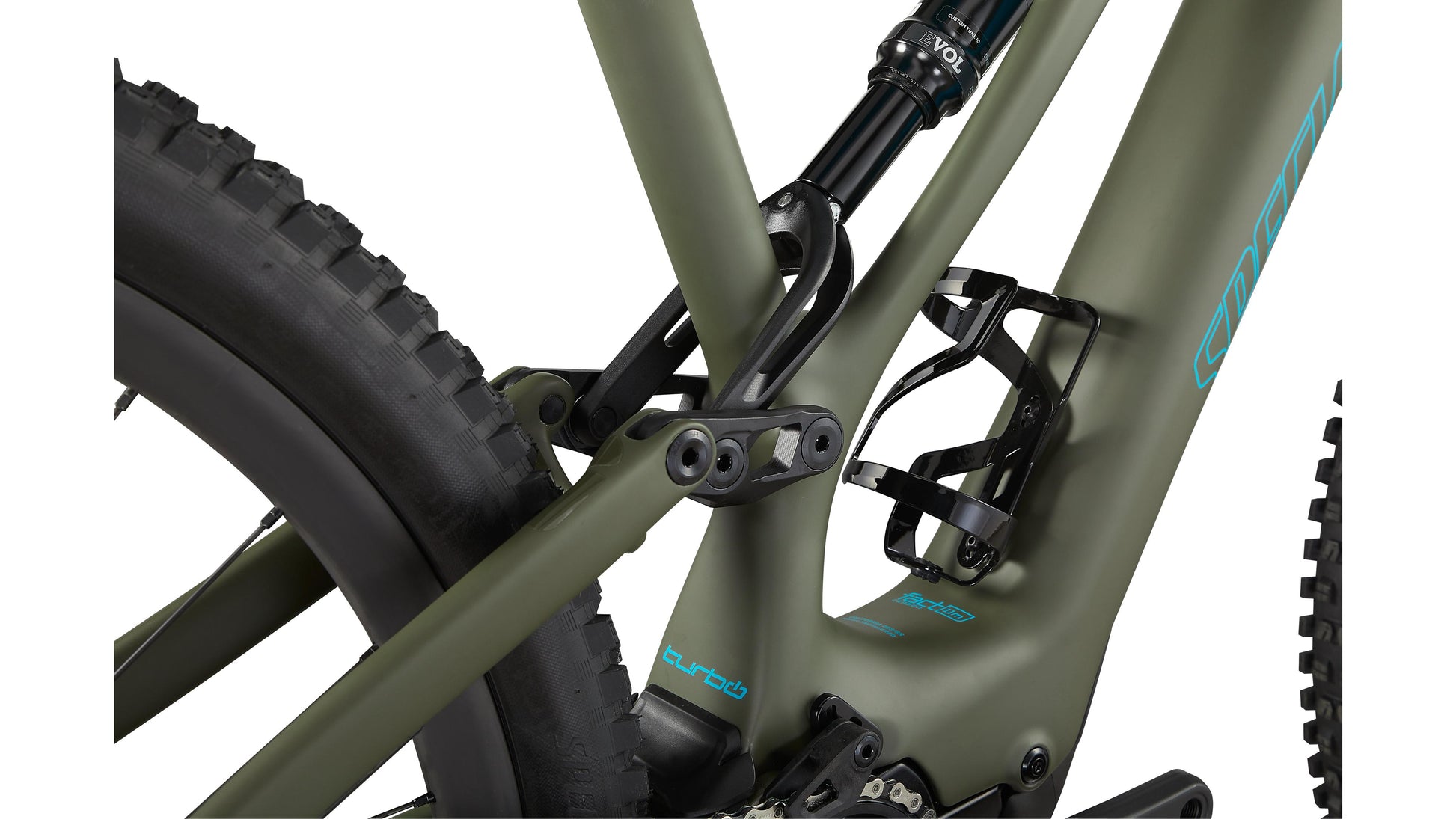

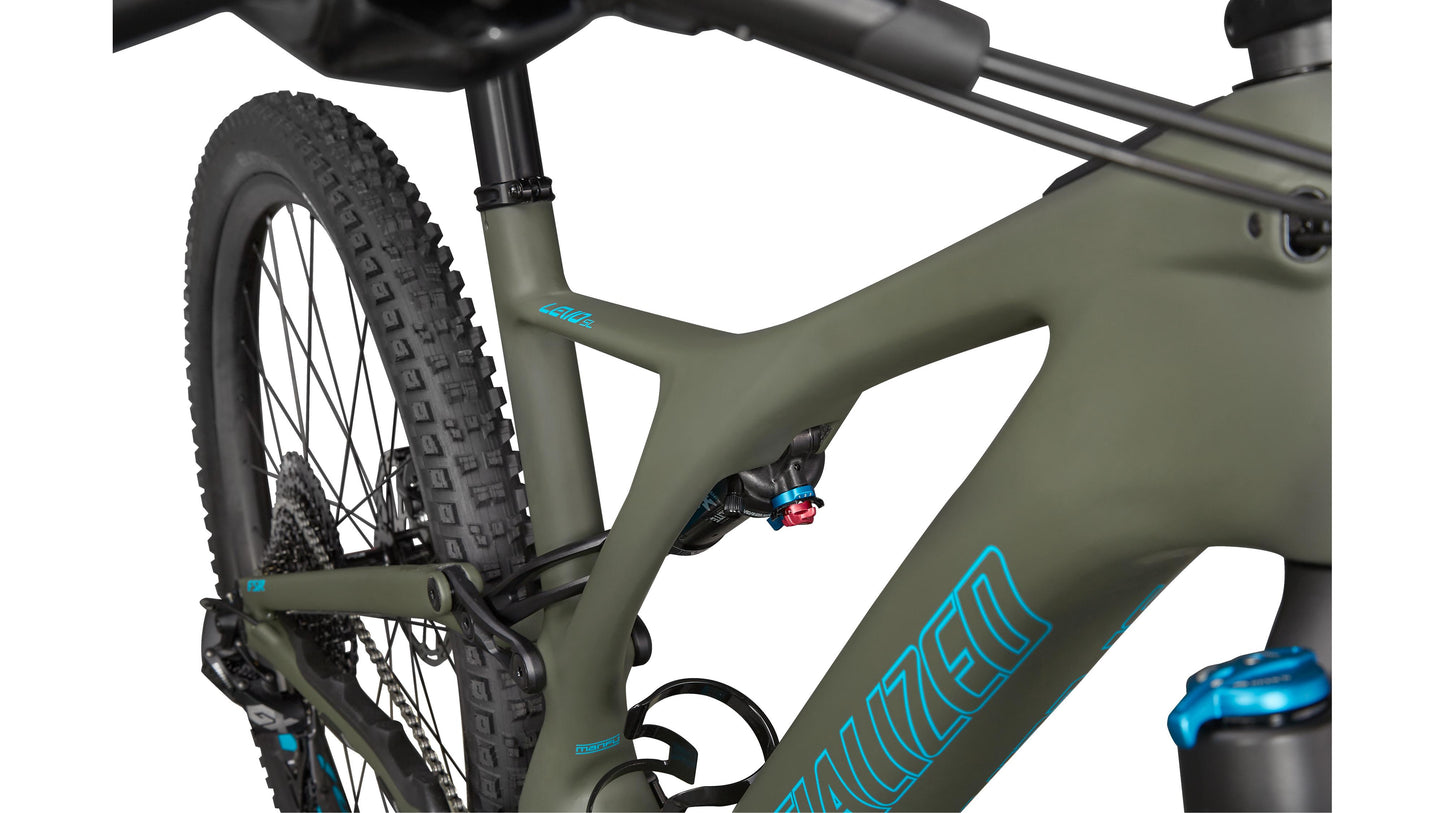

- The Turbo Levo SL looks like a Stumpjumper and, out on the trail, feels like one too. That’s no mistake. We aimed to build a Stumpjumper with a bit more boost to it and that’s exactly what you get—a Sidearm chassis with just the right amount of front-to-rear stiffness and 150mm of smooth, custom-tuned FOX front and rear suspension. To top it all off, we constructed this Turbo Levo SL chassis entirely from our light-yet-strong FACT 11m carbon.

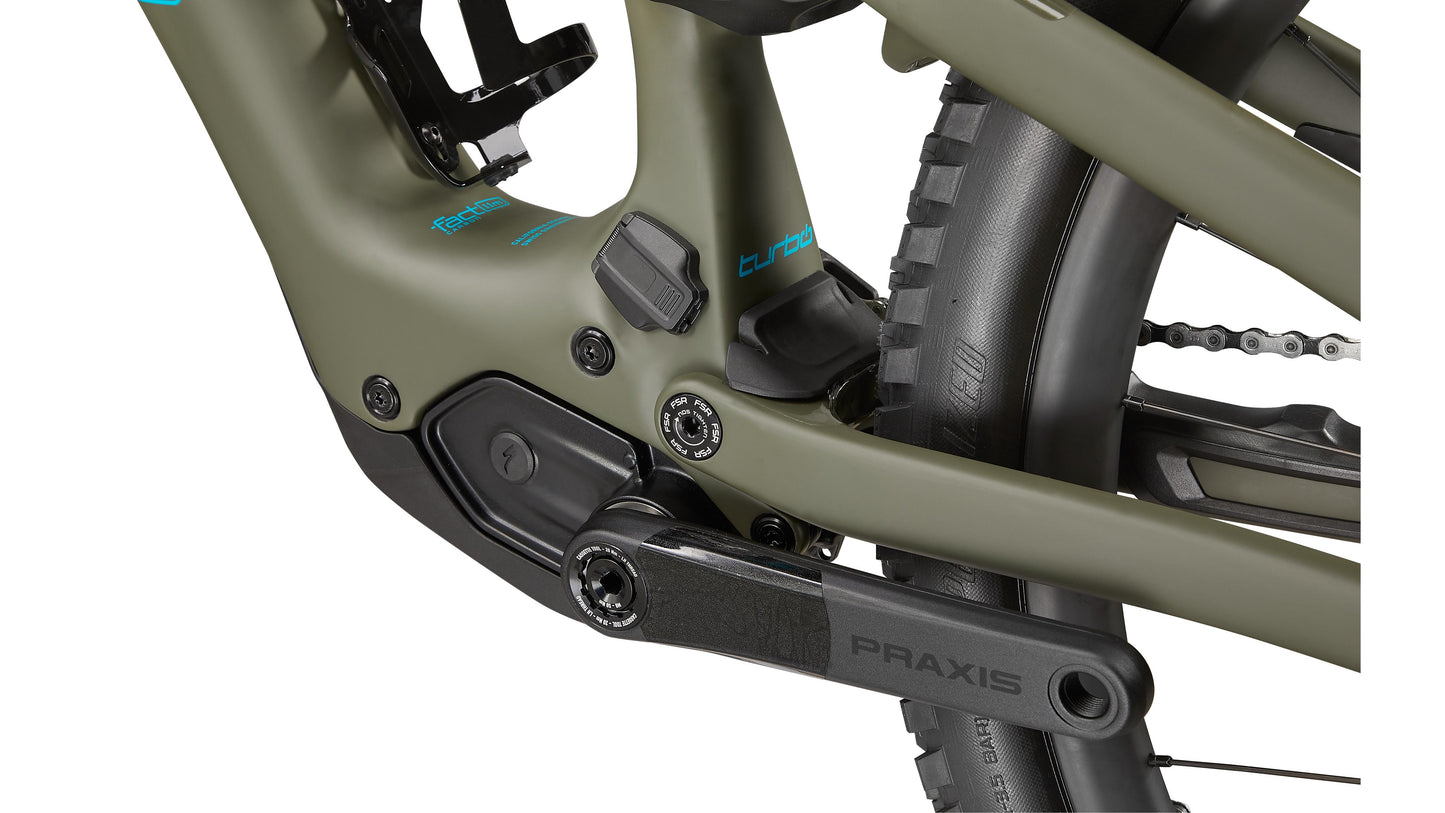

- The lightweight SL 1.1 motor doubles your effort with as much as 240 watts of silent and powerful assistance to your pedals. The motor’s responsive torque curve delivers power perfectly in-tune with your normal riding cadence and leaves no resistance when you’re riding without power assistance.
- Worried about running out of power? No problem. The Turbo Levo SL eats up big miles and long days. And if you’re looking for even more miles, our optional range extender boosts your range by another 50 percent. On top of all that, our Mission Control App can handle battery management automatically, ensuring your battery will last as long as you need it to.
- Assist up to 20 mph / 32 km/h
Component Specifications
| Motor | Specialized SL 1.1, custom lightweight motor |
| Battery | Specialized SL1-320, fully integrated, 320Wh |
| UI Remote | Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote |
| Charger | Custom charger, 48V System w/ SL system charger plug |
| Frame | FACT 11m full carbon, 29 Trail Geometry, Integrated down tube battery, enclosed internal cable, Command Post routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel |
| Seat Binder | Specialized bolt-type, alloy, 38.6mm |
| Fork | FOX Performance 34 FLOAT 29, GRIP damper, 51mm offset, 3-position adjustment, 15x110mm, tapered alloy steerer, 150mm of travel |
| Rear Shock | FOX FLOAT DPS Performance, 3-position adjustment, 52.5x210mm, Rx Trail Tune |
| Shift Levers | SRAM GX Eagle, trigger, 12-speed |
| Rear Derailleur | SRAM GX Eagle, 12-speed |
| Cassette | SRAM XG-1275 Eagle, 12-speed, 10-50t |
| Chain | SRAM GX Eagle, 12-speed |
| Crankset | Praxis Forged/M30 Spindle Interface |
| Chain Rings | SRAM X-Sync Eagle, 94 BCD, 30T |
| Rims | Roval Traverse Carbon 29, hookless carbon, 30mm inner width, hand-built, 2Bliss Ready |
| Front Hub | Roval Traverse Carbon 29, hookless carbon, 30mm inner width, hand-built, 15x110mm spacing, 2Bliss Ready, 28h |
| Rear Hub | DT Swiss 370, 3-Pawl System, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h |
| Spokes | DT Swiss Industry |
| Front Tire | Butcher, GRID TRAIL casing, GRIPTON® compound, 29x2.3" |
| Rear Tire | Eliminator, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.3" |
| Inner Tubes | Standard, Presta valve |
| Front Brake | SRAM G2 RSC, 4-piston caliper, hydraulic disc, 200mm |
| Rear Brake | SRAM G2 RSC, 4-piston caliper, hydraulic disc, 180mm |
| Stem | Specialized Trail, forged alloy, 4-bolt, 5mm rise, 40mm |
| Handlebars | Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 780mm, 31.8mm clamp |
| Grips | Specialized Trail Grips |
| Saddle | Bridge Comp, Hollow Cr-mo rails 155/143 |
| Seatpost | X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SRL LE lever, 34.9mm, S: 125mm, M/L: 150mm, XL: 170mm |
Specialized Turbo Levo SL Expert Carbon - Oak Green / Aqua S
| Bike/Frame Size | S | M | L | XL |
|---|---|---|---|---|
| Stack | 606 mm | 606 mm | 633 mm | 647 mm |
| Reach | 415 mm | 435 mm | 455 mm | 480 mm |
| Chain-Stay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1165 mm | 1185 mm | 1217 mm | 1248 mm |
| Top-Tube Length (horizontal) | 574 mm | 597 mm | 629 mm | 663 mm |
| Bike Stand-Over Height | 787 mm | 790 mm | 807 mm | 814 mm |
| Seat-Tube Length | 390 mm | 410 mm | 455 mm | 505 mm |
| Seat-Tube Angle | 75.3° | 75° | 74.6° | 74.2° |
| Head-Tube Length | 95 mm | 95 mm | 125 mm | 140 mm |
| Head-Tube Angle | 66° | 66° | 66° | 66° |
| B-B Height | 348 mm | 348 mm | 348 mm | 348 mm |
| B-B Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Trail | 111 mm | 111 mm | 111 mm | 111 mm |
| Fork Length (full) | 560 mm | 560 mm | 560 mm | 560 mm |
| Fork Rake/Offset | 51 mm | 51 mm | 51 mm | 51 mm |
| Front-Center | 729 mm | 749 mm | 781 mm | 812 mm |
