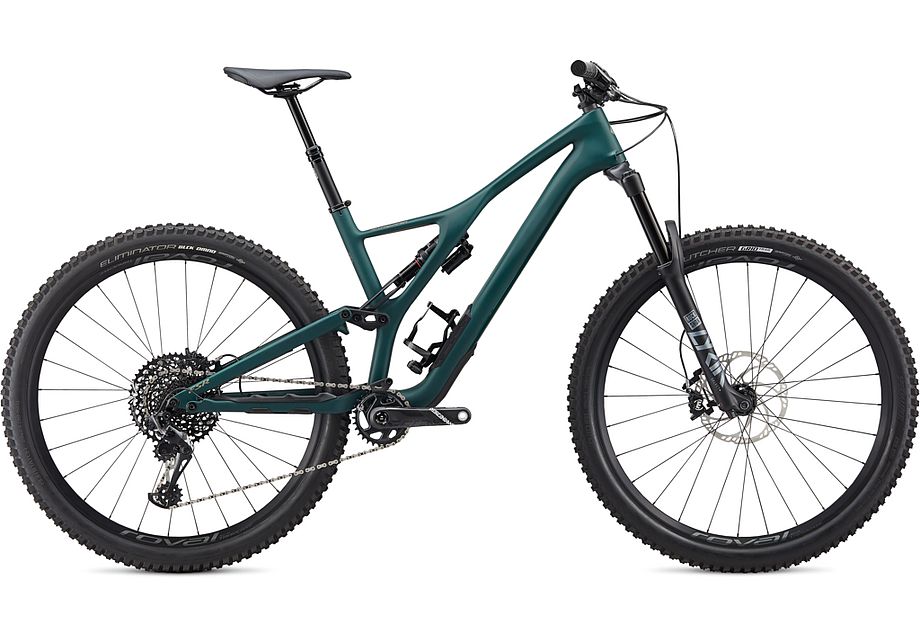

Specialized Stumpjumper St Ltd Carbon Downieville 29 Features
Our ode to Downieville�one of the greatest riding spots on earth. This limited-edition ST model is the perfect choice for long, grueling rides that demand a quick, efficient�and burly�machine. Lightweight carbon 29er chassis, custom suspension, powerful disc brakes, and more. Since the trails around Downieville inspired this limited-edition model, we're donating a portion of the proceeds from every one of these bikes to the Sierra Buttes Trail Stewardship, a group whose tireless work has made Downieville and the surrounding area such an amazing place to ride.
THE ULTIMATE TRAIL BIKE
The innovative sidearm frame design makes a lighter, better-handling bike. By directly connecting all three mounting points of the rear-end and shock to the frame, we've increased both stiffness and performance over bumps. End result? Total control.
A FEATHERWEIGHT BRAWLER
This limited-edition ST model combines the nimble, carbon Stumpjumper ST chassis with longer-travel, RockShox suspension, precise SRAM XX1/X01 Eagle drivetrain, and massive stopping power. It's a very cool, and very rare, flavor of Stumpjumper.
BRILLIANTLY CUSTOM
� A bomber RockShox Lyrik Select Plus fork dishes out 140 millimeters of travel.
� 130-millimeters of supple rear suspension via a RockShox Super Deluxe Select Plus.
� Big stopping power courtesy of Magura MT5 4-piston discs and massive rotors.
Component Specifications
| Frame | FACT 11m, full carbon chassis and rear end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 120mm of travel |
| Seat Binder | Specialized bolt-type, alloy, 38.6mm |
| Fork | RockShox Lyrik Select Plus, DebonAir, rebound adjust, low-speed compression adjust, tapered steerer, 51mm offset, 15mm Maxle® Stealth thru-axle, 15x110mm Boost™, 140mm of travel |
| Rear Shock | RockShox Super Deluxe Select Plus, Rx Trail Tune, 3-position low-speed compression adjust, rebound adjust, 190x45mm |

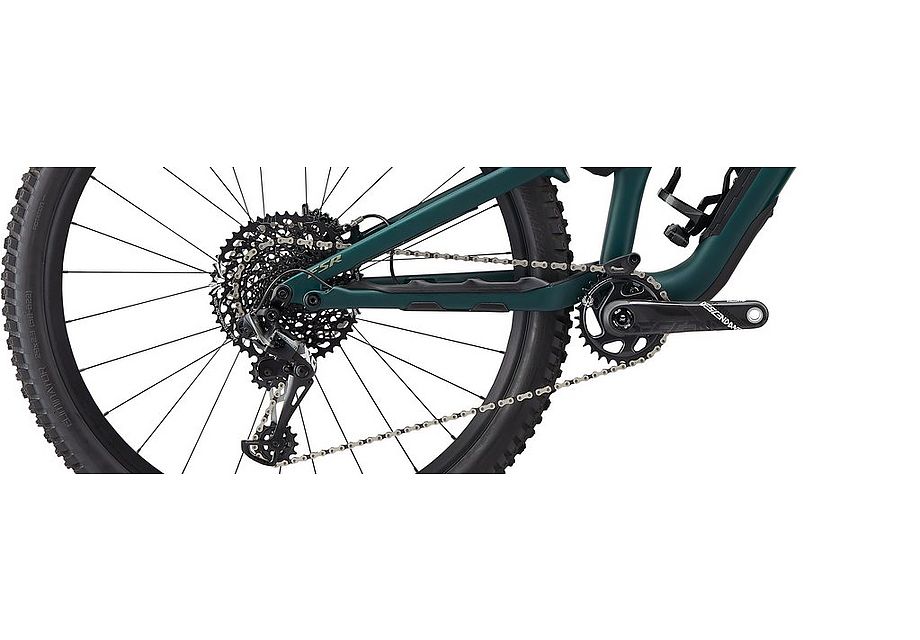

| Shift Levers | SRAM X01 Eagle, trigger, 12-speed |
| Rear Derailleur | SRAM X01 Eagle, 12-speed |
| Cassette | SRAM XG-1275 Eagle, 12-speed, 10-50t |
| Chain | SRAM GX Eagle, 12-speed |

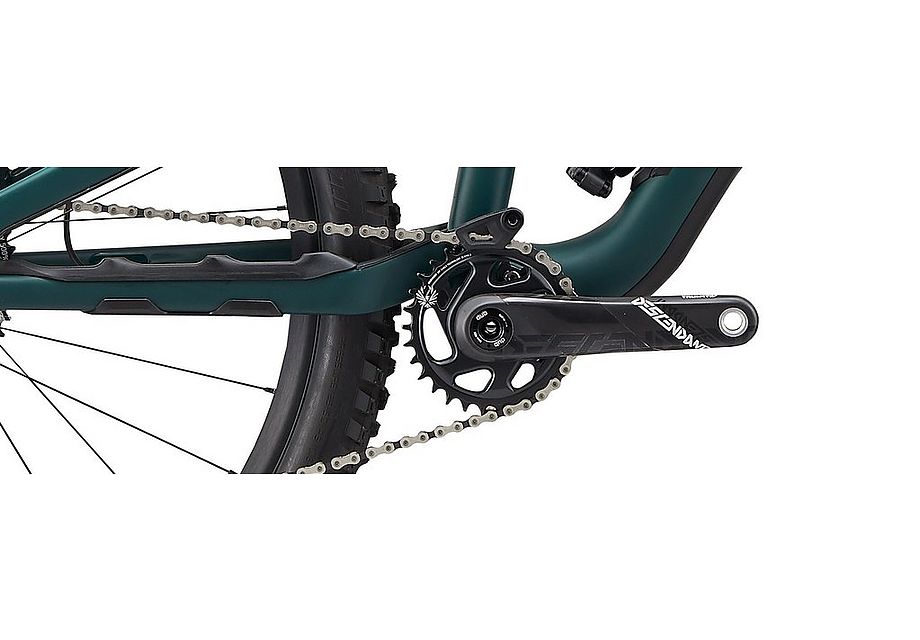

| Crankset | SRAM Decsendant Carbon, Boost™ 148, DUB, 170mm crankarm |
| Bottom Bracket | SRAM DUB, BSA 73mm, Threaded |
| Rims | Roval Traverse 29, hookless alloy, 30mm inner width, 2Bliss Ready |
| Front Hub | Roval Traverse, sealed cartridge bearings, 15mm thru-axle, 110mm spacing, 28h |
| Rear Hub | Roval Traverse, DT Swiss 3-Pawl System, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h |
| Spokes | DT Competition Race |
| Front Tire | Butcher, GRID TRAIL casing, GRIPTON® compound, 29x2.3" |
| Rear Tire | Eliminator, BLCK DMND Casing, 2Bliss Ready, 29x2.3" |
| Inner Tubes | Standard, Presta valve |
| Front Brake | Magura MT5, 4-piston caliper, hydraulic disc, 200mm |
| Rear Brake | Magura MT5, 4-piston caliper, hydraulic disc, 180mm |
| Stem | Specialized Trail, forged alloy, 4-bolt, 5mm rise, 40mm |
| Handlebars | Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 780mm, 31.8mm clamp |
| Grips | Deity, Knuckleduster, Black |
| Saddle | Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm |
| Seatpost | RockShox Reverb Stealth, 30.9, 1X remote, (S: 125mm, M: 150mm, L/XL:175mm) |
Size Guide: Specialized Stumpjumper St Ltd Carbon Downieville 29
