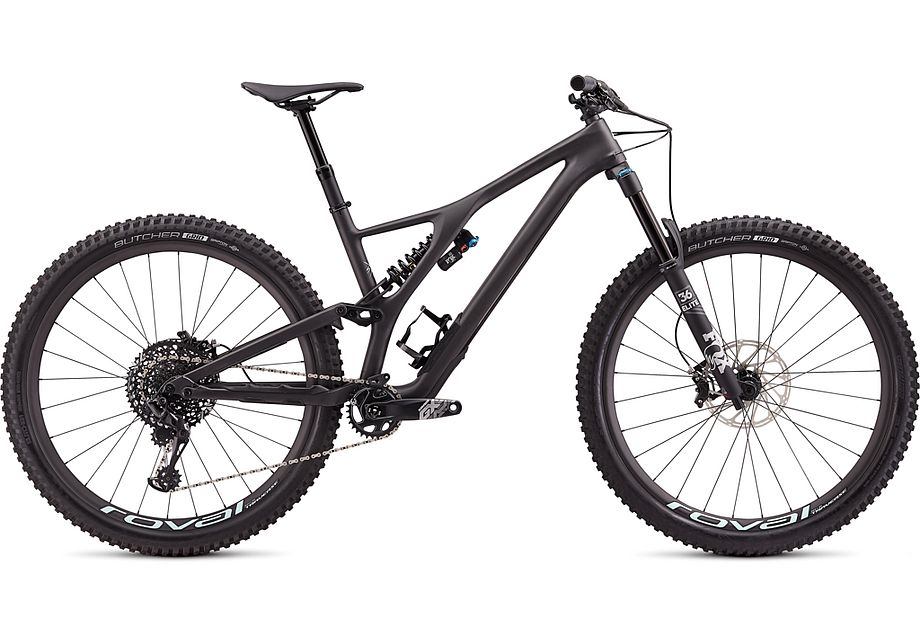

Specialized Stumpjumper Pro Carbon Evo 29 Features
If you're on the hunt for the perfect shred sled�you know, a "trail bike" that you can take down DH trails, huck off blind drops, or plow through the rowdiest of rock gardens�you'll find yourself right at home on the Stumpjumper EVO Pro 29.
THE ULTIMATE TRAIL BIKE
The innovative sidearm frame design makes a lighter, better-handling bike. By directly connecting all three mounting points of the rear-end and shock to the frame, we�ve increased both stiffness and performance over bumps.
EVO IS FOR SHREDDERS
Stumpy EVOs aren�t "normal" trail bikes�they�re built to get gnarly, simple as that. With their slacked-out front-end and longer top tube, EVO models have heavier steering and exceptional front-end traction that beg you to do cutties and boost every lip. Get rowdy.
� Lightweight, carbon chassis with aggressive geometry and 140mm of rear suspension. p>
� FOX 36 Performance Elite fork erases hits�big and small.
� FOX FLOAT DHX2 Performance Elite rear shock boasts stellar big-hit performance.
Component Specifications
| Frame | FACT 11m full carbon frame, asymmetrical design, 29 style-specific EVO Trail Geometry, SWAT™ Door integration, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 140mm of travel |
| Seat Binder | Specialized bolt-type, alloy, 38.6mm |
| Fork | FOX FLOAT 36 Performance Elite, GRIP2 damper, 15x110mm, 44mm offset, 150mm of travel |
| Rear Shock | FOX DHX2 Performance Elite, Rx Trail Tune, 2-position lever, 210x50mm, S2-500lb spring, S3-550lb spring |
| Shift Levers | SRAM GX Eagle, trigger, 12-speed |
| Rear Derailleur | SRAM GX Eagle, 12-speed |
| Cassette | SRAM XG-1275 Eagle, 12-speed, 10-50t |
| Chain | SRAM GX Eagle, 12-speed |
| Crankset | SRAM GX Eagle, DUB, 170mm |
| Bottom Bracket | SRAM DUB, BSA 73mm, Threaded |
| Rims | Roval Traverse Carbon 29, hookless carbon, 30mm inner width, hand-built 2Bliss Ready, 28h |
| Front Hub | Specialized, sealed cartridge bearings, 15x110mm spacing, 28h |
| Rear Hub | DT Swiss 350, Star Ratchet, 36t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h |
| Spokes | DT Swiss Industry |
| Front Tire | Butcher, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.6" |
| Rear Tire | Butcher, GRID TRAIL casing, GRIPTON® compound, 29x2.3" |
| Inner Tubes | Standard, Presta valve |
| Front Brake | SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm |
| Rear Brake | SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm |
| Stem | Specialized Trail, forged alloy, 4-bolt, 5mm rise, 40mm |
| Handlebars | Specialized, 7050 alloy, 6-degree upsweep, 8-degree backsweep, 27mm rise, 800mm width |
| Grips | Deity, Knuckleduster, Black |
| Saddle | Body Geometry Phenom Expert, hollow titanium rails, carbon fiber base, 143mm |
| Seatpost | Command Post IRcc, 16-position micro-height adjustable, two-bolt head, bottom mount cable routing, remote SRL lever, 34.9mm,160mm of travel |
Size Guide: Specialized Stumpjumper Pro Carbon Evo 29
