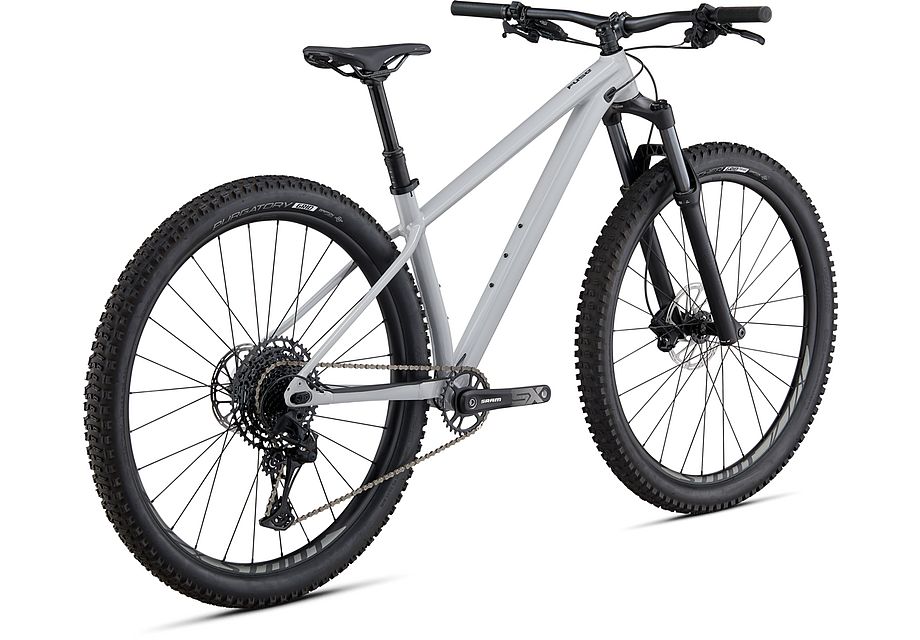

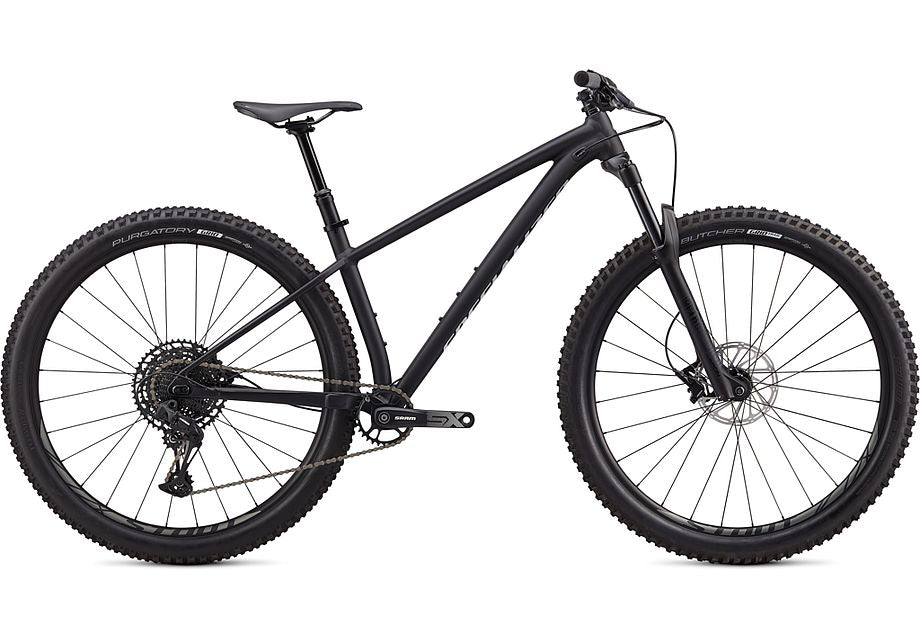

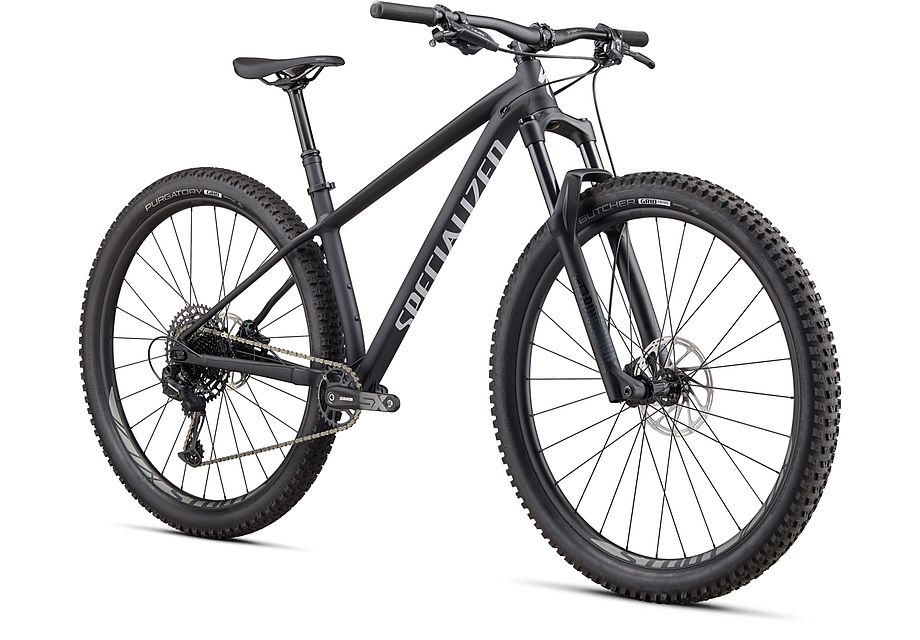

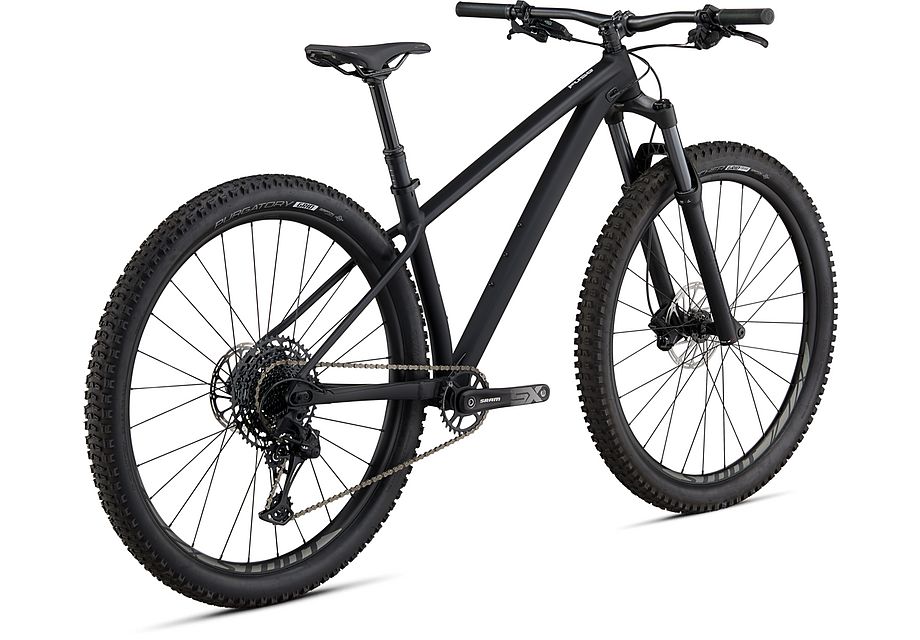

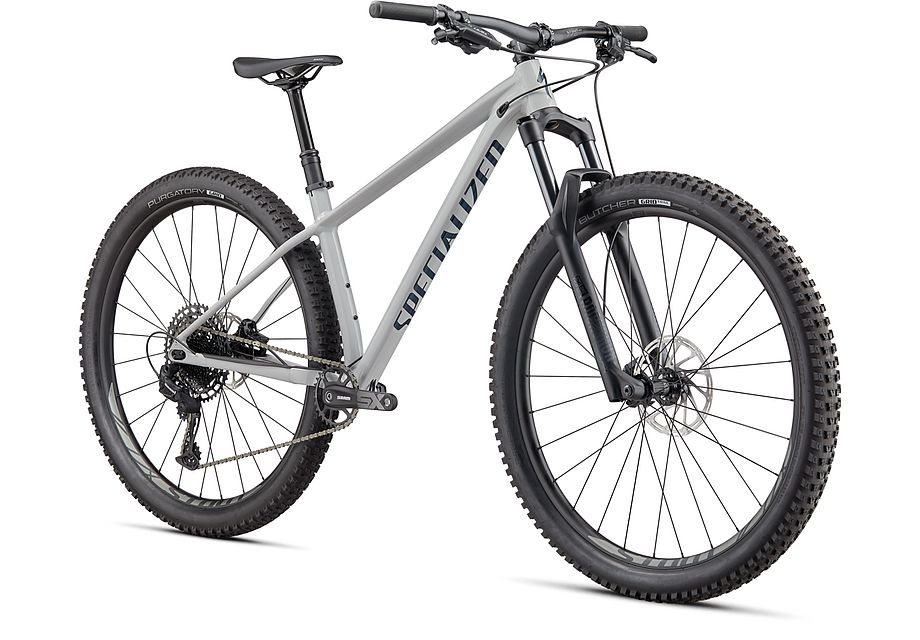

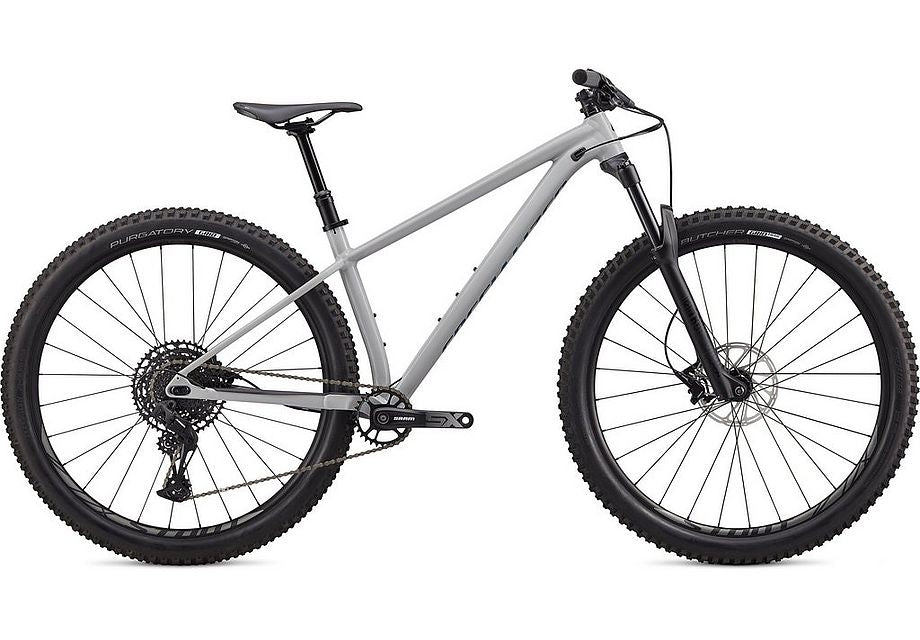

2020 Specialized Fuse Comp 29 Features
The Fuse Comp 29 punches way above its weight class thanks to a light-yet-burly M4 aluminum chassis, frame geometry that lends the bike both playfulness and capability, and parts that withstand a serious flogging.
ROWDY BY DESIGN
The Fuse is loaded with smart touches. The wide-diameter down tube boosts stiffness. The low-slung top tube improves maneuverability. And while this Fuse’s 29x2.6 tires give it a precise, nimble feel, the M4 aluminum frame is also compatible with 27.5+ wheels and tires.
PERFECTLY DIALED
If you fail to nail the geometry, advanced materials and innovative designs still amount to nothing on the trail. Fuse gets it right. The long reach gives you even weight distribution. The slack head angle lends confidence on sketchy descents. The steep seat angle makes quick work of steep climbs.
BUILT TO SHRED
• 130-millimeters of plush suspension courtesy of a RockShox Recon RL fork.
• Highlights include powerful SRAM Level disc brakes and a TransX dropper post.
• SX Eagle 12-speed drivetrain gives you single-ring simplicity and gearing to spare.
Component Specifications
| Frame | Specialized M4 Premium Aluminum, 148mm thru-axle, adjustable dropout, SS compatible, tapered head tube, internal cable routing |
| Seat Binder | Alloy, 38.6mm |
| Fork | RockShox Recon RL, air spring, 46mm offset, 130mm of travel |
| Shift Levers | SRAM SX Eagle, trigger, 12-speed |
| Rear Derailleur | SRAM SX Eagle, 12-speed |
| Cassette | SRAM PG-1210 Eagle, 11-50t |
| Chain | SRAM SX Eagle, 12-speed |
| Crankset | SRAM SX Eagle, 170/175mm |
| Bottom Bracket | SRAM Powerspline |
| Rims | Alloy, disc only, double-wall, 29mm internal width, 28h, tubeless ready |
| Front Hub | Specialized, sealed cartridge bearings, 15x110mm thru-axle, 28h |
| Rear Hub | Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h |
| Spokes | Stainless, 14g |
| Front Tire | Butcher, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.6" |
| Rear Tire | Purgatory, GRID, GRIPTON® compound, 2Bliss Ready, 29x2.6" |
| Inner Tubes | Standard, Presta valve |
| Front Brake | SRAM Level, hydraulic disc, 200/180mm |
| Rear Brake | SRAM Level, hydraulic disc, 180/160mm |
| Stem | Stout 3D-forged alloy, 31.8mm, 6-degree rise |
| Handlebars | Stout Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm / 780mm width, 31.8mm |
| Grips | Specialized Trail Grips |
| Saddle | Bridge Comp, Hollow Cr-mo rails, 155/143mm |
| Seatpost | TranzX dropper, 34.9mm, XS-S: 100mm, M: 120mm, L/XL: 150mm Travel |
Size Guide: 2020 Specialized Fuse Comp 29
