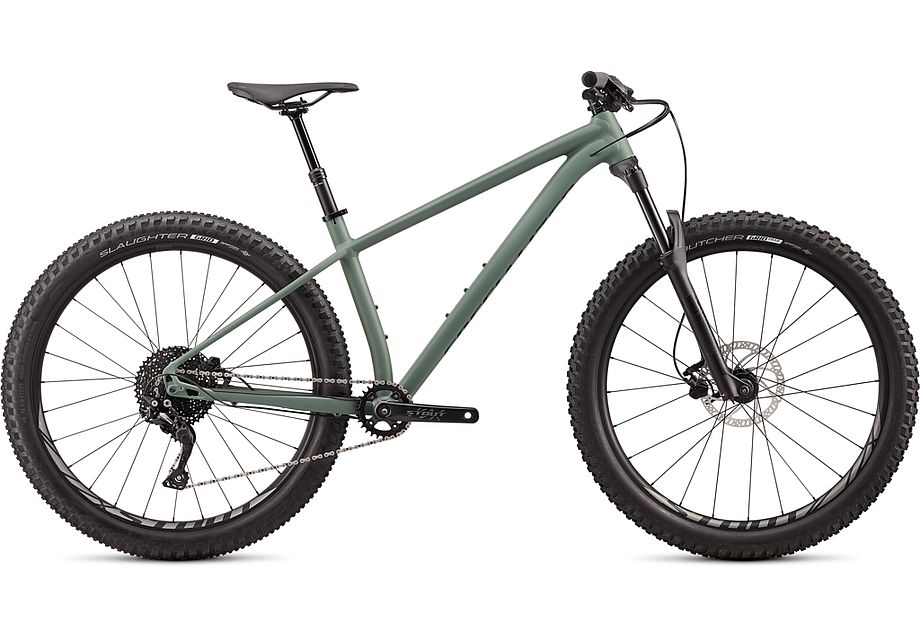

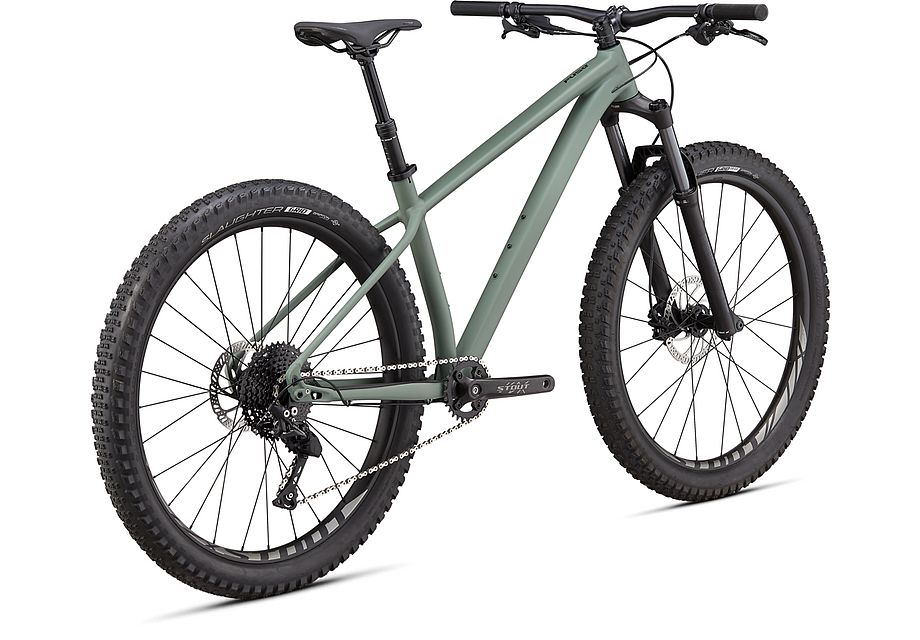

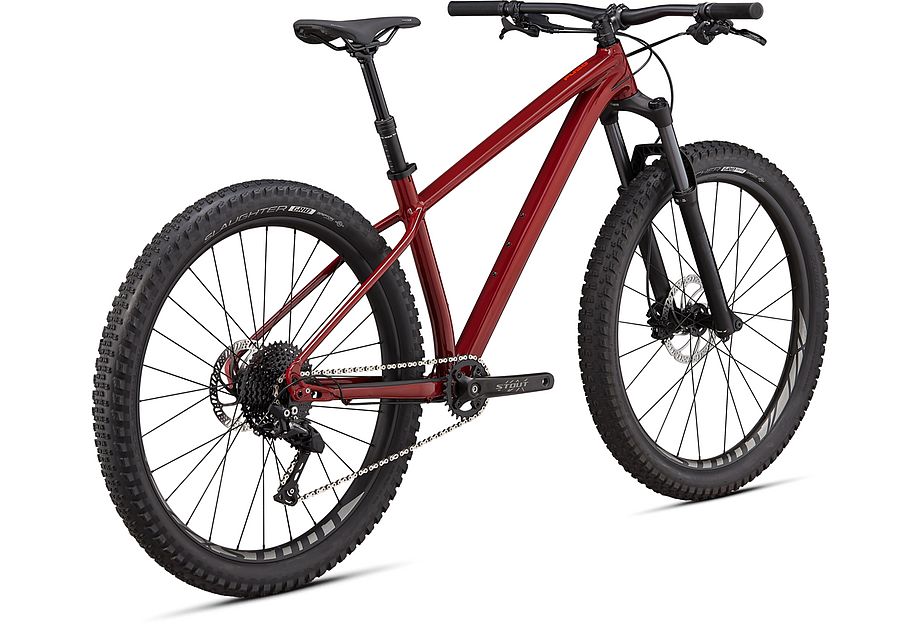

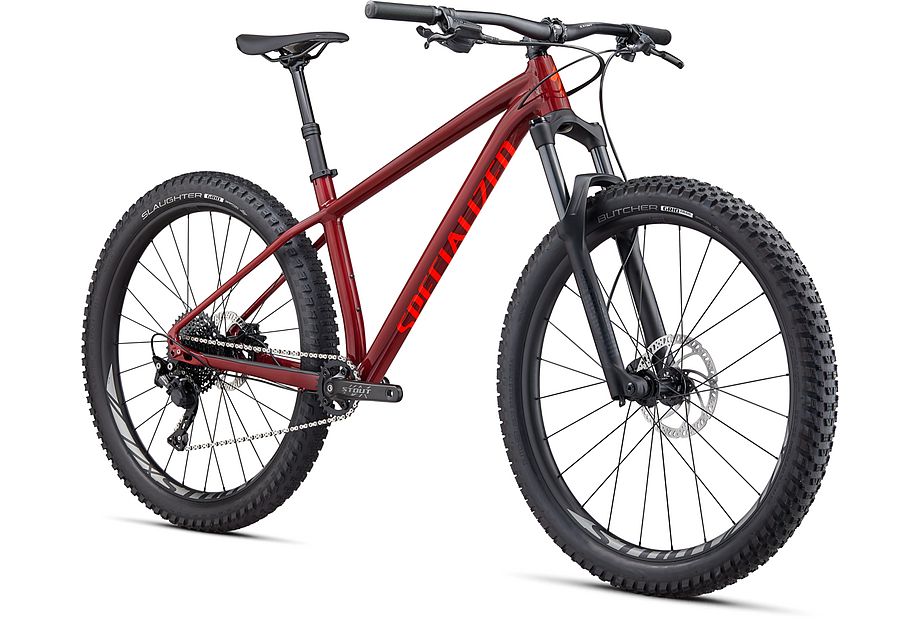

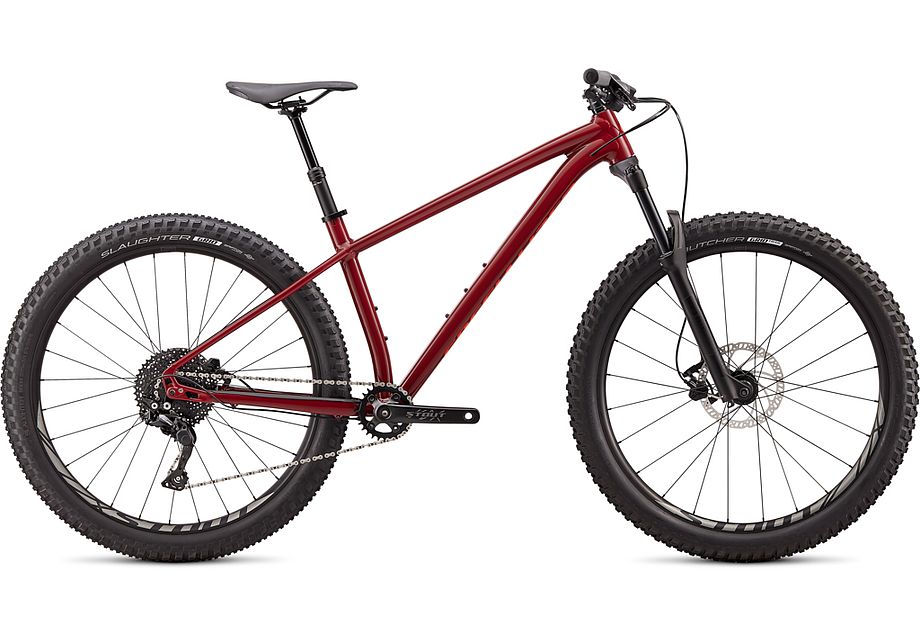

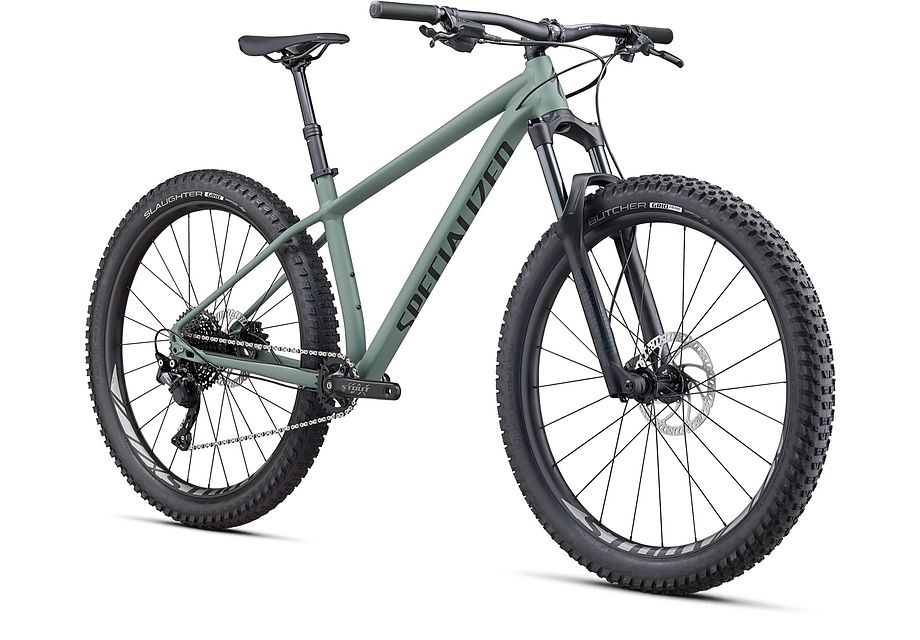

2020 Specialized Fuse 27.5 Features
Here's proof you don't need tons of suspension travel to tackle challenging trails. Equipped with an all-new, longer, lower and rowdier chassis, we've added 27.5x2.8 wheels and tires to the Fuse 27.5 to create a bike that lets you hit rocks and roots at speed with absolute control.
ROWDY BY DESIGN
The Fuse is loaded with smart touches. The wide-diameter down tube boosts stiffness. The low-slung top tube improves maneuverabilty on tight trails. And while this Fuse's 27.5x2.8 tires give it tons of traction and stability.
PERFECTLY DIALED
Fail to nail the geometry and advanced designs will still amount to nothing on the trail. Fuse gets it right. The long reach gives you even weight distribution. The slack head angle lends confidence on sketchy descents. The steep seat angle makes quick work of steep climbs.
SMART PARTS PICK
• Plus-size tires provide insane traction and stability on the choppiest trails.
• 130-millimeters of suspension courtesy of a RockShox Judy Silver TK fork.
• Highlights include hydraulic disc brakes, a dropper post, and single-ring drivetrain.
Component Specifications
| Frame | Specialized A1 Aluminum, 148mm thru-axle, tapered head tube, internal cable routing |
| Seat Binder | Alloy, 38.6mm |
| Fork | RockShox Judy Silver TK, air spring, 42mm offset, 130mm of travel |
| Shift Levers | Shimano Deore, 10-speed |
| Rear Derailleur | Shimano Deore, Shadow Plus, GS cage, 10-speed |
| Cassette | SunRace, 11-42t, 10-speed |
| Chain | KMC X10, 10-speed w/ reusable Missing Link™ |
| Crankset | Stout, forged alloy, 76mm BCD |
| Bottom Bracket | Square taper, 73mm, internal bearings |
| Rims | Stout Trail 27.5, 38mm internal width, disc-specific |
| Front Hub | Stout, alloy, sealed cartridge bearings, 15x110mm thru-axle, 24h |
| Rear Hub | Specialized, sealed cartridge bearings, 12x148mm thru-axle, 28h |
| Spokes | Stainless, 14g |
| Front Tire | Butcher GRID TRAIL, GRIPTON® compound, 2Bliss Ready, 27.5x2.8" |
| Rear Tire | Slaughter GRID TRAIL, GRIPTON® compound, 2Bliss Ready, 27.5x2.8" |
| Inner Tubes | Presta, 40mm valve |
| Front Brake | Tektro HD-M275, hydraulic disc, 180/160mm |
| Rear Brake | Tektro HD-M275, hydraulic disc, 160mm |
| Stem | Stout 3D-forged alloy, 31.8mm, 6-degree rise |
| Handlebars | Stout Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm / 780mm width, 31.8mm |
| Grips | Specialized Trail Grips |
| Saddle | Body Geometry Bridge Saddle, steel rails |
| Seatpost | TranzX Dropper, 30.9mm, XS-S: 100mm, M-XL: 120mm |
Size Guide: 2020 Specialized Fuse 27.5
