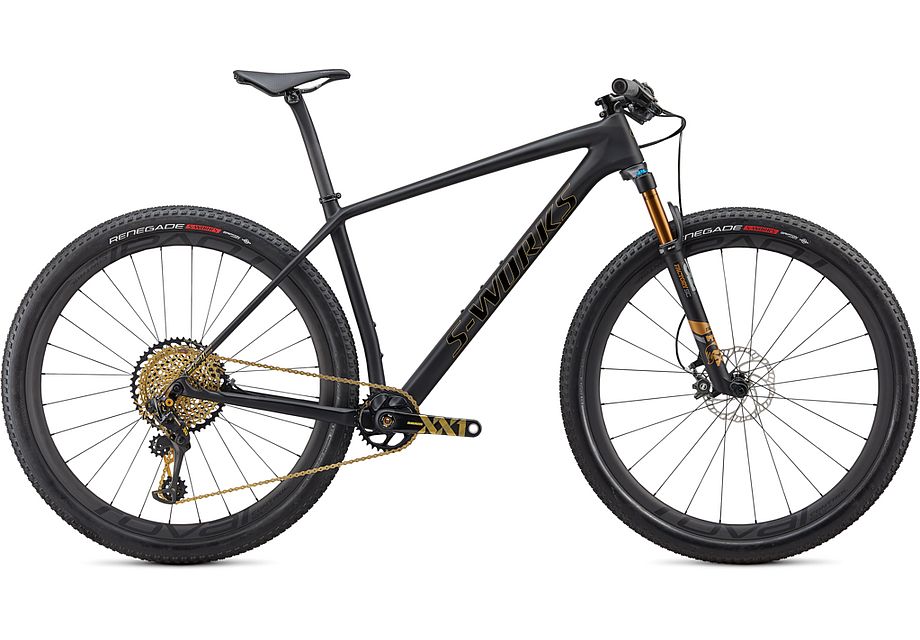

Epic Ht S-Works Carbon Ultralight 29 Features
Think of the Ultralight edition of the Epic Hardtail as a science experiment�a lesson in just how crazy light and capable you could make a race bike. We pulled out all the stops on this one and the end result is your personal rocket ship to the top step of the winner�s podium.
THE GAME CHANGER
The S-Works Epic Hardtail bears the lightest production frame to date. Impressive, yes, but it�s much more than that. We�ve also created the most capable and comfortable cross-country machine ever, because you�re not fast if you�re being pummeled by the trail. It�s a game changer. p>
MORE CONTROL MEANS MORE SPEED
Looking to ride faster? Who isn�t? That�s why we relaxed its head angle and lengthened the reach. The Epic retains a short wheelbase for deft handling yet offers more predictable steering and a centered rider position for increased control and speed on any trail.
� The lightest and most capable carbon hardtail frame ever created.
� FOX Factory Step-Cast 32 fork gets all the trimmings, including a Fit4 damper and Kashima coating.
� SRAM XX1 Eagle drivetrain gives you massive gear range and quick, precise shifts.
Component Specifications
| Frame | S-Works FACT 12m, XC Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, |
| Seat Binder | Specialized Alloy, 34.9mm, Titanium bolt |
| Fork | FOX Factory Step-Cast 32, Fit4 damper, Kashima, Boost™, 44mm offset, 100mm of travel, Kabolt |
| Shift Levers | SRAM XX1 Eagle, trigger, 12-speed |
| Rear Derailleur | SRAM XX1 Eagle, 12-speed |
| Cassette | SRAM XG-1299 Eagle, 10-50t |
| Chain | SRAM XX1 Eagle, 12-speed |
| Crankset | SRAM XX1 Eagle, 148 DUB, 170/175mm, 32T |
| Bottom Bracket | SRAM DUB, BSA 73mm, Threaded |
| Rims | Roval Control SL 29, SRAM XX1, 148mm spacing, tubeless ready |
| Front Hub | Roval Control SL, sealed cartridge bearings, 15mm thru-axle, 110mm spacing, 24h |
| Rear Hub | Roval Control SL, DT Swiss Star Ratchet, 54t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h |
| Spokes | DT Swiss Competition Race |
| Front Tire | S-Works Renegade, S-Works Casing, GRIPTON® compound, 120 tpi, 2Bliss Ready, 29x2.1" |
| Rear Tire | S-Works Renegade, S-Works Casing, GRIPTON® compound, 120 TPI, 2Bliss Ready, 29x2.1" |
| Inner Tubes | Presta, 60mm valve |
| Front Brake | Magura MT8 SL, Hydraulic Disc |
| Rear Brake | Magura MT8 SL, Hydraulic Disc |
| Stem | S-Works SL, alloy, titanium bolts, 6-degree rise |
| Handlebars | S-Works Carbon XC Mini Rise, 6-degree upsweep, 8-degree backsweep, 10mm rise, 760mm, 31.8mm |
| Grips | ODI Vapor F-1 Series, slip-on |
| Saddle | Body Geometry S-Works Power Arc, carbon fiber rails, carbon fiber base, 143mm |
| Seatpost | S-Works FACT carbon, 10mm setback, 30.9mm |
Size Guide: Epic Ht S-Works Carbon Ultralight 29
