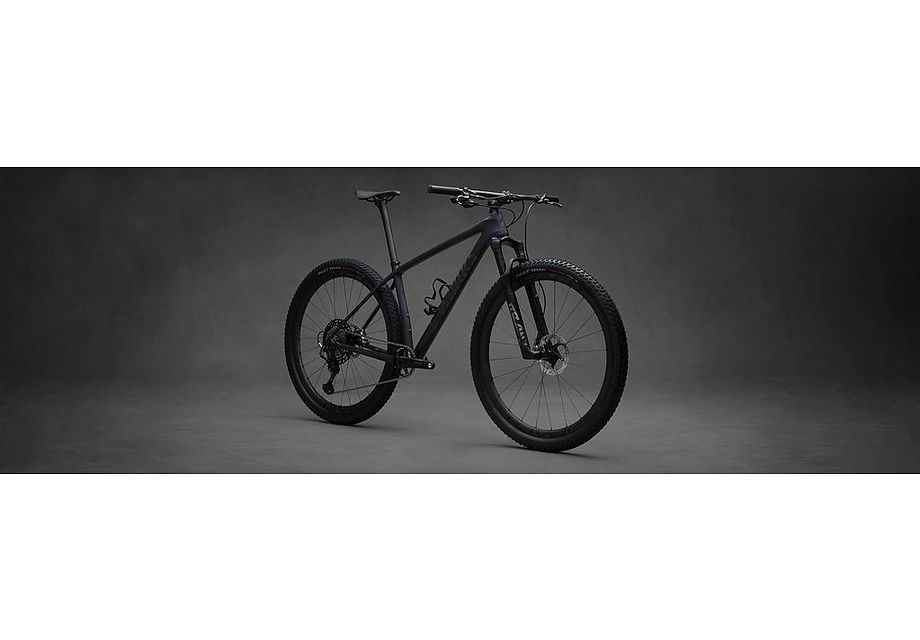

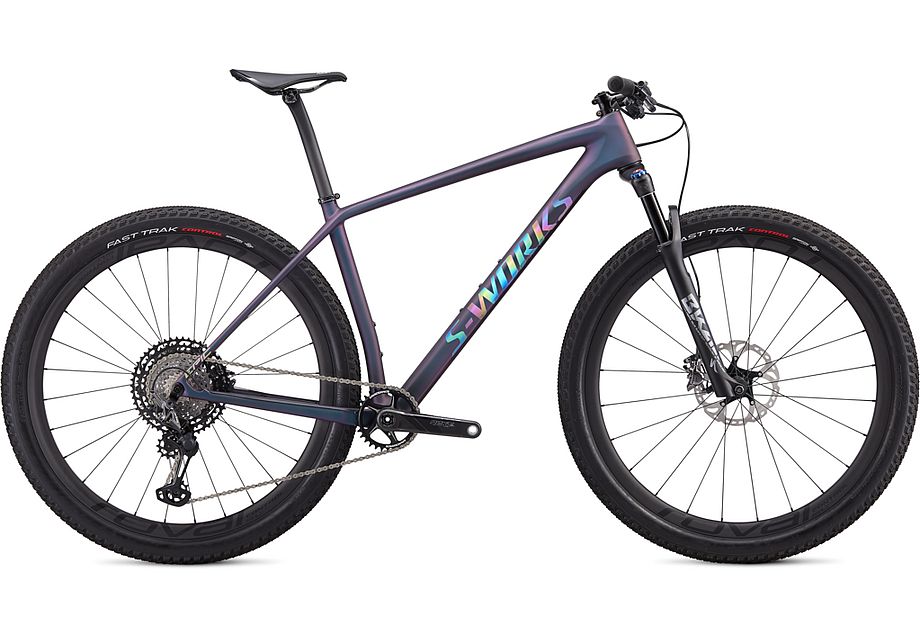

Epic Ht S-Works Carbon Shimano 29 Features
This XTR-clad version of the S-Works Epic Hardtail bears the lightest production chassis on earth. Tuned for comfort and endowed with thoroughly modern geometry, it�s also the most capable racing platform ever created. It�s your ticket to the podium.
THE GAME CHANGER
The S-Works Epic Hardtail bears the lightest production frame to date. Impressive, yes, but it�s much more than that. We�ve also created the most capable and comfortable cross-country machine ever, because you�re not fast if you�re being pummeled by the trail. It�s a game changer. p>
MORE CONTROL MEANS MORE SPEED
Looking to ride faster? Who isn�t? That�s why we relaxed its head angle and lengthened the reach. The Epic retains a short wheelbase for deft handling yet offers more predictable steering and a centered rider position for increased control and speed on any trail.
� The lightest and most capable carbon hardtail frame ever created.
� Full Shimano XTR 12-speed drivetrain and disc brakes.
� Ultralight and reliable Roval Control SL carbon wheelset.
Component Specifications
| Frame | S-Works FACT 12m, XC Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, |
| Seat Binder | Specialized Alloy, 34.9mm, Titanium bolt |
| Fork | RockShox SID Brain Ultimate, top-adjust Brain Fade, tapered carbon crown and steerer, 15x110mm Maxle® Stealth thru-axle, 42mm offset, 100mm of travel |
| Shift Levers | Shimano XTR M9100, 12-speed |
| Rear Derailleur | Shimano XTR M9100, 12-speed, Shadow Plus |
| Cassette | Shimano XTR M9100, 12-speed, 10-51t |
| Chain | Shimano XTR M9100, 12-speed w/ quick link |
| Crankset | Race Face Next SL, 170/175mm |
| Bottom Bracket | Threaded, 30mm spindle |
| Rims | Roval Control SL, hookless carbon, 25mm internal width, tubeless-ready, hand-built |
| Front Hub | Roval Control SL, sealed cartridge bearings, 15mm thru-axle, 110mm spacing, 24h |
| Rear Hub | Roval Control SL, DT Swiss Star Ratchet, 54t engagement, DT Swiss Microspline driver body, 12mm thru-axle, 148mm spacing, 28h |
| Spokes | DT Swiss Competition Race |
| Front Tire | Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3" |
| Rear Tire | Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3" |
| Inner Tubes | Presta, 60mm valve |
| Front Brake | Shimano XTR Race M-9100 |
| Rear Brake | Shimano XTR Race M-9100 |
| Stem | S-Works SL, alloy, titanium bolts, 6-degree rise |
| Handlebars | S-Works Carbon XC Mini Rise, 6-degree upsweep, 8-degree backsweep, 10mm rise, 760mm, 31.8mm |
| Grips | Specialized Trail Grips |
| Saddle | Body Geometry S-Works Power, carbon fiber rails, carbon fiber base, 143mm |
| Seatpost | S-Works FACT carbon, 10mm setback, 30.9mm |
Size Guide: Epic Ht S-Works Carbon Shimano 29
