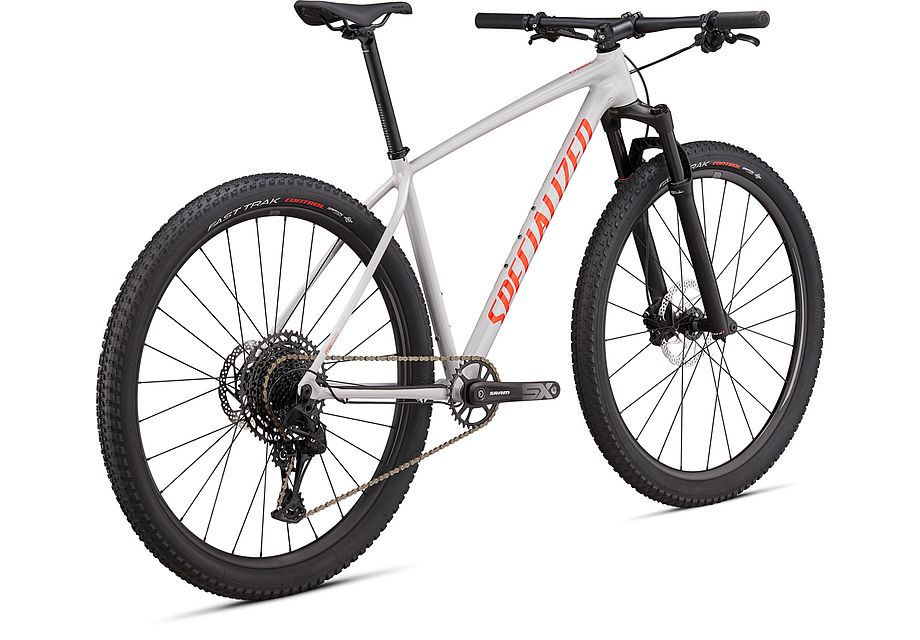

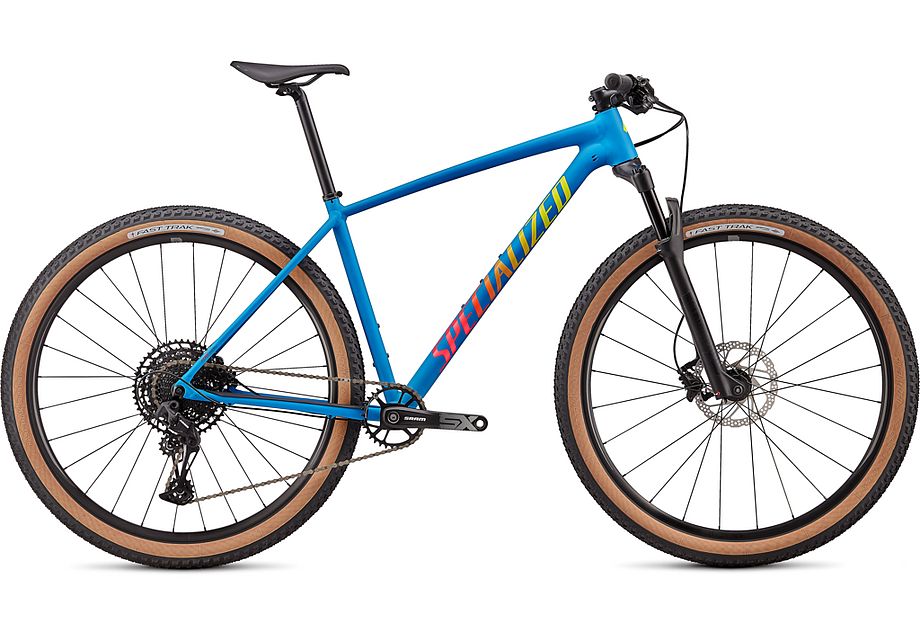

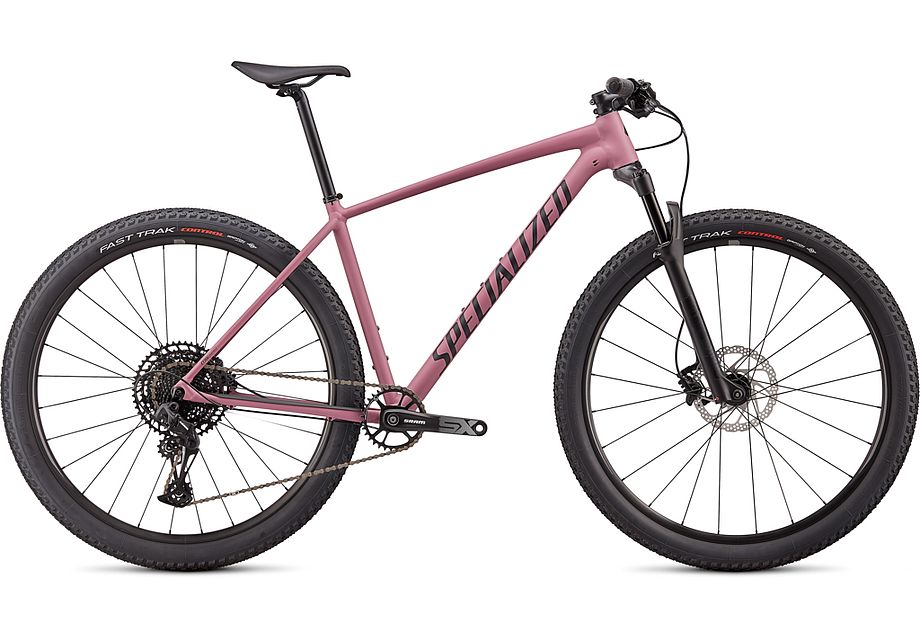

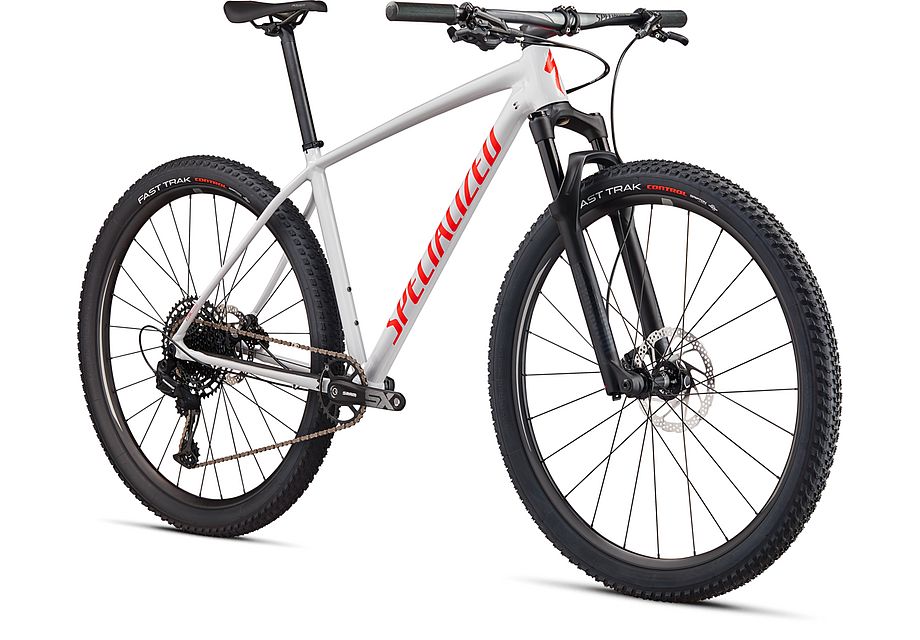

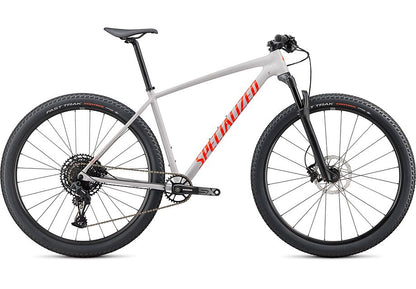

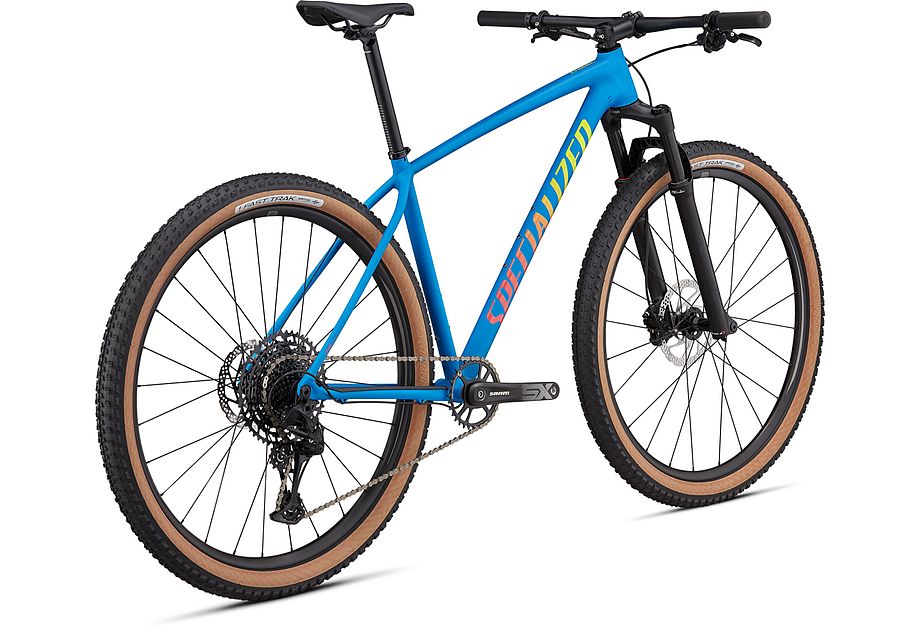

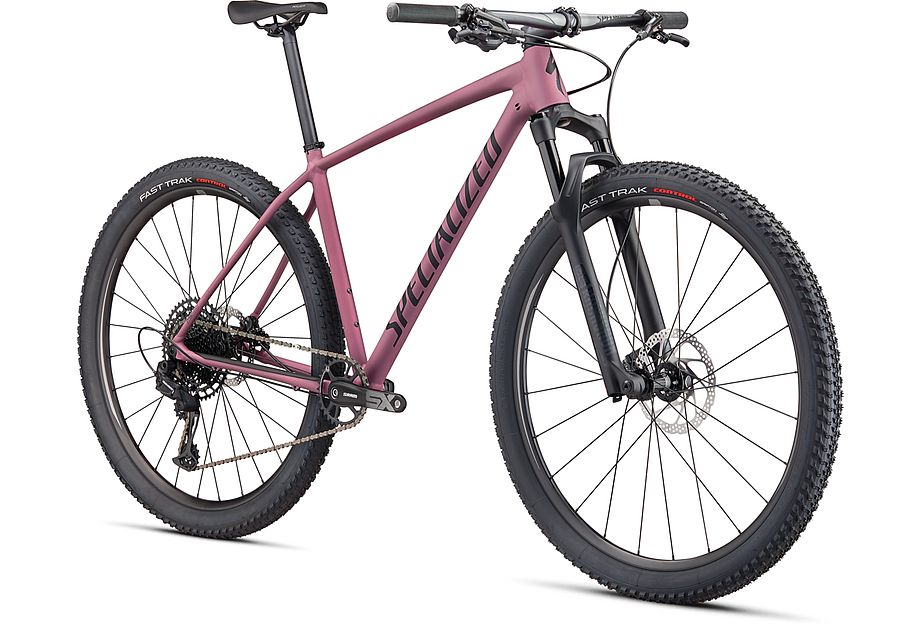

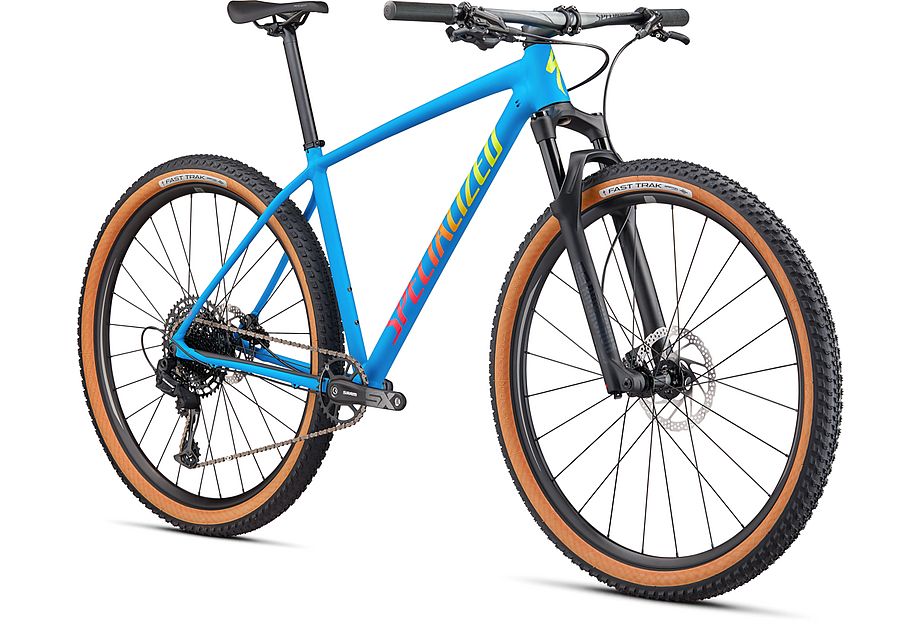

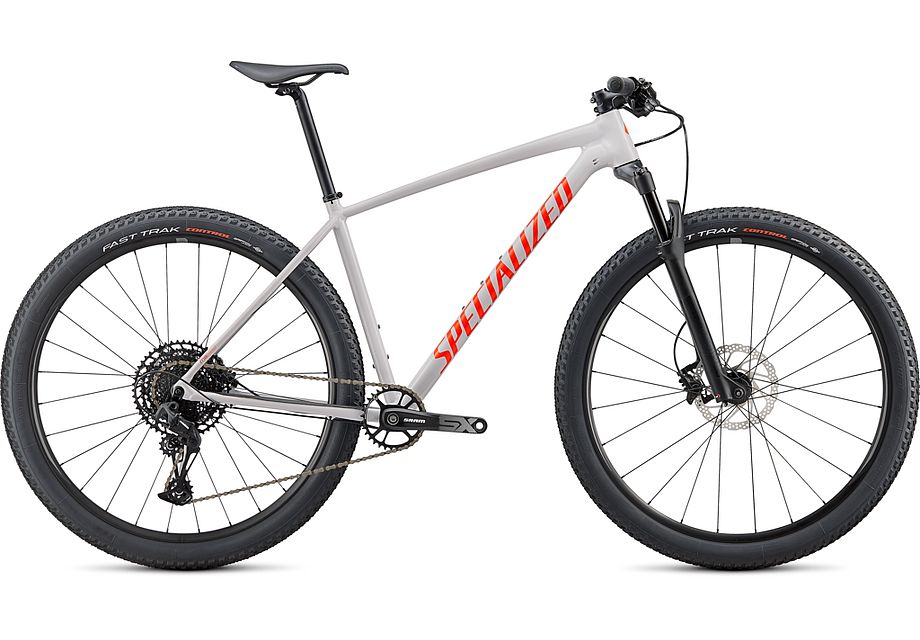

2020 Specialized Chisel Comp 29 Features
The Chisel Comp gives you everything you need to reach the top of the podium… at a price that doesn’t break the bank. Ultralight aluminum frameset that’s stiff in all the right places, yet surprisingly compliant? Check. Stellar components? Check. Dialed geometry, that’s nimble yet confident? Check, check, and check.
PRO-LEVEL PERFORMANCE MADE AFFORDABLE
We asked ourselves, “How do we bring pro-level performance down to a price more riders can afford?” D'Aluisio Smartweld Technology was the answer. Smartweld allows us to create the most consistent, high-strength welds possible while taking full advantage of compliant, ultralight alloy tubes.
XC-FAST AND TRAIL-BIKE CAPABLE
Cross-country courses have grown more technical, so why we gave the Chisel a dose of trail bike DNA. The Chisel’s longer top tube, shortened head tube, and slightly slack front end increase its downhill stability without sacrificing its climbing ability.
• Light, stiff, and durable, the premium M5 alloy frame is the perfect racing platform.
• RockShox Judy Gold 29 fork, complete with lockout and adjustable rebound damping.
• SRAM’s SX Eagle 1X drivetrain gives you the gearing you need to tackle any climb.
Component Specifications
| Frame | Specialized D'Aluisio Smartweld M5 Alloy, XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, triangulated post-mount 160mm brake |
| Seat Binder | Alloy, 30.8mm |
| Fork | RockShox Judy Gold 29, Solo Air, Motion Control damper, 51mm offset, 15x110mm thru-axle (XS: 80mm, S:90mm, M-XL: 100mm of travel) |
| Shift Levers | SRAM SX Eagle, trigger, 12-speed |
| Rear Derailleur | SRAM SX Eagle, 12-speed |
| Cassette | SRAM PG-1210 Eagle, 11-50t |
| Chain | SRAM SX Eagle, 12-speed |
| Crankset | SRAM SX Eagle, Powerspline, 165/170/175mm, 32T |
| Bottom Bracket | SRAM Powerspline |
| Rims | Stout XC 29, 25mm internal width, disc-specific |
| Front Hub | Specialized, sealed cartridge bearings, 15x110mm thru-axle, 28h |
| Rear Hub | Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h |
| Spokes | Stainless, 14g |
| Front Tire | Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3" |
| Rear Tire | Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3" |
| Inner Tubes | Standard, Presta valve |
| Front Brake | Shimano MT-501, hydraulic disc, resin pad |
| Rear Brake | Shimano MT-501, hydraulic disc, resin pad |
| Stem | Specialized XC, 3D-forged alloy, 4-bolt, 6-degree rise |
| Handlebars | Specialized Alloy Minirise, 10mm rise, 750mm, 31.8mm clamp |
| Grips | Specialized Trail Grips |
| Saddle | Body Geometry Power Sport, steel rails |
| Seatpost | Specialized Alloy, Single Bolt, 30.9mm |
Size Guide: 2020 Specialized Chisel Comp 29
