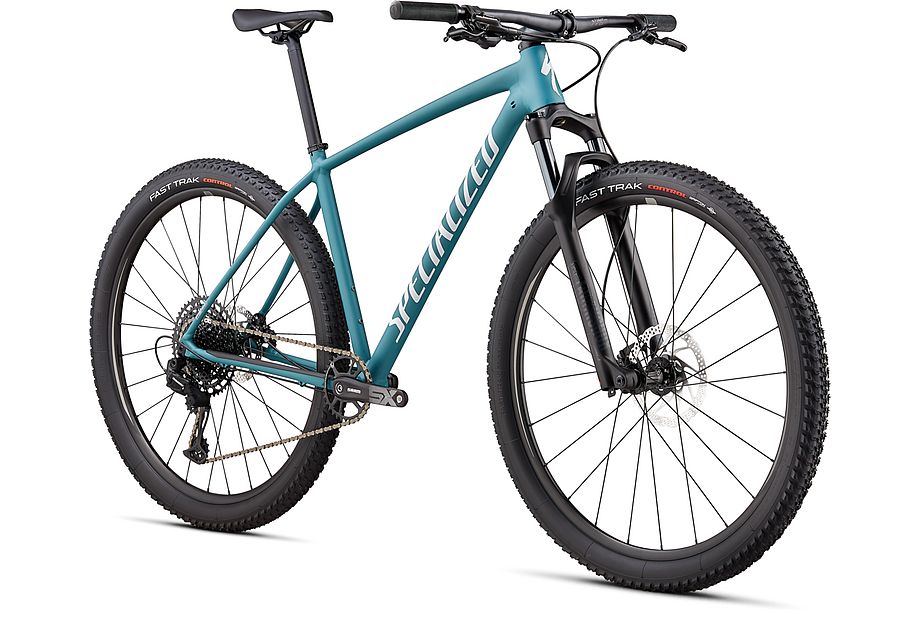

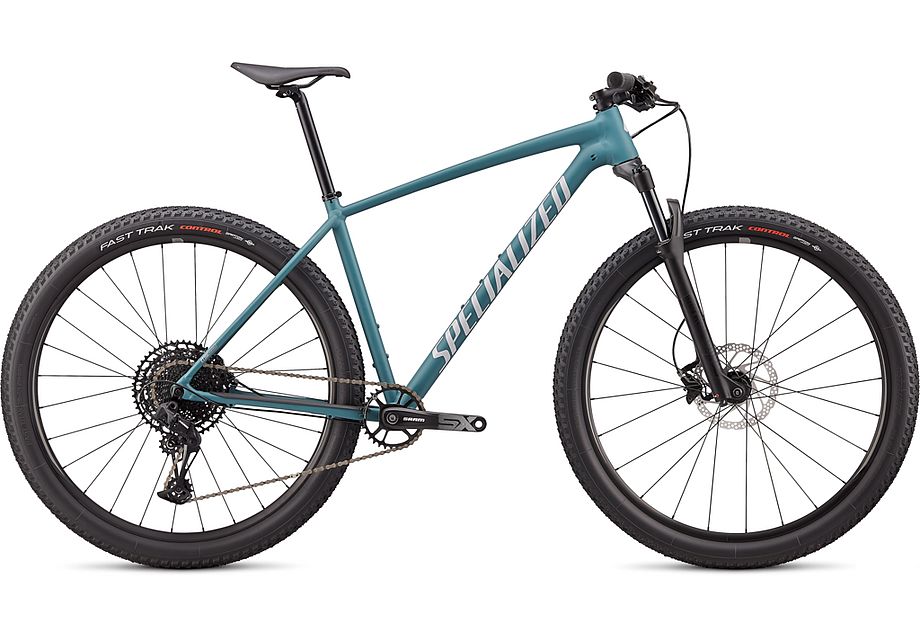

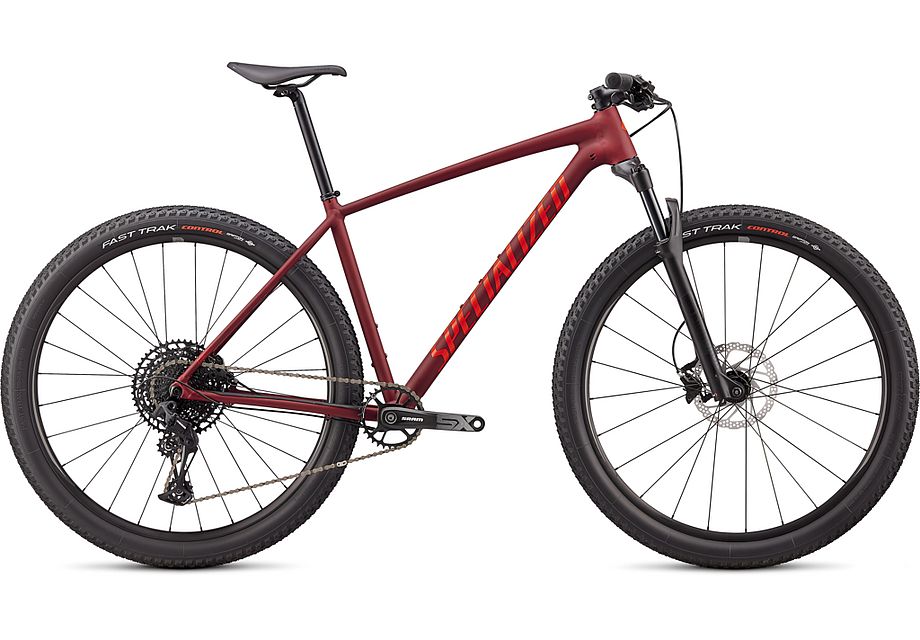

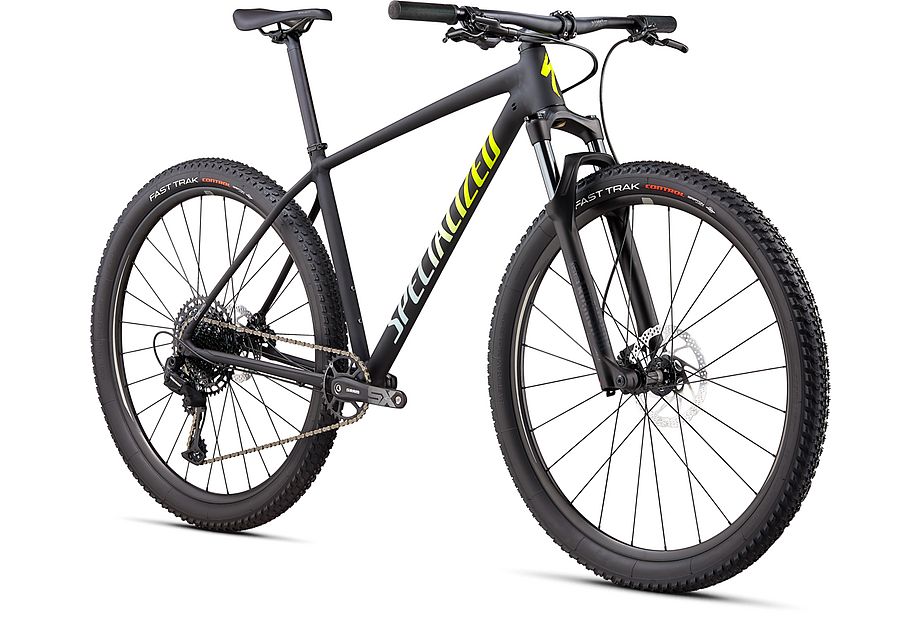

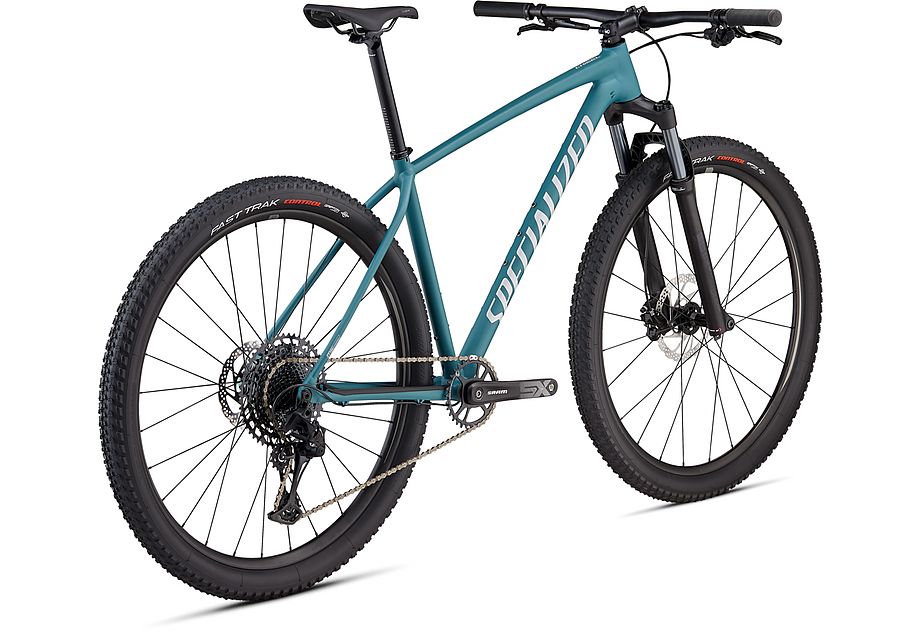

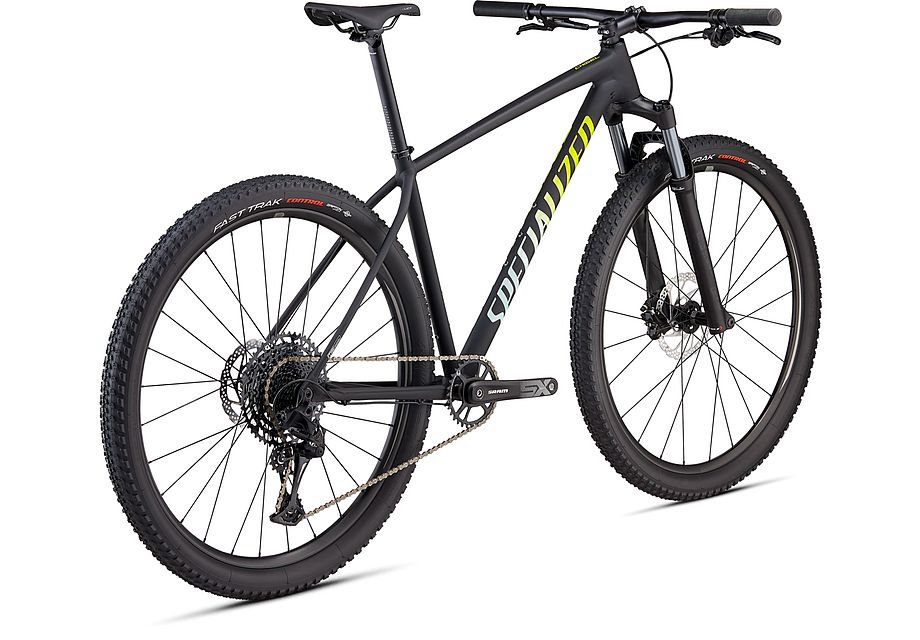

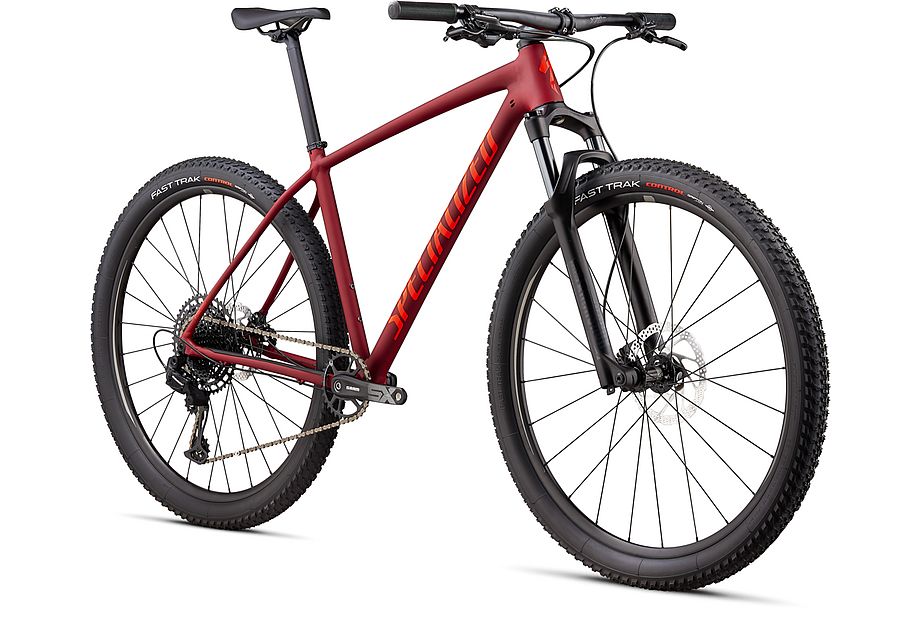

2020 Specialized Chisel 29 Satin Features
The Chisel is the perfect bike for anyone looking to take the plunge into XC racing. It embodies all of the qualities you'd expect from an XC race bike, like light overall weight, incredible stiffness, and a race-oriented geometry—all with one-by gearing, too.
PRO-LEVEL PERFORMANCE MADE AFFORDABLE
We asked ourselves, “How do we bring pro-level performance down to a price more riders can afford?” D'Aluisio Smartweld Technology was the answer. Smartweld allows us to create the most consistent, high-strength welds possible while taking full advantage of compliant, ultralight alloy tubes.
XC-FAST AND TRAIL-BIKE CAPABLE
Cross-country courses have grown more technical, so why we gave the Chisel a dose of trail bike DNA. The Chisel’s longer top tube, shortened head tube, and slightly slack front end increase its downhill stability without sacrificing its climbing ability.
• Light, stiff, and durable, the premium M5 alloy frame is the perfect racing platform.
• RockShox Judy Silver 29 fork, complete with lockout and adjustable rebound damping.
• SRAM’s SX Eagle 1X drivetrain gives you the gearing you need to tackle any climb.
Component Specifications
| Frame | Specialized D'Aluisio Smartweld M5 Alloy, XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, triangulated post-mount 160mm brake |
| Seat Binder | Alloy, 30.8mm |
| Fork | RockShox Judy Silver 29, Solo Air, Turnkey damper, 51mm offset, 15x110mm thru-axle (XS: 80mm, S:90mm, M-XL: 100mm of travel) |
| Shift Levers | SRAM SX Eagle, trigger, 12-speed |
| Rear Derailleur | SRAM SX Eagle, 12-speed |
| Cassette | SRAM PG-1210 Eagle, 11-50t |
| Chain | SRAM SX Eagle, 12-speed |
| Crankset | SRAM SX Eagle, Powerspline, 165/170/175mm, 32T |
| Bottom Bracket | SRAM Powerspline |
| Rims | Stout XC 29, 25mm internal width, disc-specific |
| Front Hub | Specialized, sealed cartridge bearings, 15x110mm thru-axle, 28h |
| Rear Hub | Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h |
| Spokes | Stainless, 14g |
| Front Tire | Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3" |
| Rear Tire | Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3" |
| Inner Tubes | Standard, Presta valve |
| Front Brake | Shimano BR-MT200, hydraulic disc, 180mm |
| Rear Brake | Shimano BR-MT200, hydraulic disc, 160mm |
| Stem | Specialized XC, 3D-forged alloy, 4-bolt, 6-degree rise |
| Handlebars | Stout XC, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm |
| Grips | Specialized Trail Grips |
| Saddle | Body Geometry Power Sport, steel rails |
| Seatpost | Specialized Alloy, Single Bolt, 30.9mm |
Size Guide: 2020 Specialized Chisel 29 Satin
