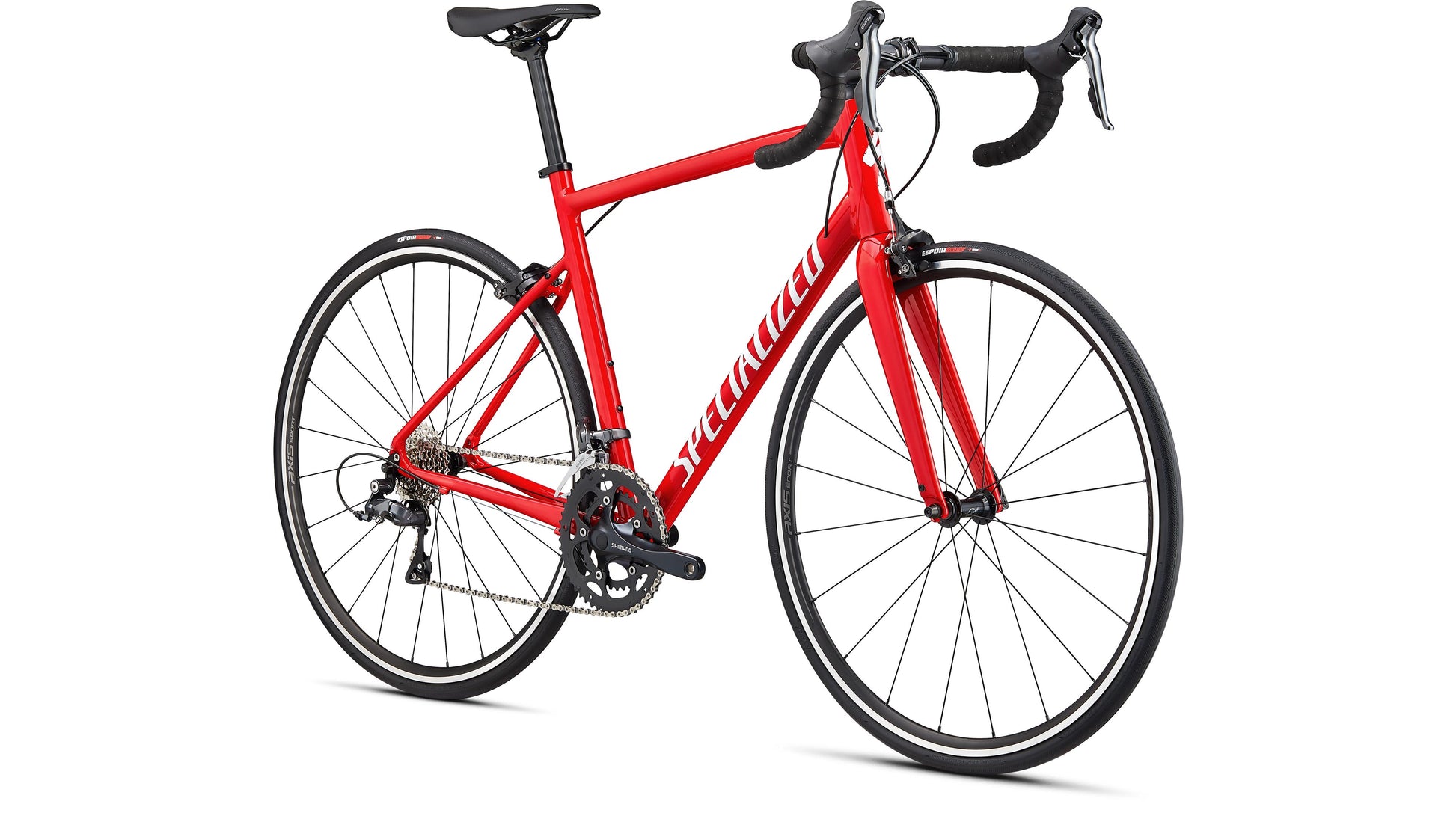

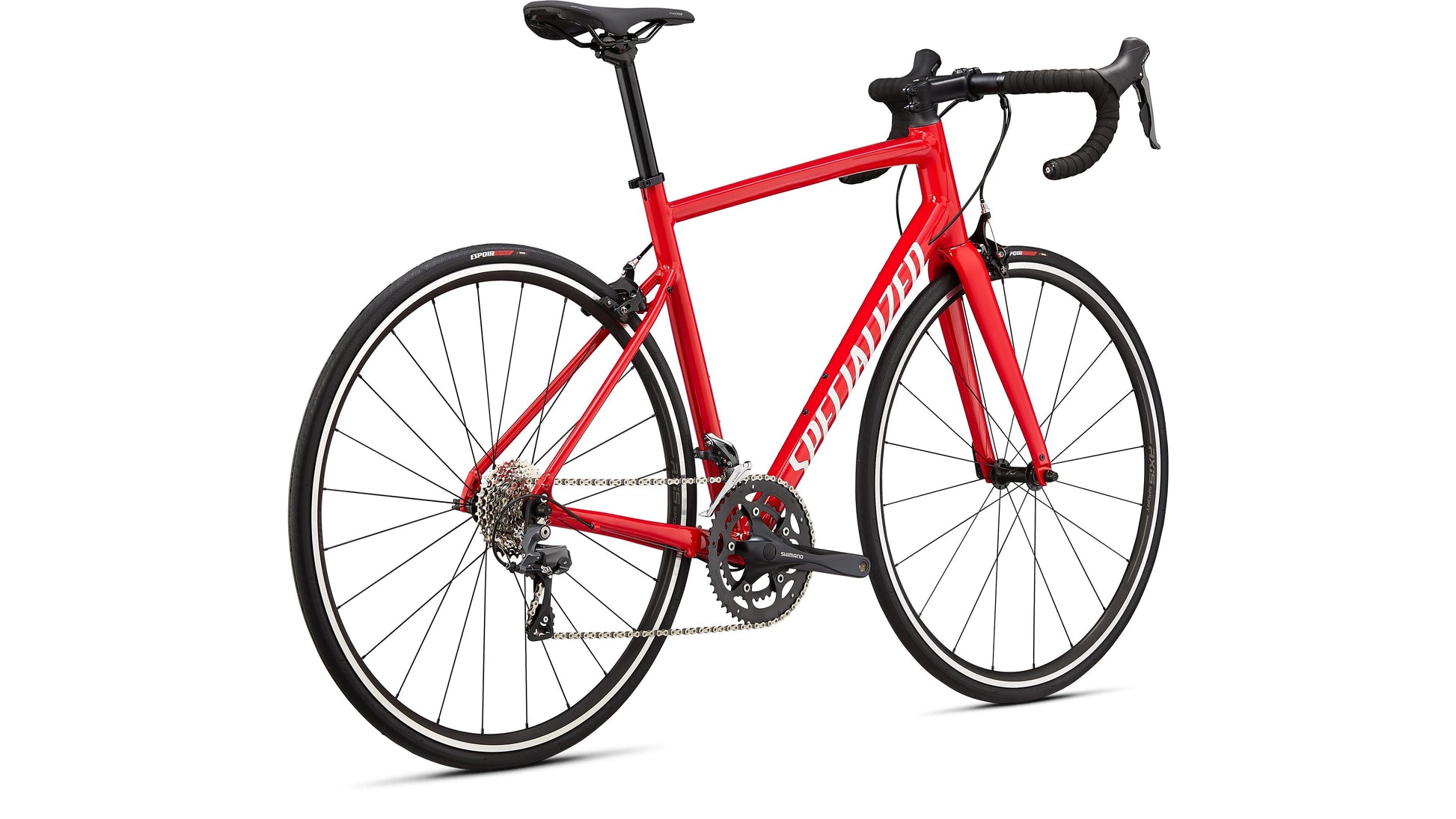

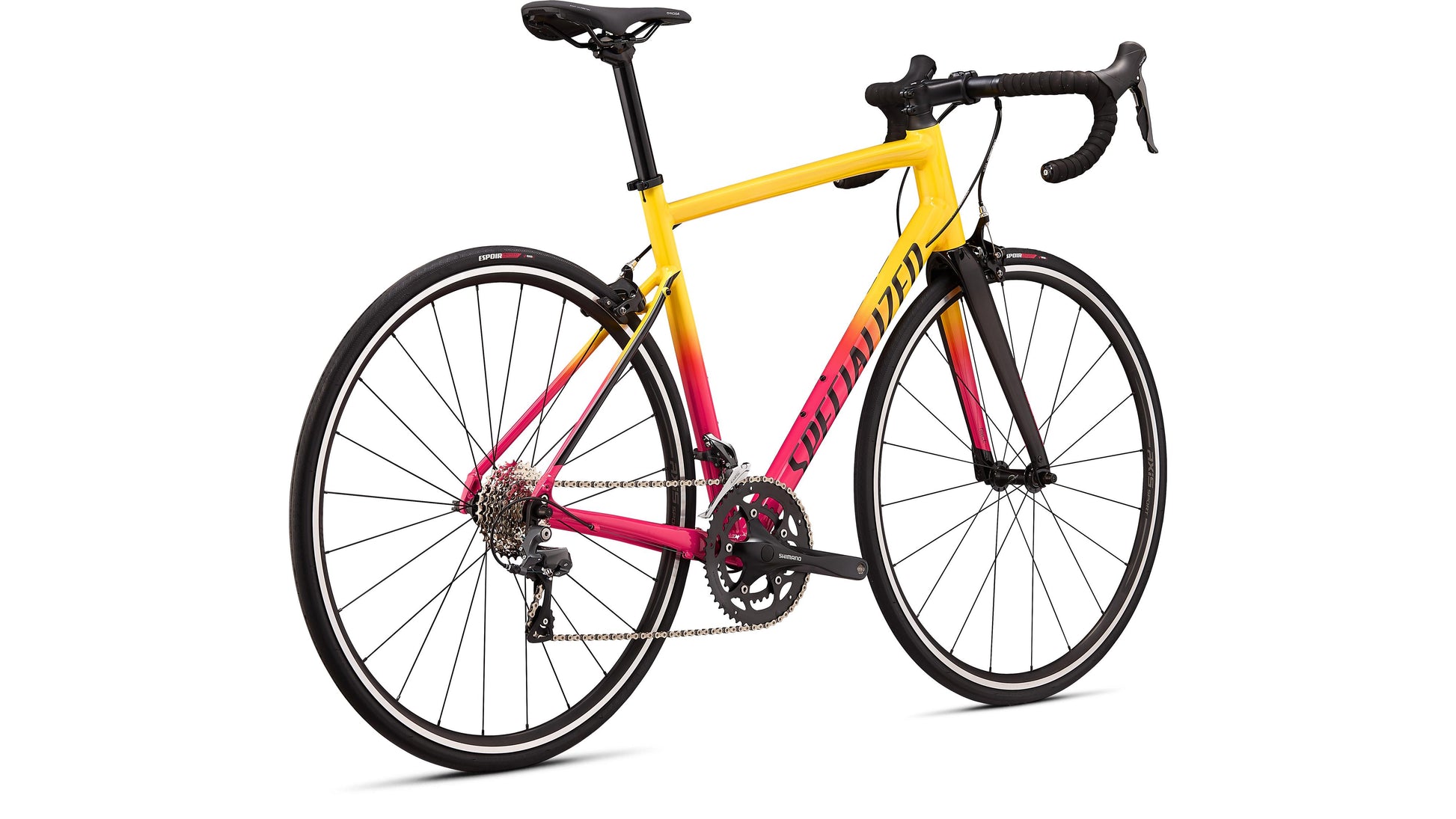

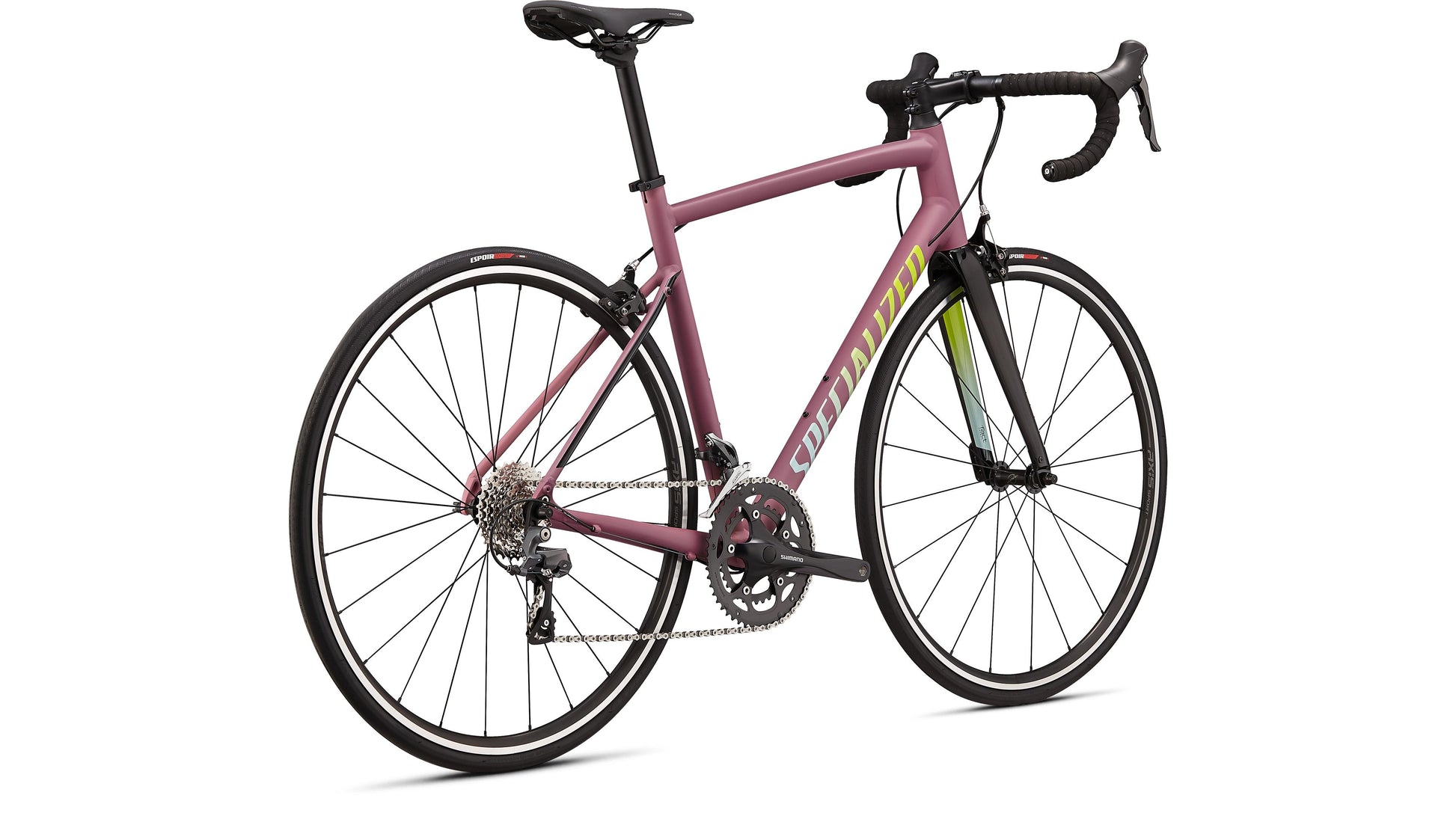

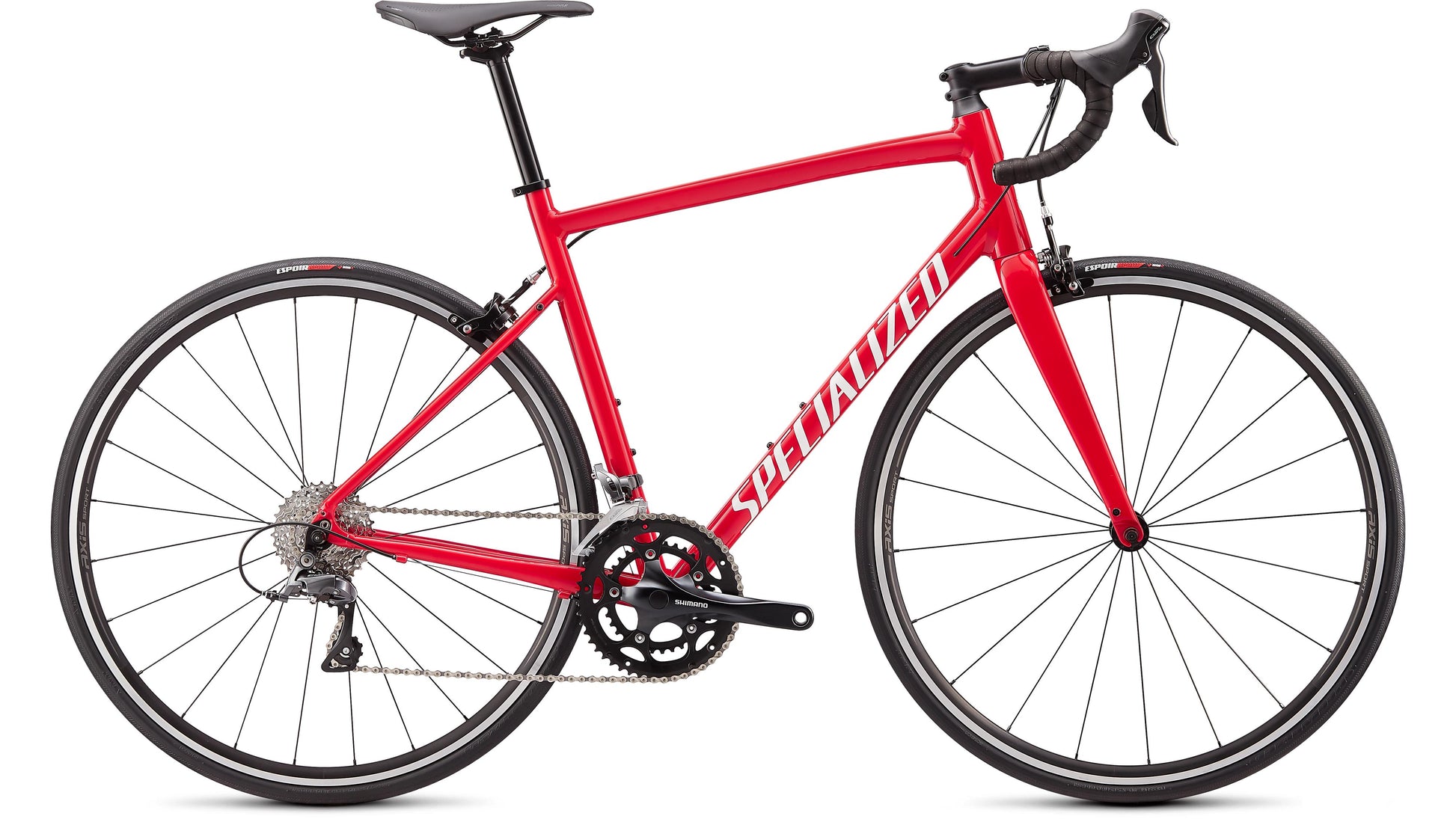

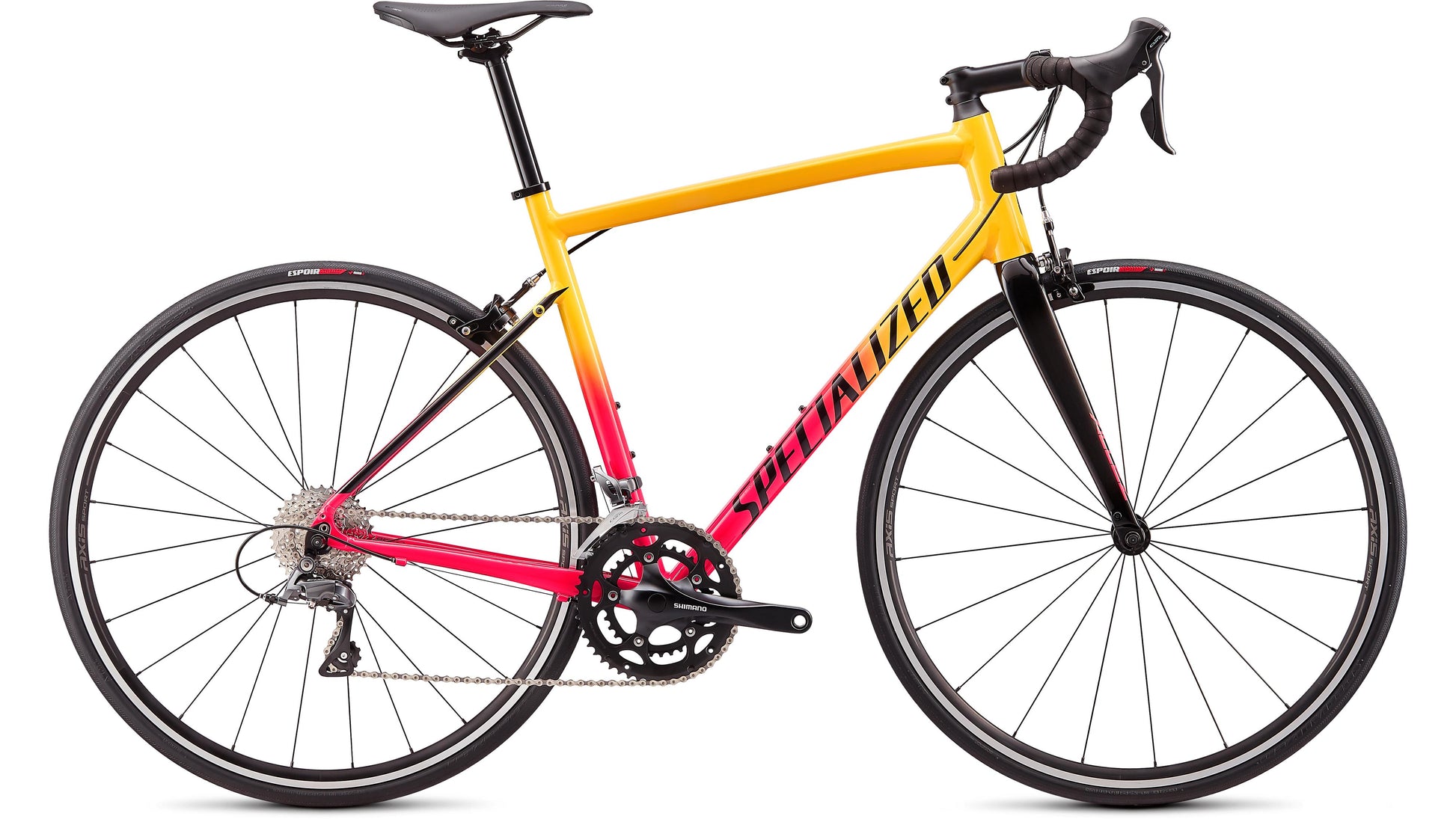

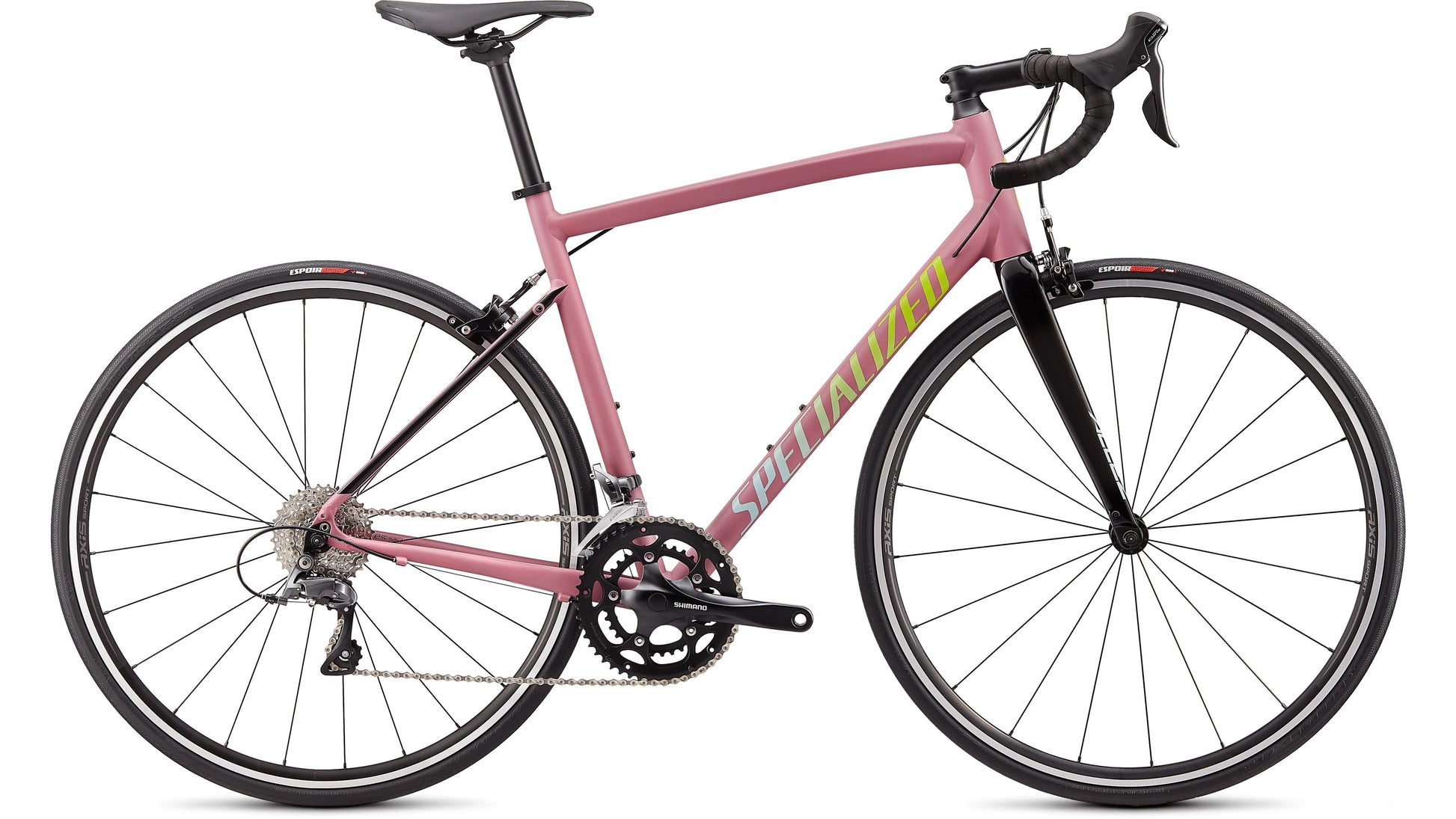

2020 Specialized Allez E5 Features
Test for KS from BB
At a Glance
- Test 1
- Test 2
- Test 3
- Test 4
All too often, corners are cut to meet price-points in the entry-level road bike market, but the Allez redefines what it means to be "entry level." Focusing on weight, refinement, and reliability like nothing else in its class, the Allez is the first to make these technologies accessible to everyone. Whether you're just getting into road cycling, commuting, or looking for a new bike, the Allez is just as performance-packed as it is versatile.
For the build, this Allez features reliable Shimano Claris shifting, durable Axis Sport alloy wheels, our new super-comfy Body Geometry Bridge saddle, and well-protected Espoir Sport tires.
Component Specifications
| Frame | Specialized E5 Premium Aluminum, fully manipulated tubing w/ SmoothWelds, 1-1/8"- 1-3/8" tapered head tube, internal cable routing, threaded BB, 130mm spacing |
| Seat Binder | Bolt-type, 31.8mm |
| Fork | Specialized FACT carbon, 1-1/8" to 1-3/8" taper, fender eyelets |
| Shift Levers | Shimano Claris 2000, 8-speed |
| Front Derailleur | Shimano Claris, clamp-on |
| Rear Derailleur | Shimano Claris, 8-speed |
| Cassette | SunRace, 8-speed, 11-32t |
| Chain | KMC X8 w/ Missing Link™ |
| Crankset | Shimano Claris R200 |
| Chain Rings | 50/34T |
| Bottom Bracket | BSA, 68mm, square-taper |
| Front Tire | Espoir Sport, 60 TPI, wire bead, double BlackBelt protection, 700x25mm |
| Rear Tire | Espoir Sport, 60 TPI, wire bead, double BlackBelt protection, 700x25mm |
| Inner Tubes | Presta, 40mm valve |
| Front Brake | Tektro, alloy, dual-pivot |
| Rear Brake | Tektro, alloy, dual-pivot |
| Stem | Specialized, 3D-forged alloy, 4-bolt, 7-degree rise |
| Handlebars | Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp |
| Saddle | Body Geometry Bridge Saddle, steel rails |
| Seatpost | Alloy, 2-bolt Clamp, 12mm offset, 27.2mm, anti-corrosion hardware |

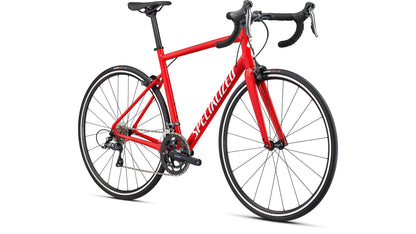

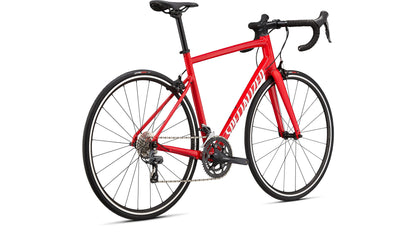

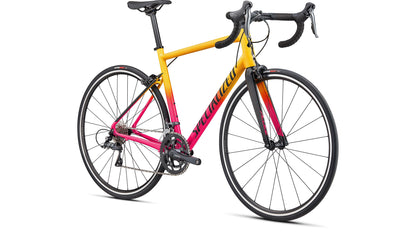

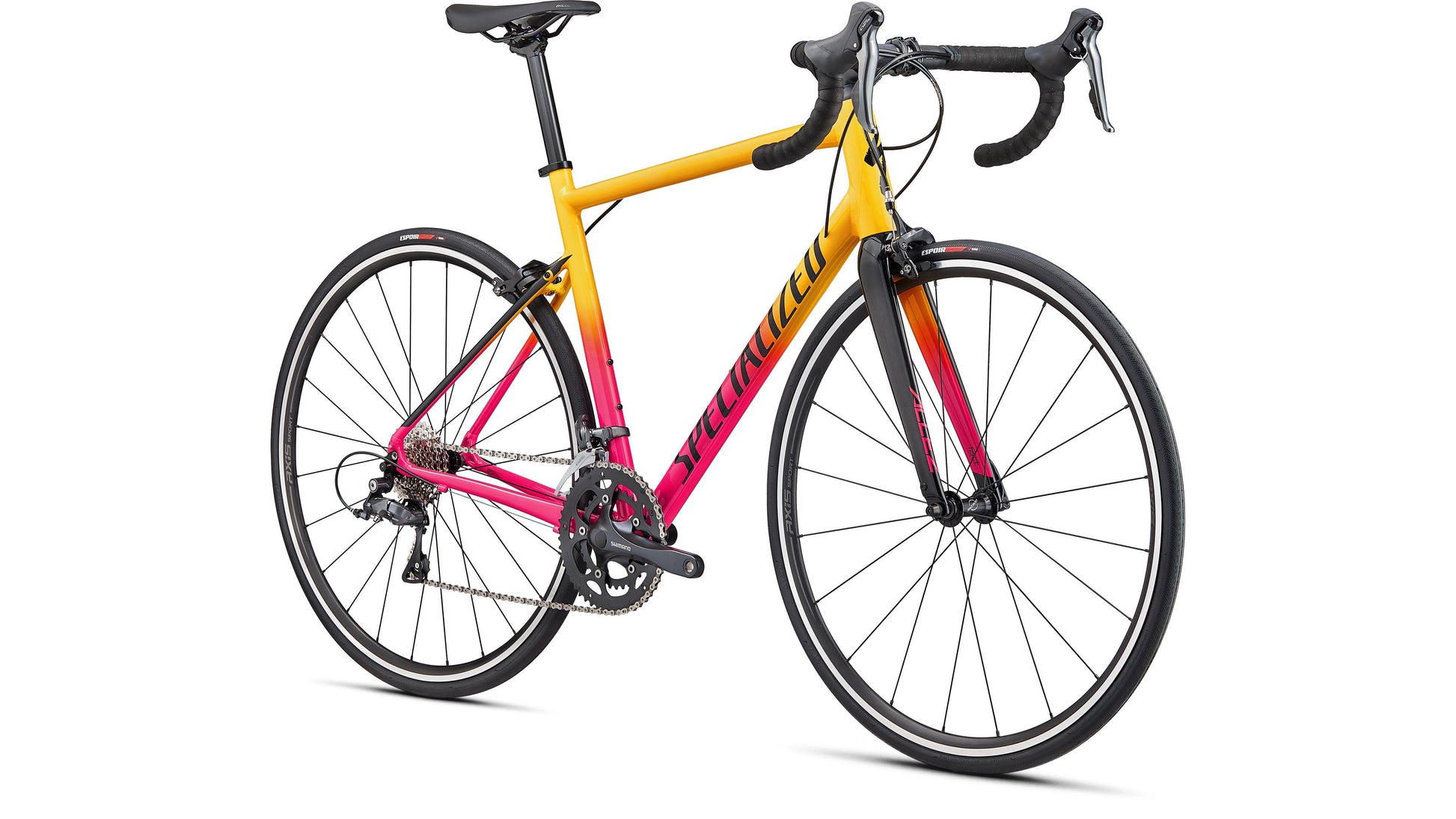

2020 Specialized Allez E5
| Bike/Frame Size | 44 | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|---|
| Stack | 516 mm | 535 mm | 552 mm | 570 mm | 596 mm | 627 mm | 649 mm |
| Reach | 365 mm | 374 mm | 376 mm | 380 mm | 385 mm | 390 mm | 396 mm |
| Chain-Stay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 974 mm | 982 mm | 983 mm | 991 mm | 999 mm | 1014 mm | 1021 mm |
| Top-Tube Length (horizontal) | 501 mm | 515 mm | 542 mm | 552 mm | 564 mm | 579 mm | 591 mm |
| Bike Stand-Over Height | 697 mm | 720 mm | 745 mm | 763 mm | 785 mm | 813 mm | 839 mm |
| Seat-Tube Length | 430 mm | 460 mm | 490 mm | 510 mm | 530 mm | 550 mm | 580 mm |
| Seat-Tube Angle | 75.25° | 75.25° | 73.25° | 73.25° | 73.25° | 73.25° | 73.25° |
| Head-Tube Length | 110 mm | 125 mm | 140 mm | 155 mm | 180 mm | 215 mm | 235 mm |
| Head-Tube Angle | 71.5° | 72.25° | 73° | 73° | 73.5° | 73.5° | 74° |
| B-B Height | 263 mm | 263 mm | 263 mm | 264 mm | 264 mm | 265.5 mm | 265.5 mm |
| B-B Drop | 77 mm | 77 mm | 77 mm | 76 mm | 76 mm | 74.5 mm | 74.5 mm |
| Trail | 64 mm | 59 mm | 55 mm | 55 mm | 52 mm | 52 mm | 49 mm |
| Fork Length (full) | 368 mm | 368 mm | 368 mm | 368 mm | 368 mm | 368 mm | 368 mm |
| Fork Rake/Offset | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Front-Center | 567 mm | 575 mm | 576 mm | 585 mm | 593 mm | 607 mm | 614 mm |
Size Guide: 2020 Specialized Allez E5
