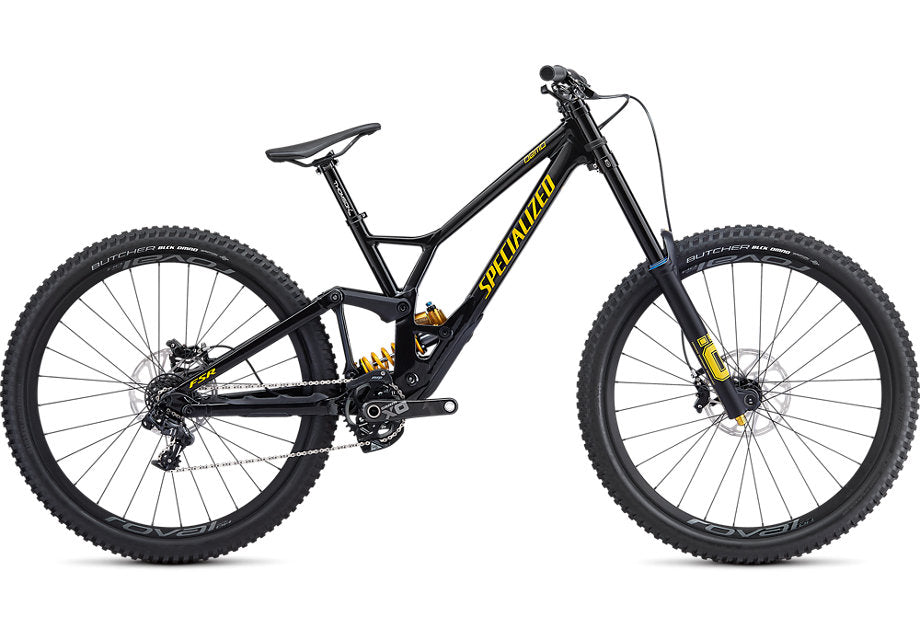

Specialized Demo Race 29 Features
The new Demo 29 comes roaring comes roaring out of the gates with multiple World Cup wins already under its belt. New chassis, new suspension kinematics, new geometry, and, yeah, new wheel size. We�ve hung the Race model with the best gravity kit available. Full gas. Full fast.
SMOOTH AND CONTROLLED
The new Demo 29�s is blazing fast on tough tracks thanks to an axle path that reduces rear wheel hang up. And during moments when you do need to grab the brakes, the Demo 29 stays planted�with plenty of traction�we�ve added just the right amount of anti-rise to the mix.
FAST ON THE GAS
When every second counts, every pedal stroke counts. The Demo 29�s new design allows for just the right amount of anti-squat. Or to put a finer point on it, you crank on the pedals and the Demo 29 rips forward instead of bobbing around uncontrollably and slowing you down.
WORLD CUP-PROVEN COMPONENTS
� All-new Demo design is faster, smoother, and more controlled on the toughest tracks.
� �hlins DH 29 fork and TTX rear shock provide stellar adjustability and control.
� SRAM�s 4-piston Code RSC disc brak es are powerful yet offer plenty of modulation.
Component Specifications
| Frame | M5 alloy, Style-Specific DH Geometry, BSA threaded BB, full internal cable routing with option for full external brake, 148mm rear spacing, sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm of travel |
| Seat Binder | Alloy, 34.9mm |
| Fork | Öhlins DH 29, Twin-Tube design, air spring w/ adjustable 3rd chamber, adjustable high- & low-speed compression, adjustable rebound, 20x110mm thru-axle, 58mm offset, 200mm of travel |
| Rear Shock | Öhlins TTX, Twin-Tube design, high- & low-speed compression adjust, external rebound adjust, Trunnion mount, 225x75 |
| Shift Levers | SRAM X01 DH, trigger, 7-speed |
| Rear Derailleur | SRAM X01 DH, 7-speed, trigger |
| Cassette | SRAM X01 DH, 7-speed, 10-24t |
| Chain | Sram PC1130 w/ Powerlink, 11-speed |
| Crankset | SRAM X01 DH, DUB, carbon, Direct mount ring, 165mm |
| Bottom Bracket | SRAM DUB, 83mm |
| Rims | Roval 29" Alloy DH, 28mm internal width, 28h |
| Front Hub | Specialized disc, alloy flange & disc mount, sealed cartridge bearings, 20x110mm thru-axle, 28h |
| Rear Hub | DT Swiss 350, SRAM XD freehub, 6-bolt disc, high-low flange, sealed cartridge bearings, 12x148mm spacing, 28h |
| Spokes | DT Swiss Competition, stainless steel, 14g |
| Front Tire | Butcher BLCK DMND, 2Bliss Ready, 29x2.6" |
| Rear Tire | Butcher BLCK DMND, 2Bliss Ready, 29x2.3" |
| Inner Tubes | Standard, Presta valve |
| Front Brake | SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm |
| Rear Brake | SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm |
| Stem | Specialized Direct Mount DH Stem, two-piece, forged alloy, 45mm |
| Handlebars | Specialized DH, FACT carbon, 6-degree upsweep, 8-degree backsweep, 27mm rise, 800mm, 31.8mm |
| Grips | Deity, Knuckleduster, Black |
| Saddle | Body Geometry Henge DH, hollow titanium rails, 130mm |
| Seatpost | Thomson, alloy, straight, 12-degree clamp |
Size Guide: Specialized Demo Race 29
