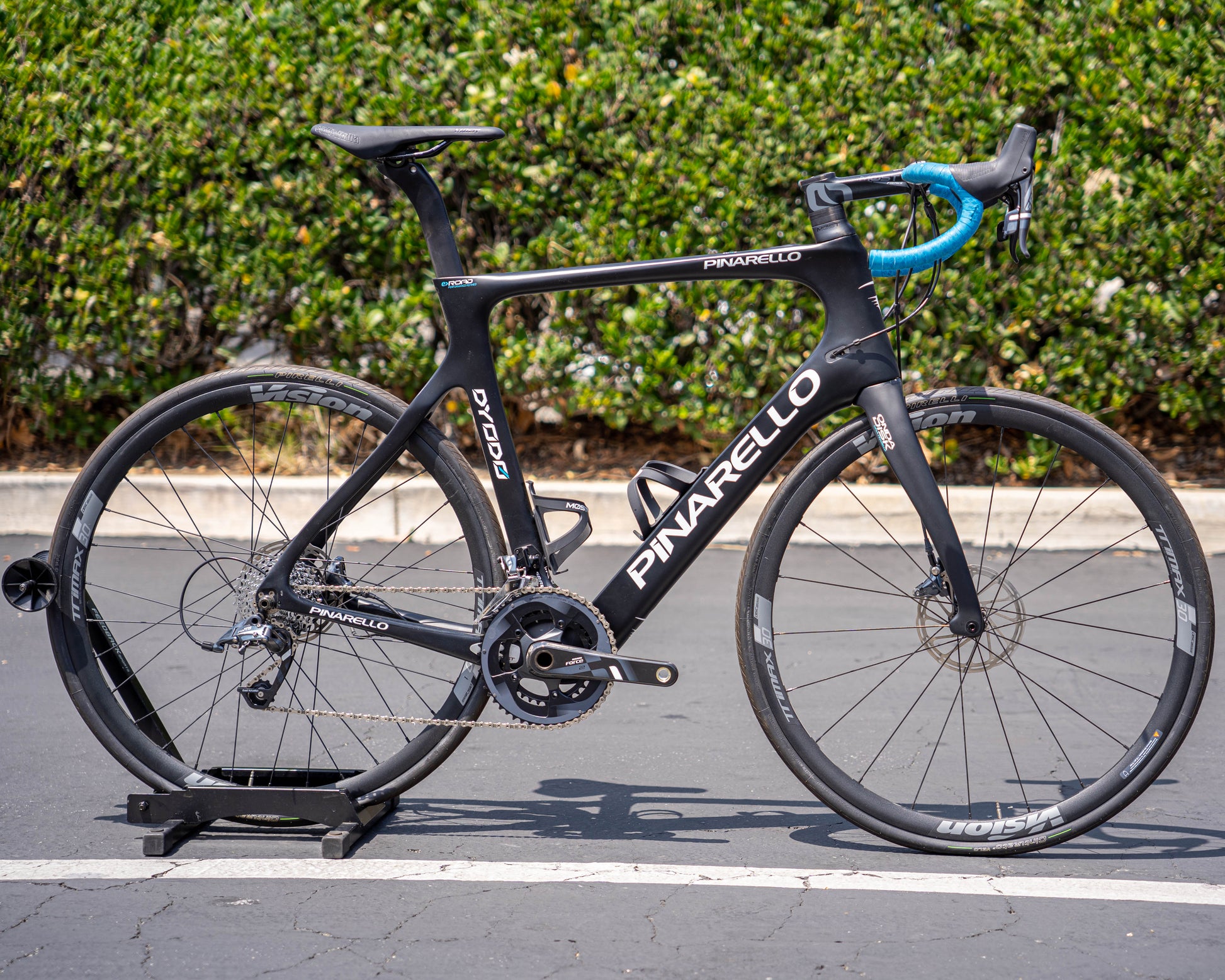

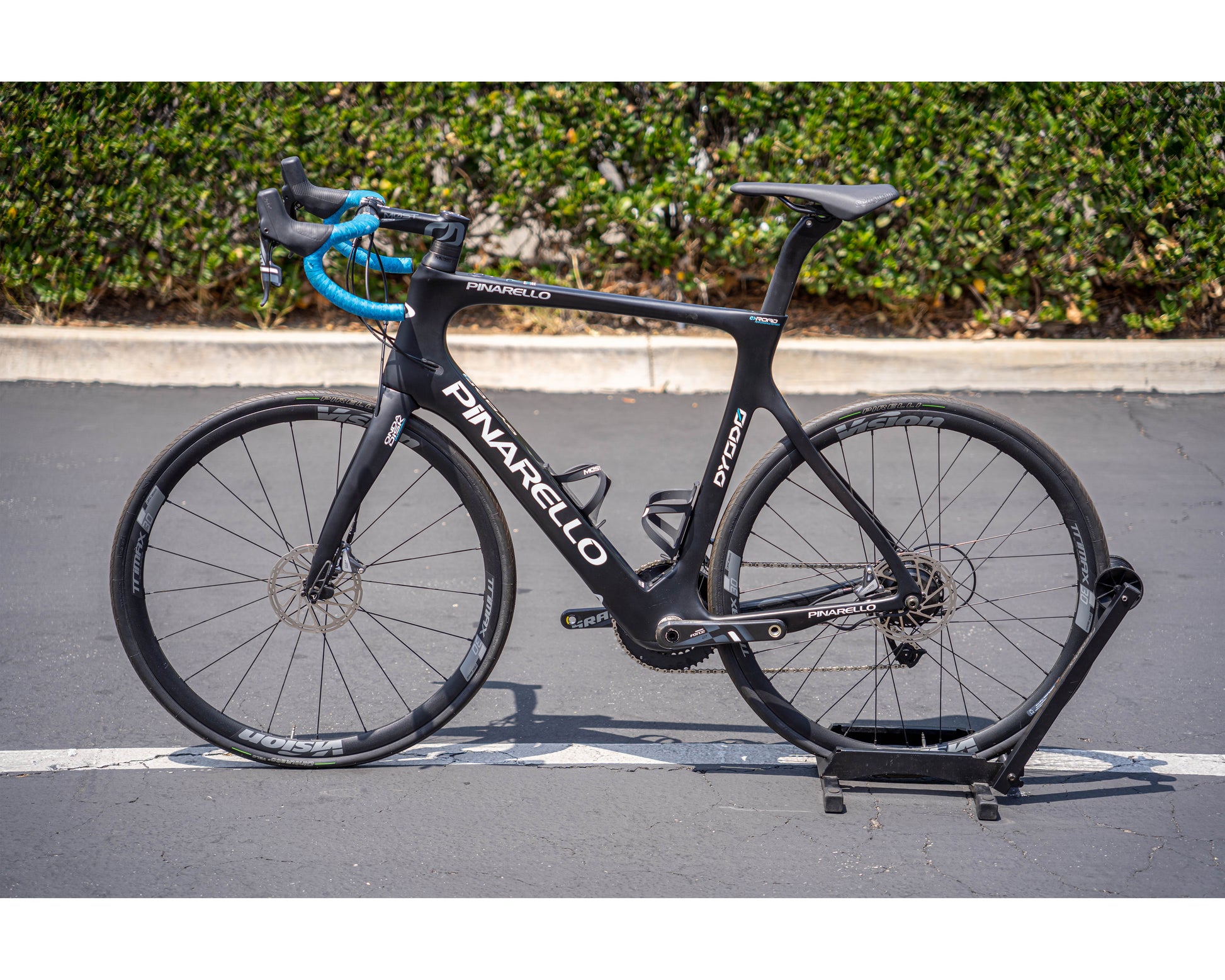

2019 Pinarello Dyodo Force E-Road Blk/Blu 58 Features
High performance DEMO road e-bike - carbon frameset, SRAM Force 22 hydro
Frame based on Pinarello Prince Disk design w/frame re-engineering

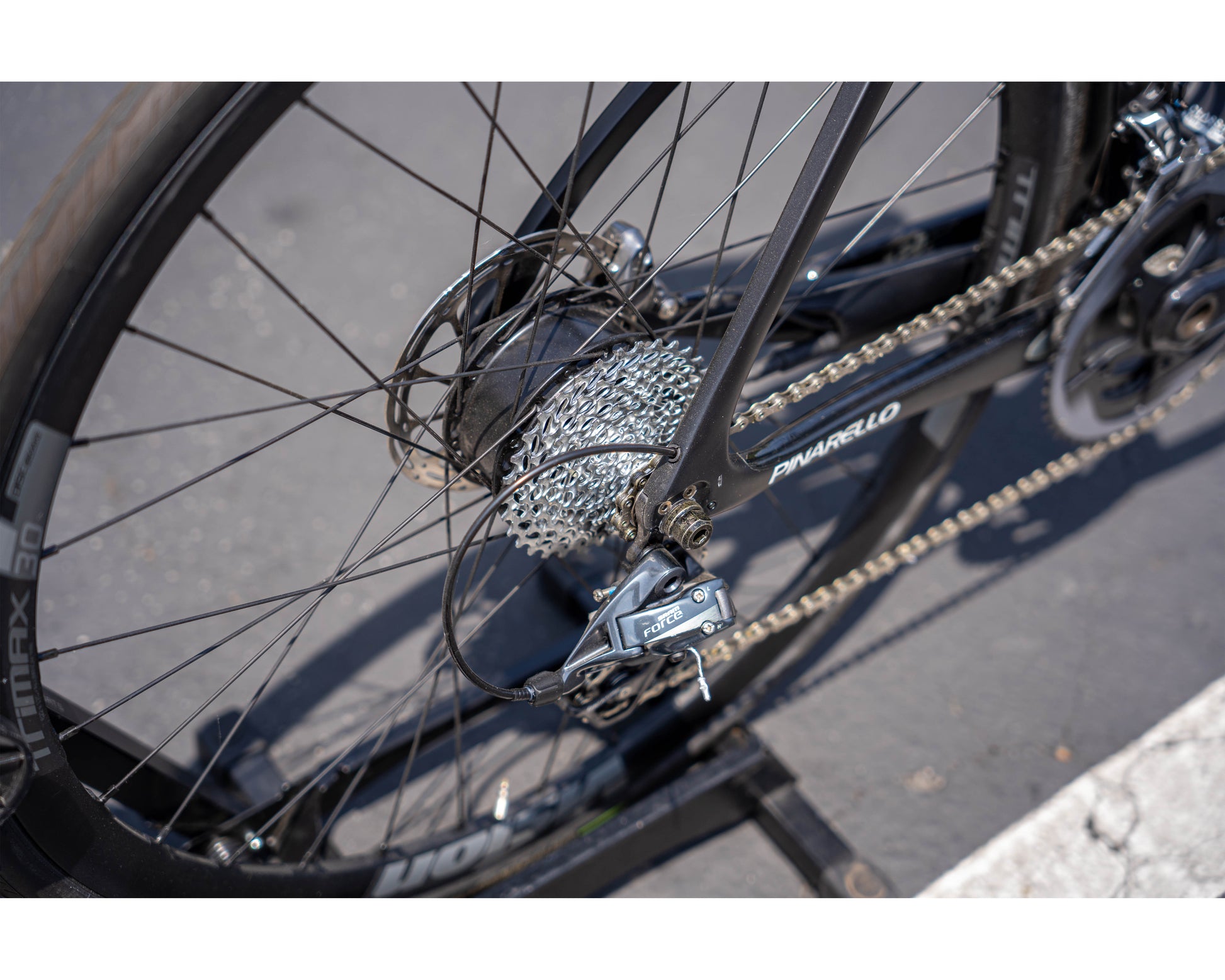

Rear hub based 250w ebikemotion X35 Pedal Assist Motor

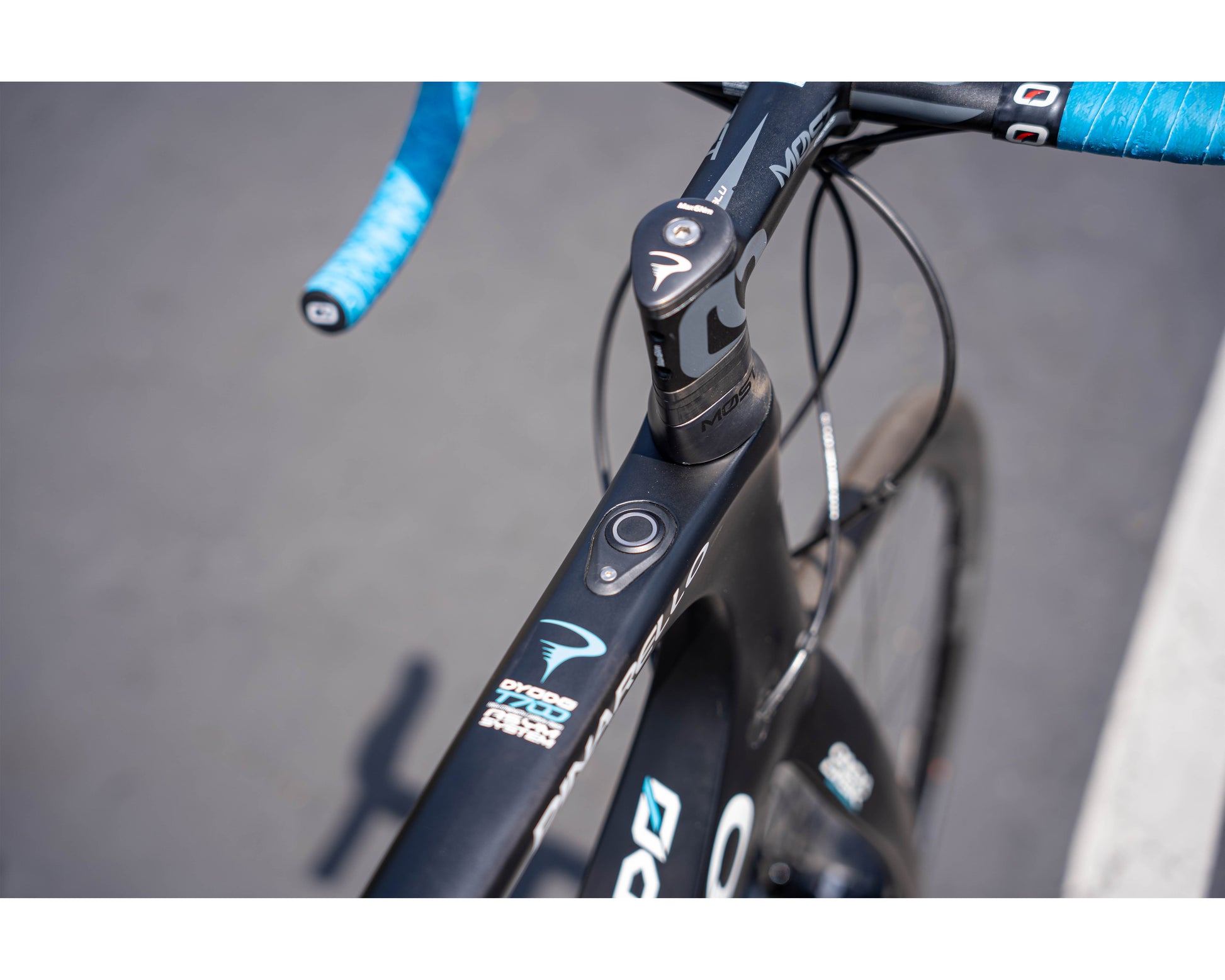

Top tube mounted single button, LED, iWoc ONE controller, App access
250 Wh lithium ion battery (located) in downtube
Motor offers 40 Nm torque / 250 W power / 60-100 mi range
Offers drag-free operation above 20 mph assist limit / Non re-generative

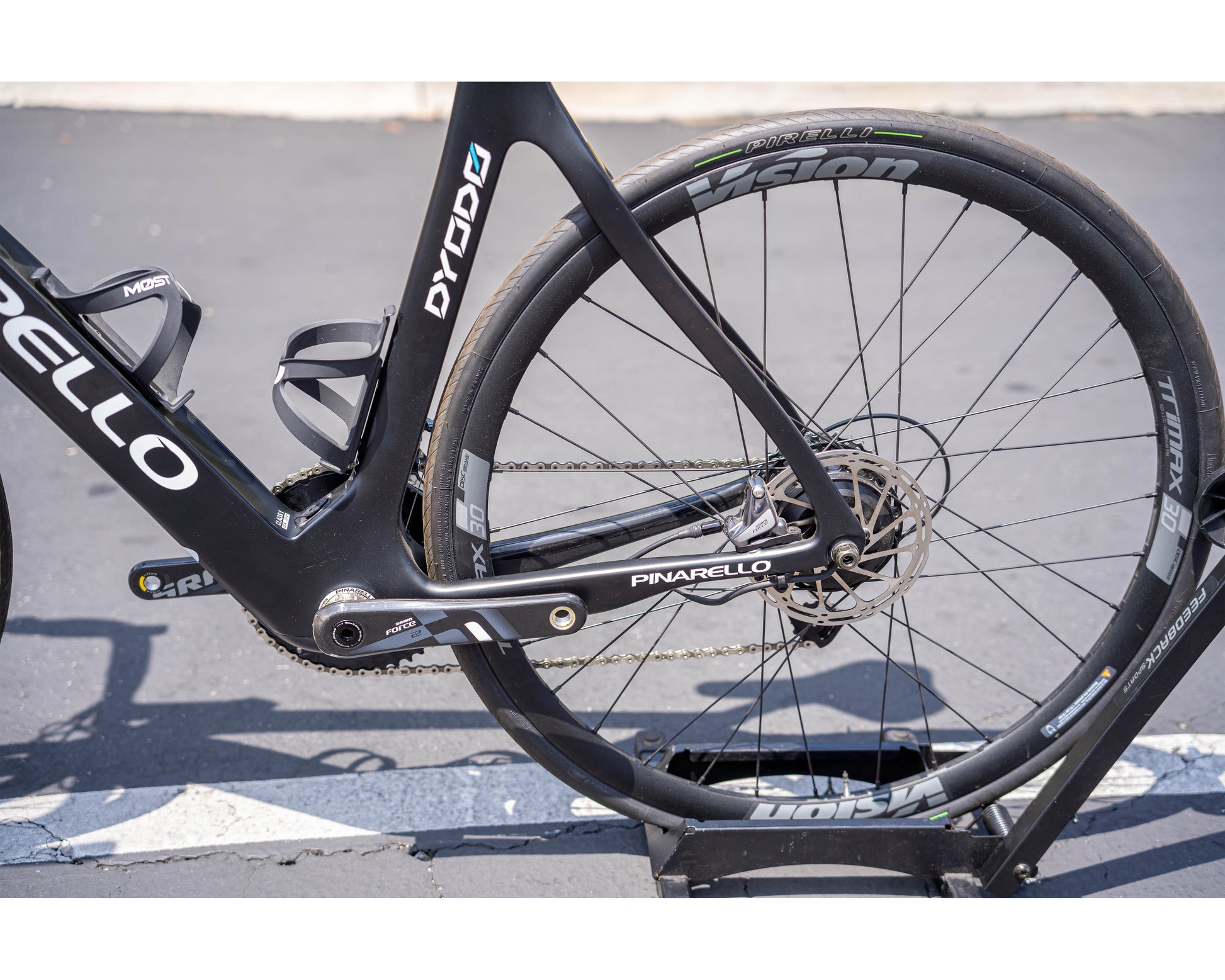

T700 Carbon high strength frameset for Dyodo, flatback aero, asymmetric, Italian threaded BB, internal routing for wiring, housing

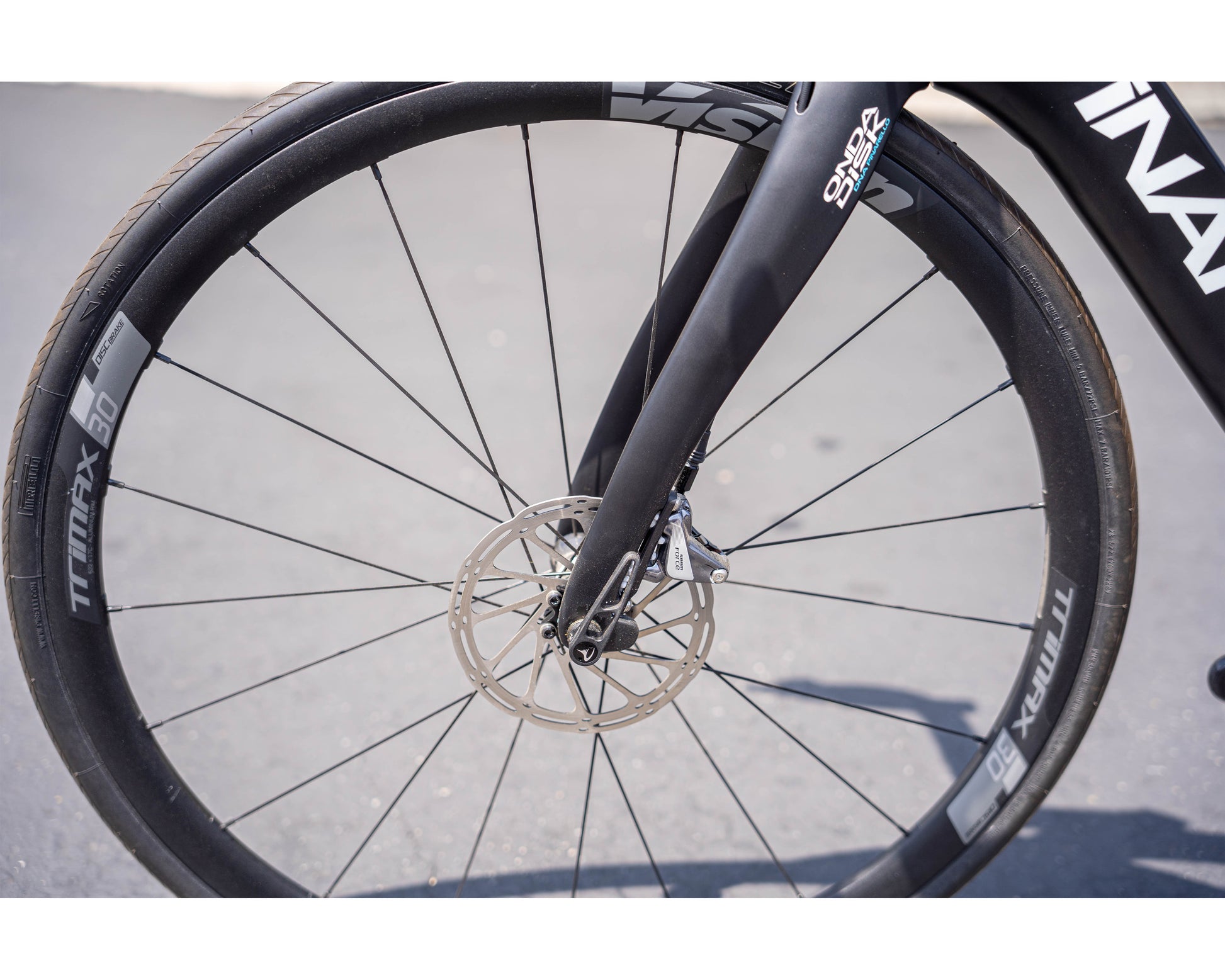

ONDA Disk Carbon fork, 1⅛"-1½", 12/100mm Thru-Axle, Flat mount disc interface, internal routing, aero Fork Flaps
Drop-in Bearing System headset for 1⅛"-1½"
Dyodo Aero Carbon UD Flatback seatpost with FSC wedge system

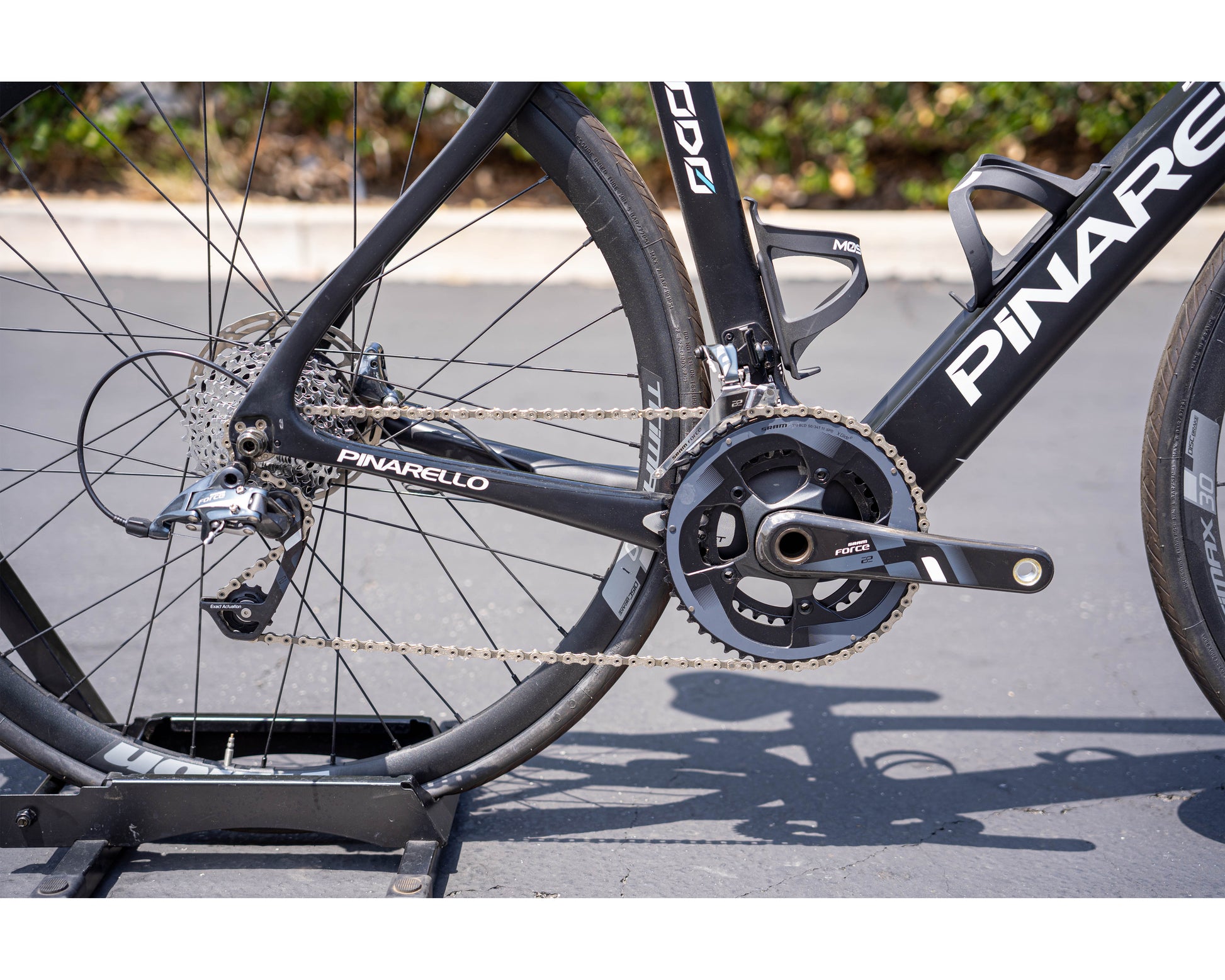

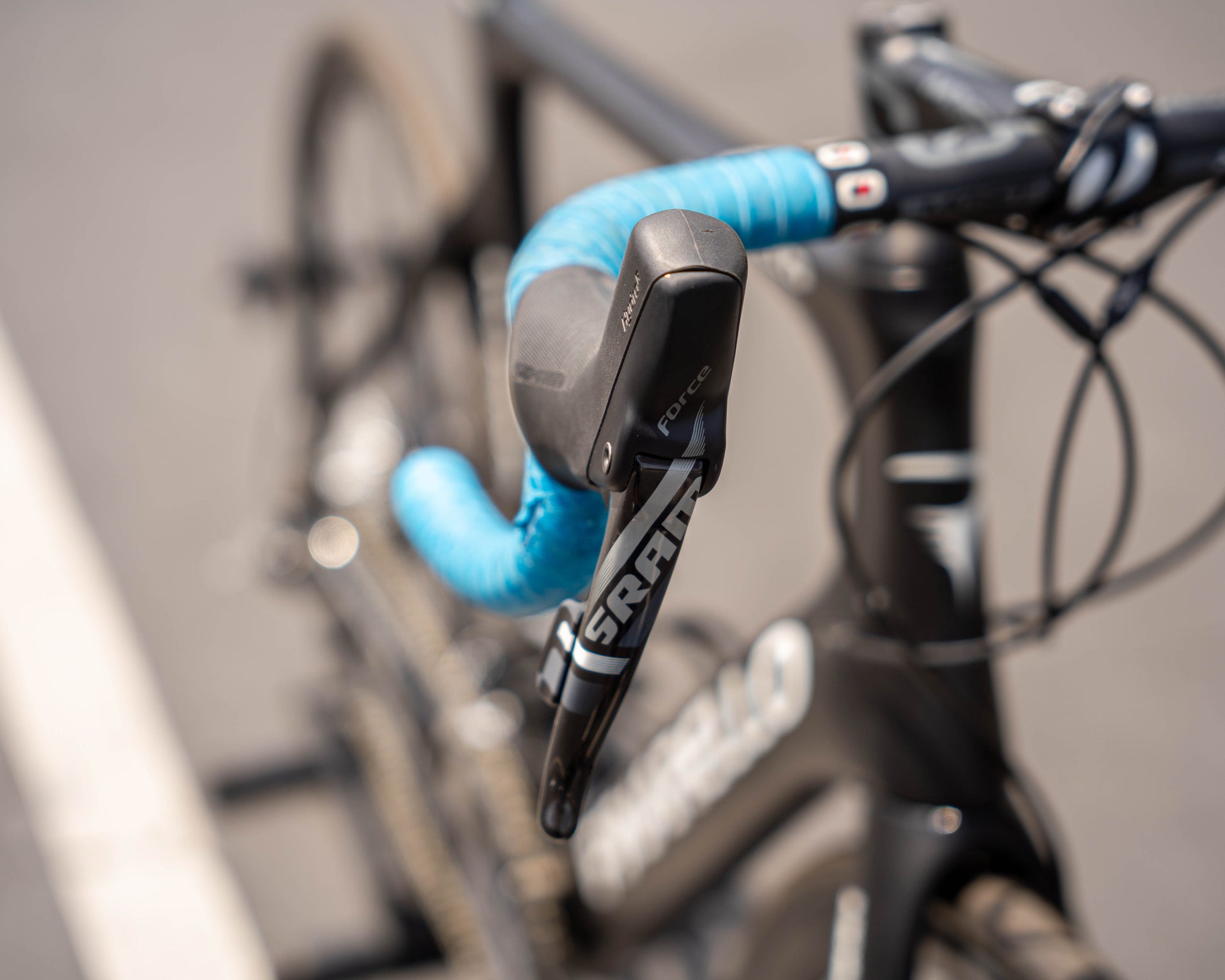

SRAM Force 22 (11spd) Hydraulic Disc brake groupset: 50-34 crankset, GXP Italian BB, 11-32 cassette, Braze-on Yaw FD, Medium Cage RD, 1070 chain, Flat Mount disc calipers, 160mm Centerline 6-bolt disc rotors

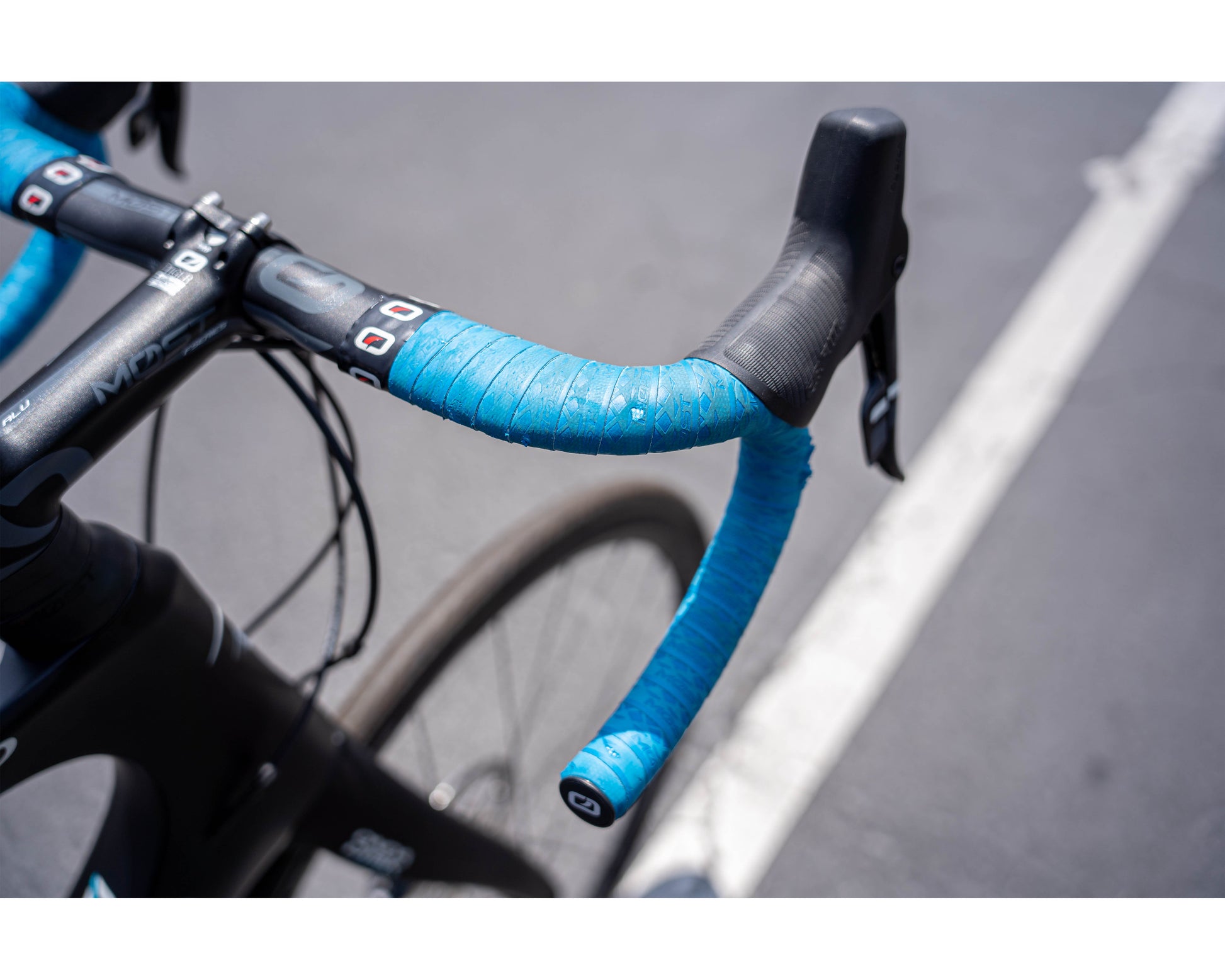

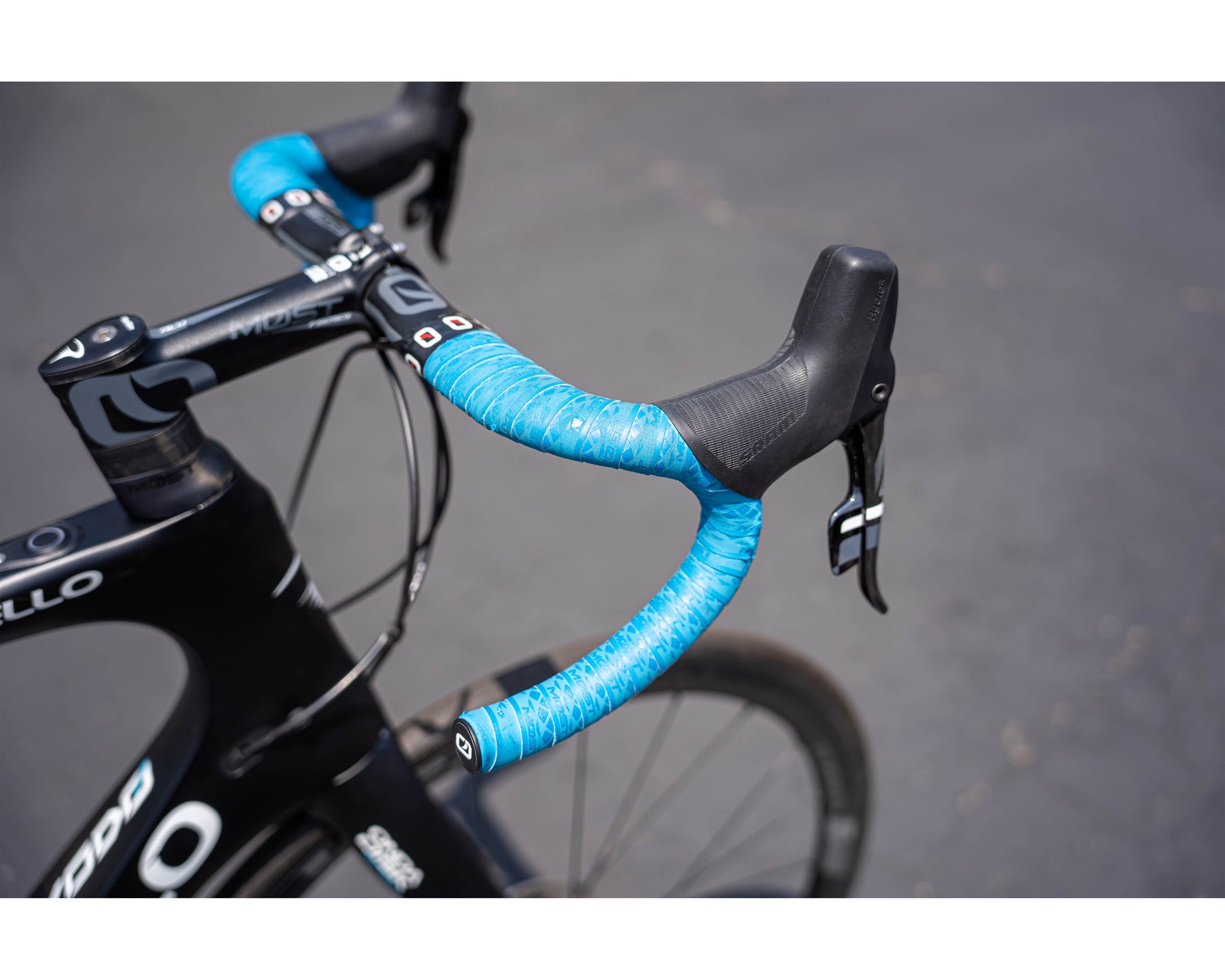

MOst kit: Jaguar XA Aero bar, Tiger Alu Aero stem/spacers, X3 Saddle, tape
