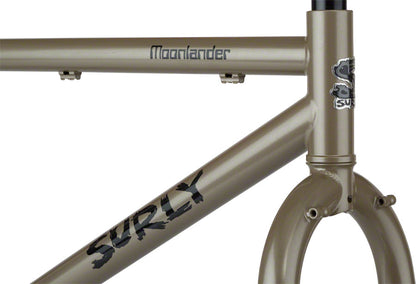

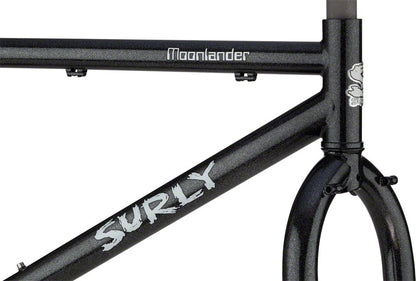

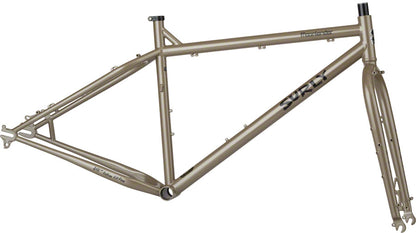

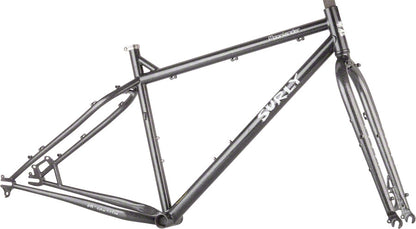

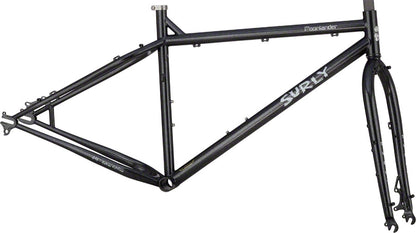

Surly Moonlander Features
The Surly Moonlander. Fat just got fatter.- 135mm fork spacing, non-offset; use a standard rear hub or the Surly 135mm front hub

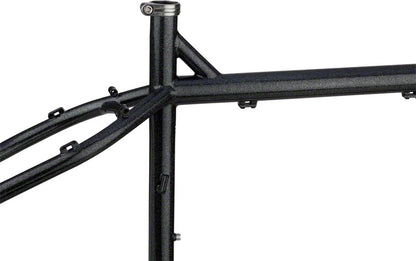

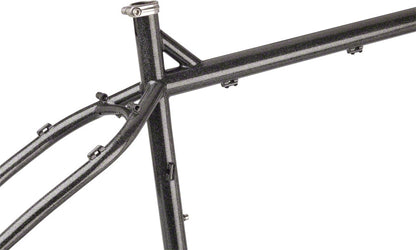

- Dual water bottle mounts, rack/fender eyelets front and rear, and Surly Trip Guide full line guides for derailleur and brake housing

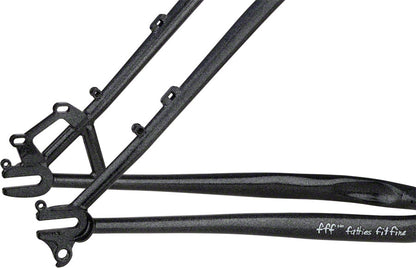

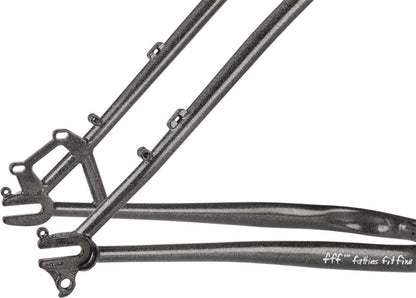

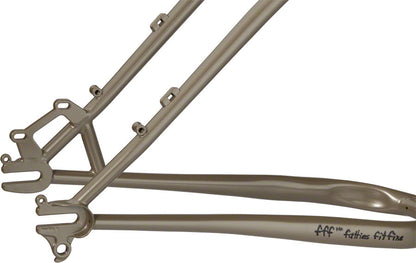

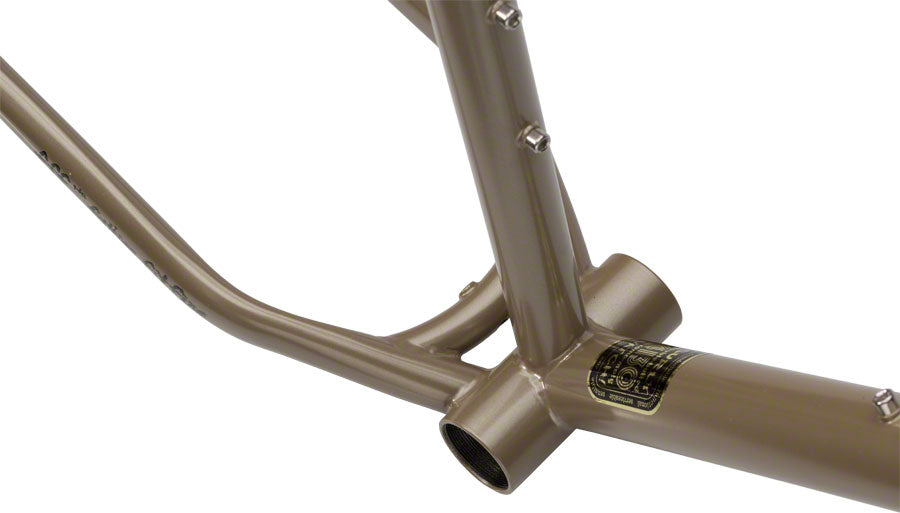

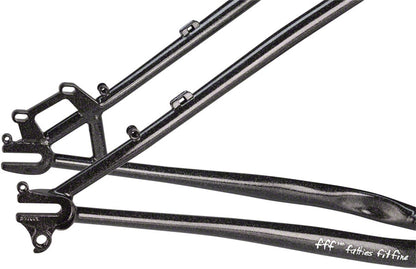

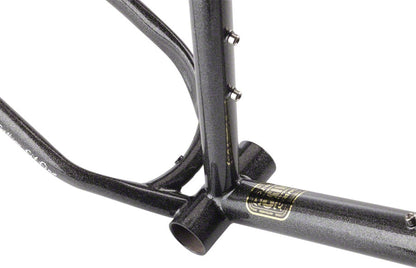

- TIG-welded Surly 4130 chromoly frame; custom-butted front triangle and chainstays; rear-loading horizontal dropouts with derailleur hanger; 135mm spacing
- 28mm offset frame design pushes the chainline even farther outboard than the Pugsley; Surly Mr. Whirly Offset Double (MWOD) crankset required for guaranteed crank arm/frame clearance and no chain/tire rub
- Clearance for 4.7" tires on 100mm rims
- 51mm IS disc mounts; uses front caliper adaptors for the front brake
- Max chainring clearance is 22/36t; based on the MWOD crankset
- Designed for a Shimano or SRAM High Direct Mount front derailleur; requires Problem Solvers adaptor (included with frame)
- Moonlander wheelbuilding tool and Surly Stainless seatpost
