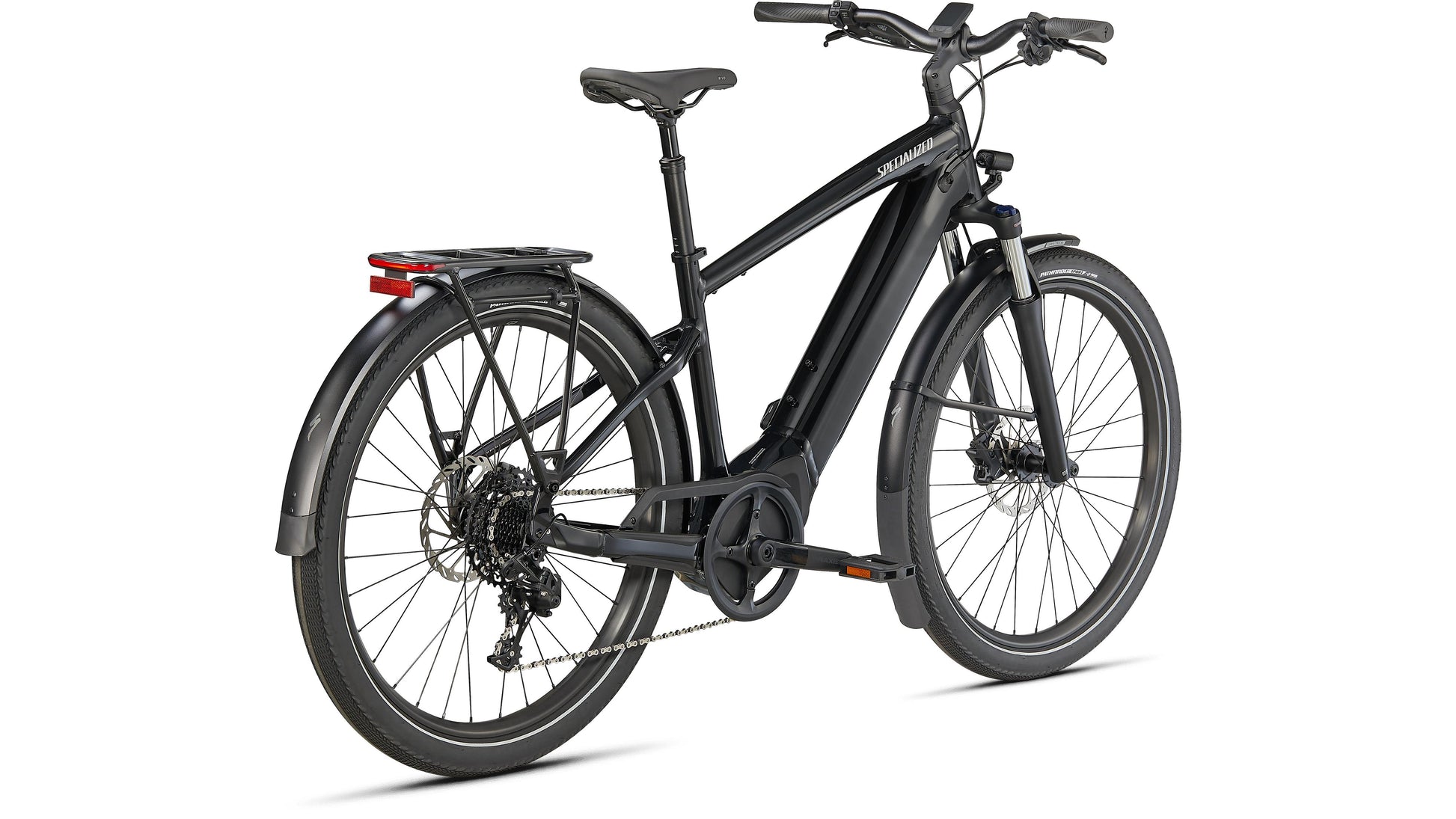

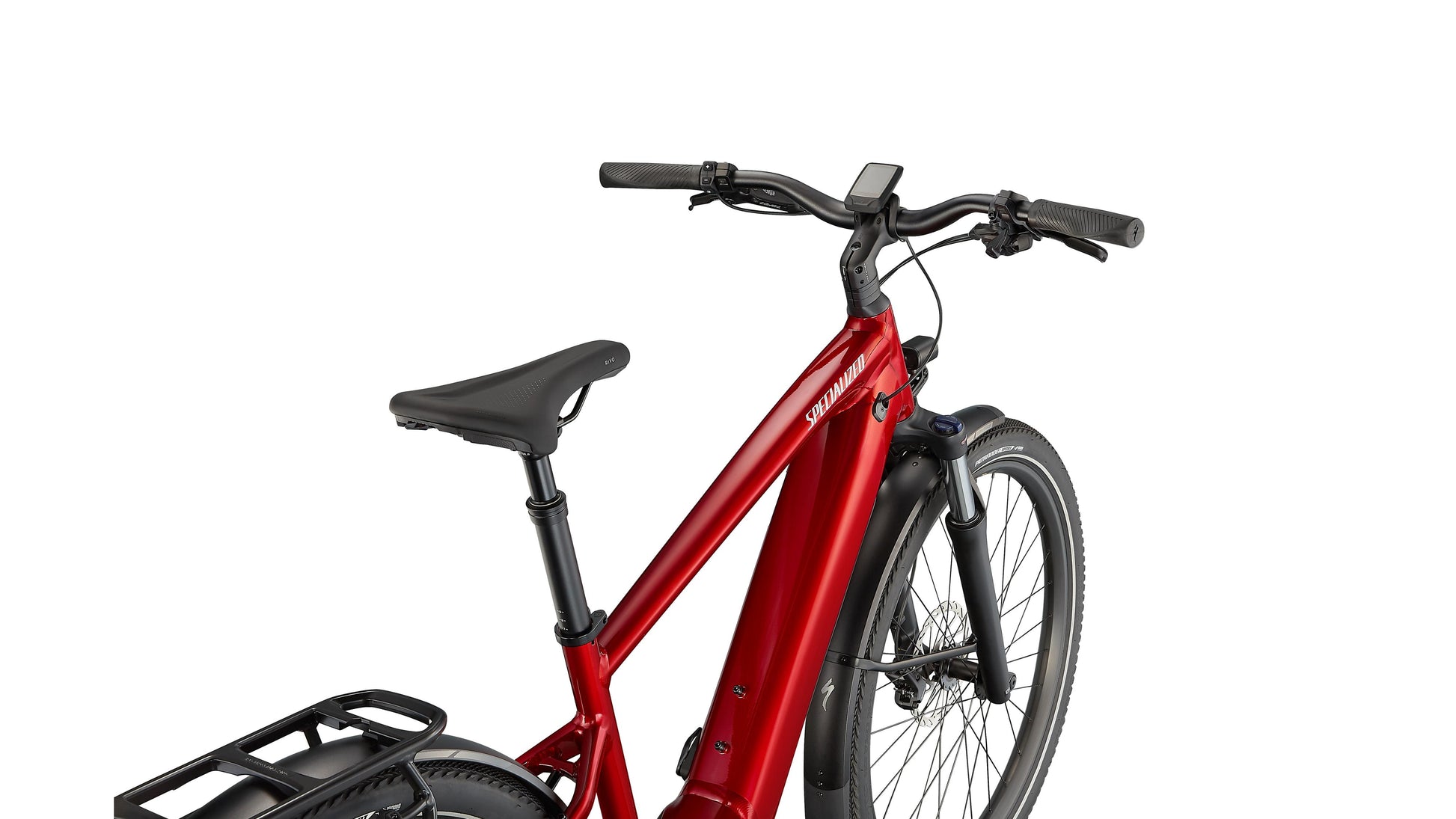

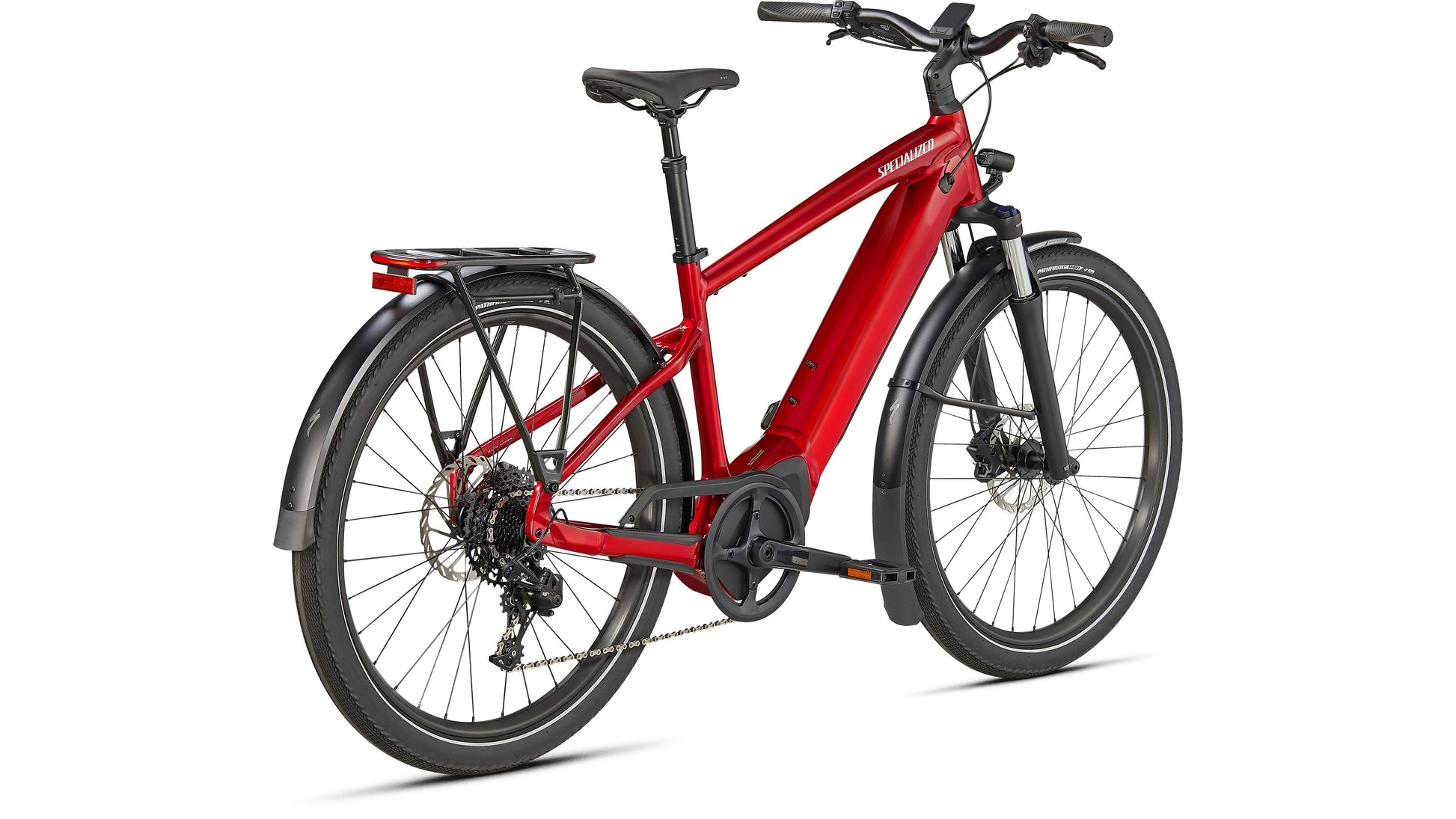

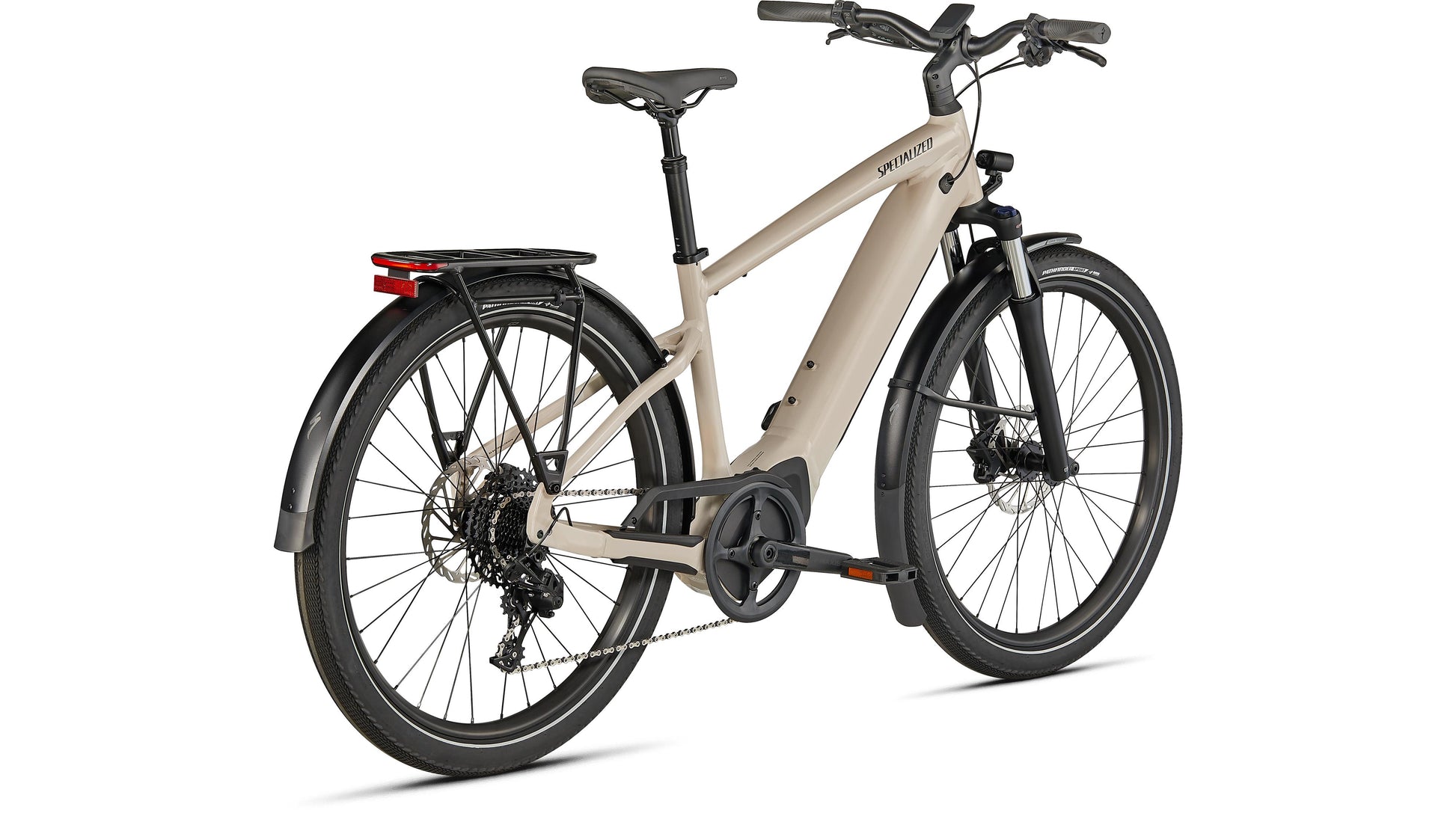

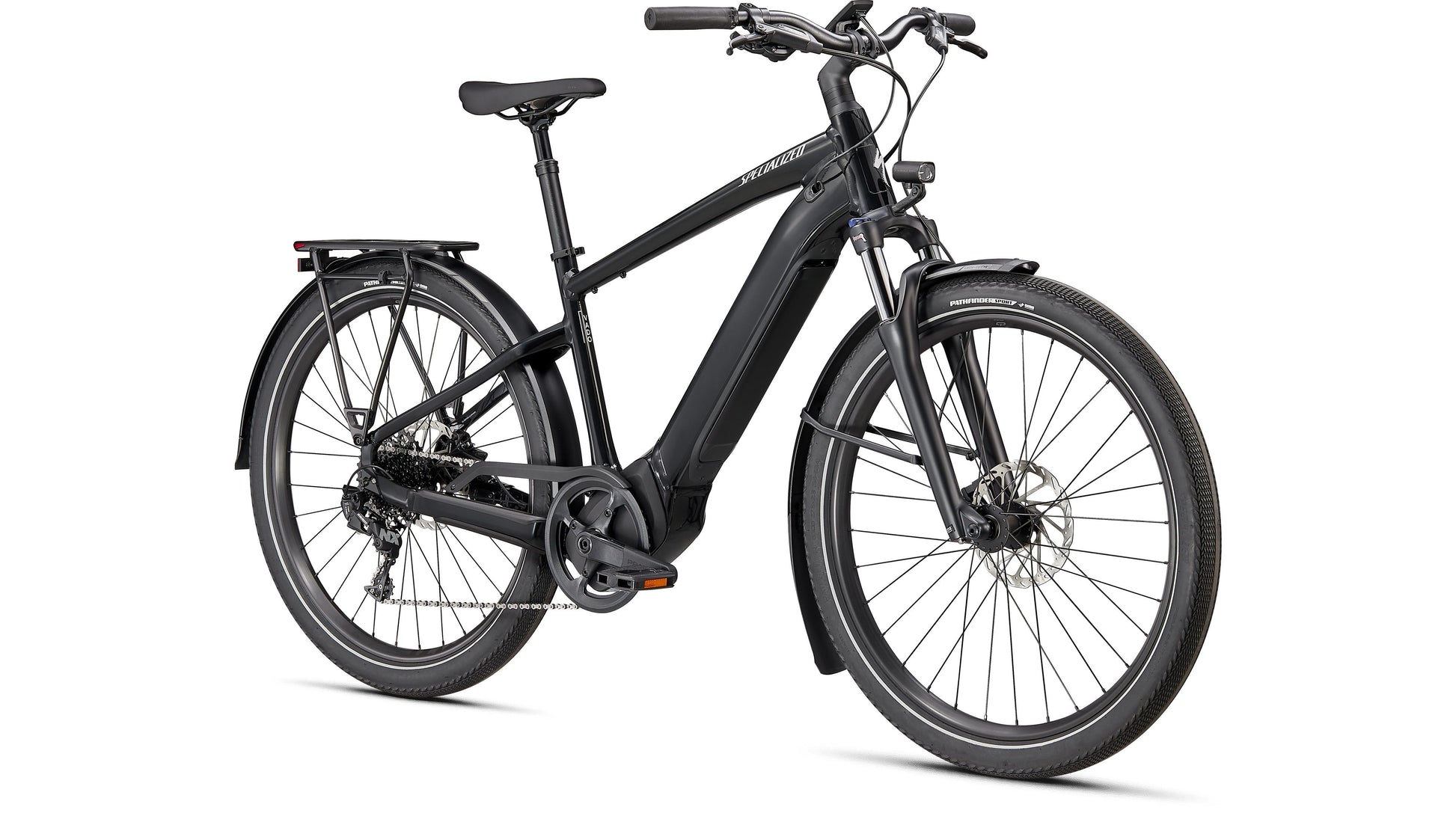

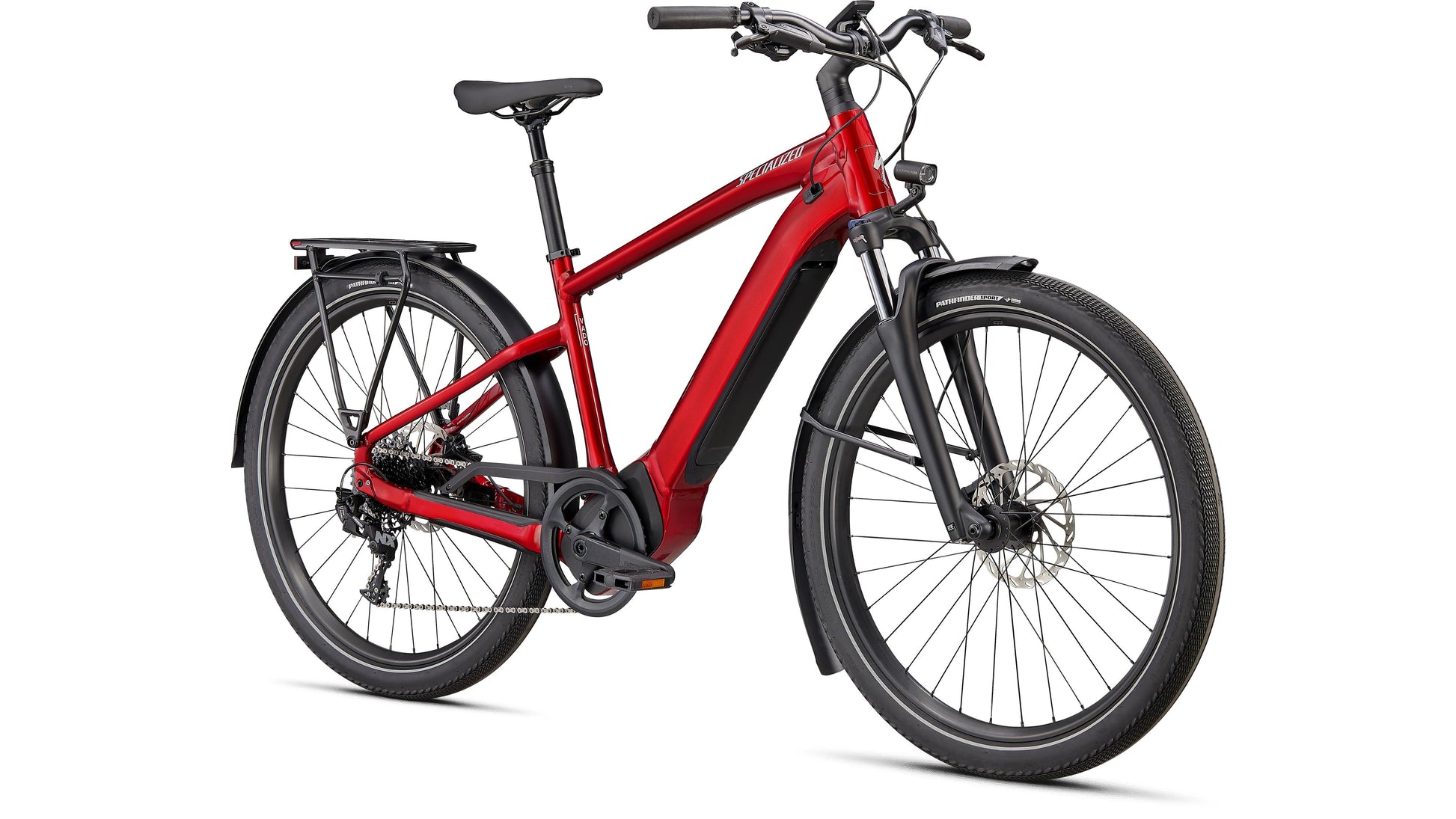

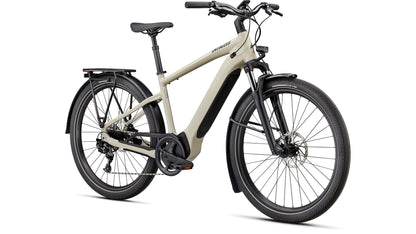

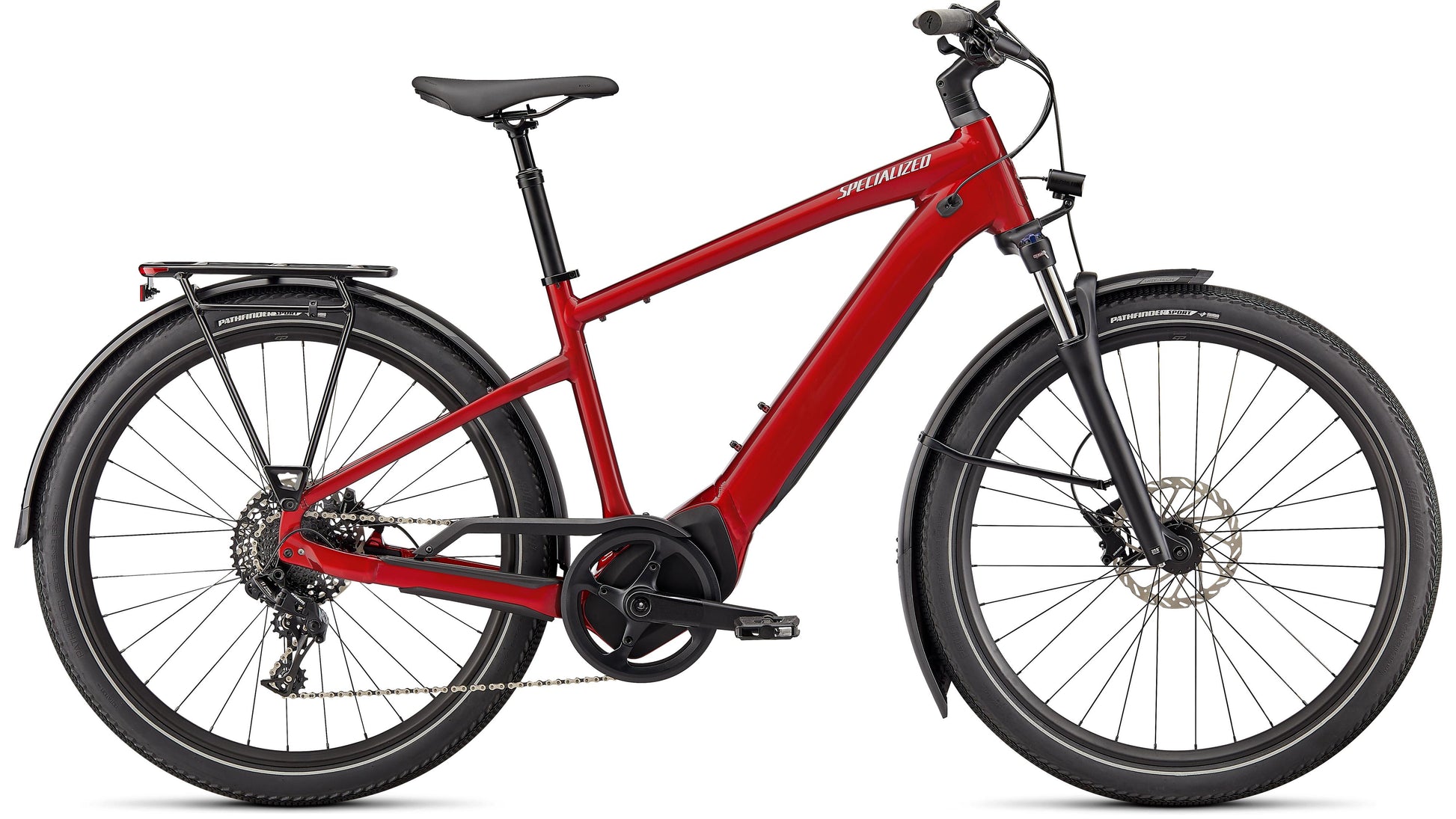

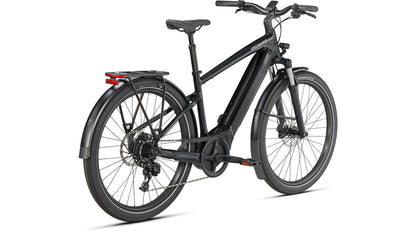

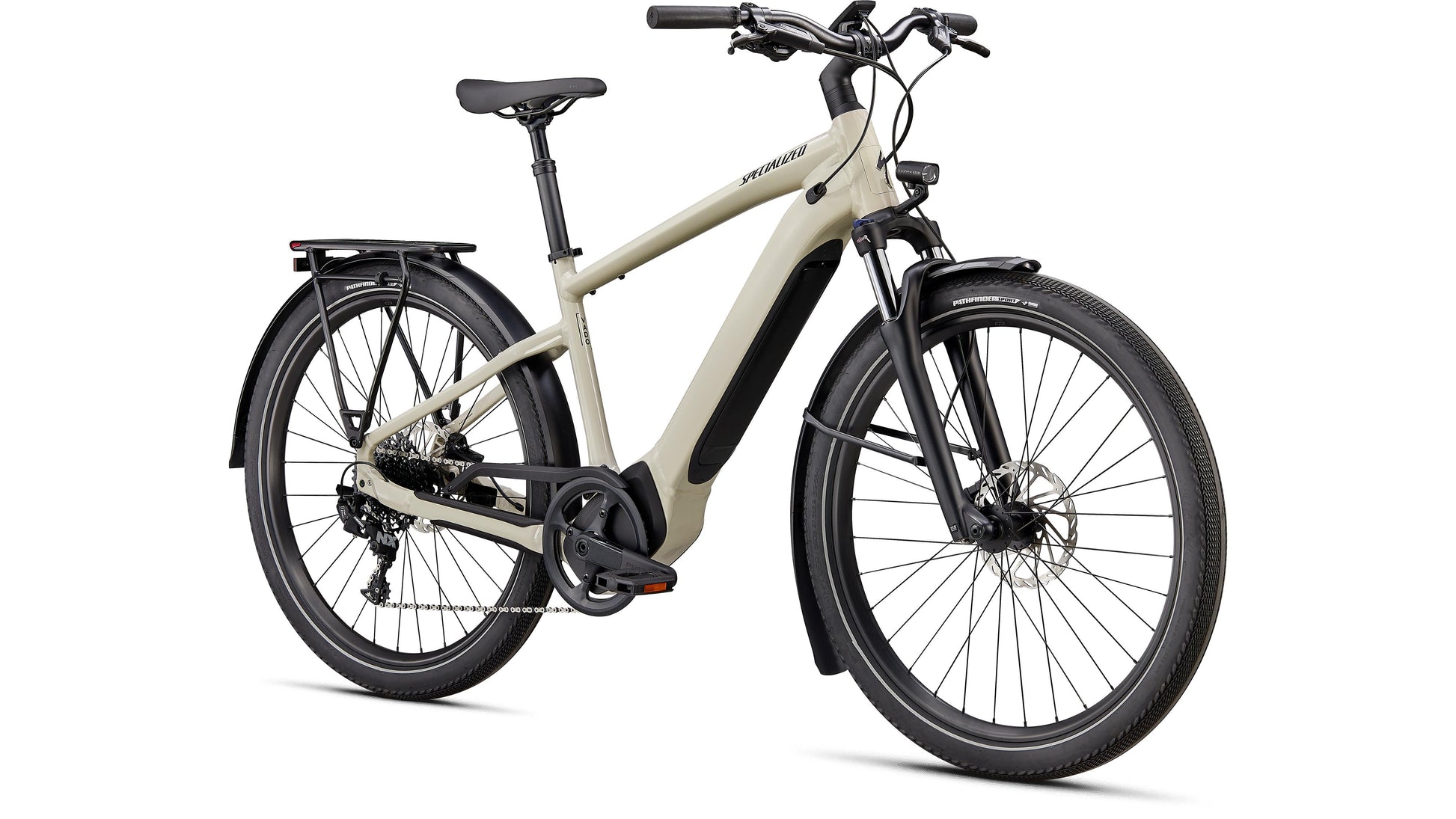

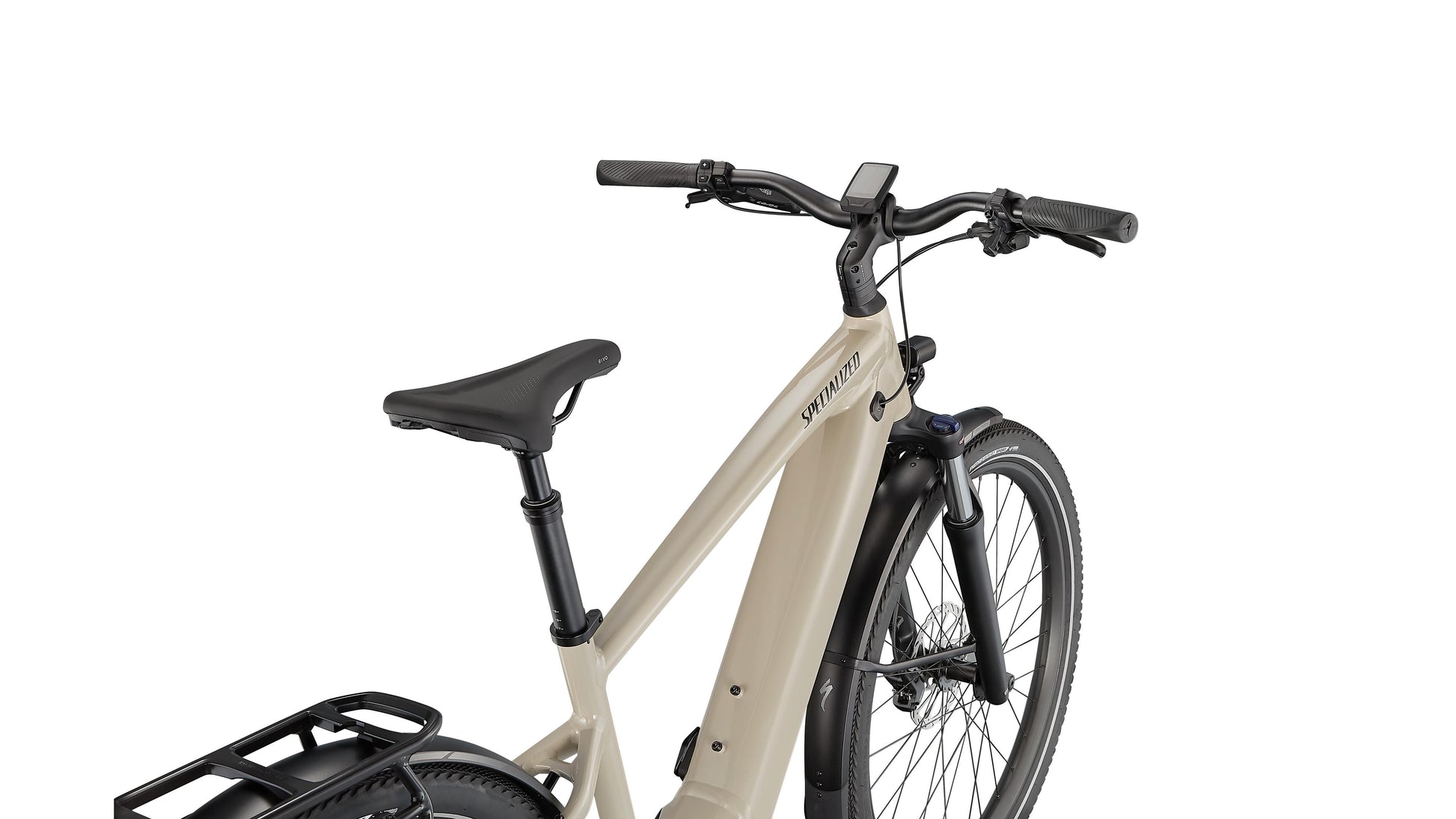

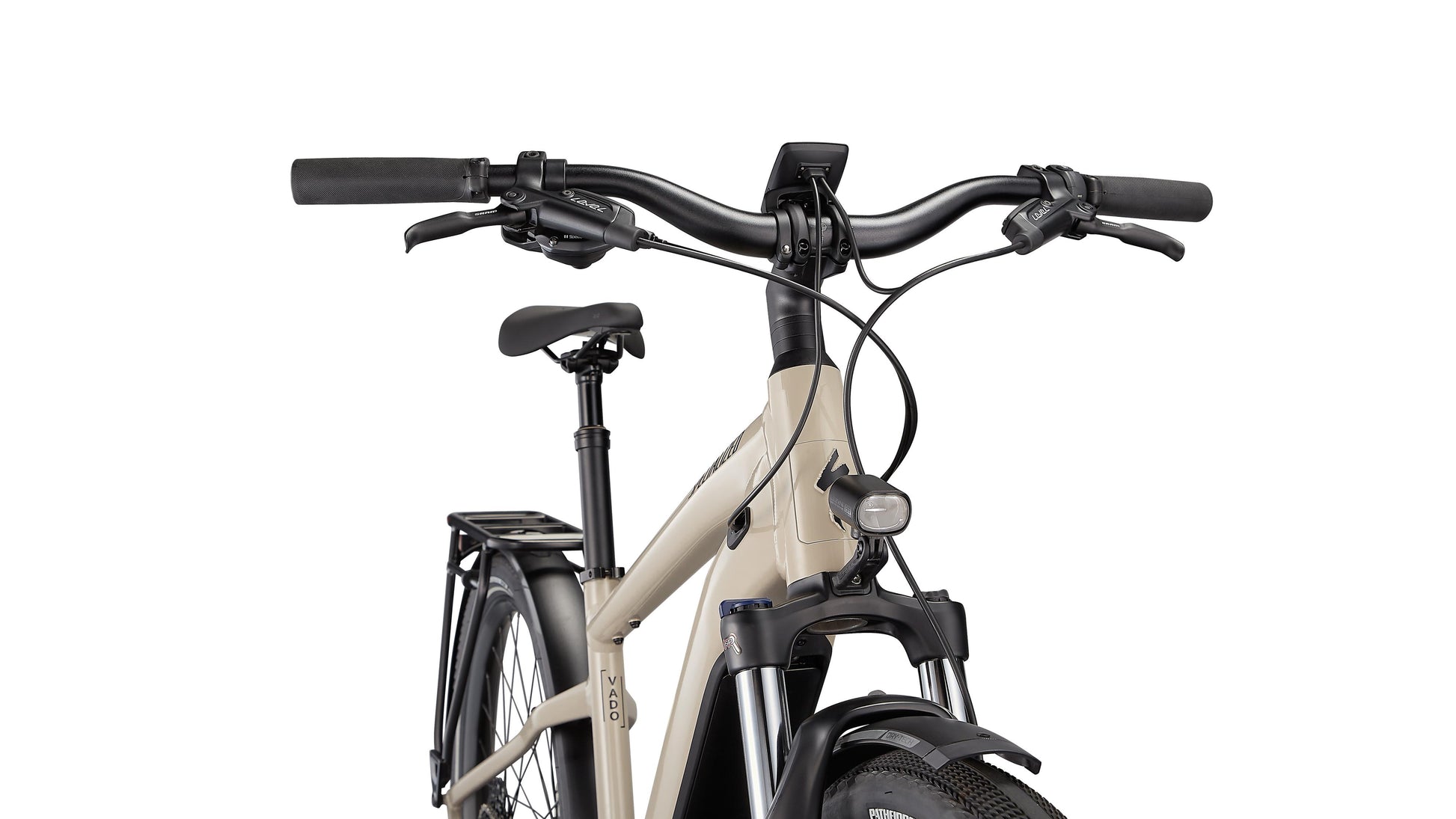

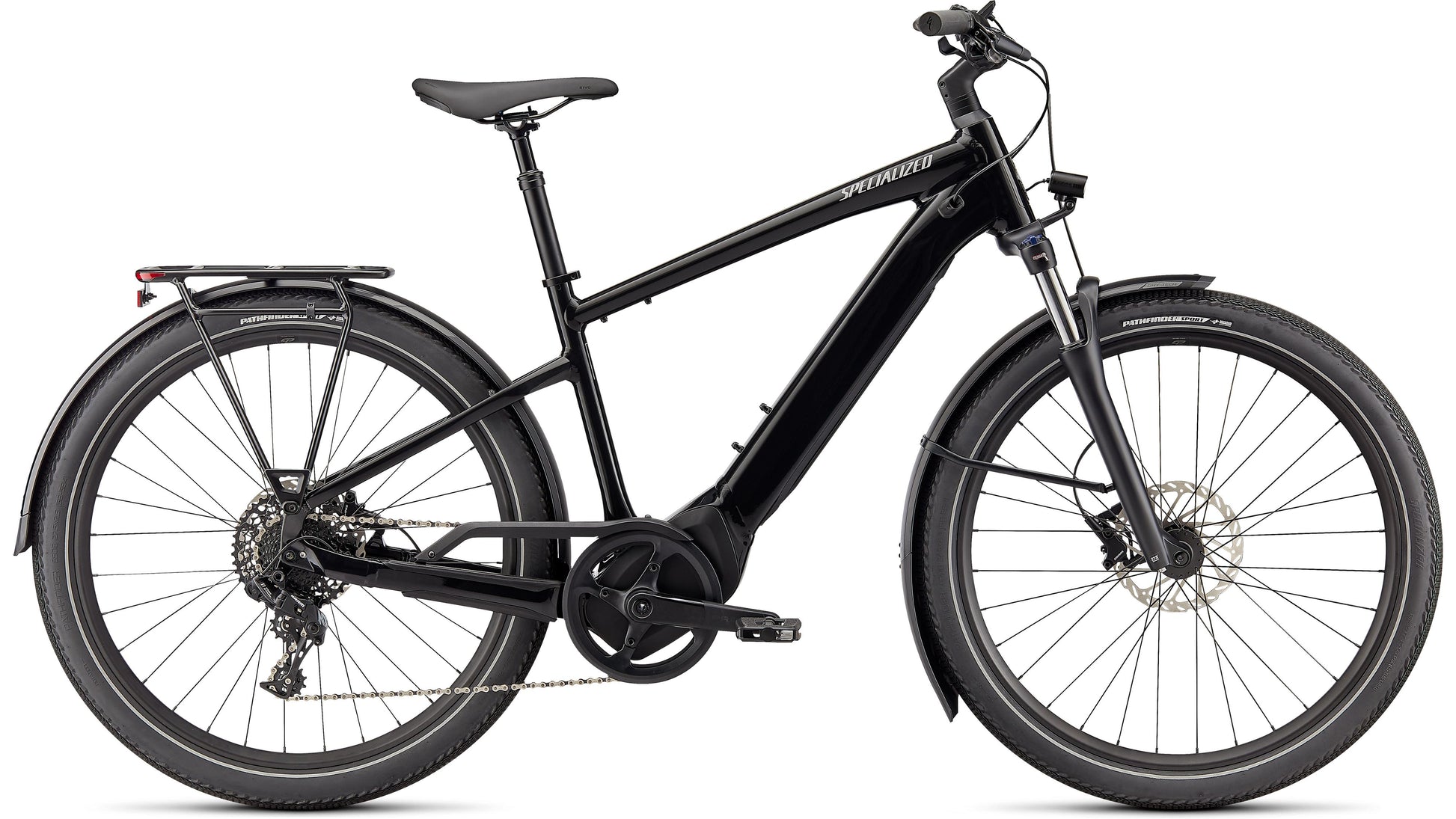

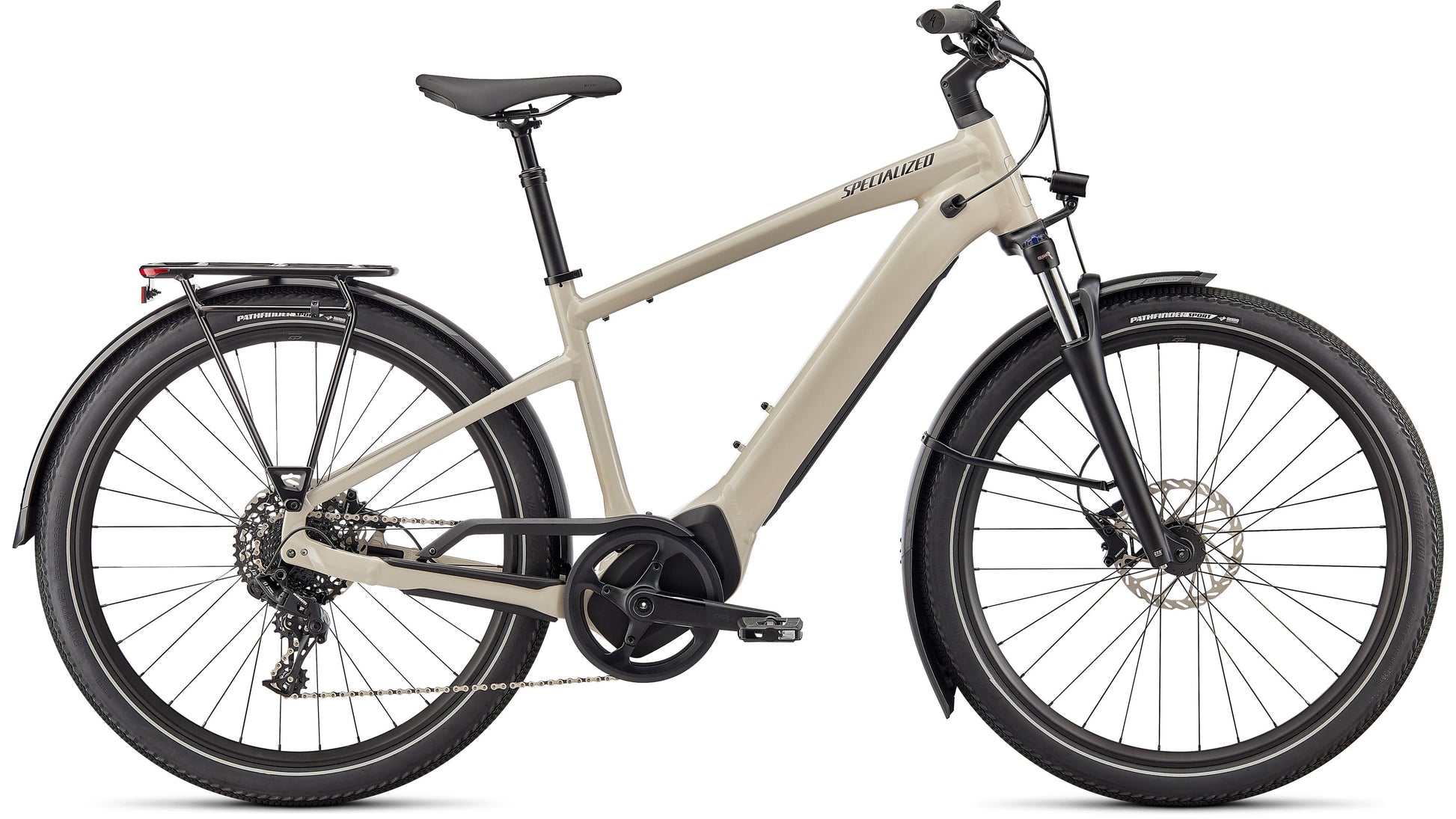

Specialized Vado 4.0

Specialized Vado 4.0

SKU:95022-5602

Regular price $2,049.97
Regular price $3,999.99 USD Sale price $2,049.97
Sale Sold out
Color
Size
View full details

    Specialized Vado 4.0 Features

    Consider Vado your high-performance transportation bike, getting you where you’re going with an unmatched combination of speed, reliability, and confidence. Whether you load it up with your stuff, or jump on and go, commute to work, or ride to the gym, Vado’s full power and huge range will get you from ‘point A’ to ‘point B’ ASAP.

    The Specialized Vado has everything you need for e-powered transport. It brings a balanced nature to the way it handles and superior levels of comfort. This is a true class leader of its type.

    TURBO: The heart of the Vado is its Turbo technology, an advanced and integrated electric bike system that delivers an unequaled combination of power, natural feel, anti-theft functions, training tips, and a full-function bike computer.

    POWERFUL: It’s you, just faster — it’s 4x You. The Turbo Full Power system senses the force you apply to the pedals and naturally quadruples it for an experience that makes getting up any hill or to any destination no sweat. Literally.

    COMFORTABLE AND CONFIDENT: Body position and handling are optimized to deliver unsurpassed riding comfort, confidence, and control. Powerful hydraulic disc brakes reign in your speed, while larger tires provide maximum traction for turning and stopping.

    SMOOTH: Stay comfortable in the saddle with an 80mm front suspension fork, higher volume tires, and a plush suspension seat post that smooths harsh bumps from points A to B.

    SECURE: Vado has anti-theft lock built right into the bike. Prevent would-be bike thieves by disabling the motor with a press of a button so no one can turn on the motor without your phone connected to the Specialized app or your personalized pin. The Vado’s battery locks in the bike or can be easily taken with you. And if anyone tries to move your bike an alarm will sound. Beat it, thieves.

    The speed limit at which the motor will stop supporting may vary significantly by region and is based on local requirements. It may also affect range: a higher speed limit may result in less range.

    At a Glance

    • Turbo Full Power 2.0 motor and 710Wh battery offer an unparalleled riding experience, providing a smooth, seamless, and shockingly quiet amplification of your efforts, up to 28 mph. The integrated controller responds to your pedal inputs resulting in intuitive amplification of your efforts with an incredibly natural feel.

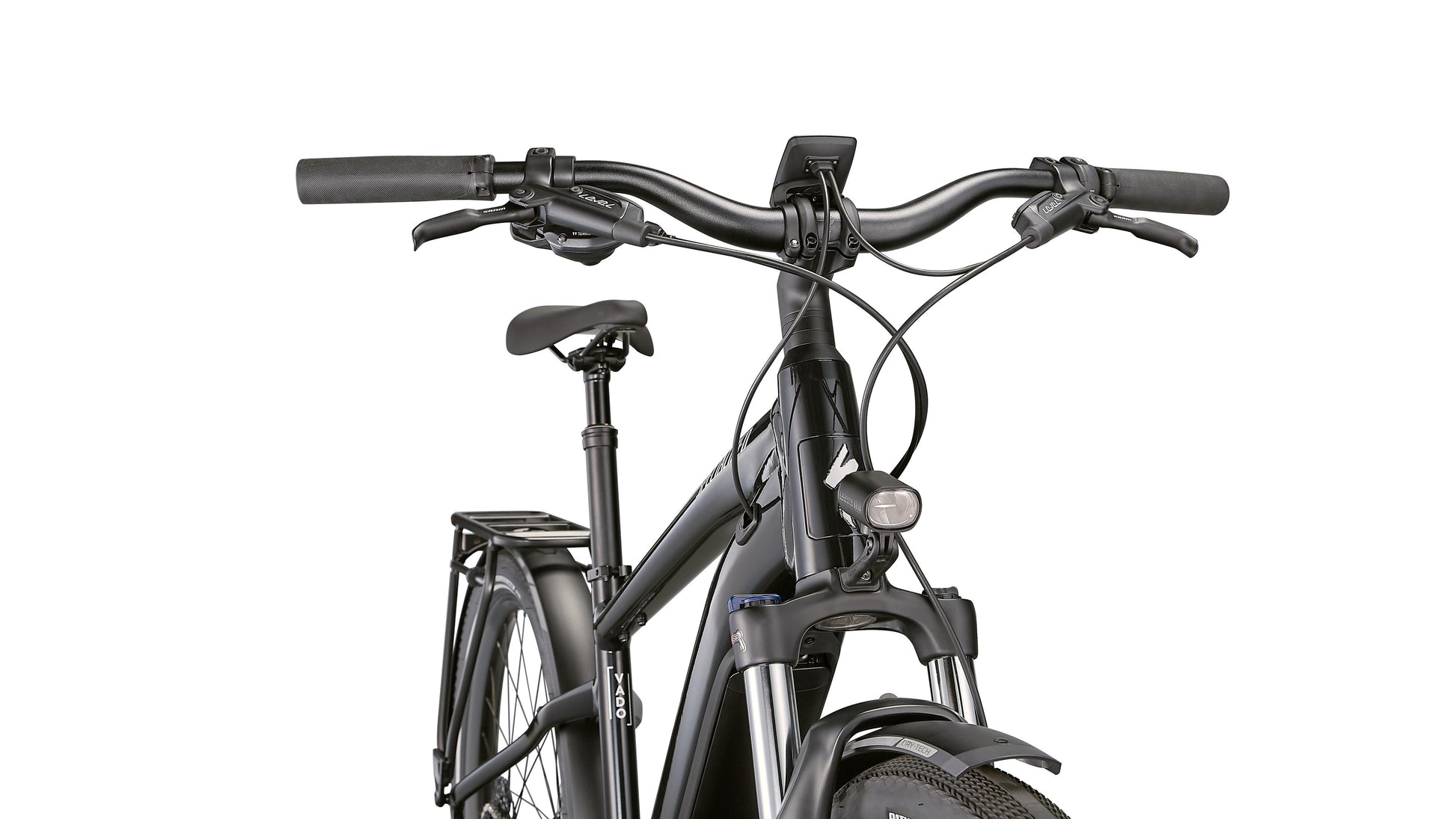

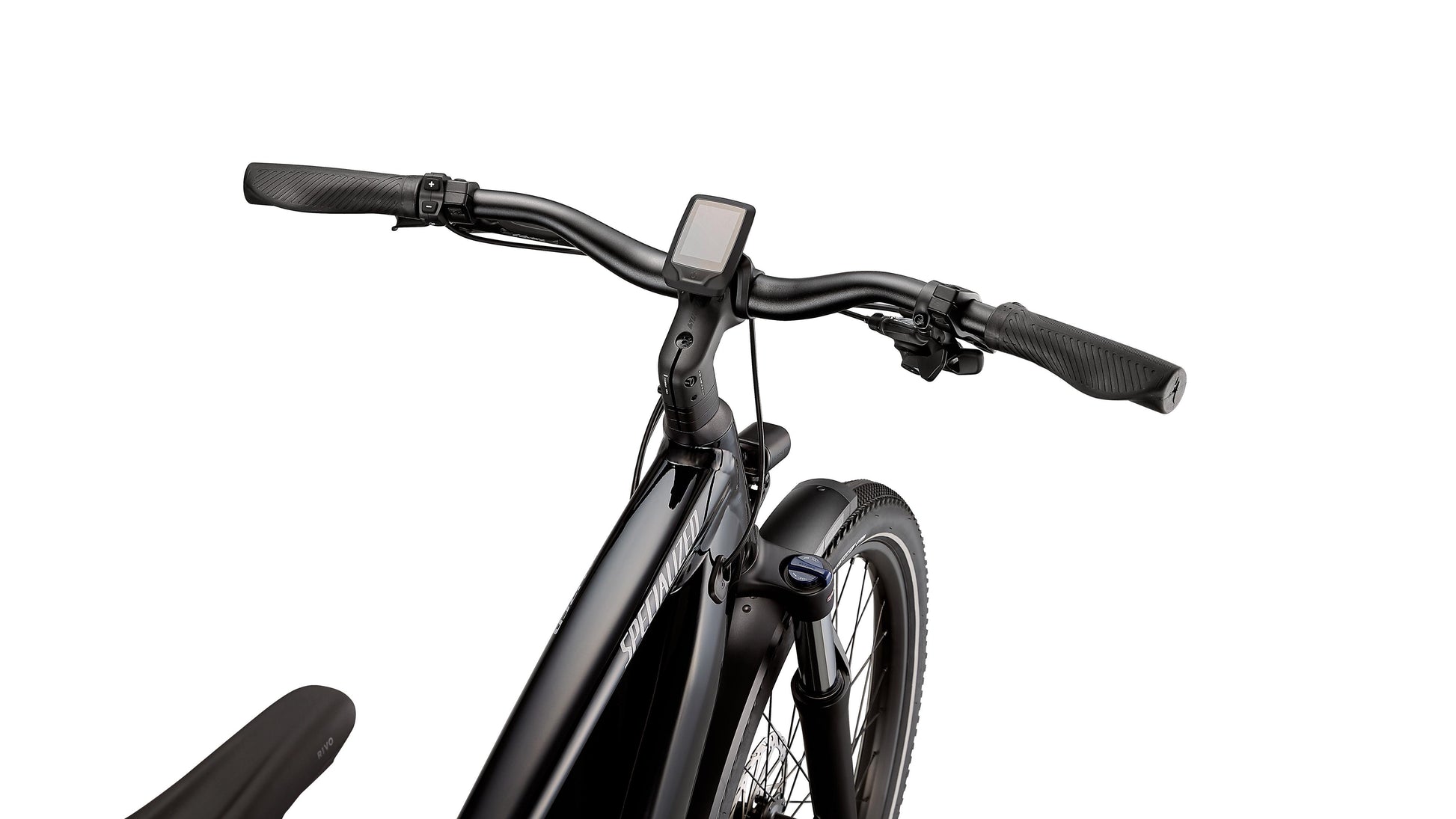

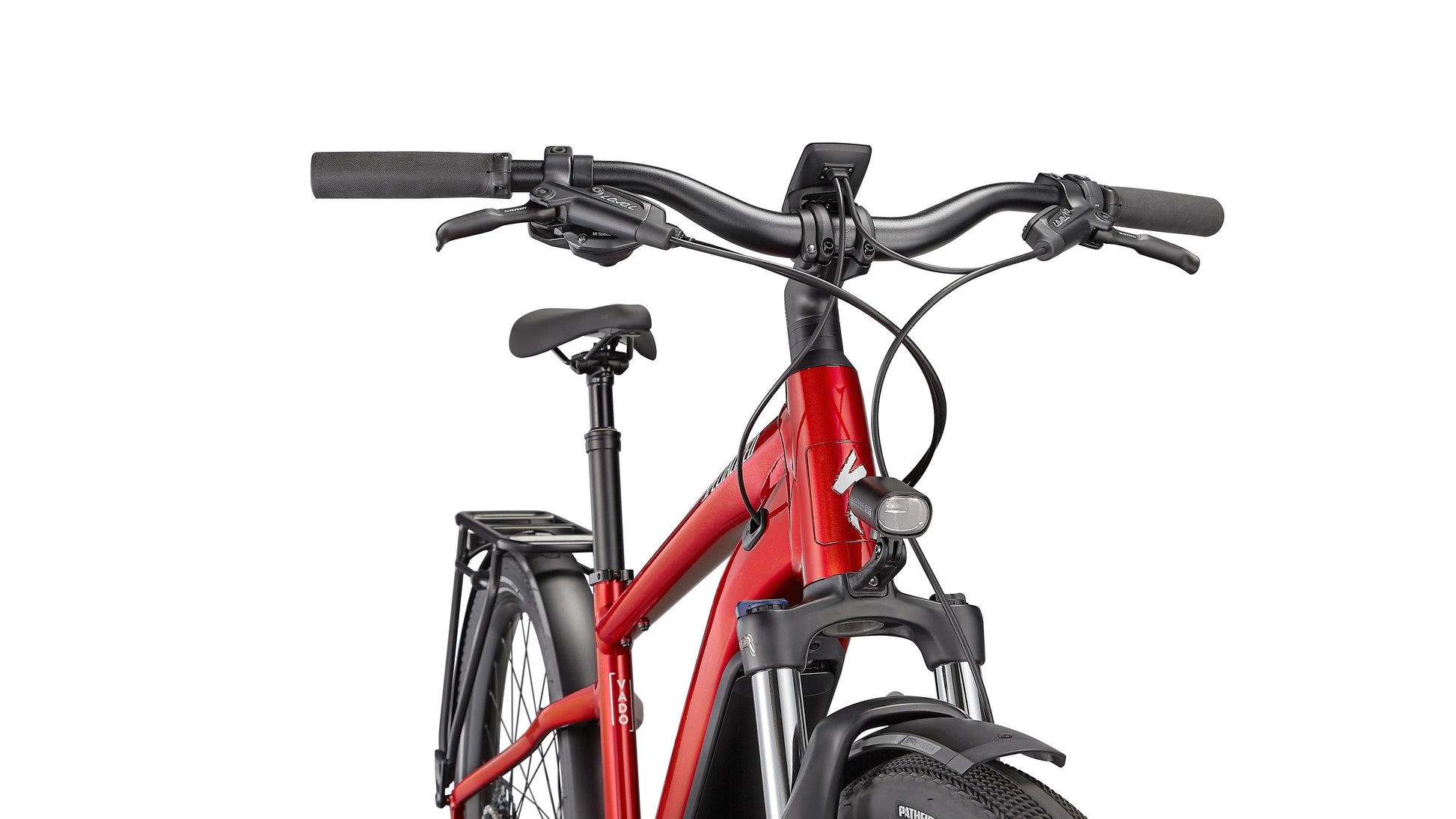

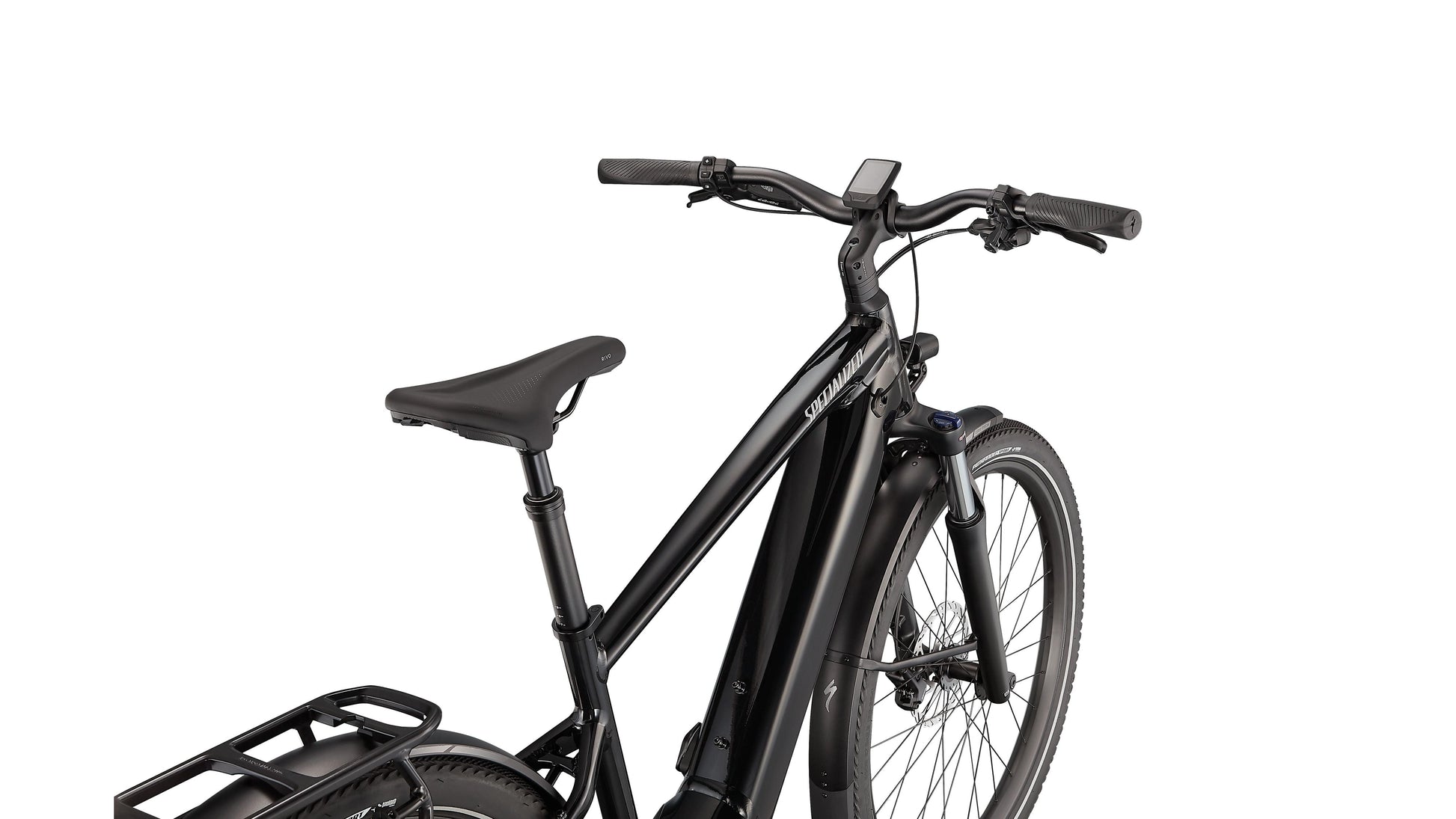

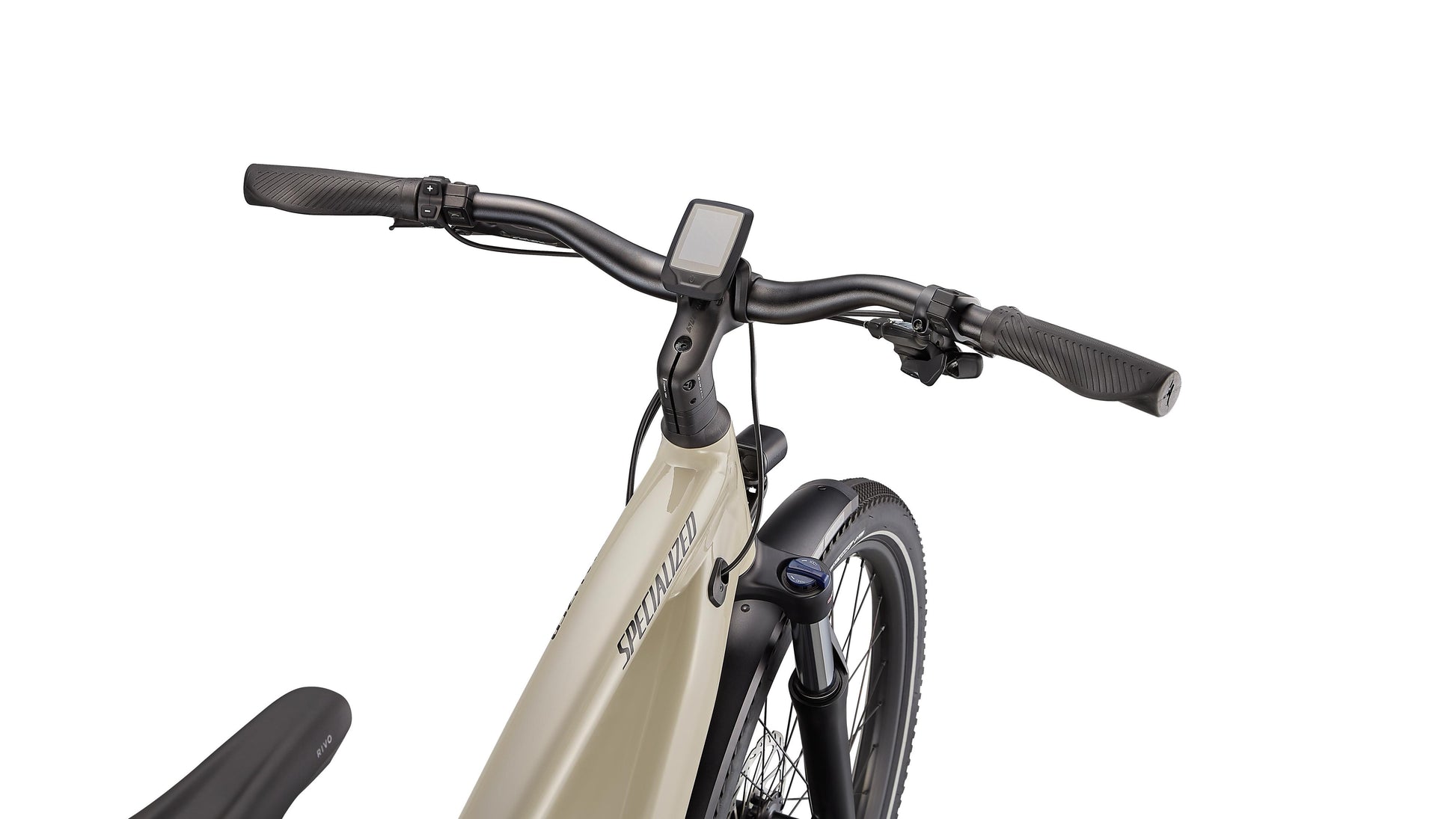

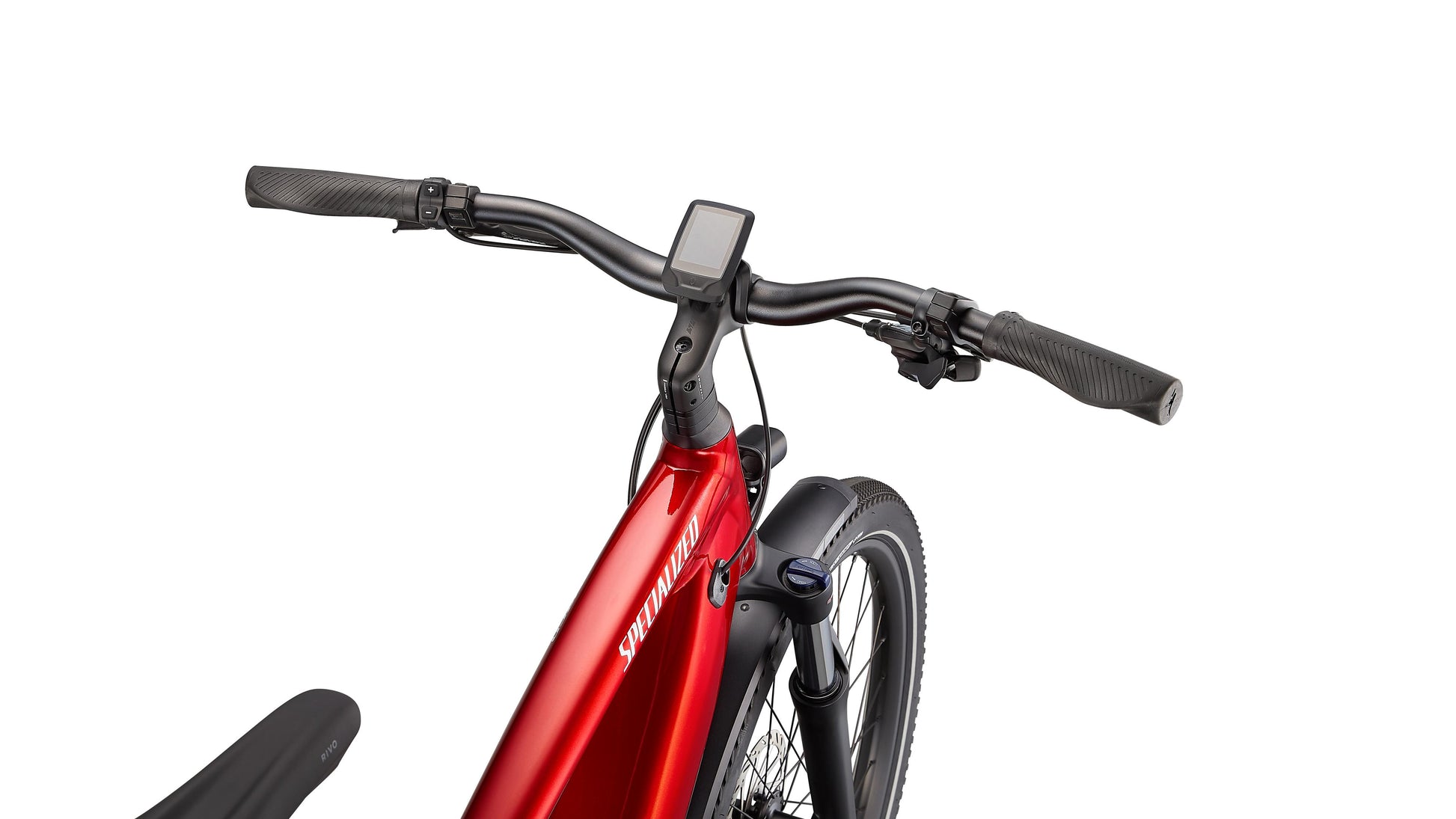

    • MasterMind and Specialized app - The MasterMind display reveals all relevant info about your ride and allows real-time tuning of support levels. MasterMind seamlessly integrates with the Specialized app for range optimization tools, advanced tuning, on-ride diagnostics, and more.
    • Proven Smooth Efficiency - We designed a custom testing mechanism to analyze bumps at even the smallest frequency to increase comfort and vision. That precision, paired with a suspended seatpost, higher volume tires, and an 80 mm suspension fork, will flatten roads before your eyes.
    • Turbo System Lock - Use the Specialized app to disable your bike’s motor and activate the motion sensor alarm. Once locked, the motor cannot be enabled again except by the owner.
    • Fully Integrated Removable and Lockable Downtube Battery - Easy to charge, easy to secure.

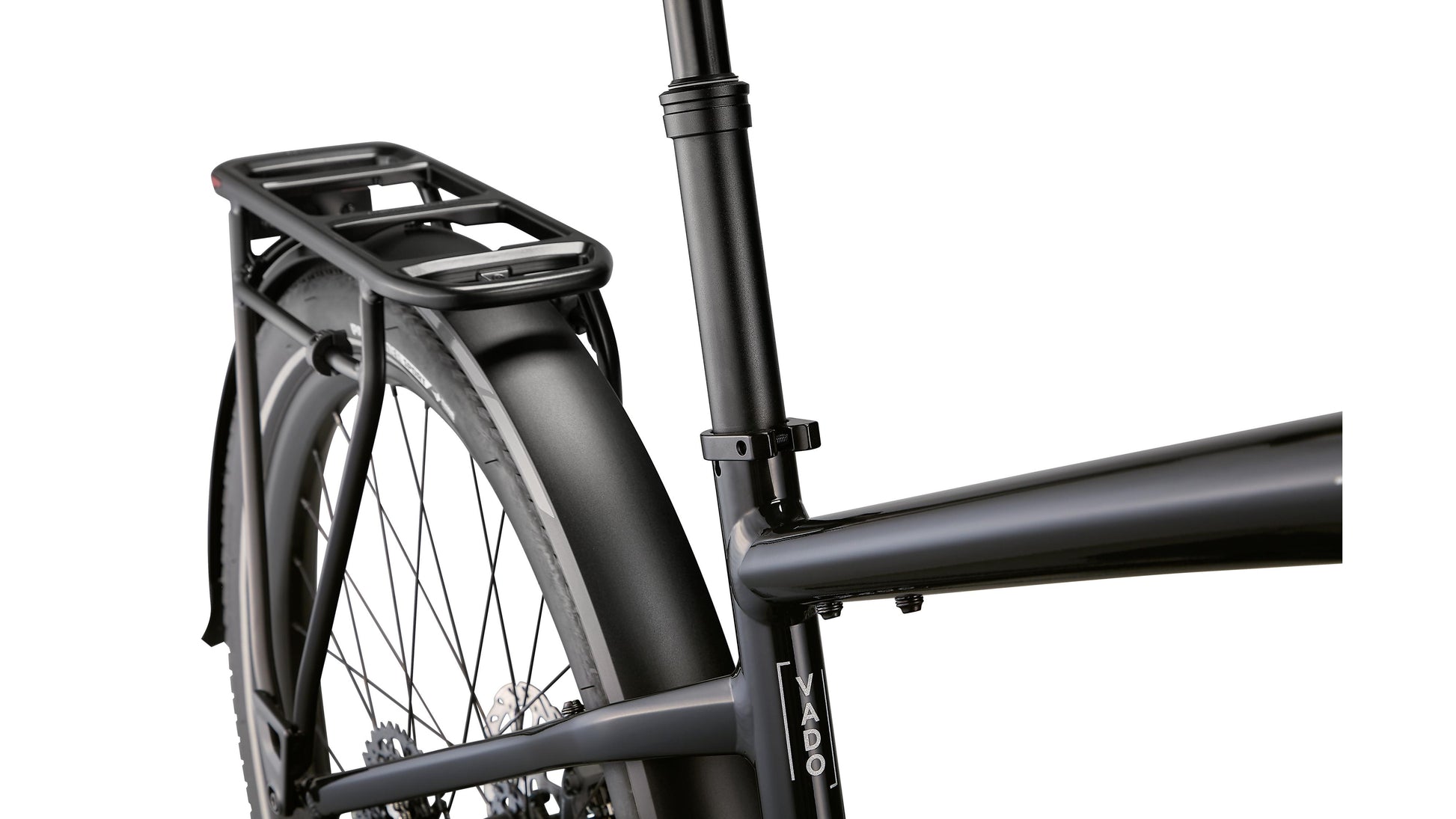

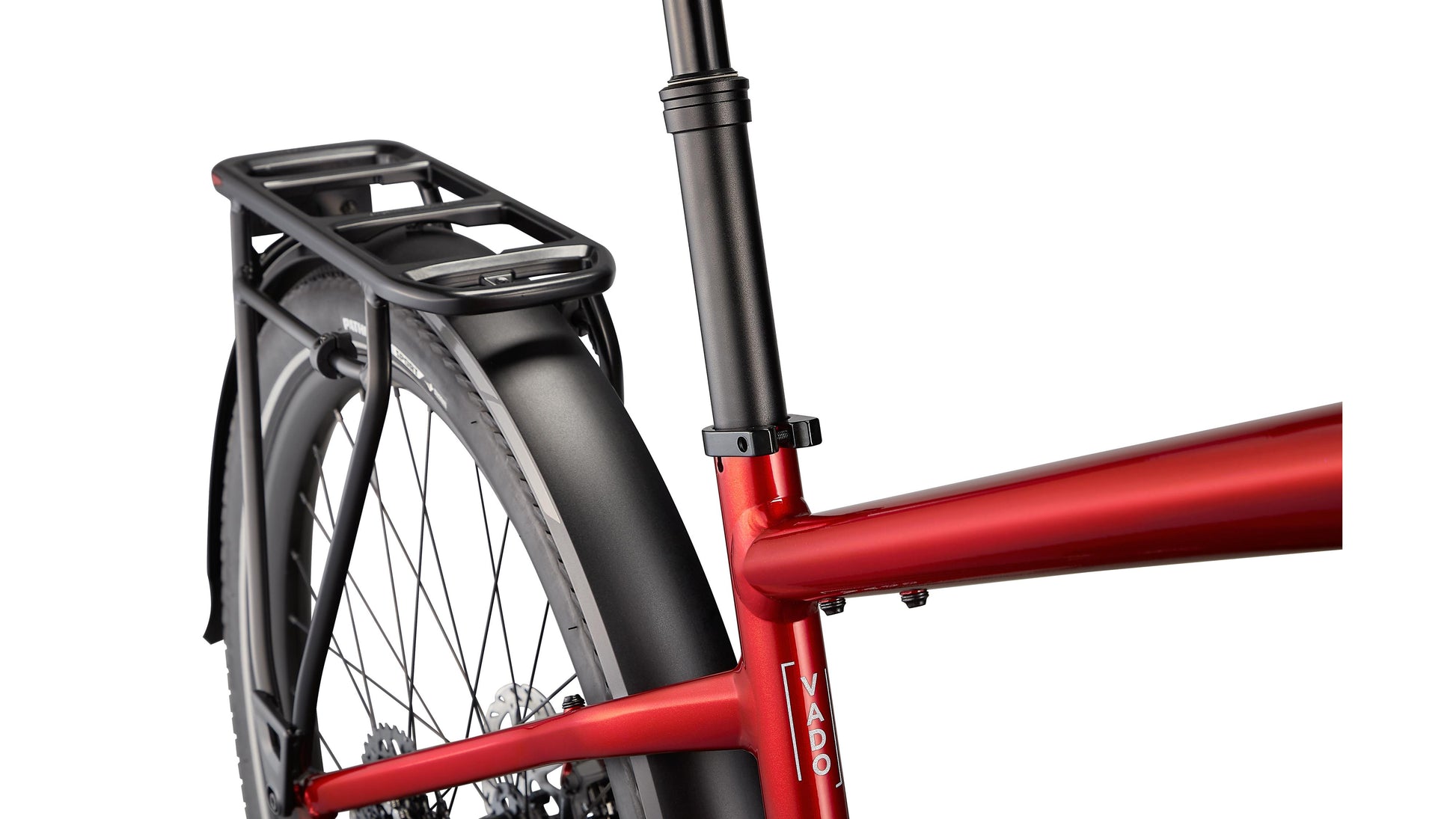

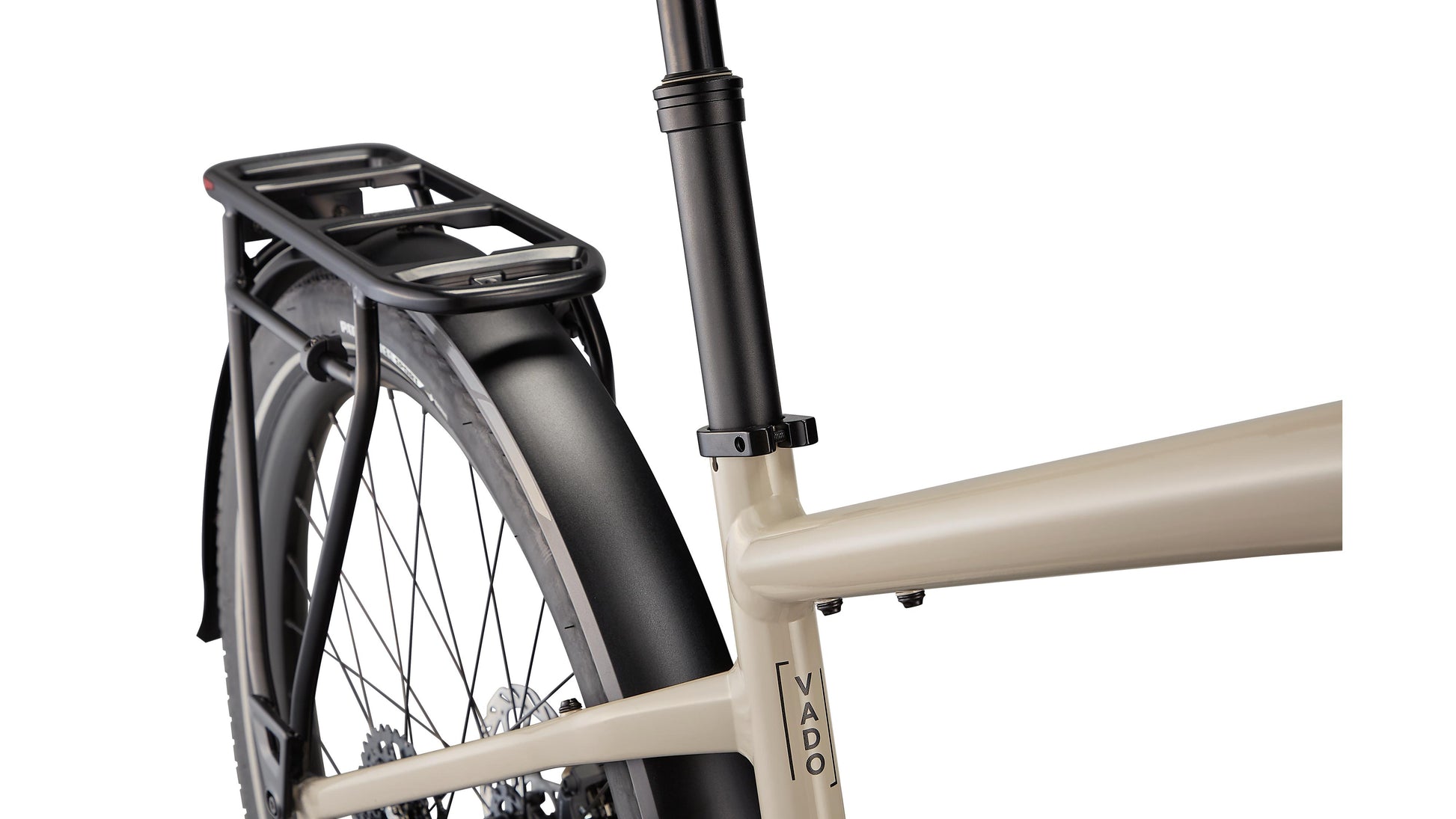

    • Equipped with DRYTECH Fenders, LED front and rear lights, and 27kg capacity rear HD Rack. The rear rack is compatible with child bike seats, and the bike is also rated to pull a thru-axle trailer.
    • Long-Range - With a ride-anywhere range, go up to 90 miles (145 km) or 6.5 hours on a single charge (eco mode).

    Component Specifications

    Motor Specialized 2.0, 70Nm torque, custom tuned motor, 250W nominal
    Battery Specialized U2-710, alloy casing, state of charge display, 710Wh
    UI Remote MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages
    Charger Custom charger, 42V4A w/ Rosenberger plug, 100-240V
    Frame E5 Aluminum, bottom bracket motor mount, fully integrated & lockable downtube battery, internal cable routing, lock and front rack mount, sliding dropout
    Seat Binder Alloy, bolt-type, 34.9mm
    Fork SR Suntour MobieA32, 80mm travel, lockout, fender-mounts, integrated light mount
    Shift Levers SRAM NX, 11-speed
    Rear Derailleur SRAM NX, 11-speed
    Cassette SRAM PG-1130, 11-speed, 11-42t
    Chain KMC e11S, 11-speed w/ Missing Link™
    Crankset Custom alloy forged crankarms
    Chain Rings Praxis, 48T, 104BCD
    Rims 650b disc, double-wall alloy, pinned, 32h
    Front Hub Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x100mm thru-axle, 32h
    Rear Hub Specialized alloy rear hub disc, sealed cardridge bearings, 6-bolt, 12x148mm thru-axle, 32h
    Spokes DT Swiss Industry
    Front Tire Pathfinder Sport Reflect, 650Bx2.3
    Rear Tire Pathfinder Sport Reflect, 650Bx2.3
    Inner Tubes Standard 40mm SV 650Bx1.75-2.4
    Front Brake SRAM Level, 2-piston caliper, hydraulic disc, 180mm 6-bolt
    Rear Brake SRAM Level, 2-piston caliper, hydraulic disc, 180mm 6-bolt
    Stem Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp
    Handlebars Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm
    Grips Specialized Body Geometry
    Saddle Rivo Sport, steel rails, 155mm
    Seatpost Spring suspension, alloy, 40mm travel, 30.9mm, 2-bolt clamp, 34.9mm sleeve

    Specialized Vado 4.0

    Bike/Frame Size S M L XL
    Stack 625 mm 639 mm 652 mm 676 mm
    Reach 423 mm 444 mm 464 mm 481 mm
    Chainstay Length 470 mm 470 mm 470 mm 470 mm
    Wheelbase 1160 mm 1186 mm 1212 mm 1239 mm
    Toptube Length (horizontal) 585 mm 615 mm 645 mm 675 mm
    Bike Standover Height 735 mm 771 mm 771 mm 805 mm
    Seat Tube Length 400 mm 450 mm 460 mm 500 mm
    Seat Tube Angle (Virtual) 75.5° 75° 74.5° 74°
    Headtube Length 135 mm 150 mm 165 mm 190 mm
    Headtube Angle 68° 68° 68° 68°
    BB Height 285 mm 285 mm 285 mm 285 mm
    BB Drop 70 mm 70 mm 70 mm 70 mm
    Trail 96 mm 96 mm 96 mm 96 mm
    Fork Length (full) 480 mm 480 mm 480 mm 480 mm
    Fork Rake/Offset 44 mm 44 mm 44 mm 44 mm
    Front Center 699 mm 724 mm 750 mm 777 mm

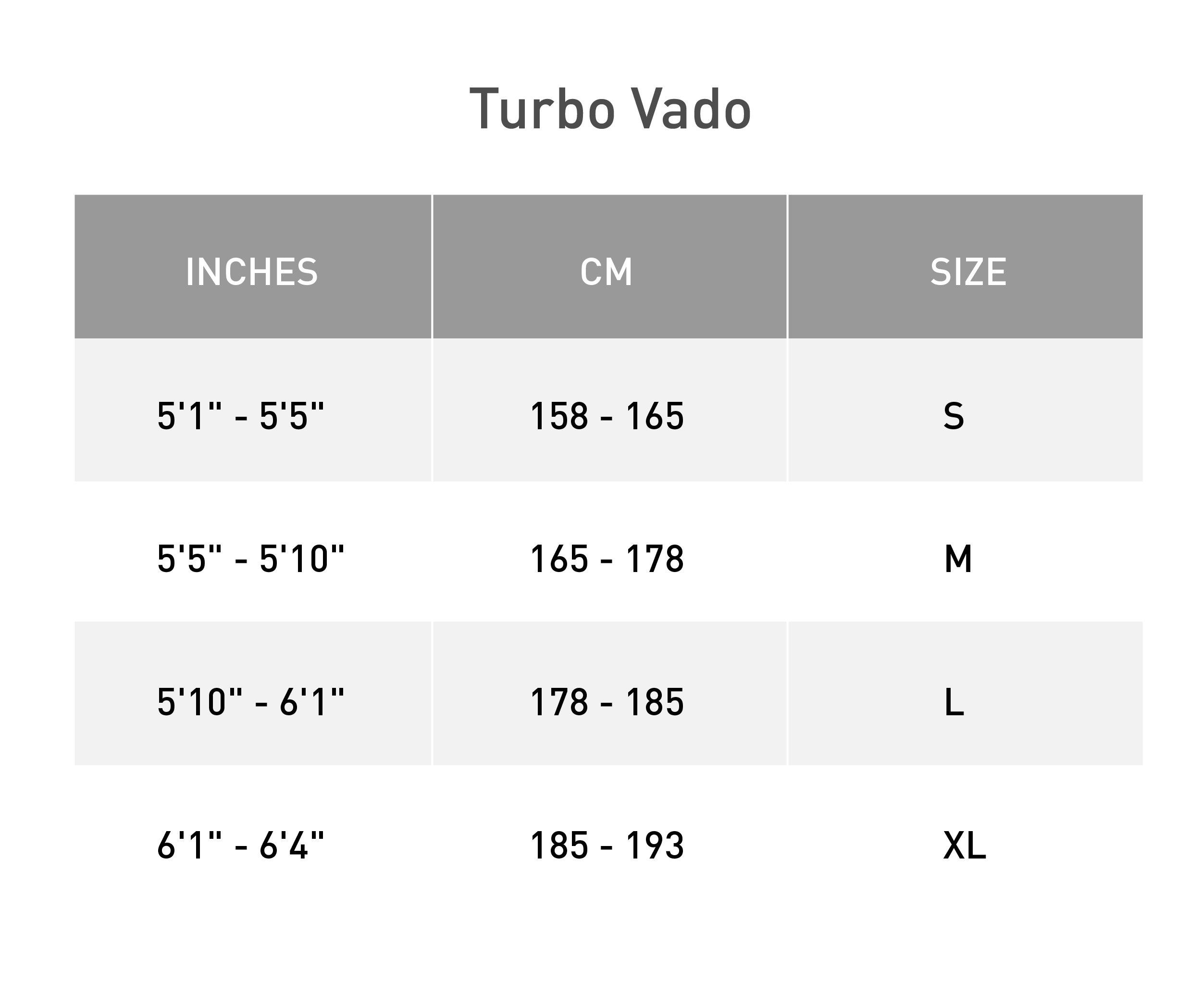

    Size Guide: Specialized Vado 4.0

    Size guide for Specialized Vado 4.0
