SPECIALIZED

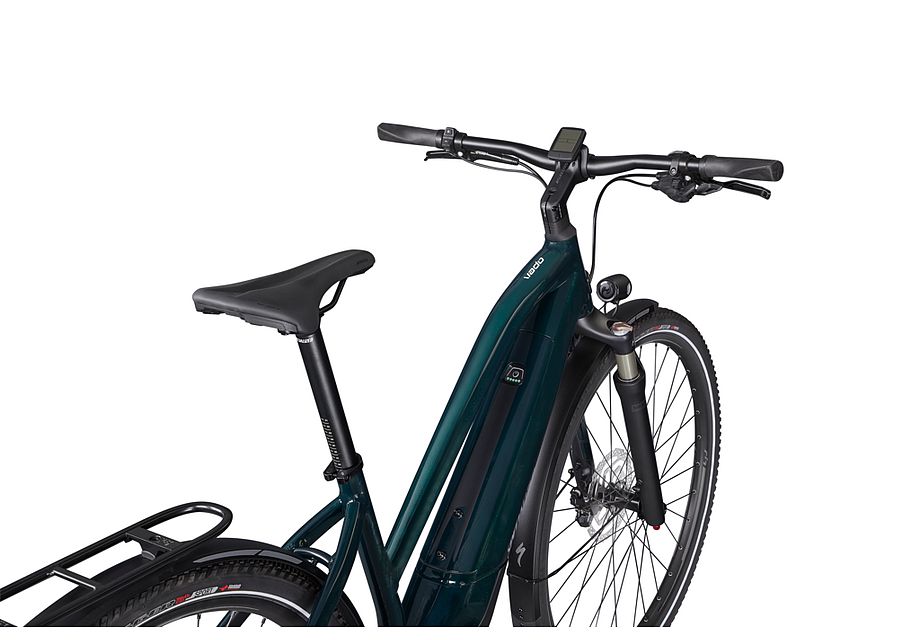

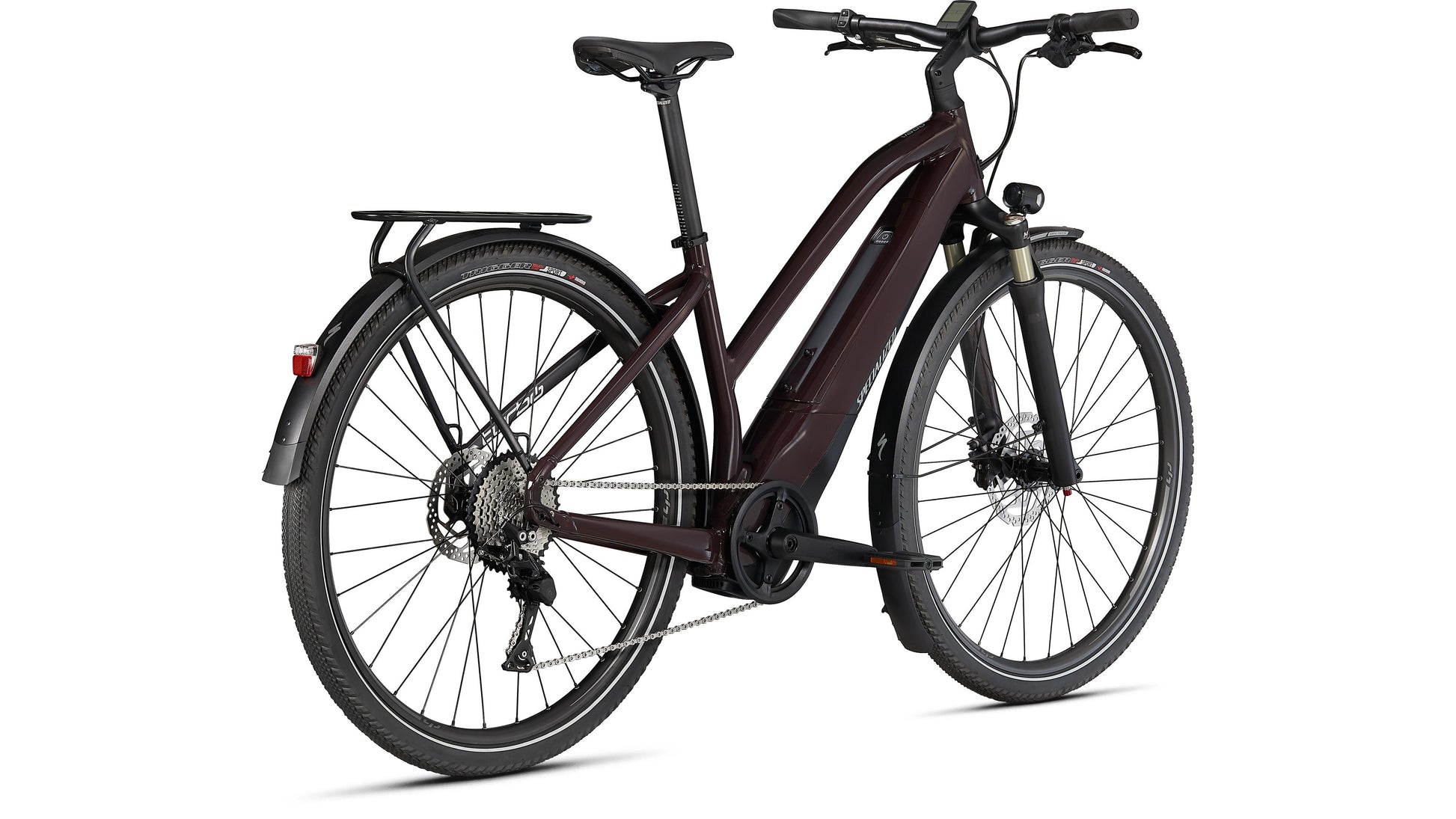

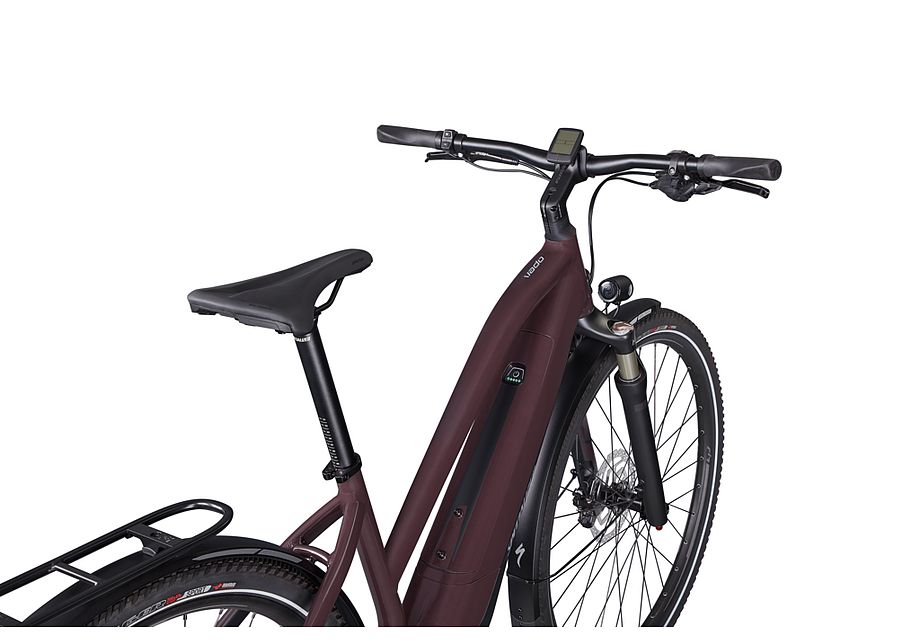

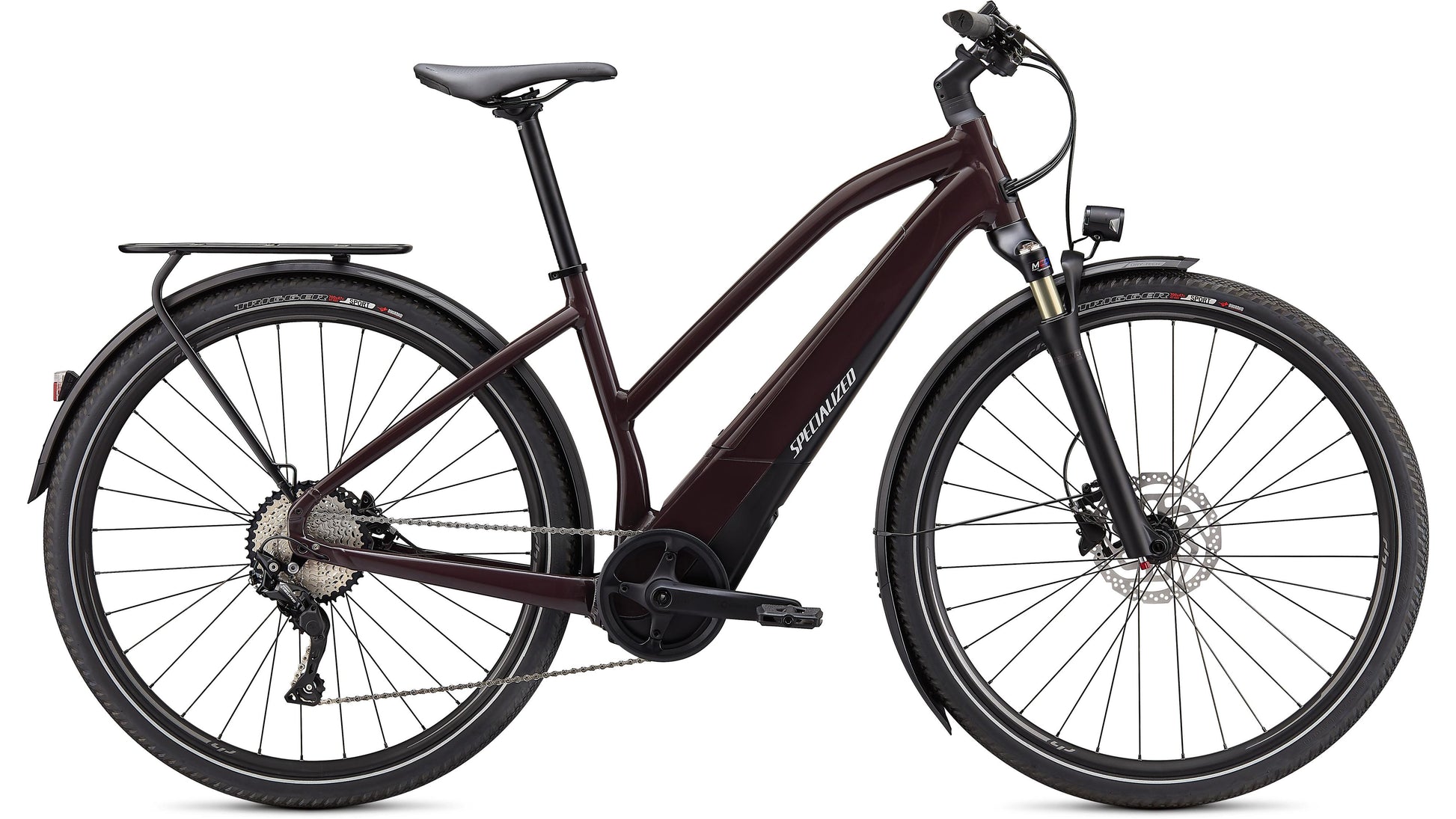

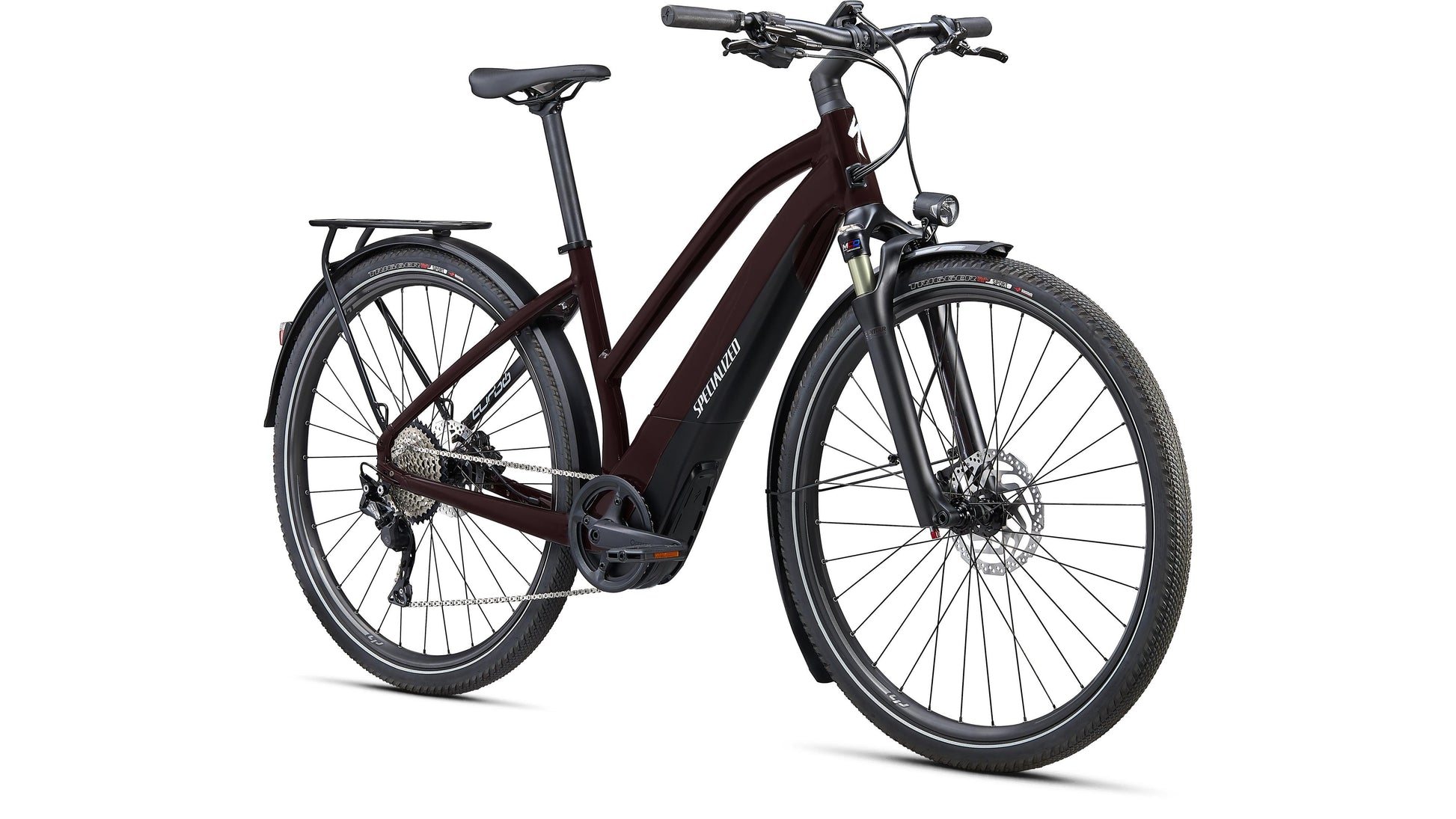

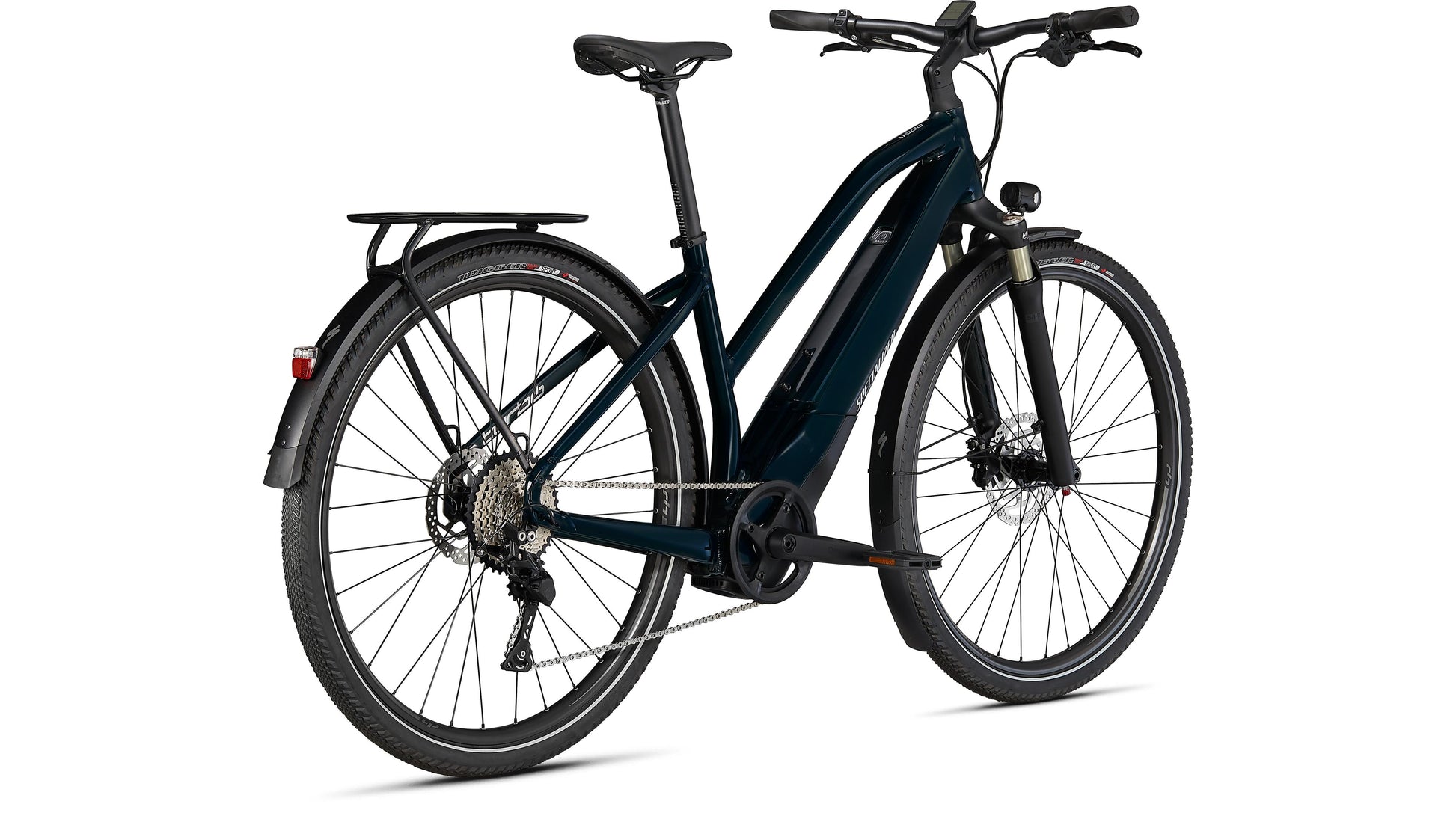

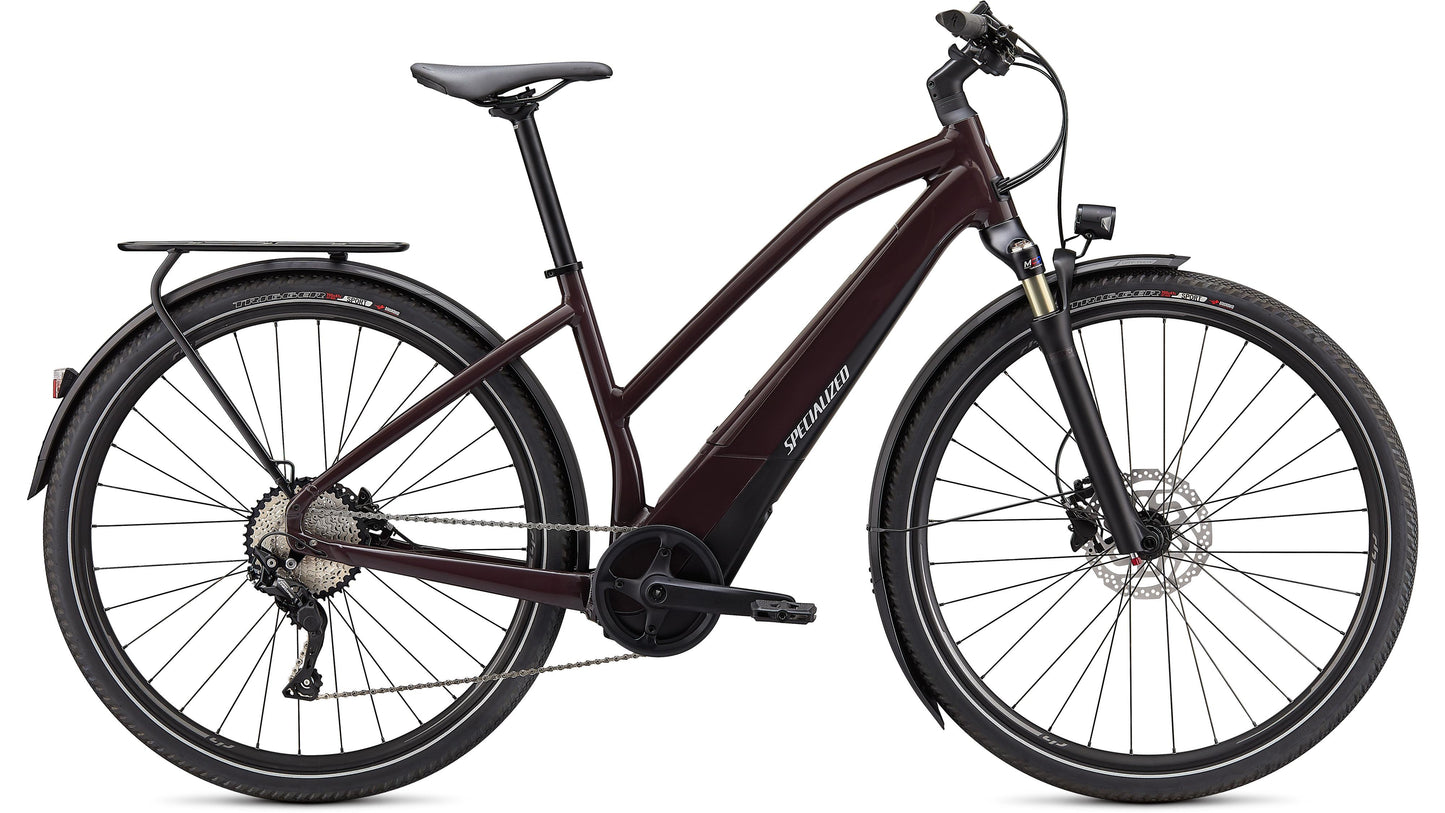

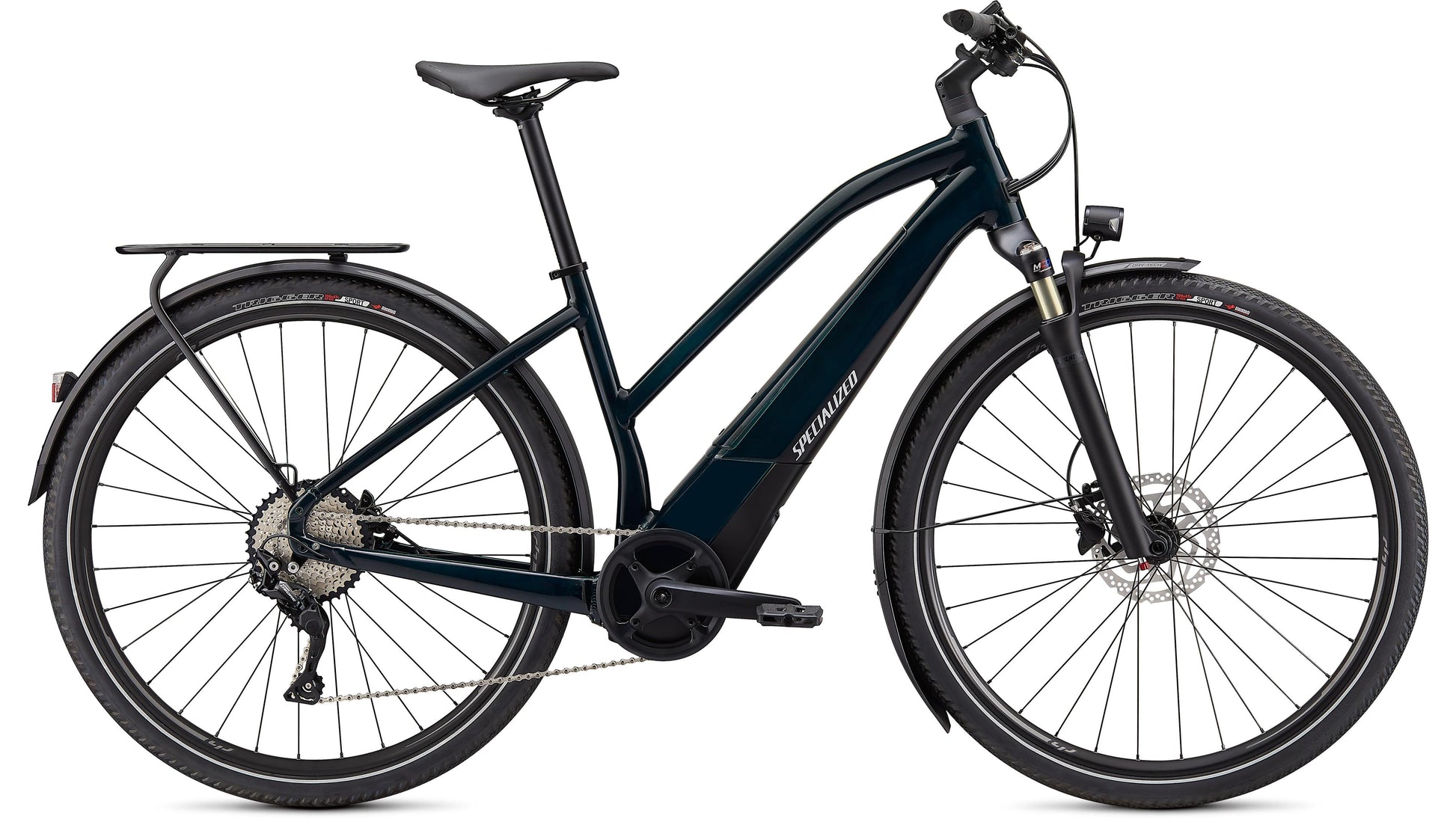

Specialized Vado 4.0 St

Specialized Vado 4.0 St

SKU:95021-5503

Regular price $3,999.99
Regular price $3,999.99 USD Sale price $3,999.99
Sold out
Color
Size
View full details

    Specialized Vado 4.0 St Features

    It's a busy world out there, and the sad thing is, it's getting faster all of the time. That's why we recommend faster bikes for busy lives, like the Turbo Vado 4.0 Step-Through. It takes our award-winning and exclusive technology and tailors it to a package that's designed for getting you around your day-to-day life quicker than ever before. It's you, only faster.

    Beginning with the integrated Specialized 1.2 motor, the Turbo Vado proves itself as the ultimate city bike. The 1.2 motor features a silent operating design with our Custom Rx Street Tune that takes the output and makes it the most usable for an urban environment. Think of it this way: The more power you put out, the more power the motor puts out, and this makes accelerations from a standstill both quick and efficient. The belt driven motor is also smooth, silent, and free of annoying vibrations. And the max speed? 28mph.

    For the Vado 4.0, we developed a custom Specialized U1-500 battery that seamlessly integrates into the frame, is lockable, and easily removable for simplified charging. In other words, there's plenty of juice to take you to and from work, a trip to the grocery store, or even to that new café on the other side of the city.

    The new Turbo Connect Display (TCD) is the best way to view data on your Turbo. It not only displays basic ride metrics (speed, cadence, power, battery level, and time), but it also lets you toggle between modes. Its design, meanwhile, is rugged and clean, and it has multiple mounting options for either road or mountain setups. As for the latest version of the Mission Control App, you’ll find that it now has more features and is even more intuitive to use. It lets you custom-tune nearly every aspect of the bike with ease, monitor your power usage, control your range, perform basic system diagnoses, and record/upload rides.

    To top off all of the innovative features, we chose a worry-free spec that features Shimano 10-speed components, hydraulic disc brakes, racks, front/rear lights, and fenders.

    At a Glance

    • The Turbo Vado frame features an alloy step-through frame that's pretty light and super easy to get on or off of.
    • The Turbo Vado’s Specialized 1.2 motor has been fully integrated with the frame, and it's been custom-tuned for city riding. We designed it to intuitively react to the force of your pedaling, so the harder you pedal, the more power it delivers. And with an internal belt drive design, it does this without added vibration for the smoothest and most silent ride possible.
    • We made the custom 500 Wh battery to be fully integrated with the frame, removable for easy charging, and lockable for added security. It communicates with the display and has multiple modes to maximize the overall efficiency and range. For range estimates based upon a variety of variables, please refer to our Turbo Range Calculator.

    Component Specifications

    Motor Specialized 1.2, custom Rx Street-tuned motor, 250W nominal
    Battery Specialized U1-500, On/Off button, state of charge display, 500Wh
    UI Remote Specialized TCD-W w/ handlebar remote & built-in anti-theft feature, Bluetooth® connectivity, 5 available display pages
    Charger Custom charger, 42V4A w/ Rosenberger plug, 100-240V
    Frame E5 Aluminum, bottom bracket motor mount, Fitness/Transportation Geometry, fully integrated & lockable down tube battery, internal cable routing, fender/rack mounts, Smooth Welds
    Seat Binder Alloy, bolt-type, 34.9mm
    Fork SR Suntour NCX E25, steel steerer, 15mm thru-axle, 44mm offset, 50mm of travel
    Shift Levers Shimano Deore, RapidFire Plus, 10-speed w/ Optical Gear Display
    Rear Derailleur Shimano Deore, Shadow Plus, GS cage, 10-speed
    Cassette Shimano Deore, 10spd, 11-42t
    Chain KMC X10eT, 10-speed w/ Missing Link™
    Crankset Custom alloy forged crankarms
    Chain Rings 40 Teeth with Chain Retention Technology
    Rims 700c disc, double-wall alloy, pinned, 32h
    Front Hub Specialized front hub disc, sealed bearings, 15x100mm thru-axle, 32h
    Rear Hub Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h
    Spokes DT Swiss Industry
    Front Tire Trigger Sport Reflect, 700x47c
    Rear Tire Trigger Sport Reflect, 700x47c
    Inner Tubes Standard 40mm PV 700x32-50
    Front Brake Shimano BR-MT200, hydraulic disc, 180mm
    Rear Brake Shimano BR-MT200, hydraulic disc, 180mm
    Stem Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp
    Handlebars Specialized, alloy, 9-degree backsweep, 15mm rise, 31.8mm
    Saddle Bridge Sport, Steel rails, 155mm
    Seatpost Specialized 2-bolt head, forged alloy, 8mm offset, micro-adjust, 30.9mm

    Specialized Vado 4.0 St

    Bike/Frame Size S M L XL
    Stack 619 mm 629 mm 629 mm 652 mm
    Reach 396 mm 404 mm 428 mm 441 mm
    Standover Height 715 mm 720 mm 727 mm 744 mm
    Head Tube Length 145 mm 145 mm 155 mm 170 mm
    Seat Tube Length, BB Center to Top Vertical 400 mm 450 mm 485 mm 535 mm
    BB Drop -70 mm -70 mm -70 mm -70 mm
    Chainstay Length 478 mm 478 mm 478 mm 478 mm
    Head Tube Angle 70° 70° 70° 70°
    Fork Rake 44 mm 44 mm 44 mm 44 mm
    Trail 86 mm 86 mm 86 mm 86 mm
    Front Center 647 mm 658 mm 683 mm 704 mm
    Wheelbase 1116 mm 1127 mm 1152 mm 1173 mm

    Size Guide: Specialized Vado 4.0 St

    Size guide for Specialized Vado 4.0 St
