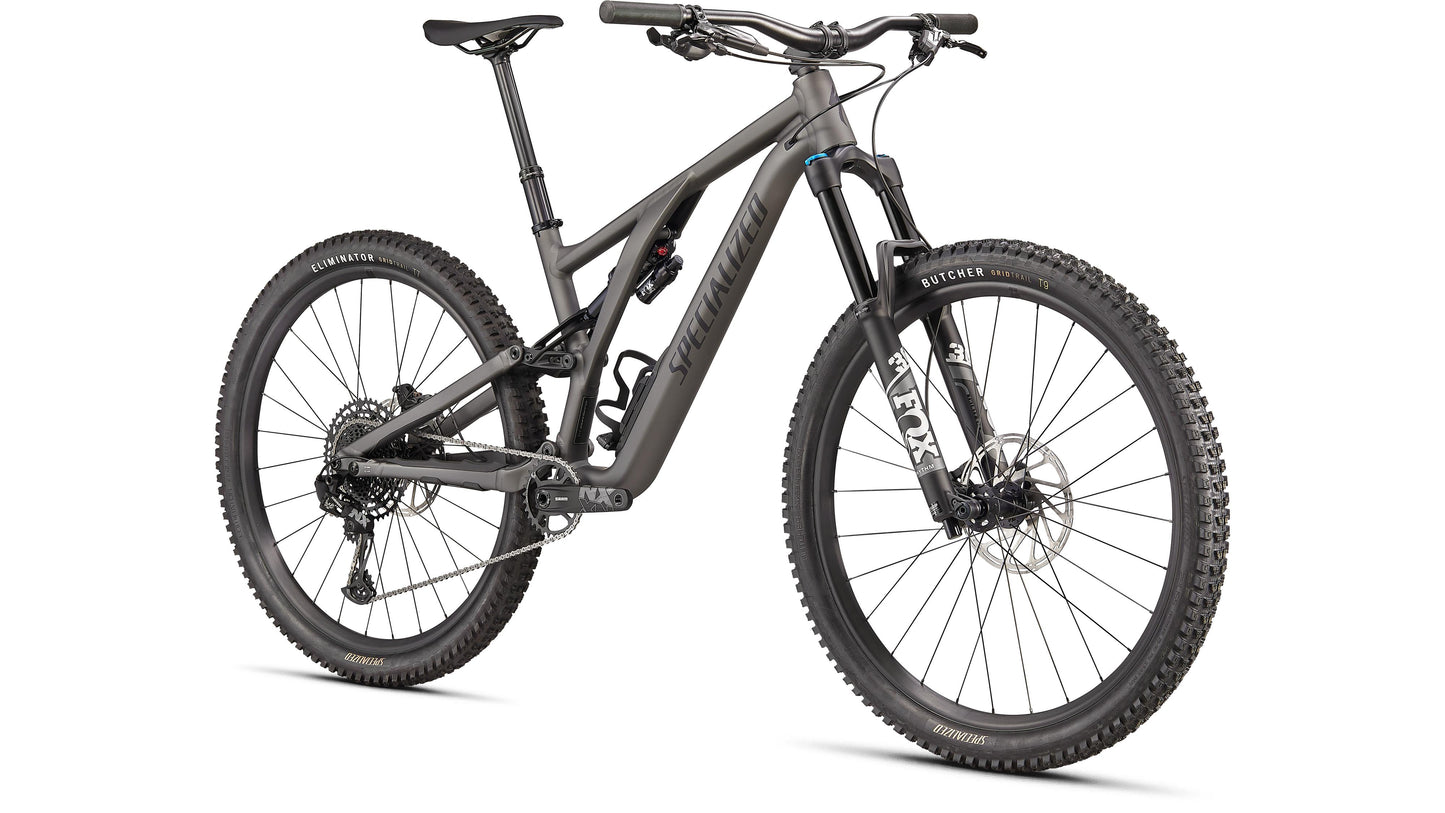

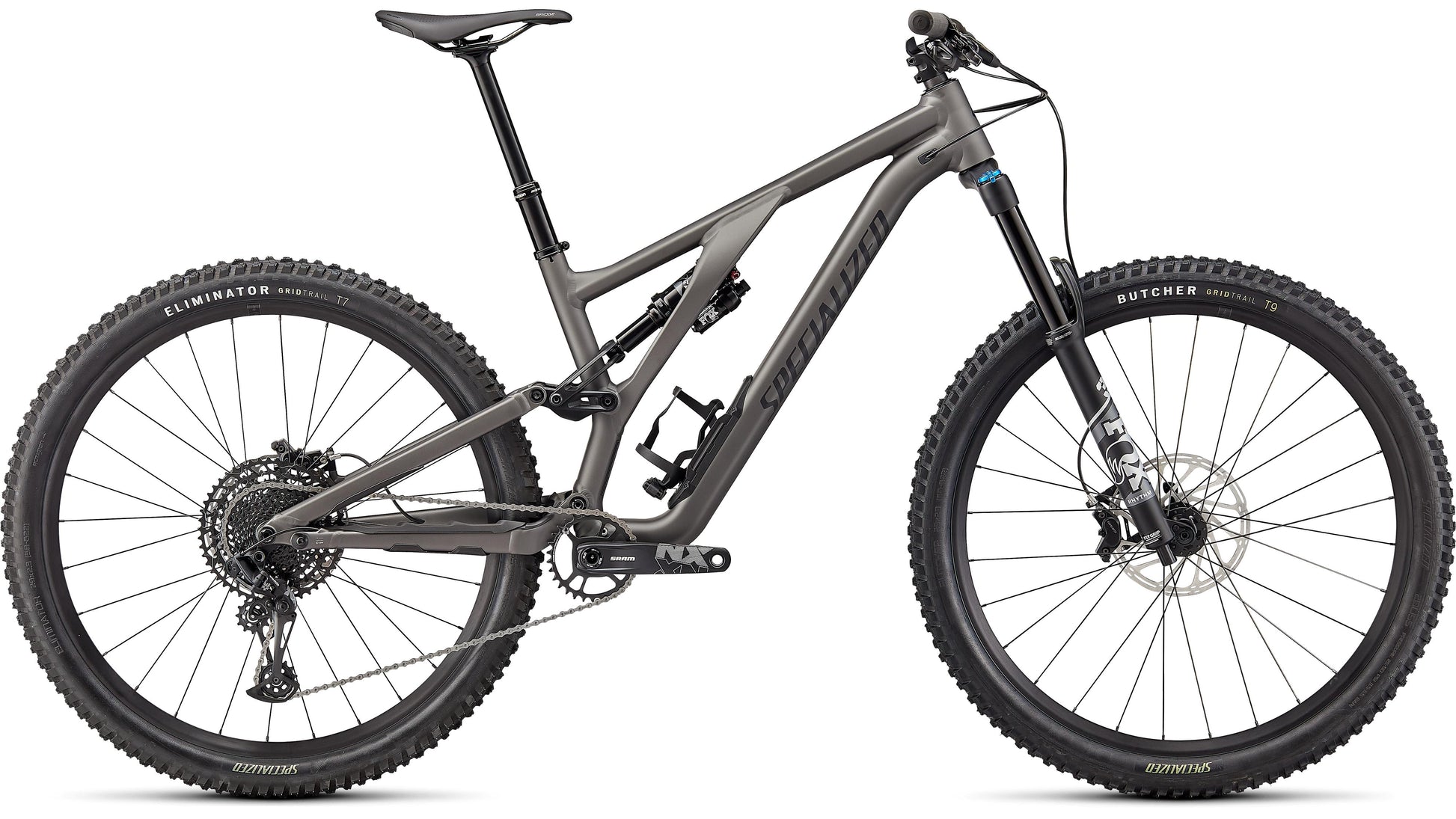

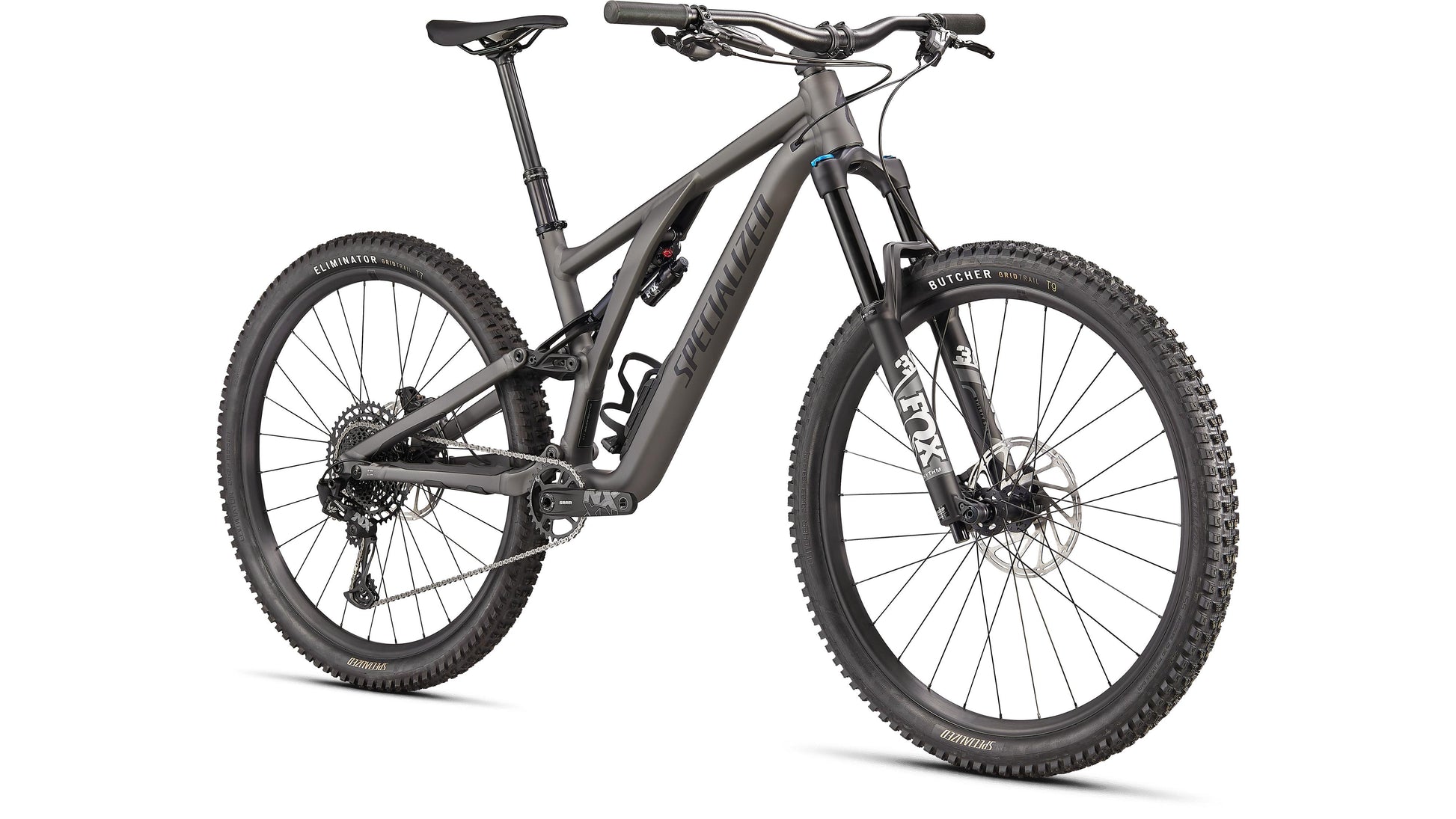

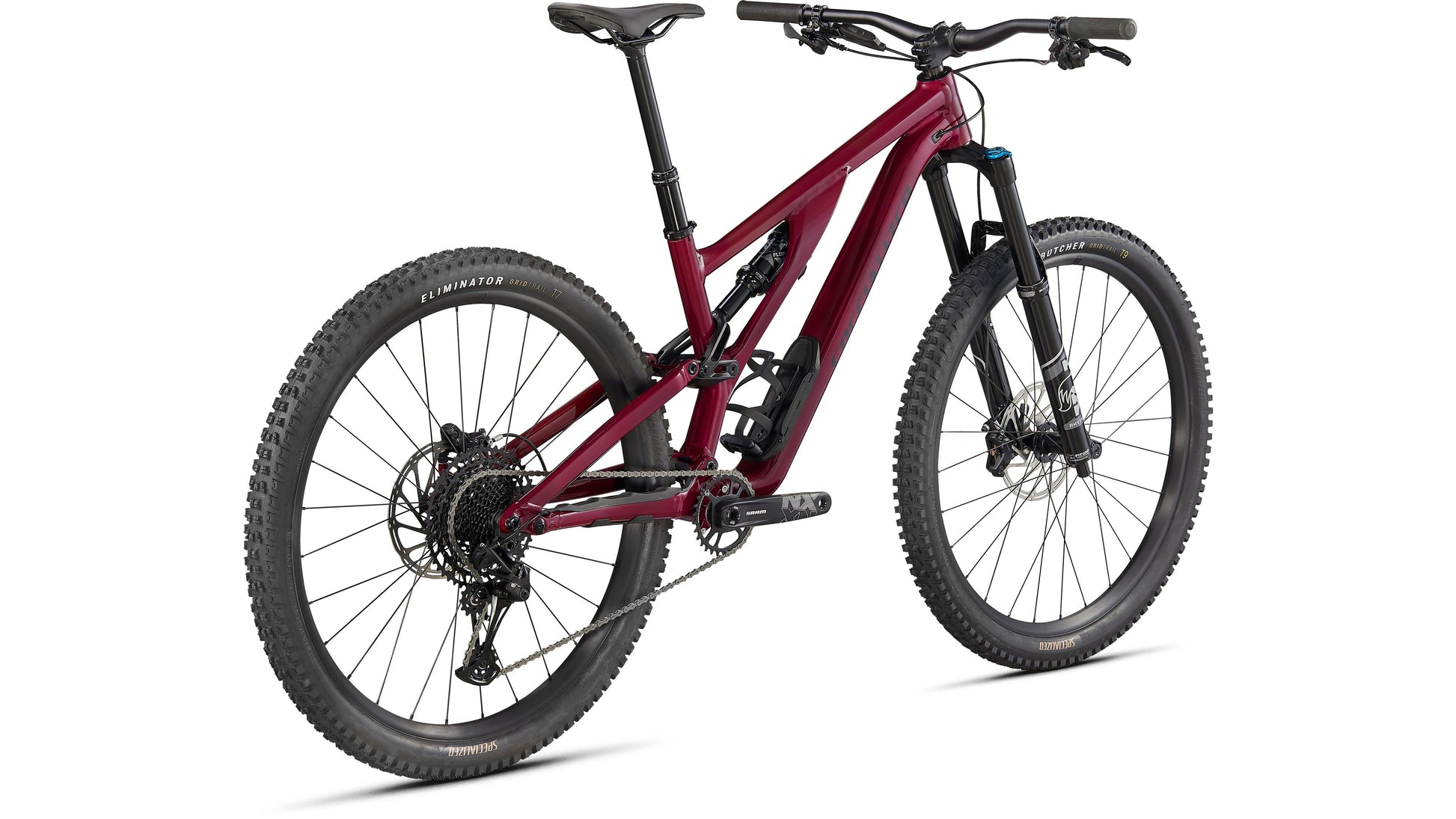

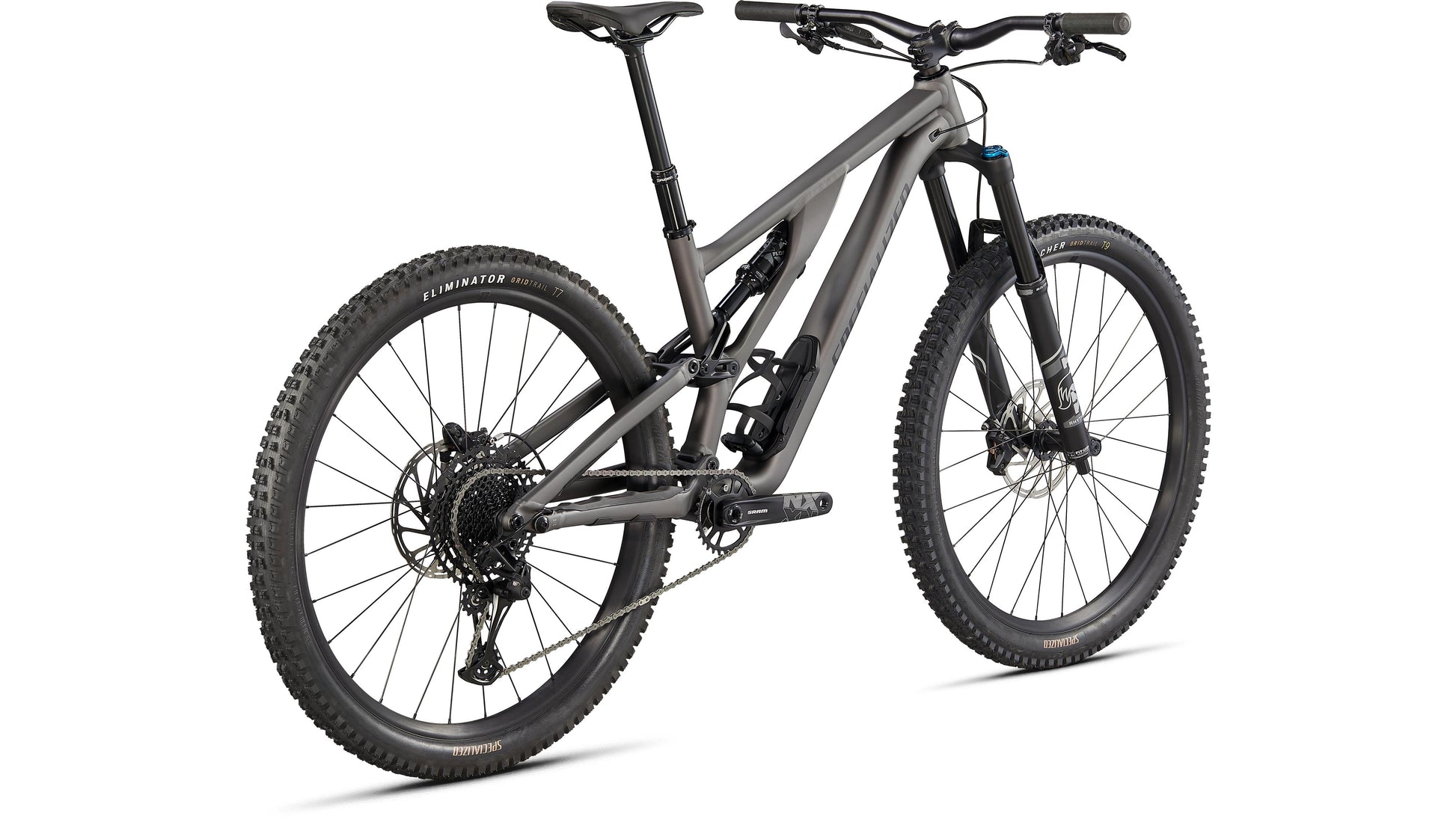

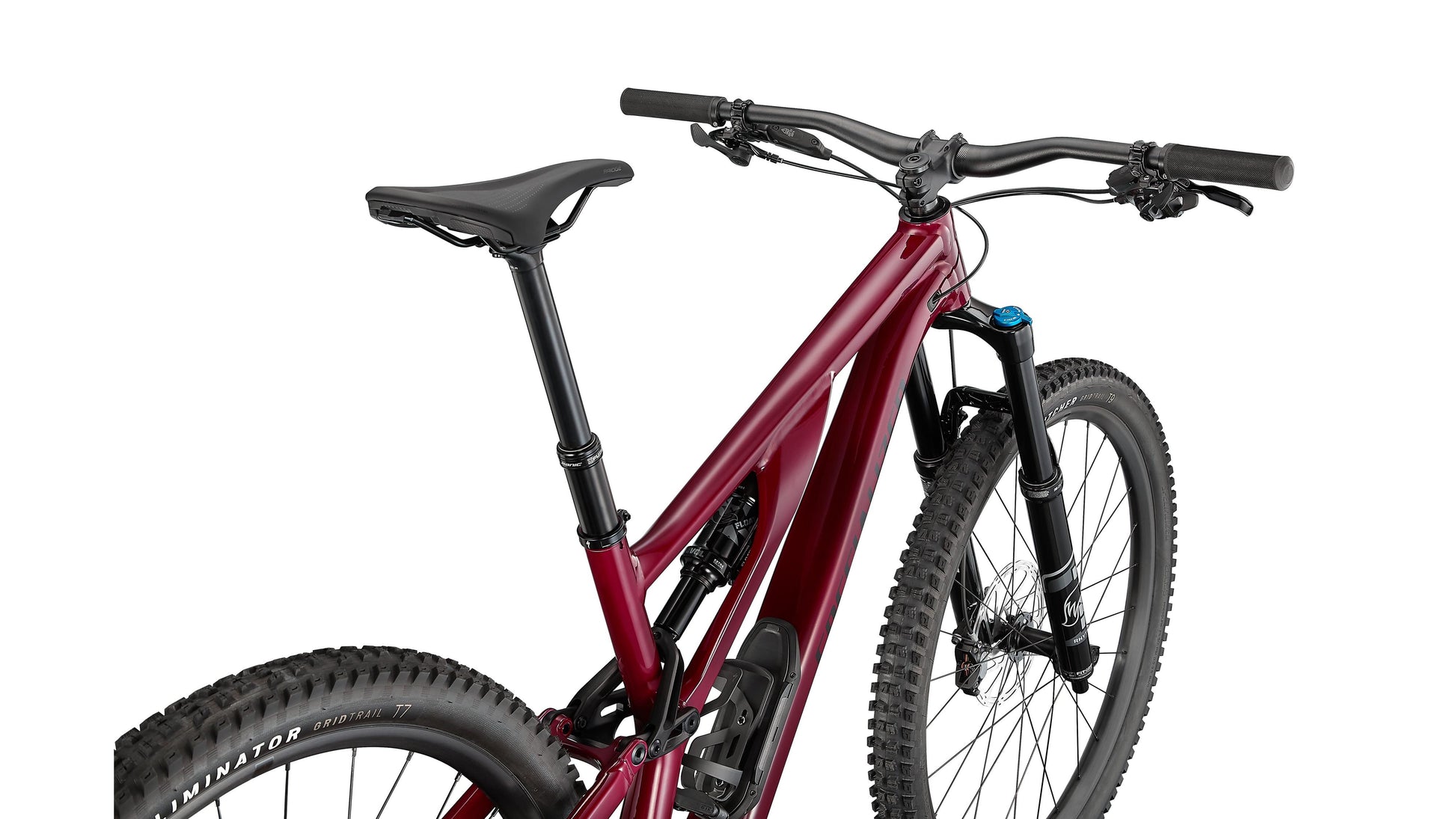

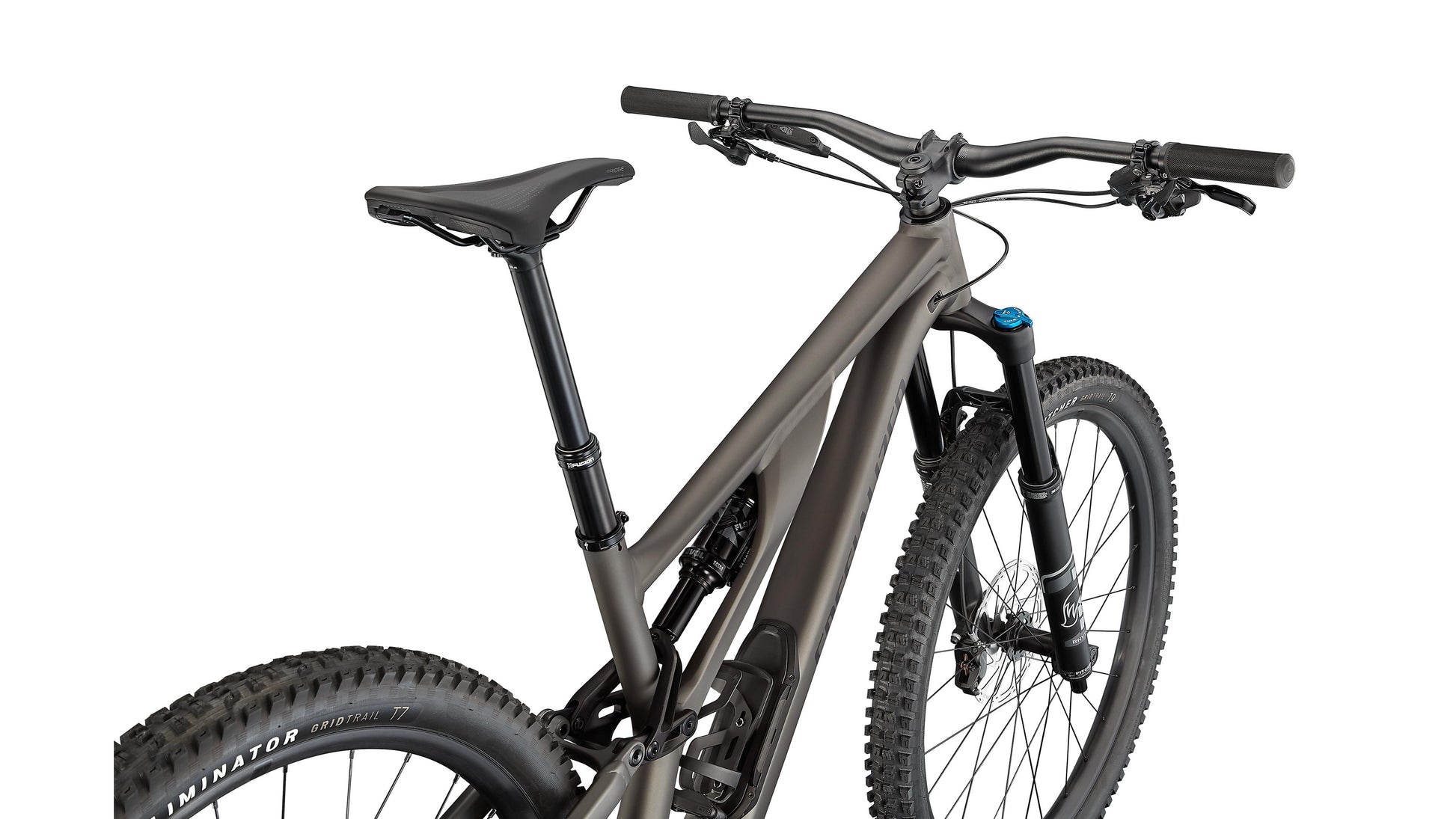

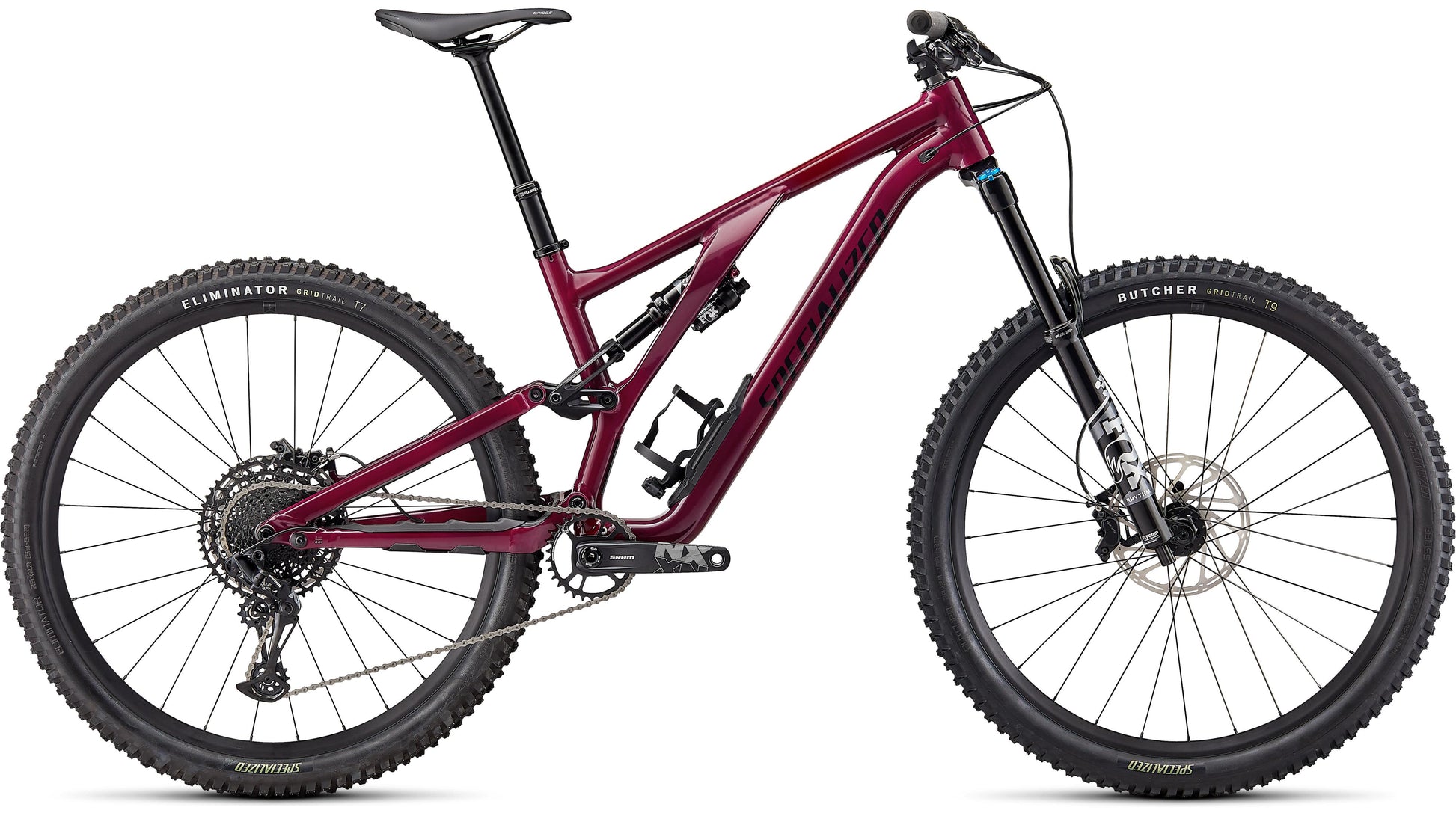

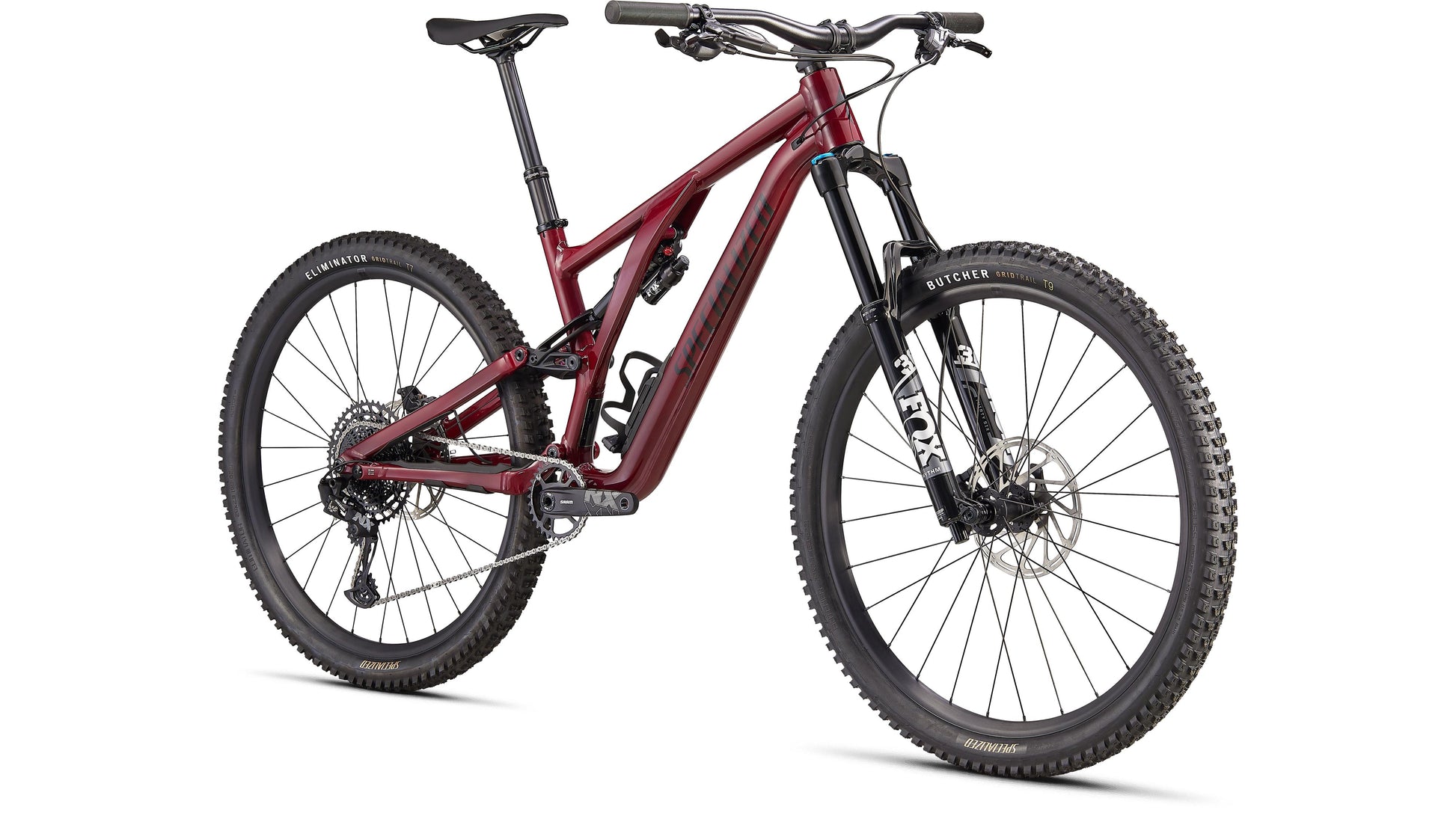

Specialized Stumpjumper Evo Comp Alloy Features
Let's get something clear, the Stumpjumper EVO Alloy isn't a "normal" trail bike. It's built to get gnarly, plain and simple. Featuring the same all-new design as its carbon brethren—including an adjustable head tube angle, 150mm of performance tuned travel, the adaptability of S-Sizing, and SWAT™ Door integration—in a lightweight yet tough M5 Alloy chassis, you're going to be able to bomb down trails that you thought you couldn't touch without a full-blown DH rig.
Spec’d with a no-fuss SRAM NX Eagle 12-speed drivetrain, bomber 30mm-wide alloy wheels, and plush Fox FLOAT Performance suspension, there’s no question the Stumpjumper EVO Comp Alloy is dressed to shred.
At a Glance
- All the travel in the world is useless without the proper shock tuning and kinematics. For the new Stumpjumper EVO design, we prioritized kinematic performance. Applying lessons learned while developing the Enduro, then following that with more than 1,000 hours of field and suspension lab development, we’ve not only improved the pedaling performance of the Stumpjumper, but we’ve made it more capable, agile, and lively. We increased anti-squat, so the suspension better resists pedal bob, and we further improved bump performance on square-edge hits. Bottom line? This thing shreds trails, not legs.
- The S-Sizing geometry of the new Stumpjumper EVO is our most progressive yet. Long, low, slack, short offset fork, steeper seat tube angle – these are requirements for modern progressive riding. But not everyone jibs the same way, which is why the geo on the new Stumpjumper EVO is fully adjustable with six different settings. You can adjust the BB height by 10mm, you can adjust your head angle by two-degrees, and you can make these adjustments independently of each other. Finally, if you want to go full-party mullet-mode, the EVO lets you run a 27.5-inch rear wheel mated with a 29-inch front.
- Rider-First Engineered™ frames use a size-specific approach to ride characteristics that ensures benchmark handling and flawless performance, regardless of frame or rider size. Whether you’re a jump-happy grom riding an S1, or a DH-fiend giant in need of the lengthy S6, you’ll experience the same ride traits – rail-sharp cornering and balanced front and rear stiffness – at the lightest-possible weight.
- We introduced the SWAT™ door on the Stumpjumper in 2016, adding room IN your frame for those “oh sh**t” necessities like pumps and spare tubes, and immediately rendering jersey pockets redundant.
Component Specifications
| Frame | M5 Alloy chassis and rear-end, asymmetrical design, 29" Trail Geometry with S-Sizing, SWAT™ Door integration, head tube angle adjustment, horst pivot BB adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel |
| Seat Binder | Alloy, 38.6mm |
| Fork | FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm axle, 44mm offset, S1:150mm of travel, S2-S6:160mm of travel |
| Rear Shock | FOX FLOAT X Performance, Rx Trail Tune, EVOL Air sleeve, 2-position lever w/ LSR adjustment, S1:210x50mm, S2-S6:210x55mm |
| Shift Levers | SRAM NX Eagle, trigger, 12-speed |
| Rear Derailleur | SRAM NX Eagle, 12-speed |
| Cassette | SRAM NX Eagle, 12-speed, 11-50t |
| Chain | SRAM NX Eagle, 12-speed |
| Crankset | SRAM NX Eagle, DUB, S1:165mm, S2-S5: 170mm, S6: 175mm |
| Chain Rings | Steel, 30T |
| Bottom Bracket | SRAM DUB, BSA 73mm, Threaded |
| Rims | Specialized 29, hookless alloy, 30mm inner width, tubeless ready |
| Front Hub | Specialized alloy front hub disc, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 32h |
| Rear Hub | Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h |
| Spokes | DT Swiss Industry |
| Front Tire | Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" |
| Rear Tire | Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 29x2.3" |
| Inner Tubes | Standard, Presta Valve |
| Front Brake | 4-piston caliper, hydraulic disc, 200mm |
| Rear Brake | SRAM Code R, 4-piston caliper, hydraulic disc, 200mm |
| Stem | Alloy Trail Stem, 35mm bar bore |

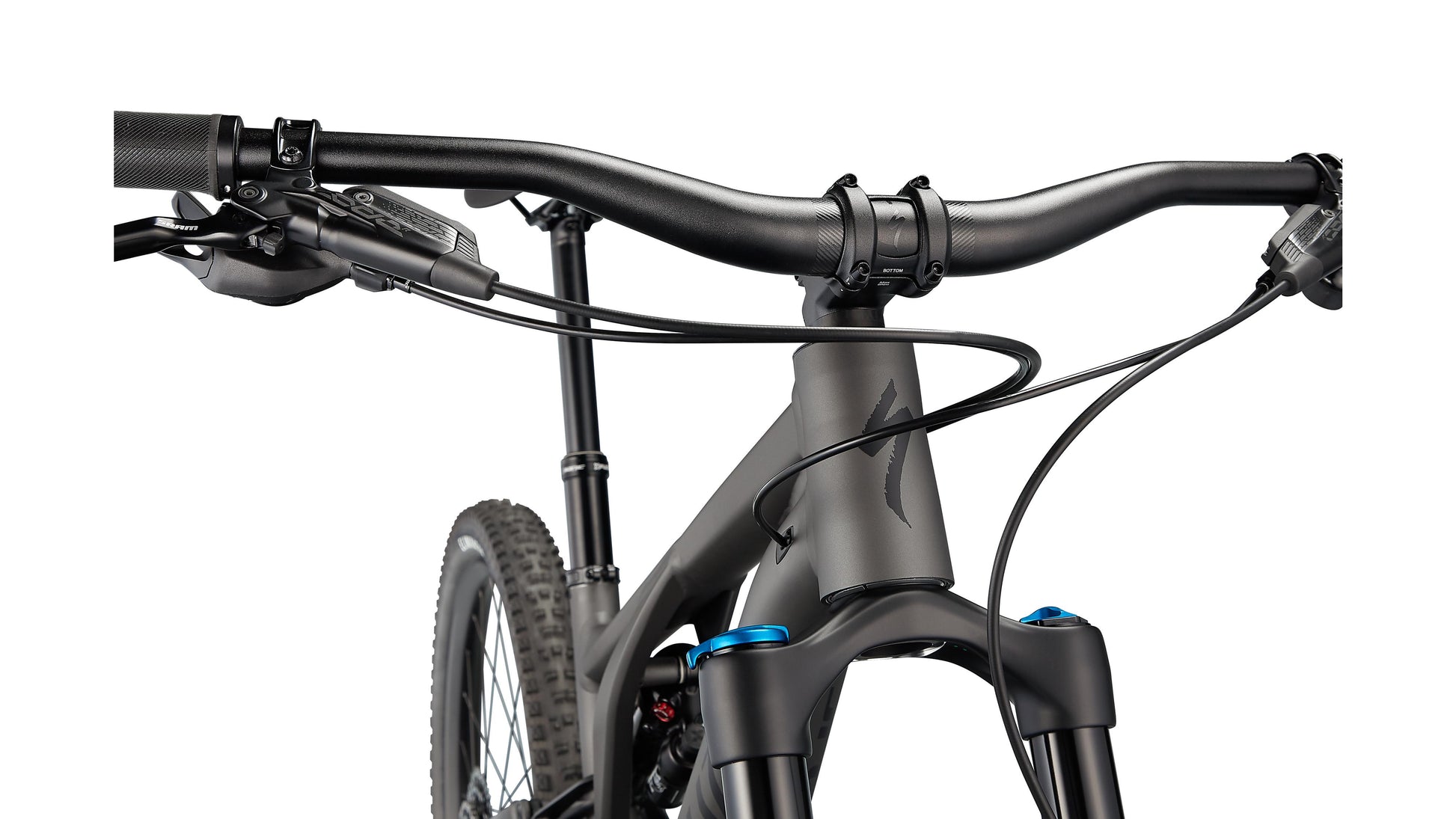

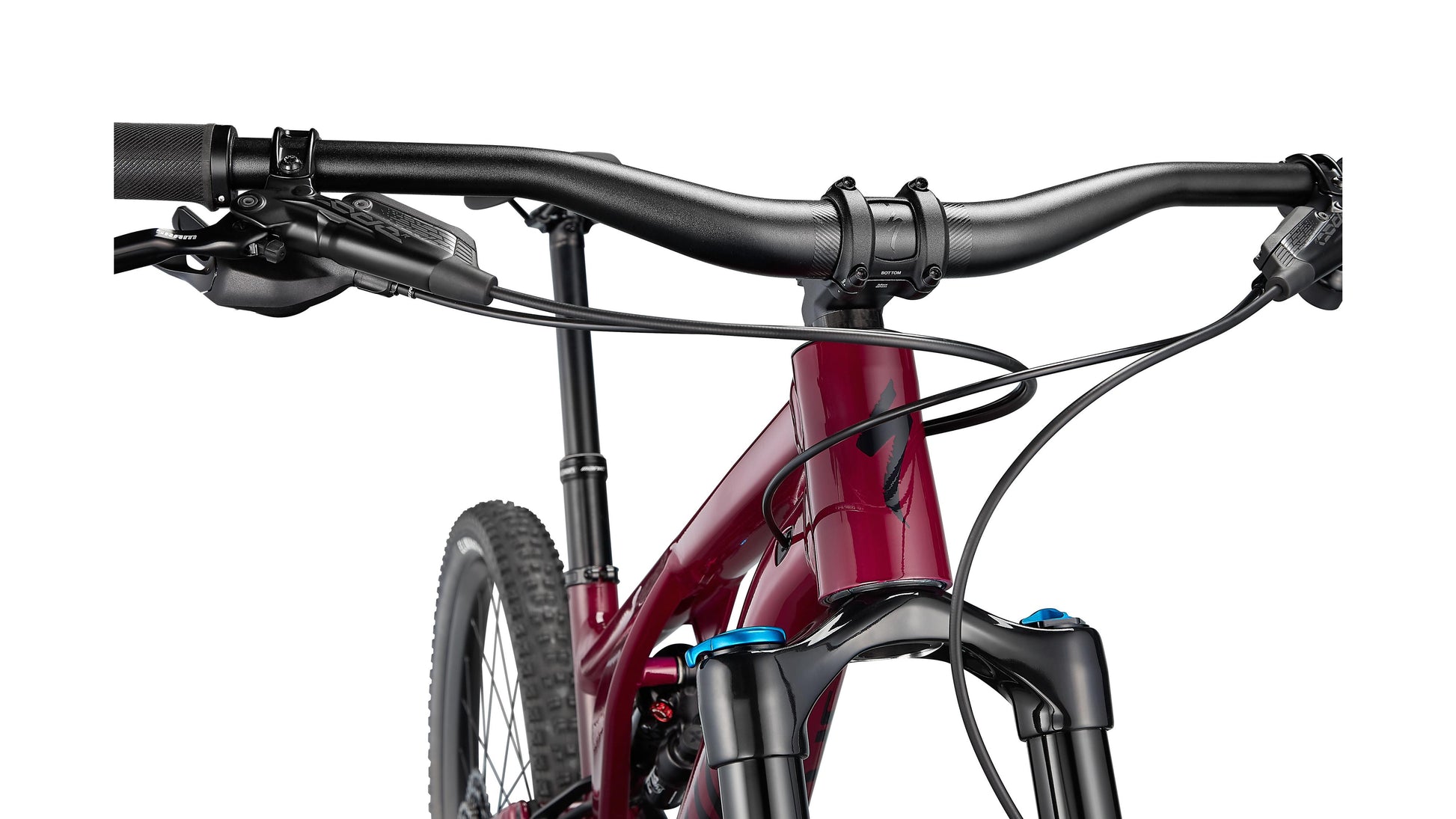

| Handlebars | Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 800mm width |
| Grips | Specialized Trail Grips |
| Saddle | Bridge Comp, Hollow Cr-mo rails 155/143 |
| Seatpost | X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 170mm, S6: 190mm |
Specialized Stumpjumper Evo Comp Alloy
| Bike/Frame Size | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
| Stack | 614 mm | 617 mm | 626 mm | 635 mm | 644 mm | 654 mm |
| Reach | 410 mm | 428 mm | 448 mm | 475 mm | 498 mm | 528 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm | 451 mm | 451 mm |
| Wheelbase | 1172 mm | 1195 mm | 1219 mm | 1249 mm | 1288 mm | 1322 mm |
| Top-tube Length (horizontal) | 541 mm | 564 mm | 590 mm | 623 mm | 647 mm | 679 mm |
| Bike Standover Height | 746 mm | 749 mm | 757 mm | 760 mm | 784 mm | 792 mm |
| Seat Tube Length | 385 mm | 385 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Seat Tube Angle | 78° | 77.6° | 77.2° | 76.9° | 77° | 77° |
| Max Seatpost Insertion | 190 mm | 190 mm | 210 mm | 230 mm | 250 mm | 270 mm |
| Min Seatpost Insertion | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Headtube Length | 95 mm | 95 mm | 105 mm | 115 mm | 125 mm | 135 mm |
| Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| BB Height | 335 mm | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| BB Drop | 40 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Trail | 131 mm | 131 mm | 131 mm | 131 mm | 131 mm | 131 mm |
| Fork Length (full) | 561 mm | 571 mm | 571 mm | 571 mm | 571 mm | 571 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 734 mm | 756 mm | 780 mm | 809 mm | 838 mm | 873 mm |
Size Guide: Specialized Stumpjumper Evo Comp Alloy
