Specialized Stumpjumper Evo Alloy Frame Features
Let's get something clear, the Stumpjumper EVO Alloy isn't a "normal" trail bike. It's built to get gnarly, plain and simple. Featuring the same all-new design as its carbon brethren—including an adjustable head tube angle, 150mm of performance tuned travel, the adaptability of S-Sizing, and SWAT™ Door integration—in a lightweight yet tough M5 Alloy chassis, you're going to be able to bomb down trails that you thought you couldn't touch without a full-blown DH rig.
29” rear wheel shock link is included: 27.5” rear wheel link is available separately.
At a Glance
- All the travel in the world is useless without the proper shock tuning and kinematics. For the new Stumpjumper EVO design, we prioritized kinematic performance. Applying lessons learned while developing the Enduro, then following that with more than 1,000 hours of field and suspension lab development, we’ve not only improved the pedaling performance of the Stumpjumper, but we’ve made it more capable, agile, and lively. We increased anti-squat, so the suspension better resists pedal bob, and we further improved bump performance on square-edge hits. Bottom line? This thing shreds trails, not legs.
- The S-Sizing geometry of the new Stumpjumper EVO is our most progressive yet. Long, low, slack, short offset fork, steeper seat tube angle – these are requirements for modern progressive riding. But not everyone jibs the same way, which is why the geo on the new Stumpjumper EVO is fully adjustable with six different settings. You can adjust the BB height by 10mm, you can adjust your head angle by two-degrees, and you can make these adjustments independently of each other. Finally, if you want to go full-party mullet-mode, the EVO lets you run a 27.5-inch rear wheel mated with a 29-inch front.
- Rider-First Engineered™ frames use a size-specific approach to ride characteristics that ensures benchmark handling and flawless performance, regardless of frame or rider size. Whether you’re a jump-happy grom riding an S1, or a DH-fiend giant in need of the lengthy S6, you’ll experience the same ride traits – rail-sharp cornering and balanced front and rear stiffness – at the lightest-possible weight.
- We introduced the SWAT™ door on the Stumpjumper in 2016, adding room IN your frame for those “oh sh**t” necessities like pumps and spare tubes, and immediately rendering jersey pockets redundant.
Product Specifications
Product Specifications
Frame |
|
Rear Shock |
|
Seat Binder |
|
SWAT |

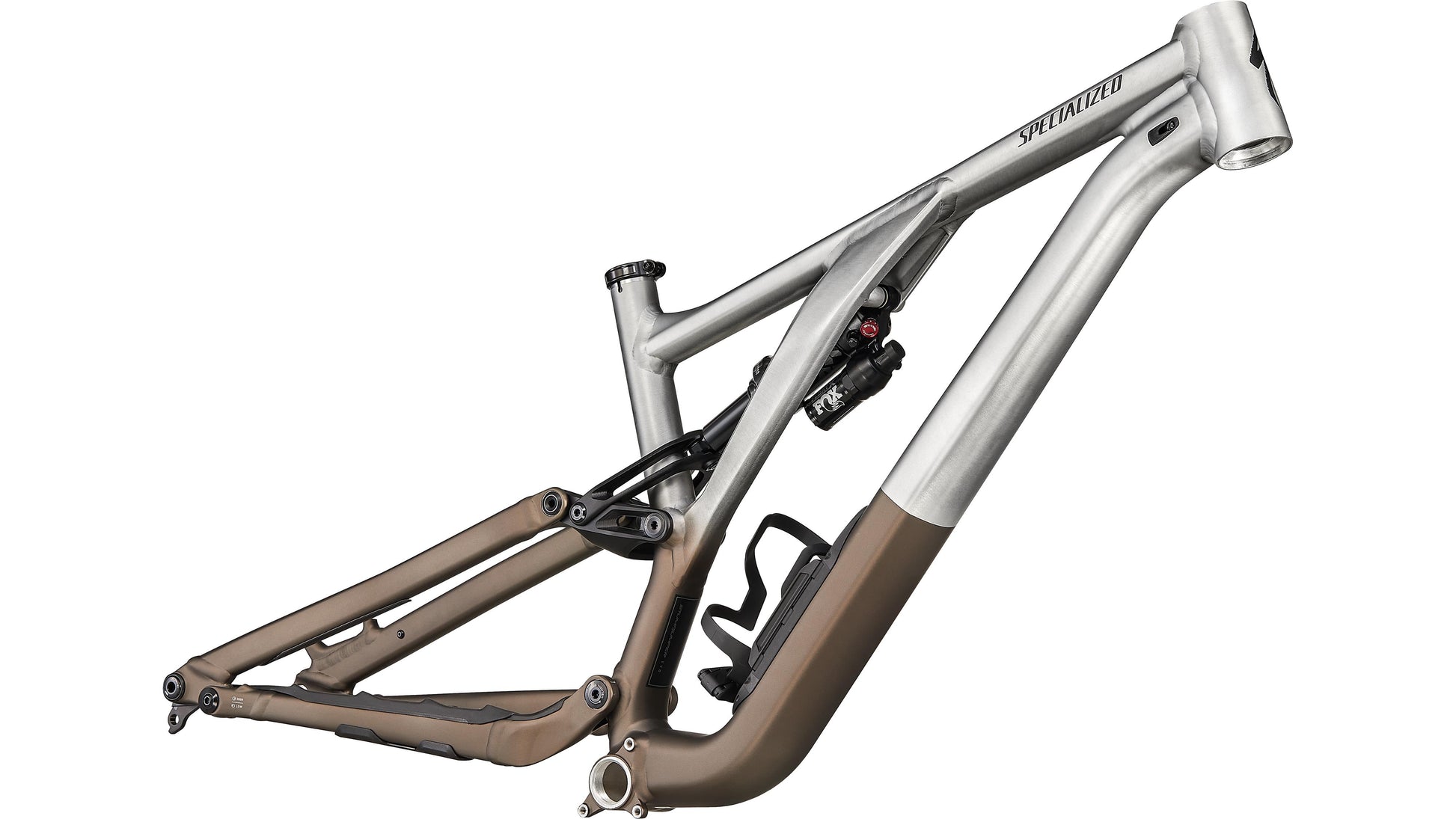

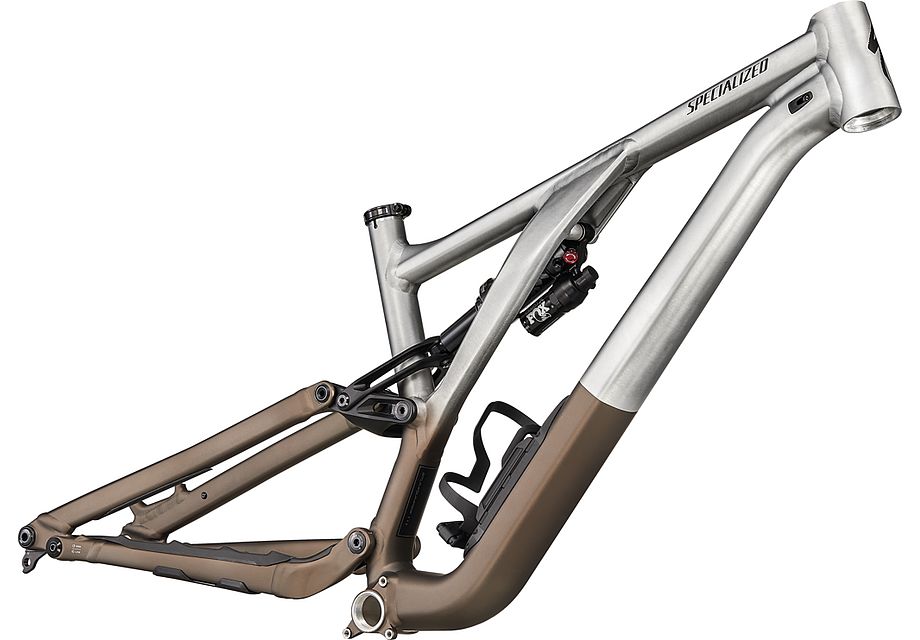

Specialized Stumpjumper Evo Alloy Frame
| Bike/Frame Size | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
| Stack | 614 mm | 617 mm | 626 mm | 635 mm | 644 mm | 654 mm |
| Reach | 410 mm | 428 mm | 448 mm | 475 mm | 498 mm | 528 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm | 451 mm | 451 mm |
| Wheelbase | 1172 mm | 1195 mm | 1219 mm | 1249 mm | 1288 mm | 1322 mm |
| Top-tube Length (horizontal) | 541 mm | 564 mm | 590 mm | 623 mm | 647 mm | 679 mm |
| Bike Standover Height | 746 mm | 749 mm | 757 mm | 760 mm | 784 mm | 792 mm |
| Seat Tube Length | 385 mm | 385 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Seat Tube Angle | 78° | 77.6° | 77.2° | 76.9° | 77° | 77° |
| Max Seatpost Insertion | 190 mm | 190 mm | 210 mm | 230 mm | 250 mm | 270 mm |
| Min Seatpost Insertion | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Headtube Length | 95 mm | 95 mm | 105 mm | 115 mm | 125 mm | 135 mm |
| Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| BB Height | 335 mm | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| BB Drop | 40 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Trail | 131 mm | 131 mm | 131 mm | 131 mm | 131 mm | 131 mm |
| Fork Length (full) | 561 mm | 571 mm | 571 mm | 571 mm | 571 mm | 571 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 734 mm | 756 mm | 780 mm | 809 mm | 838 mm | 873 mm |
Size Guide: Specialized Stumpjumper Evo Alloy Frame
