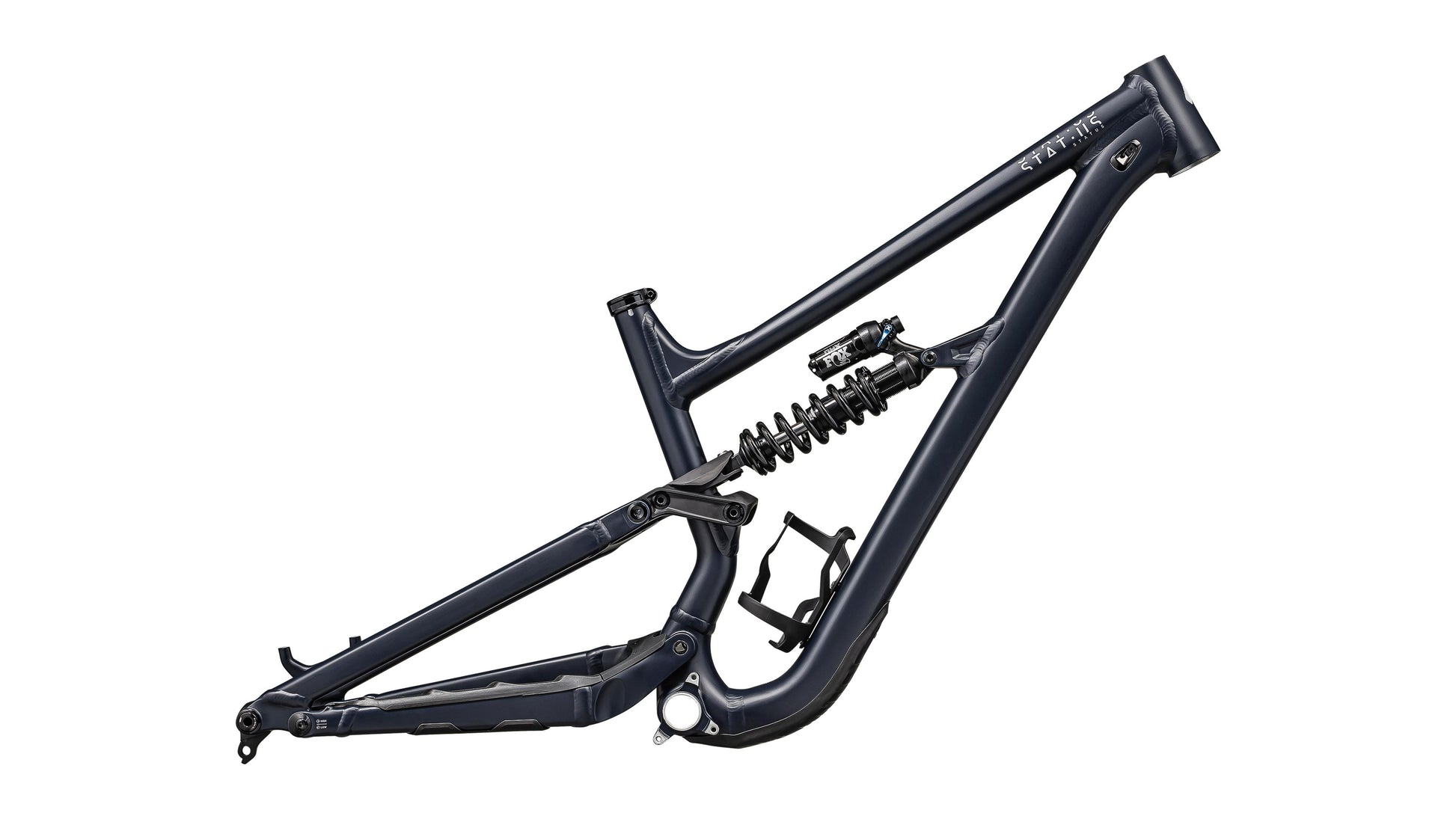

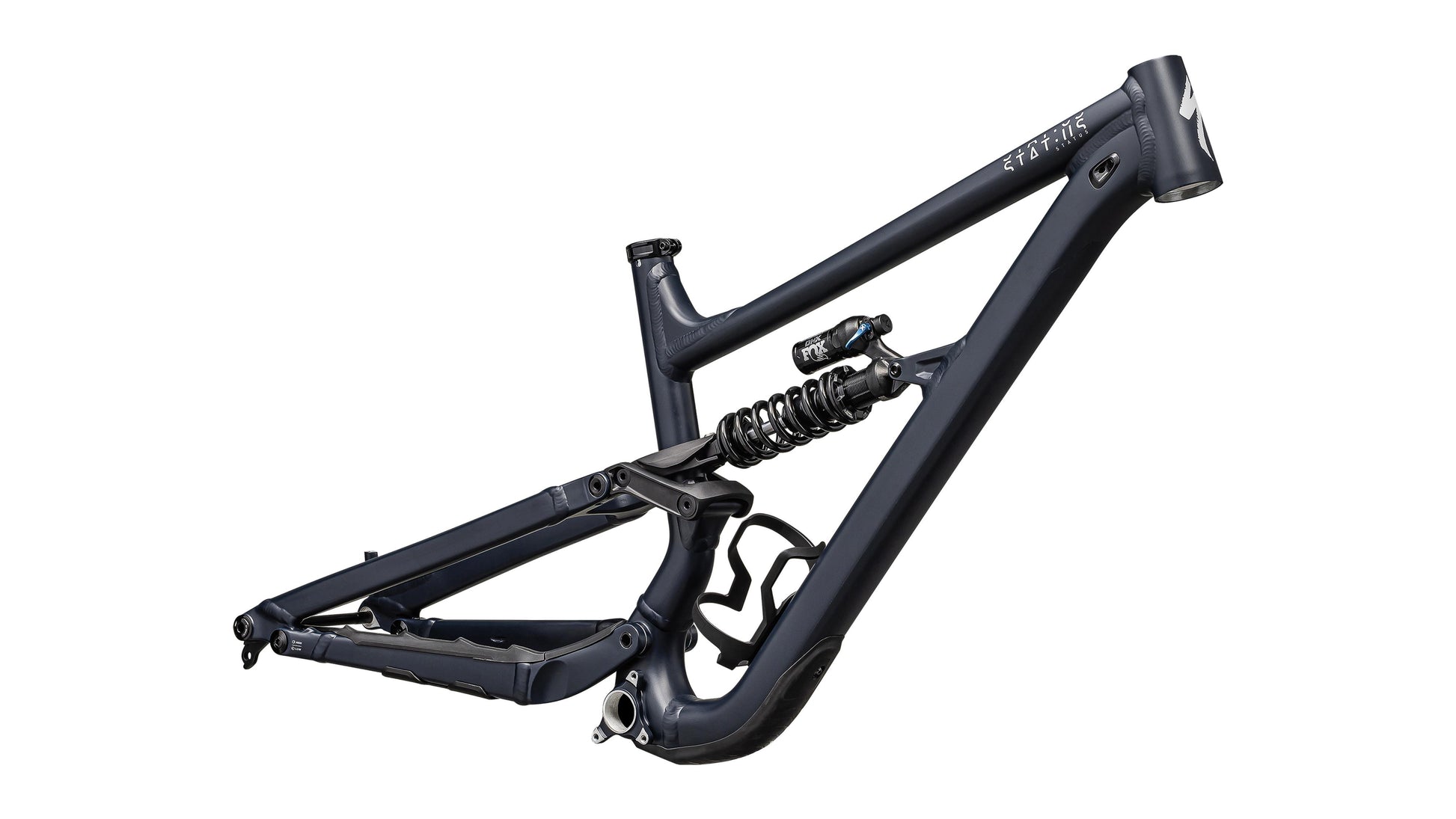

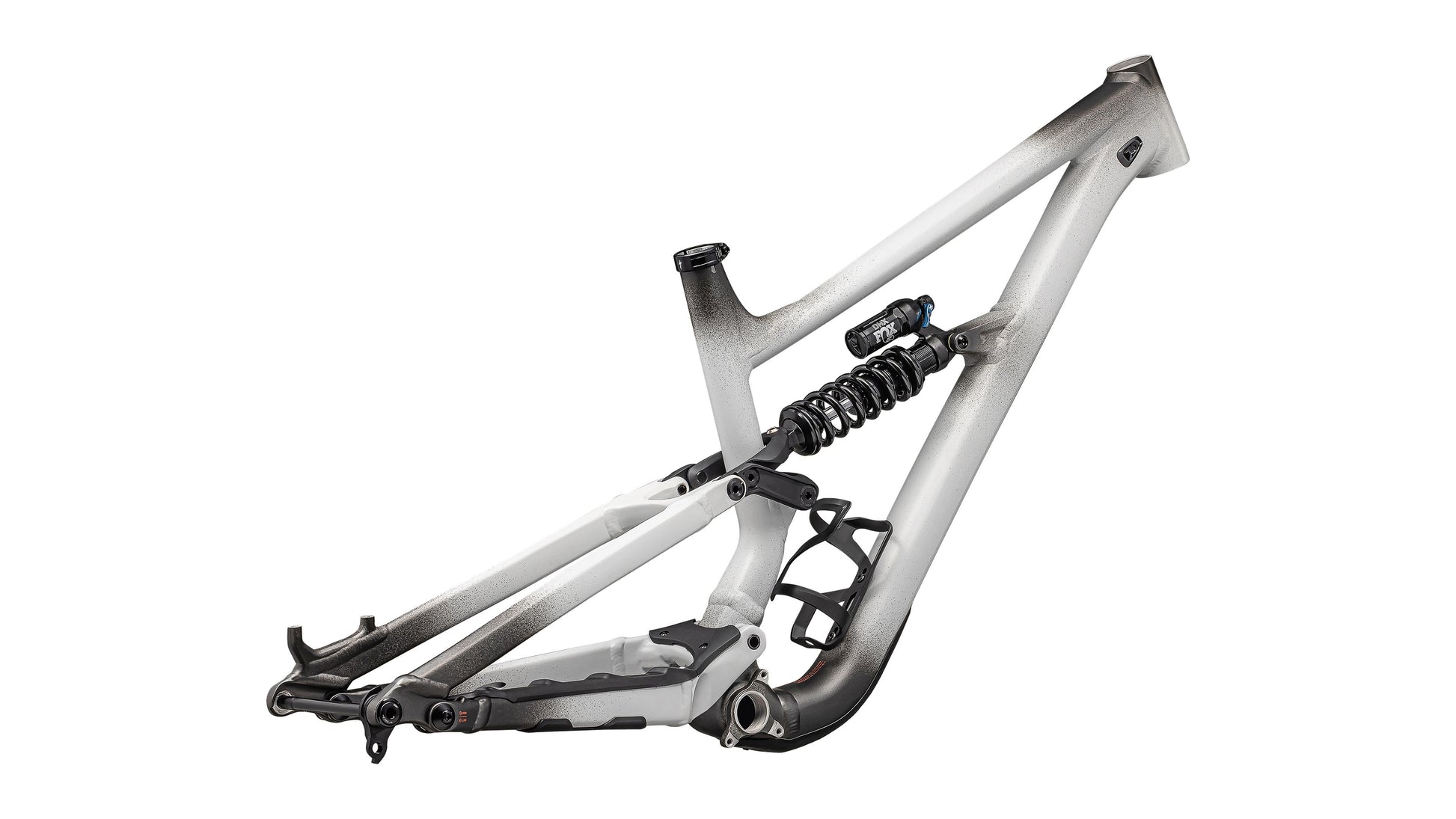

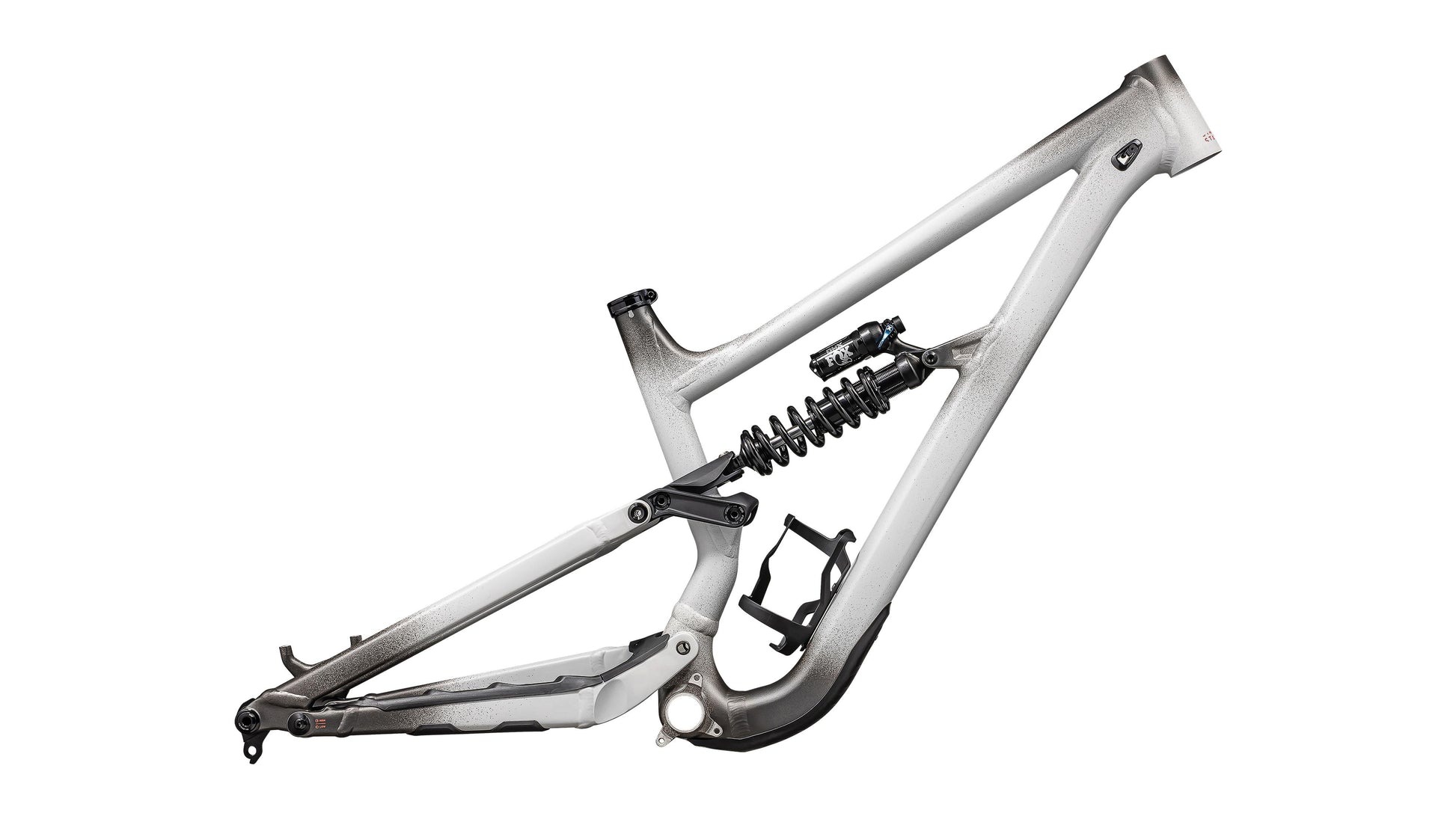

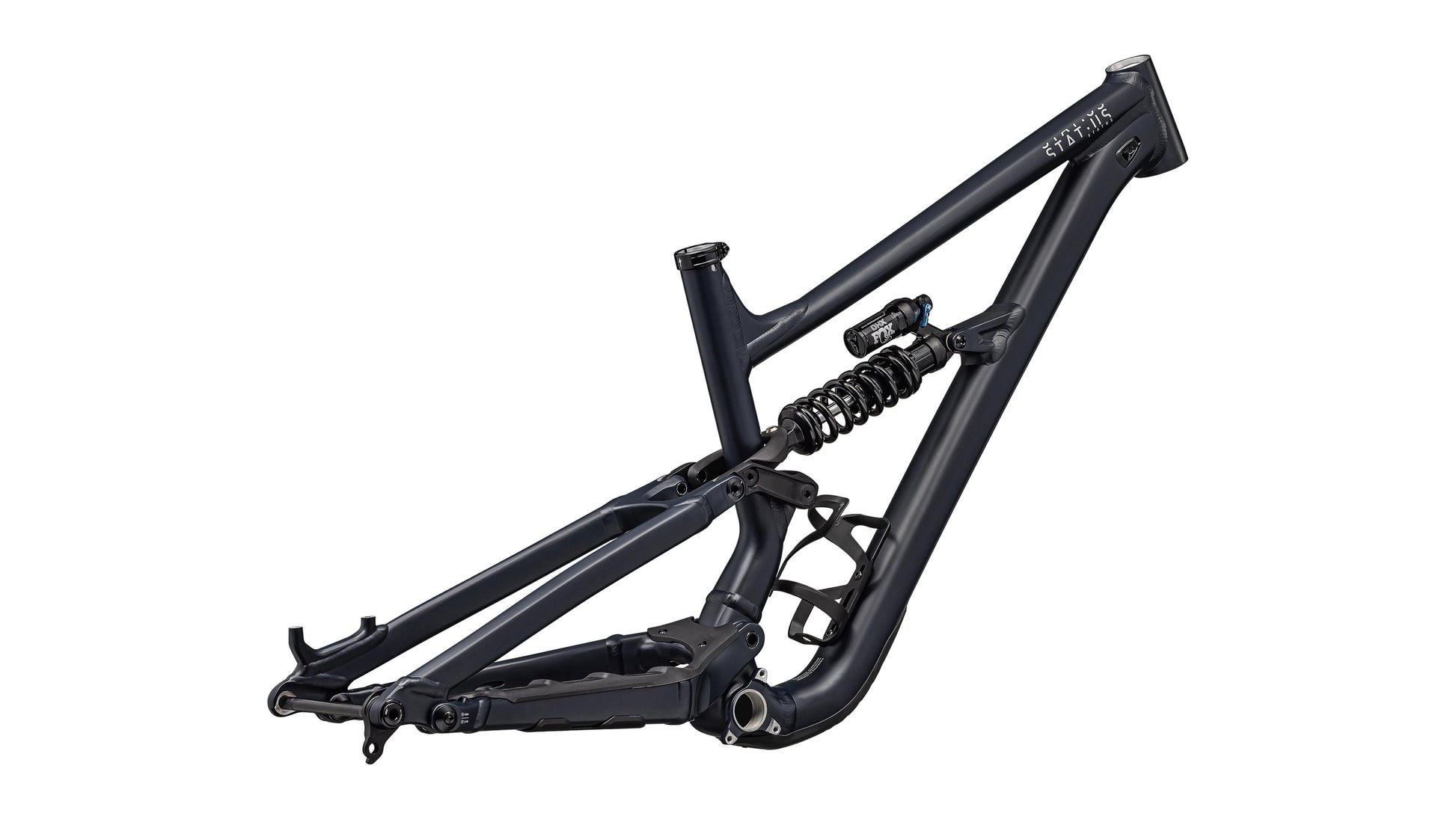

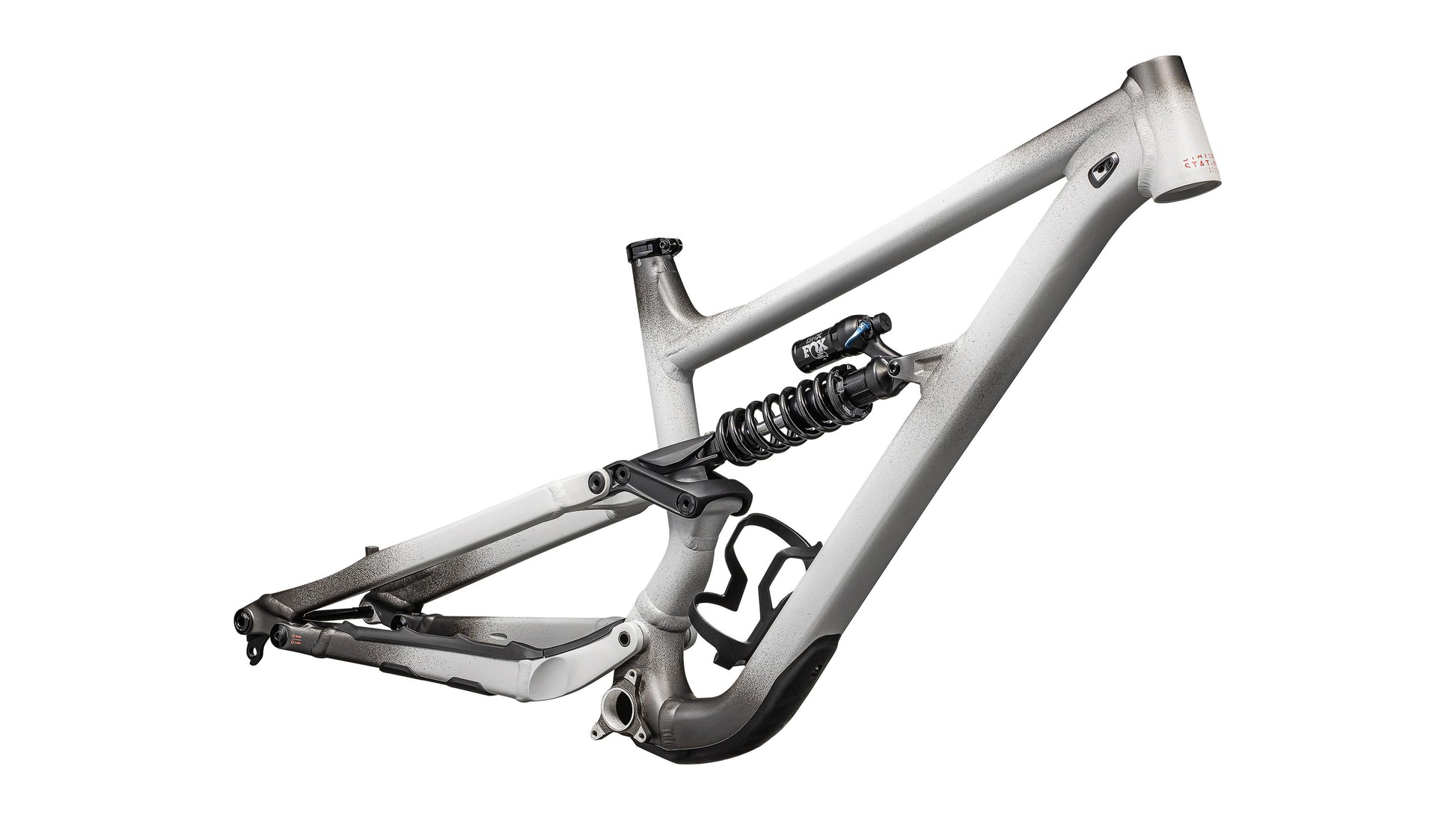

2024 Specialized Status 2 170 Frame Features
STATUS 2 finds the boundaries of mountain bikes and pushes past them. Is it a trail bike? Yes. Park bike? Yep. Cruise to the convenience store and stop for a stealth session on a concrete wall ride? Oh yeah. STATUS 2 is a bike meant to be ridden, however, or wherever you ride.
Whether you're on the trails, at the bike park, on the streets, or just cutting turns with your friends on a local hill, the STATUS 2 will allow you to ride your way.
BUILT BY RIDERS: Each build starts with a super strong M5 alloy chassis and tough alloy wheels. Stout suspension, powerful brakes, and popular drivetrain options round out these builds to catch big hits, pedal smooth, and provide a ton of stoppage. It’s not for the gram counter—it’s for those riders who push the boundaries of progression and come back for more.
RIDE DYNAMICS TUNED: Before arriving at your doorstep or local bike shop, each STATUS 2 gets a special shock tune from our Specialized Ride Dynamics team—a group that eats, sleeps, and breathes mountain bike suspension. The shock's characteristics are designed to complement the kinematics of the new STATUS 2 perfectly.
LET’S GET PERSONAL: Each model of STATUS 2 features neatly packaged flip chips (located on the Horst pivot link, close to the rear axle) that allow you to finely tune the frame’s geometry to your desired ride or terrain. Bikes ship in the high position but can be ‘flipped’ to lower and slacker—8 mm lower bottom bracket and half a degree slacker head tube angle.
At a Glance
- 100% Redesigned durable alloy chassis
- Horst Link geometry adjust flip chip
- Updated geometry for more usability
Product Specifications
Product Specifications
Frame |
|
Rear Shock |
|
Seat Binder |
2024 Specialized Status 2 170 Frame
| Bike/Frame Size | S1 | S2 | S3 | S4 | S5 |
|---|---|---|---|---|---|
| Stack (low) | 620 mm | 625 mm | 634 mm | 643 mm | 652 mm |
| Stack (high) | 616 mm | 620 mm | 629 mm | 638 mm | 647 mm |
| BB Drop (high) | 26 mm | 26 mm | 26 mm | 26 mm | 26 mm |
| Trail (low) | 138 mm | 138 mm | 138 mm | 138 mm | 138 mm |
| Trail (high) | 133 mm | 133 mm | 133 mm | 133 mm | 133 mm |
| Fork Length (full) | 581 mm | 581 mm | 581 mm | 581 mm | 581 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 762 mm | 789 mm | 819 mm | 848 mm | 878 mm |
| Chainstay Length (low) | 432 mm | 432 mm | 432 mm | 437 mm | 437 mm |
| Chainstay Length (high) | 428 mm | 428 mm | 428 mm | 433 mm | 433 mm |
| Wheelbase | 1193 mm | 1221 mm | 1250 mm | 1285 mm | 1314 mm |
| Top-tube Length (horizontal) | 554 mm | 595 mm | 635 mm | 676 mm | 716 mm |
| Reach (low) | 420 mm | 445 mm | 470 mm | 495 mm | 520 mm |
| Bike Standover Height | 735 mm | 735 mm | 742 mm | 748 mm | 752 mm |
| Seat Tube Length | 390 mm | 400 mm | 420 mm | 440 mm | 465 mm |
| Seat Tube Angle (low) | 77° | 77° | 77° | 77° | 77° |
| Seat Tube Angle (high) | 77.6° | 77.6° | 77.6° | 77.6° | 77.6° |
| Reach (high) | 426 mm | 451 mm | 476 mm | 501 mm | 526 mm |
| Headtube Length | 95 mm | 100 mm | 110 mm | 120 mm | 130 mm |
| Headtube Angle (low) | 63.5° | 63.5° | 63.5° | 63.5° | 63.5° |
| Headtube Angle (high) | 64° | 64° | 64° | 64° | 64° |
| BB Height (low) | 342 mm | 342 mm | 342 mm | 342 mm | 342 mm |
| BB Height (high) | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| BB Drop (low) | 34 mm | 34 mm | 34 mm | 34 mm | 34 mm |
Size Guide: 2024 Specialized Status 2 170 Frame
