SPECIALIZED

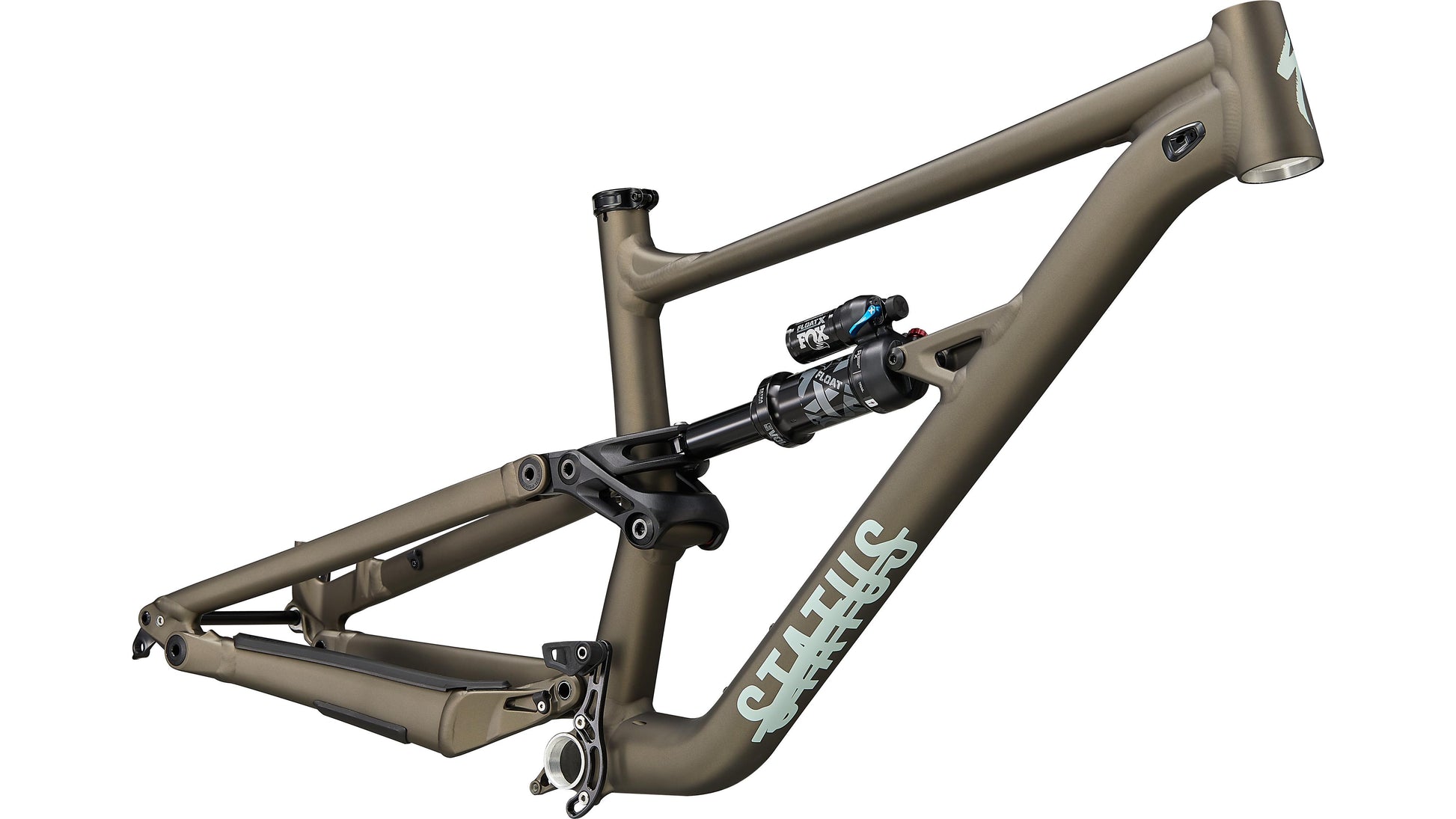

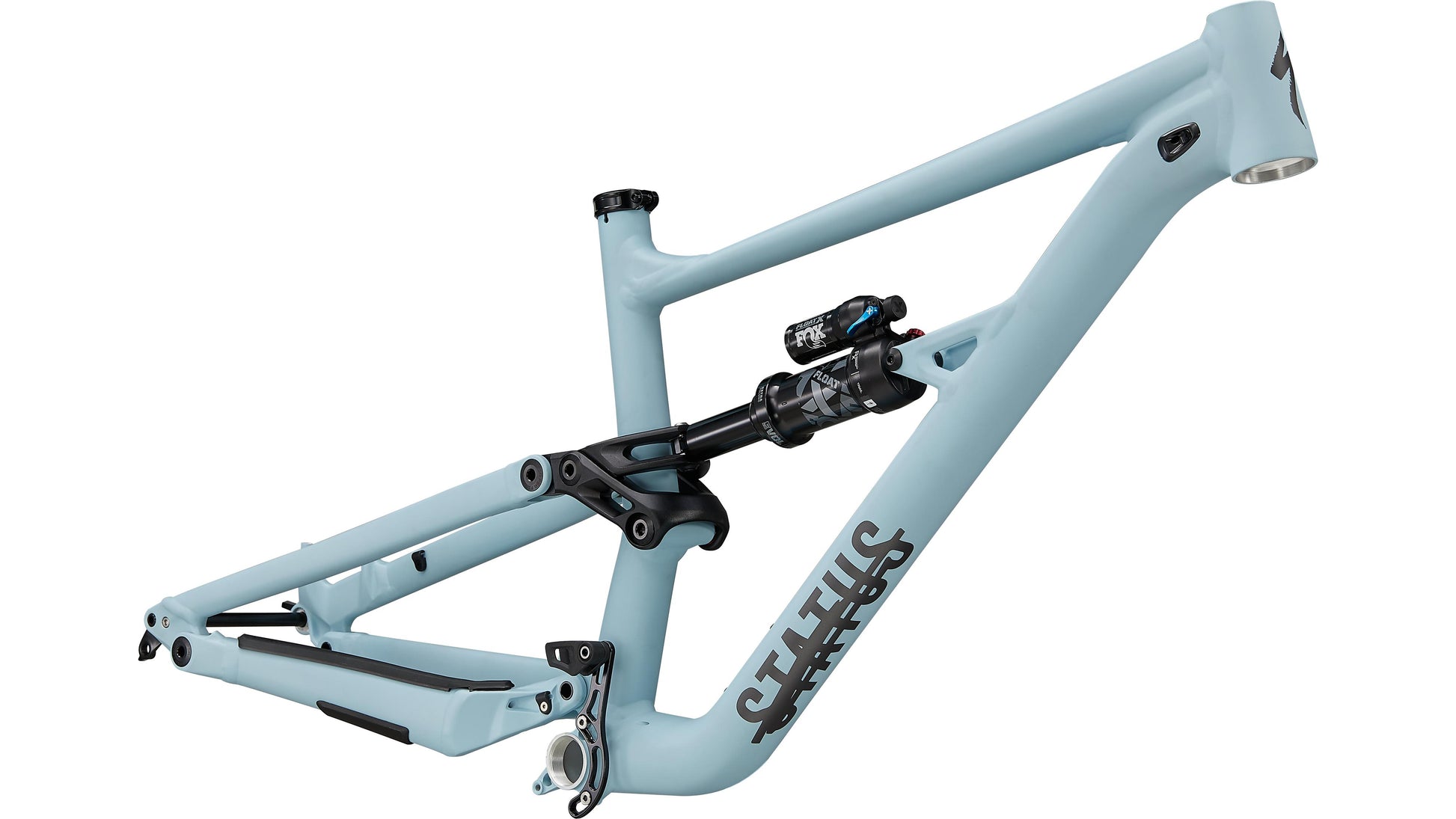

Specialized Status 160 Frame Only

Specialized Status 160 Frame Only

SKU:73722-7201

Regular price $1,400.00
Regular price $1,400.00 USD Sale price $1,400.00
Sold out
Color
Size
View full details

    Specialized Status 160 Frame Only Features

    It’s dealer’s choice with the Status 160 frameset, but whatever the build, a good time is more than a safe bet. But that said, the odds of you being able to keep your poker face after getting a taste of the Status 160’s playful Mixed Wheel-Size Trail Geometry are awfully tall.

    The traction and rolling speed of a 29-inch wheel on the front and the quick-to-flick, snappy ride feel of a 27.5-inch wheel in back may sound like were hedging our bets, but we’re really going all-in on fun.

    And; by sticking to a frame design with an emphasis on simplicity and reliability we’ve ensured the fun flows unfiltered and free from distractions.

    At a Glance

    • With an eye on keeping maintenance to a minimum, oversized pivot bearings increase durability while a common size across all pivots makes service and replacement a breeze when that day does come around. A threaded SRAM DUB bottom bracket continues on the theme with worry-free performance.
    • The active, planted feel of the Status’s FSR suspension design and Fox’s FLOAT X Performance rear shock equipped with our Rx Trail Tune make for perfect friends—and plenty of benefits. Calling on a twin-tube design that allows for two separate oil pathways during compression and rebound, the FLOAT X Performance rear shock provides plenty of support for big hits while still offering enough buttery small-bump sensitivity to keep you fresh for when the style points really count.

    Product Specifications

    Frame

    M5 alloy chassis and rear-end, Mixed wheel Trail Geometry, threaded BB,12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 160mm of travel

    Rear Shock

    FOX FLOAT X Performance, Rx Trail Tune, EVOL Air sleeve, 2-position lever w/ LSR adjustment, 230x60mm

    Seat Binder

    Alloy, 38.6mm

    Specialized Status 160 Frame Only

    Bike/Frame Size S1 S2 S3 S4 S5
    Stack (low BB) 610 mm 614 mm 623 mm 632 mm 641 mm
    Reach (low BB) 417 mm 437 mm 462 mm 487 mm 512 mm
    Fork Length (full) 567 mm 567 mm 567 mm 567 mm 567 mm
    Fork Rake/Offset 44 mm 44 mm 44 mm 44 mm 44 mm
    Front-Center (low BB) 756 mm 778 mm 808 mm 837 mm 867 mm
    Chain-Stay Length 426 mm 426 mm 426 mm 426 mm 426 mm
    Wheelbase 1181 mm 1203 mm 1233 mm 1264 mm 1292 mm
    Seat-Tube Length 400 mm 400 mm 420 mm 440 mm 465 mm
    Seat-Tube Angle 76° 76° 76° 76° 76°
    Head-Tube Length 95 mm 100 mm 110 mm 120 mm 130 mm
    Head-Tube Angle (low BB) 63.2° 63.2° 63.2° 63.2° 63.2°
    Head-Tube Angle 63.7° 63.7° 63.7° 63.7° 63.7°
    B-B Height (low BB) 338 mm 338 mm 338 mm 338 mm 338 mm
    B-B Height 347 mm 347 mm 347 mm 347 mm 347 mm
    B-B Drop (low BB) 17.5 mm 17.5 mm 17.5 mm 17.5 mm 17.5 mm
    B-B Drop 8.5 mm 8.5 mm 8.5 mm 8.5 mm 8.5 mm
    Trail (low BB) 141 mm 141 mm 141 mm 141 mm 141 mm

    Size Guide: Specialized Status 160 Frame Only

    Size guide for Specialized Status 160 Frame Only
