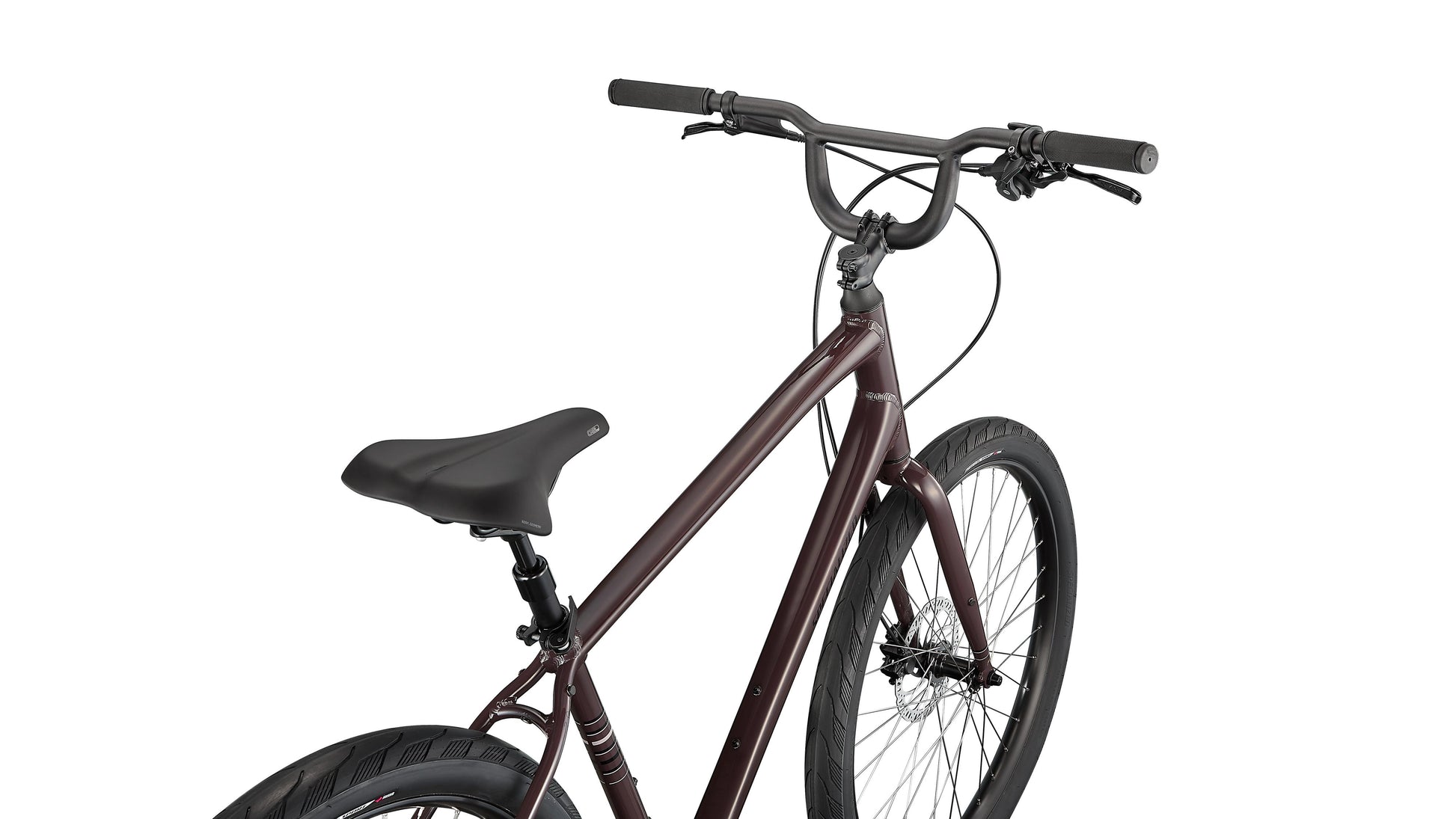

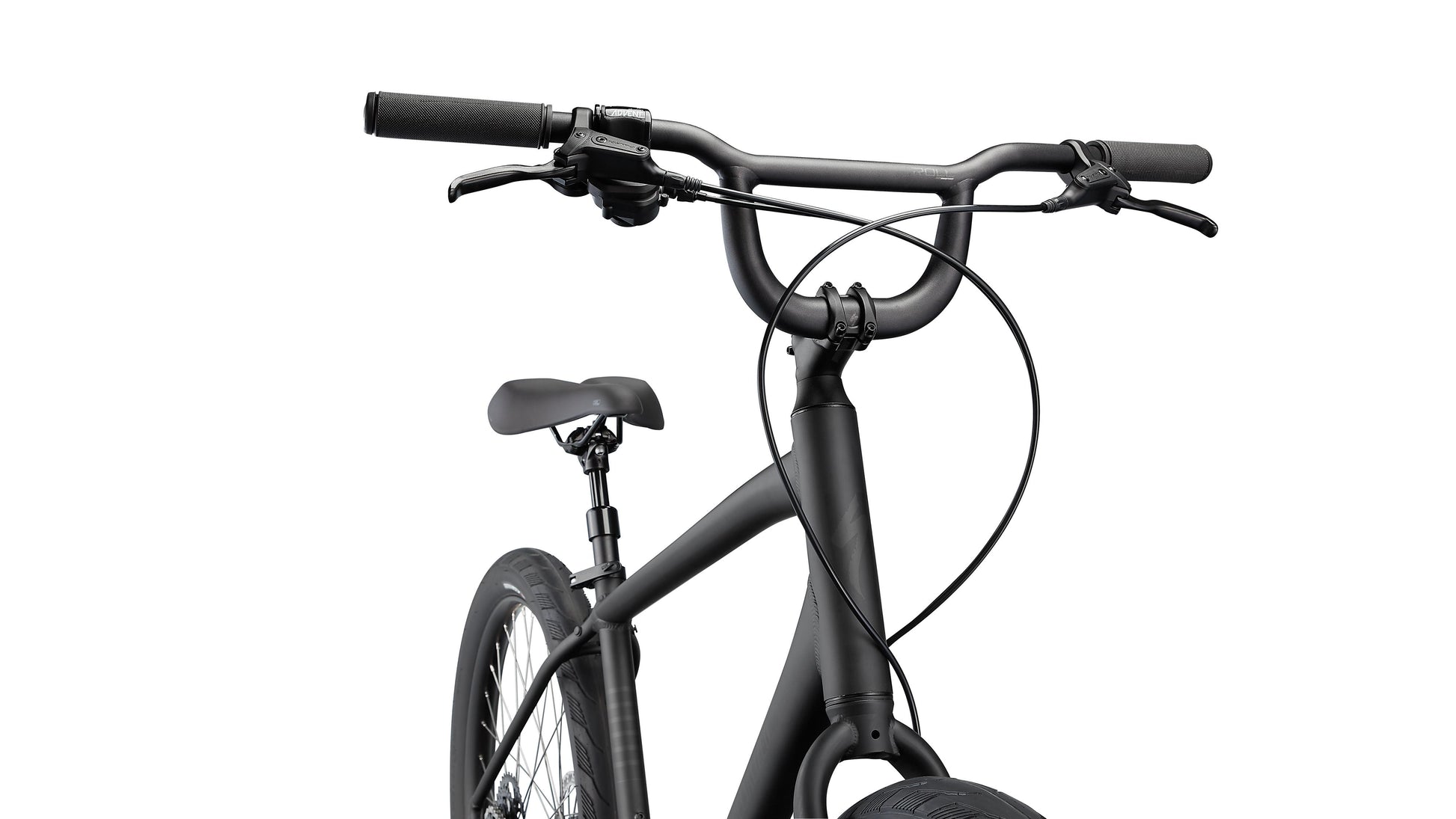

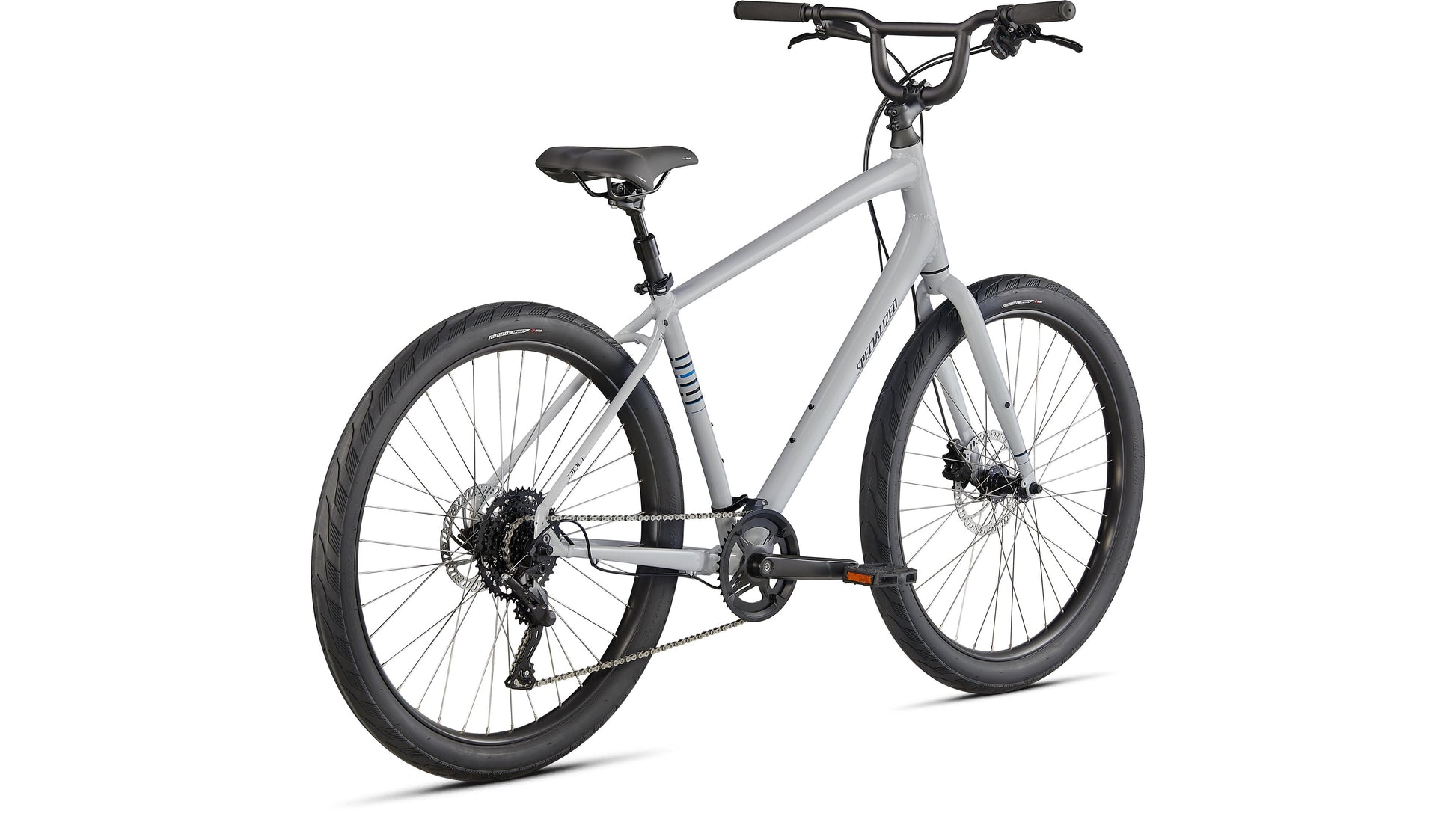

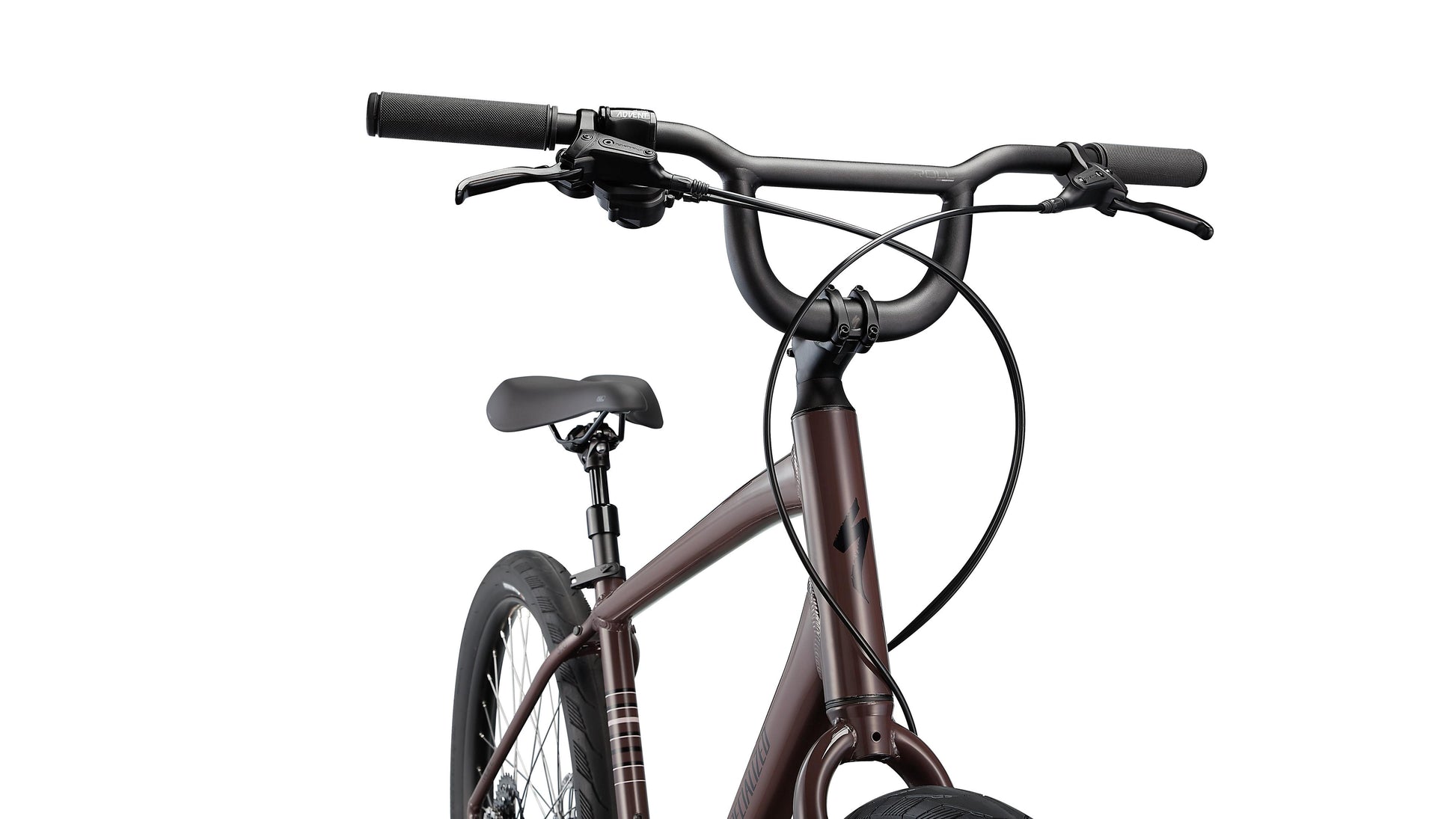

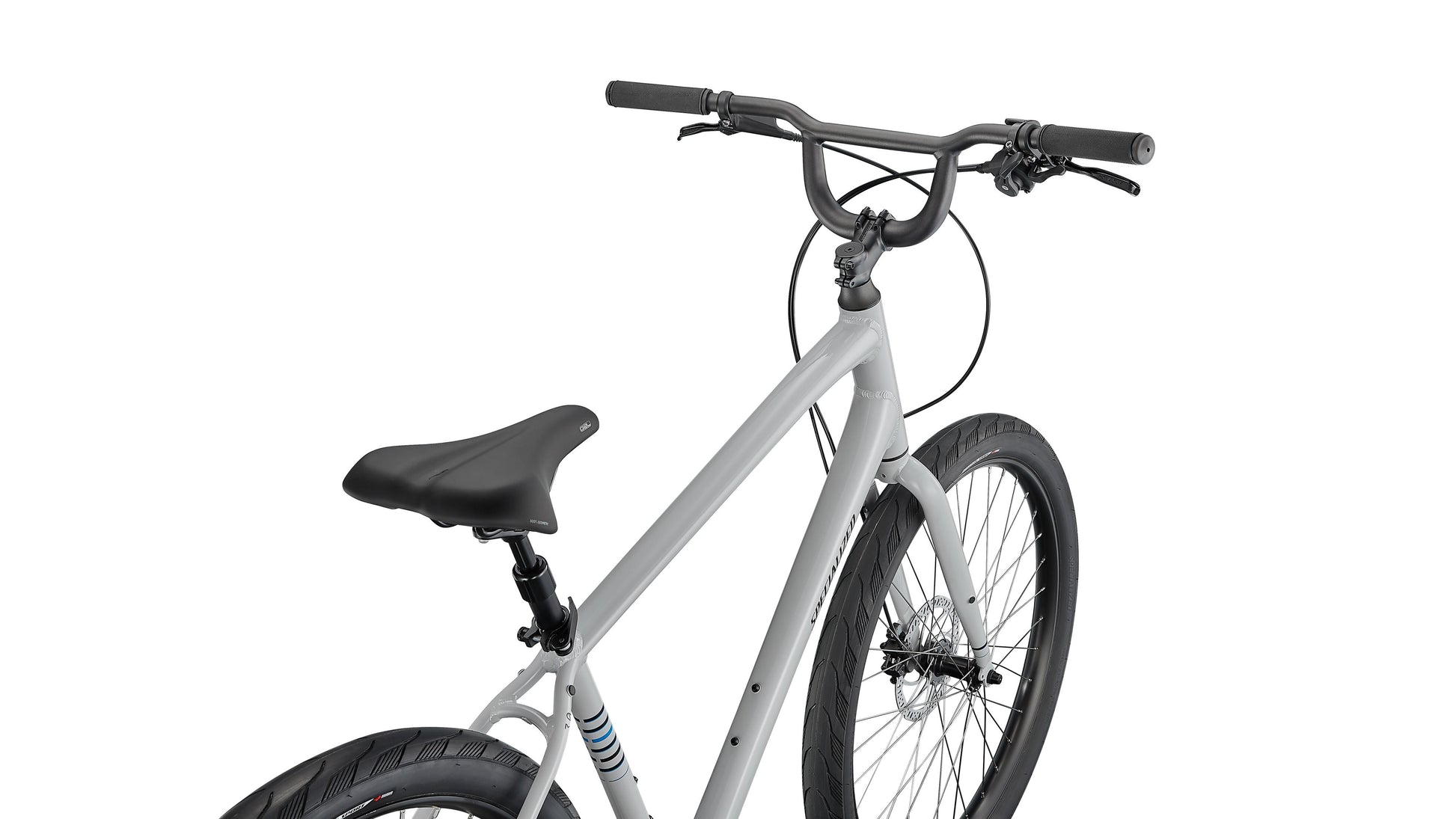

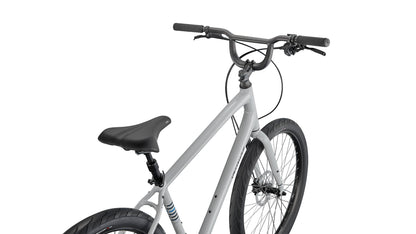

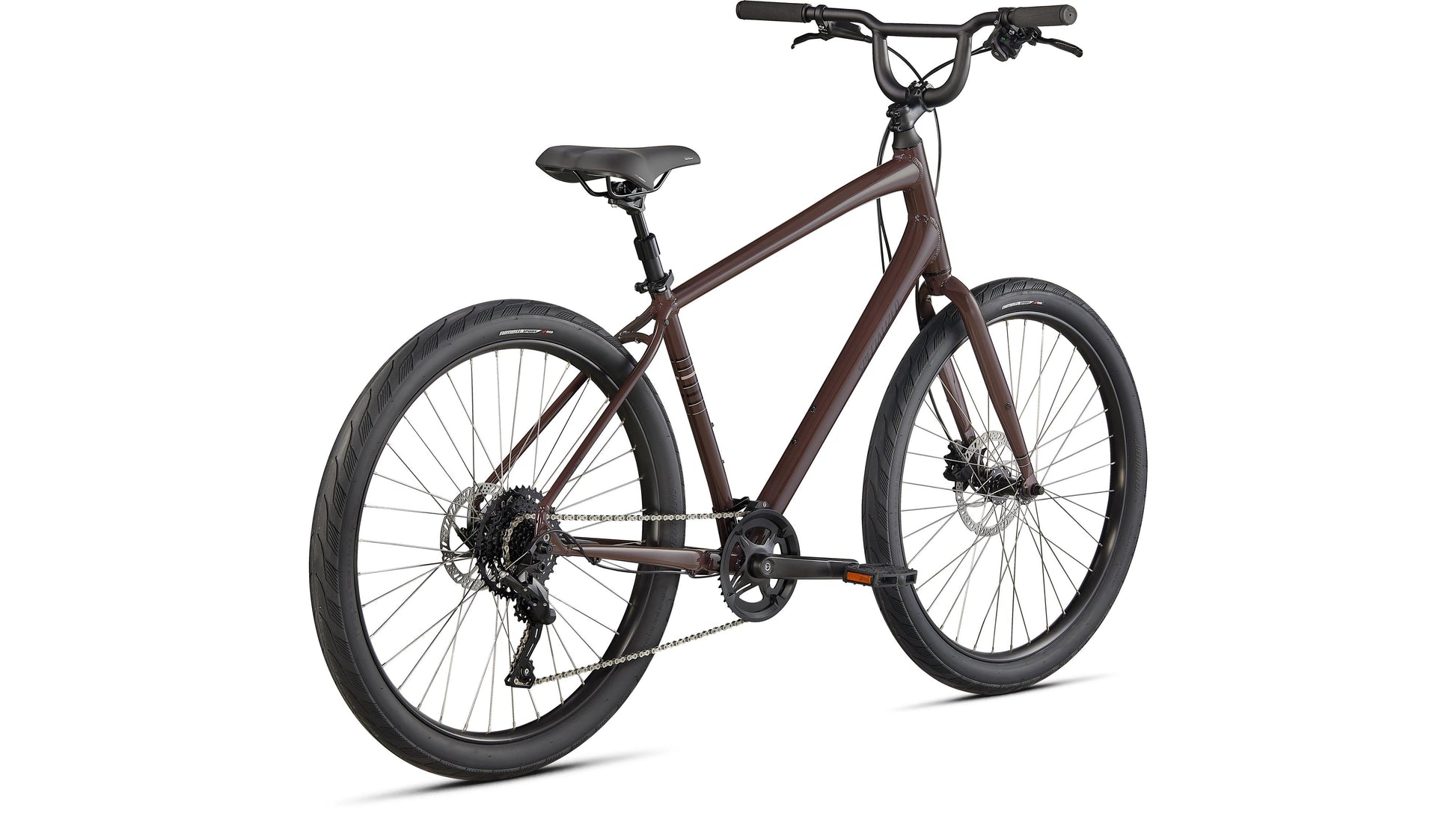

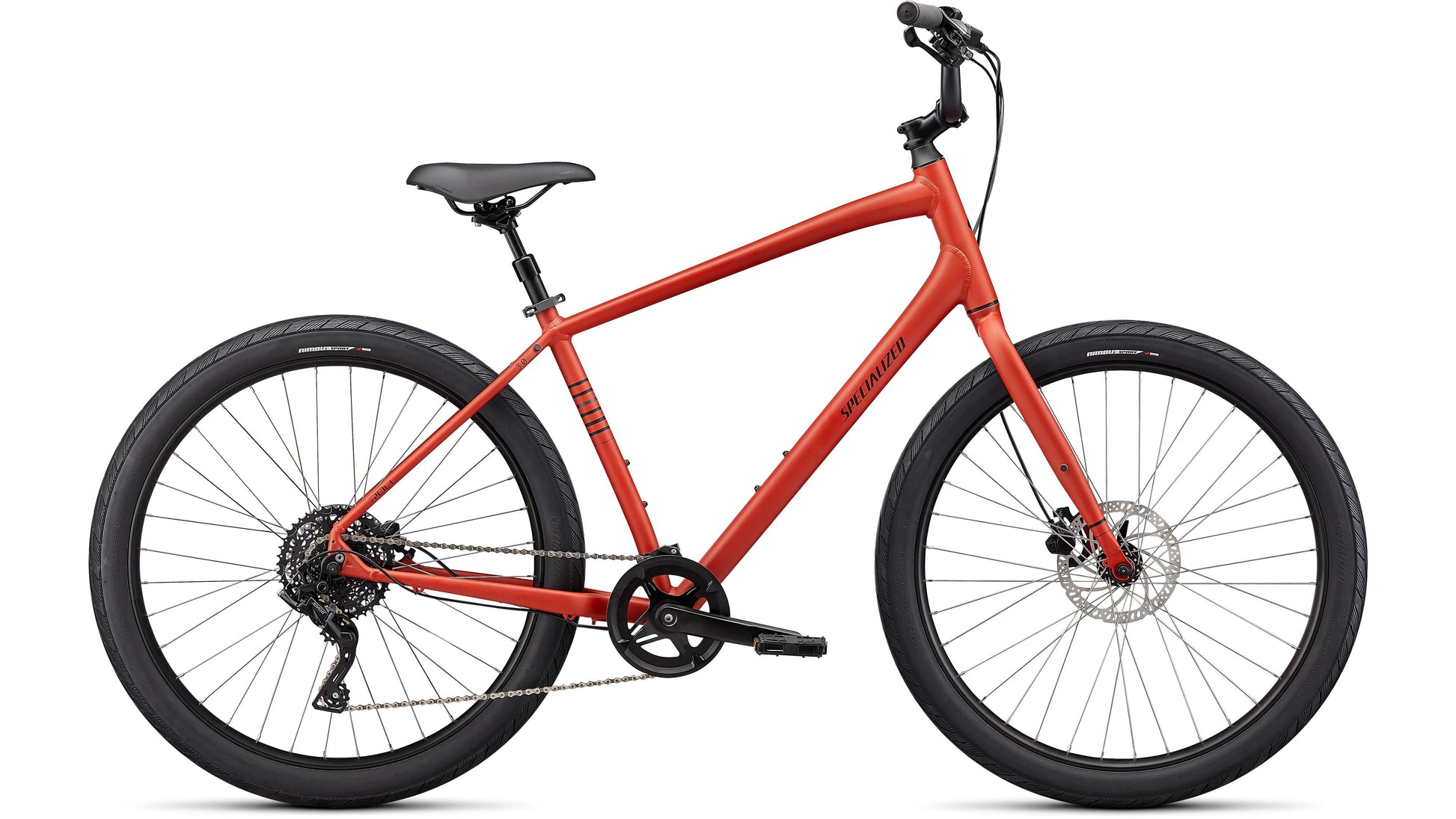

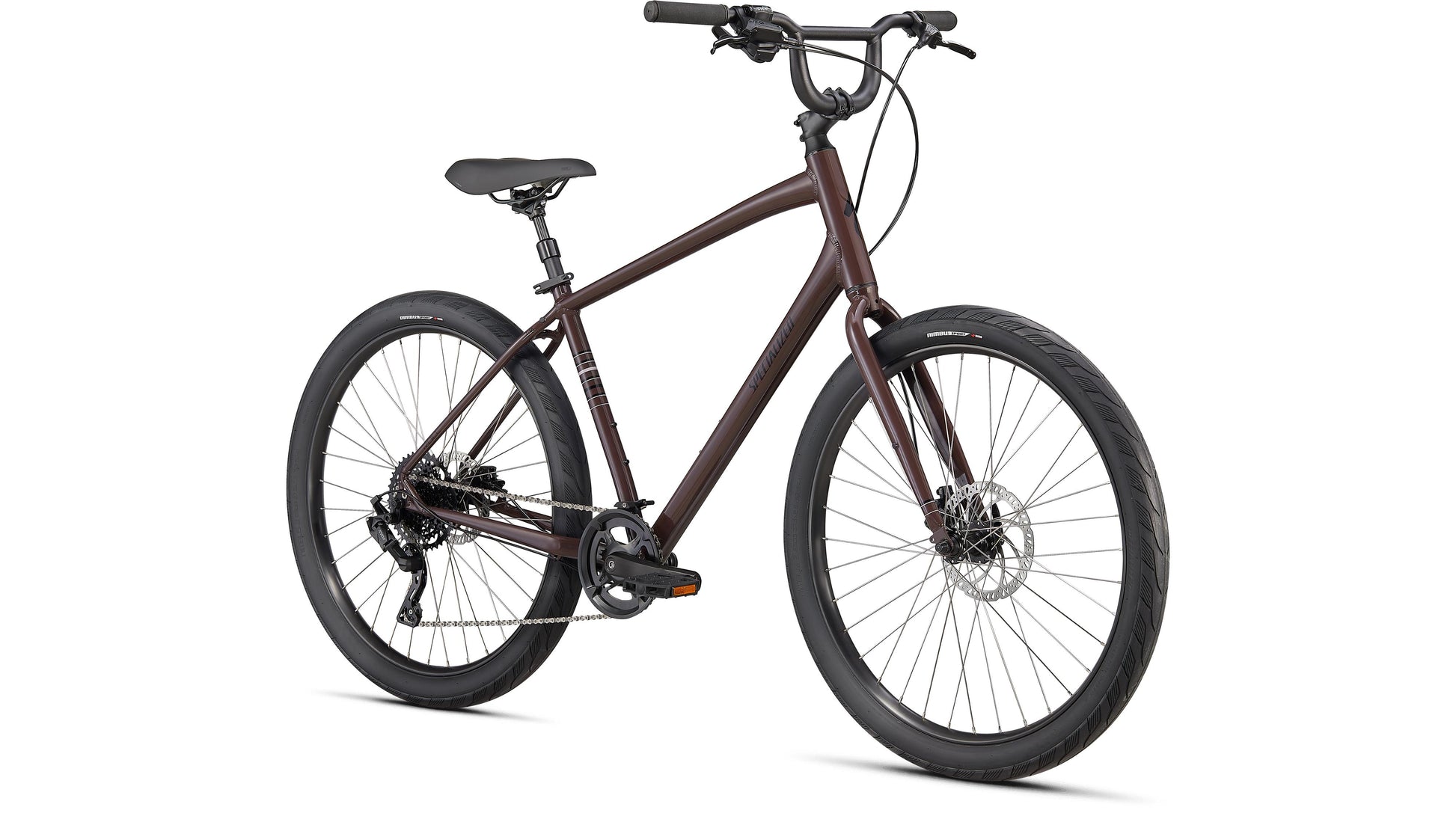

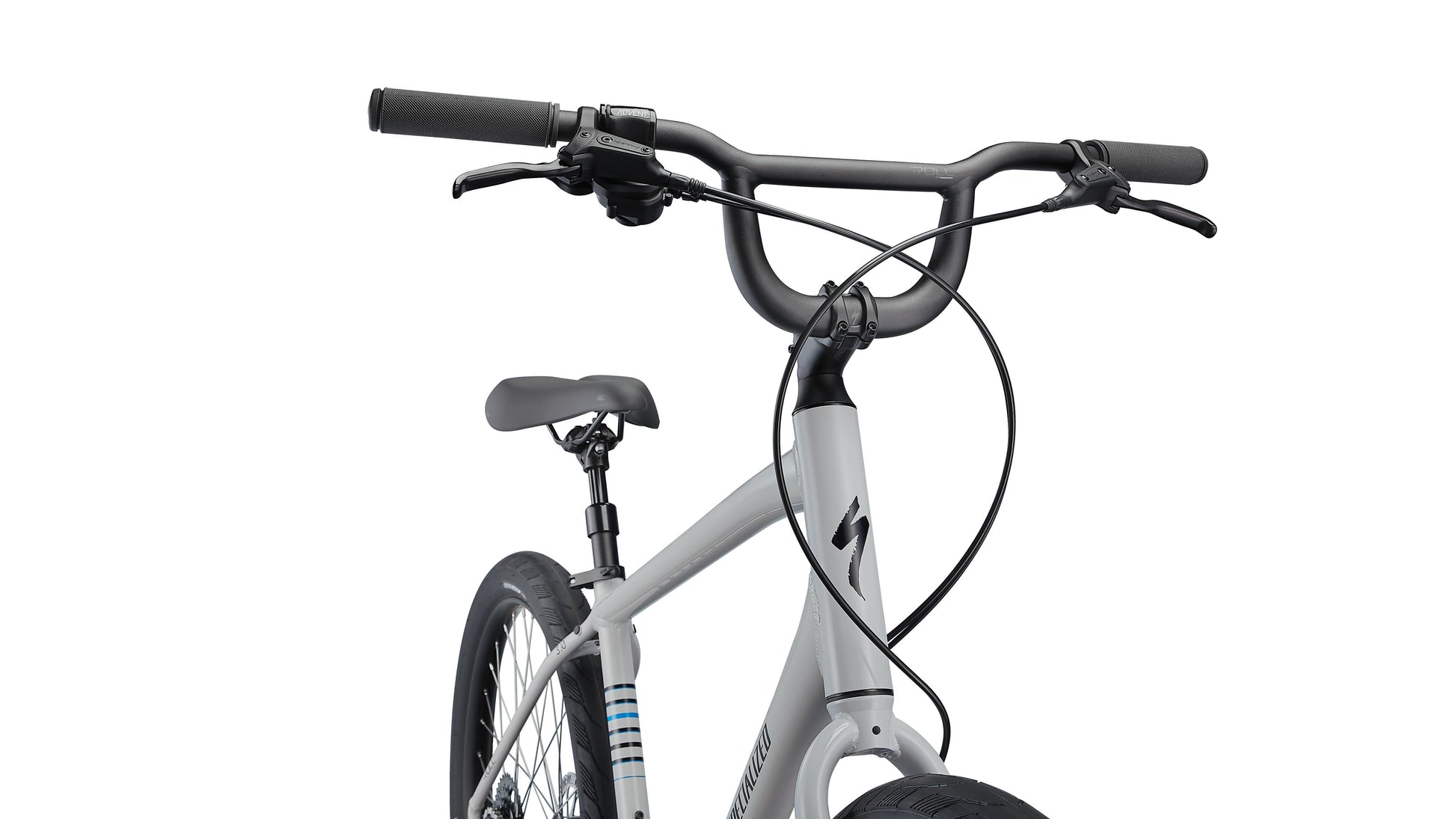

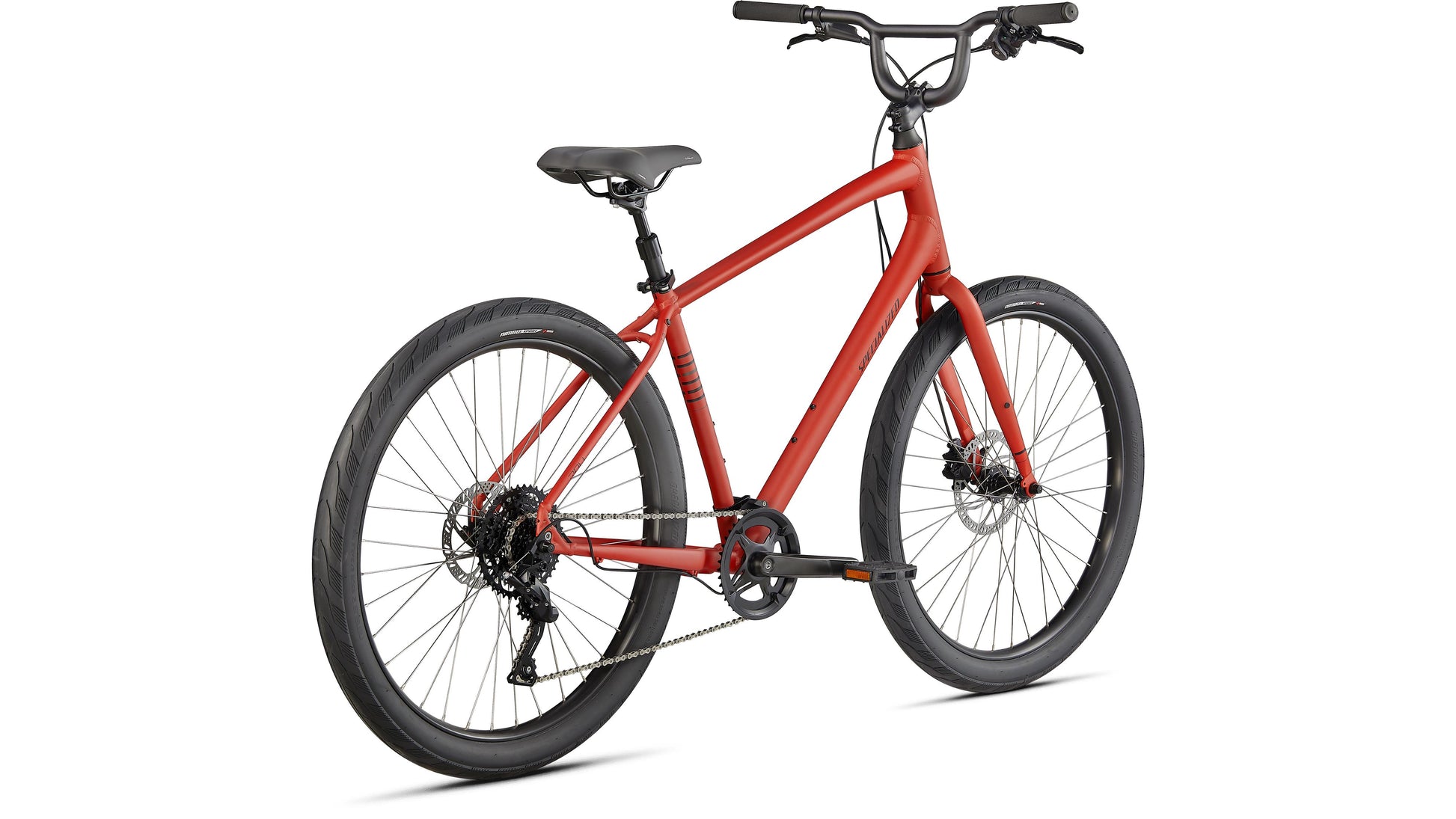

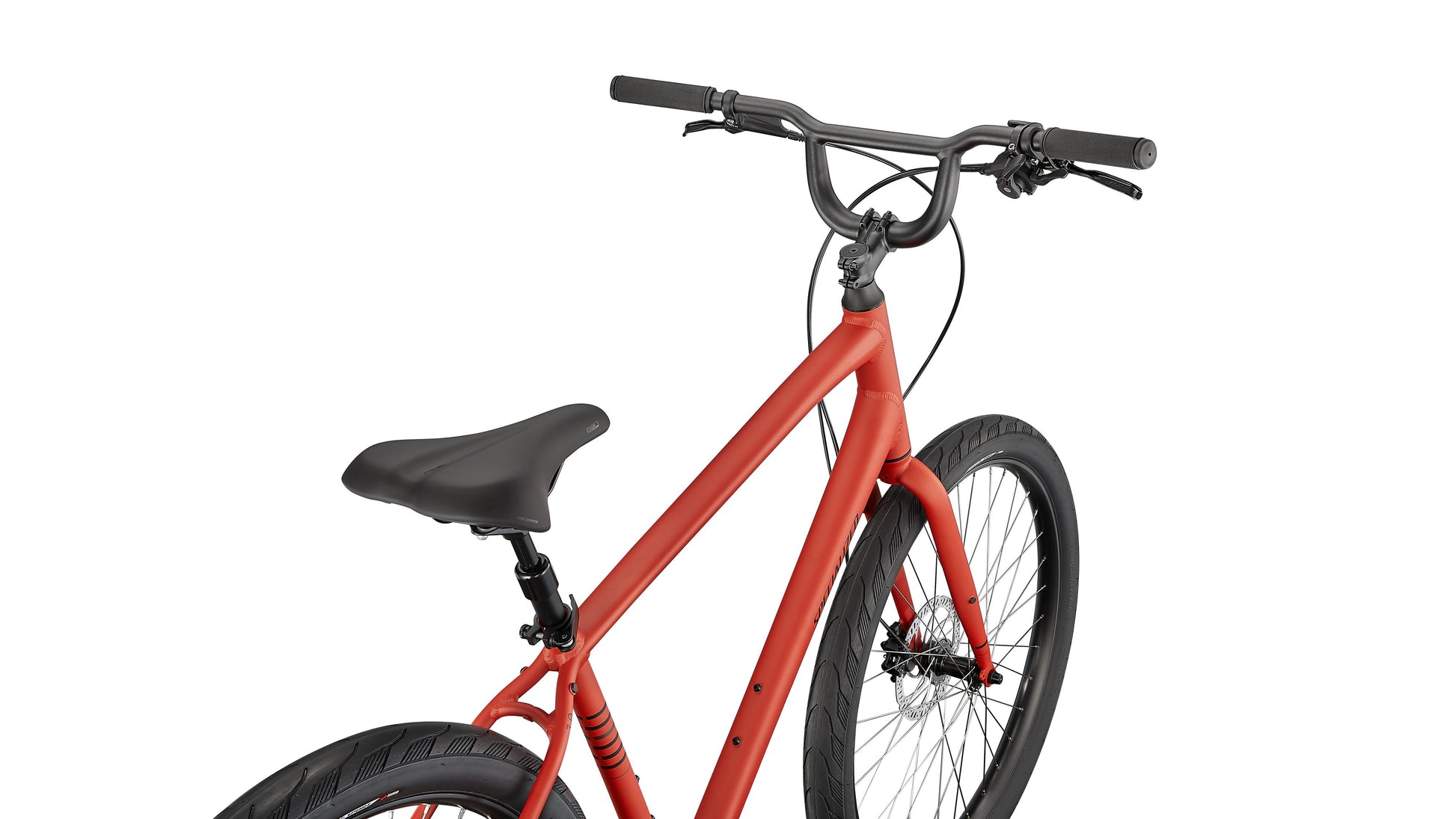

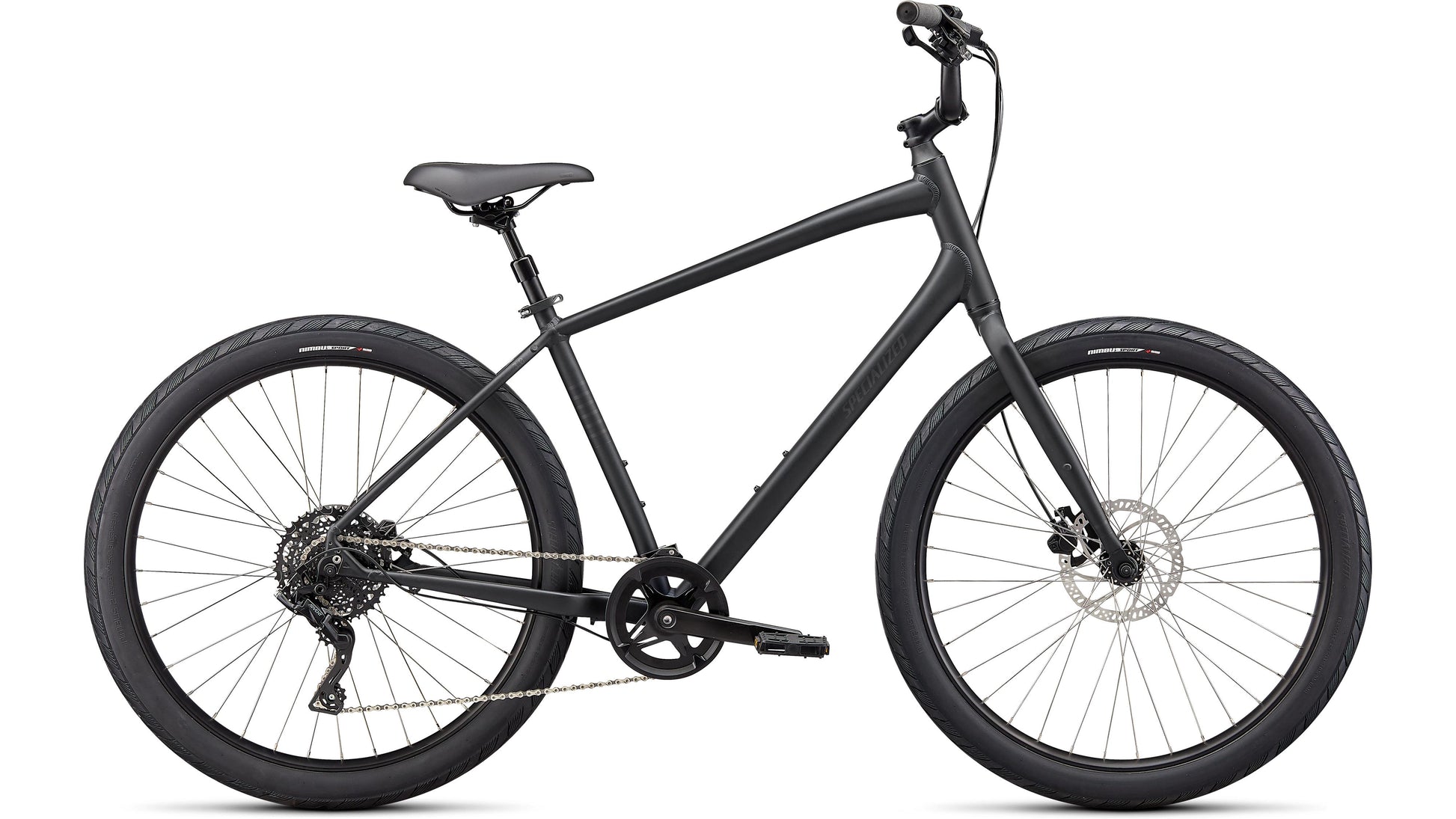

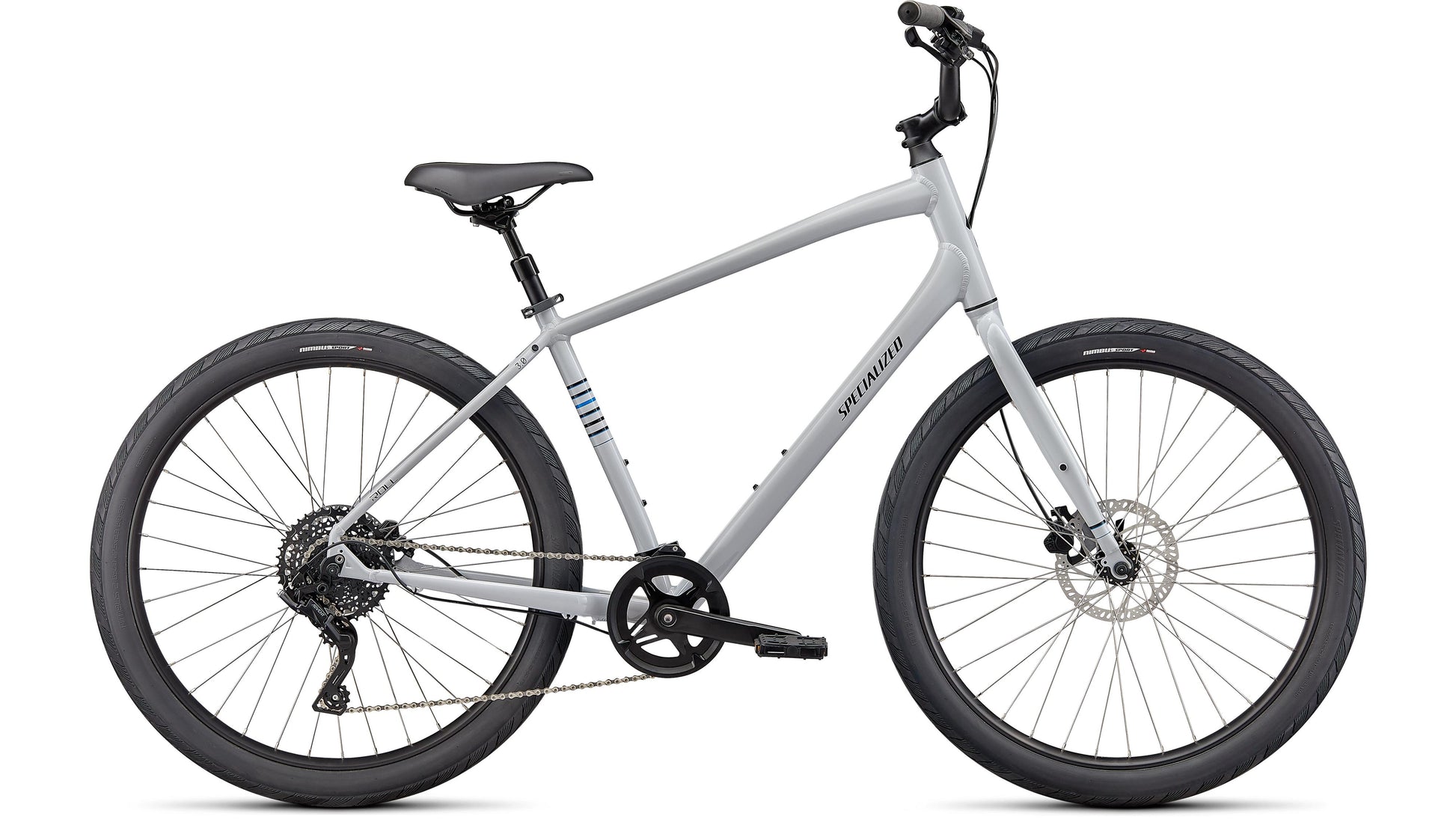

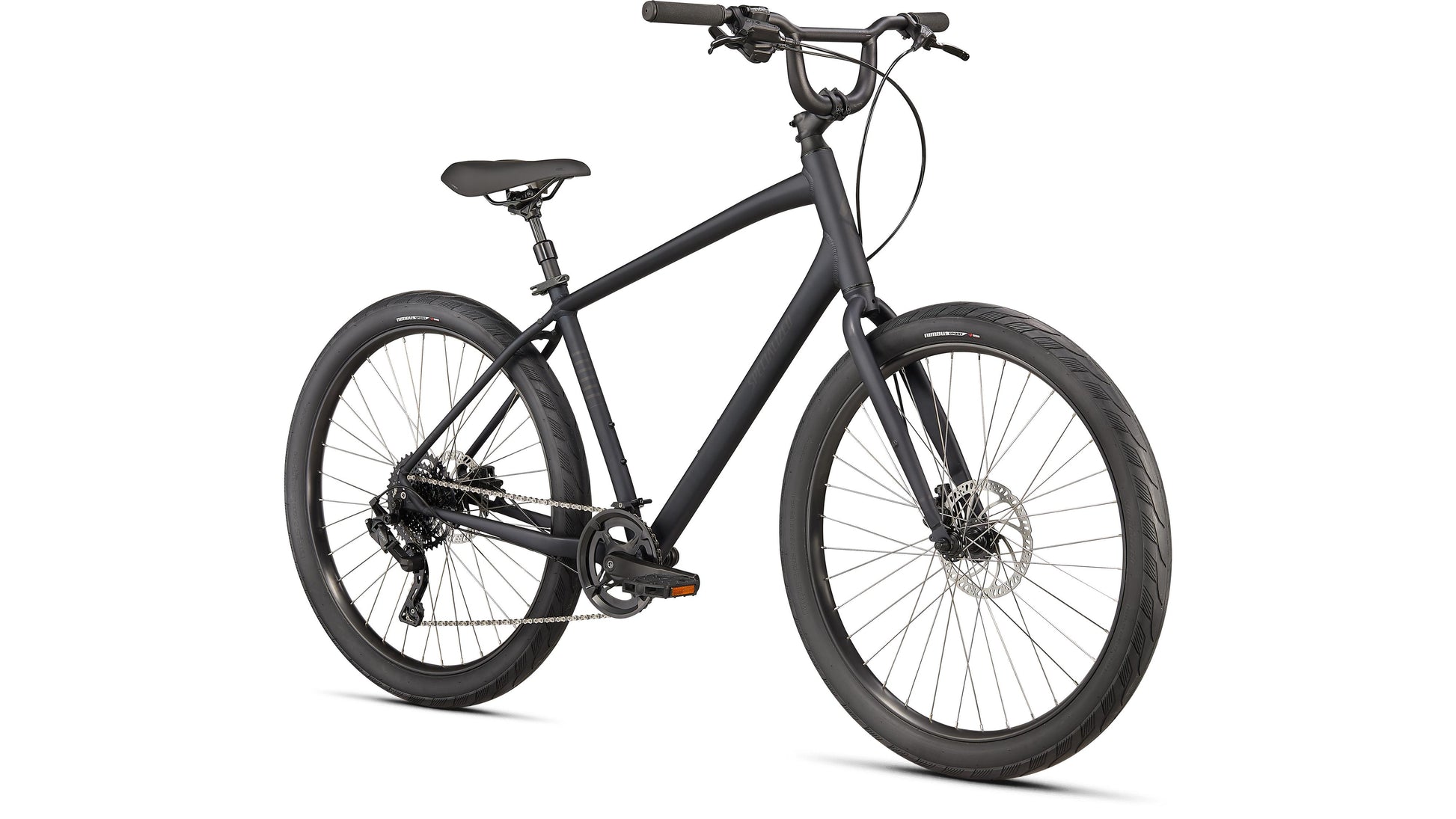

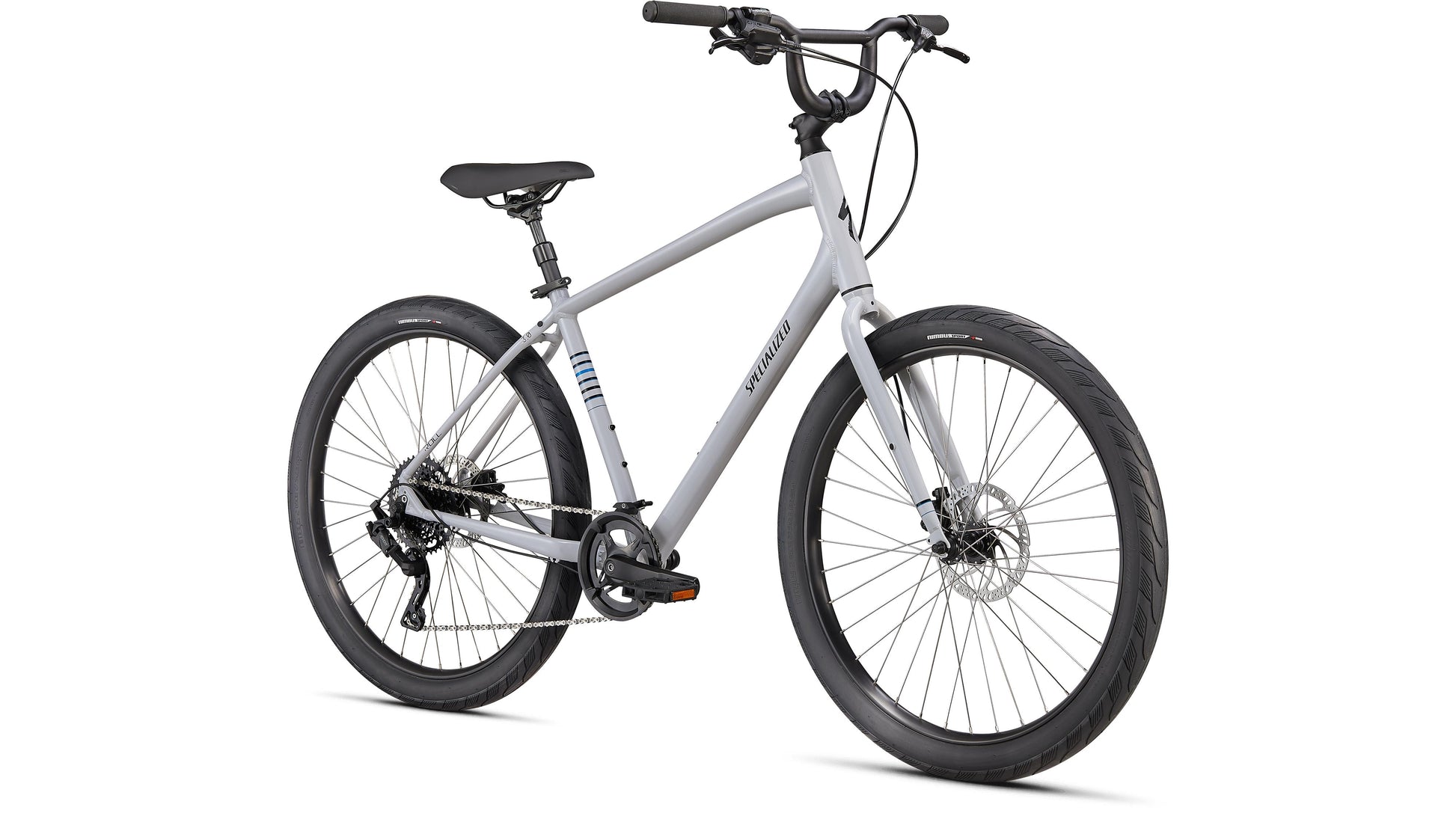

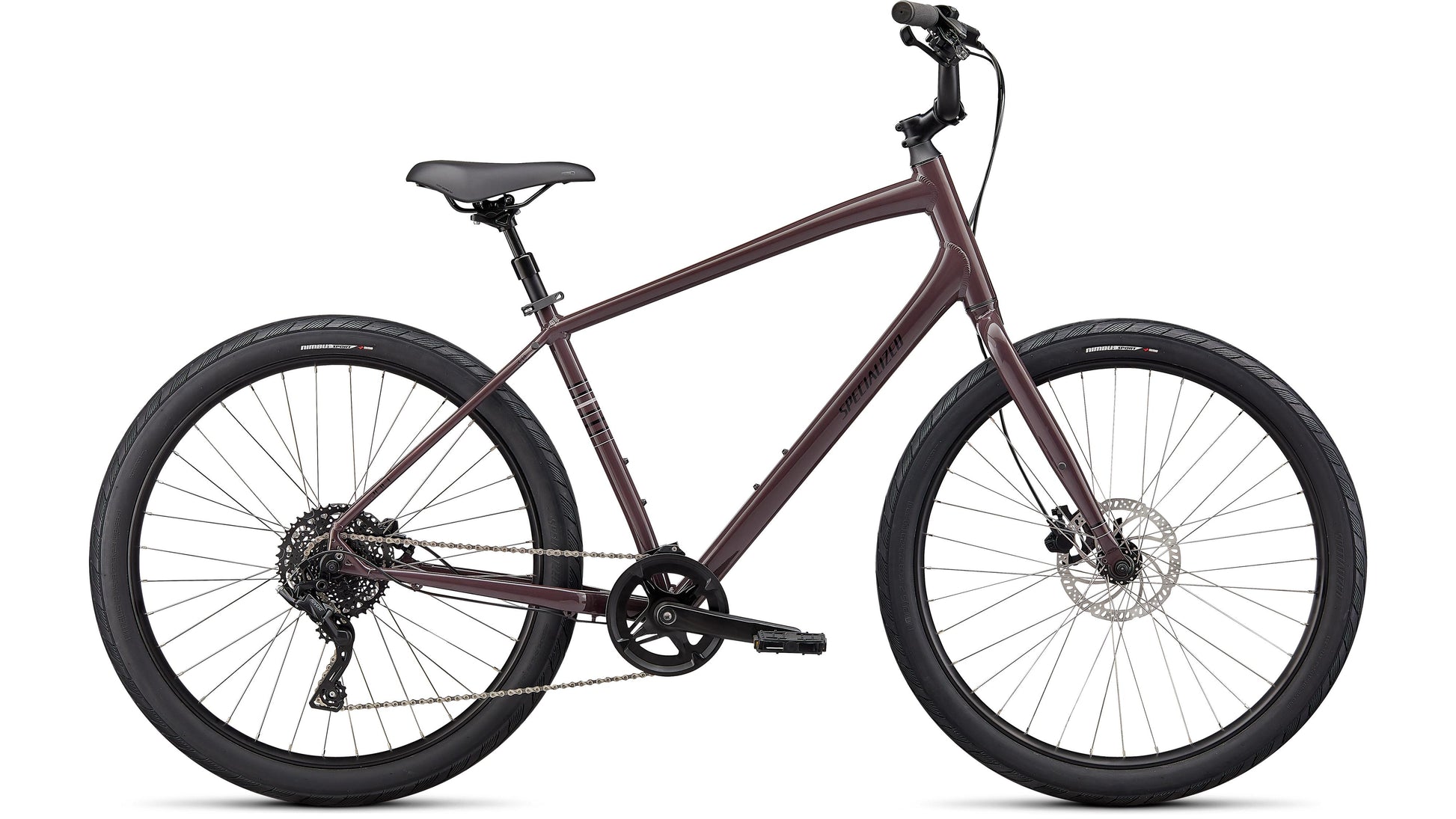

Specialized Roll 3.0 Features
They say that every journey begins with a single step, but when that journey is related to exercise, that first step can sure be a doozy. It can be life-changing, however, and there's no better machine to take the plunge with than with the Roll.
With its lightweight alloy frame, eight speeds of "go fast" gearing, stable and wide 650b tires, and powerful hydraulic disc brakes, the Roll does everything in its power to encourage and motivate you to keep fit and get around in comfortable, efficient style.
At a Glance
- The Roll is made of our A1 Premium Aluminum, and it features our Ground Control Positioning that makes it easy to put a foot down when stopped. This Roll also comes ready with rack/fender mounts.
- Wide diameter, 650b x 2.3" Nimbus II Sport Reflect tires provide excellent traction, stability, and cushioning, which creates a safer, more reliable, and more comfortable ride on either paved or dirt roads. Plus, the reflective accents of the tire increase your visibility to motorists in low-light conditions.
- Equipped with a Body Geometry Comfort Gel saddle, you can expect a supreme level of comfort anywhere you ride. It is ergonomically designed and scientifically tested to provide unmatched comfort and support while reducing pressure on soft tissue.
Component Specifications
| Frame | Specialized A1 Premium Aluminum, Ground Control Positioning, formed tubes, post-mount disc, fender/rack mounts |
| Seat Binder | Quick-release clamp, 31.8mm |
| Fork | Steel formed tubes, post-mount disc, fender/rack mounts |
| Shift Levers | MicroSHIFT, 8-speed |
| Rear Derailleur | MicroSHIFT Advent 8 Speed, W/O Clutch |
| Cassette | MicroSHIFT, 8-Speed, 12-42t |
| Chain | KMC X8 w/ Missing Link™ |
| Crankset | 3 pc, Alloy Forged Arms |
| Chain Rings | 40T |
| Bottom Bracket | 68mm, square taper, 124.5mm length |
| Rims | 650b disc, double-wall alloy, pinned, 32h |
| Front Hub | Alloy, 6-bolt disc, loose ball bearing, quick-release, 32h |
| Rear Hub | Alloy, 6-bolt disc, Shimano, 8/9-speed freehub, 135mm spacing, quick-release, 36h |
| Spokes | Stainless, 14g |
| Front Tire | Nimbus 2 Sport, 650Bx2.3 |
| Rear Tire | Nimbus 2 Sport, 650Bx2.3 |
| Inner Tubes | Standard 48mm SV 27.5X1.75/2.4 |
| Front Brake | Tektro HD-T275, hydraulic disc, 180 mm rotor |
| Rear Brake | Tektro HD-T275, hydraulic disc, 160 mm rotor |
| Stem | 3D-forged alloy, 31.8mm, 7-degree rise |
| Handlebars | Specialized Roll, 6061 alloy, Double butted, 15-degree backsweep, 136mm rise, 31.8mm |
| Grips | Slip-on, Closed End Grips |
| Saddle | Specialized Body Geometry Comfort Gel |
| Seatpost | Spring suspension, alloy, 27.2mm, 2-bolt clamp |
Specialized Roll 3.0
| Bike/Frame Size | S | M | L | XL |
|---|---|---|---|---|
| Stack | 583 mm | 616 mm | 644 mm | 667 mm |
| Reach | 346 mm | 352 mm | 370 mm | 392 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1088 mm | 1095 mm | 1124 mm | 1155 mm |
| Top Tube Length, Horizontal | 594 mm | 613 mm | 643 mm | 675 mm |
| Bike Standover Height | 801 mm | 850 mm | 881 mm | 911 mm |
| Seat Tube Length | 375 mm | 440 mm | 480 mm | 520 mm |
| Seat Tube Angle | 67° | 67° | 67° | 67° |
| Head Tube Length | 155 mm | 185 mm | 215 mm | 240 mm |
| Head Tube Angle | 68° | 69° | 69° | 69° |
| BB Height | 285 mm | 285 mm | 285 mm | 285 mm |
| BB Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Trail | 84 mm | 77 mm | 77 mm | 77 mm |
| Fork Length, Full | 420 mm | 420 mm | 420 mm | 420 mm |
| Fork Rake/Offset | 55 mm | 55 mm | 55 mm | 55 mm |
| Front Center | 617 mm | 624 mm | 653 mm | 684 mm |
